Q: What are the key features of this flight stack?

A: The SpeedyBee F405 V3 BLS 50A flight stack features wireless Bluetooth connectivity, supporting up to 8 motors simultaneously. It includes an SD card slot with up to 4GB capacity for extensive blackbox data logging. The stack is designed for direct plug-and-play with DJI Air Units and includes dual BEC outputs of 5V 2A and 9V 2A. It also has a battery voltage indicator, allowing you to easily monitor the voltage status when the battery is connected.

Q: What components are recommended to pair with this FPV stack?

A: This flight controller stack supports a maximum continuous current of 50A, making it ideal for pairing with MEPS 2207 motor or MEPS 2306 motors, and the RunCam Link Wasp for high-performance FPV setups.

Q: What are the recommended use cases for this flight stack?

A: The SpeedyBee F405 V3 uses a high-performance STM32F405 flight controller and is equipped with DJI-compatible ports for seamless integration with DJI O3, RunCam Link, Caddx Vista, and DJI Air Unit V1 systems. It is well-suited for cinematic flying and freestyle FPV, offering a professional and smooth flight experience.

Q: What should be considered when using this flight stack?

A: When selecting motors and batteries, ensure they are compatible with the stack's specifications. This stack is recommended for use with 3-6S batteries. The ESC can be configured using BLHeli32/BLHeli_S/BlueJay firmware, and it supports a maximum continuous current of 50A. During installation, follow the wiring instructions carefully to avoid incorrect connections that could cause permanent damage to the electronic components.

SpeedyBee F405 V3 BLS 50A 30x30 ESC&FC FPV Stack

SpeedyBee

$30 Off Orders $499+

$15 Off Orders $249+

Collect

$ 36.99 ~~$51.90~~

-29%

5 | 264Sold

Options (3)

Quantity

In Stock Expected ship within 5 days after order.

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Top highlights

SPEEDYBEE application, simplifies setup
Rugged 50A 4-in-1 ESC with support for 6S motors for great power
Four-level LED indicator shows real-time battery health status
Easily adjust motor orientation with the SpeedyBee app, compatible with multiple ESCs.
Supports 8-way motors for X8/Y6/Fixed Wing

Payment | Every order you place with us is safe & secure

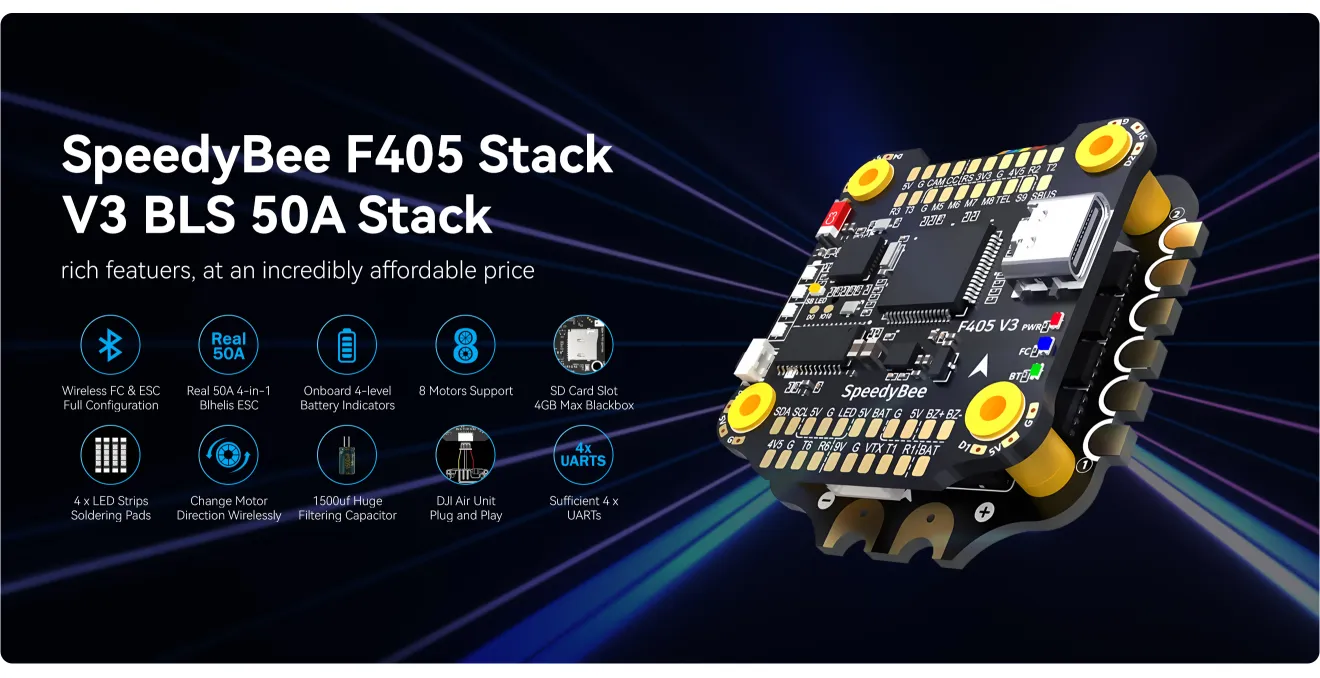

speedybee f405 stack optimization with rich features p

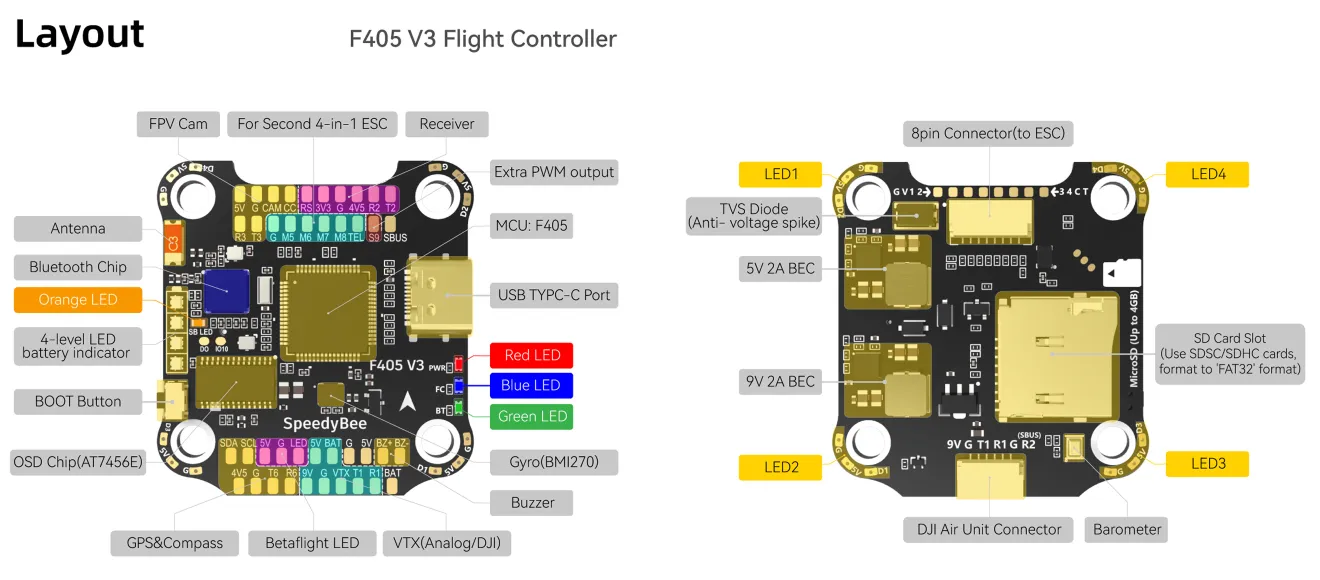

F405 V3 Flight Controller

Features the advanced F405 main chip for superior performance over the F411. It includes Bluetooth for complete wireless Betaflight tuning, onboard 4-level battery voltage display, supports 8 motors, and has a 4GB max SD card slot for black box logging. Equipped with 4 LED strip pads, DII plug-in, and an integrated barometer.

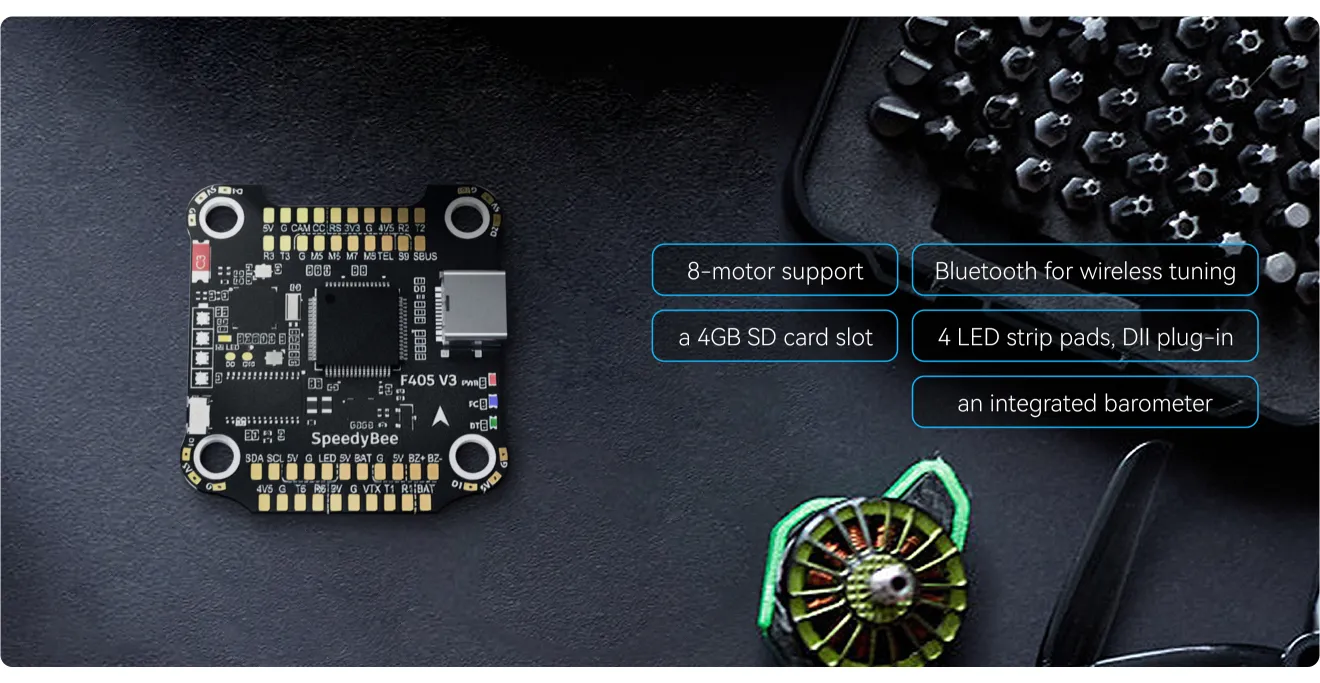

speedybee f405 stack optimization highlights p

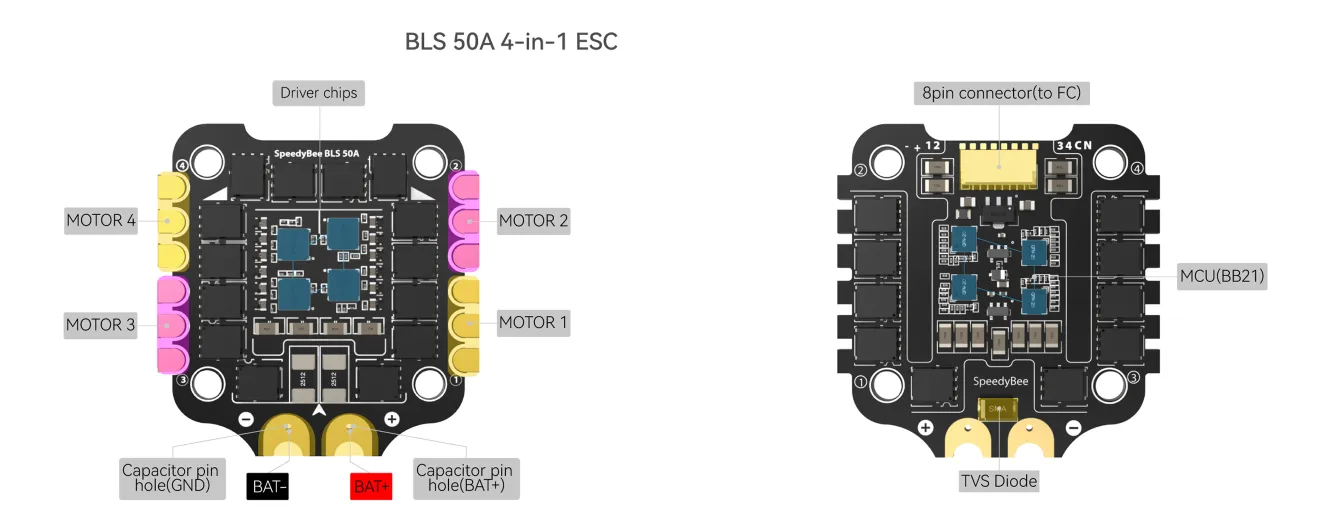

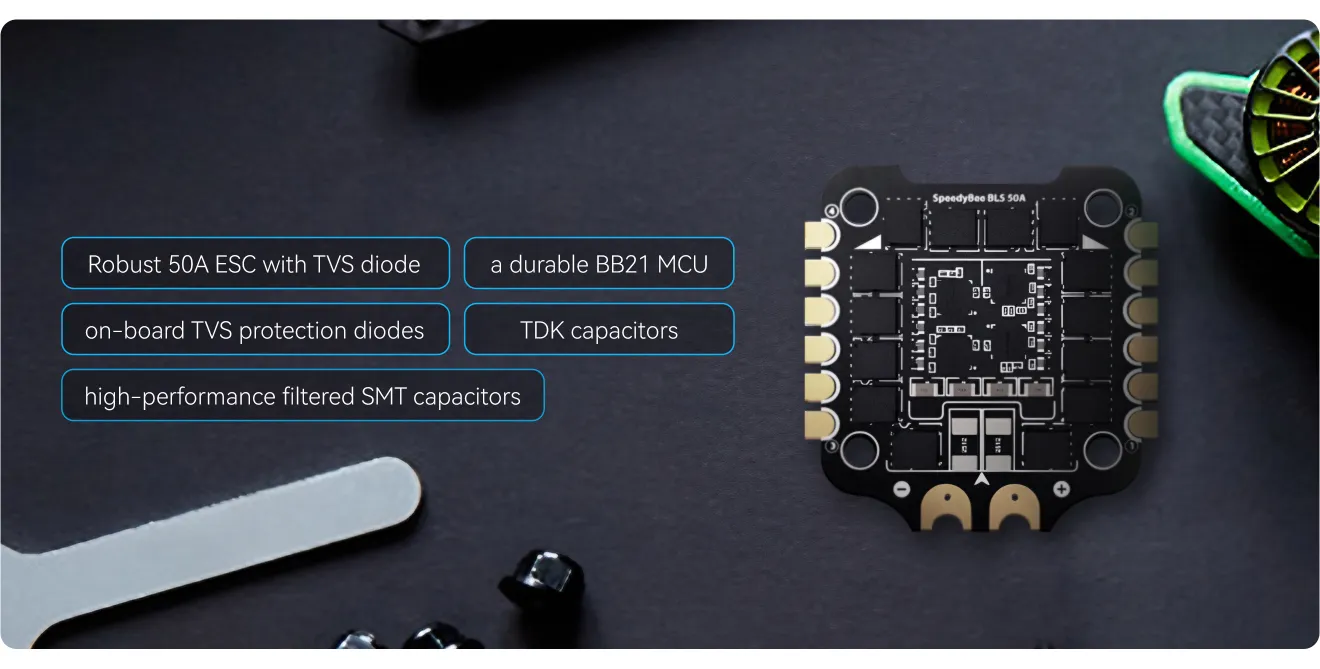

Robust 50A 4-in-1 ESC for Uncompromising Power

Robust 50A ESC with TVS diode and TDK capacitors ensures smooth flights and durable builds.Easily drive any violent 6S motor.

speedybee f405 stack optimization with great features p

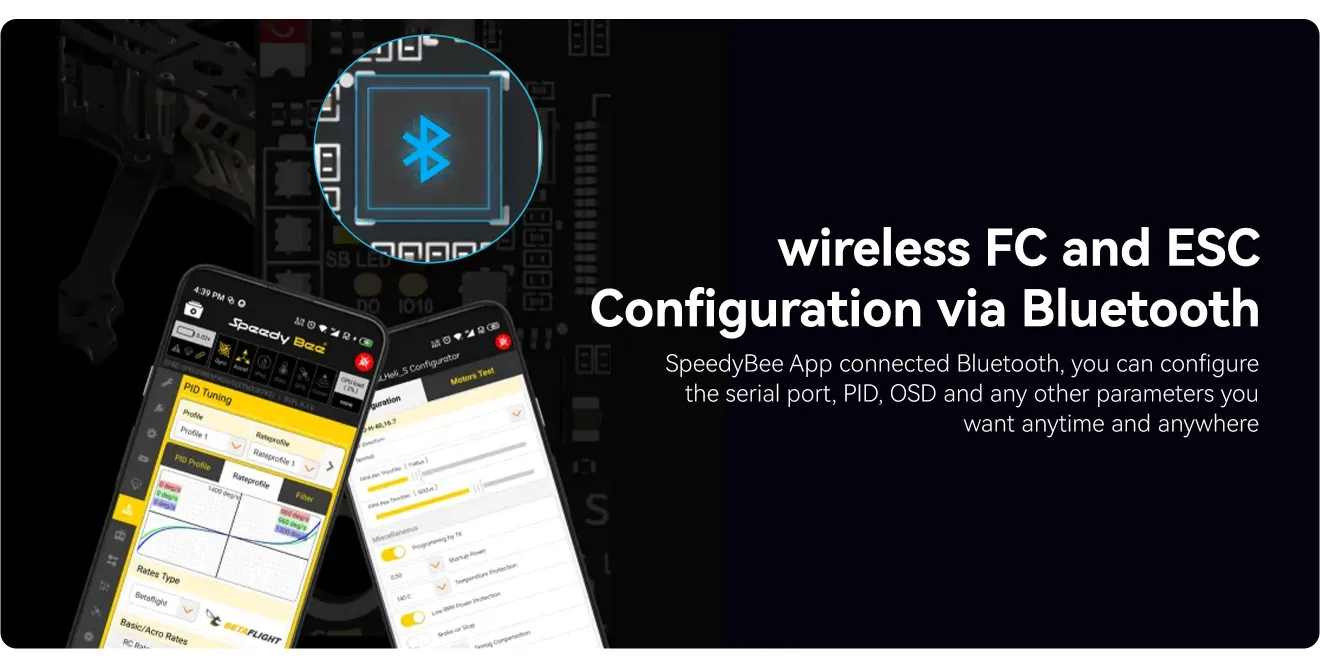

wireless FC and ESC Configuration via Bluetooth

SpeedyBee App connected Bluetooth, you can configure the serial port, PID, OSD and any other parameters you want anytime and anywhere.

speedybee f405 stack optimization connected bluethooth p

4GB Blackbox SD Card Slot

Store and review flight logs with a 4GB Blackbox SD card slot, enhancing your flight analysis.

speedybee f405 stack optimization with sd card slot p

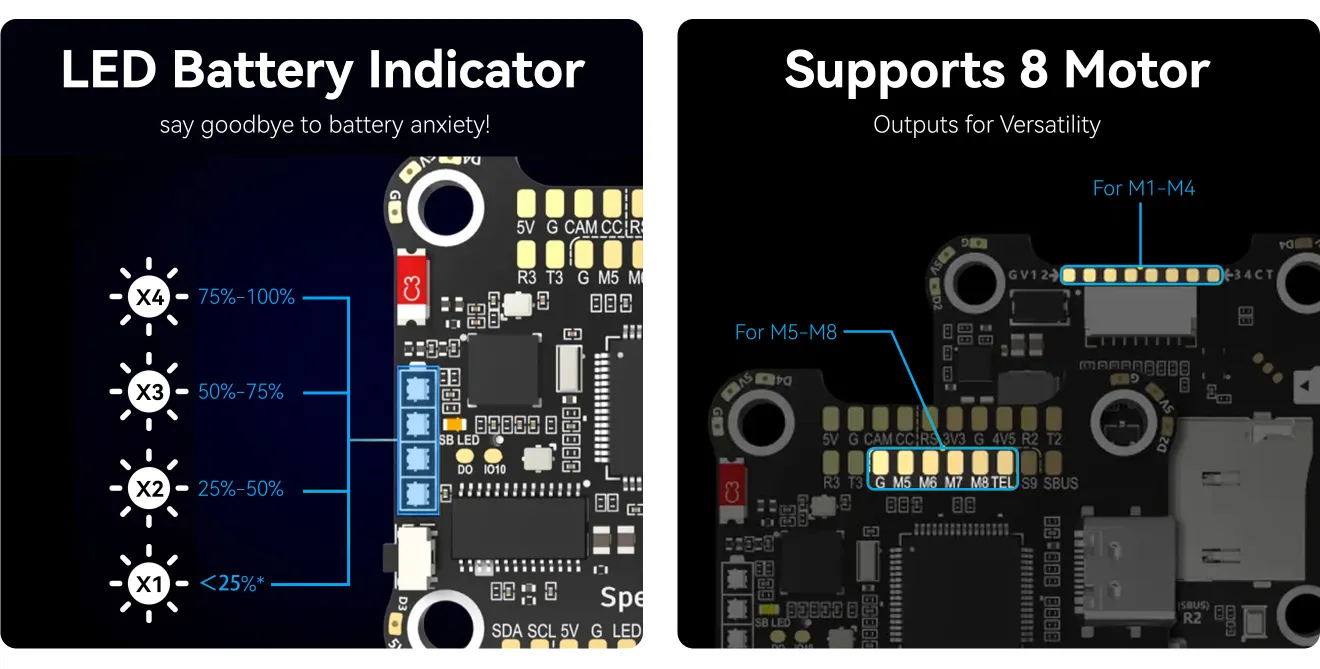

F405 4-level LED battery indicator and 8 motor outputs for X8/6 fixed wings.

The SpeedyBee F405 Stackl boasts a 4-level LED battery monitor for instant power status and supports 8 motors for various models. Wave goodbye to USB troubles; adjust parameters easily wirelessly via SpeedyBee App.

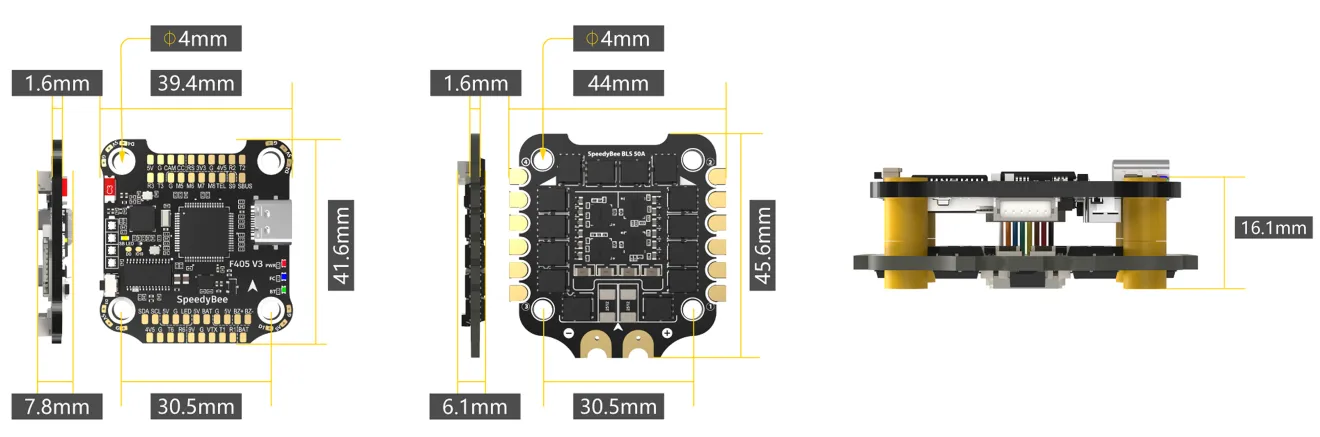

Specifications

speedybee f405 v3 fc optimization specification p

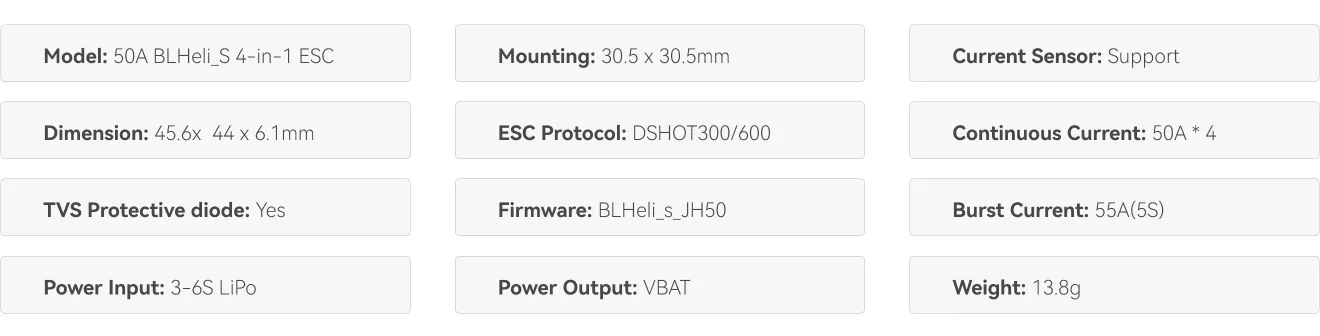

speedybee f405 esc optimization specification p

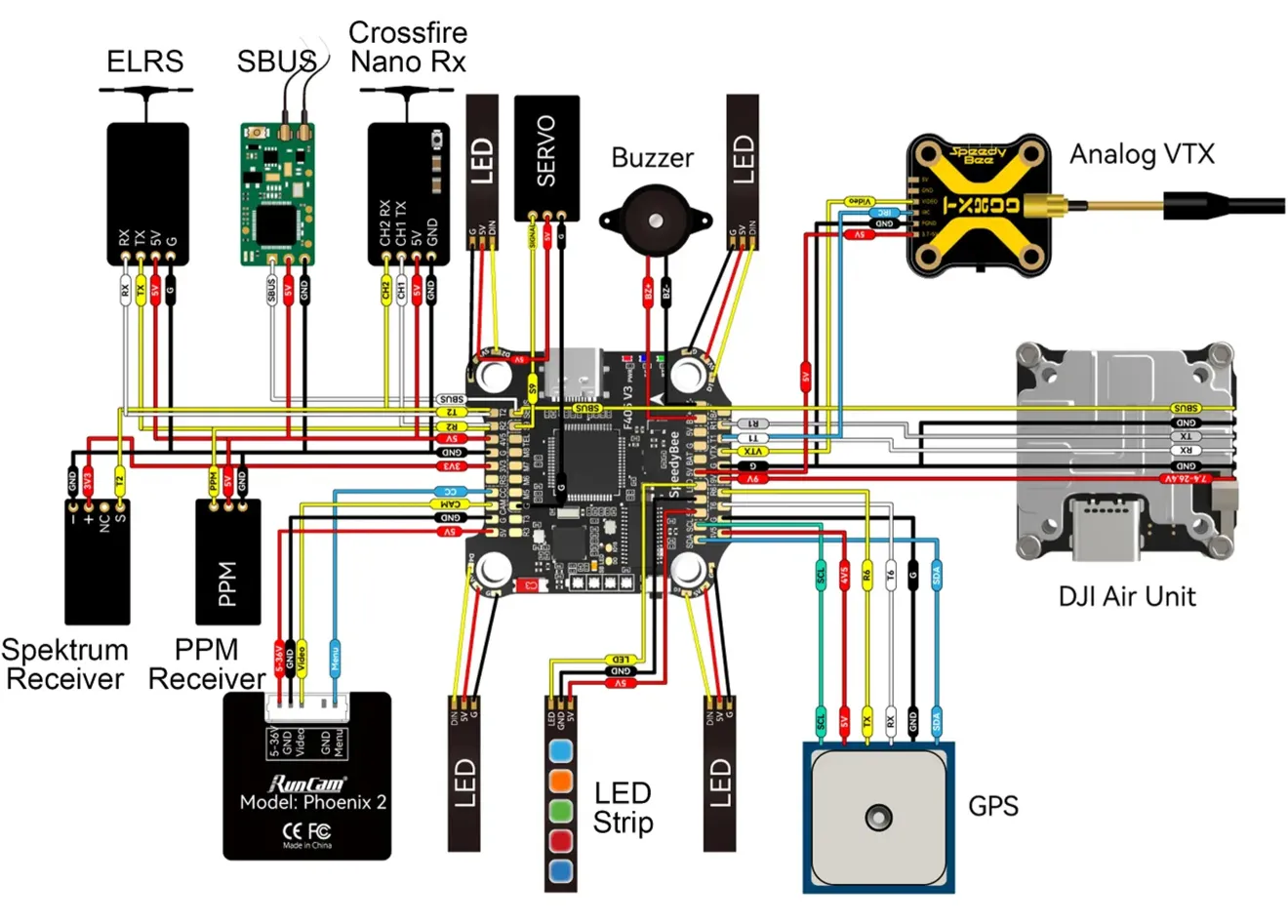

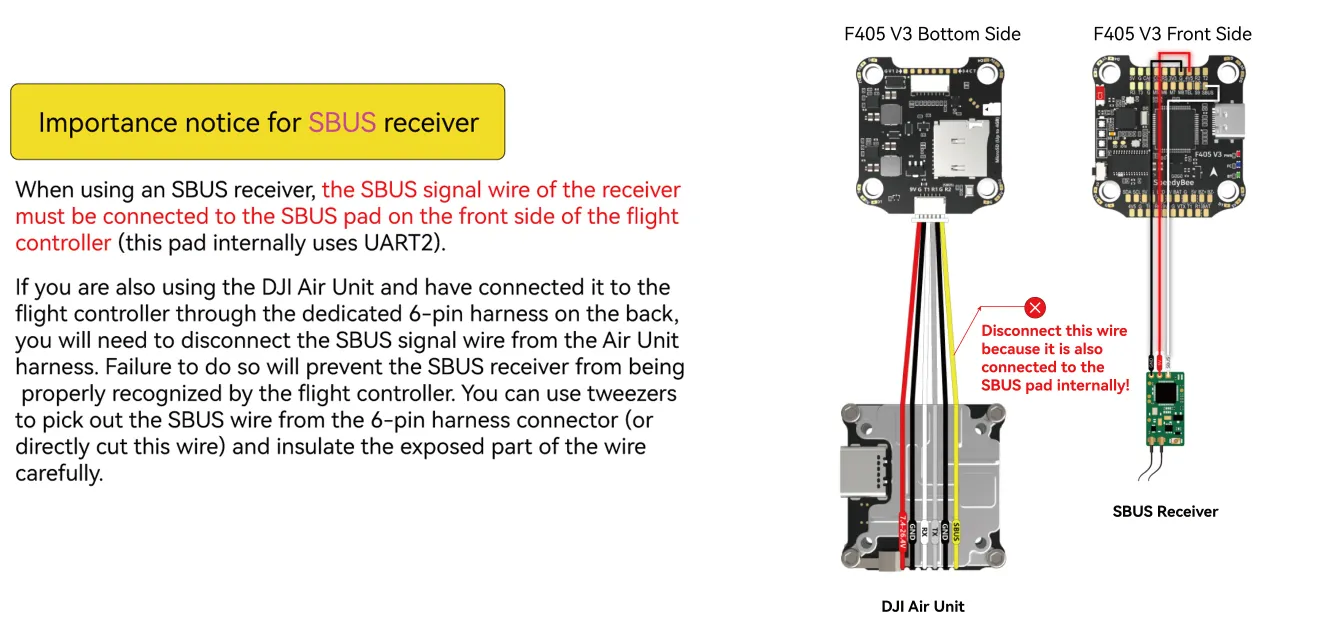

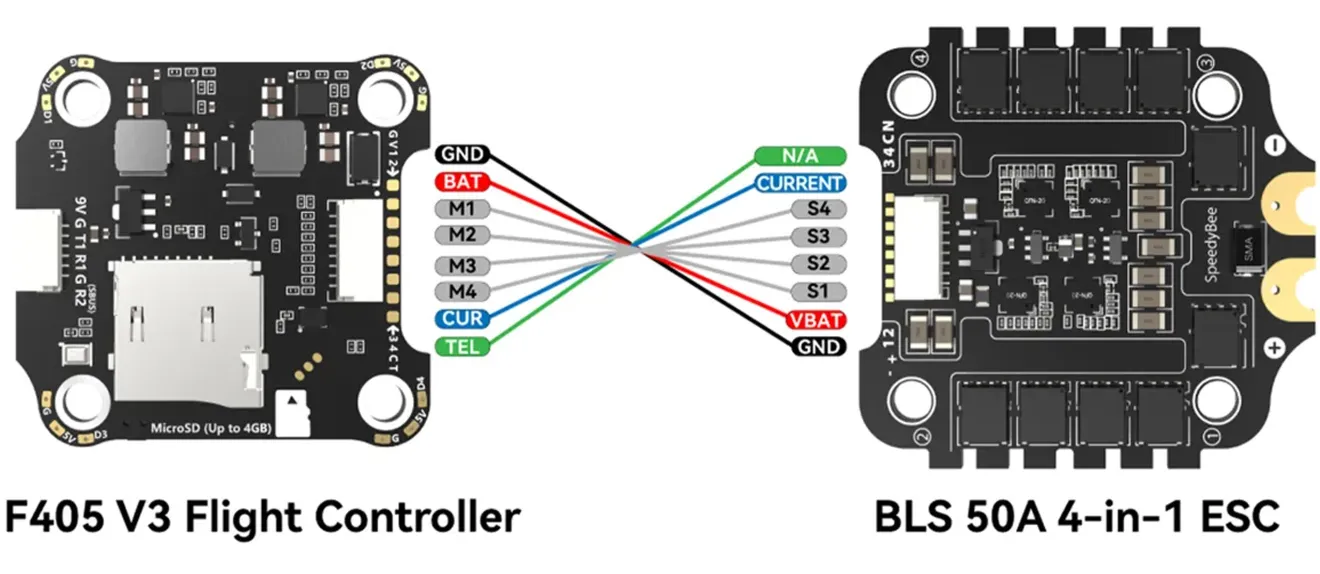

wiring diagram

speedybee f405 stack optimization show p

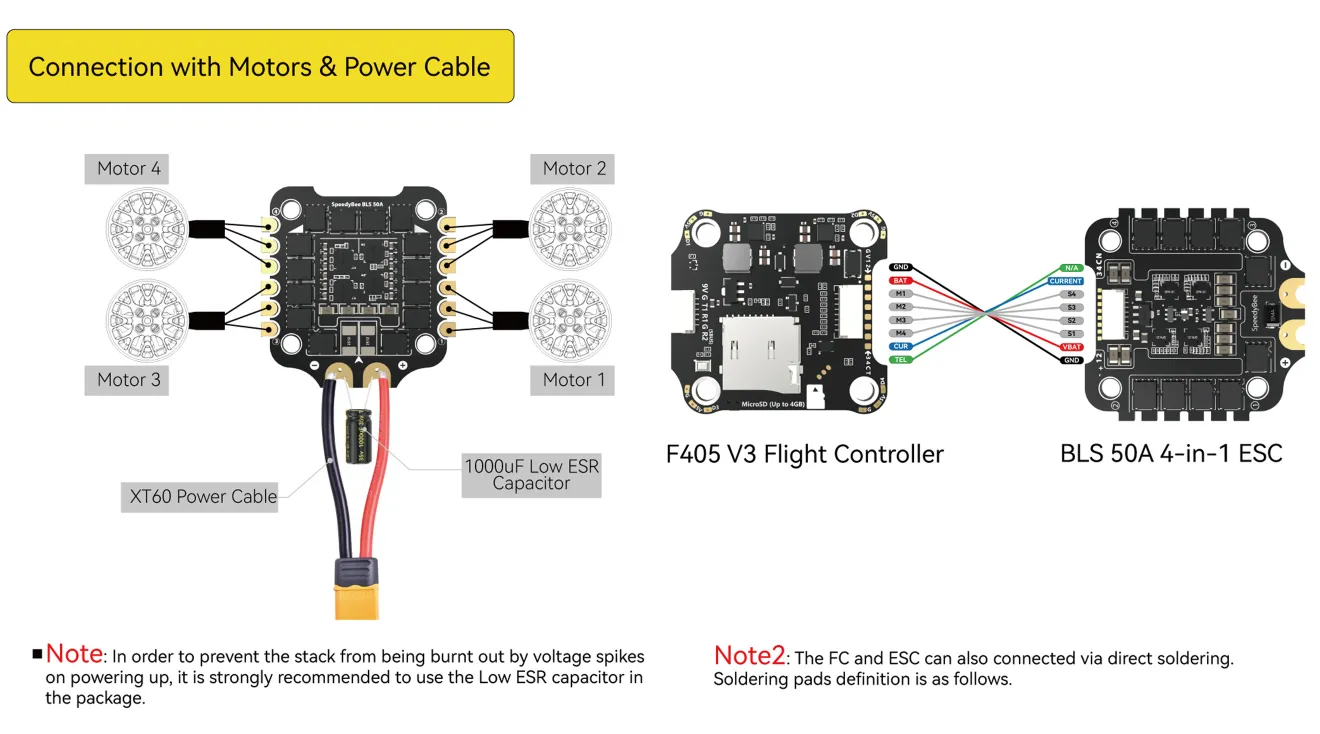

SpeedyBee F405 stack connect with power cable

Recommendations

speedybee f405 stack optimization recommend link wasp p

speedybee f405 stack optimization recommend receiver p

speedybee f405 stack optimization recommend frame kit p

speedybee f405 stack optimization recommend motor p

Package Included

● 1* SpeedyBee F405 V3 flight controller

● 1* SpeedyBee 50A 3-6s BLHeli_S 4-in-1 ESC
