Q: Can this motor be used with 3.5-inch and 5-inch drones?

A: Yes, it's optimized for both sizes, offering power and efficiency for each setup.

Q: What battery is best for this motor?

A: A 6S LiPo battery is recommended for optimal performance and throttle response.

Q: Is this motor suitable for freestyle or racing?

A: It performs well in both freestyle and racing due to its high power and durability.

Q: Does it come with mounting hardware?

A: Yes, screws are included for easy installation on most frames.

SpeedyBee 2306.5-1800KV Motor Master 5V2 5 inch FPV

About SpeedyBee 2306.5 Brushless Motor:

The SpeedyBee 2306.5 1800KV motor is a high-performance brushless motor designed for FPV drones, offering a balance of power, efficiency, and durability. Its specifications make it suitable for both 3.5-inch and 5-inch drone builds, providing smooth and responsive flight characteristics.

SpeedyBee

$ 17.99 ~~$24.90~~

-28%

5 | 82Sold

Options (1)

Sold Out

1800KV

$6 Off Orders $129+

$10 Off Orders $249+

Get

Quantity

In Stock Expected ship within 5 days after order.

Free Shipping | For orders over $99

2 Years Warranty | Hassle-free 24-month warranty

Easy Return and Exchange | Return within 15days

Professional Support | 24-hour response

Payment | Every order you place with us is safe & secure

Copy

Description

FAQ

● High Power Output – 721W burst power and smooth throttle for aggressive freestyle or racing.

● Durable 4mm Shaft – Survives hard crashes, perfect for demanding FPV flights.

● Optimized for 6S – Efficient KV rating for extended flight time and top-end control.

● Dual Frame Support – Ideal for both 3.5" and 5" builds, offering build flexibility.

● Low Vibration Design – 12N14P configuration ensures smooth, stable footage.

High Power Output

Delivers up to 721.97W of power with a maximum current of 30.76A, ensuring robust performance for demanding maneuvers.

Durable Construction

Features a 4mm shaft and high-quality materials, enhancing durability and resistance to crashes.

Versatile Compatibility

Suitable for both 3.5-inch and 5-inch FPV drones, offering flexibility in drone builds.

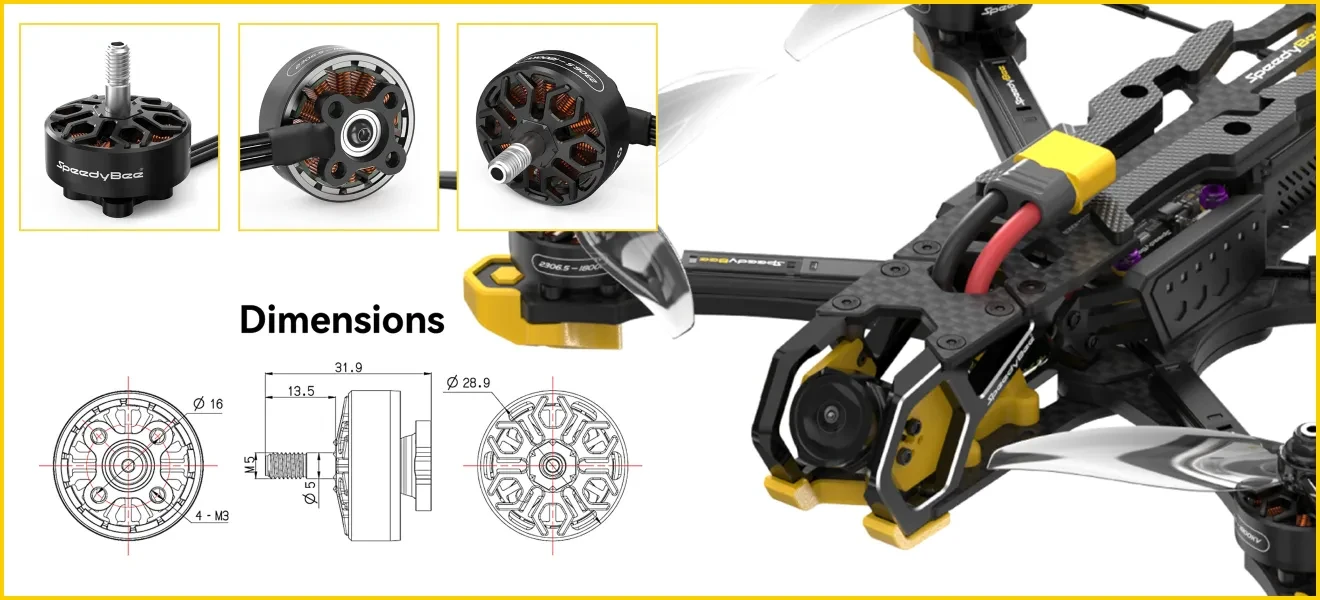

Size Chart

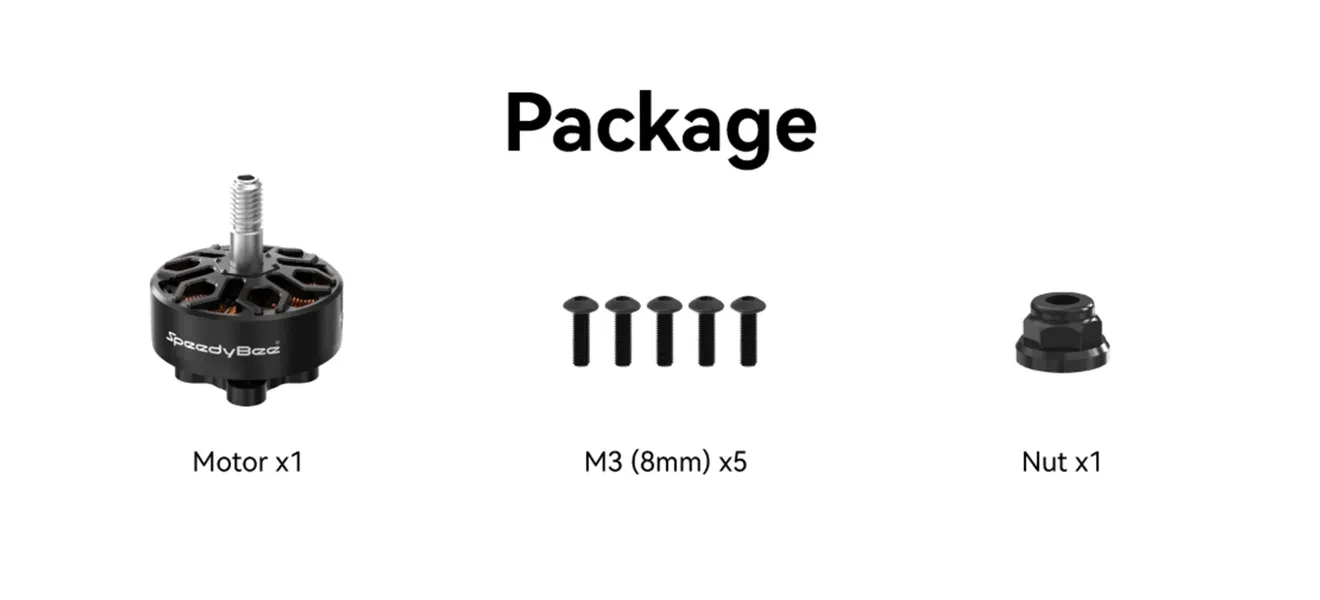

Package Included

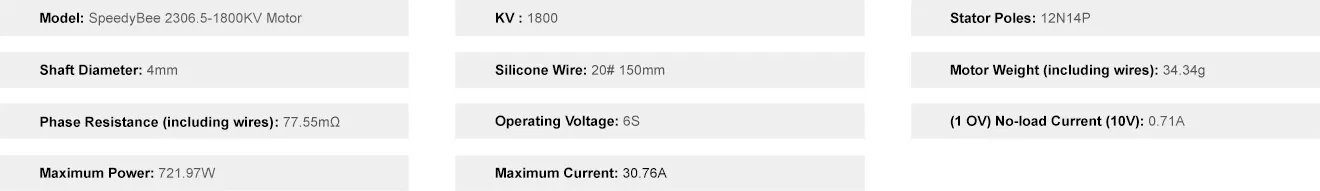

Specifications

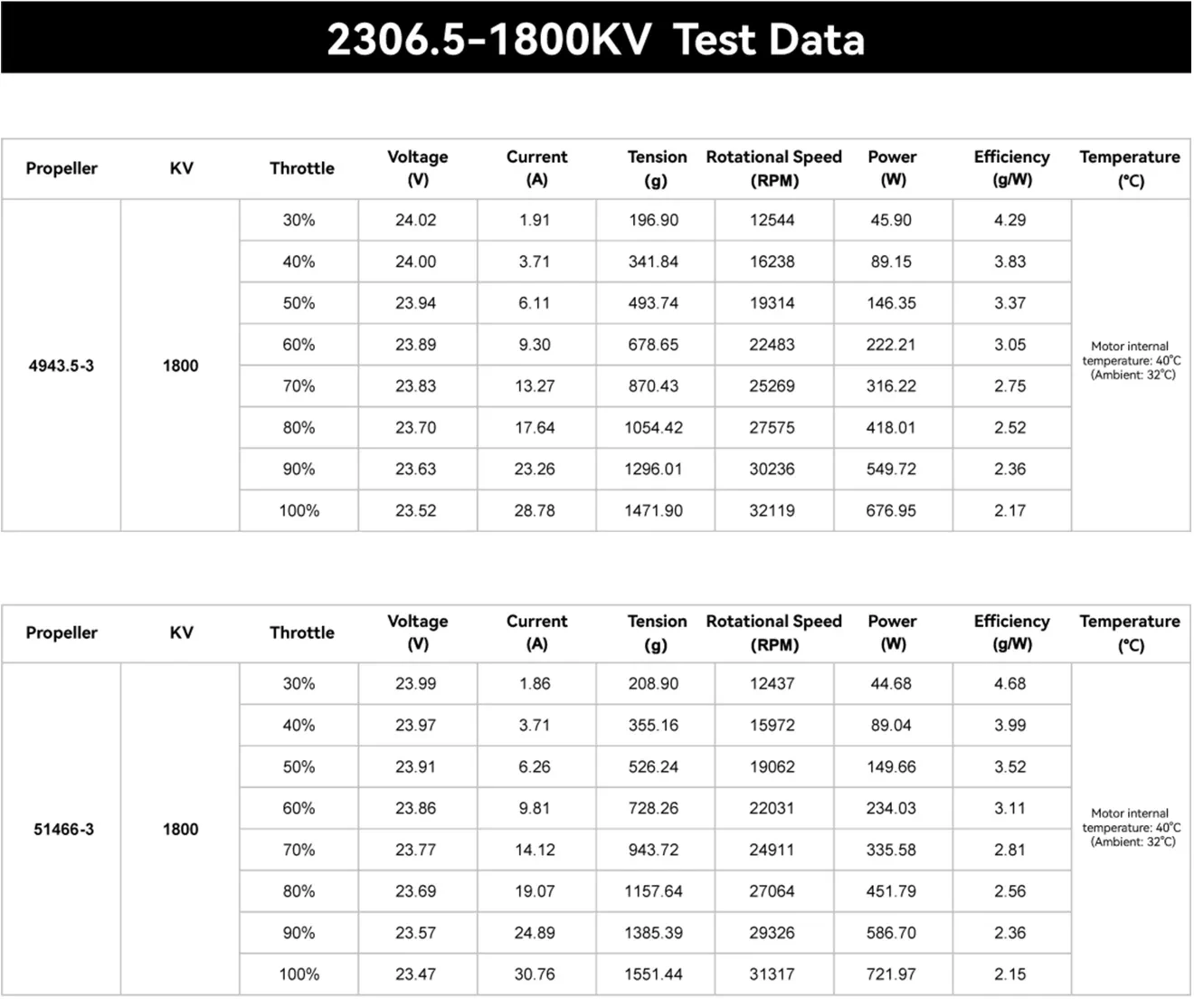

Data Test

Recommendations

Reviews (4)

F******.

Nutze die Motoren auf meinem leichten 4-Zoll Freestyle-Rig. Die Power ist direkt da, kein Durchdrehen, keine Hitzeprobleme. Selbst bei Vollgasflug bleibt alles stabil. Super verarbeitet, und sie sehen richtig cool aus mit dem offenen Bell-Design.
Model：1800KV
Y***********a
Purchased 2 times
Running these on my cinewhoop, they’re remarkably smooth and vibration-free—even with GoPro Hero10 mounted. Flight times extended by 10–15 %. Build quality is high, and the bell feels solid. I’ll order another set for my backup frame.
Model：1800KV
E**********n

I installed these on a 5″ freestyle quad with 6S battery. The SpeedyBee 2306.5 deliver solid punch and reliable mid-throttle control. They’re a bit heavier than my old 2207’s, but the increased torque is worth it—my flips are more responsive now.
Model：1800KV
