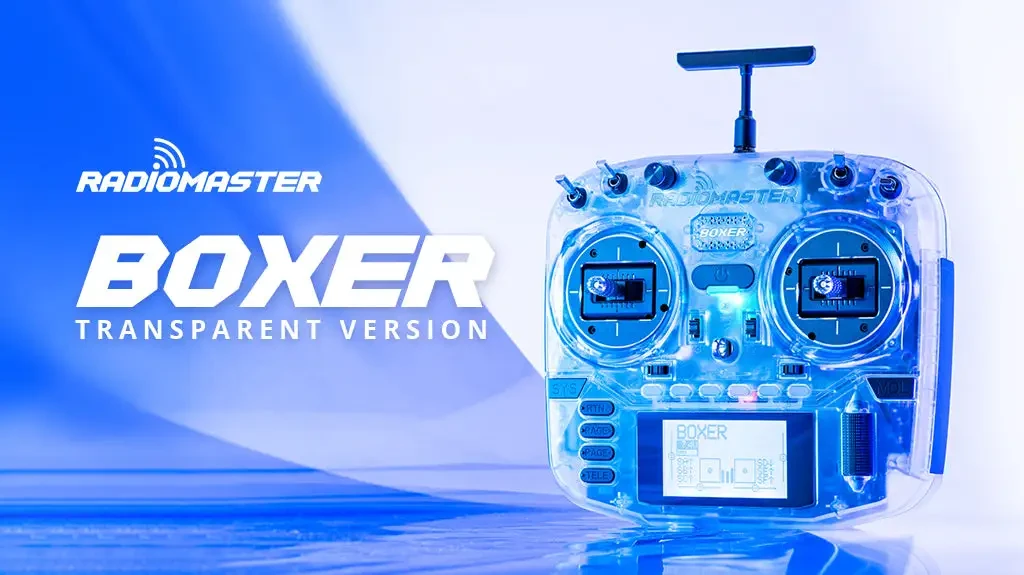

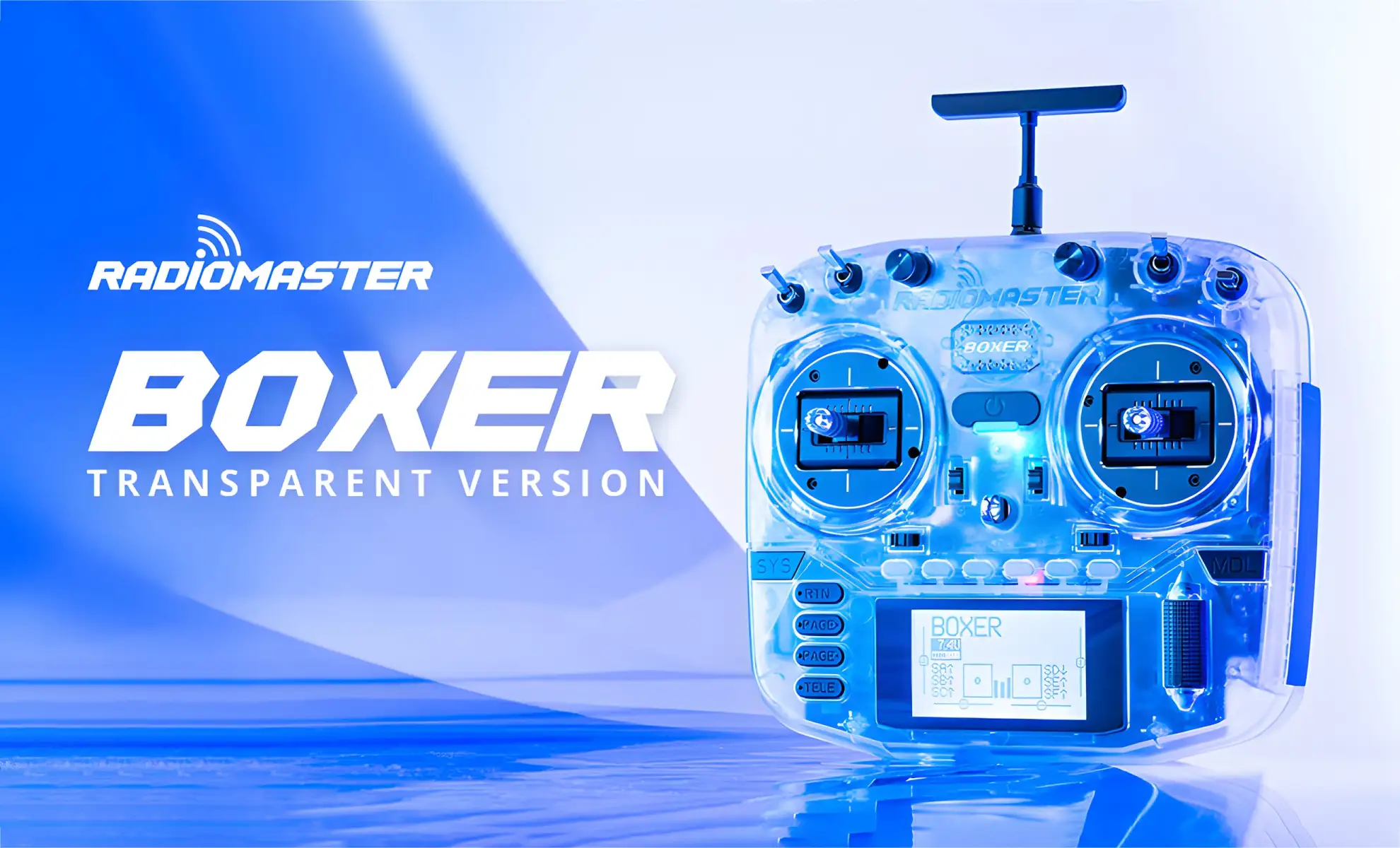

RadioMaster Boxer Radio Controller Transparent Version (ELRS / M2)
About RadioMaster Boxer Transparent Edition:
RadioMaster Boxer Transparent Edition is an ELRS-enabled M2 controller featuring premium V4.0 Hall gimbals, EdgeTX firmware, and a clear design—delivering sleek style and superior performance in a compact form.
Pilot RecommendedCommunity FavoriteTrusted Performance
$25 Off Orders $369+
$12 Off Orders $199+
Collect
$164.99
$199.99
-18%
4.7|100+Sold
Options (1)
FCC
Quantity
In Stock
Expected ship within 5 days after order.
Estimated Transit Time: 5-15 Days.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
Crystal-Clear Transparent Design.
ExpressLRS Built-In for Ultimate Range.
Precision V4.0 Hall Sensor Gimbals.
EdgeTX / OpenTX Custom Firmware Support.
Compact, Ergonomic & Lightweight.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ

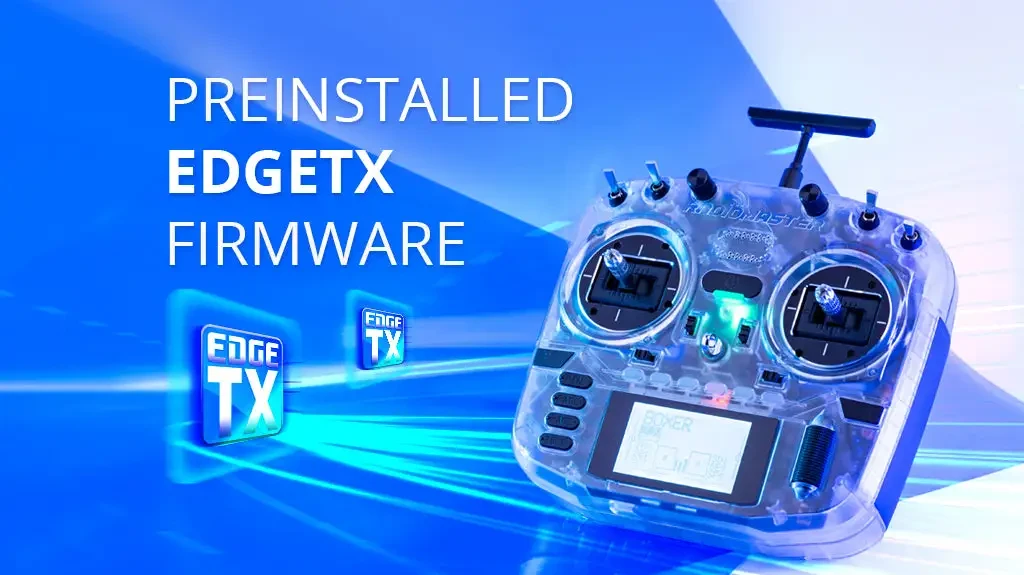

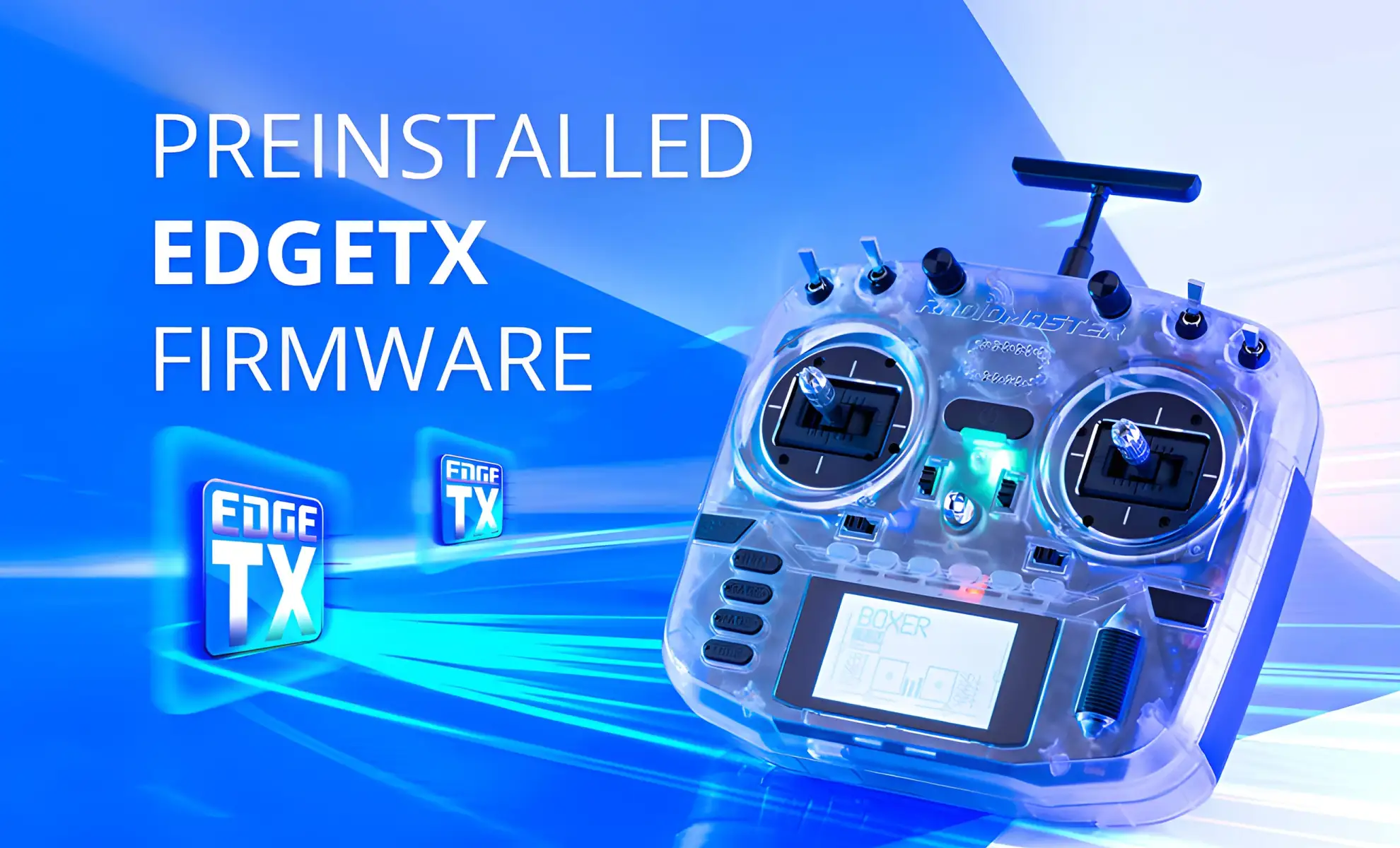

EdgeTX Operating System and ExpressLRS RF system pre-installed
Preinstalled with EdgeTX and ExpressLRS, the BOXER has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX and ExpressLRS teams to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX and ExpressLRS, ensuring the concepts of open standards are carried forward into the future.
Compact & Ergonomic

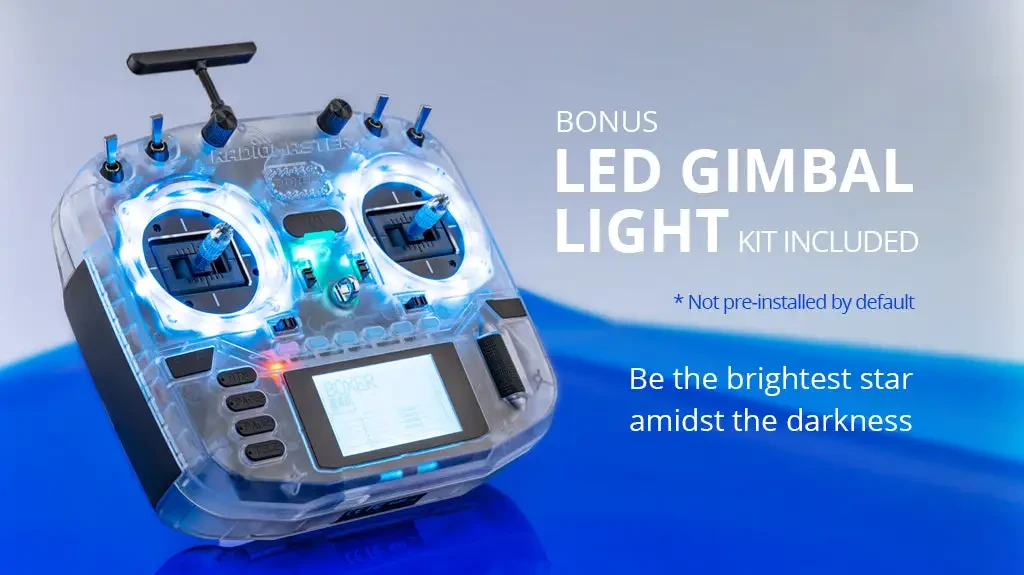

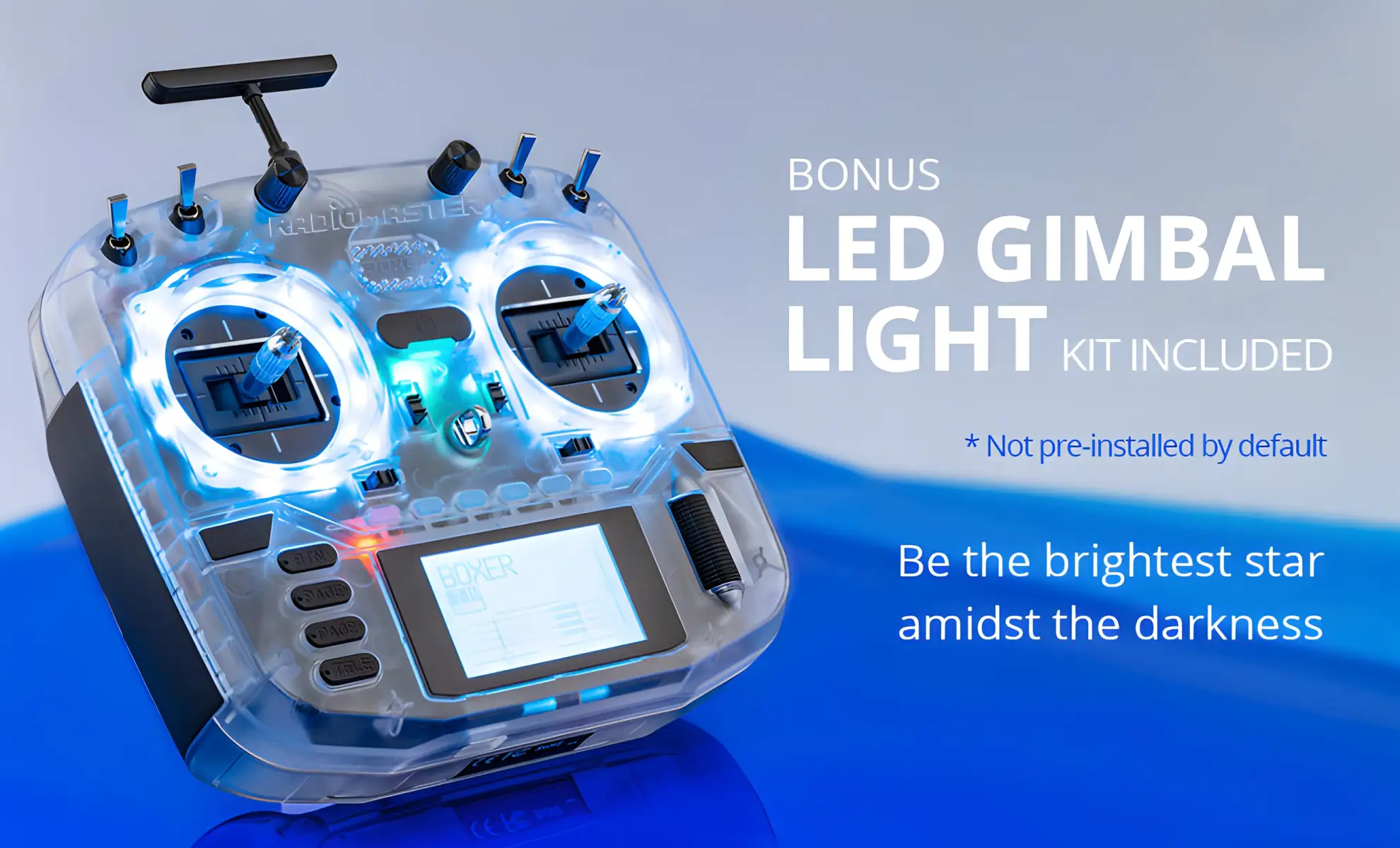

Clear housing reveals precision internal components, while the included LED gimbal light kit (custom-install) adds customizable glow for nighttime visibility.

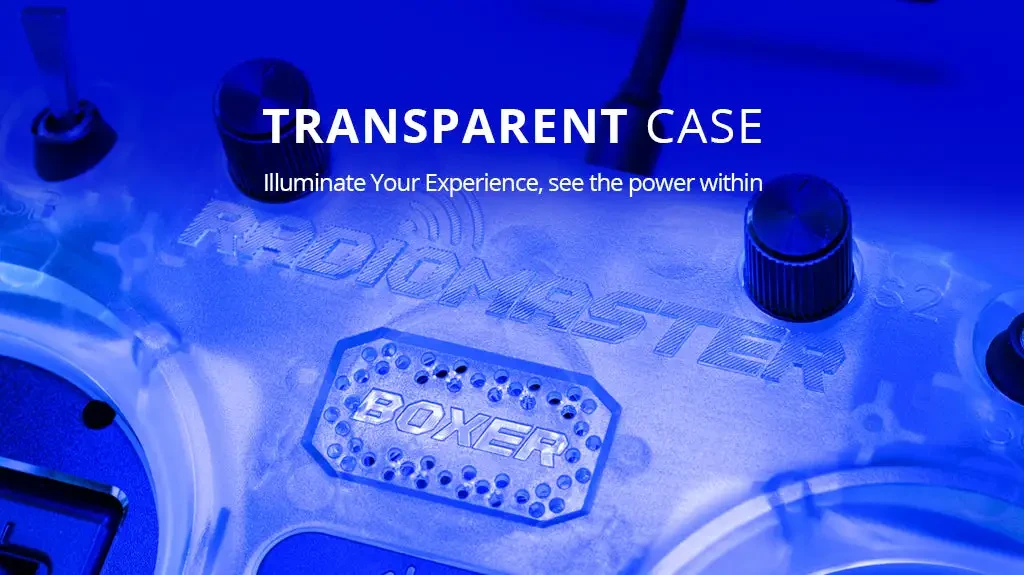

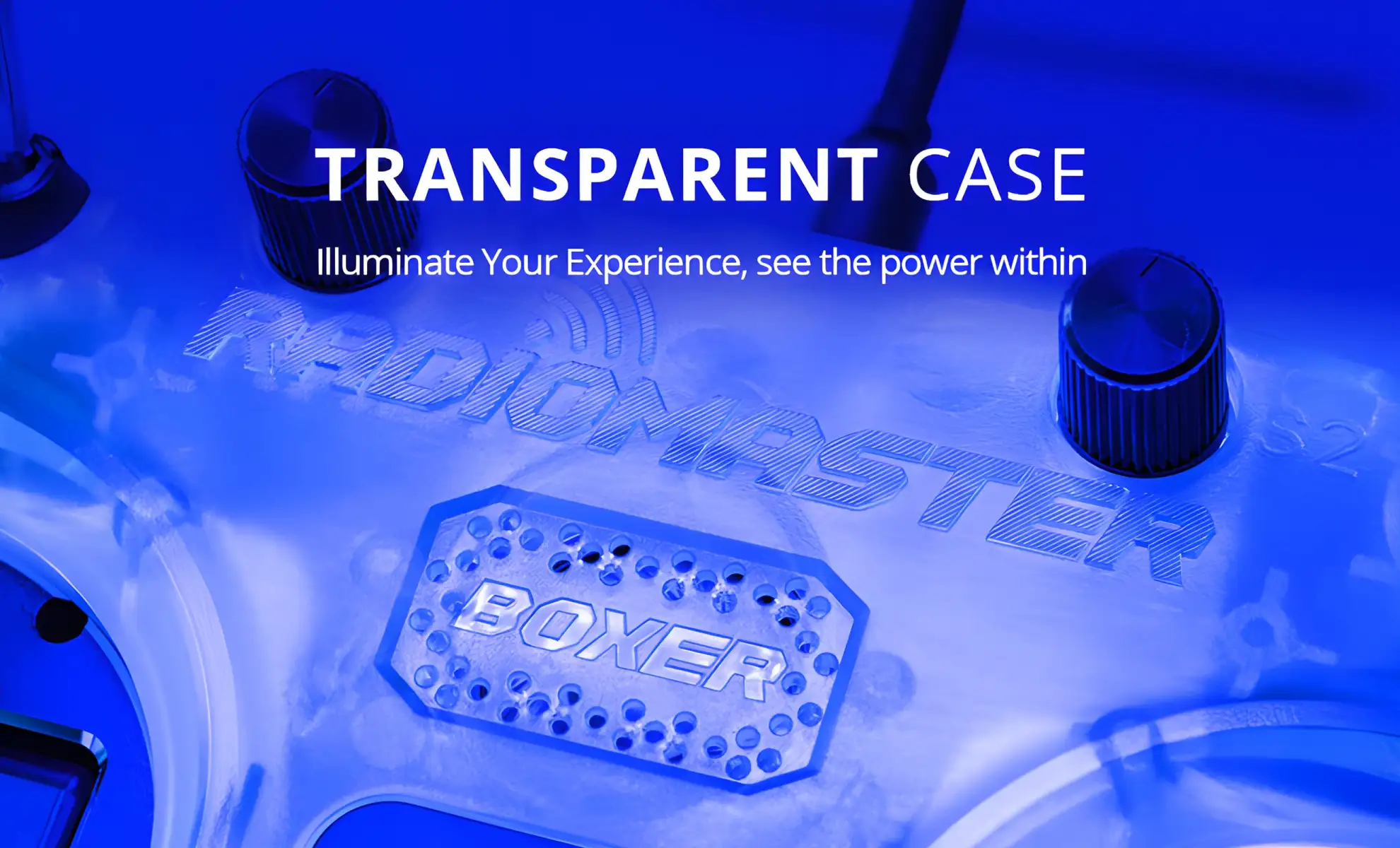

Transparent Tech Showcase
Clear housing reveals precision internal components, combining functional visibility with striking aesthetics for tech enthusiasts.

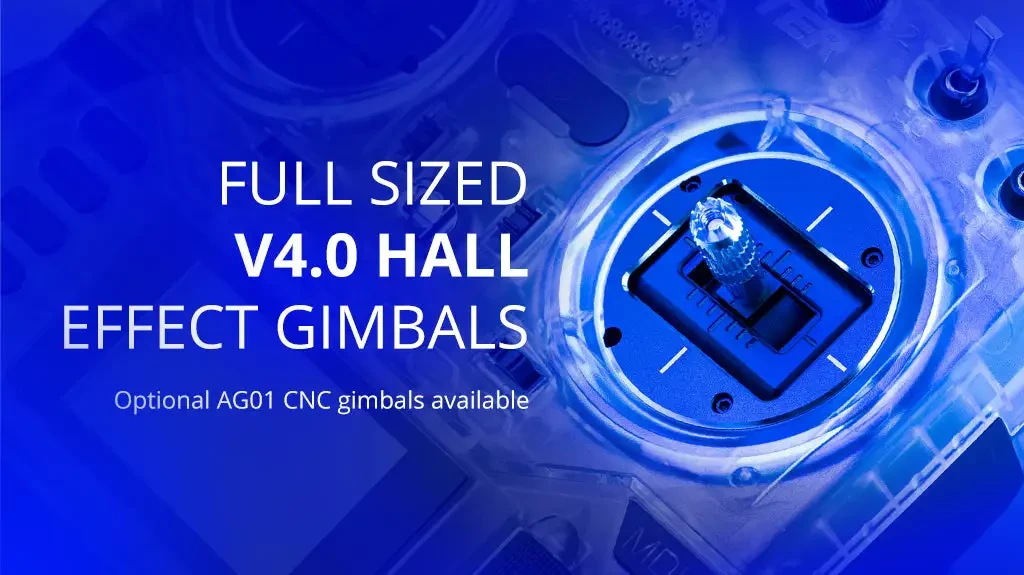

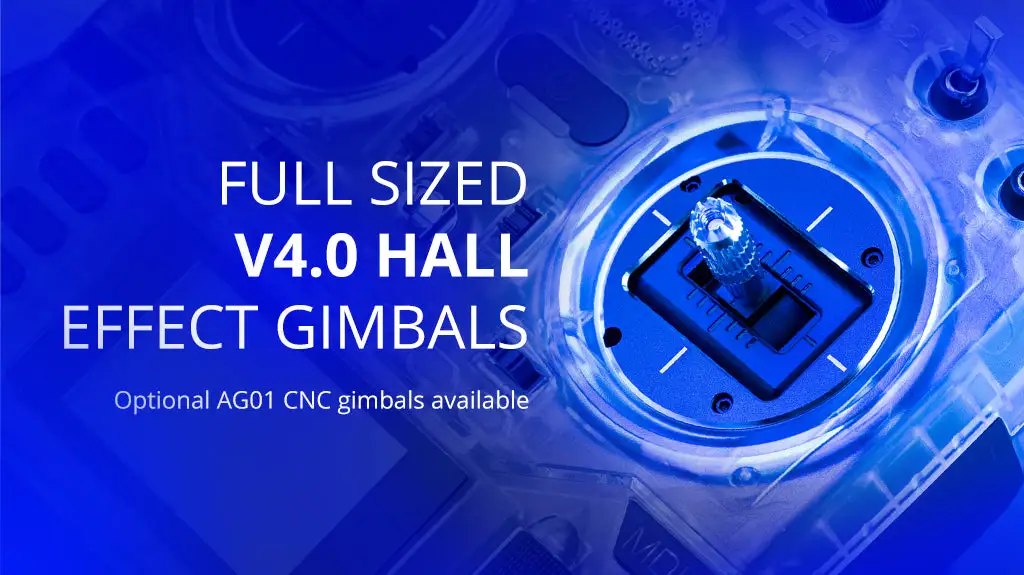

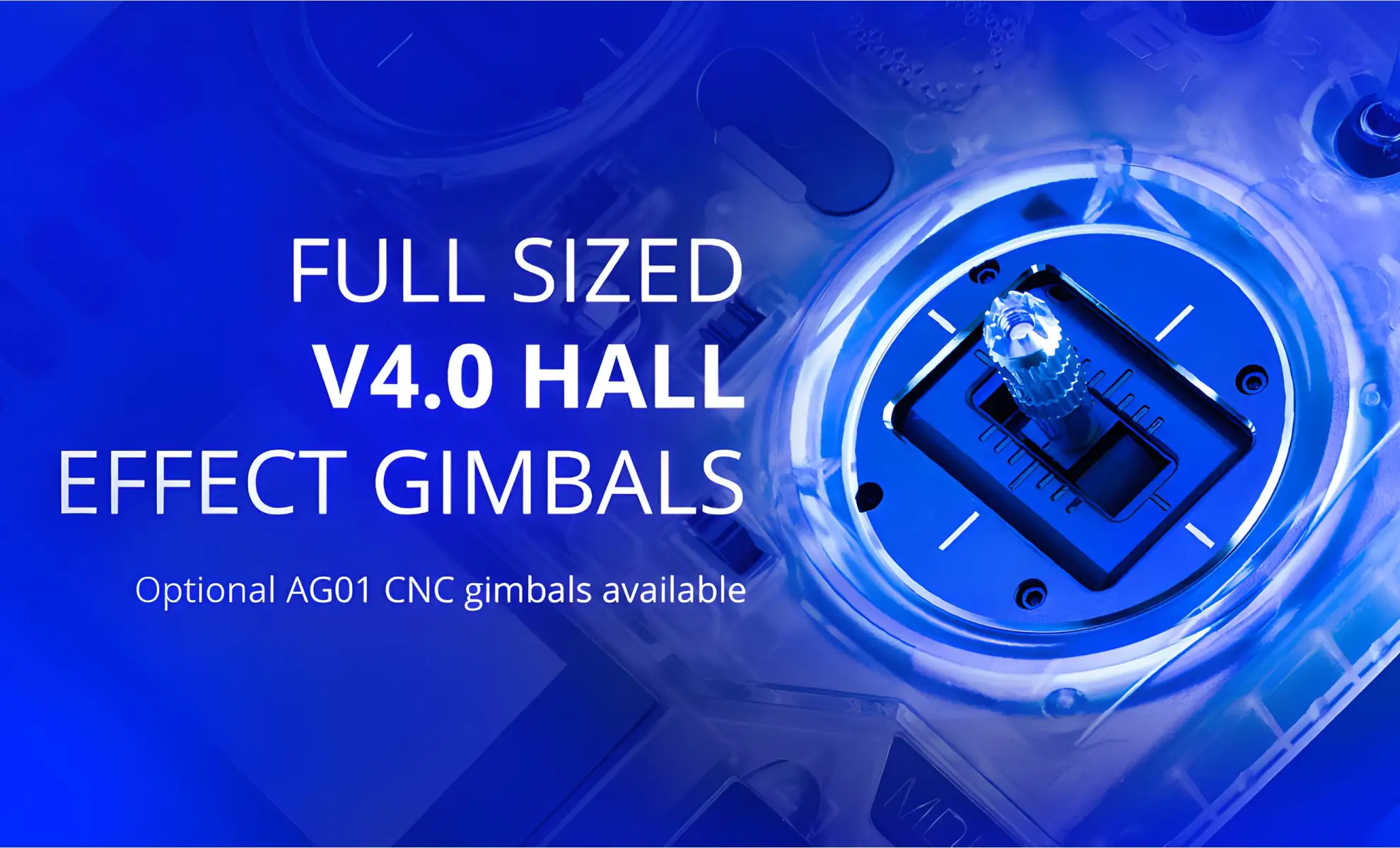

Precision Hall Effect Gimbals
Full-sized V4.0 Hall Effect gimbals deliver ultra-precise control with smooth operation, while optional AG01 CNC upgrades provide enhanced customization.

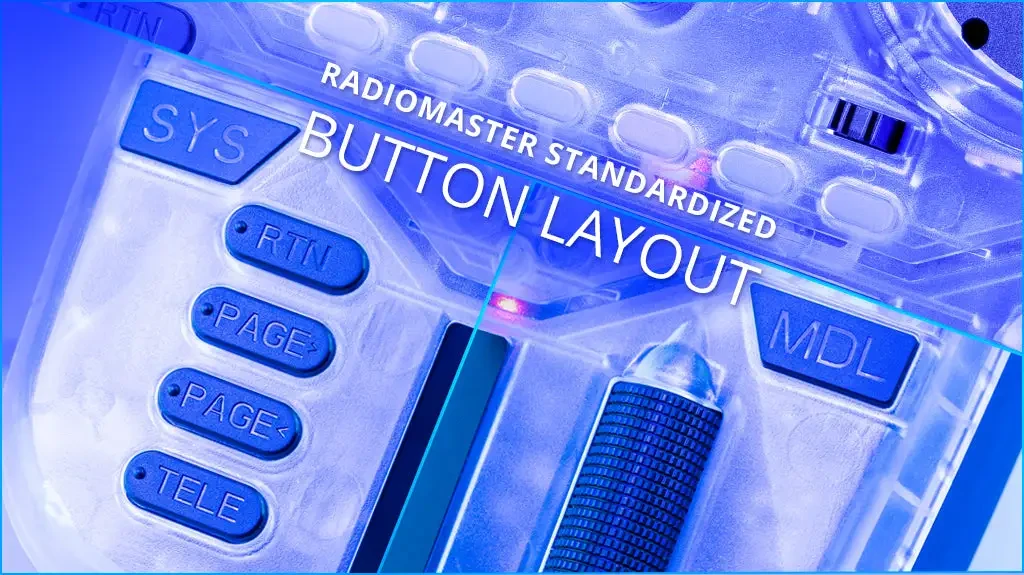

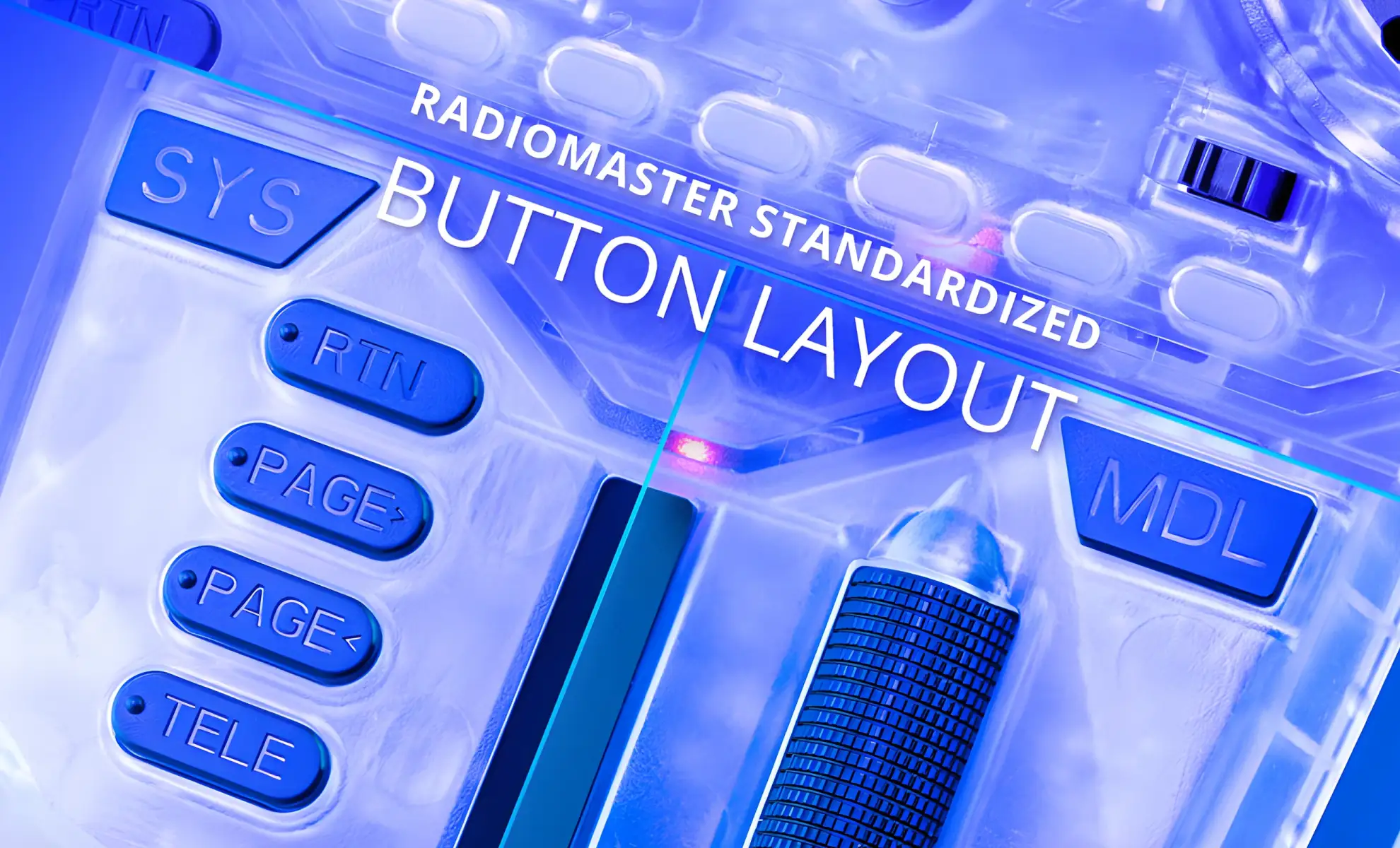

Standardized Button Layout
Intuitive button arrangement with clearly labeled functions (SYS/RTN/TELE/MDL) ensures quick navigation and seamless operation.

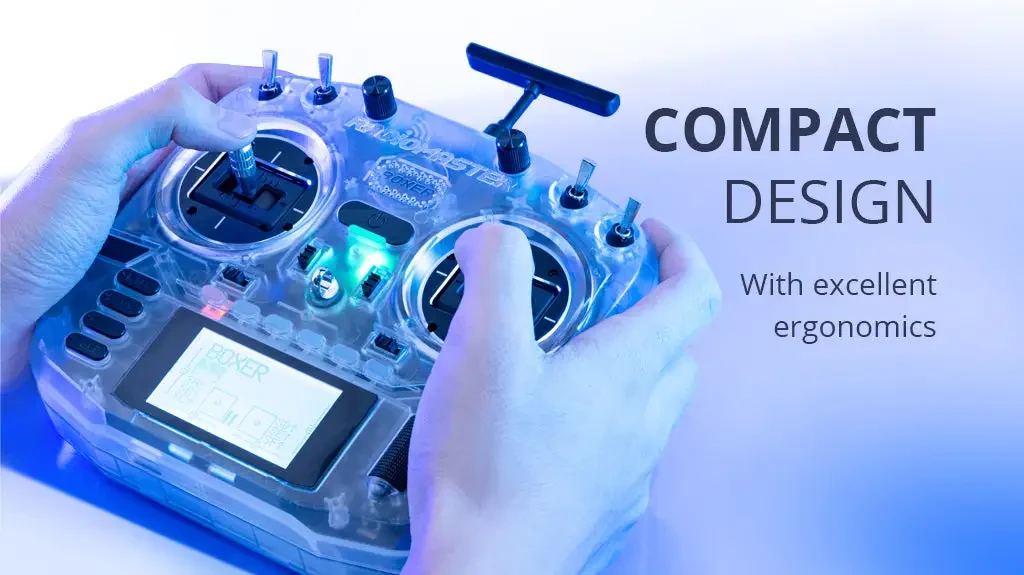

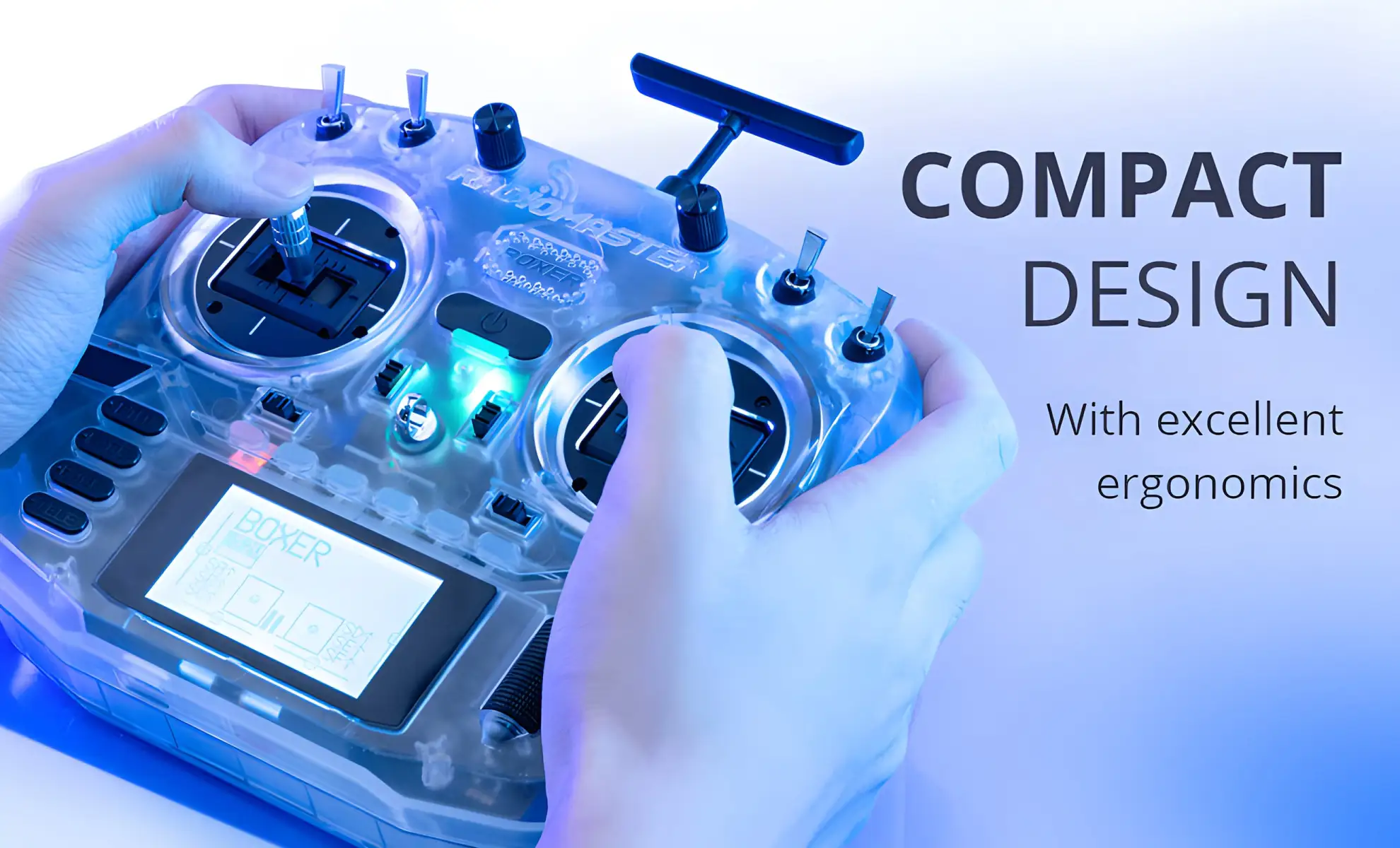

Compact & Ergonomic
Transparent shell showcases internal components while maintaining a comfortable, hand-friendly form factor for extended use.

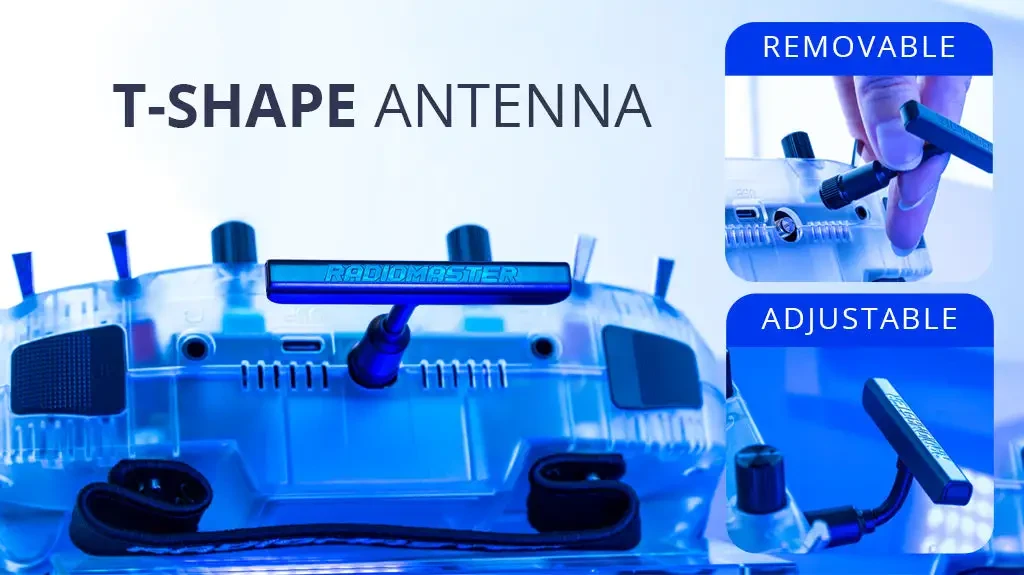

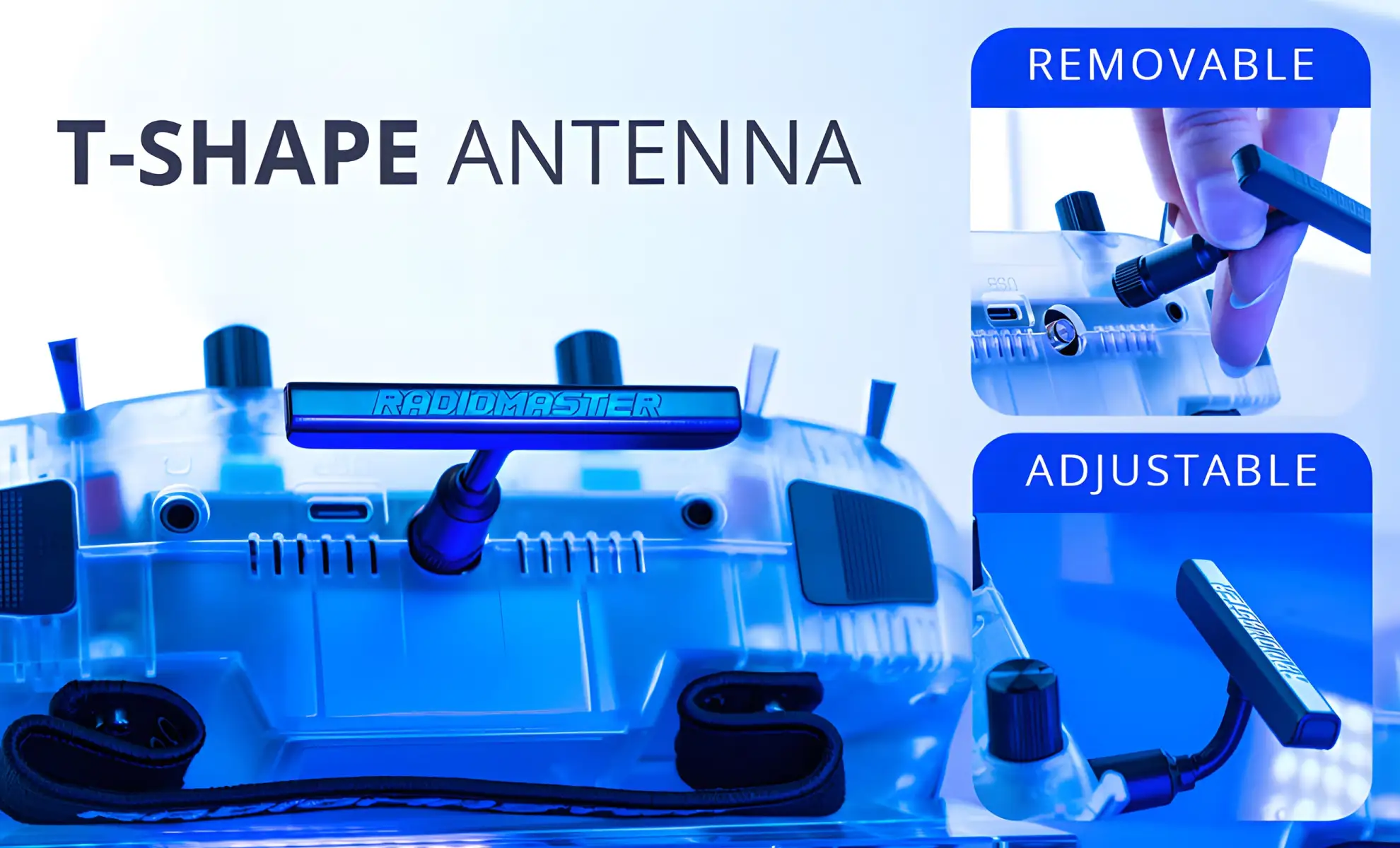

T-Shape Antenna System
Features a fully removable and adjustable T-shape antenna for optimal signal positioning and easy storage.

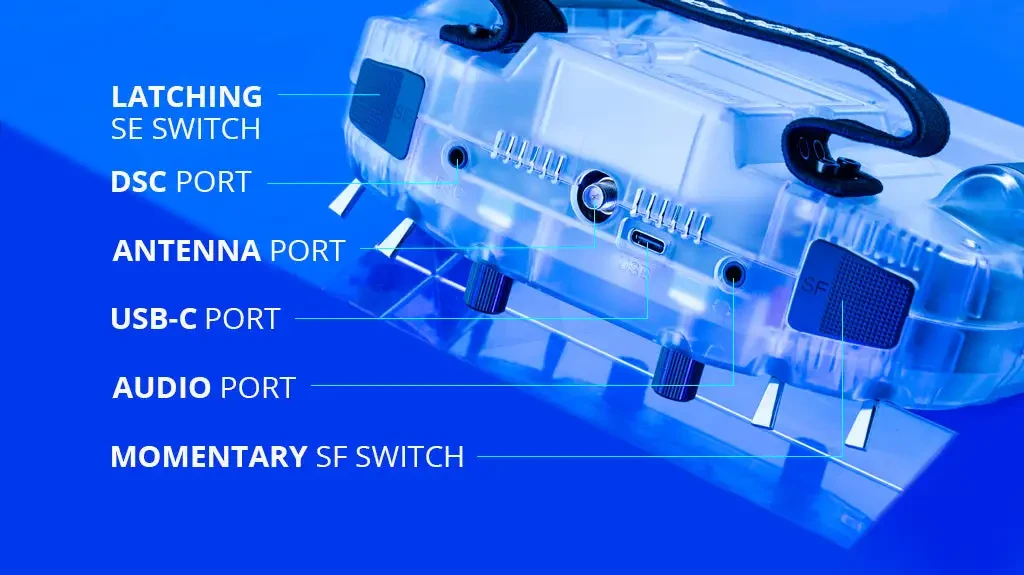

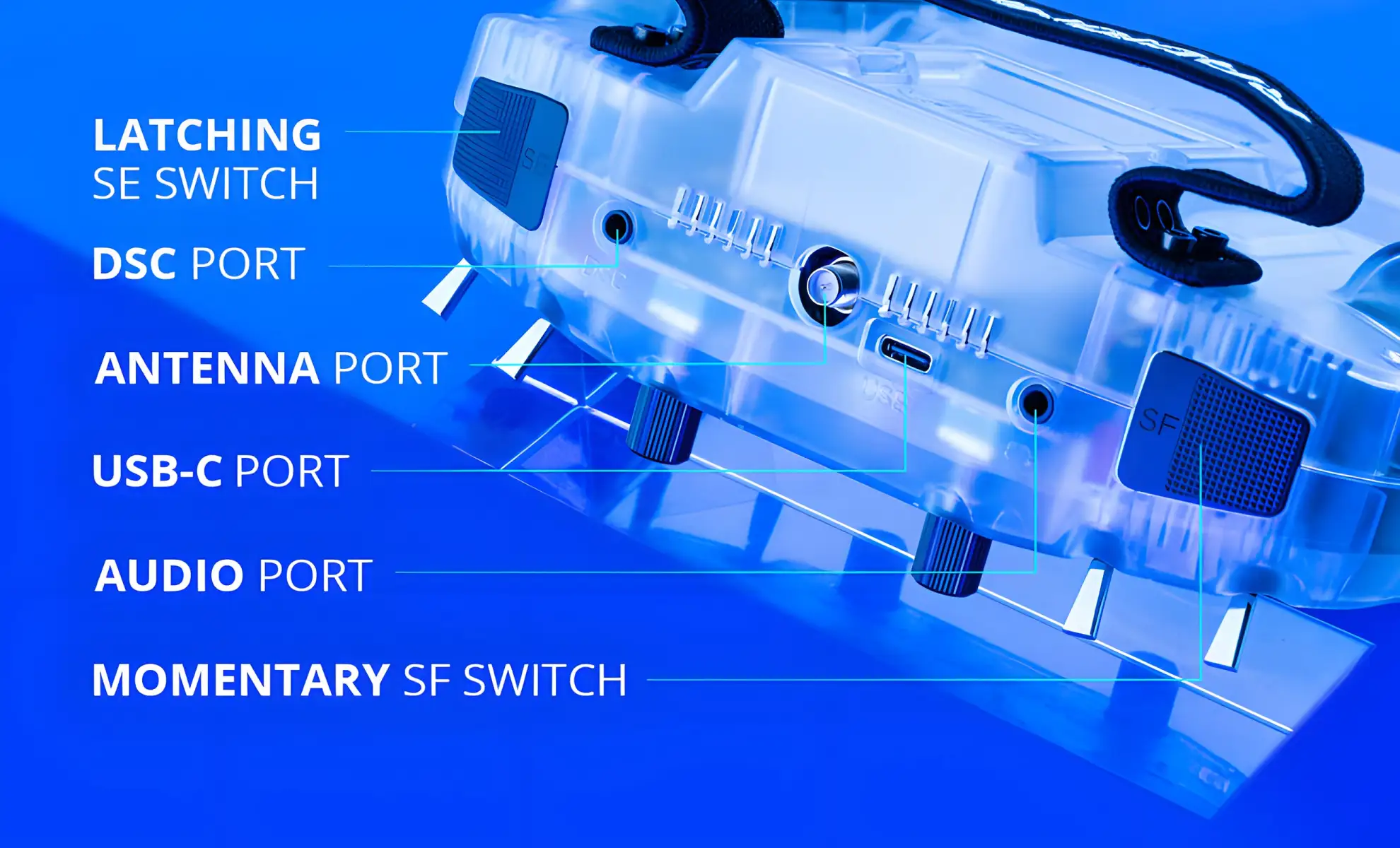

Versatile Connectivity Hub
Combines latching (SE) and momentary (SF) switches with multi-function ports (DSC/USB-C/Audio) for complete control flexibility in a single compact unit.

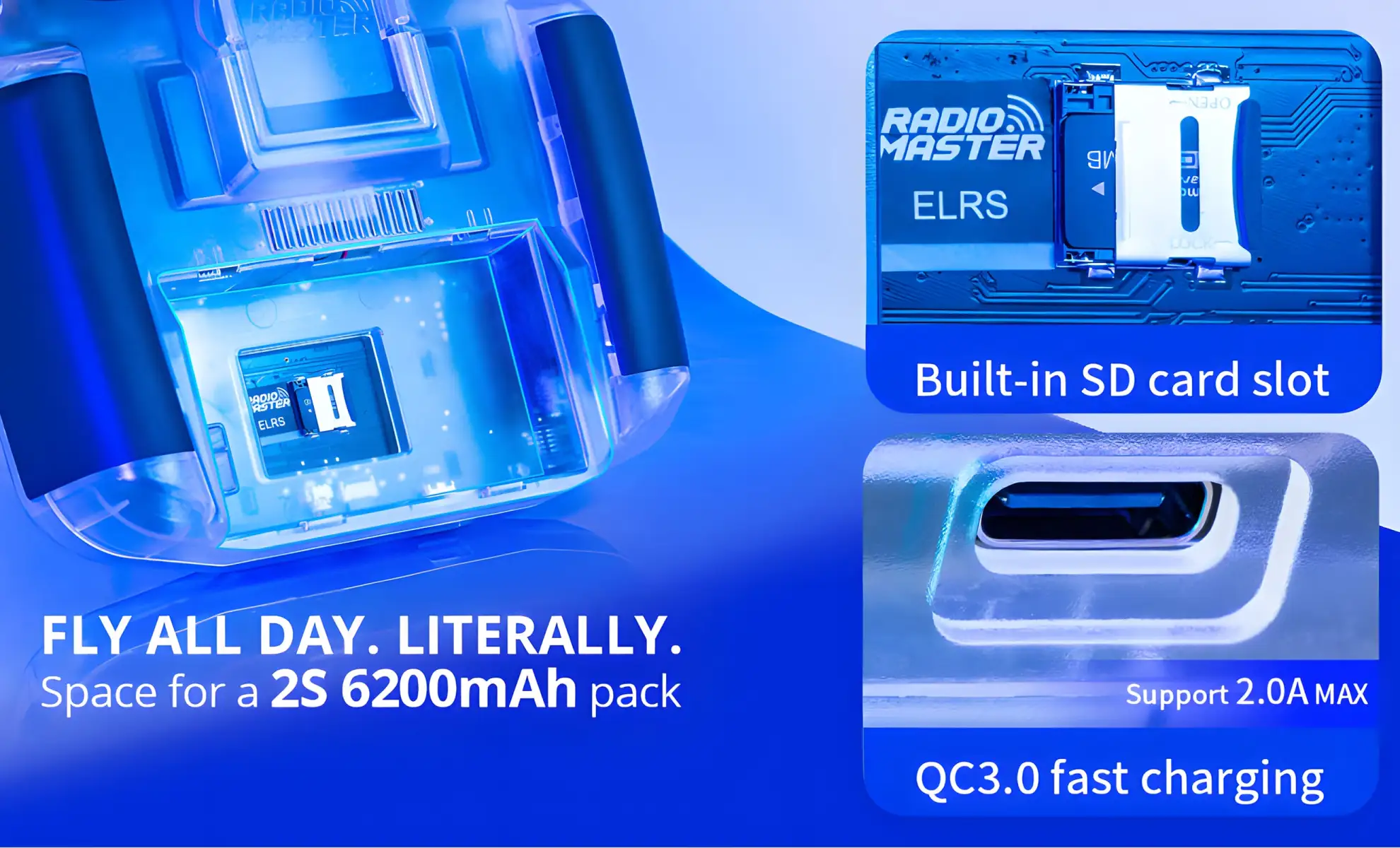

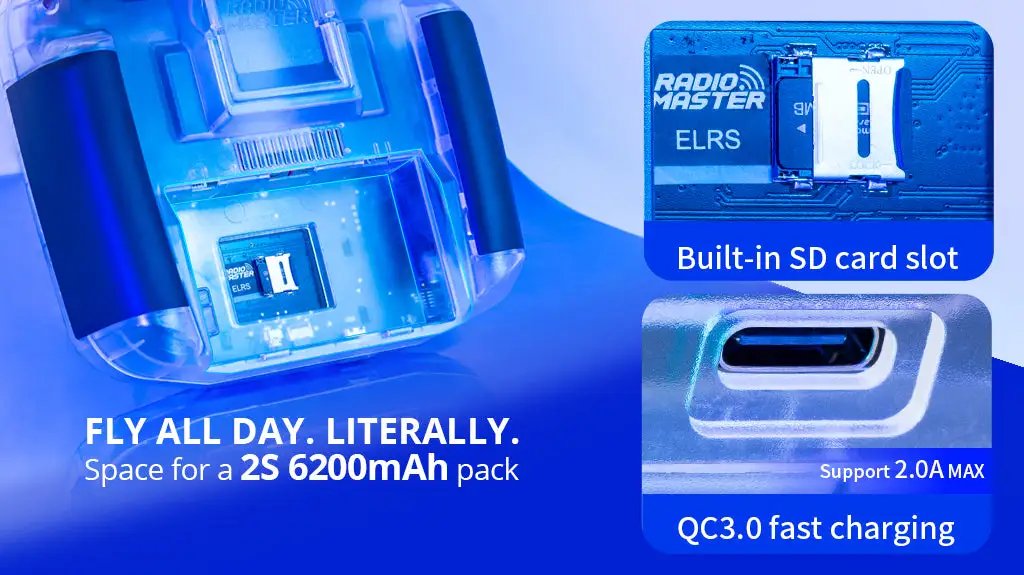

All-Day Power & Smart Storage
Supports 2S 6200mAh battery packs for extended flight sessions, while the built-in SD slot and QC3.0 fast charging (2.0A MAX) ensure seamless power and data management.

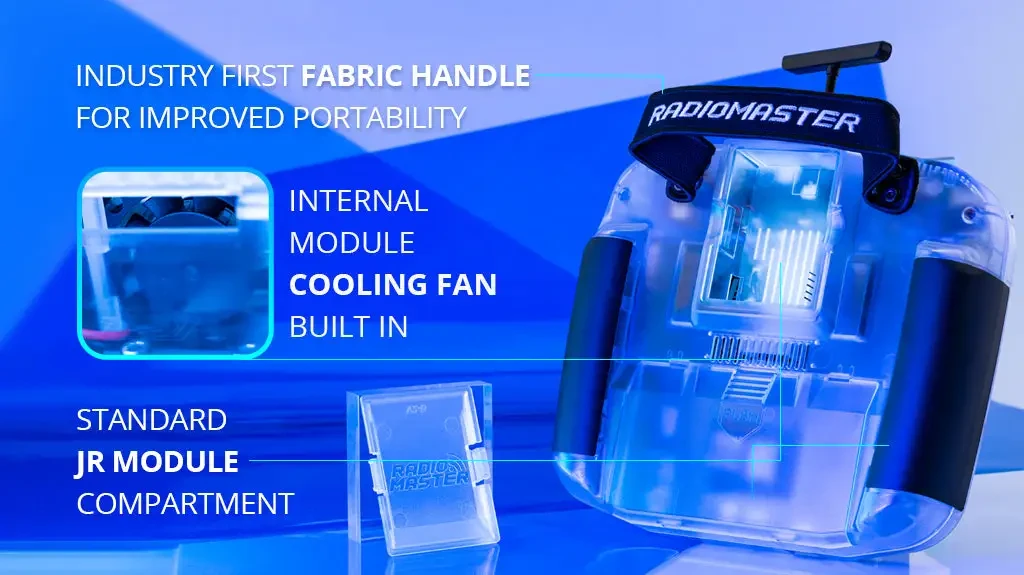

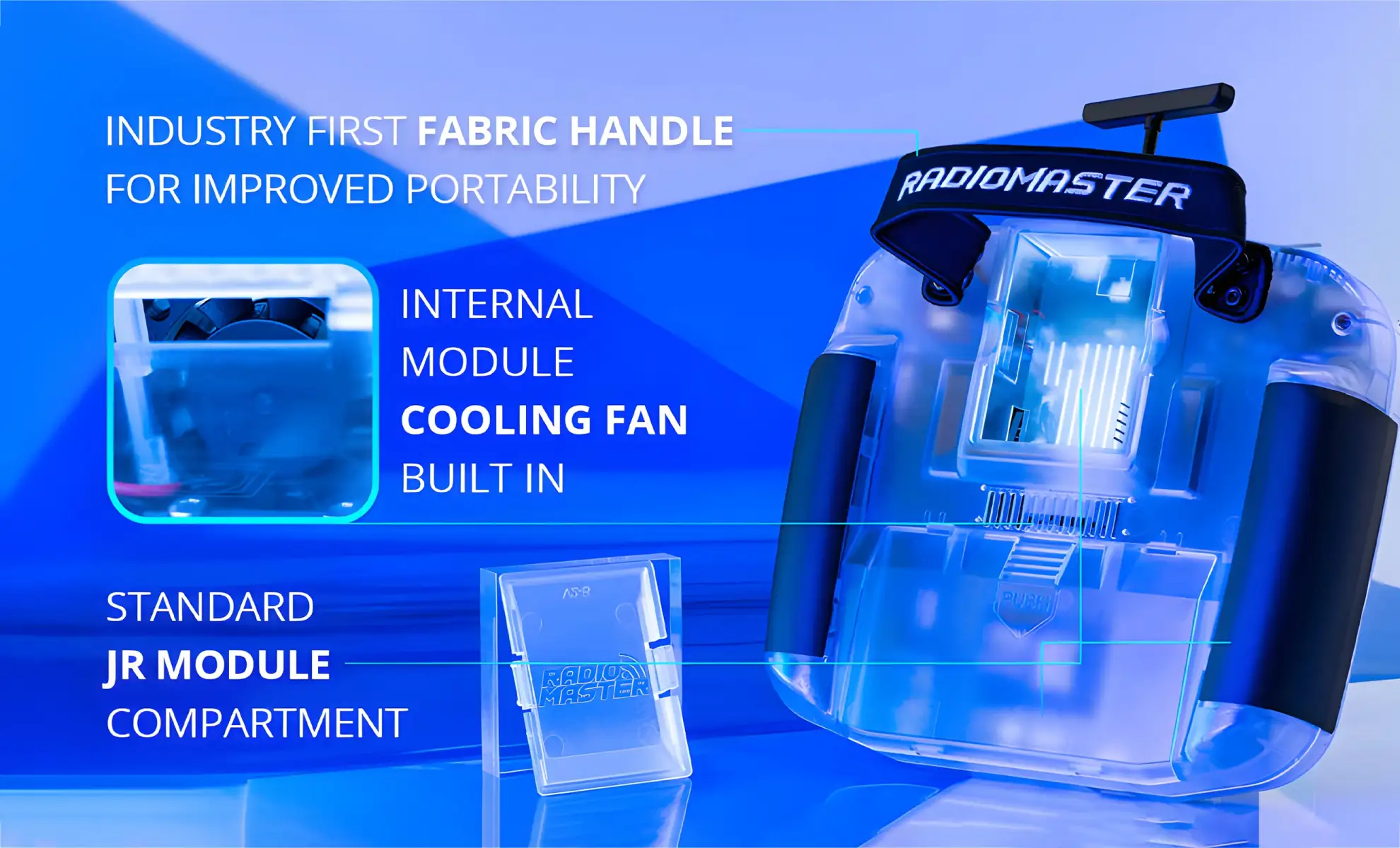

Innovative Cooling & Portability
Features an industry-first fabric handle for easy transport and built-in cooling fan for optimal module performance during extended use.

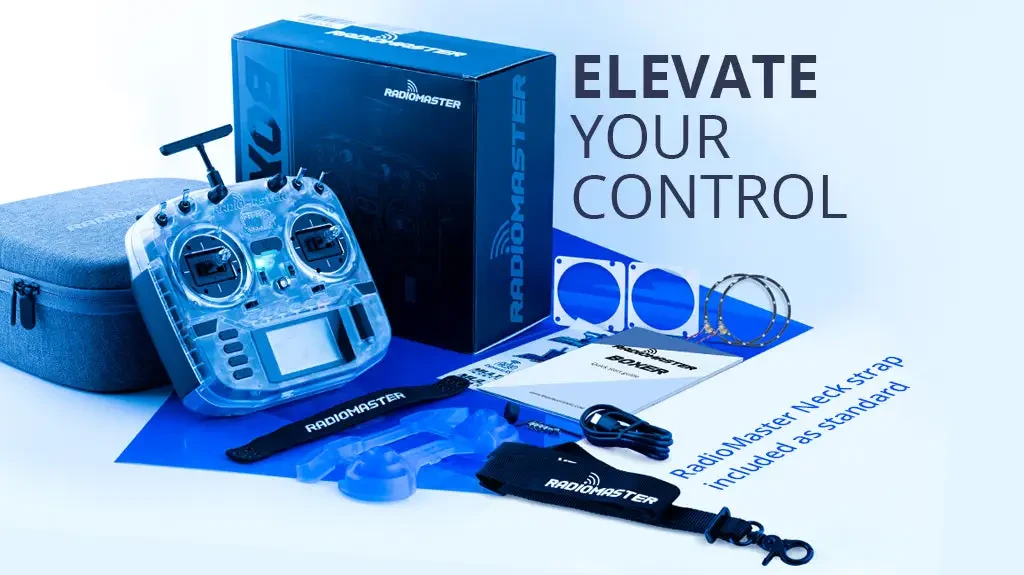

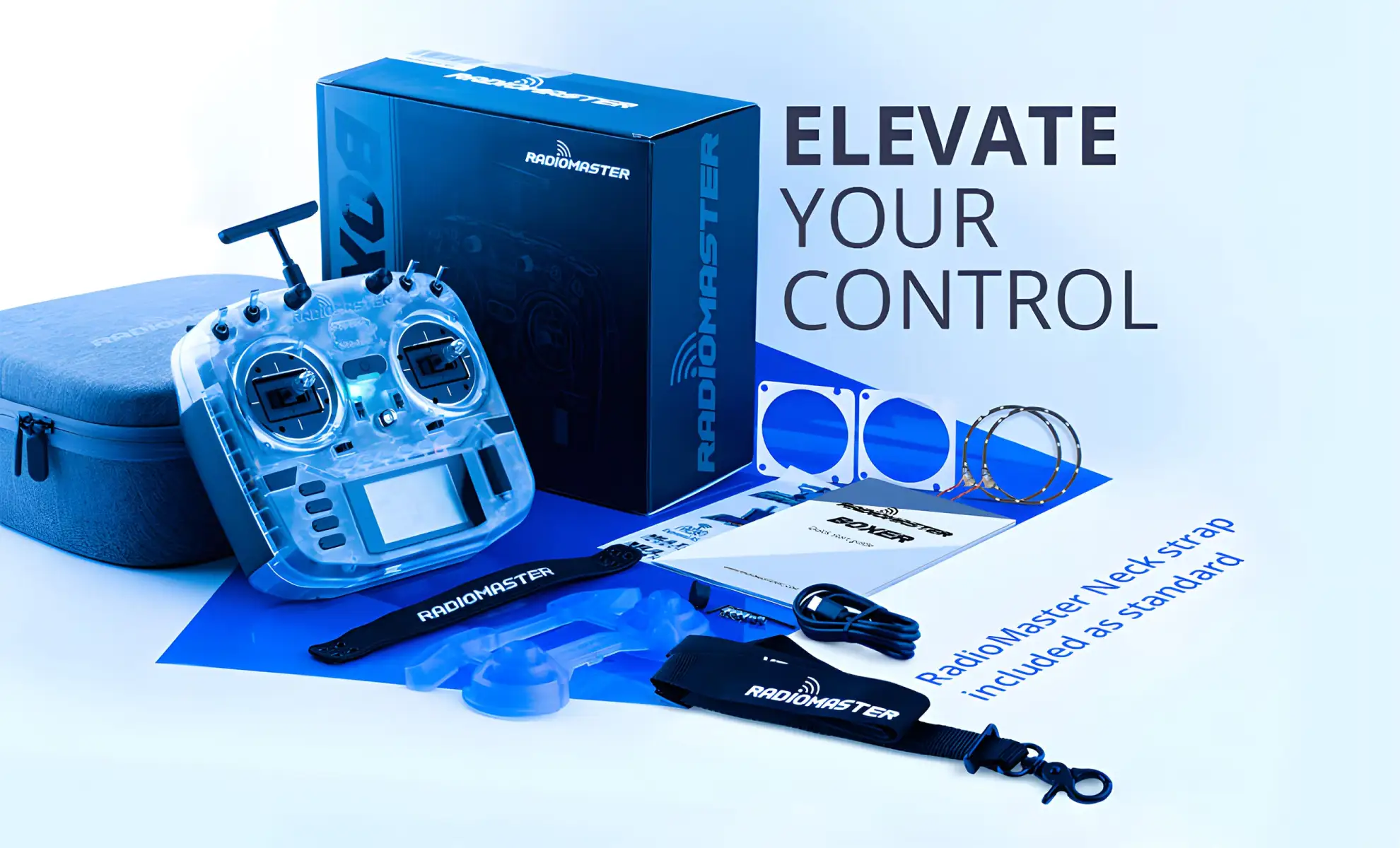

Complete Control Package
Premium transparent transmitter comes with carrying case, neck strap and full documentation - everything needed for professional FPV control in one box.
Specifications
● Item: BOXER Radio Transparent Version
● Size: 235*178*77mm
● Weight: 532.5g
● Frequency: 2.400GHz-2.480GHz
● Internal RF: ELRS 2.4GHz
● Supported protocols: Module dependent
● Cooling fan: Built in (ELRS version)
● Voltage Range: 6.6-8.4V DC
● Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
● Channels: Max 16 channels (Receiver dependent)
● Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
● Display: 128*64 Monochrome LCD display
● Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
● External module: JR / FrSKY / Crossfire compatible
● Upgrade Method: USB / SD card & EdgeTX Companion PC software
● BONUS: White Gimbal LED set included but not installed
● BONUS: Radiomaster neck strap

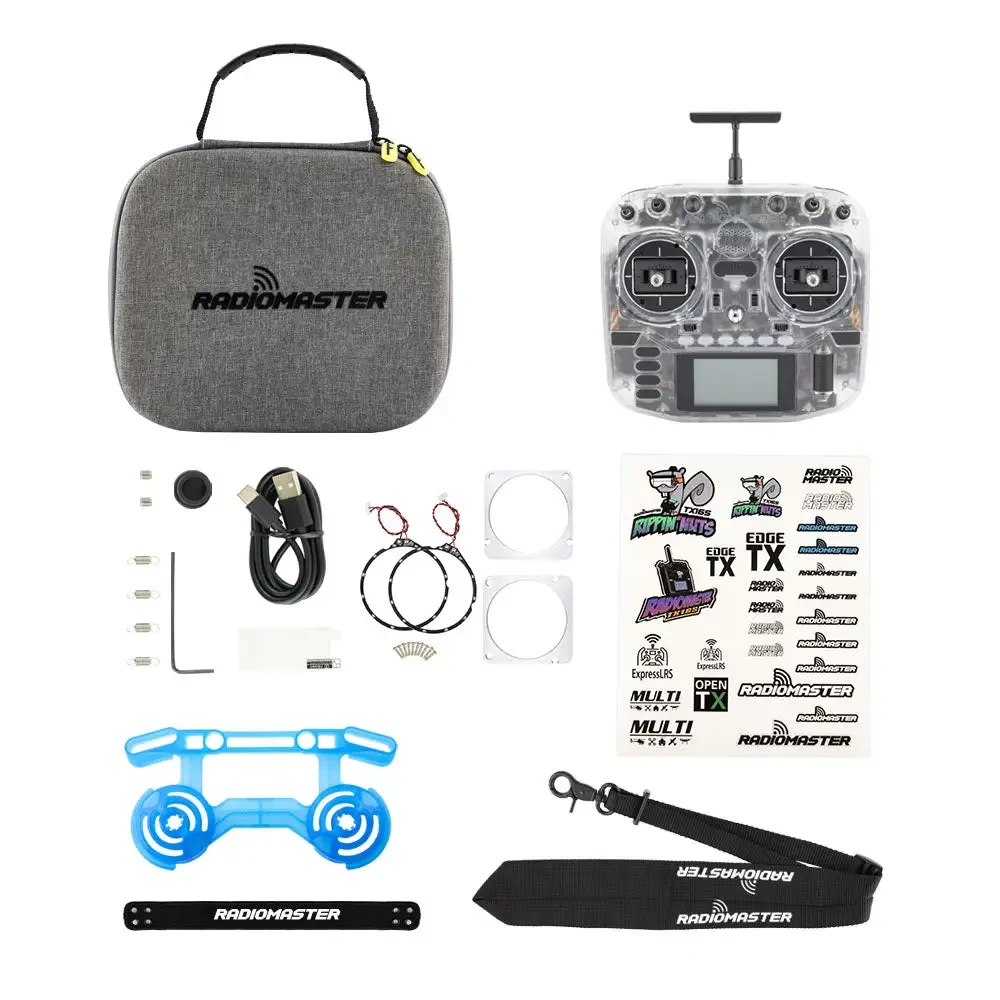

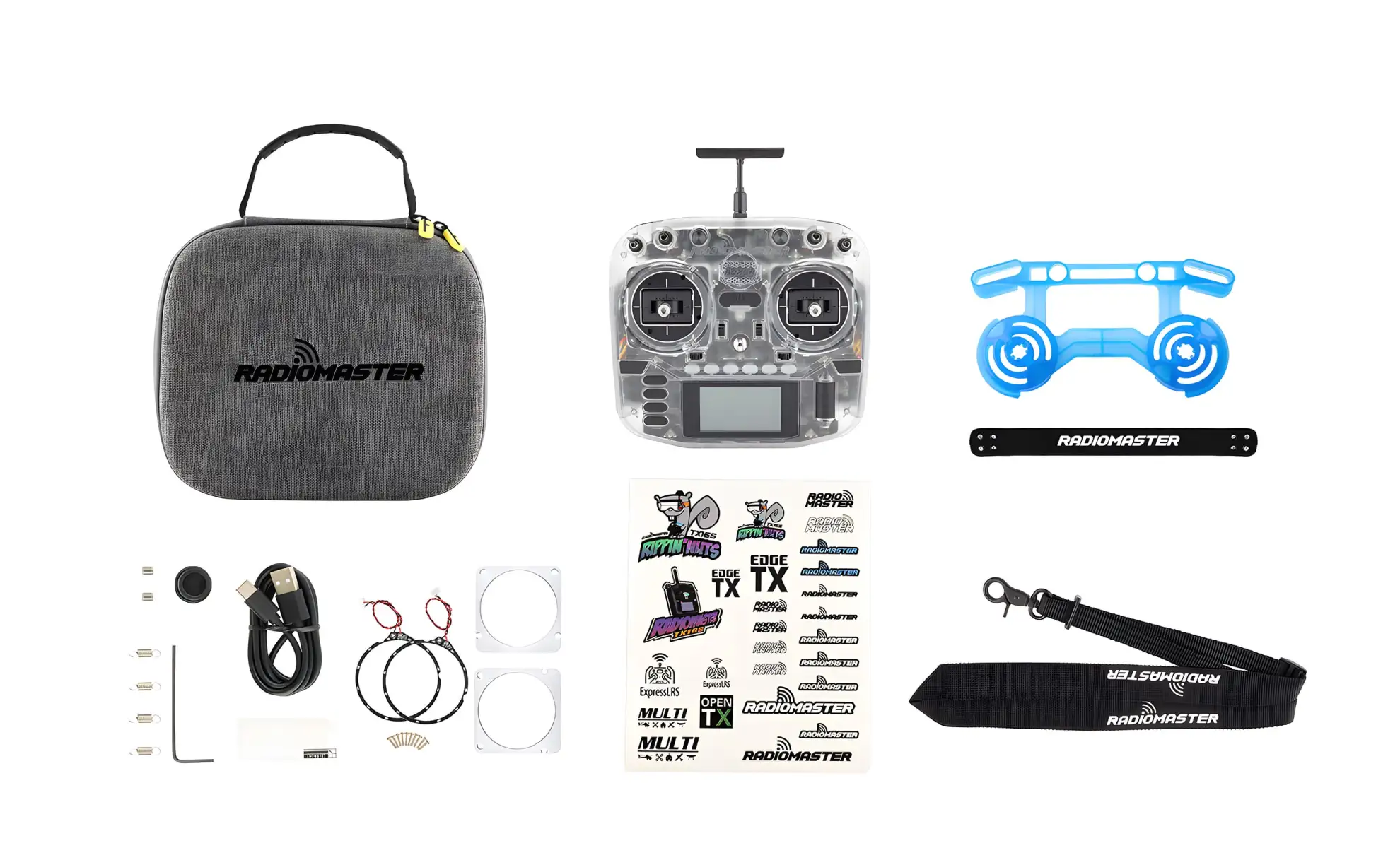

Package Include
● 1 * BOXER Radio Transparent Version
● 1 * Signature Carry Case
● 1 * T Antenna
● 1 * USB-C Cable
● 1 * Gimbal Protector
● 1 * 1.5mm Allen Key
● 2 * M4*4 Screws
● 4 * Low Tension Springs
● 1 * Stickers
● 1 * Manual
● 1 * White Gimbal LED set (ready to install)
● 1 * 18650 Battery tray (Batteries not included)
● 1 * RadioMaster Neck Strap for Transmitter
Recommendations
Reviews
k**e
Verified
Clear case looks sick, ELRS link is rock solid. Best remote I’ve had.
Region：FCC
J*****s
Verified
Love the transparent Boxer radio! ELRS is rock solid, gimbals feel smooth and the build quality is great.
Region：FCC
S******T
Verified
Packaging was sturdy, no damage at all.
Region：FCC
z**k
Verified
Transparent case looks insane! ELRS is rock solid, gimbals feel buttery smooth.
Region：FCC
j*****e
Verified
This transparent design looks absolutely stunning, super unique among all my radios. The lightweight body fits my hands perfectly, gimbals feel soft and natural for long flying sessions.
Region：FCC
j****n
Verified
Transparent Boxer looks clean, gimbals are smooth out the box.
Region：FCC
Additional reviews after 10
days
Still my favorite radio, no issues after tons of flights.
k******v
Verified
Shipping was super fast, arrived way earlier than I thought! Love this clear Boxer ELRS model.
Region：FCC
l***s
Verified
Transparent Boxer sieht mega aus, ELRS ist stabil und die Gimbals sind top.
Region：FCC
Additional reviews after 10
days
Immer noch mein Lieblingssender, funktioniert nach Wochen wie neu.
1
2
FAQFeel free to ask us any questions
ASK A QUESTION
What RF protocol does the Boxer Transparent support?
It features built-in 1 W ExpressLRS (ELRS) at 2.4 GHz, offering ultra-low latency long-range control with up to 1000 Hz packet rate.
What firmware runs on the Boxer Transparent?
Comes pre-installed with EdgeTX firmware, allowing full customization, scripting, and compatibility with the EdgeTX Companion app.
What gimbals are included, and can they be upgraded?
Standard with V4.0 Hall sensor gimbals, you can optionally upgrade to AG01 CNC Hall gimbals for enhanced precision.
How long can the battery last, and what capacity does it support?
Compatible with either two 18650 cells or a 2S 6200 mAh LiPo—offering up to 20 hours runtime on a single charge.
Q: Is the RadioMaster Boxer Transparent Version mainly a style upgrade, or does it still make sense as a serious FPV radio?
A: It is both. The transparent shell gives it a distinctive look, but the real value is still in the ELRS system, V4.0 Hall gimbals, EdgeTX support, and the proven Boxer form factor.
