Q: What are the recommended combinations for RadioMaster Bandit BR3 ExpressLRS 915MHz Receiver?

A: It is recommended to pair this receiver with MEPS F7 flight controller, MEPS 60A ESC, MEPS 2207 brushless motor, and Foxeer 5.8G Reaper Extreme V2 2.5W 72CH VTX.

Q: What are the features of this FPV receiver?

A: This receiver has a built-in TCXO (Temperature Compensated Crystal Oscillator) to ensure stable signal reception. It also features a telemetry output power of up to 500mW and is equipped with dual 915/868MHz T-type antennas to enhance signal transmission stability and range.

Q: What are the recommended application scenarios for this receiver?

A: Bandit BR3 ExpressLRS 915MHz Receiver is recommended for long-range environments. With dual antennas and a high-frequency signal transmission of 500mW, it provides stable and low-latency signal transmission over long distances, making it an excellent choice for long-range signal reception.

Q: What should be noted when using this receiver?

A: When using this receiver, avoid bending the antennas more than 90 degrees. The angle between the two antennas should ideally be maintained between 90 and 180 degrees to prevent signal overlap, which can reduce transmission distance. Additionally, be cautious with the wiring to avoid incorrect connections that could cause irreversible damage.

radiomaster-bandit-br3-expresslrs-receiver

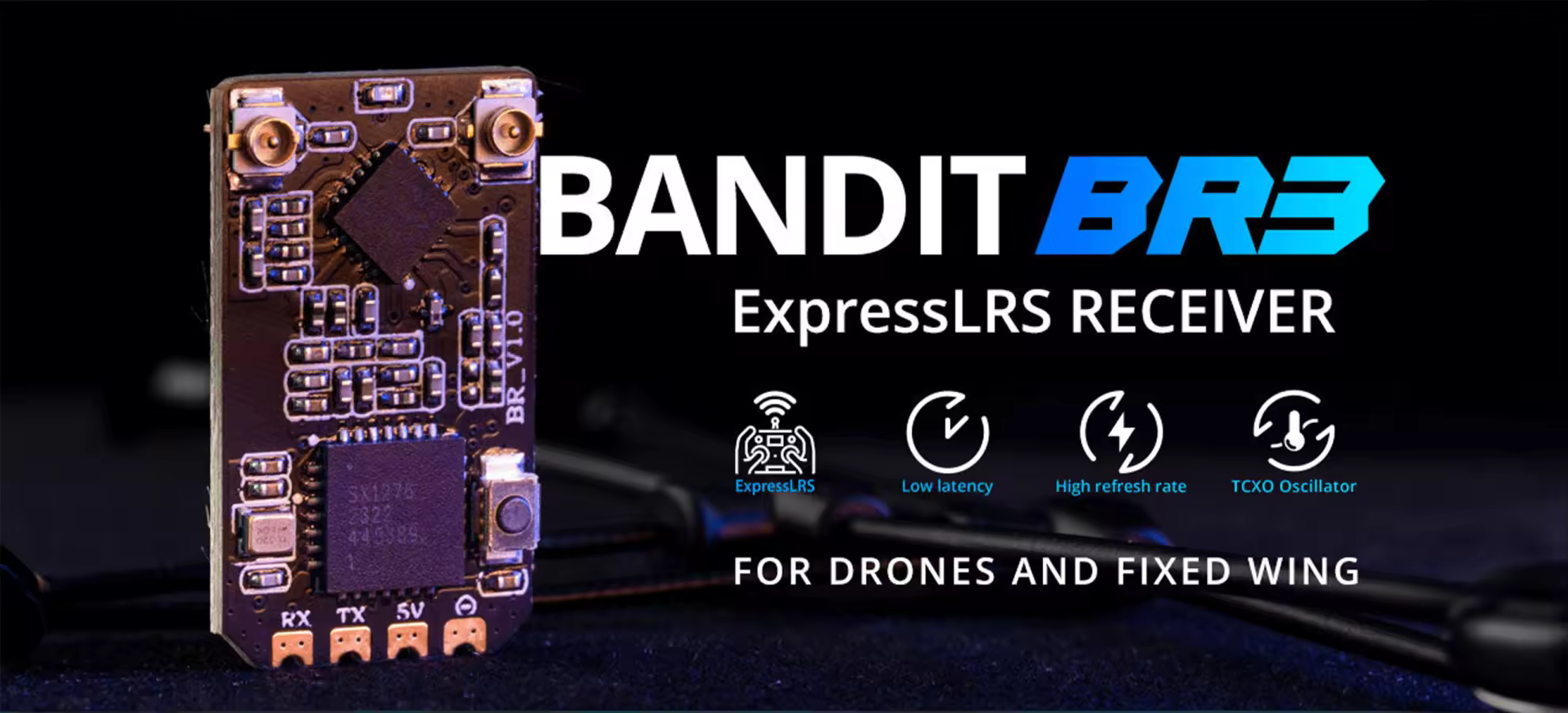

RadioMaster Bandit BR3 ExpressLRS ELRS 915/868MHz T Antenna Receiver for FPV Drone

Radiomaster

$30 Off Orders $499+

$15 Off Orders $249+

Collect

$ 24.99 ~~$35.90~~

-30%

5 | 253Sold

Options (1)

Quantity

In Stock Expected ship within 5 days after order.

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Payment | Every order you place with us is safe & secure

radiomaster-bandit-br3-expresslrs-receiver-expresselrs-receiver

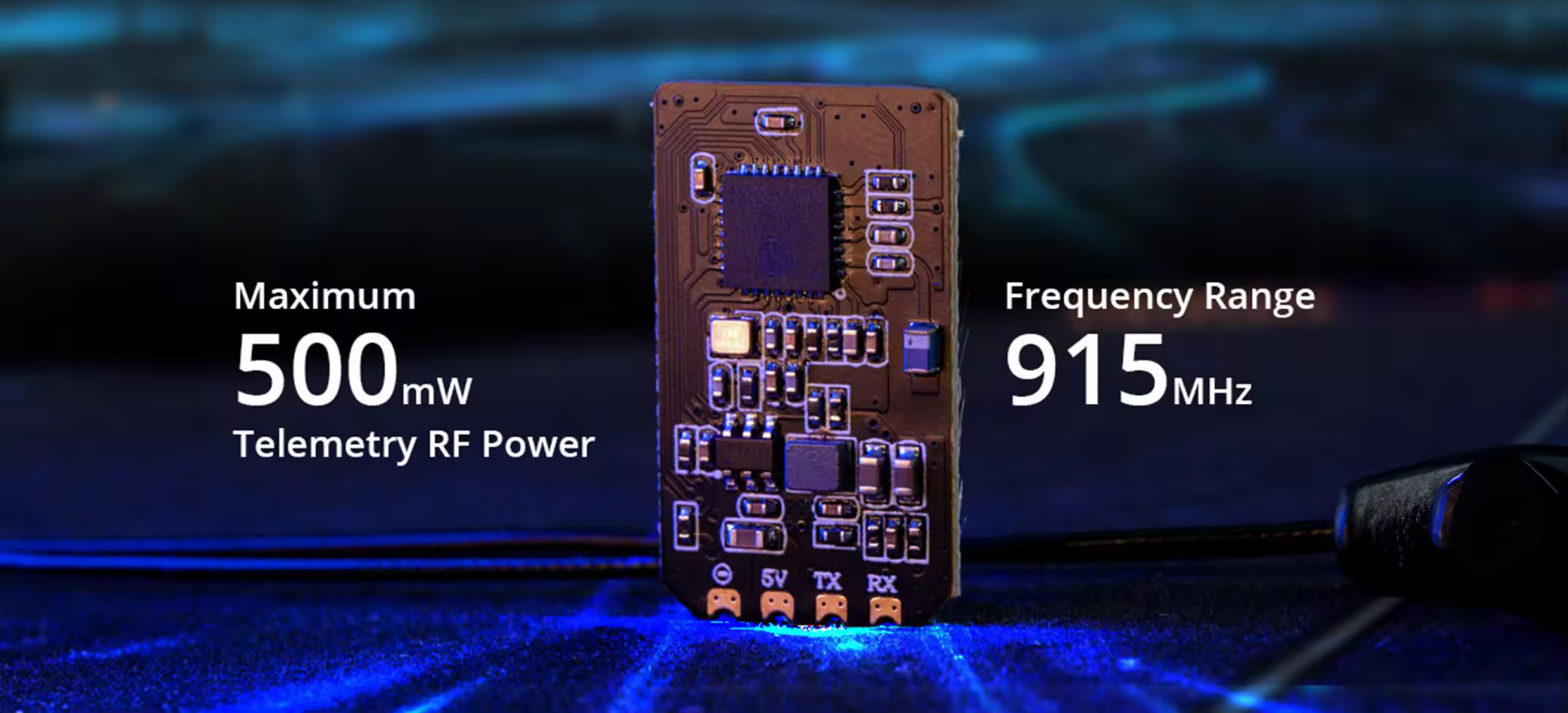

500mW 915MHz RF Moduler

High-power 500mW telemetry with 915MHz frequency range for stable long-range control. Compact design with optimized circuitry.

radiomaster-bandit-br3-expresslrs-receiver-max-500mw

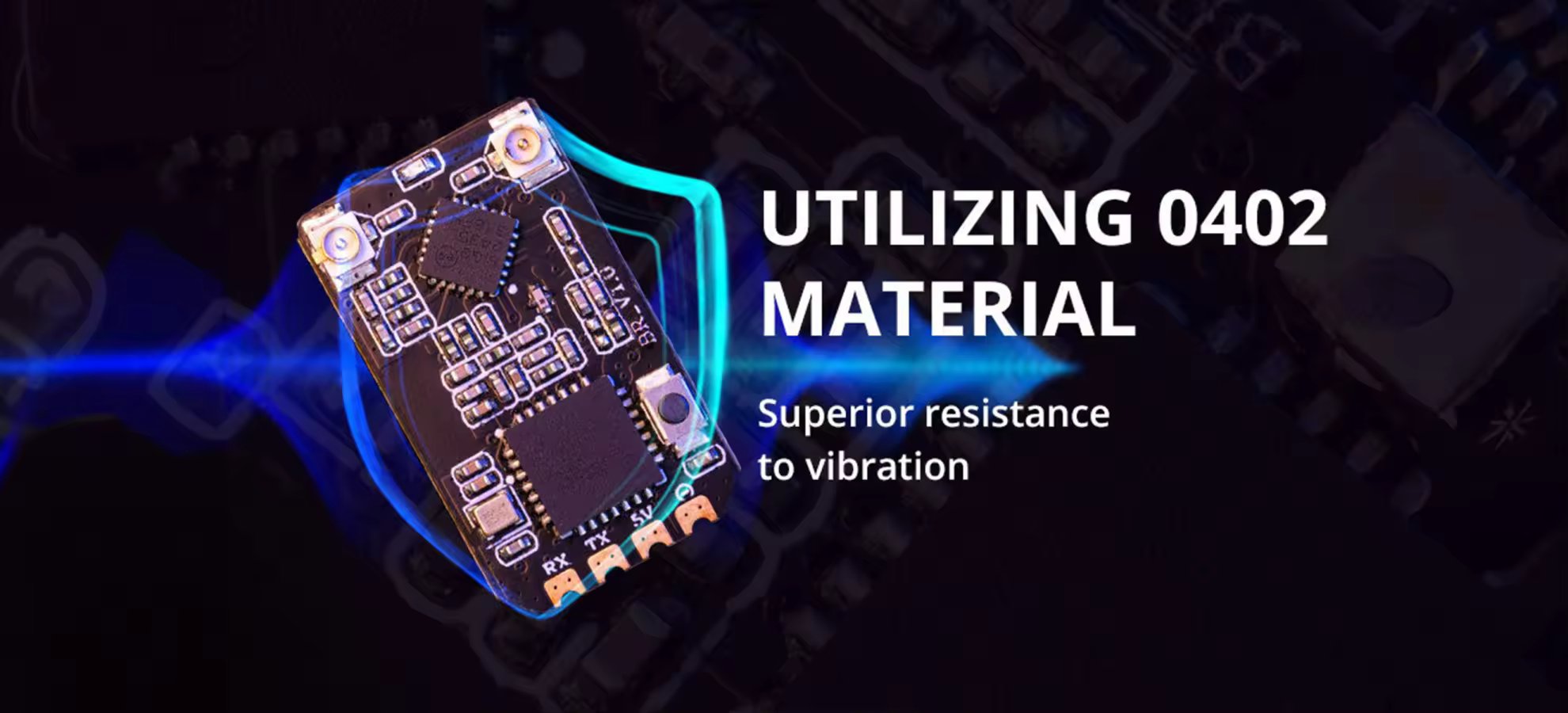

0402 Ultra-Miniature Components

High-density 0402-sized chips provide superior vibration resistance for harsh environments (ideal for drones/robotics).

radiomaster-bandit-br3-expresslrs-receiver-superior-resistance

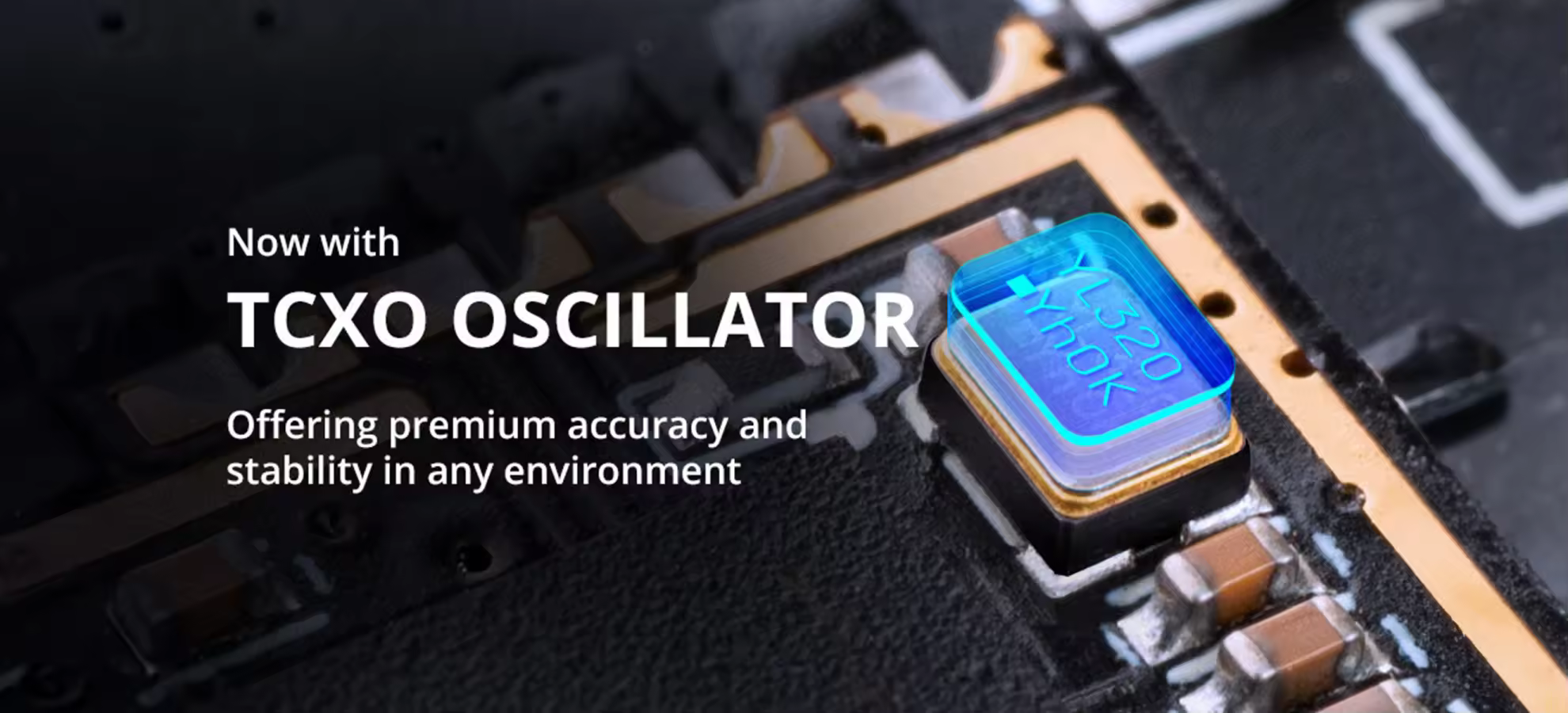

TCXO Oscillator - Precision Stability

High-accuracy "YH20 XTAL" TCXO chip with gold-plated pins ensures ±0.1ppm frequency stability in extreme environments.

radiomaster-bandit-br3-expresslrs-receiver-premium-accurency

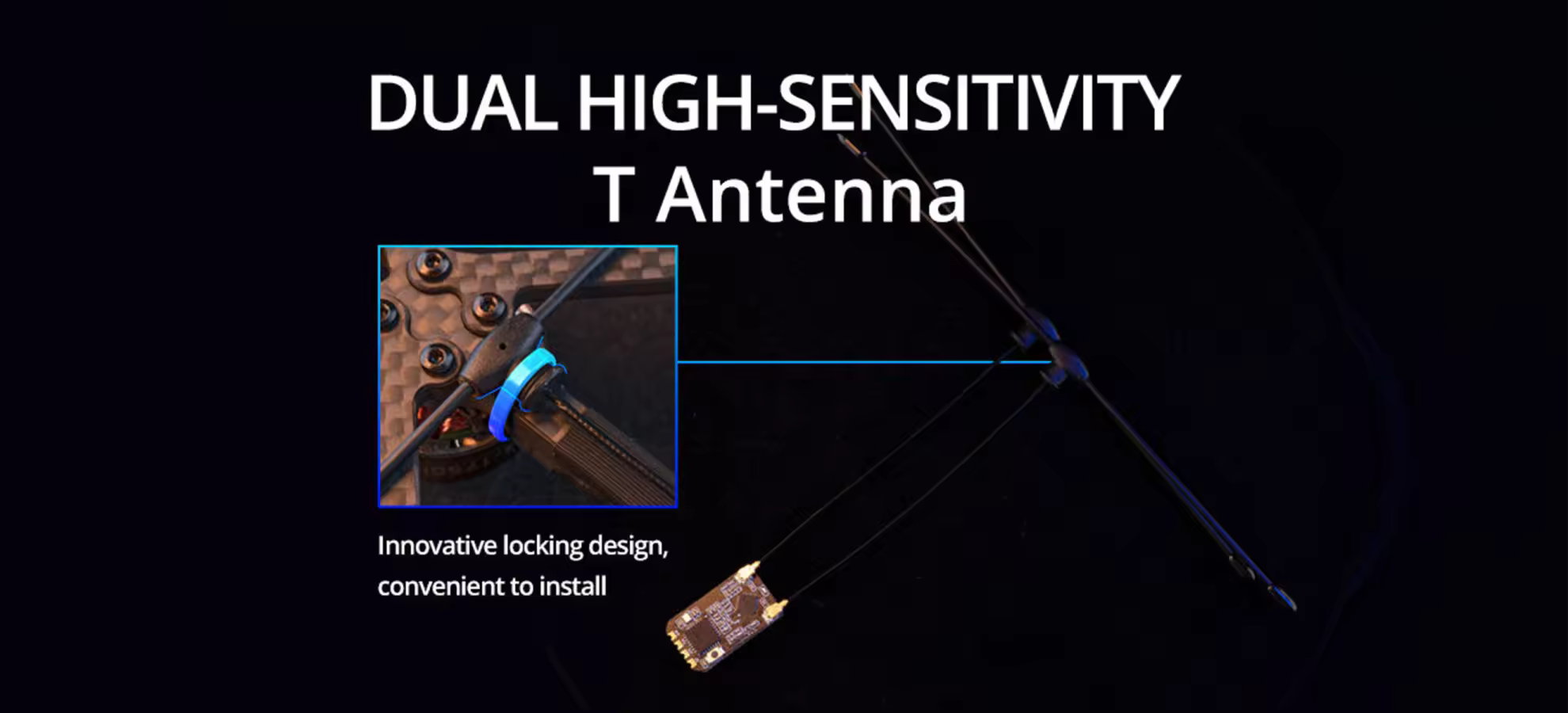

Dual High-Sensitivity T Antenna

Features innovative locking design for easy installation, with enhanced signal reception through dual T-shaped antennas.

radiomaster-bandit-br3-expresslrs-receiver-high-sensitivity

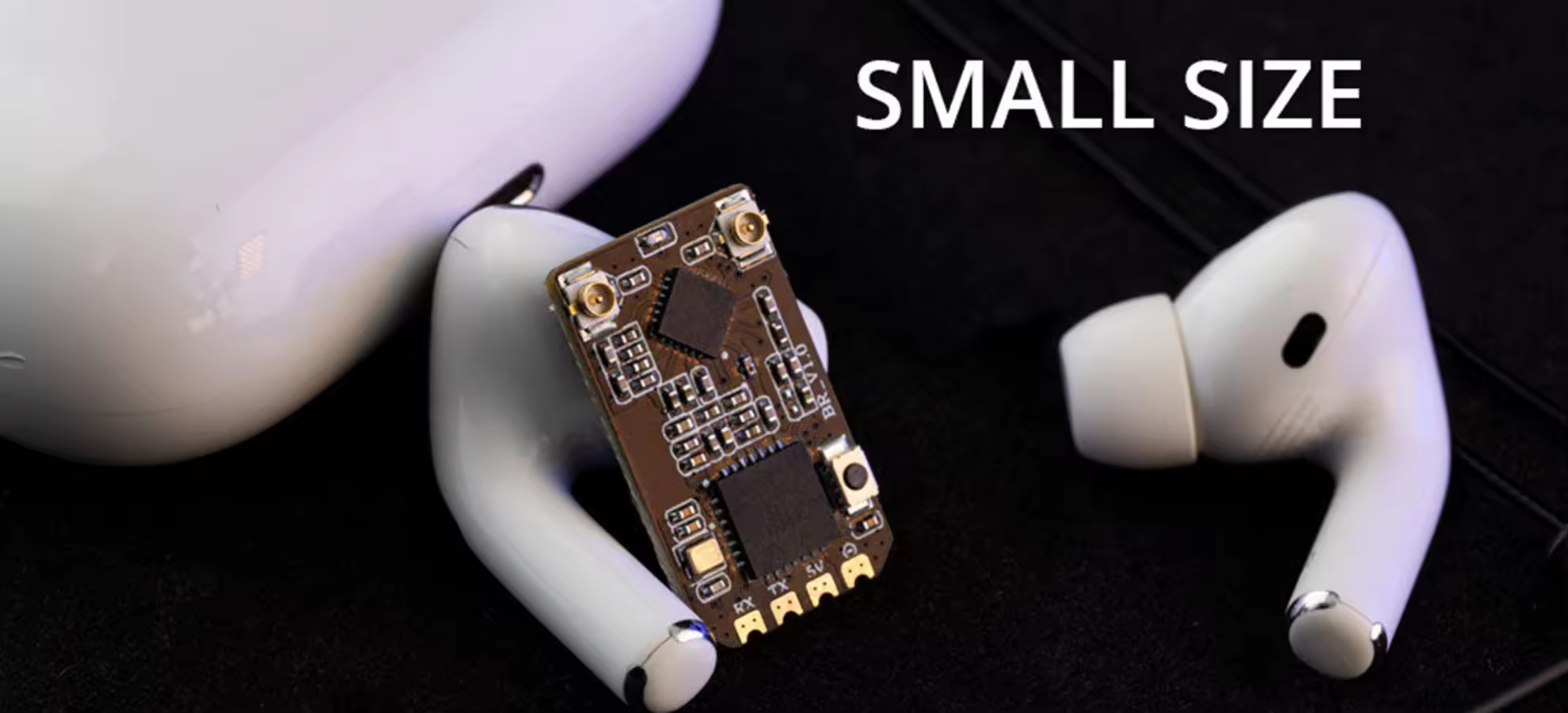

Compact Precision

Weighing just 5.5g (with antennas) and measuring 24x14.2mm, this nano-sized receiver fits seamlessly into any build. Dual IPEX1 antenna ports optimize signal diversity without adding bulk.

radiomaster-bandit-br3-expresslrs-receiver-small-size

Features:

● Maximum 500mW telemetry RF power

● Built-in TCXO oscillator

● Utilizing 0402 components, superior resistance to vibration

● Dual 915/868MHz T Antenna for improved signal stability and range

Specifications:

● Model: Bandit BR3 Expresslrs Receiver

● Regulatory Domain: FCC915

● MCU: ESP8285

● RF Chip: SEMTECH SX1276

● Telemetry RF power: 100mW - 500mW LUA Adjustable

● Antenna: 915/868MHz T Antenna

● Antenna Interface: IPEX1

● Bus Interface: CRSF

● Working Voltage: DC 5.0V

● Dimension: 24*14.2mm

● Weight: 5.5g (with antennas)

Product Recommendation:

● MEPS 2306 Brushless motor

● MEPS 60A ESC

● MEPS F7 HD Flight controller

Package included:

● 1* RadioMaster Bandit BR3 Expresslrs Receiver

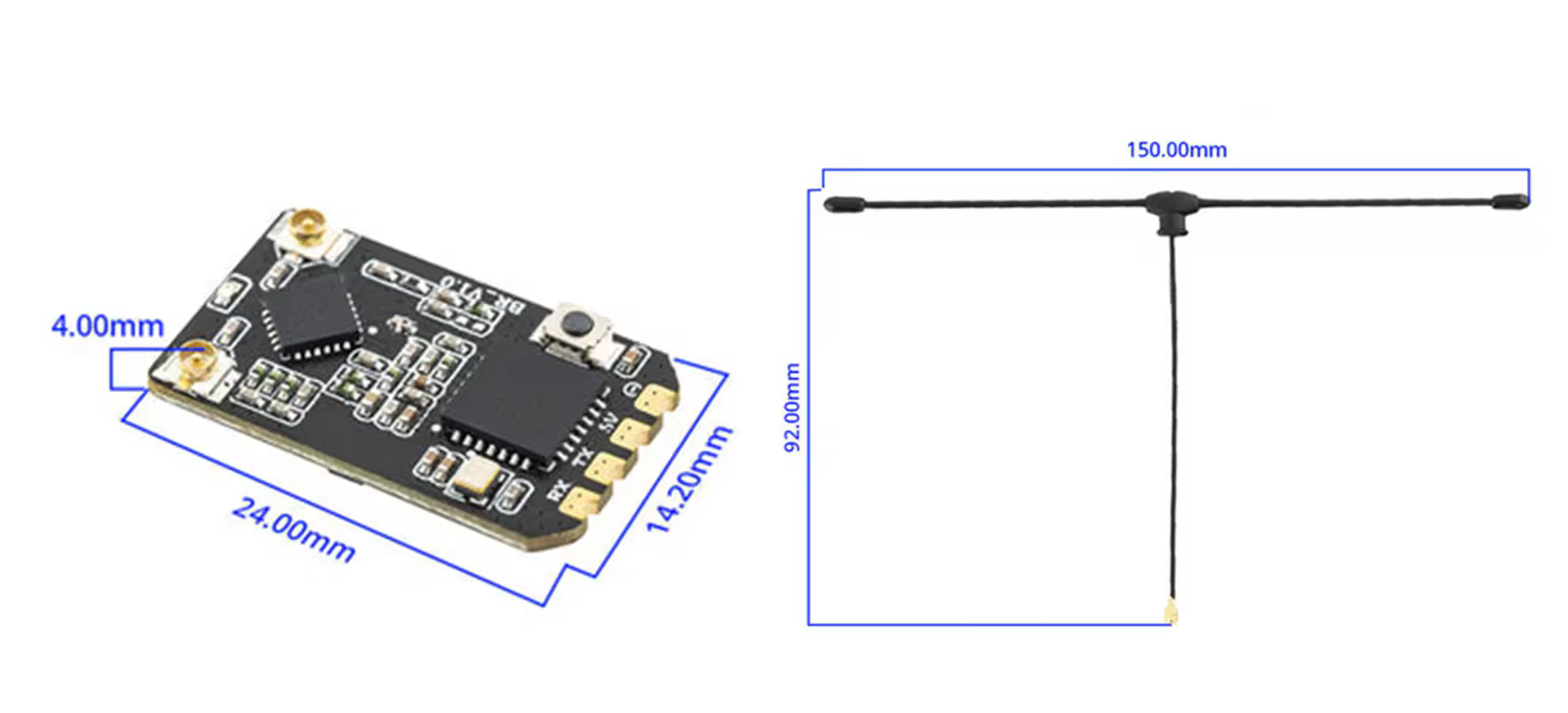

Size Chart

Parameter Data

radiomaster-bandit-br3-expresslrs-receiver-specifications
