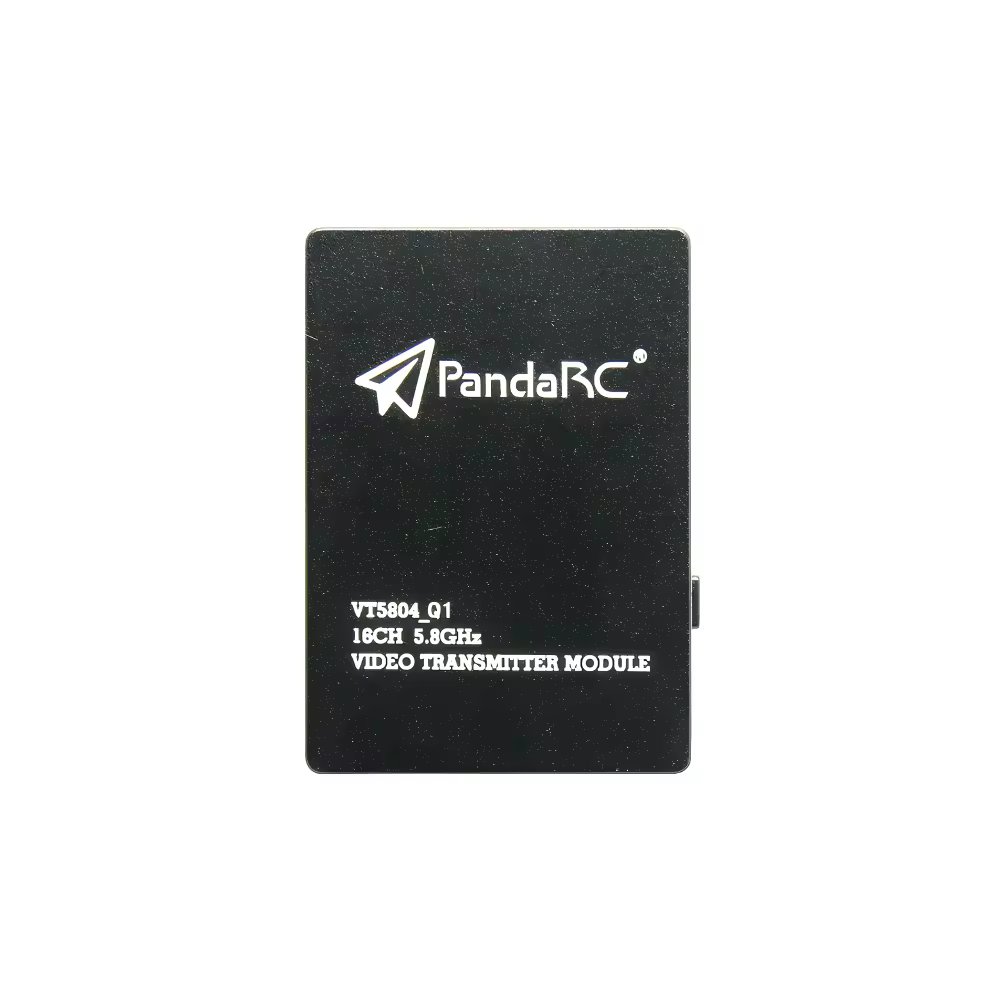

NEWPandaRC VT5804 800mW FPV Video Transmitter

About PandaRC VT5804 FPV VTX:

The PandaRC VT5804 is a high-performance 5.8GHz FPV video transmitter designed for serious pilots seeking reliability, flexibility, and long-range video clarity—all without breaking the bank. Whether you're a freestyle flyer, long-range explorer, or racing enthusiast, this VTX delivers consistent performance in a durable and compact form.

Engineered with a fully enclosed metal shell, the VT5804 provides superior heat dissipation and physical protection, making it ideal for demanding environments and hard crashes. The updated MMCX connector ensures a secure and stable connection to your FPV antenna, reducing signal loss and mechanical failure over time. Its 30x30mm mounting holes make it highly compatible with standard flight stacks, allowing for quick and clean installations.

What truly sets the VT5804 apart is its switchable power output—from 0mW for pit mode, up to a full 800mW for extended range and penetration. This allows pilots to easily adjust their video signal strength to match flying conditions or competition rules.

Features:

● Switchable transmitting power, including 0mW / 25mW / 100mW / 200mW / 400mW / 800mW mode.

● Frequency lock fast, boot does not interfere with companions.

● Comes with output power self-test function.

● Full format video format: NTSC / PAL.

● Wide input voltage range and low power consumption: 6V-26V

● Fully enclosed metal housing

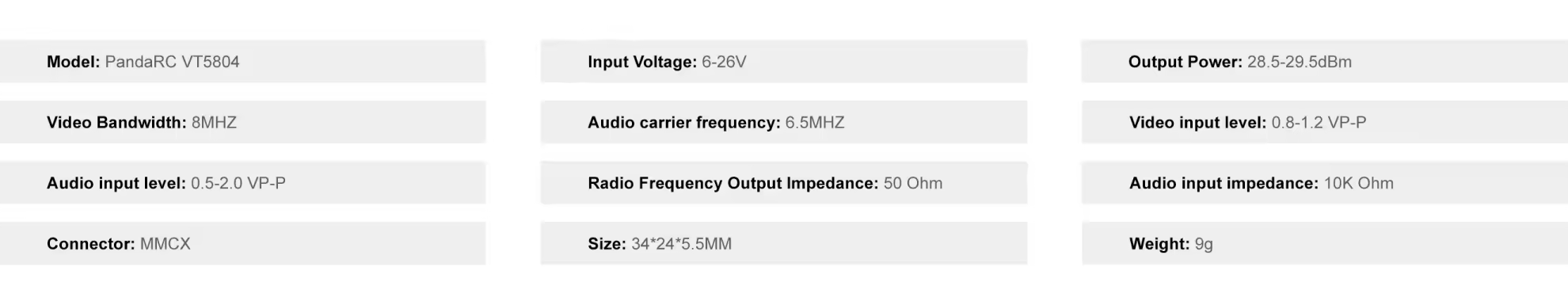

Specifications:

● Model: PandaRC VT5804

● Input Voltage : 6-26V

● Output Power : 28.5-29.5dBm

● Video Bandwidth:8MHZ

● Audio carrier frequency:6.5MHZ

● Video input level:0.8-1.2 VP-P

● Audio input level:0.5-2.0 VP-P

● Radio Frequency Output Impedance:50 Ohm

● Audio input impedance:10K Ohm

● Connector: MMCX

● Size: 34*24*5.5MM

● Weight: 9g
