What transmitters are compatible with the RadioMaster Nomad module?

The Nomad includes micro and nano module adapters, making it compatible with most radios on the market, including those requiring JR-style or Lite module bays.

How does Gemini Xrossband technology improve performance?

Gemini Xrossband allows simultaneous transmission on 2.4GHz and 868/900MHz bands, reducing packet loss from interference and providing redundancy in crowded RF environments or long-range flights.

Is the 1-watt output power legal in my country?

Always check local regulations. While 1-watt provides exceptional range, some regions restrict maximum transmission power (e.g., 25mW in the EU for 2.4GHz). The module allows adjustable power settings to comply with regional laws.

Will the module support 1000Hz packet rates?

Yes, a future firmware update (ExpressLRS v3.5) will enable 1000Hz modes for sub-GHz MAVLink applications and K1000 modes for ultra-responsive racing scenarios.

Is this module suitable for both racing and long-range FPV?

Absolutely. Dual-band redundancy excels in interference-heavy race environments, while 1-watt output and sub-GHz support maximize range for long-distance exploration. Upcoming K modes further enhance racing reliability.

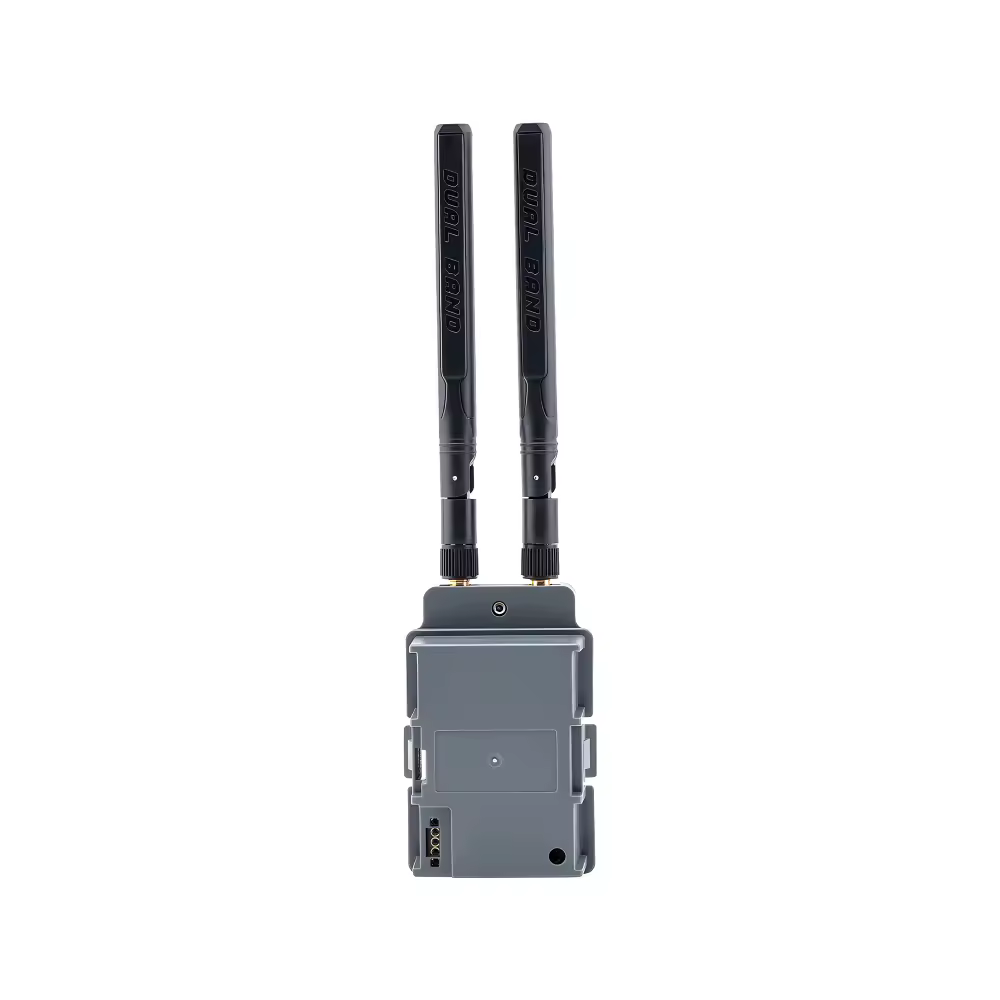

RadioMaster Nomad Dual 1-watt Gemini Xrossband ExpressLRS Module

Radiomaster

$7 Off Orders $109+

$25 Off Orders $399+

Collect

$ 43.99 ~~$68.99~~

-36%

5 | 233Sold

Options (1)

Quantity

In Stock Expected ship within 5 days after order.

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Top highlights

Operates on 2.4GHz-900MHz simultaneously for reduced interference-packet loss.
High-output transceivers with advanced cooling ensure stable performance in extreme conditions.
Works with all ExpressLRS receivers and most radios via micro/nano adapters.
Upcoming 1000Hz packet rates (via firmware) for MAVLink and racing applications.
Dual-band redundancy excels in crowded RF environments or long-range flights.

Payment | Every order you place with us is safe & secure

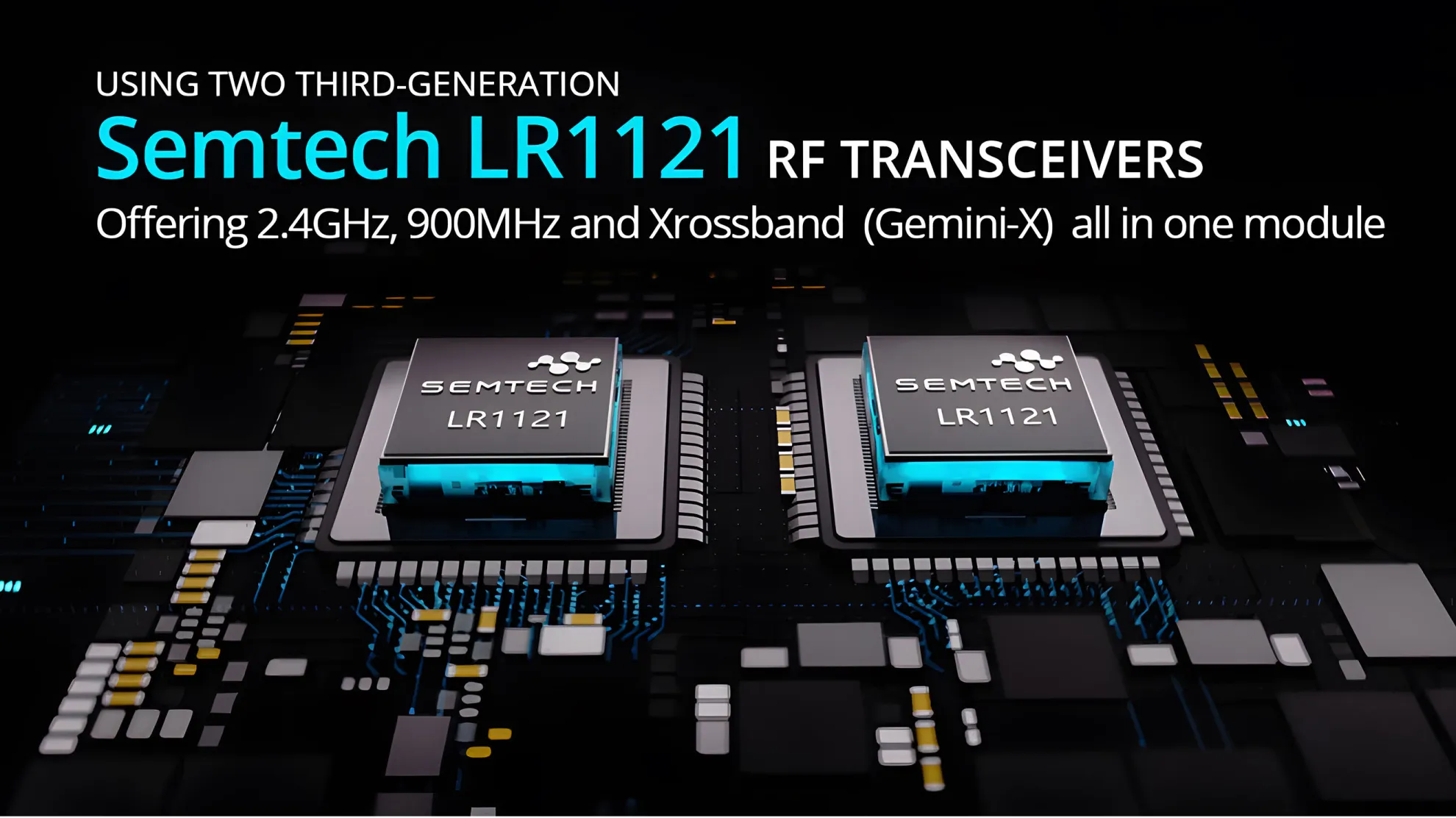

With dual 1-watt dual-band transceivers, the Nomad has exceptional range and revolutionary interference rejection for demanding environments providing enhanced performance and reliability. The Nomad comes with a micro module and nano module adapter, ensuring it works with most radios on the market today.

radiomaster nomad dual 1 watt gemini xrossband expresslrs module nomad

radiomaster nomad dual 1 watt gemini xrossband expresslrs

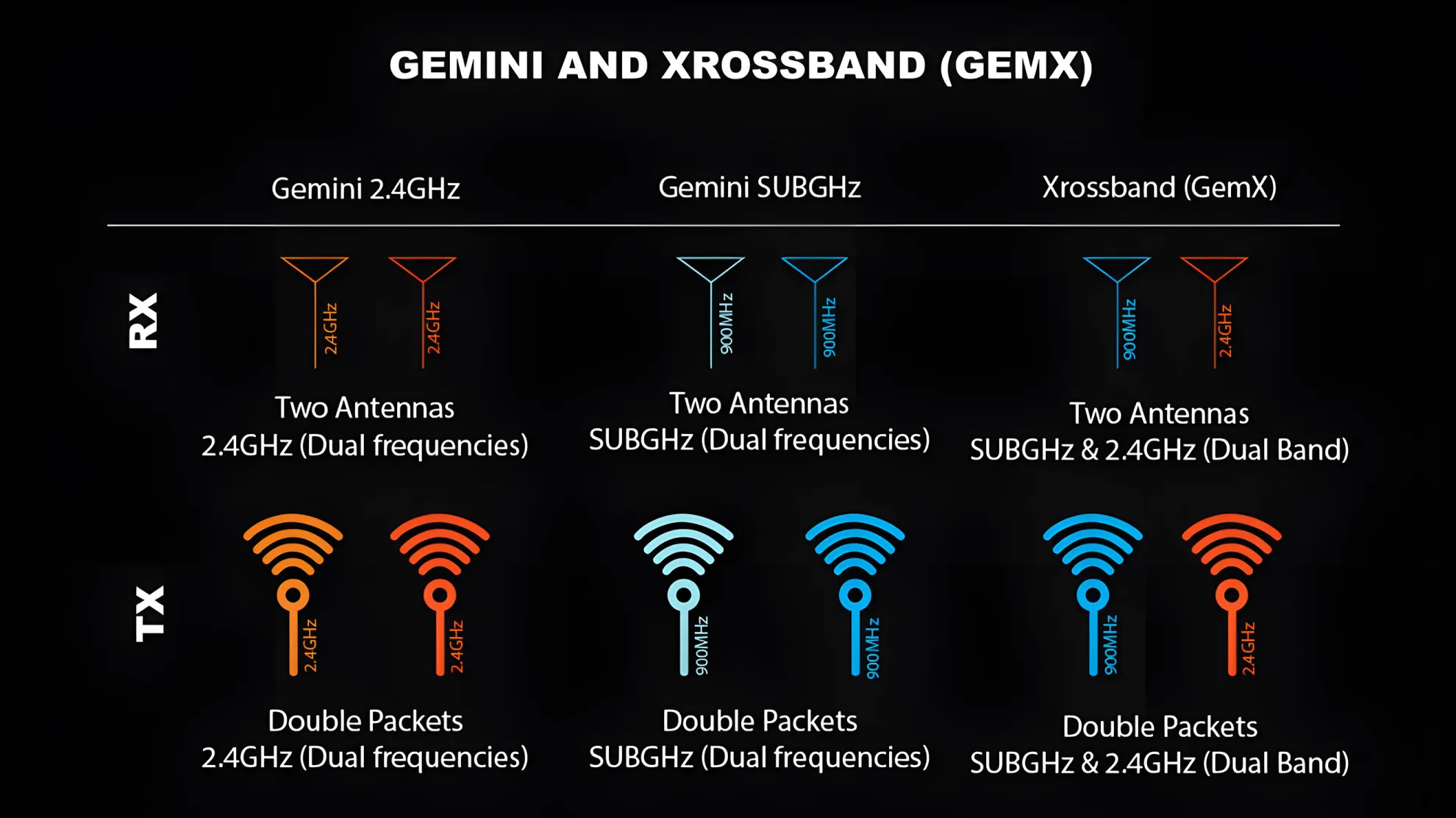

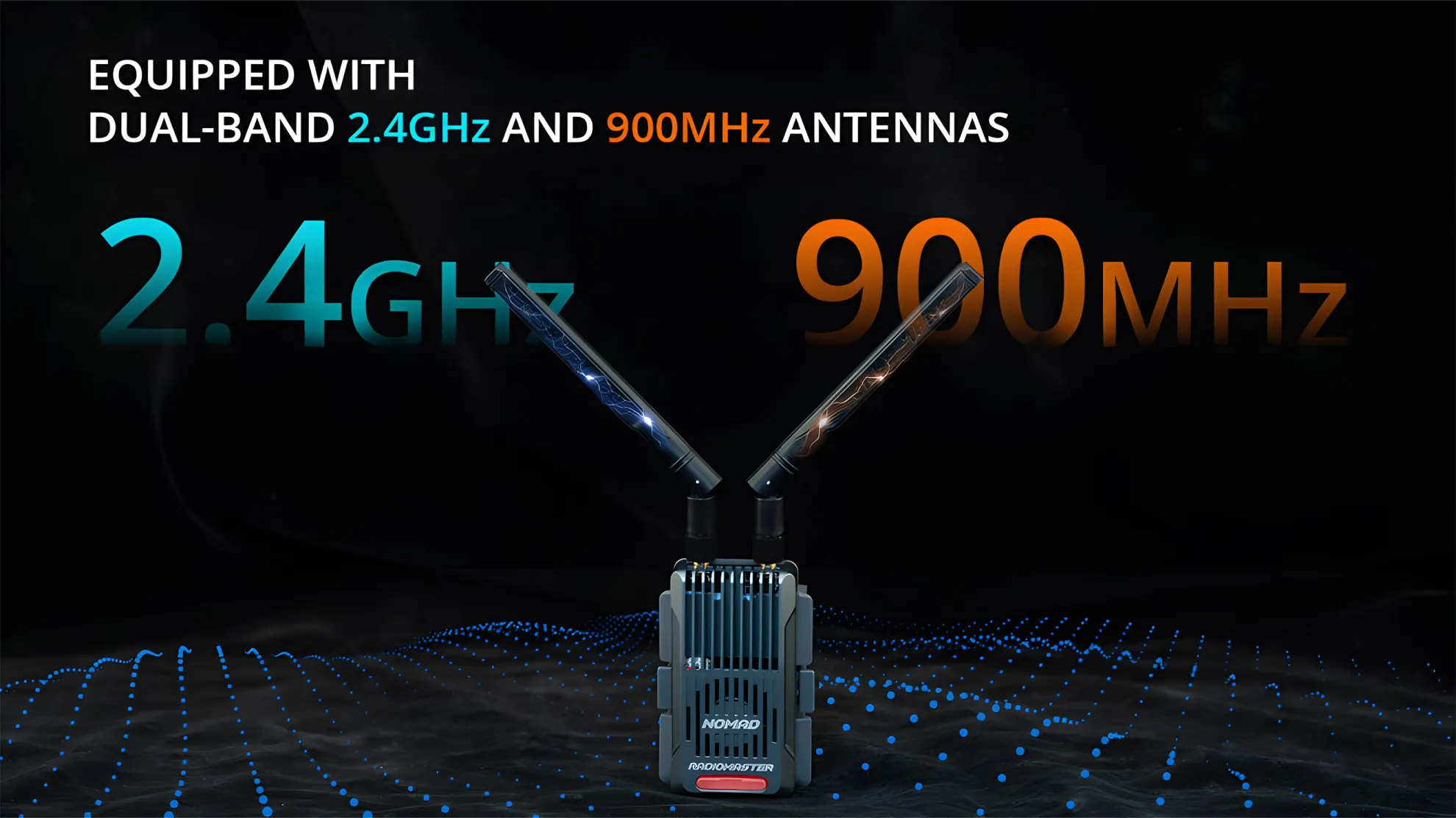

Dual-Band Simultaneous Operation

Operates on 2.4GHz and 900MHz simultaneously using Gemini Xrossband protocol, minimizing interference and packet loss in crowded environments.

radiomaster nomad dual 1 watt gemini xrossband expresslrs module 2.4

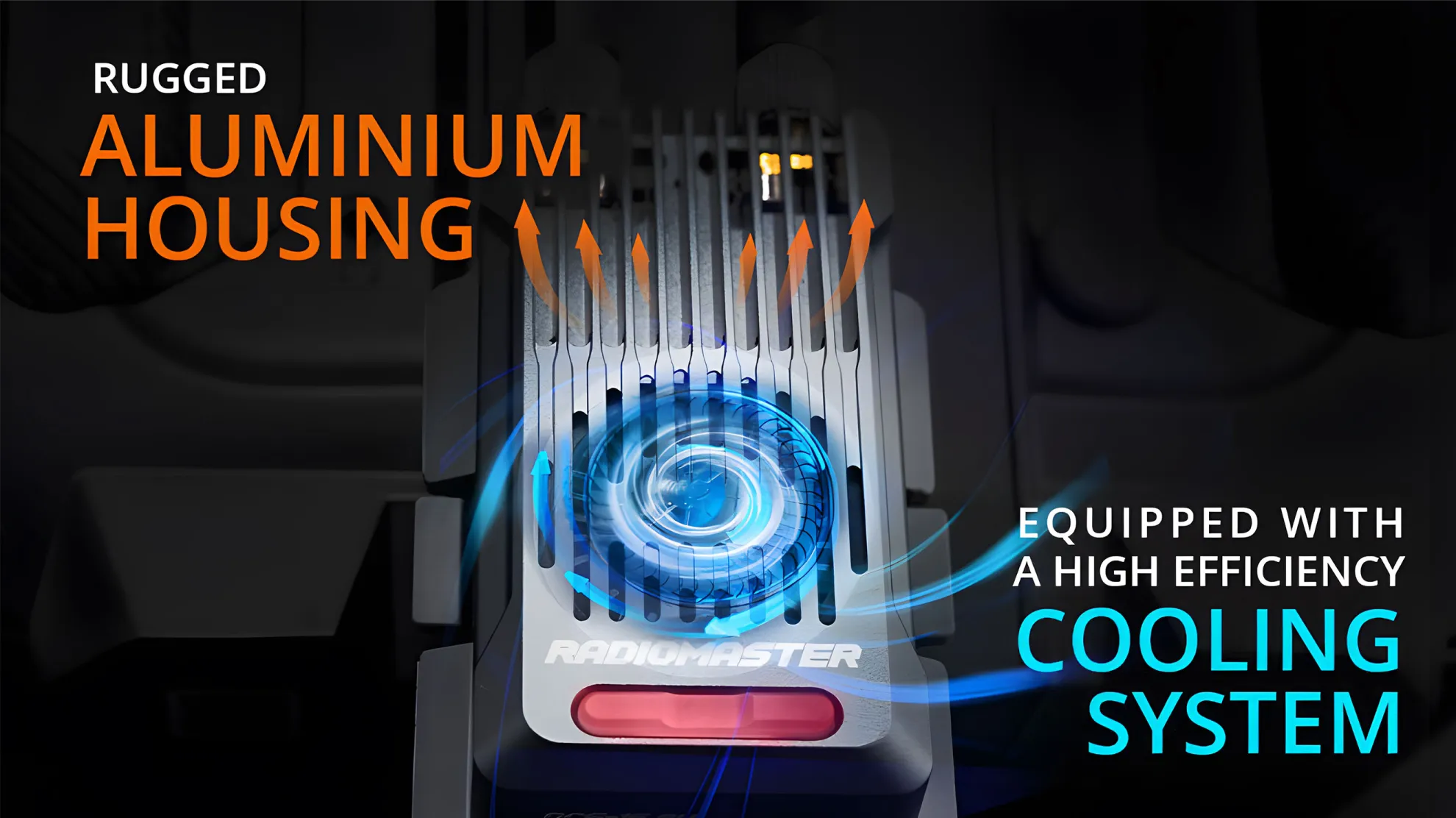

High-Power 1W Output with Advanced Cooling

Dual 1-watt transceivers and optimized cooling ensure stable performance in extreme conditions, ideal for long-range and high-stress flights.

Dual-Band Mastery: WiFi + Bluetooth

Unlock seamless wireless control with RadioMaster Nomad's dual-band (WiFi & Bluetooth) 1W power output, optimized for high-performance drones and IoT integration.

radiomaster nomad dual 1 watt gemini xrossband expresslrs module wifi

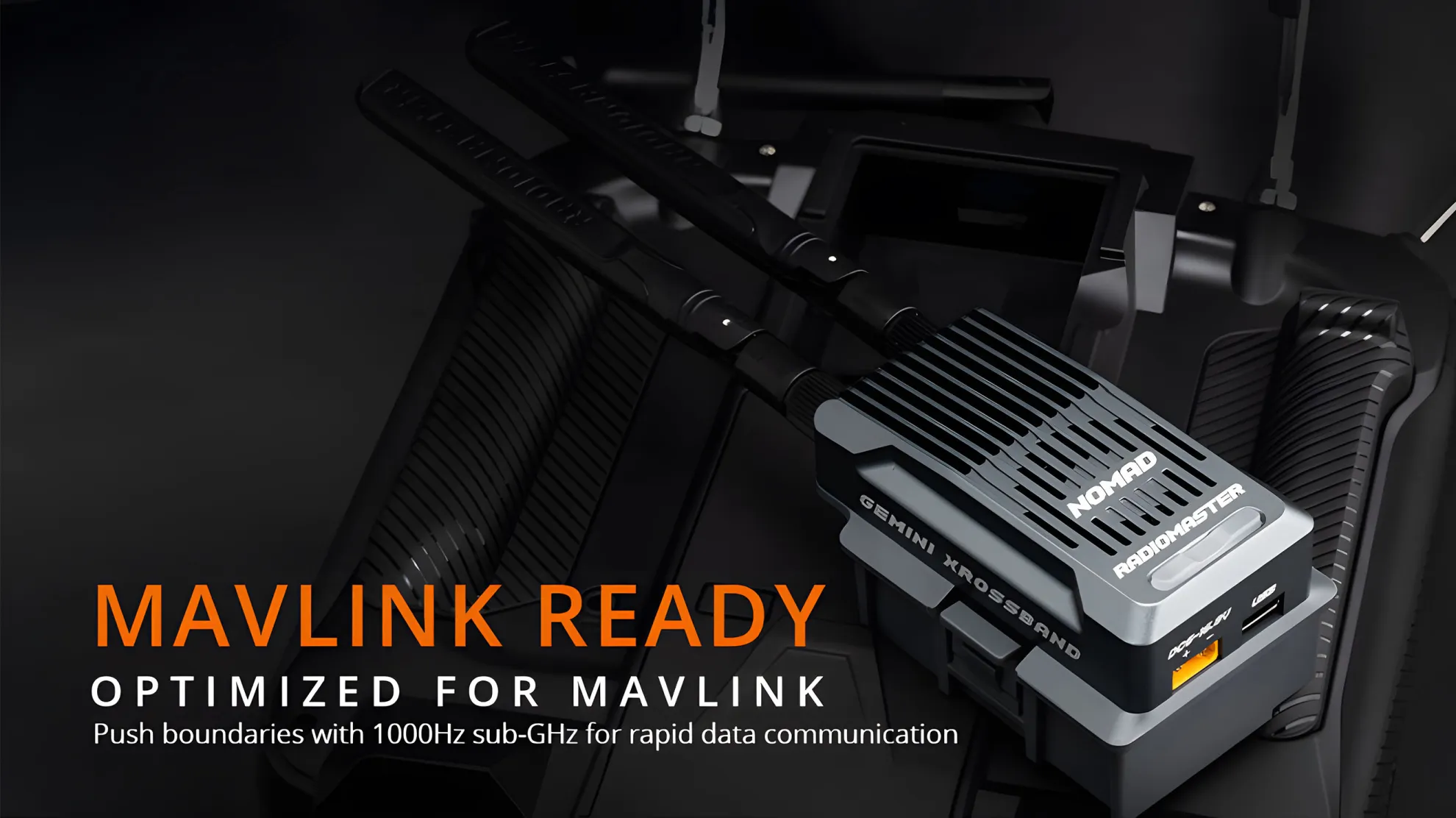

Future-Ready 1000Hz Packet Rate

Upcoming 1000Hz mode via firmware update enhances MAVLink and racing applications with ultra-responsive, high-speed data transmission.

radiomaster nomad dual 1 watt gemini xrossband

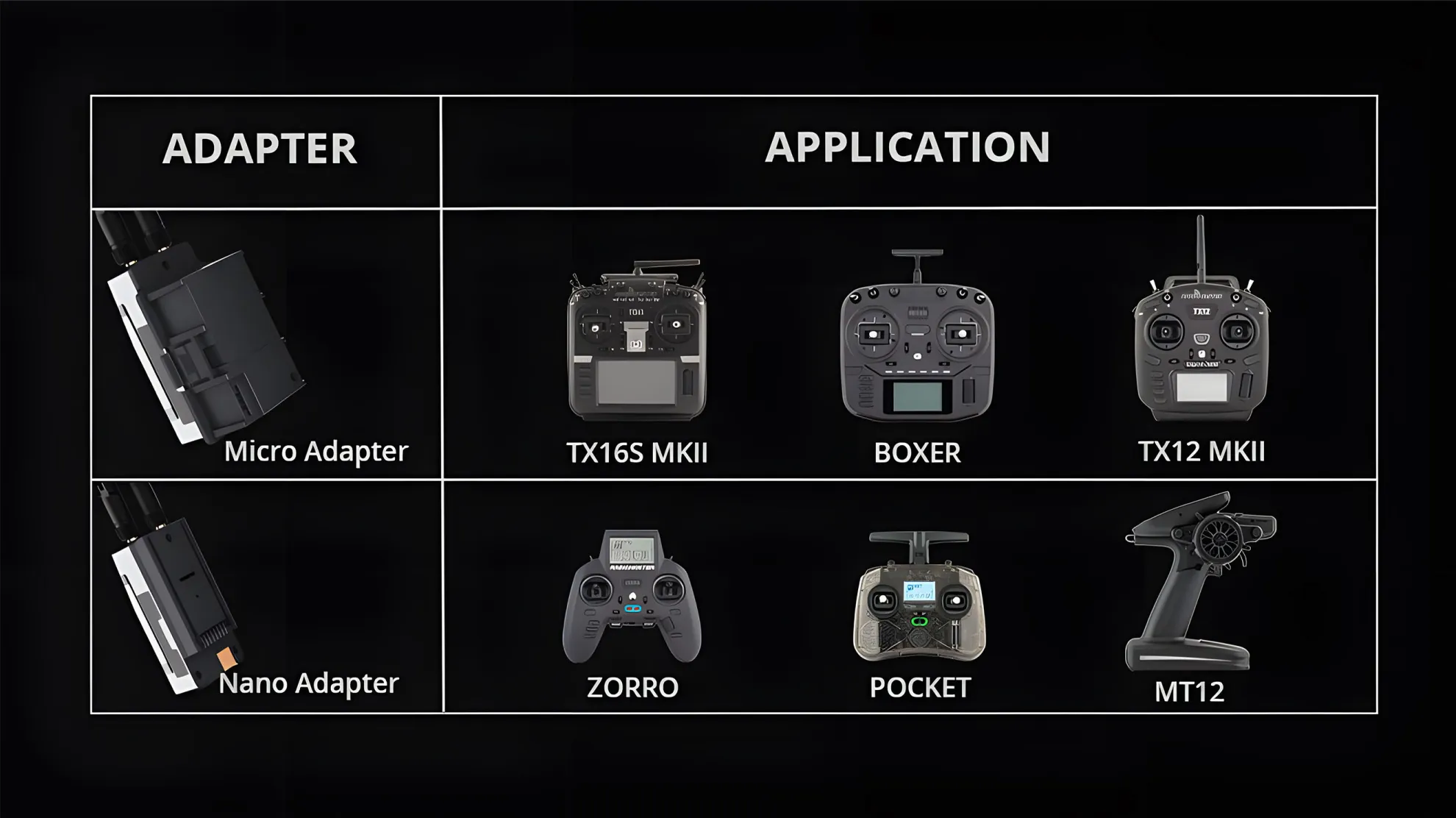

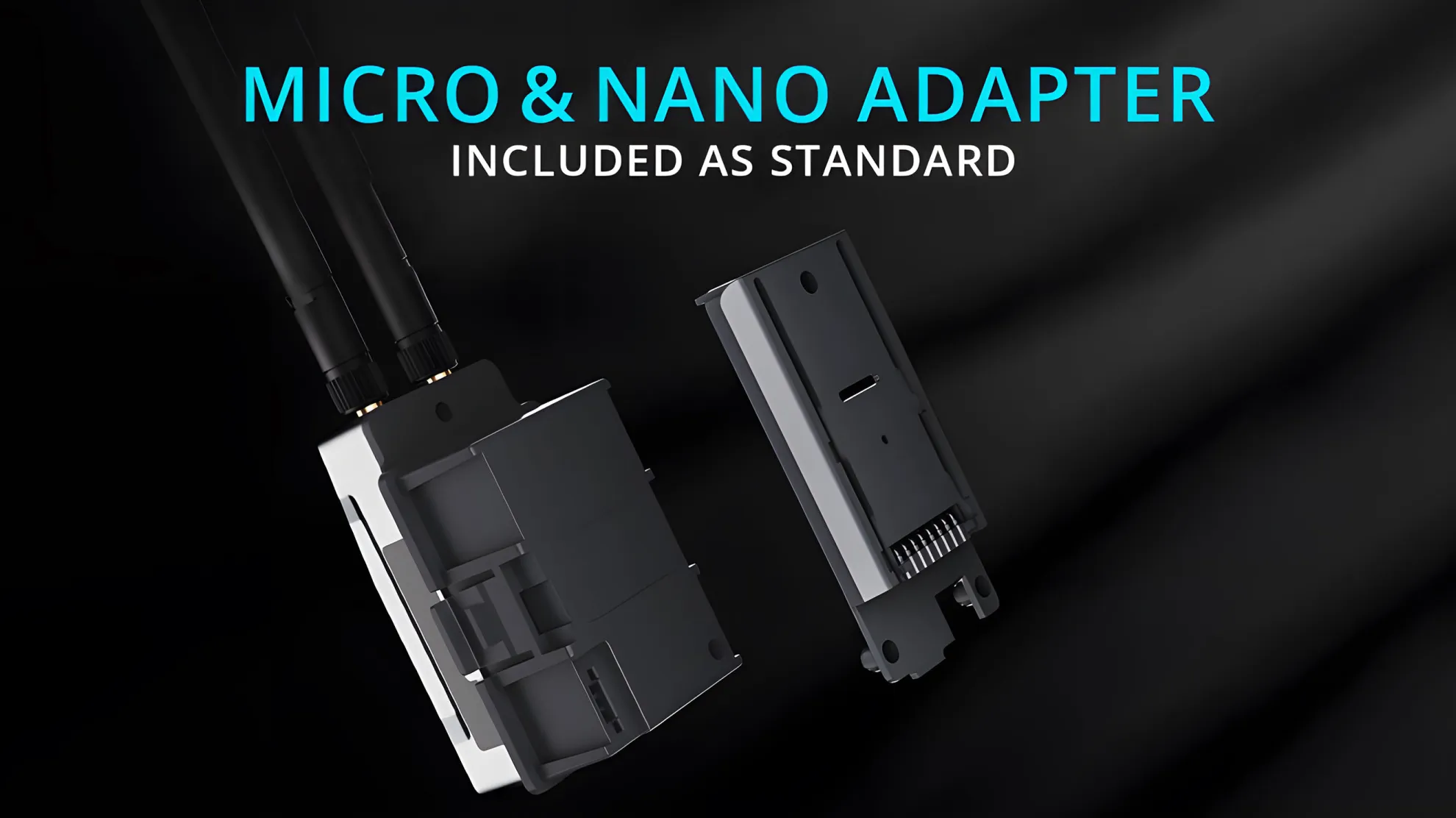

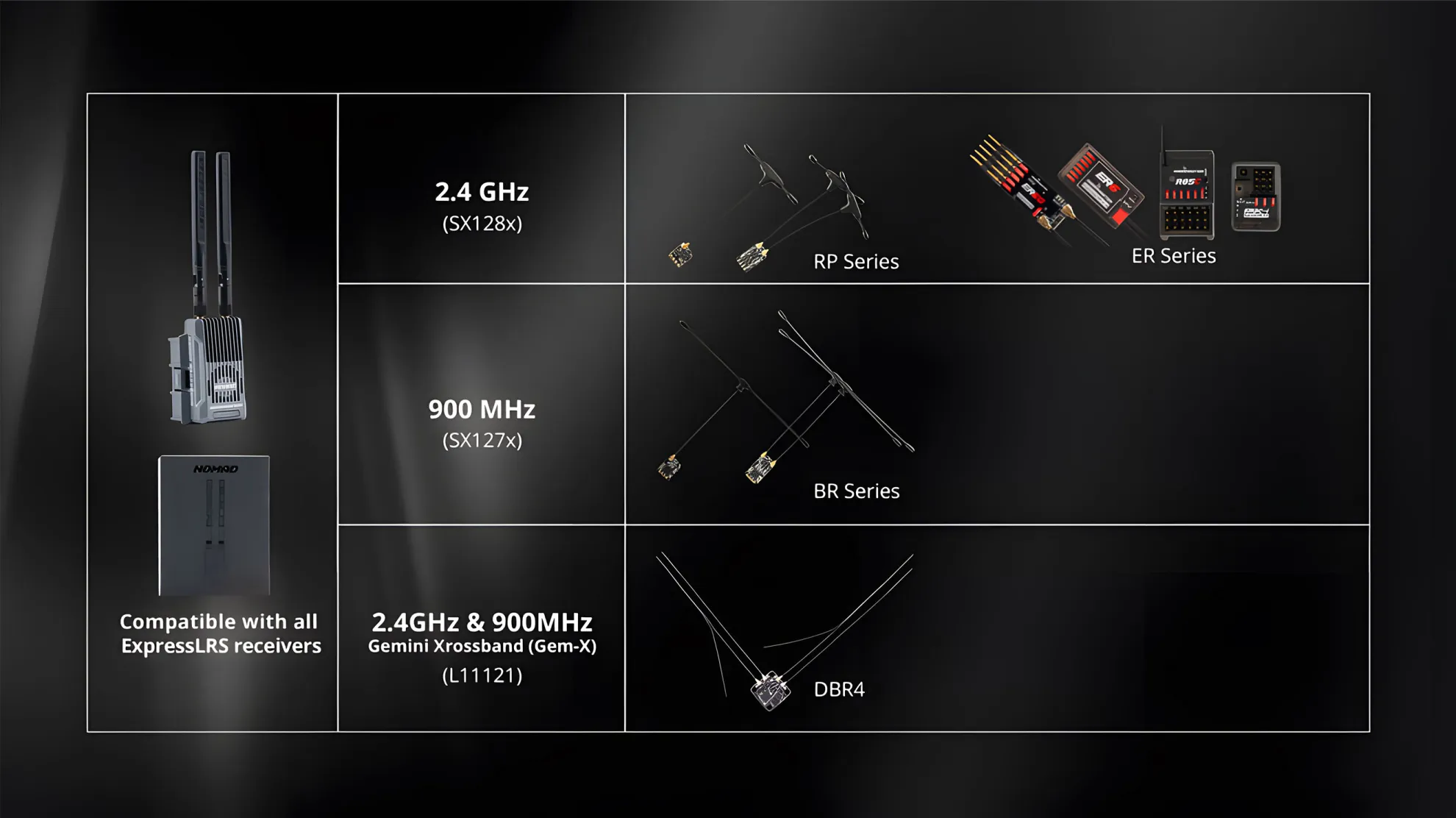

Universal Compatibility with Adapter Support

Includes micro/nano module adapters for seamless integration with most transmitters and all ExpressLRS receivers.

radiomaster nomad dual gemini xrossband expresslrs module

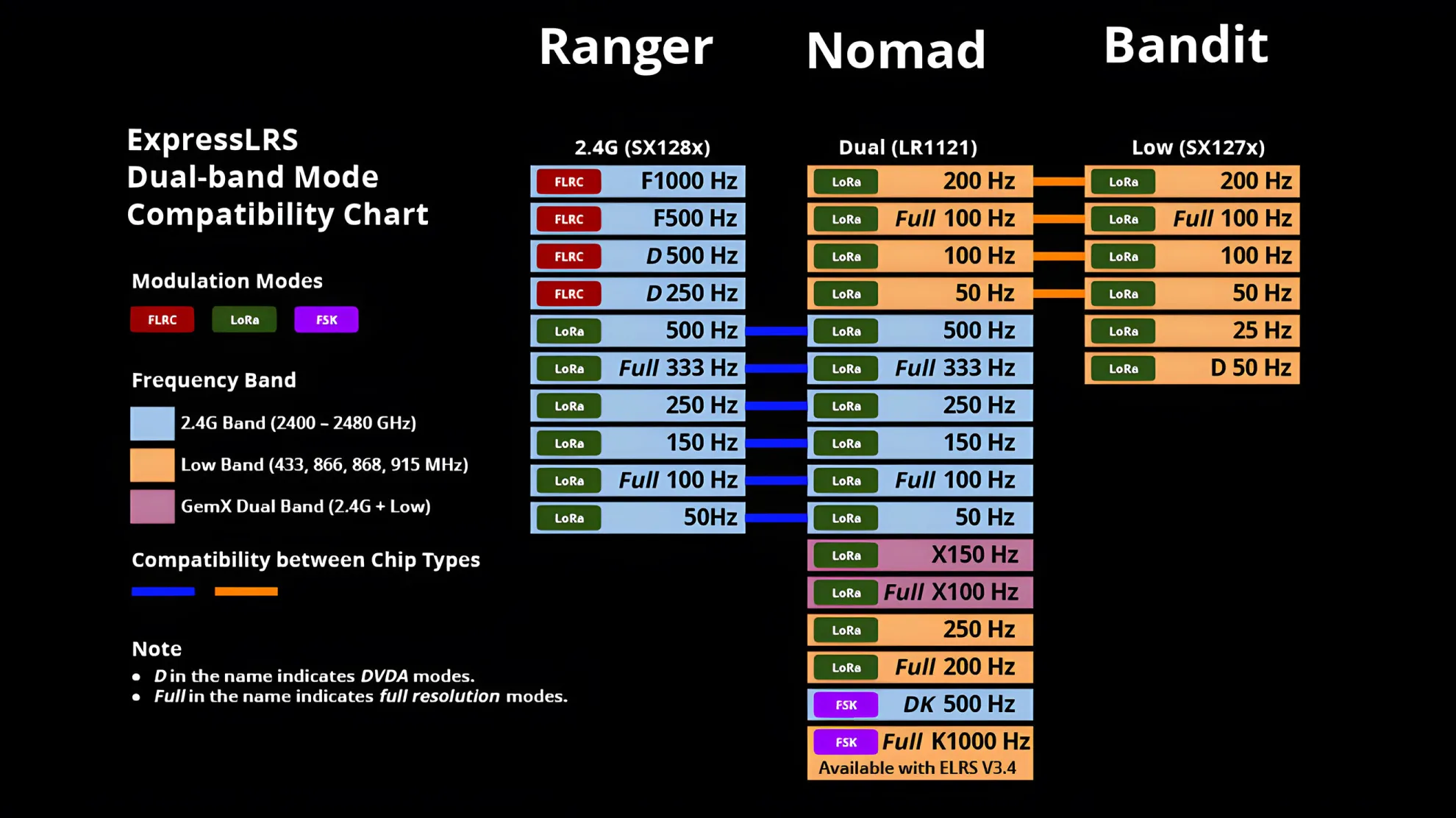

New Packet Rates

Sub-GHz 250Hz (-111dBm)

Speed Boost: Achieve faster packet rates with enhanced sub-GHz performance.

Sub-GHz 200Hz Full (-111dBm)

Optimized for Mavlink: Double the packet rate of current 900 SX1276 hardware, catering specifically to Mavlink users for a more robust link and reduced interference.

Dual Band X150Hz (-112dBm)

Gemini Mode: Experience simultaneous sub-GHz and 2.4GHz transmissions, providing robust performance and reduced interference with a packet rate of 150Hz.

Dual Band X100Hz Full (-112dBm)

Enhanced Gemini Mode: Achieve the same dual-frequency transmission benefits at a 100Hz packet rate with full 16 channel resolution, ensuring strong and stable connectivity even in challenging environments.

Introduction of K Modes

DK500 (Coming in ExpressLRS V3.5)

Design specifically from the ground up for lovers of speed and RC reliability. K modes are next generation FSK modulation with built in packet repair (Forward Error Correction). Just like FLRC D500, DK500 sends repeat packets to reduce packet loss in challenging race event environments. Coupled with a Gemini enabled Tx and Rx, nothing comes close to RC reliability.

K1000 Full SubGHs (Coming in ExpressLRS V3.5)

Yes, you read that right, 1000Hz in the 868/900MHz Domain! While this mode has been designed for maximum data throughput when used with MAVLink, don't be fooled by the 1000Hz, during development it was tested it at long range.

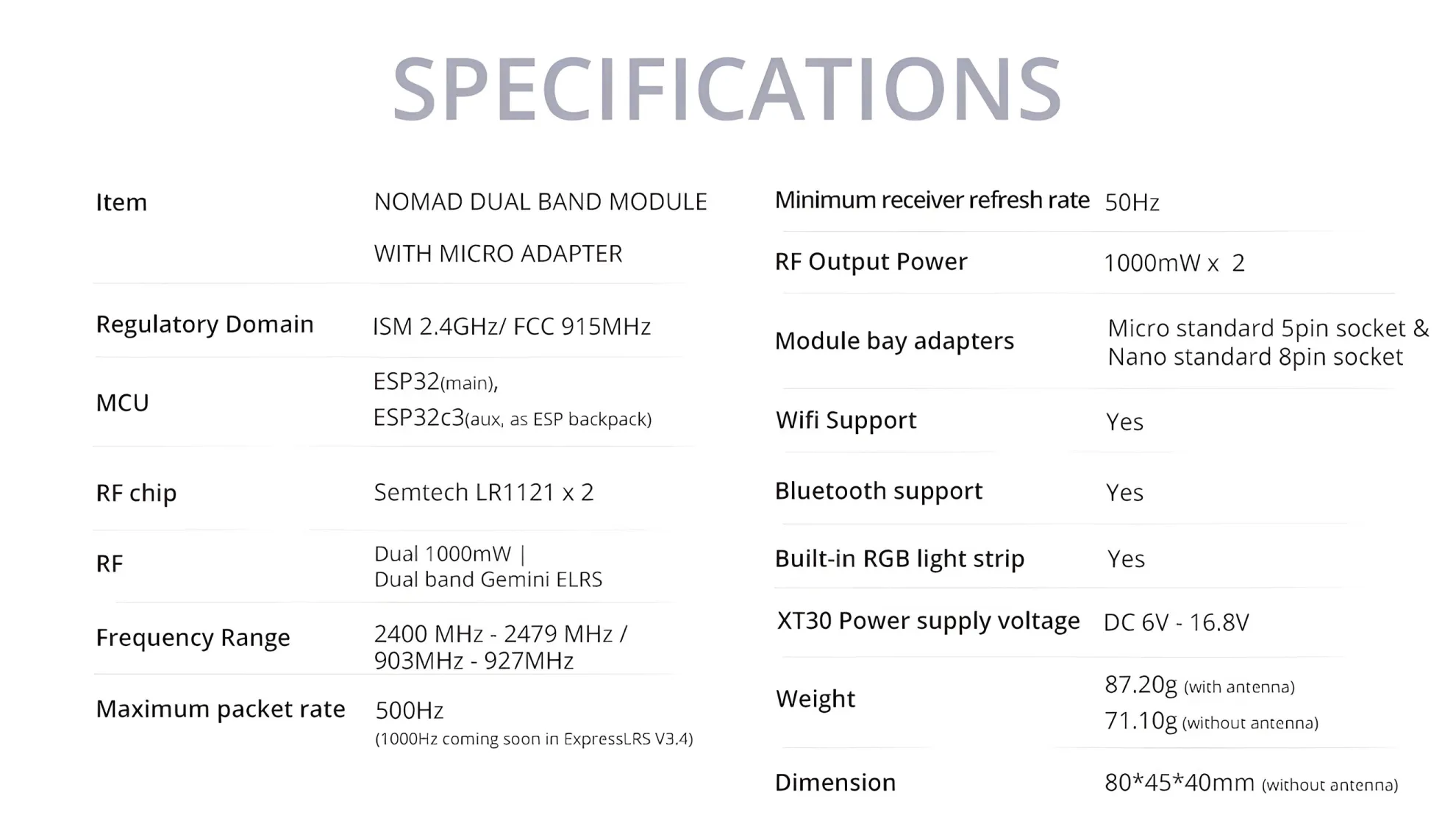

Specification

radiomaster nomad dual 1 watt gemini xrossband expresslrs module para

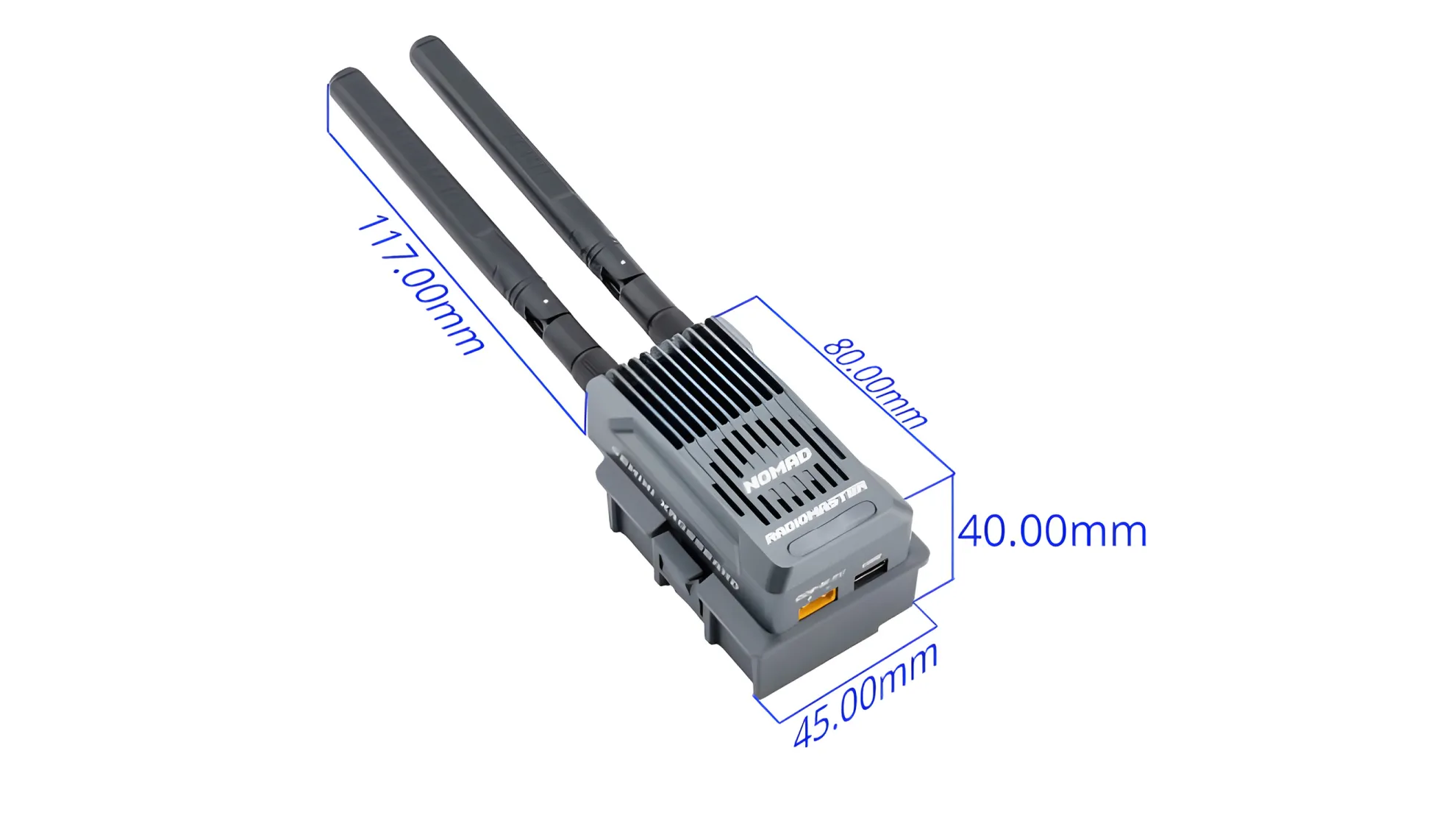

Size

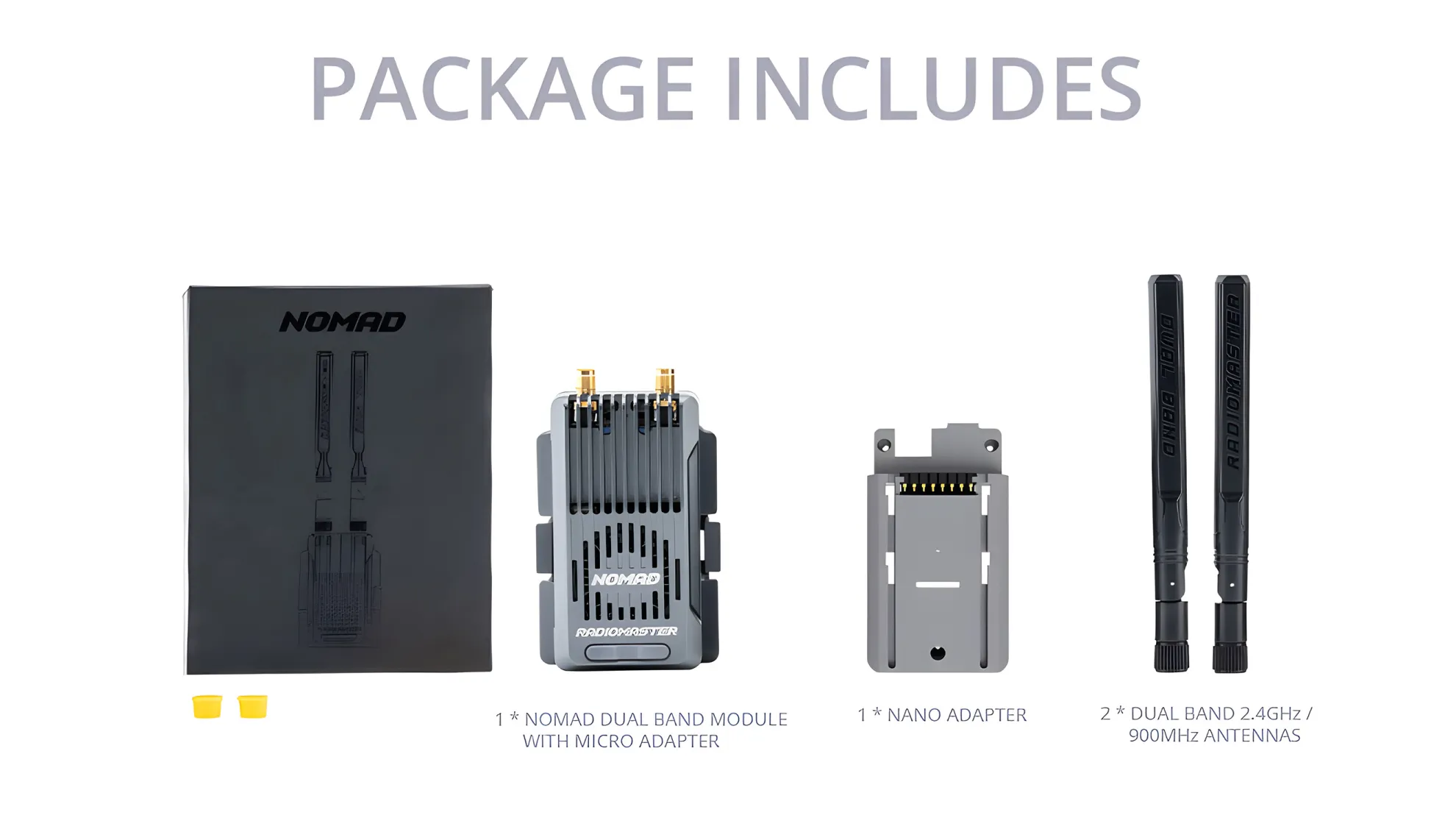

Package

Recommendation

Reviews

b*********2
Verified

Good quality and performance

Model：ELRS

Purchased 2 times
Additional reviews after 14 days
good quality
a**********6

Excellent quality and fast shipping. Highly recommended!

Model：ELRS

Additional reviews after 3 days
Fast shipping and excellent product.
L**m
Verified

The dual-band magic saved my DRL qualifier! When 2.4GHz got jammed, it auto-switched to 900MHz without a single failsafe. Setup took 5 mins with the included adapters. My new secret weapon!

Model：ELRS
*****
Verified

Surprised my wife with this - she's a MavLink pro. Packaged like a luxury gadget with bonus stickers!

Model：ELRS
*****
Verified

Bought this for my brother's birthday - he's obsessed with the 1000Hz beta firmware. The aluminum heatsink stays cool even during hour-long LR flights. Shipping was faster than estimated!

Model：ELRS
H****
Verified

Mepsking's support within 12 hours! Now running buttery-smooth 150Hz dual-band. Already recommended to 3 club members.

Model：ELRS
S*******n
Verified

Upgraded from TBS Crossfire. The Gemini protocol's packet redundancy is REAL - flew through downtown WiFi interference at 3km with 99% link quality. Worth every penny.

Model：ELRS
F*********n
Verified

The packaging was packed with a lot of care. Thank you!

Model：ELRS

FAQ Feel free to ask us any questions

What transmitters are compatible with the RadioMaster Nomad module?: The Nomad includes micro and nano module adapters, making it compatible with most radios on the market, including those requiring JR-style or Lite module bays.
How does Gemini Xrossband technology improve performance?: Gemini Xrossband allows simultaneous transmission on 2.4GHz and 868/900MHz bands, reducing packet loss from interference and providing redundancy in crowded RF environments or long-range flights.
Is the 1-watt output power legal in my country?: Always check local regulations. While 1-watt provides exceptional range, some regions restrict maximum transmission power (e.g., 25mW in the EU for 2.4GHz). The module allows adjustable power settings to comply with regional laws.
Will the module support 1000Hz packet rates?: Yes, a future firmware update (ExpressLRS v3.5) will enable 1000Hz modes for sub-GHz MAVLink applications and K1000 modes for ultra-responsive racing scenarios.
Is this module suitable for both racing and long-range FPV?: Absolutely. Dual-band redundancy excels in interference-heavy race environments, while 1-watt output and sub-GHz support maximize range for long-distance exploration. Upcoming K modes further enhance racing reliability.

RadioMaster Nomad Dual 1-watt Gemini Xrossband ExpressLRS Module

About RadioMaster Nomad Dual ExpressLRS Module:
