Q: What are the key features of the Jumper AION Nano ELRS TX module?

A: The Jumper AION Nano ELRS TX Module is based on the ExpressLRS project, an open-source RC link designed for RC applications. It supports reliable long-distance links, offers a high refresh rate of up to 500Hz, adjustable power, and can be updated via Wi-Fi. ELRS on 2.4G outperforms traditional RC systems on the same frequency, while also benefiting from shorter antennas.

Q: What components are recommended to pair with this module?

A: It is recommend to pair with BetaFPV ELRS Nano 2.4G receiver, MEPS F7 Flight Controller, MEPS 60A ESC, and the GEPRC GEP-MK5X O3 Frame.

Q: What should I be aware of when using this product?

A: The Jumper AION Nano ELRS TX Module uses a NANO connector. Before installation, ensure that your transmitter's high-frequency module interface is compatible with this connector. Additionally, make sure that both the transmitter and receiver are running the same firmware version to ensure proper pairing.

Q: What are the recommended use cases for this module?

A: This module supports a refresh rate of up to 500Hz and operates on 2.4G frequency, making it ideal for high-performance RC applications. It comes pre-installed with ExpressLRS firmware and can be updated via USB-C, which is perfect for scenarios requiring fast, reliable communication and easy firmware management.

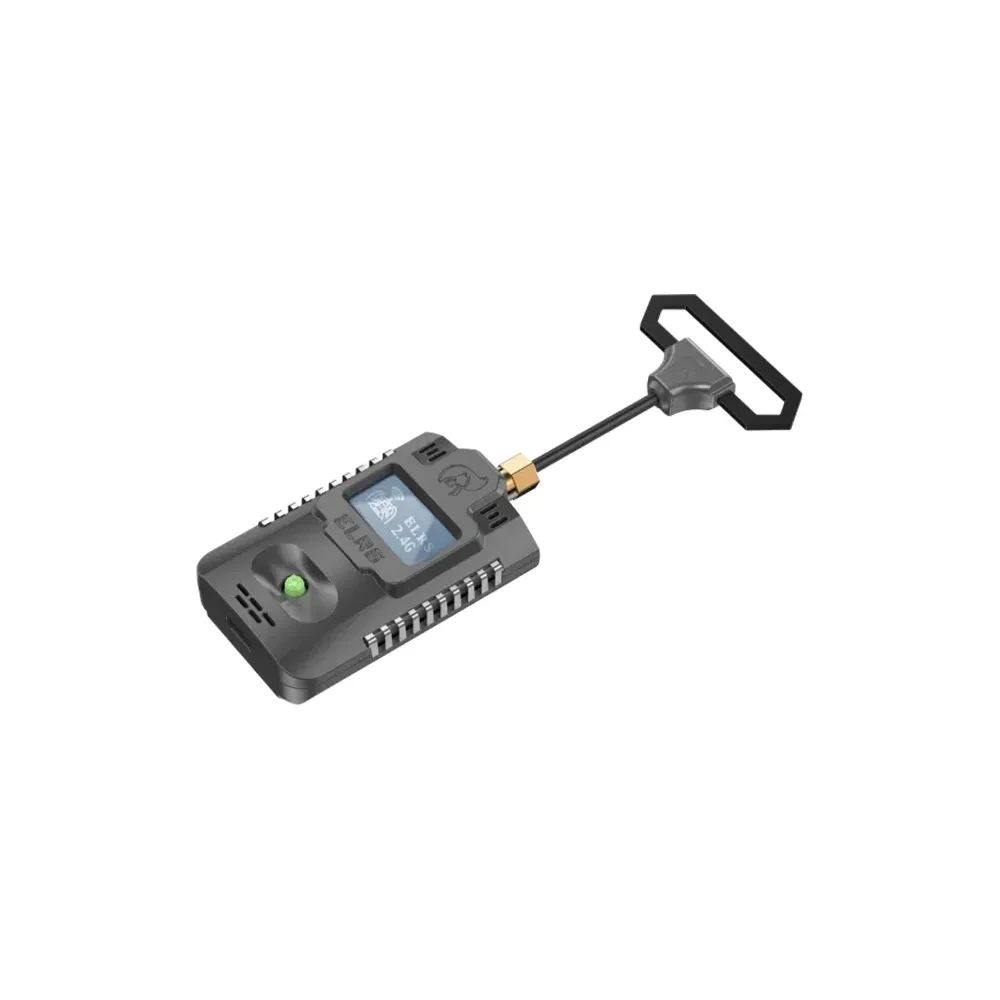

Jumper AION 2 4GHz Nano ELRS TX Module in high quality

Jumper AION ELRS 2.4G TX NANO Module ELRS Aion ELRS RX mini SE/RX NANO

About 2.4GHz Nano ELRS TX Module:

The Jumper AION Nano ELRS Tx Module, based on the ExpressLRS project, offers a reliable long-distance link with a 500Hz refresh rate, adjustable power, and WiFi updates. Operating on 2.4GHz, it surpasses traditional RC systems with shorter antennas.

Pre-loaded with ExpressLRS firmware, it supports USB-C updates and features a display screen and joystick for easy navigation. Compatible with nano module bay transmitters like the Frsky Taranis X-Lite/X-Lite Pro, Frsky Taranis X9D Lite, TBS Tango 2, and Jumper T-Pro.

Jumper

$35 Off Orders $489+

$16 Off Orders $249+

Collect

$ 29.99 ~~$49.90~~

-40%

5 | 232Sold

Options (1)

Quantity

In Stock Expected ship within 5 days after order.

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Top highlights

Long-range, low-latency control for FPV drones.
Reliable 2.4G ELRS communication for stable performance.
Compact, efficient receiver for lightweight drone builds.
Low-latency, long-range performance for FPV racing.
Seamless integration with various FPV transmitters and receivers.

Payment | Every order you place with us is safe & secure

Long-Range, Low-Latency FPV Control

Elevate your FPV experience with the Jumper AION 2.4GHz Nano ELRS TX Module, engineered for unmatched performance:

● ExpressLRS Open-Source Protocol: Ensures ultra-reliable, long-range communication up to 500Hz refresh rate for lightning-fast response.

● Adjustable Power (10-500mW): Optimize signal strength for racing, freestyle, or long-range flights.

● Compact & Lightweight: Fits seamlessly into nano module bays (Frsky X-Lite, TBS Tango 2, Jumper T-Pro, etc.) without compromising drone agility.

● Advanced Features: Built-in OLED screen and 5-way joystick for intuitive configuration; supports Wi-Fi, USB-C, or Bluetooth updates for hassle-free firmware management.

● Preloaded ELRS Firmware: Ready to pair instantly with compatible receivers like BetaFPV Nano 2.4G.

● Robust Signal Penetration: Directional Diamond antenna ensures stable performance even in challenging environments.

● Wide Compatibility: Perfect for high-speed racing, cinematic builds, or long-range exploration. Pair with MEPS F7 Flight Controllers and 60A ESCs for a complete setup.

Specification:

● Model: Jumper 2.4G ELRS TX Module

● Model Name: AION TX NANO

● Screen: OLED

● MCU: ESP32

● RF Output Power: 10-500mw

● Frequency Range: 2.4GHz-2.5GHz

● Firmware: ExpressLRS

● Antenna: Directionality Diamond antenna for best signal penetration

● Working Voltage： DC5-8.4v

● Maximum receive refresh rate: 500Hz

● Menu button: 5 directions button

● Voltage: DC6-8.4V

● Current: ＜400mA

● Port: S.port

● Firmware update: via Wifi, UBC-C, or Bluetooth

Product recommendation:

● MEPS 60A ESC

● MEPS F7 Flight Controller

Package included:

● 1* Jumper AION 2.4GHz Nano ELRS TX Module

Parameter

Jumper AION 2 4GHz Nano ELRS TX Module specifications

Recommendations

Reviews

L***s
Verified

I recently purchased the Jumper Aion 2.4GHz Nano ELS TX Module for my RC car project, and I'm blown away by how seamless the buying process was on Mepsking.shop. The website loaded quickly, checkout was a breeze with multiple payment options, and I'd recommend it to any tech enthusiast.

Specification：AION 2.4GHz Nano ELRS TX Module
M****s
Verified

Wow, this Jumper Aion module is a game-changer! I bought it as a last-minute gift for my friend who's into drone racing, and he absolutely loved it. The purchasing experience was smooth—I used the mobile site on my phone, and it was user-friendly with clear product descriptions and images.

Specification：AION 2.4GHz Nano ELRS TX Module
T******e
Verified

As a hobbyist in electronics, I've tried several TX modules, but this stands out for its exceptional reliability and value. Ordering from Mepsking.shop was hassle-free—I appreciated the detailed specs and customer reviews on the page, which helped me make an informed decision, highly recommended.

Specification：AION 2.4GHz Nano ELRS TX Module
J****n
Verified

it exceeded all expectations! The buying journey was excellent: the site had secure checkout, and I got instant order confirmation. Shipping was prompt, arriving fast.

Specification：AION 2.4GHz Nano ELRS TX Module
M*****w
Verified

The low latency and strong signal penetration make a huge difference. It’s also compact and well-designed, making it easy to carry and swap between transmitters.

Specification：AION 2.4GHz Nano ELRS TX Module
N***y
Verified

Versatile and easy to navigate, superior to traditional RC systems

Specification：AION 2.4GHz Nano ELRS TX Module
D**i
Verified

High compatibility, very easy to use, it is a very good product.

Specification：AION 2.4GHz Nano ELRS TX Module

FAQ Feel free to ask us any questions

Q: What are the key features of the Jumper AION Nano ELRS TX module?: A: The Jumper AION Nano ELRS TX Module is based on the ExpressLRS project, an open-source RC link designed for RC applications. It supports reliable long-distance links, offers a high refresh rate of up to 500Hz, adjustable power, and can be updated via Wi-Fi. ELRS on 2.4G outperforms traditional RC systems on the same frequency, while also benefiting from shorter antennas.
Q: What components are recommended to pair with this module?: A: It is recommend to pair with BetaFPV ELRS Nano 2.4G receiver, MEPS F7 Flight Controller, MEPS 60A ESC, and the GEPRC GEP-MK5X O3 Frame.
Q: What should I be aware of when using this product?: A: The Jumper AION Nano ELRS TX Module uses a NANO connector. Before installation, ensure that your transmitter's high-frequency module interface is compatible with this connector. Additionally, make sure that both the transmitter and receiver are running the same firmware version to ensure proper pairing.
Q: What are the recommended use cases for this module?: A: This module supports a refresh rate of up to 500Hz and operates on 2.4G frequency, making it ideal for high-performance RC applications. It comes pre-installed with ExpressLRS firmware and can be updated via USB-C, which is perfect for scenarios requiring fast, reliable communication and easy firmware management.
