GEP-CL30 V2 O3 Frame for FPV Drone

About GEP-CL30 V2 O3 Frame

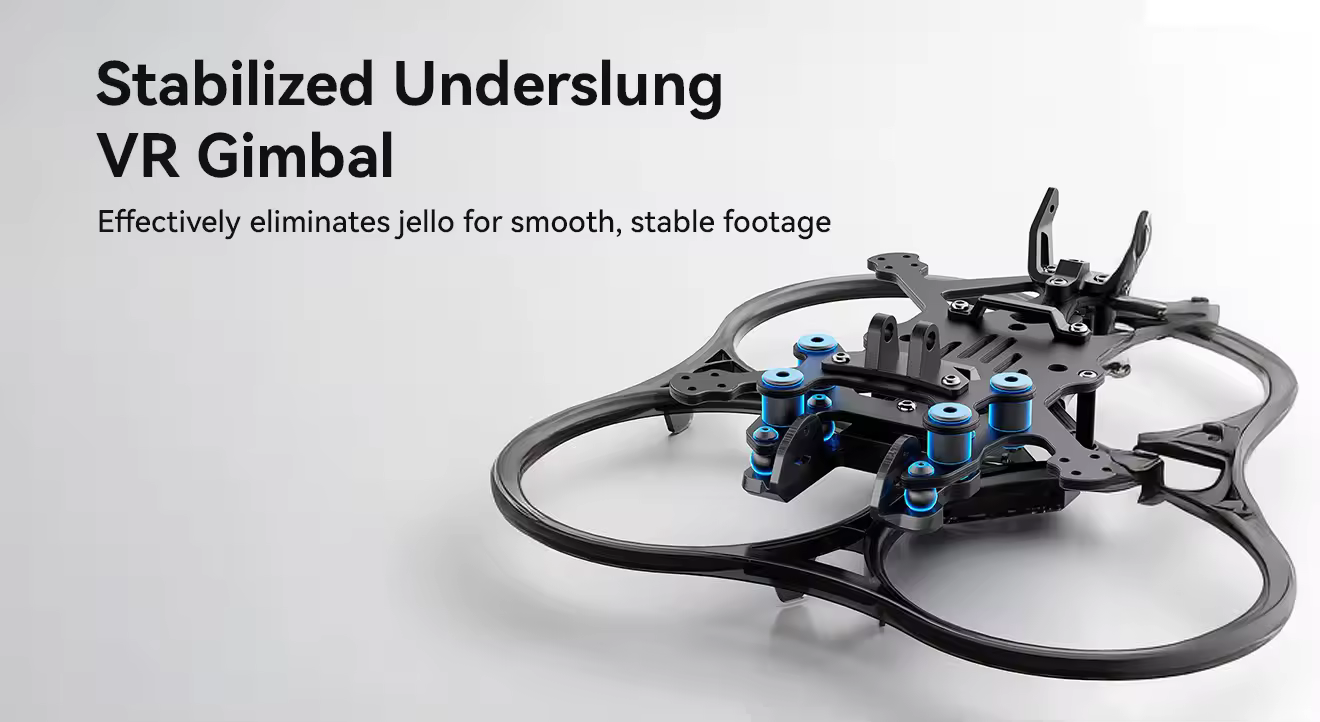

The GEP-CL30 V2 O3 frame retains the lightweight design of its predecessor, now upgraded with an all-in-one protective frame and a built-in COB LED strip for vibrant night flying. The underslung VR gimbal ensures smooth, stable footage with the O3 camera. The rear USB expansion port and antenna mounts simplify assembly and tuning. Pair with 1404 3850KV motors and the CT30 V2 frame for the ideal thrust-to-weight ratio, delivering robust power with a lightweight feel. The lightweight design offers an exceptional shooting experience and allows for more agile and fluid flying.

Features

1. Lightweight design with 1404 motors and a LiHv 4S 720mAh battery, keeping the weight under 250g.

2. Integrated frame with COB LED mount, delivering a vibrant lighting effect.

3. Molded shock-absorbing mount for stable footage.

4. The rear USB expansion module has a built-in LED tail light for easier tuning and setup.

5. One-piece T-shaped antenna mount for a secure fit.

6. Custom VTX compartment for easy memory and USB access.

7. Simplified quick-release design for hassle-free maintenance.

Specification

● Model: GEP-CL30 V2 O3 Frame

● Color: Black

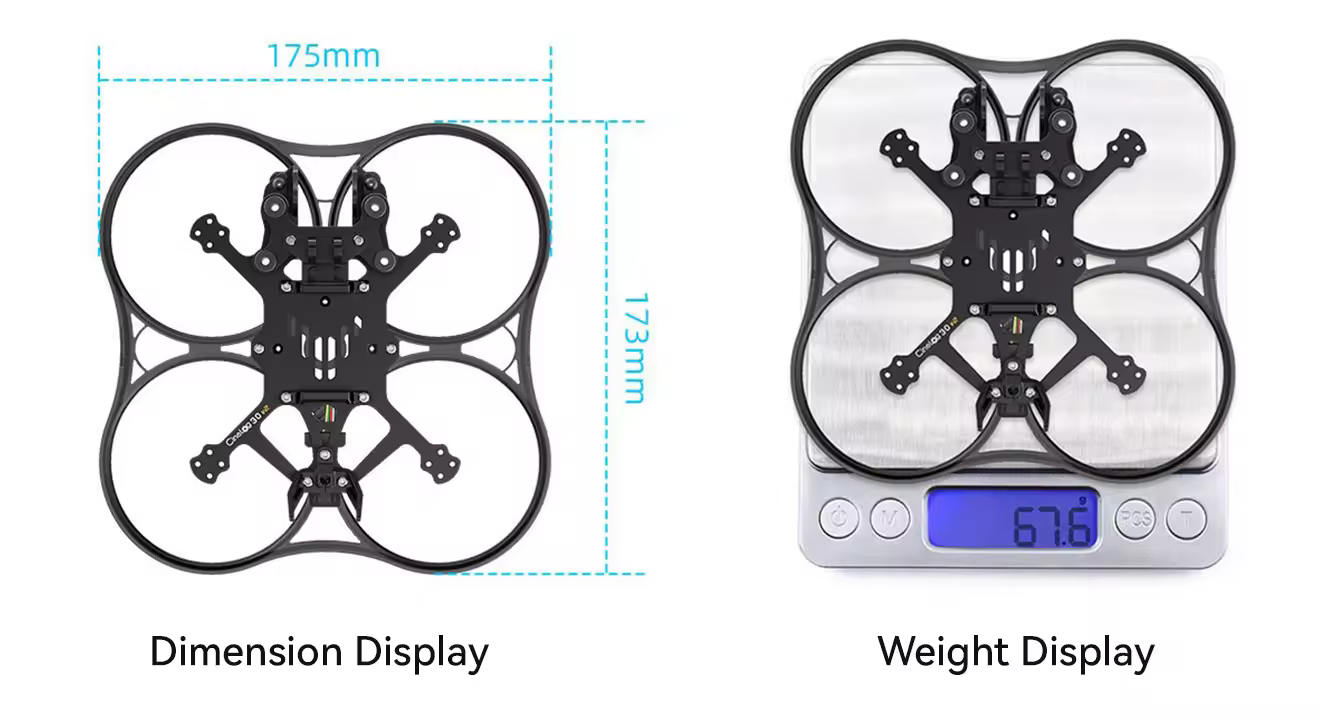

● Dimension: 175mm*173mm*40mm

● Wheelbase: 124mm

● Carbon Fiber Plate Thickness: 2.5mm

● FC Mounting Patterns: 25.5mm * 25.5mm

● VTX Mounting Patterns: 20mm * 20mm / 25mm * 25mm

● Motor Mounting Patterns: 9mm * 9mm

● Camera Mounting Patterns: 19mm / 20mm

● Connector: XT30

● Compatible Propeller: 3-inch

● Weight: 67.6g

Includes

1 x Integrated Frame

1 x Integrated Board

1 x Naked Gopro Carbon Plate

1 x Naked Gopro Mount

1 x Camera Mount

1 x T-Shaped Antenna Mount

1 x USB Extension Port

1 x Rear Light Cover

1 x Damping Ball Puncher

2 x Battery Anti-slip Pads

1 x Screw Pack

2 x 15*150mm Battery Straps

1 x L-Shaped Screwdriver 1.5mm
