Flywoo XT30UP Male Pigtail FPV Power Cable 18AWG/20AWG Silicone Wire for 2-3 inch Micro Drone Cinewhoop Toothpick (2pcs)
About Flywoo XT30UP Male Pigtail Reliable Battery Connection for Micro FPV Drones:
The Flywoo XT30UP Male Pigtail is an essential high-performance FPV power cable designed specifically for smaller aircraft configurations. Featuring the newly upgraded XT30UP connector, this 2pcs pack delivers secure and stable current transmission from your LiPo battery straight to your flight stack. It is the go-to power solution for 2-3 inch cinewhoops, toothpick drones, and ultralight micro builds where safety and weight savings are crucial.
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
Upgraded XT30UP Connectors: Features XT30UP design with insulated sheaths for better safety and easier soldering compared to standard XT30.
Premium Silicone Wire: Utilizing high-quality 18AWG/20AWG flexible silicone cables that offer exceptional heat resistance and durability.
Stable Current Delivery: Engineered to handle high-current loads safely, ensuring consistent power from your Lipo battery to the AIO/ESC.
Convenient 2-Piece Pack: Comes in a handy 2pcs set with pre-stripped and pre-tinned ends, minimizing your bench prep and assembly time.
Optimized for Micro Drones: Perfectly sized and weighted for 2-3 inch cinewhoops, toothpicks, and ultralight micro FPV quadcopters.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ
Better Protection and Convenience
The carefully crafted and compatible Amass genuine XT30 sheath has the dual advantages of preventing the cable from falling off and making plugging and unplugging easy, bringing you a better experience.

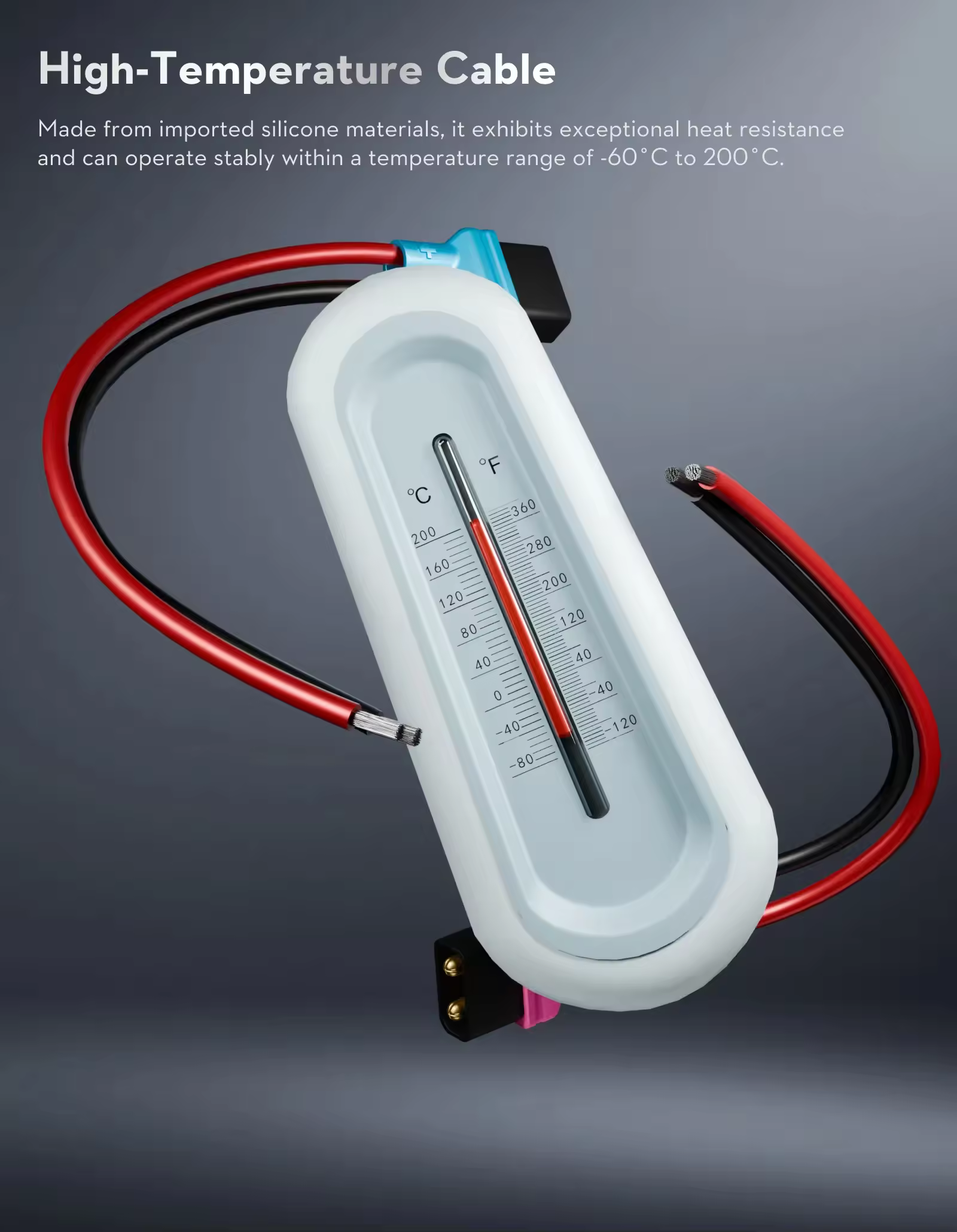

High-Temperature Cable
Made from imported silicone materials, it exhibits exceptional heat resistanceand can operate stably within a temperature range of -60°C to 200°C.
High-Quality Nylon Sleeve
The new protective sleeve and XT30 are both made from nylon PA66 sleeve materials, with a high-temperature resistance of up to 120°C, low-temperature resistance of -20°C, and a VL94-VO flame retardant rating, providing a safe and reliable user experience.
Specifications
● Product Model: XT30UP
● Rated Current: 15A (RC), Maximum Momentary Current 30A (MC)
● Contact Resistance (CR): 0.7mΩ
● Dielectric Strength: 500V DC
● Operating Temperature: -20° to 120°
● Flame Retardant Rating: VL94-V0
● Color: Black/White/Red/Pink/Blue/Yellow
● Insulation Material: PA
● Recommended Use Times: 1000 times
● Recommended Cable Specification: 18AWG / 20AWG
Recommendation：
FAQFeel free to ask us any questions
ASK A QUESTION
Q: What is the benefit of the XT30UP version over a standard XT30 plug?
A: The XT30UP connector includes a rear protective sleeve/sheath that covers the solder joints. This eliminates the need for heat-shrink tubing and greatly reduces the risk of positive and negative wires short-circuiting.
Q: Which wire gauge should I choose for my drone build?
A: Generally, 18AWG wire is ideal for high-power 3-inch cinewhoops or 4S micro builds needing maximum current handling. The lighter 20AWG wire option is perfect for weight-sensitive 2-inch toothpick drones or 2S-3S configurations.
Q: Are these wires pre-soldered?
A: Yes, the wires are pre-soldered to the male XT30UP connector on one end, and the other ends are pre-stripped and pre-tinned with high-quality solder, making them ready to weld straight onto your drone's electronics board.
