Q: Who is the MEPS 15A AIO F411 best for?

A: The MEPS 15A AIO is perfect for beginners to intermediate FPV pilots building 1S micro drones. It offers a clean, lightweight solution without complex wiring.

Q: What kind of drone can I build with the MEPS 15A AIO?

A: The MEPS 15A AIO is ideal for toothpick, cinewhoop, and lightweight freestyle builds where weight and simplicity matter.

Q: What mounting holes does the F411 15A AIO flight controller use?

A: It uses 25.5*25.5mm/M2 mounting holes.

Q: Is the MEPS 15A AIO beginner-friendly?

A: Yes. The MEPS 15A AIO combines FC and ESC in one board, reducing soldering and setup complexity.

Q: What battery does the MEPS 15A AIO support?

A: The MEPS 15A AIO supports 1S LiPo batteries for flexible performance.

Q: What kind of features does it have?

A: This flight controller has a highly integrated motherboard with integrated ESC, flight control mapping, and receiver, simplifying the structure of your aircraft. It is lightweight, providing good range and operating performance, and also supports custom ESC tones.

Q: Why choose the MEPS 15A AIO instead of a stack?

A: The MEPS 15A AIO is lighter, simpler, and faster to install compared to traditional stack setups.

Q: What firmware does the MEPS 15A AIO run?

A: The MEPS 15A AIO runs BLHeli_32, offering full control and tuning options.

Q: What receiver protocols are supported by the MEPS 15A AIO?

A: The MEPS 15A AIO supports ELRS, FrSky, and Crossfire via UART.

Q: Does the MEPS 15A AIO support DShot?

A: Yes, the MEPS 15A AIO supports DShot for precise motor control.

Q: What motors pair well with the MEPS 15A AIO?

A: The MEPS 15A AIO pairs best with M0802, M0703, M0803, 1103 motors for 1S micro builds.

Q: How difficult is it to install the MEPS 15A AIO?

A: Installing the MEPS 15A AIO is moderate in difficulty and requires basic soldering skills.

Q: Does the MEPS 15A AIO include OSD?

A: Yes, the MEPS 15A AIO includes built-in Betaflight OSD for flight data.

Q: What mistakes should I avoid when using the MEPS 15A AIO?

A: Avoid incorrect voltage, poor soldering, and wiring errors when using the MEPS 15A AIO.

Q: What happens if I damage the MEPS 15A AIO? Is there warranty?

A:If the issue is caused by a product quality defect, a replacement can be provided. However, damage caused by improper use or incorrect operation is not eligible for replacement.

Photos
Videos

(USA ONLY)MEPS F411 1S 15A AIO High integration Flight Controller Analog for 1S Racing Whoops 25.5x25.5mm

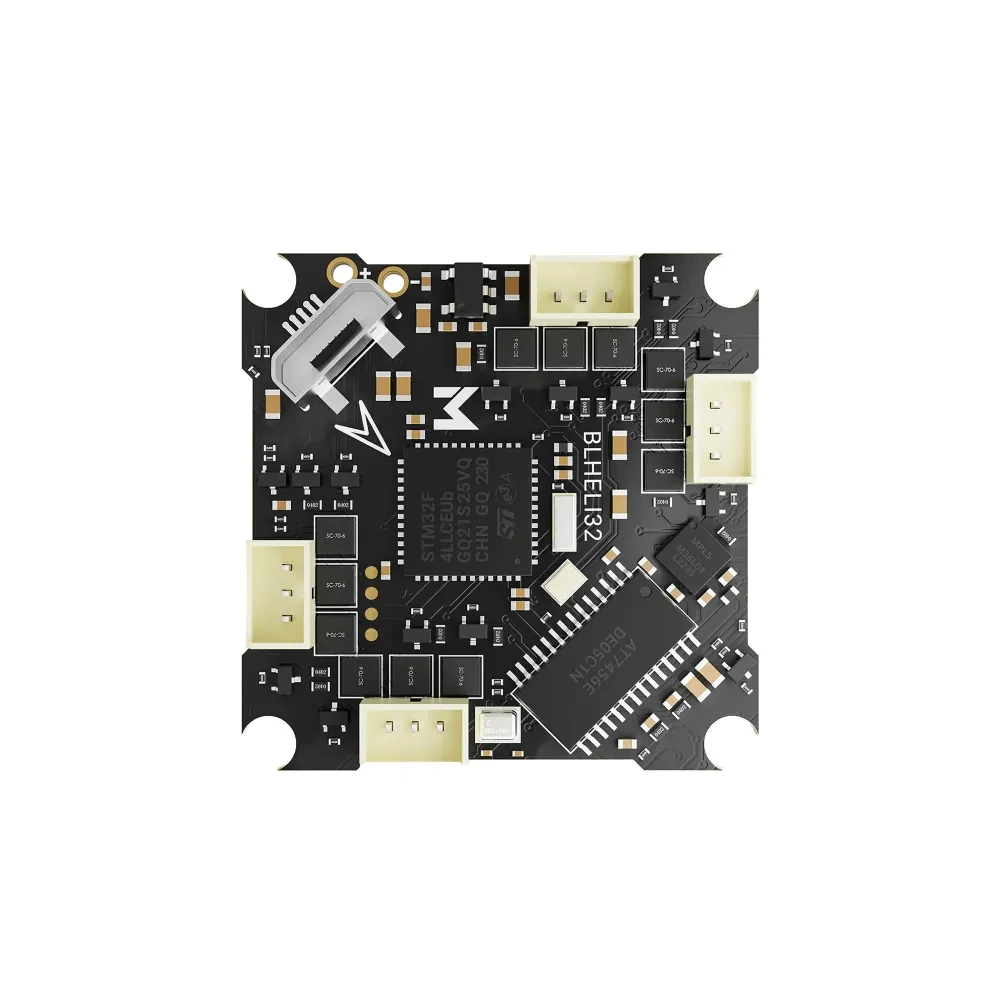

About MEPS SZ F411 15A AIO Flight Controller:

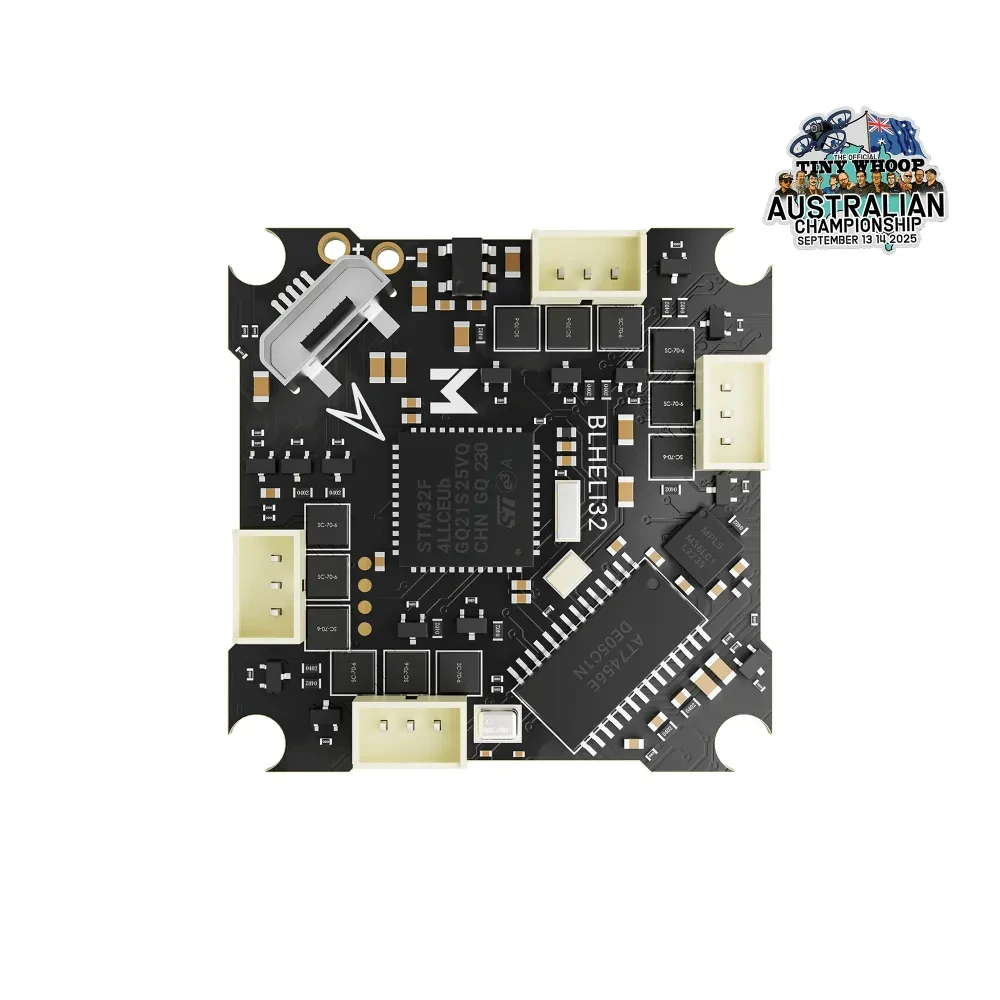

The MEPS F411 AIO 15A AIO Flight Controller is specifically designed for 1S racing whoops and 1S long-range toothpicks, featuring small current plugging and high current soldering. It incorporates a 32-bit ESC chip, ensuring swift response and providing a broader range of adjustable parameters.

The motor plug ports are thoughtfully designed to narrow inward, preventing any interference between the frame loop and AIO components, so that there's NO need for welding with the direct plug-in motor, ensuring a smoother build. This design enhancement not only guarantees an efficient build process but also enhances spatial efficiency, optimizing the integration of components within the frame. Its intergrated 8MB Blackbox helps with data storage, fault diagnosis, and flight analysis, enhancing the flying experience.

MEPS

10% Off Orders $50+

$35 Off Orders $489+

Collect

$ 28.90 ~~$89.90~~

-68%

4.9 | 625Sold

Options (1)

Quantity

Add-ons

Bundle and save up to $2.02 on gear — upgrade your setup for less.

T-HOBBY M0703 II 27000KV Micro Motor for 65mm Tinywhoop drone
27000KV
$10.03 Save $0.87
BETAFPV BT2.0 550mAh 1S Battery (4PCS) durable for Whoop
550mAh (4PCS)
$21.84 Save $1.15

In Stock Expected ship within 48 hours after order.

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Top highlights

Increased Performance & Easy Tuning.
High Compatibility, the ideal choice for 1S micro drones.
BLHeli_32 provides smoother and more precise control of the motors.
8MB Built-in Blackbox helps with flight analysis, enhancing the flying experience.
Direct plug-in motor ports reduce the need for welding.

Payment | Every order you place with us is safe & secure

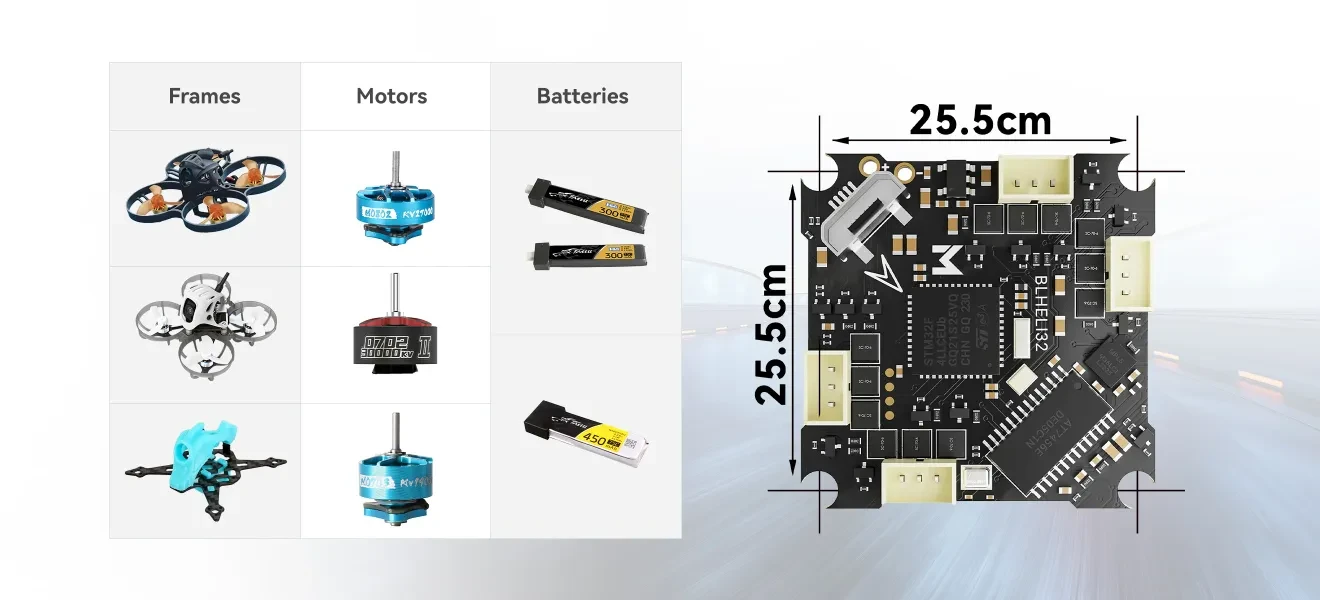

High Compatibility

With 25.5mm*25.5mm mounting holes, this AIO flight controller is suitable for most drone builds and compatible with many other FPV components, making it the ideal choice for 1S micro whoops.

F411 15 AIO with 25.5x25.5mm mounting holes

High-Performance Firmware

Incorporates a 32-bit ESC chip, BLHeli_32 offering smoother and more precise control of the motors, providing a broader range of adjustable parameters, leading to better flight performance and responsiveness.

F411 15 AIO incorporates a 32bit ESC chip

F411 15 AIO with high performance firmware

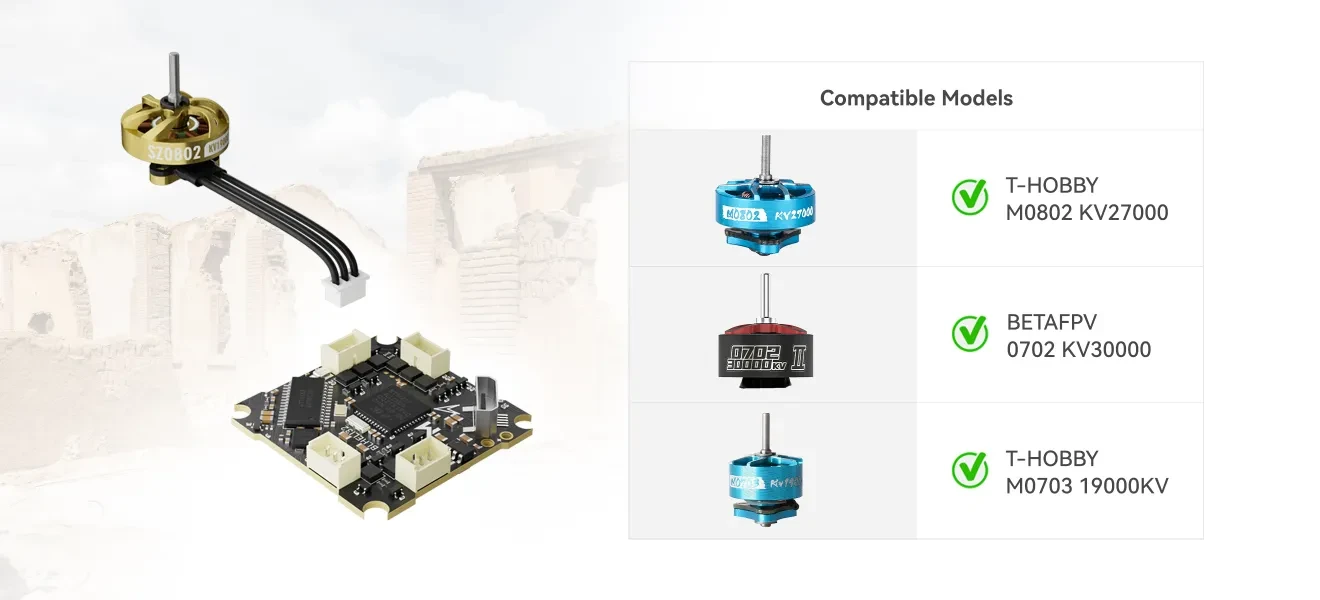

Direct Plug-in Motor Ports

Narrow inwarded motor plug-in ports reduces interference and improves space efficiency.

F411 15 AIO features direct plug in motor plugs

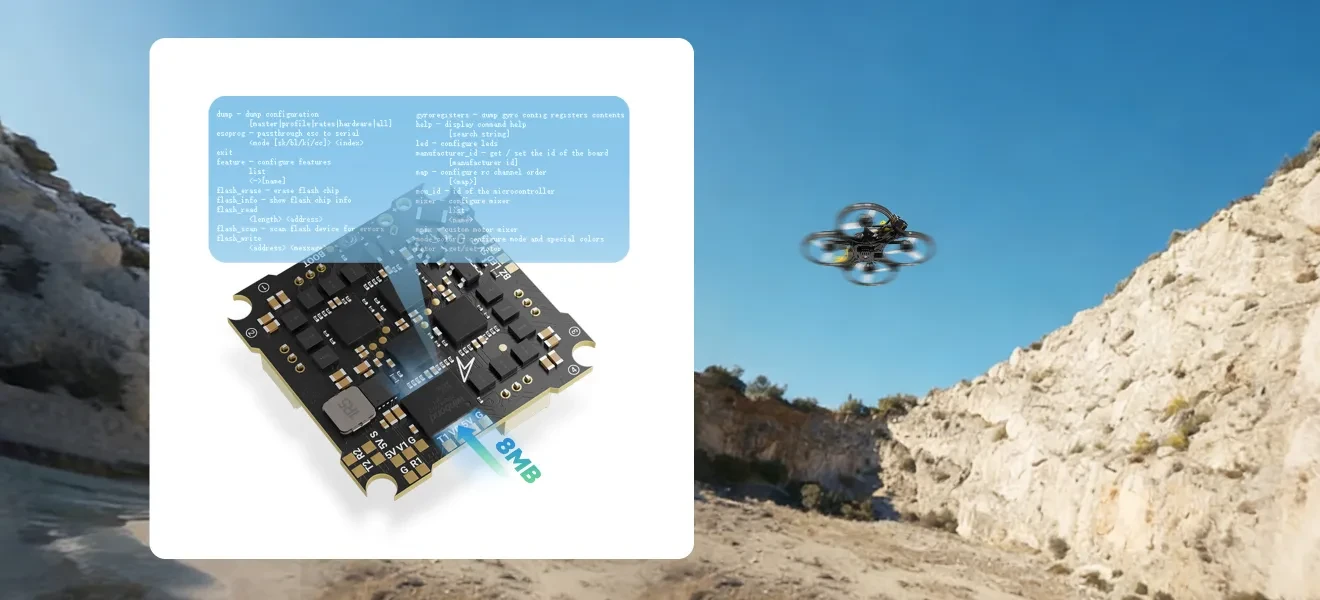

8MB Built-in Blackbox

Intergrated 8MB Blackbox helps with data storage, fault diagnosis, and flight analysis, enhancing the flying experience.

Specifications

Why Choose MEPS SZ F411 15A AIO?

Interface Definition Figure

External Receiver

Package Included

1* MEPS F411 AIO 15A

1* 65mm BT2.0 Power Cord

1* 65mm PH2.0 Power Cord

6* Anti-vibration Rubber Dampers

5* 3Pin Adapters
