T-HOBBY F35A 3-6S AM32 Single ESC For FPV Drones

Check out our 3-6S FPV ESC, all FPV ESC Collection and the rest of our T-HOBBY Products!

User Manual

Disclaimer

Thanks for purchasing our Electronic Speed Controller (ESC). High power

system for RC model can be very dangerous. Any improper use may result

in injury and damage to human and devices.We strongly recommend that

you read this manual carefully before use, and abide by its rules.

We assume no responsibility for personal injury, property damage or

consequential losses resulting from the product. We reserve all rights to

redesign or modify this product.

Features

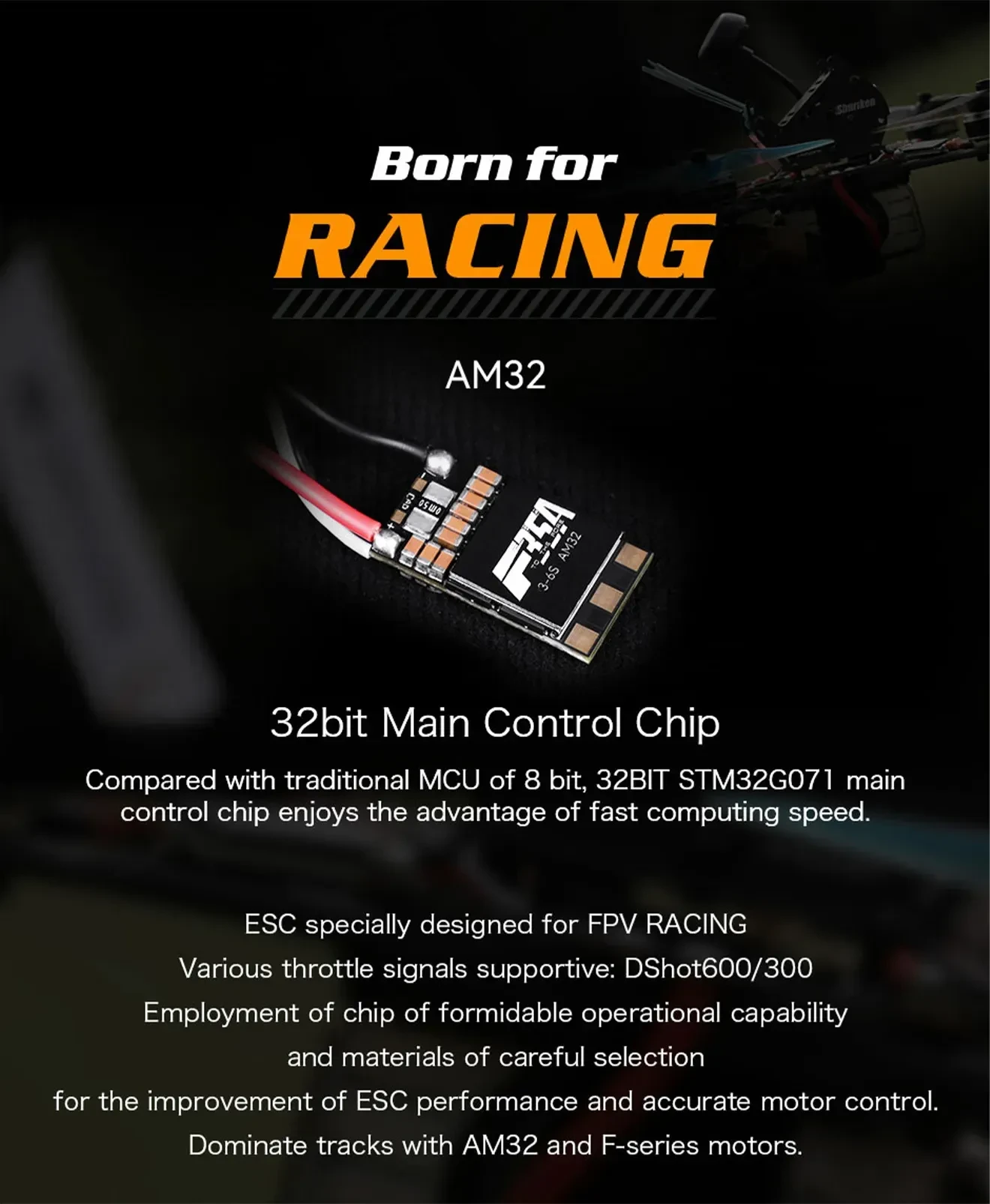

1. Arm 32-bit Cortex core MCU, operating frequency up to 64MHz;

2.AM32 firmware, fast response speed, superb performance;

3. Auto detection on throttle signal, support pulse width PWM (1-2ms);

4.Dshot signal (up to Dshot 1200) compatible;

5. Auto-braking for high efficiency. When throttle is pulled down, motor

will react fast on such change to slow down.

6.For racing drones with motor of high KV and power;

7.Twisted pair(TP) throttle signal wires reduce the crosstalk during signal

transmission which guarantees stable flight;

8.Aluminium alloy radiator for cooling performance;

Features

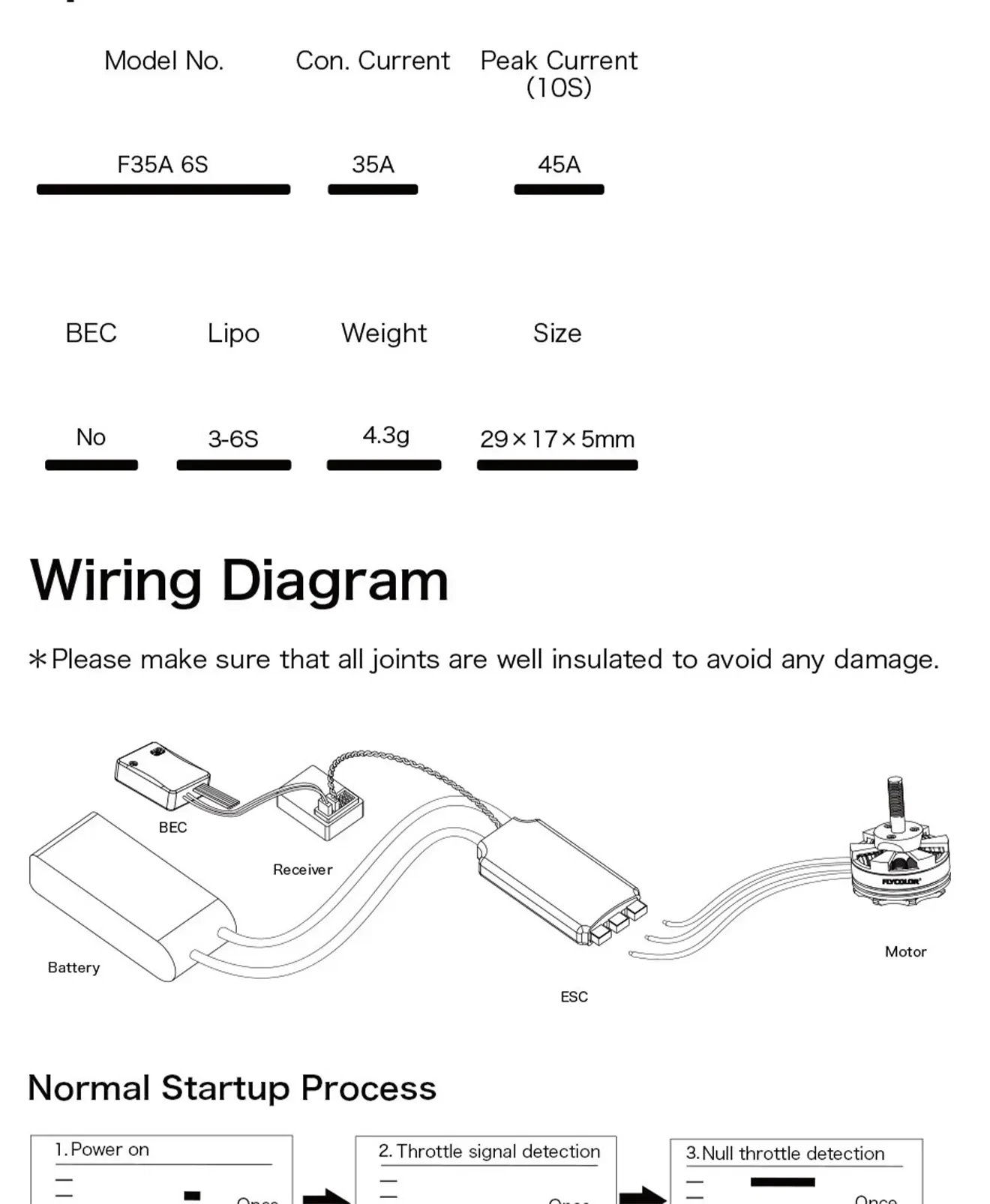

Wiring Diagram

Throttle Synergy Master: AM32 firmware achieves 2000Hz signal resolution. Auto-phase tuning eliminates timing jitters, delivering tactile euphoria at full punch.
