Happymodel SuperX HD ELRS AIO F411 FC 12A ESC

NeuHappymodel SuperX HD ELRS 1-2S AIO F411 FC 12A ESC

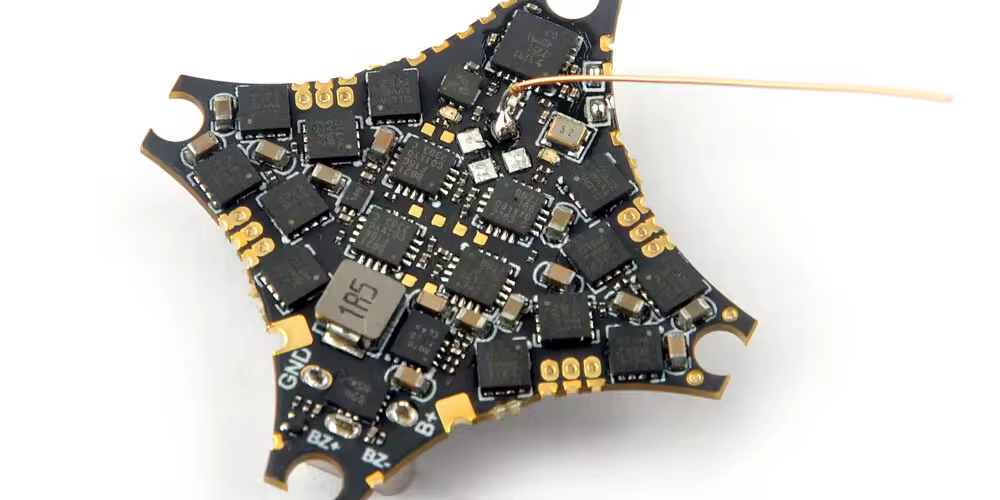

Flight controller SuperX HD ELRS

● Betaflight 4.4.2 firmware ready

● Firmware target: CRAZYBEEF4DX

● MCU:STM32F411CEU6 (100MHz, 512K FLASH)

● Sensor: BMI270 or ICM42688P (SPI connection)

● Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone

● Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read

● Built-in UART ELRS receiver, ELRS v3.0 ready, support WIFI and pass-through firmware update

● Bluejay ESC Firmware ready

● Built-in 5V 1.5A(Max) BEC

● Built-in voltage detection.

● Built-in currents meter

● No betaflight analog osd chip

● Antenna: Enamel copper wire

Onboard 4in1 ESC

● Power supply: 1-2S LiPo/LiPo HV

● Current: 12A continuous peak 15A (3 seconds)

● Support ESC-Configurator and BLHELI_S Suite configurator

● Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz

● Default protocol: DSHOT300

Onboard UART ExpressLRS 2.4GHz Receiver

● RF Frequency: 2.4GHz

● Antenna: enameled copper wire 31mm length

● Telemetry output Power: <12dBm

● Receiver protocol: CRSF

● Default firmware version: ExpressLRS V3.0.1

● The same hardware with Happymodel EP1 receiver

● Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through

Happymodel

Extra 6% Rabatt

Sammeln

$ 45.00

5.0 | 0Verkauft

Optionen (1)

SuperX HD AIO

Menge

Auf Lager Erwartete Lieferung Versand in 5 Tagen nach Bestellung.

Kostenloser Versand | Für Bestellungen über 99 $

2 Jahre Garantie | Sorglose 48-monatige Garantie

Einfache Rückgabe und Umtausch | Rückgabe innerhalb von 15 Tagen

Professioneller Support | 24-Stunden-Reaktion

Top-Highlights

Cutting-Edge Software: Arrives Betaflight 4.4.2 firmware-ready, ensuring you're always at the forefront of technological advancements.

Integrated Superiority: Merges the power of a 12A 4in1 ESC with a UART ELRS Receiver, encapsulating the essence of streamlined digital whooping.

Bluejay ESC Firmware Compatibility: Offers a hassle-free user experience, eliminating potential compatibility issues.

Unprecedented Speed with ExpressLRS V3.0.1: Pre-installed and boasting unparalleled speed, setting new standards in responsiveness.

Elimination of Unnecessary Components: Opts out of the Betaflight Analog OSD Chip, recognizing the irrelevance for an HD flight controller.
