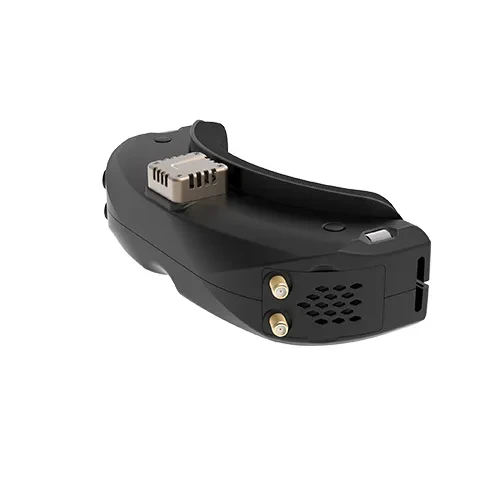

SKYZONE SKY04O PRO Goggle mit Head Tracker

About SKYZONE SKY04O PRO Goggle:

The SKYZONE SKY04O PRO Goggle with Head Tracker is an upgraded version of SKY04O, with a 1280*720 OLED panel and new 42-degree optics, user can get a better and more immersive FPV experience than SKY04O, with a 1280*720 OLED panel, which is also a good choice for Walksnail avatar.

New Optics

Field of view up to 42 degree.

New OLED Paniel

Aspect ratio 16:9 with upgraded 1280×720 resolution, delivering sharper and more detailed visuals.

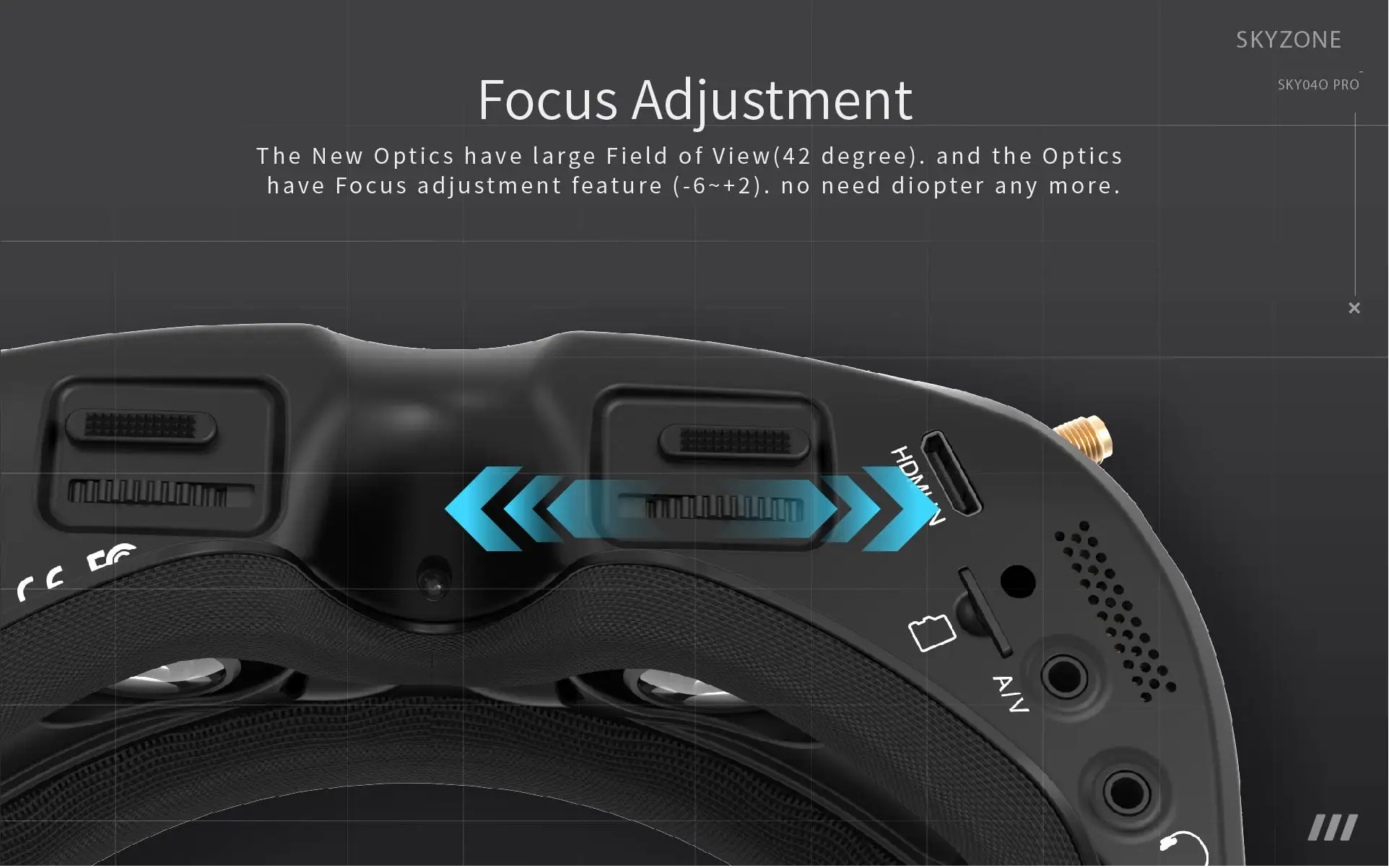

Focus Adiustment

New optics offer a wide 42° field of view and built-in focus adjustment (-6~+2), eliminating the need for diopters.

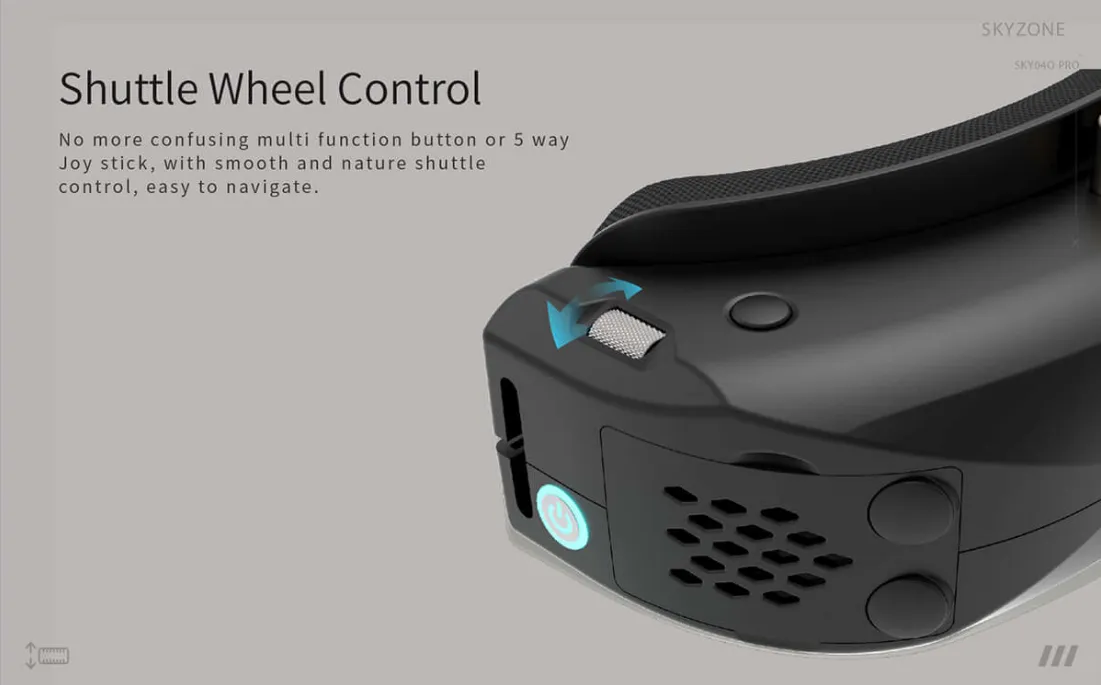

Shuttle Wheel Control

No more confusing multi-function buttons or 5-way joysticks — with smooth, intuitive shuttle control, navigation is easier than ever.

OLED Screen – High Resolution & Vivid Colors

The 1280×720 OLED screen delivers high resolution and vibrant colors, with high contrast that ensures clear details and low latency. Unlike conventional LCD or LCOS screens, which often lack rich colors, lose details, and suffer from higher latency, OLED screens reproduce more colors and finer details, making your flight experience more immersive and realistic.

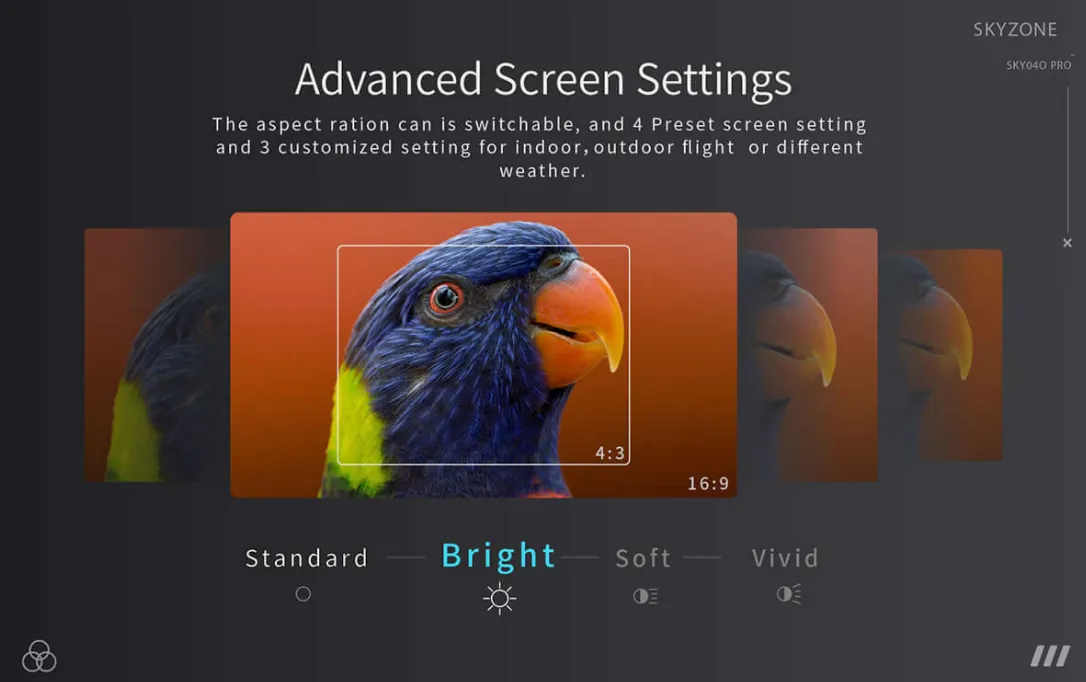

Advanced Screen Settings

The aspect ratio is switchable, with 4 preset screen settings and 3 customizable settings for indoor, outdoor, or various weather conditions.

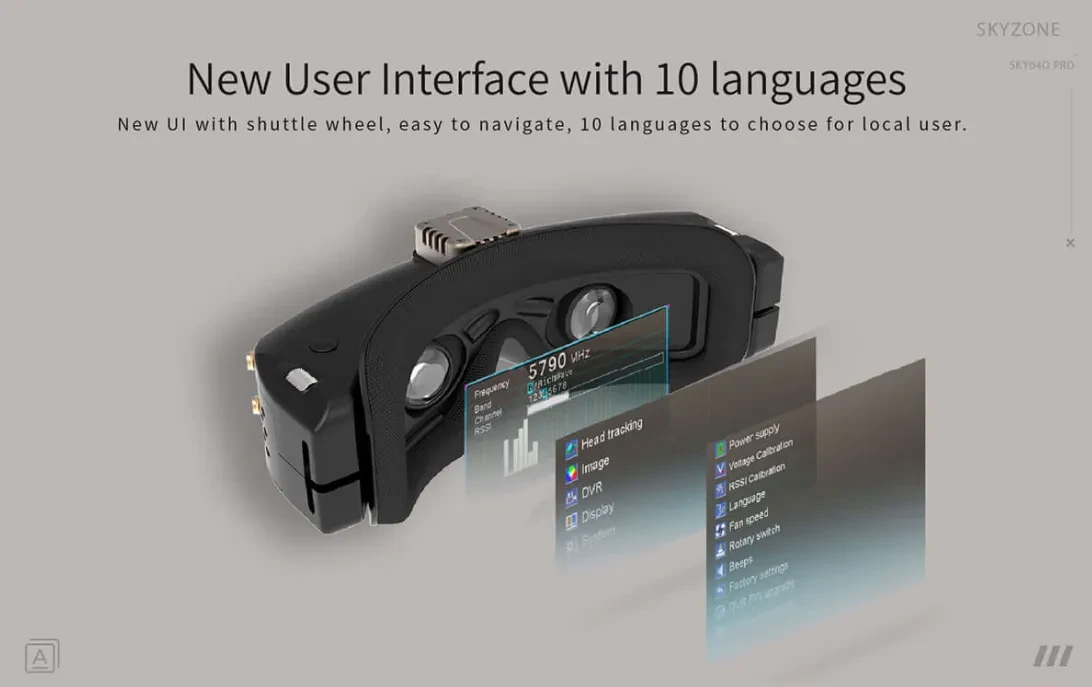

New User Interface with 10 Languages

New UI with a shuttle wheel for easy navigation, offering 10 language options for local users.

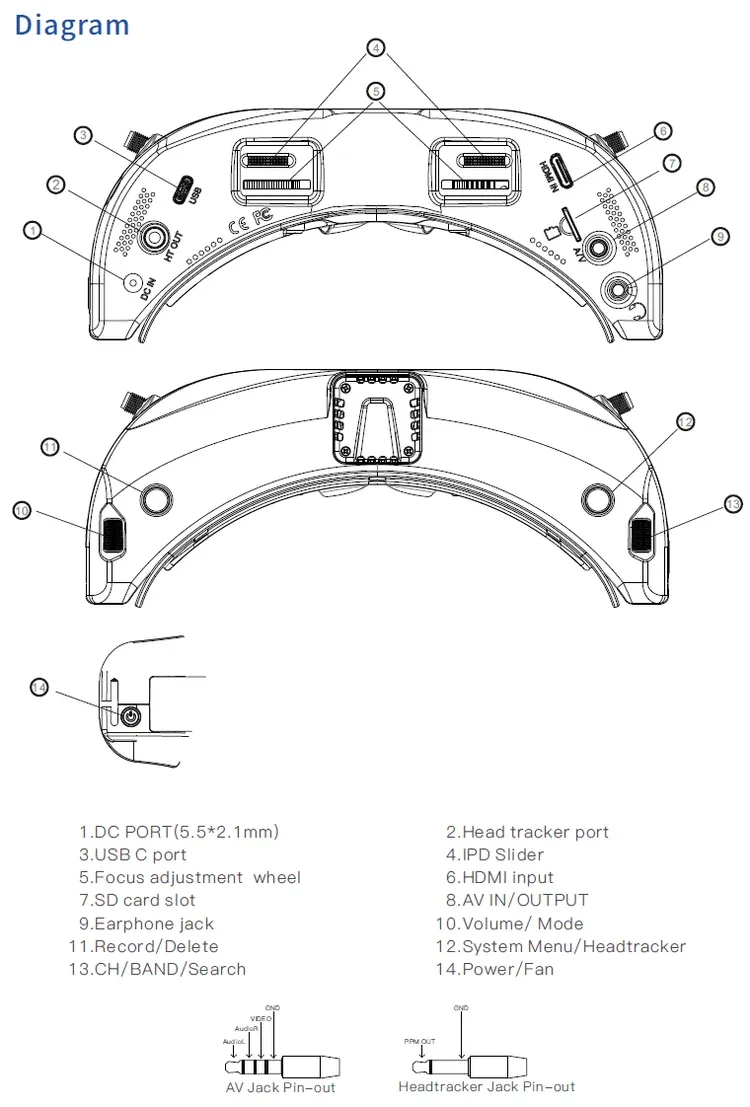

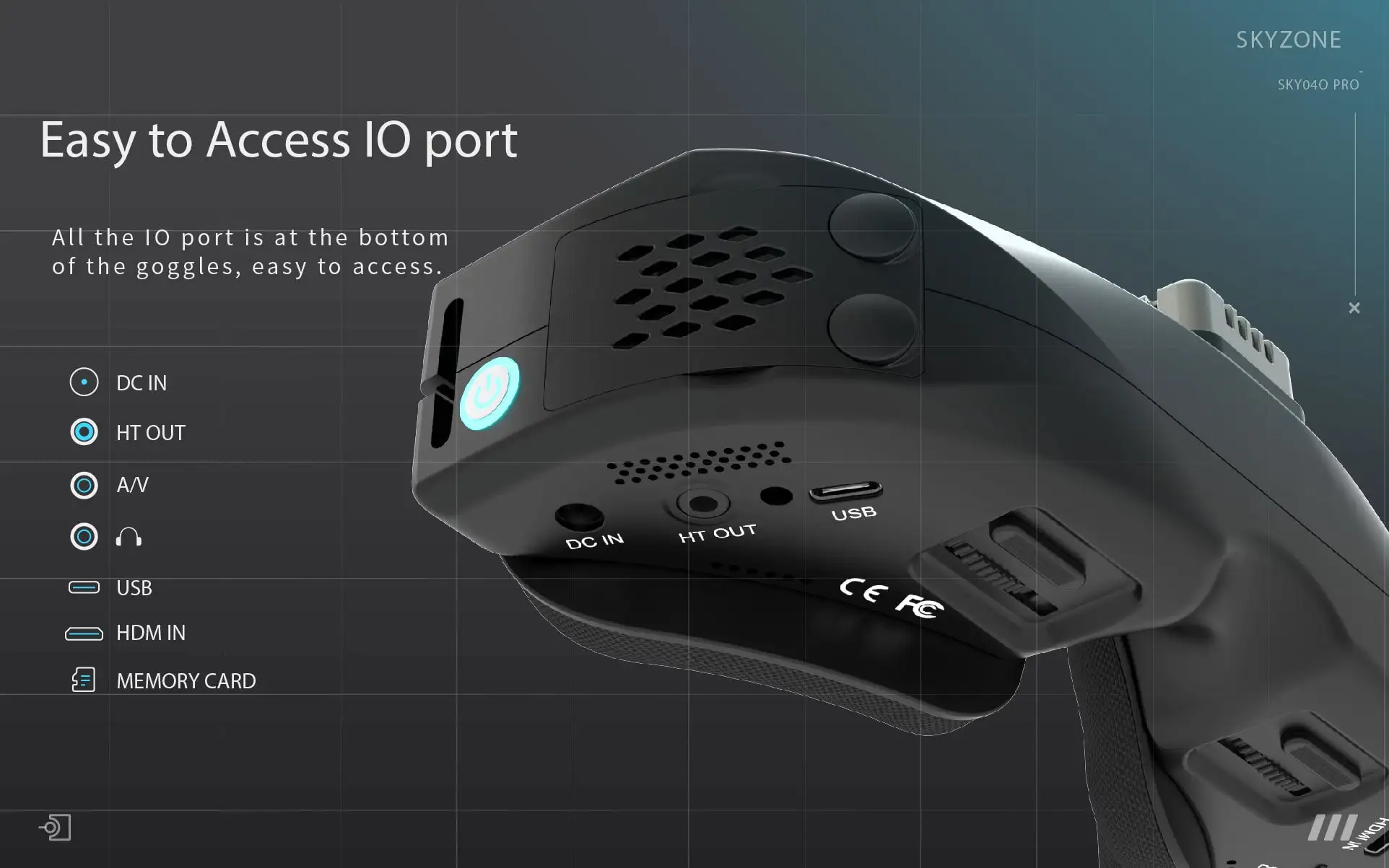

Easy to Access IO port

All the IO ports are located at the bottom of the goggles for easy access.

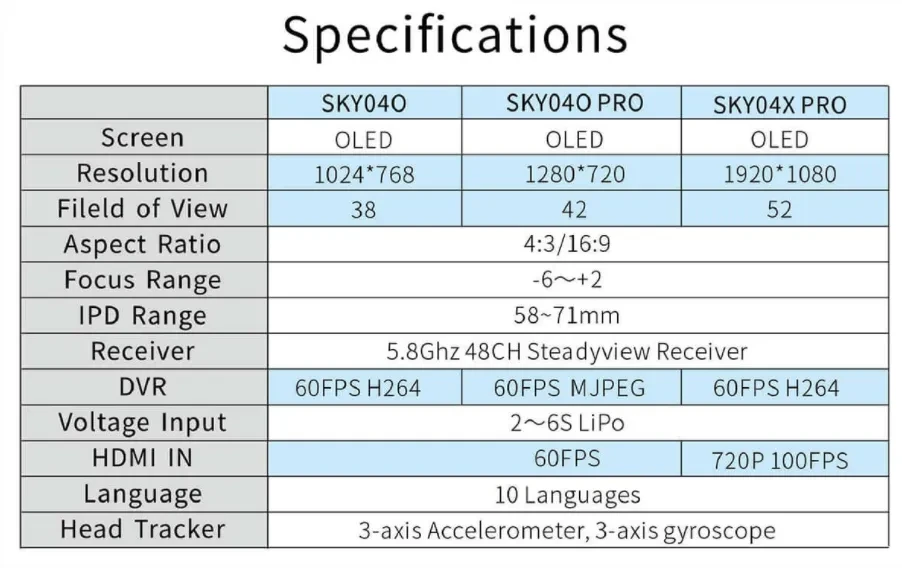

Specifications

● Model: SKY04O PRO

● Screen: OLED

● Resolution: 1280*720

● FOV(Diagonal): 42°

● Aspect Ratio: 4:3/16:9

● Focus: -6~+2 adjustable (Suitable for long-sighted and near-sighted people.)

● Interpupillary distance (IPD): 58~71mm

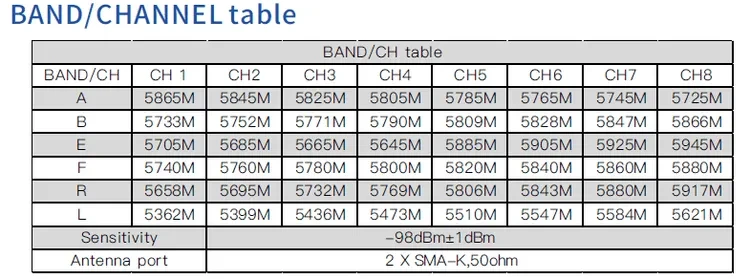

● Receiver : 5.8Ghz 48CH Steadyview Receiver

● Language: 10 Language

● Power Supply: DC 6.5-25.2V/USB 5V

● Power Consumption: 720mA @ 12V

● DVR : MJPEG, 60FPS,MOV 6Mbps, ● SD Card support up to 128Gb

● Head Tracker: 3-axis Accelerometer, 3-axis gyroscope

● Antenna Connector: SMA

Recommendations

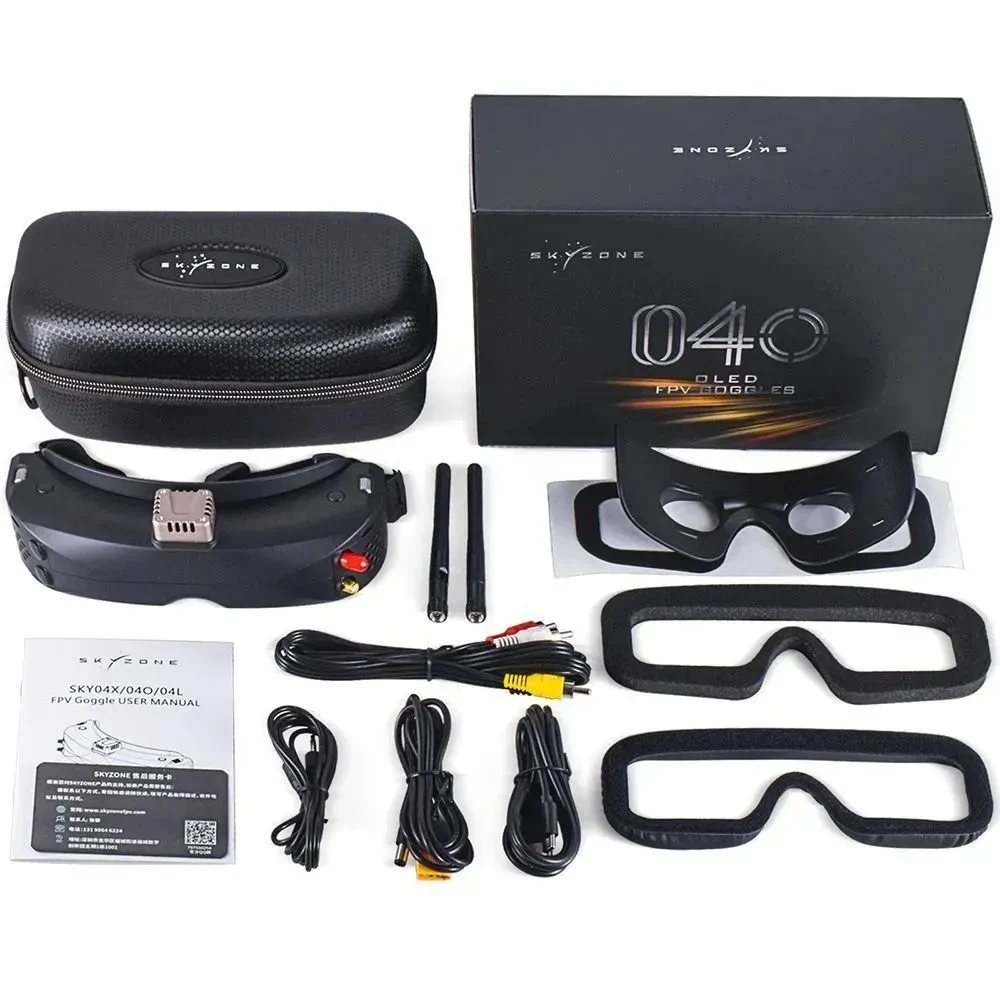

Package Includes

--SKY04O Pro Goggle*1

--Receiver Module*1

--Faceplate*2(wide and narrow)

--Sponge with velcro*1

--Zipper case*1

--Power cable*1

--Headtracker cable*1

--5.8GHz 2dB antennas*2

--Video/ Audio Cable*1

--USB-C Cable*1

--User Manual*1
