Cyclone ELRS Nano Receiver 915MHz T-Antenna for FPV RC Racing Drone

About Cyclone ELRS Nano Receiver 915MHz:

Introducing the Cyclone ELRS Nano Receiver 915MHz with T-Antenna, designed for FPV RC Racing Drones. This compact receiver packs a punch with its 915MHz frequency, offering reliable and long-range communication. The T-type antenna ensures optimal signal reception, while the SX1276+ESP8285 chip combination provides stable performance. With a power output of 100mW and an input voltage range of 3.6V to 5.5V, this cyclone elrs receiver is versatile and efficient. Weighing just 0.4g (receiver only) and measuring 11mm by 18mm, it's the perfect choice for those seeking a lightweight and compact receiver for their racing drones.

$ 11.69 $16.90
-31%
5 | 100+Sold
Options (1)
cyclone-elrs-915mhz-nano-receiver-pack
Sold Out
ELRS 915MHz Nano
$8 Off Orders $109+
$20 Off Orders $199+
Get
Quantity
web upgrade love pc details
In Stock Expected ship within 5 days after order.
Free Shipping | For orders over $99
2 Years Warranty | Hassle-free 24-month warranty
Easy Return and Exchange | Return within 15days
Professional Support | 24-hour response
Payment | Every order you place with us is safe & secure
Share
Copy

● Reliable Long-Range Signal – The 915MHz frequency ensures stable, long-distance communication, perfect for FPV racing and freestyle drones.

● Ultra-Lightweight & Compact – Weighing just 0.4g and measuring 11mm x 18mm, it’s designed for minimal impact on drone weight and performance.

● Optimized T-Antenna Design – The T-type antenna enhances signal reception, improving connectivity in demanding FPV environments.

● High-Performance Chipset – Features an SX1276+ESP8285 combo for reliable, low-latency transmission and smooth control response.

● Versatile Power Input – Operates efficiently within a 3.6V-5.5V range with 100mW output, ensuring compatibility with various FPV builds.



Long-range & penetration capability

The 915 MHz band is known for better penetration through foliage and structures compared to 2.4 GHz, ideal for long-range or cross-country flights. With 100 mW RF output and ExpressLRS hopping, the link maintains reliability even in challenging environments.

ExpressLRS & control performance

Integrates the widely-adopted ExpressLRS protocol, offering up to 200 Hz refresh rate at 915 MHz—responsive enough for most FPV racing builds. Low latency and fast telemetry ensure pilots retain crisp control and live link status.

Miniature form factor

At just 11 × 18 mm and ~0.4 g, it’s a near-invisible addition to cinewhoops, toothpicks, and any weight-conscious build.

Antenna design & link stability

The T-style antenna paired with an IPEX connector maximizes signal reception. Diversity-ready layout ensures the best signal path is used, reducing dropouts in flight.

Power and compatibility

The T-style antenna paired with an IPEX connector maximizes signal reception. Diversity-ready layout ensures the best signal path is used, reducing dropouts in flight.

Selling Points

● Ultra-Long Range: Designed for extended-range FPV flights with the robust 915MHz frequency.

● ExpressLRS Protocol: Lightning-fast communication with ultra-low latency for precise control.

● Nano-Sized Design: Lightweight and compact, ideal for small to mid-size drones.

● Reliable Link Quality: Outstanding signal penetration through obstacles and interference.

● Diversity Ready: Supports antenna diversity (if applicable), improving link stability.

● Easy Binding Process: Fast and user-friendly binding procedure with ExpressLRS modules.

● High Compatibility: Works seamlessly with ExpressLRS-enabled transmitters and flight controllers.

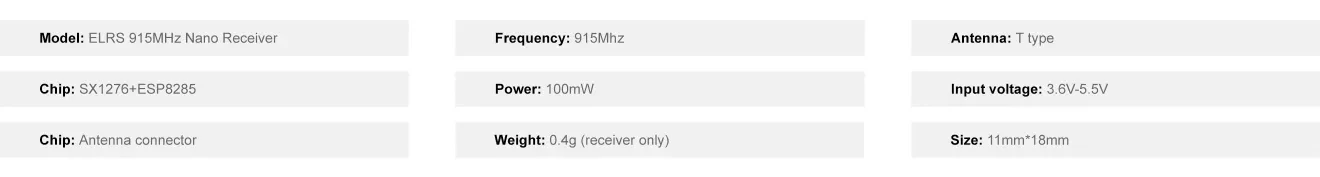

Specification:

● Model: Cyclone ELRS Nano Receiver 915MHz

● Frequency: 915Mhz

● Antenna: T type

● Chip: SX1276+ESP8285

● Power: 100mW

● Input voltage: 3.6V-5.5V

● Antenna connector: IPEX1

● Weight: 0.4g (receiver only)

● Size: 11mm*18mm


Package Included:

1x Cyclone ELRS Nano Receiver 915MHz


Parameter

elrs-915mhz-nano-specifications
