Reduce FPV drone weight by using lighter frames, motors, batteries, and props. Learn practical tips to build a lightweight 5″ quad for longer, smoother flights.
Reducing an FPV drone’s weight is one of the most powerful and straightforward improvements you can make. Especially for a 5-inch freestyle or cinematic build, even saving 10–20 grams can give you an extra 30 seconds of flight, plus noticeably sharper handling and less stress on your electronics. By choosing lighter components—frames, motors, props, batteries, and electronics—trimming wires, and cutting non-essential accessories, you can boost flight time, agility, and durability in a 5-inch FPV build. In this guide, you’ll find targeted tips using MEPSKING products to help create a lighter, more responsive FPV build.
Why Reducing FPV Drone Weight Matters
When your drone is lighter, it becomes more efficient and agile. Each gram saved translates directly into fewer amp draws from the battery, which means more air time. Lighter frames and components allow quicker acceleration and more responsive control, especially valuable during freestyle tricks or fast line racing. Even crash recovery improves, as lower mass results in gentler impacts.
For example, reducing a frame and mount setup from 150g to 120g doesn’t just save weight—it fundamentally changes how the drone flies. Your motors draw less current, ESCs stay cooler, and batteries don’t deplete as fast. That’s why focusing on weight reduction yields performance gains that last long after the battery drains.

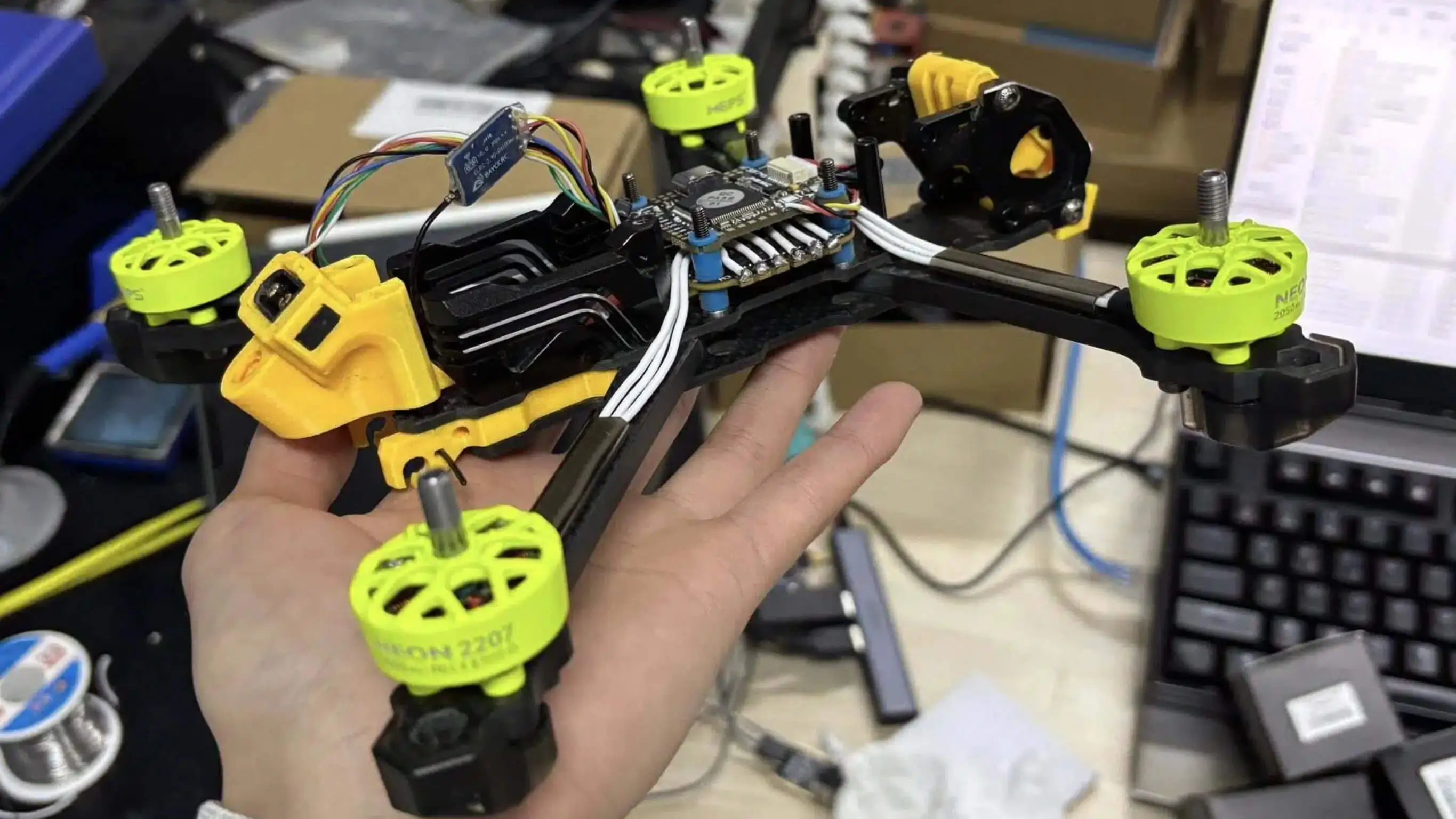

Choosing the Lightweight FPV Components
You should choose lighter components, including motors, frames, FC/ESC stacks, etc., to construct a lightweight FPV drone.
Frame: Minimal & Carbon
Your frame is the foundation of your drone. Choosing a frame that’s too bulky or filled with unnecessary TPU mounts can ruin your weight-saving efforts.
Stick to minimalist 5-inch freestyle frames made from strong, lightweight carbon fiber with 3mm arms or thinner. Avoid extra accessories like printed camera protectors, GPS mounts, or LED brackets if they’re not needed.
A solid frame choice: AOS 5 V5 Lightweight Carbon Frame – sturdy under 100g, perfect for efficient 5″ builds.
Typical Frame Weight Comparison:
| Frame Type | Average Weight |
| Minimalist 5″ carbon | 90–100g |
| Heavy freestyle frame | 120–140g |
| TPU-loaded cinematic frame | 150g+ |
Motor & Propeller Optimization for Efficiency
Pick the Right Motor for Your Build
Bigger motors aren’t always better. If you’re not carrying a GoPro or flying super aggressively, you can drop motor size. For lightweight 5″ builds, MEPS NEON 2306 and Thobby F40 Pro IV motors strike a great balance between power and efficiency.
· Thobby F40 Pro IV – Around 30g, ideal for agility-focused 5-inch freestyle drones.
· MEPS NEON 2306 Motor – Slightly heavier (~32g) but still lighter than standard 2306 options while maintaining thrust.
| Motor Model | Approx. Weight | Sweet Spot Use Case |
| Thobby F40 Pro IV | 30 g | Agile freestyle, lightweight builds |
| MEPS NEON 2306 Motor | 32 g | Balanced thrust for 5-inch quads |
| 2306 standard | 34–36 g | Stock racing components |
Use Lightweight Propellers
Swapping to bi-blade or thinner tri-blade props can cut weight while keeping thrust decent. Lightweight props also spin up faster, making your quad feel snappier.
Recommended options:
- MEPS SZ5145 3-blade
- Gemfan 5146 – a lightweight tri-blade favorite
Explore All Lightweight FPV Props at MEPSKING
Battery Selection and Setup Tricks
Many pilots overlook battery weight, but it has one of the biggest impacts. You don’t always need a 6S 1300mAh. For 5” light freestyle, a 6S 850mAh LiPo can give plenty of juice with far less weight.
Also consider Li-Ion packs for long-range builds — they’re heavier per cell but can double your flight time when cruising.
Trim battery extras: remove thick foam pads, bulky Velcro, or dual battery straps unless necessary.
Try: Tattu R-Line 6S 850mAh LiPo Battery
Battery Weight Chart:
| Battery Type | Capacity | Avg Weight |
| 4S 850mAh | 100g | Lighter |
| 6S 850mAh | 145g | Light |
| 6S 1300mAh | 180g | Heavy |
Electronics: Stack Smart, Wire Smart
All-in-one (AIO) flight controllers and ESCs save both weight and space. Choose 20×20 stacks or go even smaller with AIO boards for underpowered builds.
Cut unnecessary wiring — route wires short and tight. Swap large XT60 connectors with XT30s for lower amp setups.
Antenna
Although they don’t weigh much in the first place, antennas aren’t the ideal way to cut weight. However, some antennas, like Lumeneir’s AXII 2 series, can save you a few grams while also improving the performance of your antenna. Although they are a costly upgrade for the weight they save, performance is improved without sacrificing any quality.
Save Weight on Screws & Mounting Hardware
Even small parts like screws add up. Use aluminum or titanium screws instead of steel. For ultra-light rigs, nylon standoffs also help. Loctite can replace locknuts in non-critical areas.
Hardware swap example:
| Component | Steel (g) | Titanium (g) |
| Full screw set | 14g | 9g |
| Standoffs | 10g | 5g (nylon) |

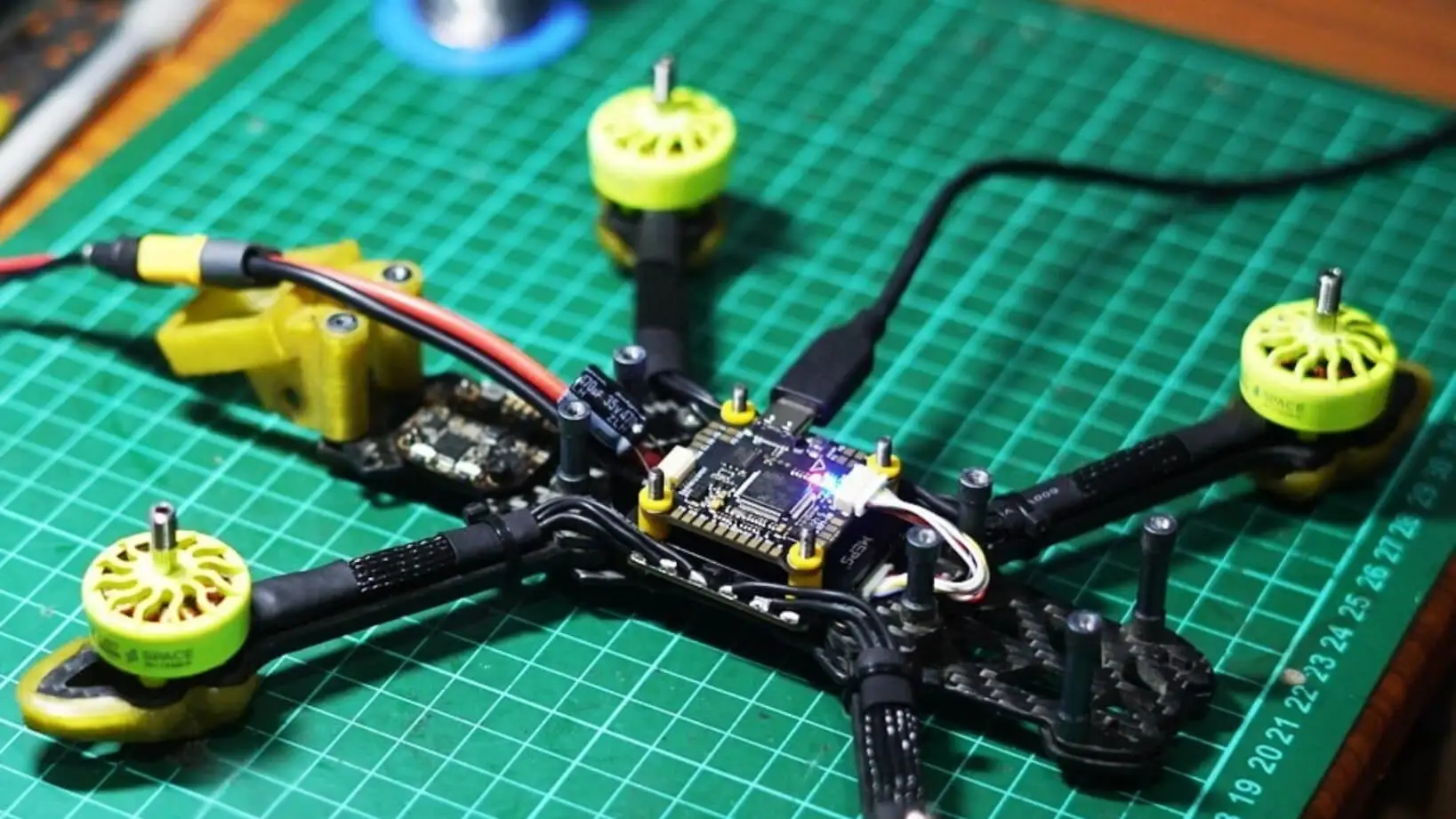

Strip Unnecessary Accessories
If you’re not flying long-range, ditch the GPS. LEDs look cool, but they cost you flight time. Replace full GoPros with lightweight alternatives.
Light camera options:
- RunCam Thumb Pro
- Naked GoPro Hero11 (for advanced builders)
Also, skip vibration-dampening mounts unless your footage truly needs it.
Common Mistakes When Reducing Weight
Some builders take it too far and hurt performance. Here are three common issues:
- Weak solder joints from trimming too much wire
- Removing all soft mounts leads to vibration in the gyro data
- Choosing underpowered motors that can’t lift in windy conditions
Always test each change carefully.
FAQ – Lightweight FPV Builds
Q: What’s a good target weight for 5″ freestyle?
A: Under 250g dry weight is great. Under 350g with a battery is ideal for efficient freestyle.
Q: Does prop size affect weight?
A: Yes. Bigger props require bigger motors and more power. Match the prop size to your motor.
Conclusion: Start Small, Fly Farther
Reducing weight on your FPV drone pays off immediately. You’ll enjoy longer flight times, better handling, and fewer broken parts after crashes. Start small — maybe with your battery and props — and see how much it improves your experience.
