The RadioMaster GX12 is a compact ELRS transmitter designed for pilots who want high-end features without carrying a full-size radio. With Gemini dual-band technology, digital Hall gimbals, and a portable gamepad-style design, it introduces several new ideas to FPV radios. However, its smaller gimbals, limited Gemini receiver support, and lack of included batteries may not suit every pilot.
In this review, we’ll test the RadioMaster GX12’s Gemini ELRS system, gimbal performance, battery setup, and real-world usability to help you decide whether this compact transmitter is the right choice for your FPV setup.

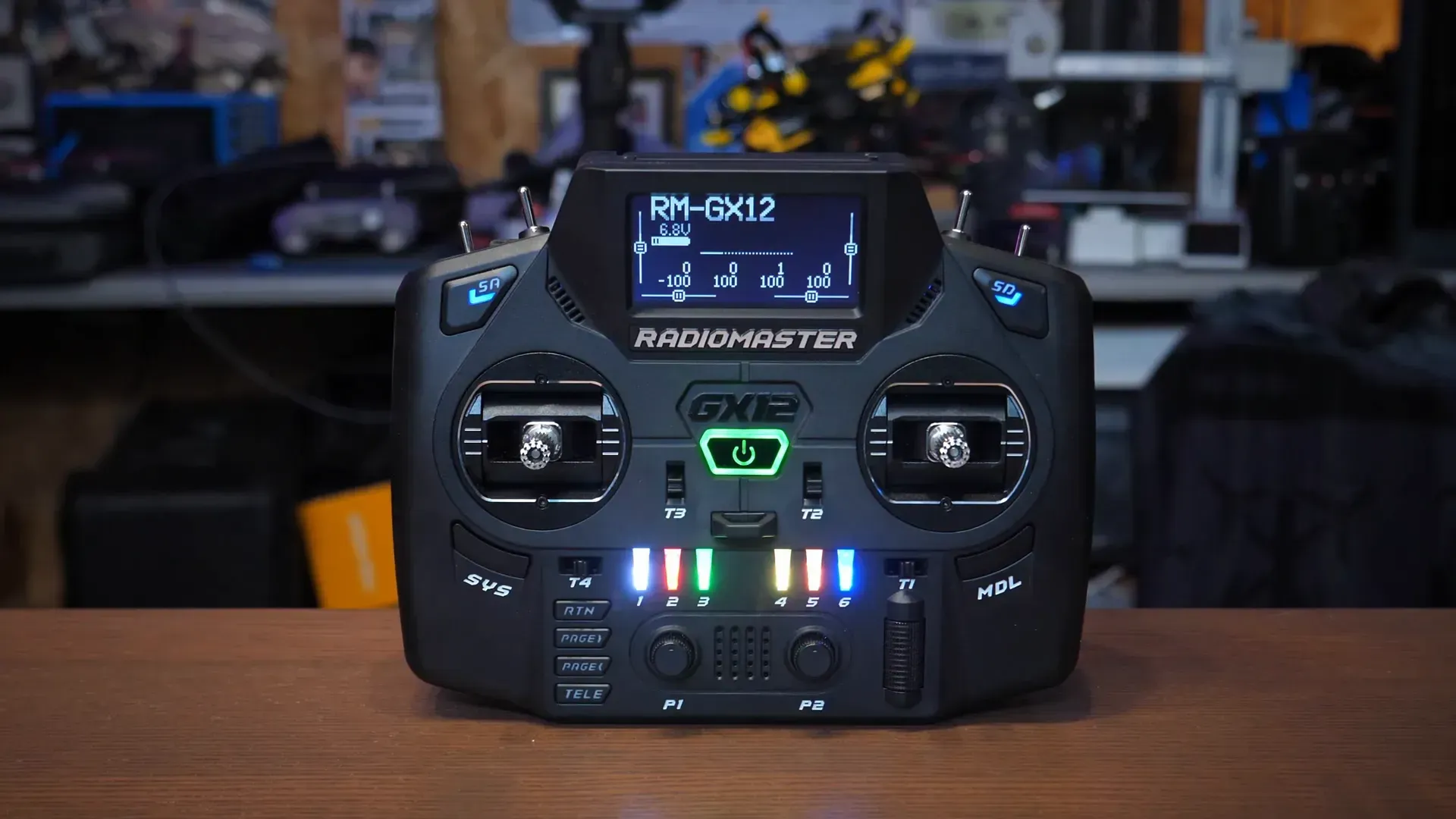

RadioMaster GX12 Key Features at a Glance
The GX12 FPV radio is packed with smart design choices and hardware features, including:
| Feature | Details |
|---|---|
| Protocol | ExpressLRS Gemini |
| RF Chip | LR1121 |
| Frequency | 2.4GHz + 868/900MHz |
| Gimbal | GX01 Digital Hall |
| Display | 1.3″ OLED |
| Battery | 1×18650 |
| Charging | USB-C |
It’s ideal for FPV drone pilots who prefer a portable, minimalistic controller without sacrificing performance or reliability.
Compact Size, Full Performance： A Gamepad-Style FPV Radio
The Radiomaster GX12 breaks away from the traditional, bulky transmitter style. Its gamepad layout is familiar to gamers and extremely comfortable for thumb flyers and pinchers alike. However, pilots coming from full-size radios may notice the smaller grip and reduced control space.
This compact FPV radio is perfect for those who:
- Want to travel light
- Fly micro quads or wings
- Need a convenient backup transmitter
- Prefer minimal switches, but still want full functionality
What Is ELRS Gemini and Why Does It Matter?
Traditional ELRS radios mainly use 2.4GHz frequency, which provides excellent speed and low latency. The GX12 introduces Gemini technology using the LR1121 chip, allowing transmission on both 2.4GHz and lower-frequency bands such as 868MHz or 900MHz.
Advantages:
- Better long-range capability
- Improved signal reliability
- More flexibility in different environments
However:
Gemini is still an emerging ecosystem.
At the moment, only limited receivers fully support true Gemini redundancy, such as the RadioMaster DBR4 receiver.
For most pilots flying standard 5-inch freestyle drones, regular ELRS receivers are still enough.

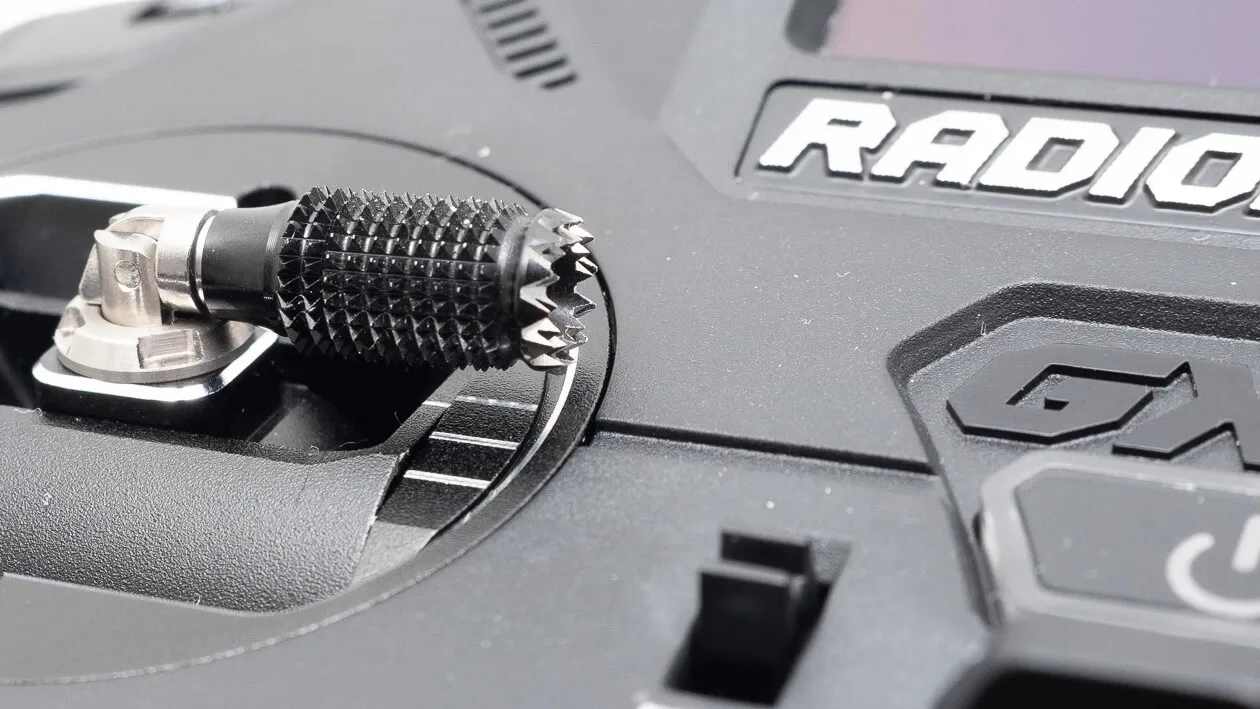

RadioMaster GX12 Gimbals and Ergonomics Review
The RadioMaster GX12 introduces the new GX01 CNC digital Hall effect gimbals, which are one of the most interesting hardware upgrades on this transmitter.
Unlike traditional analog gimbals, digital Hall gimbals process stick inputs digitally, allowing better consistency and lower latency. This design helps improve precision, reduce latency, and provide a more consistent control experience over time.
For FPV pilots, the biggest advantage is the smooth and accurate stick movement. The GX01 gimbals offer reliable centering and excellent durability, making them suitable for freestyle flying, racing, and everyday FPV use.
However, the GX12’s gimbals are not exactly the same as the full-size gimbals found on larger radios like the RadioMaster TX16S or Boxer. The stick travel is shorter, and the smaller size creates a different flying feel.
Pilots who are used to compact radios such as the RadioMaster Zorro may find the GX12 immediately comfortable, while pilots coming from full-size transmitters may need some adjustment time.
The gimbal tension and stick travel can also be customized, allowing users to fine-tune the feeling based on their flying style.
Overall, the GX01 digital Hall gimbals are a major upgrade for a compact radio, but they are designed for portability rather than maximum stick size.

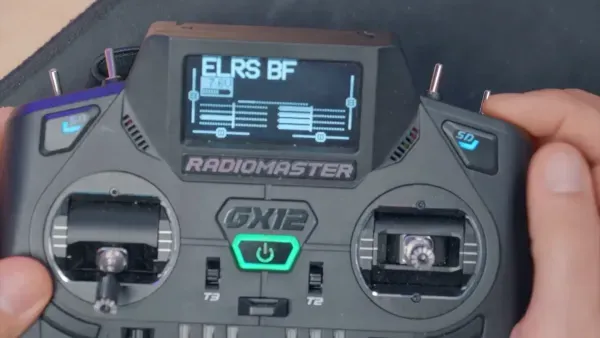

Display and User Interface
The 1.3-inch OLED screen sits at the top of the radio, offering clear visibility indoors and outdoors. The interface is operated by a scroll wheel and confirmation button, making navigation fast and easy.
Whether you’re binding a receiver, adjusting ELRS settings, or calibrating gimbals, the process is simple—even for newcomers.
RadioMaster GX12 Battery Life and Charging
- Powered by 18650
The GX12 uses a single 18650 Li-ion cell—a common, cost-effective power solution that’s also easy to replace. Many users already have spares from goggles or other FPV gear.
- Convenient USB-C Charging
Thanks to USB-C charging, you can power up with the same cable used for your phone or charger. Charging is quick, and the power consumption is low, giving you hours of use on a full battery.
However, there are a few things to know before buying.
First, the battery is not included in the package, so new users need to purchase a compatible 18650 battery separately.
Second, while the built-in charging function is convenient, some experienced pilots may still prefer using an external charger because it provides more control over battery charging conditions and battery health.
Compared with larger radios that use dual 18650 batteries, the GX12’s single-cell design helps reduce weight and size, but it also means the battery capacity is more limited.
For most FPV flying sessions, the battery life is sufficient. However, long-range pilots or users who spend an entire day flying may want to carry a spare battery.
The GX12’s battery system is a good compromise between portability and convenience, but it is worth considering the extra battery cost before purchasing.
Radiomaster GX12 Firmware, Updates, and WebUI Support
The GX12 supports the latest ExpressLRS firmware (v3.x and above) and features:
- Full Wi-Fi WebUI access for receiver settings
- Over-the-air (OTA) firmware updates
- Easy model binding via QR codes or binding phrases
This means you don’t need additional software or drivers to keep your radio updated—just connect via browser and tweak your settings on the fly.
For beginners, the WebUI and QR-code binding process make setup easier compared with older radio systems. However, pilots familiar with EdgeTX will still have access to deeper customization options.
Use Cases – Who is the GX12 Best For?
Great for Beginners
New pilots will love how easy it is to set up and use the GX12. With simple menus, ELRS compatibility, and USB-C charging, it removes many of the common pain points beginners face.
Perfect for Travel
If you attend races or fly in the field, a full-size transmitter may feel like overkill. The GX12 fits neatly in a backpack, and its size makes it ideal as a travel radio or a field backup.
Excellent for Wing Pilots and Whoop Flyers
Those flying wings, micro quads, or indoor drones will appreciate the minimal yet functional switch layout. It’s enough for arming, flight modes, and camera tilt, without excess.

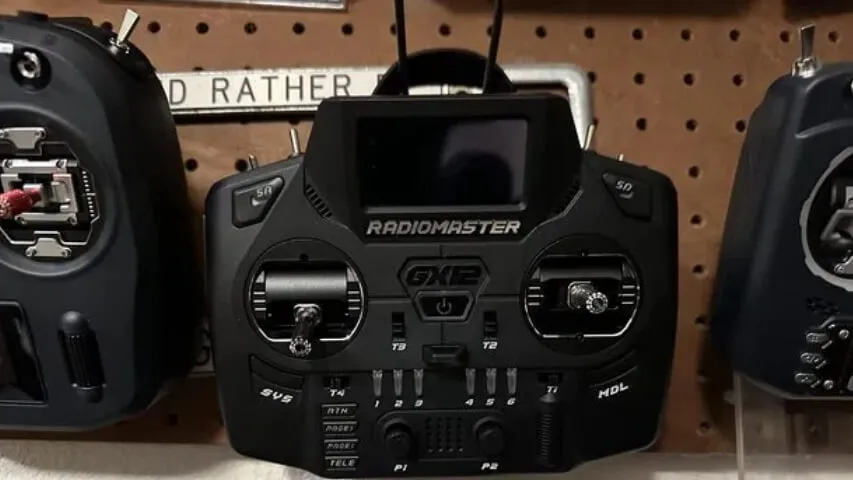

Radiomaster GX12 vs TX16S
| Feature | GX12 | TX16S |
|---|---|---|
| Form Factor | Compact gamepad | Full-size |
| ELRS Version | Built-in Gemini ELRS | Available ELRS versions |
| Controls | 4 switches + 2 dials | More switches + touchscreen |
| Best For | Portable FPV | Advanced pilots |
While the GX12 doesn’t replace high-end radios like the TX16S, it fills an essential niche—a high-performance compact radio at a mid-range price point.
GX12 vs RadioMaster Boxer: Which One Should You Buy?
For many FPV pilots, the biggest question is not whether GX12 is good, but whether it is better than the popular RadioMaster Boxer. Both the RadioMaster GX12 and RadioMaster Boxer are excellent ExpressLRS transmitters, but they are designed for different types of pilots.
The GX12 focuses on portability and next-generation ELRS features, while the Boxer focuses on versatility and traditional radio ergonomics.
| Feature | RadioMaster GX12 | RadioMaster Boxer |
|---|---|---|
| Design | Compact gamepad-style | Traditional radio transmitter |
| ELRS | Built-in Gemini ELRS | Built-in ELRS |
| Gimbals | GX01 Digital Hall | Hall effect gimbals |
| Size | Smaller and easier to carry | Larger and more comfortable for some pilots |
| Controls | 4 switches + 2 dials | More switches and controls |
| Battery | 1 × 18650 | 2 × 18650 |
| Best For | FPV pilots, travelers, compact builds | Everyday FPV, advanced setups |
The GX12 is not a direct replacement for the Boxer. Instead, it fills a different category.
- For pilots who value portability and modern ELRS technology, the GX12 is one of the most interesting choices available.
- For pilots who want a reliable everyday transmitter with more controls and a familiar feel, the Boxer remains one of the best-value ELRS radios.
RadioMaster GX12 Problems You Should Know Before Buying
The RadioMaster GX12 is one of the most innovative compact ELRS transmitters available, but it is not designed for everyone. Before buying, there are several limitations worth considering.
Gemini receiver support is still limited
The biggest feature of the GX12 is its built-in ExpressLRS Gemini dual-band system. While this technology has great potential, the Gemini ecosystem is still developing.
Standard ELRS receivers still work with the GX12, but Gemini-compatible receivers are required if you want to use dual-band redundancy. At the moment, only a limited number of receivers support true Gemini functionality.
For most FPV pilots flying standard freestyle drones, regular ELRS receivers are still more practical and affordable.
The GX12 is future-oriented, but Gemini is not yet a must-have feature for every pilot.
Smaller gimbals may not suit everyone
The compact design is one of the GX12’s biggest advantages, but it also comes with compromises.
The GX01 gimbals are smaller than the full-size gimbals found on radios like the Boxer and TX16S. Pilots with larger hands or those who prefer long stick travel may need time to adapt.
This is not a quality issue—it is simply a different design philosophy.
The GX12 focuses on portability, while larger radios focus more on maximum control space.
Battery Is Not Included
Unlike some ready-to-use transmitters, the GX12 does not include an 18650 battery in the package.
New pilots need to purchase a compatible battery separately before they can start flying.
This is a small issue, but it is worth remembering when calculating the total purchase cost.
Limited Physical Controls Compared With Full-size Radios
The GX12 provides enough switches and controls for most FPV drone pilots, including flight modes, arming, and camera functions.
However, pilots who fly complex fixed-wing aircraft, helicopters, or models requiring many channels may prefer a larger transmitter with more switches, sliders, and controls.
The GX12 supports different types of models, but its compact layout is clearly optimized for FPV pilots.
Frequently Asked Questions About RadioMaster GX12
Does the RadioMaster GX12 work with normal ExpressLRS receivers?
Yes. The GX12 works with standard ExpressLRS receivers after updating them to a compatible firmware version. Gemini receivers are only required if you want to use the full dual-band capability.
What makes the RadioMaster GX12 different from other ELRS radios?
The GX12 stands out with its ExpressLRS Gemini dual-band system, LR1121 chip, GX01 digital Hall gimbals, and compact gamepad-style design. It is designed for pilots who want advanced features in a portable transmitter.
Does the RadioMaster GX12 come with a battery?
No. The GX12 requires a single 18650 Li-ion battery, which must be purchased separately. The single-cell design helps keep the radio lightweight and compact.
Is the RadioMaster GX12 better than the RadioMaster Boxer
It depends on your needs. The GX12 is better for portability and modern Gemini ELRS features, while the Boxer offers a larger design, more controls, and a more traditional transmitter feel.
Is ExpressLRS Gemini worth it on the GX12?
Gemini can improve link reliability by supporting dual-band communication, but the receiver ecosystem is still developing. For most freestyle pilots, standard ELRS is already more than enough.
Is the RadioMaster GX12 good for beginners?
Yes. With built-in ELRS, USB-C charging, and easy setup options, the GX12 is beginner-friendly. However, new users should be aware that the battery is not included.
Can the RadioMaster GX12 be used for fixed-wing aircraft?
Yes. The GX12 supports fixed-wing models through EdgeTX. However, pilots who need many switches and controls may prefer a larger radio.
Final Verdict – Is the GX12 Worth It?
The RadioMaster GX12 is an impressive compact ELRS transmitter that brings several advanced features, including Gemini dual-band technology and digital Hall gimbals, into a portable form factor.
It is an excellent choice for pilots who prioritize portability, modern ELRS features, and a compact flying setup.
However, pilots who prefer full-size radios, more switches, or a simpler traditional setup may find the RadioMaster Boxer or TX16S better suited to their needs.
Overall, the GX12 is a strong option for FPV pilots looking for a next-generation compact transmitter rather than a replacement for every traditional radio.
