“How much weight can a drone carry?” is one of the most common questions among FPV pilots, filmmakers, and commercial drone operators. The short answer: a drone can carry anywhere from 50 grams to over 30 kilograms, depending on the category and motor/prop setup. The real answer is more complex. It involves physics, environmental conditions, and aviation rules—including FAA drone weight limits and drone weight for registration requirements.
This guide explains everything you need to know—from FPV drone carry weight to payload calculations, safe lift ratios, and how much weight a drone can carry across different categories.
Understanding Drone Carry Capacity
What “Carry Weight” Means: Payload vs Takeoff Weight
When talking about how much weight a drone can carry, it’s important to distinguish between payload and takeoff weight—two terms that many beginners often mix up. Understanding the difference is critical for flight performance, safety, and FAA compliance.
What Is Payload on a Drone? (FPV Payload Definition)
Payload refers to any additional weight your drone carries that is not part of the drone’s standard build.
Typical FPV payloads include:
- GoPro or HD action cameras
- Naked GoPro systems
- Extra batteries for long-range flights
- LiDAR or mapping sensors
- Small delivery packages
- Gimbals or mounts
What Is the Takeoff Weight on a Drone?
Takeoff Weight = Drone dry weight + battery + payload + accessories.
This represents the total weight at liftoff and directly affects:
- thrust-to-weight ratio
- motor/ESC load
- propeller efficiency
- flight time
- FAA registration requirements
- safety margins for heavy-lift flights
Example (FPV 5” quad):
- Drone dry weight: 380 g
- Battery: 200 g
- GoPro: 155 g
➡ Payload = 155 g
➡ Takeoff Weight = 380 + 200 + 155 = 735 g
Why This Matters?
This distinction gives you several advantages:
- FAA Drone Weight Limit Applies to Takeoff Weight — Not Payload. If your drone’s takeoff weight exceeds 250 g, the FAA requires registration. Adding a small GoPro can instantly push an FPV quad beyond the drone weight for registration threshold.
- Flight Performance Depends on Total Weight. Motor heat, ESC load, prop efficiency, and flight time depend on the total mass, not just the payload.
- Choosing Motors and Props Requires Takeoff Weight. For heavy lifting, motor KV, torque, stator size, and prop diameter must be matched to the maximum expected takeoff weight.
Factors That Determine Carry Capacity
Frame Size & Structural Strength
A drone can only carry as much weight as its frame can physically support.
Carbon fiber frames resist flex and maintain stability under heavy load. Bigger frames support larger props, larger motors, and more battery capacity—all important for maximizing how much weight a drone can carry.
Motor Power, Torque & Efficiency
Motors directly determine how much weight a drone can lift.
Low-KV, high-torque motors paired with large propellers generate efficient thrust for heavier payloads.
More motors = more lift.
Hexacopters and octocopters distribute load across multiple arms, improving efficiency and offering redundancy—critical when flying expensive cameras or sensors.
Battery Capacity & Voltage
A battery affects both takeoff weight and flight time.
Heavier batteries reduce available payload, but choosing a lighter pack often sacrifices flight endurance.
Higher-voltage systems (6S, 12S, 14S) are common in heavy-lift drones because they reduce current draw and heat buildup, allowing motors to produce sustained thrust safely.
Propeller Size and Aerodynamics
The propeller is one of the key factors determining a drone’s payload capacity.
Propellers with large diameters and low pitch can generate greater lift at lower power levels. That’s why 12–20″ props dominate in long-range and heavy-lift builds. Superior aerodynamic designs also reduce drag, helping drones maintain stable and efficient lift. However, excessively large sizes increase the drone’s overall weight.
Weather, Wind & Altitude
Environmental conditions directly impact how much weight a drone can carry:
- High altitude → thinner air → reduced lift
- Strong wind → higher power draw → shorter flight time
- High temperature → more motor/ESC heat → less efficiency
Even a perfectly optimized drone must reduce payload in challenging environments.
Typical FPV Drone Carry Capacities
FPV drones vary widely in how much weight they can carry, because each category is designed with a different goal—speed, stability, flight time, or lifting power. So if you’re asking “how much weight can a drone carry?”, the answer depends heavily on the FPV drone type.
Unlike consumer GPS drones, FPV platforms prioritize responsiveness and power-to-weight ratio. This means their FPV drone carry weight ranges from just a few dozen grams to several kilograms for large, long-range, or heavy-lift builds. Below are the typical payload capabilities across the three main FPV categories.

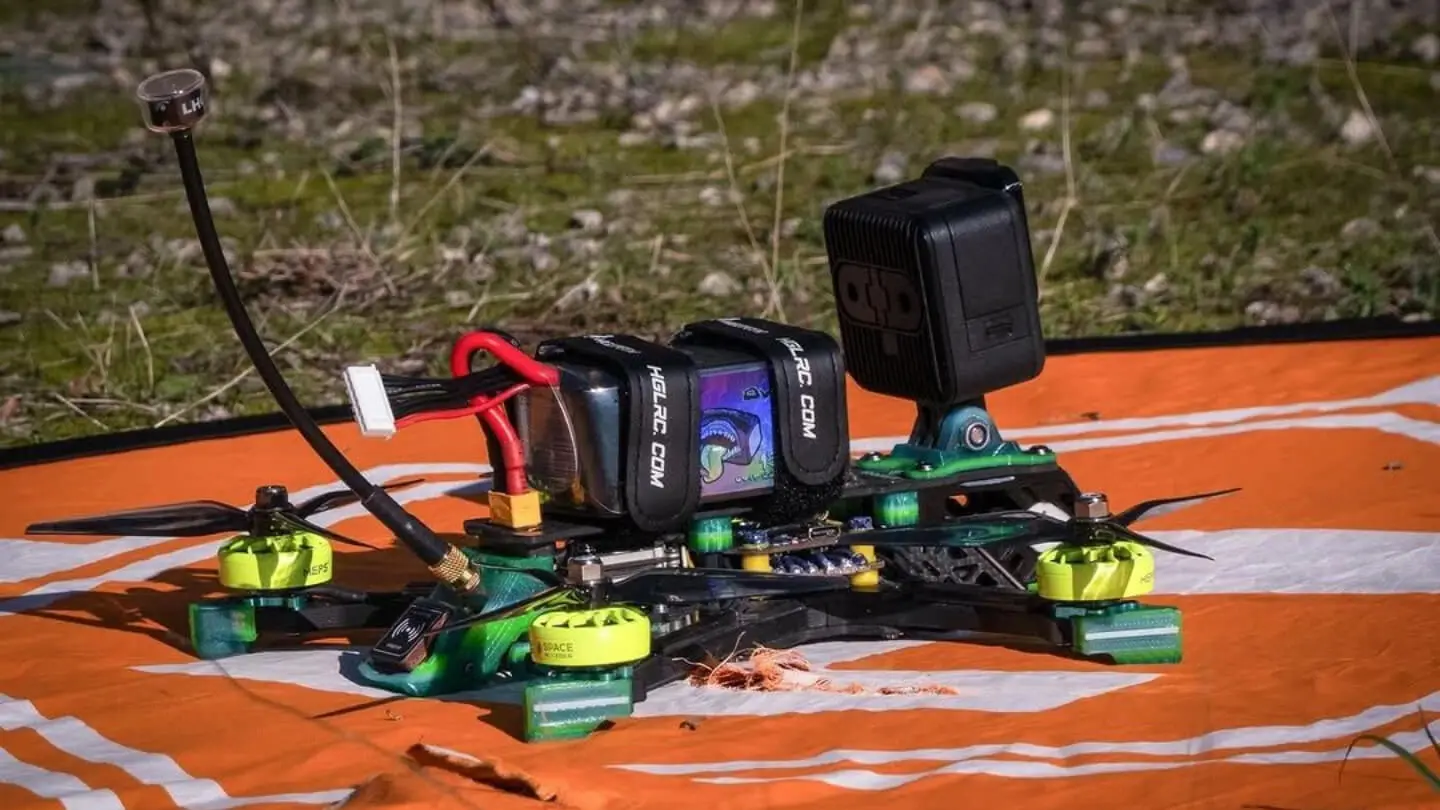

Racing / Freestyle FPV
Racing and freestyle FPV drones typically carry payloads of 50–300g (0.1–0.6lbs), where even minor weight increases significantly impact performance.
These models are engineered for maximum agility, instant throttle response, and precise maneuverability. Any component adding mass slows acceleration, reduces turn precision, and increases motor load.
Typical Characteristics of Racing/Freestyle FPV
- Typical takeoff weight (including battery): ~600–800g
- Actual payload capacity: 100–300g, typically accommodating only a GoPro or lightweight HD action camera
- Flight priority: Minimize weight to maintain a high thrust-to-weight ratio
Since these drones operate at the edge of thrust-to-weight limits, even minor payloads significantly degrade flight performance.
Cinewhoops / Cinematic Builds
Cinewhoops and cinematic FPV drones typically carry 200–800g (0.4–1.7 lbs), depending on frame size and motor torque.
These drones are optimized for smooth, stable footage. They often fly slower, use ducted frames for safety, and run high-torque motors that can lift heavier action cameras.
Typical Cine-FPV Carry Capacity
- 3-inch Cinewhoop
- Payload: 150–250g (Naked GoPro / GoPro 11 Mini / DJI Action)
- Takeoff Weight: 350–600g
- 3.5-inch Cinewhoop
- Payload: 250–350g
- Balanced option for cinematic shooting with better efficiency
- 5-inch Cinematic FPV rigs
- Payload: 400–800g
- Can lift full GoPro setups or compact cinema modules
Cinematic FPV builds use stronger motors and more stable flight controllers, giving them better lift without sacrificing too much control.
Long-Range / Heavy FPV Builds
Long-range and heavy-lift FPV drones offer the highest payload capacity, commonly from 500g up to 2–3 kg (1.1–6.6 lbs) depending on size and propulsion system.
Typical Long-Range / Heavy FPV Weight Capacities
- 7-inch Long-Range FPV
- Payload: 500–800g
- Built for 20–40+ minute flights
- 8–10 inch Heavy-Lift FPV
- Payload: 1.5–3 kg (3.3–6.6 lbs)
- Can carry cinema cameras, LiDAR units, multispectral sensors, or large batteries
Long-range and heavy FPV drones deliver the highest payload capacity and are the closest FPV equivalent to commercial heavy-lift UAVs.
How Much Weight Can A Drone Carry?
In practice, the weight capacity varies dramatically by category. A small consumer drone may only carry a lightweight accessory, while an agricultural drone can spray tens of liters of liquid. Because payload directly affects flight time, stability, and thrust demand, every category is engineered with a different lift capability.
Below is a detailed breakdown of how much weight drones can carry across major segments.
| Drone Type | Typical Payload Capacity | Typical Takeoff Weight | Common Payloads | Primary Use Cases |
| Racing / Freestyle FPV | 0.1–0.3 kg (0.2–0.6 lbs) | 0.6–0.8 kg | FPV camera, small HD cam | Racing, freestyle tricks, high-speed flying |
| Cine-FPV / Cinematic Builds | 0.3–1.5 kg (0.6–3.3 lbs) | 1–2.5 kg | GoPro/Action cam, naked cinema cam, small gimbal | FPV filmmaking, cinematic chases, close-proximity shots |
| Long-Range / Heavy FPV Builds | 1–3 kg (2.2–6.6 lbs) | 2–5+ kg | Bigger action cams, mirrorless cams, large batteries | Long-range exploration, mountain dives, carrying heavier FPV gear |
| Hobbyist & Consumer Drones | 0.2–2 kg (0.4–4.4 lbs) | 0.5–2.5 kg | Action cams, gimbals, small accessories | Recreational flying, basic aerial photography |
| Photography & Cinematography Drones | 1–9 kg (2.2–19.8 lbs) | 3–15 kg | Gimbals, mirrorless/DSLR, cinema cameras | Film production, professional aerial imaging |
| Commercial / Enterprise Drones | 2–10 kg (4.4–22 lbs) | 5–20 kg | LiDAR, thermal sensors, multispectral cameras | Mapping, surveying, inspections, public safety |
| Agricultural Drones | 10–50+ kg (22–110+ lbs) | 25–100+ kg | Spraying tanks, seeding systems | Crop spraying, fertilizing, seeding |
| Delivery Drones | 1–30+ kg (2.2–66+ lbs) | 10–50+ kg | Medical supplies, packages, tools | Last-mile delivery, logistics, emergency transport |
Hobbyist and Consumer Drones
Most hobbyist and consumer drones can carry 200 g to 2 kg (0.4–4.4 lbs), depending on the model.
These are the drones used by everyday flyers—Mavic, Mini, Air, Phantom series, and similar platforms. They prioritize camera stability, portability, and ease of use rather than heavy lifting.
What They Can Typically Carry
- Lightweight action cameras
- Small LED lights
- Compact gimbals
- Basic sensors
A mid-sized consumer drone like a DJI Air 3 may handle around 300–500 g before flight time drops significantly. Larger drones, such as the Phantom 4, can push closer to 1–2 kg in very controlled environments, but these loads are not recommended for regular operation.
Photography and Cinematography Drones
Professional photography drones typically carry 1–9 kg (2.2–19.8 lbs), depending on whether they use mirrorless cameras or full cinema equipment.
Common Payload Examples
- Mirrorless cameras (Sony A7, GH6, FX3)
- Cinema cameras (RED Komodo, ARRI Alexa Mini)
- Heavy 3-axis gimbals
- Lenses, filters, wireless transmitters
High-end rigs like the Freefly Alta 8 or DJI Inspire 3 are engineered specifically for lifting professional cameras. These drones trade endurance for stability and load capacity.
Commercial Drones
Commercial and enterprise-grade drones can typically lift 2–10 kg (4.4–22 lbs), depending on the equipment they carry.
These drones are widely used in inspection, public safety, surveying, and mapping. They must remain stable while carrying complex, often sensitive sensors.
Typical Payload Types:
- LiDAR scanners
- Multispectral and hyperspectral cameras
- Thermal imaging units
- Dual-sensor payloads
- Emergency or public-safety tools
A drone like the DJI Matrice 350 RTK can simultaneously carry multiple payloads—for example, a LiDAR unit and a thermal camera—making it a workhorse in the enterprise market.
Agricultural Drones
Agricultural drones have some of the highest lifting capacities on the civilian market, commonly carrying 10–50+ kg (22–110 lbs).
These drones are engineered for crop spraying and aerial spreading, tasks that require not only large payloads but also the ability to handle shifting weight as liquid is dispersed.

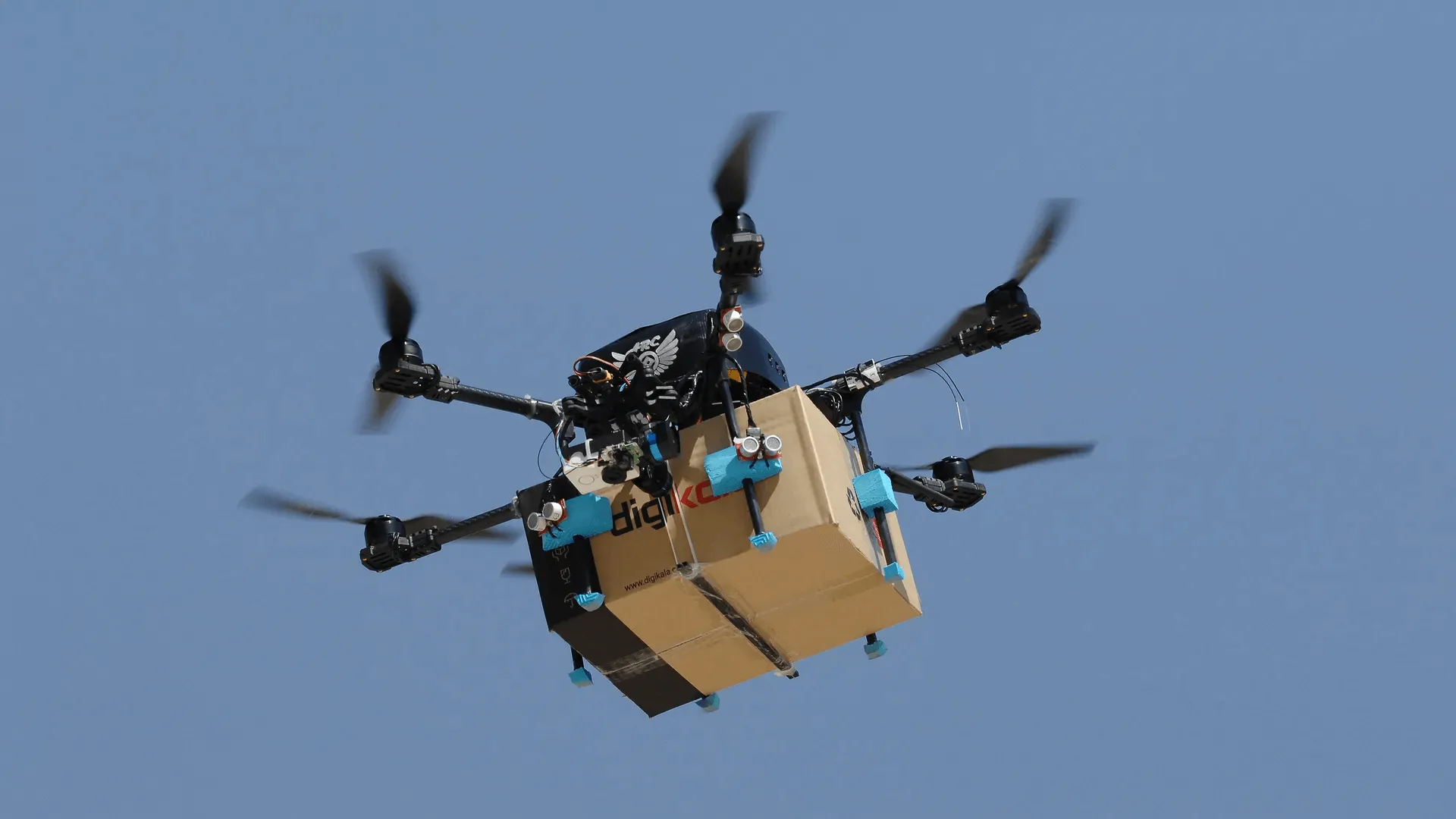

Delivery Drones
Delivery drones generally carry 1–30+ kg (2.2–66 lbs) depending on the model and mission.
Small medical delivery drones (like Zipline or Wing) carry lightweight payloads for long distances. Larger logistics drones, however, are built for industrial cargo transport.
Payload Examples
- Food and small consumer goods
- Medical kits, vaccines, emergency supplies
- Industrial tools and equipment
How to Calculate Payload Capacity for Your Drone?
Thrust-to-Weight Ratio (TWR)
The thrust-to-weight ratio (TWR) is the core metric that defines your drone’s lift ability. It tells you whether your drone can carry additional mass, how well it will fly with that mass, and whether you’re operating within safe limits.
Formula:
TWR=Total Thrust / Total Takeoff Weight
| TWR Range | What It Means |
| 1.0 | It can theoretically hover, but is not stable in real flight conditions. |
| 1.1–1.3 | Barely flyable; sluggish and unsafe for maneuvering. |
| ≥ 2.0 | Ideal for stable flight; enough power for most payloads. |
| 3.0+ | Common in FPV racing or heavy-lift drones; high speed and more lift headroom. |
Example:
A drone generating 1,000 g of total thrust and weighing 500 g has a 2:1 TWR. It can hover at about 50% throttle, leaving enough reserve for climbing or wind compensation.
In FPV and commercial operations, pilots typically target 2:1 or higher, as it provides a safe balance of control authority, efficiency, and lift. Check the blog to learn more about Thrust-to-Weight Ratio: How to Calculate Drone Motor Thrust?
Effective Payload Calculation
Step 1-Calculate the drone’s dry weight (frame, motors, props, ESCs, flight controller, camera, battery, etc.).
Step 2-Calculate Required Thrust
To hover:
- Weight=Mass×9.81( gravity )
To fly safely under real conditions, double the hover thrust requirement (the standard stability factor).
- Required Total Thrust=Total Weight×9.81×2
Note that the actual thrust must exceed the total required thrust.
Step 3 — Determine Actual Payload Capacity
- Payload Capacity=Actual thrust-Drone Weight
Drone Weight for Registration
United States (FAA)
The FAA drone weight limit plays a major role in determining what you can legally fly.
Registration threshold: Any drone over 250 g (0.55 lbs) at takeoff must be registered.
Payload counts toward total takeoff weight, meaning adding a GoPro to an FPV quad can easily push it past 250 g.
Under Part 107, commercial pilots must ensure:
- The drone is not overloaded,
- The aircraft remains airworthy,
- performance is not degraded by the payload.
UK
The UK classifies drones by weight categories under the CAA’s Open and Specific categories.
Key Rules:
- Below 250 g: Easiest to operate; minimal registration for most models.
- 250 g–25 kg: Requires operator ID; flight restrictions depend on your C-class rating (C0–C4).
Note: Effective January 1, 2026, the new UK drone classes (UK0, UK1, etc.) will replace the EASA classes (C0, C1, etc.). Registration requirements would look like this:
| Weight of model | Class | Flyer ID | Operator ID |
| 250g to less than 25kg | UK1, UK2, UK3, UK4 | Required | Required |
| 100g to less than 250g; with a camera | UK0 with a camera | Required | Required |
| 100g to less than 250g; without a camera | UK0 without a camera | Required | Optional |
| Less than 100g | Not applicable | Recommended | Optional |
Payload Implications: Any added payload—camera, battery upgrade, sensor—changes your class, potentially requiring additional competency certificates.
China (CAAC)
China’s drone regulations emphasize real-name registration and weight control.
Key Rules:
- Drones weighing 250 g or more must be registered with the CAAC.
- Drones weighing between 7 kg and 116 kg require a permit issued by the CAAC.
- Drones exceeding 116 kg must possess both a pilot license and a drone aircraft certification.
- Commercial drones—whether weighing 7 to 116 kg or exceeding 116 kg—require a CAAC-issued permit.
- Additionally, commercial operations involving drones over 116 kg must hold both a CAAC permit and drone certification.
Canada
Canada divides drones into “Micro,” “Basic,” and “Advanced” based on takeoff weight and airspace.
Key Rules:
- Under 250 g: No registration required.
- 250 g–25 kg: Must be registered; pilot must hold a Basic or Advanced Certificate depending on where they fly.
- More than 25 kg: Require a Special Flight Operations Certificate (SFOC) for any operation, in addition to registration and a pilot certificate
Payloads count toward the legal takeoff weight, affecting whether your flight qualifies as Basic or Advanced.
Australia (CASA)
In Australia, the Civil Aviation Safety Authority (CASA) regulates drones based on weight and usage scenarios.
Key Regulations:
- Under 250 grams: Recreational flights require no registration. Commercial use (if falling under exempted categories) requires a RePL.
- 250 g to 2 kg: Registration is required for both recreational and commercial use.
- Over 500g: Additional restrictions apply, particularly for first-person view (FPV) and heavy-payload operations.
- 2 to 7 kg: Registration is required for all uses, and a RePL is mandatory.
- Over 7 kg: All drones require registration and a RePL license; an Operator’s Certificate is also required.
If you’re exploring payload-capable builds or comparing motor performance, the MEPSKING VINE VOICE program offers pilots a chance to try selected FPV motors, stacks, and batteries for free in exchange for real-world feedback. A simple way to test gear that affects lift performance without extra cost.
