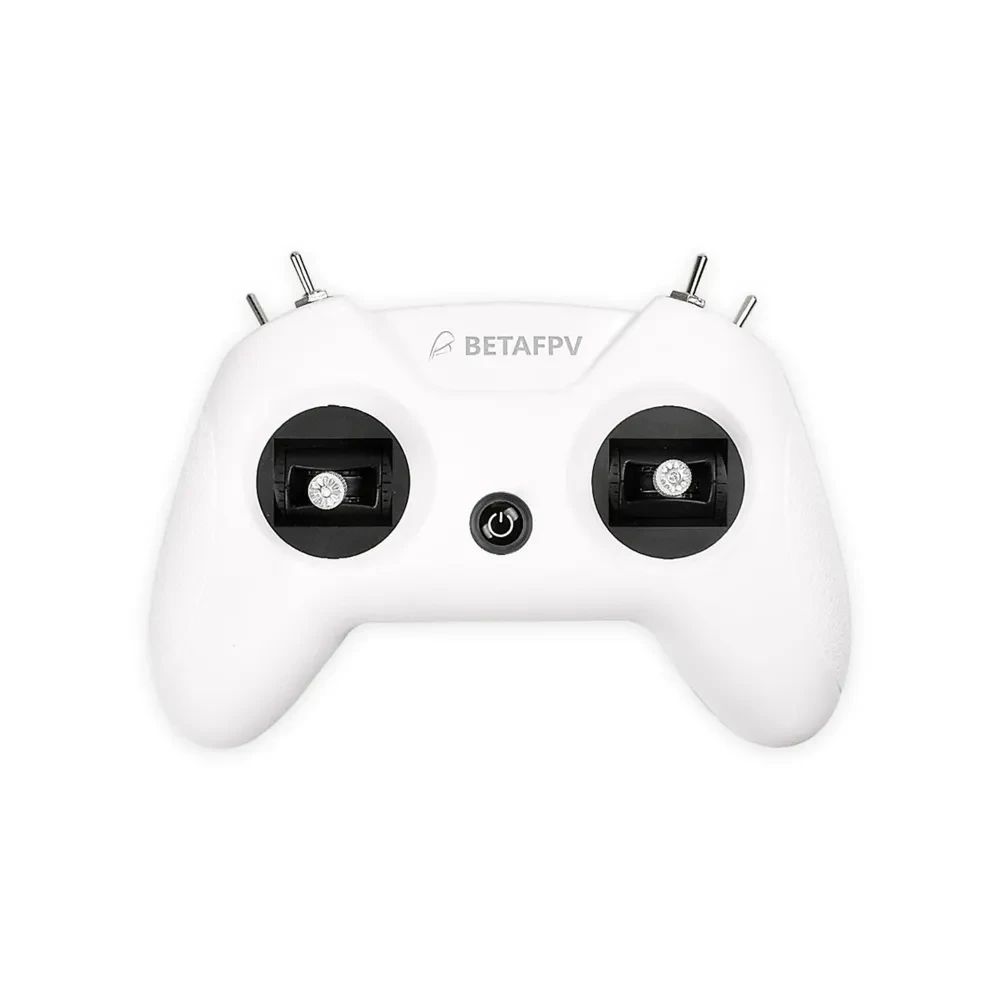

Betafpv Literadio 2 Se Radio Transmitter Front

BetaFPV LiteRadio 2 SE Radio Transmitter Range

About LiteRadio 2 SE Radio Transmitter：

Popular ExpressLRS 2.4G raido link protocol version is available for option now. Besides, this version supports BETAFPV Configurator which is a utility disigned to simply updating, configuring and tuning the radio controller.

BETAFPV

Community FavoriteBuilt to LastBeginner Friendly

$ 45.99

5 | 93Sold

Options (2)

ELRS 2.4G

Frsky

$6 Off Orders $129+

$10 Off Orders $249+

Get

Quantity

Free Shipping | For orders over $99

2 Years Warranty | Hassle-free 24-month warranty

Easy Return and Exchange | Return within 15days

Professional Support | 24-hour response

Payment | Every order you place with us is safe & secure

Copy

Description

FAQ

● Versatile Protocol: ExpressLRS 2.4G version available for improved connectivity.

● BETAFPV Configurator: Compatible with BETAFPV Configurator for easy updates and tuning.

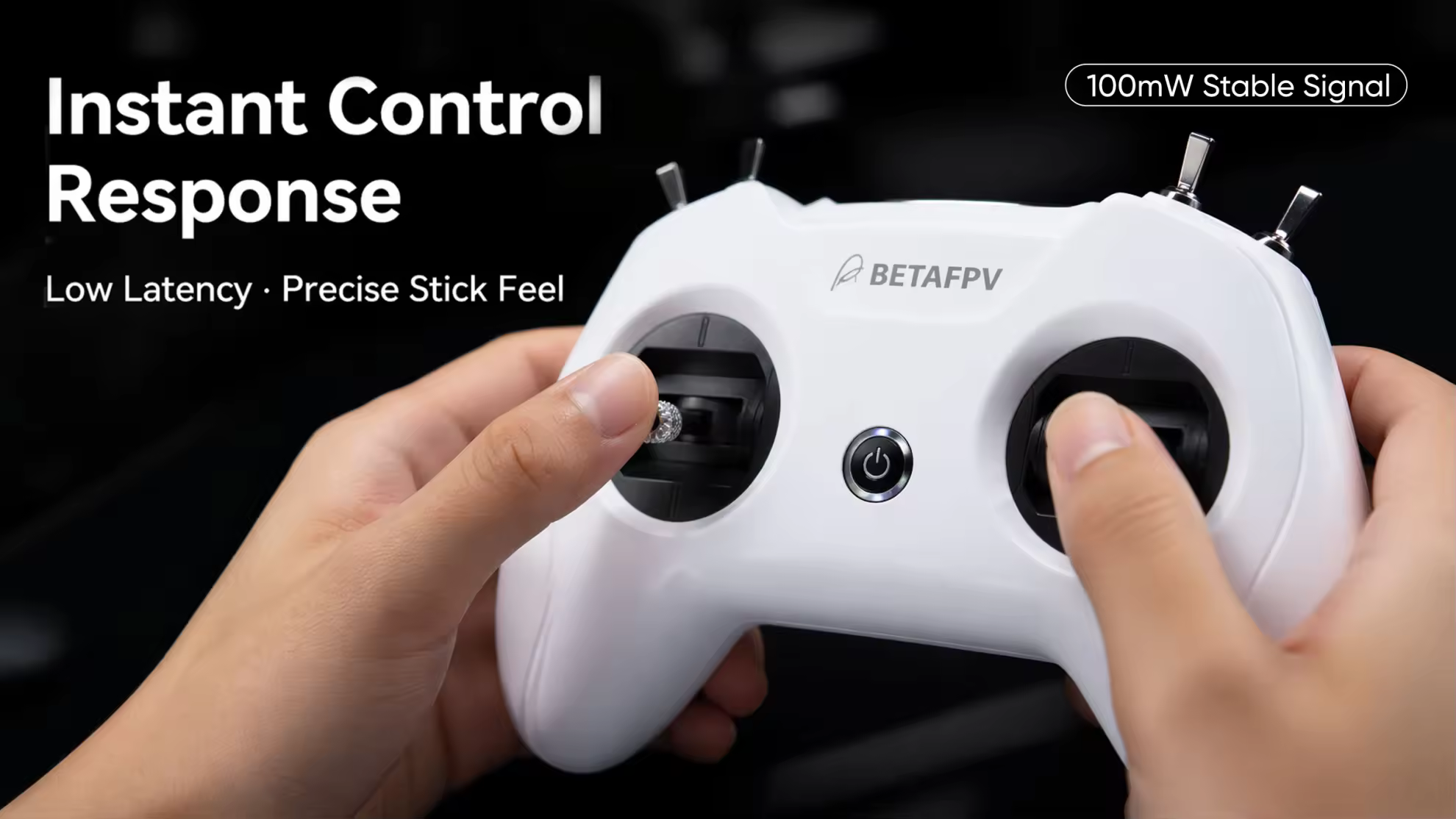

● Low Latency: Ensures responsive, high-performance communication.

● Easy Setup: Simplifies configuration for hassle-free use.

● Wide Compatibility: Supports various drone setups for seamless integration.

Betafpv Literadio 2 Se Radio Transmitter ELRS

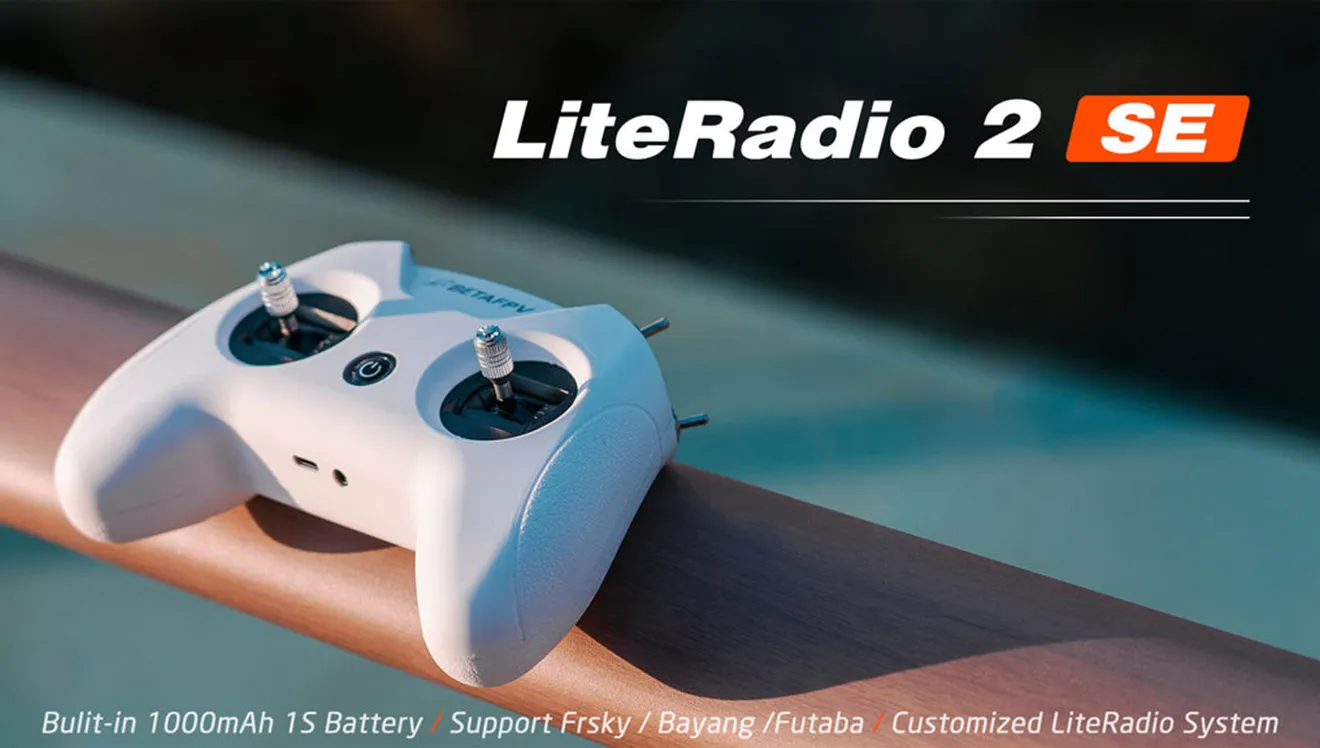

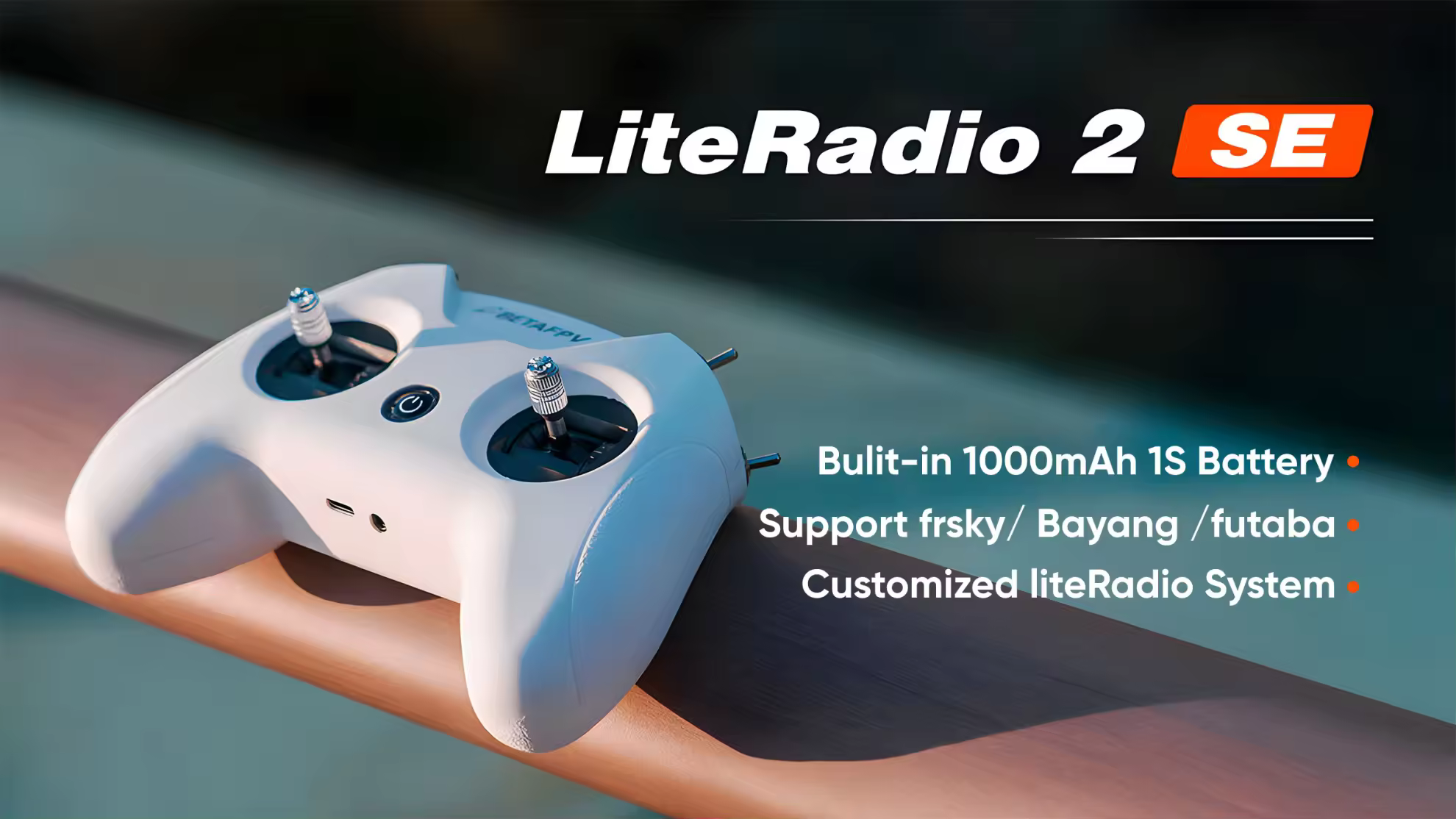

Brand New Upgrade

Built-in 1000 mAh 1S battery, LiteRadio 2 SE increases the endurance to 8 hours. Updates with BETAFPV self-developed LiteRadio System. Pilots can directly operate the Joystick Calibration and Upgrade Firmware on the radio transmitter. Supports the Frsky / Futaba / Bayang, pilots can easily change Futaba, Frsky D8, Frsky FCC D16, and Frsky LBT D16 mode via the radio transmitter. Comes with 100mW transmitting power, LiteRadio 2 SE brings a wider operating range.

Betafpv Literadio 2 Se Radio Transmitter Left

All FPV simulators, one controller

LiteRadio 2 SE offers ultimate flexibility, seamlessly connecting to popular FPV simulators like VelociDrone, Liftoff, and DJI on desktop, Android, or tablet. Featuring Xbox mode, it ensures smooth integration with DJI Flight Simulator on Windows, enhancing your virtual flying experience.

Betafpv Literadio 2 Se Radio Transmitter Functions

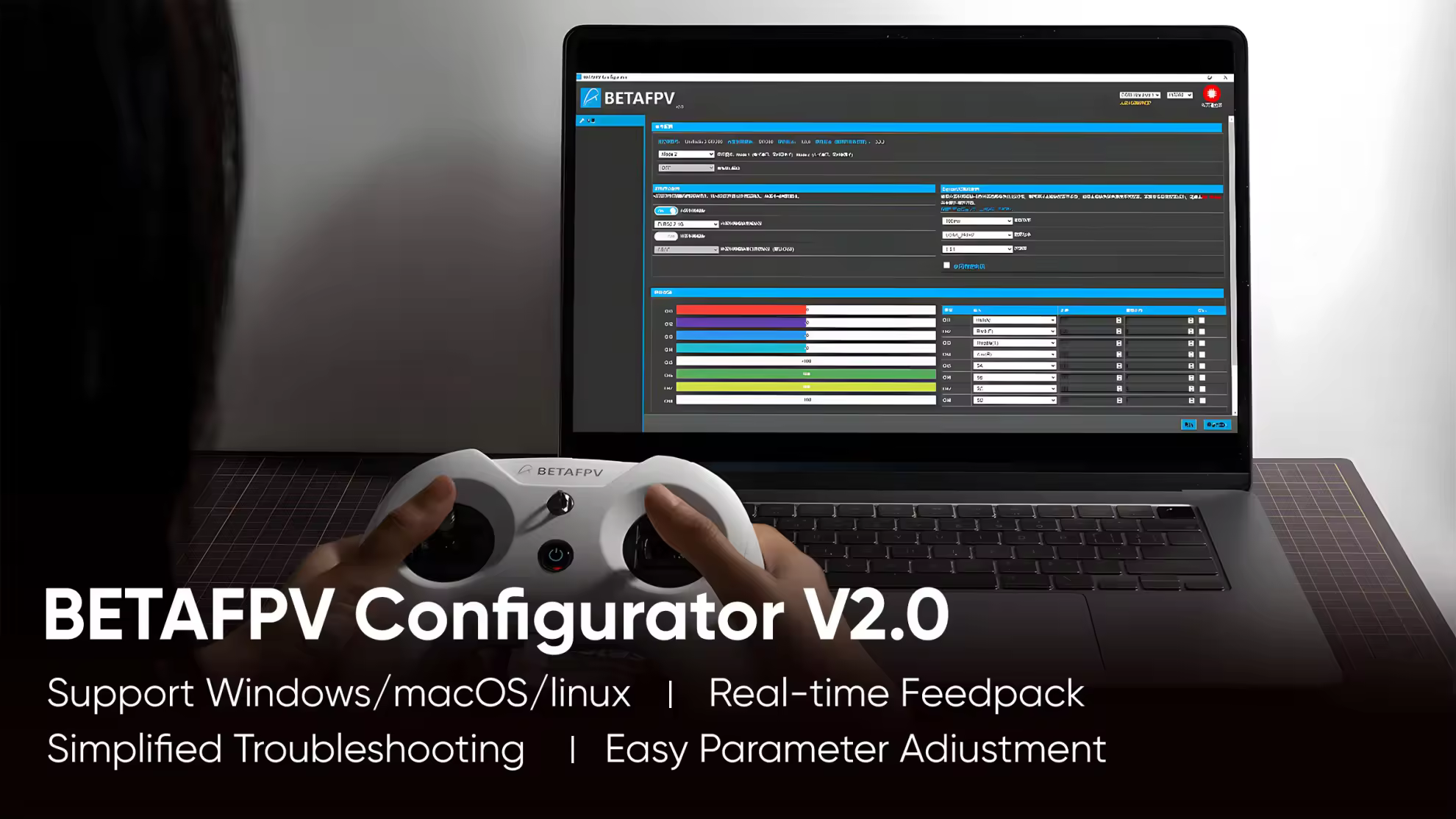

BETAFPV Configurator

The BETAFPV Configurator is an open-source configuration tool tailored for BETAFPV drones and remote controls. It enables pilots to effortlessly configure and fine-tune various parameters, ensuring more efficient and optimized flight control.

Betafpv Literadio 2 Se Radio Transmitter Support Platforms

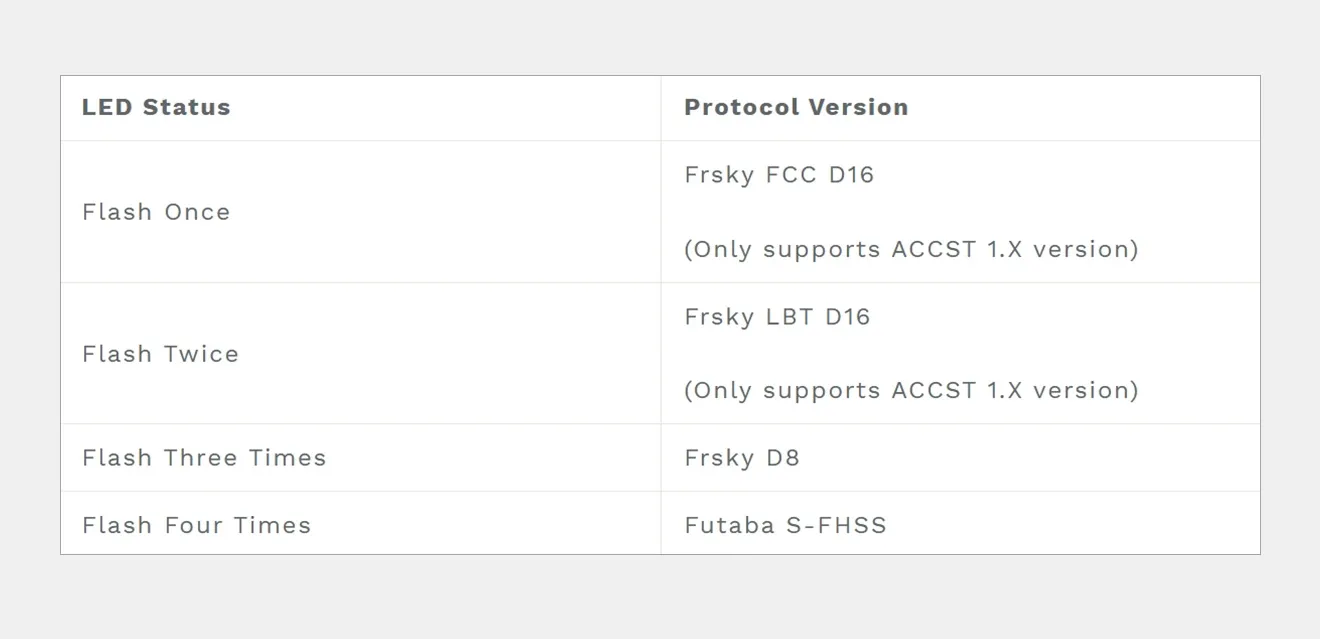

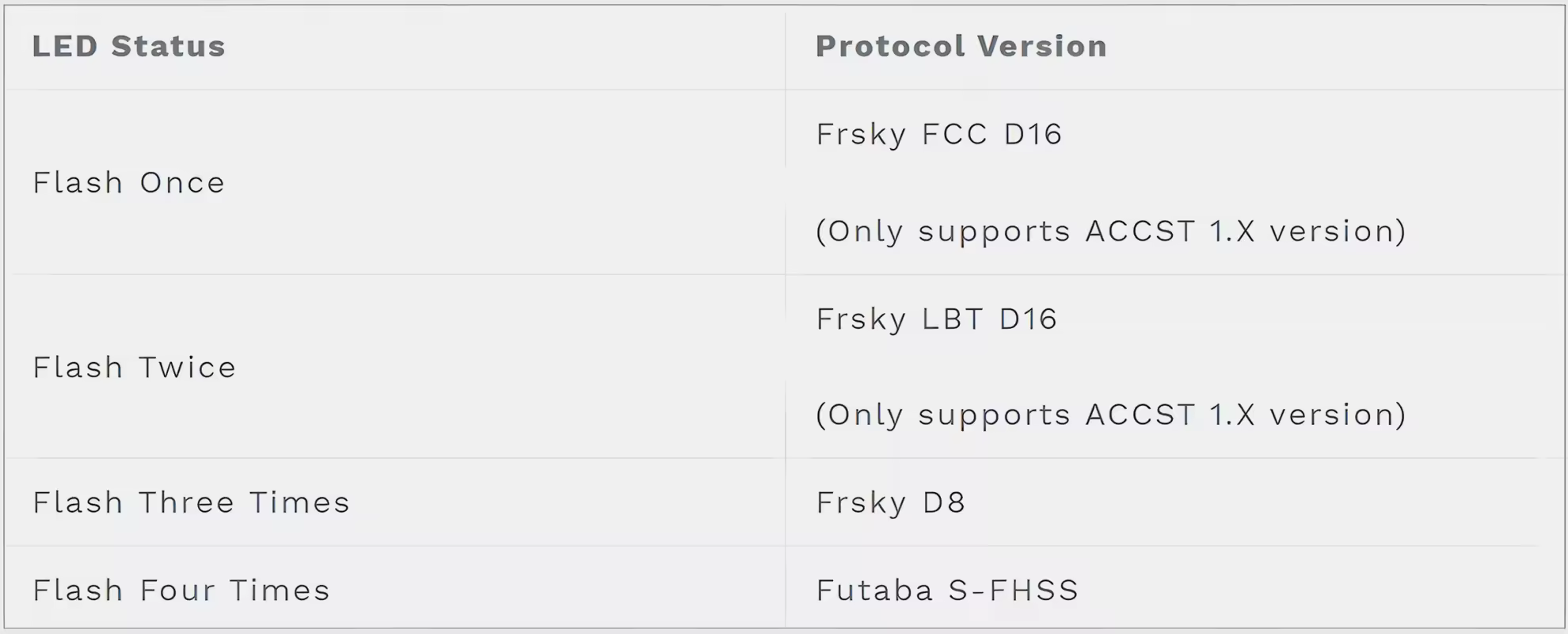

How to switch the protocol

To change protocols (Frsky FCC D16, Frsky LBT D16, Frsky D8, or Futaba S-FHSS), you have to power it off first, then press and hold the bind button while you power it back on. After that, the flash times of the red LED before buzzer alarms will change, and it will indicate which protocol it is on.

Betafpv Literadio 2 Se Radio Transmitter LED

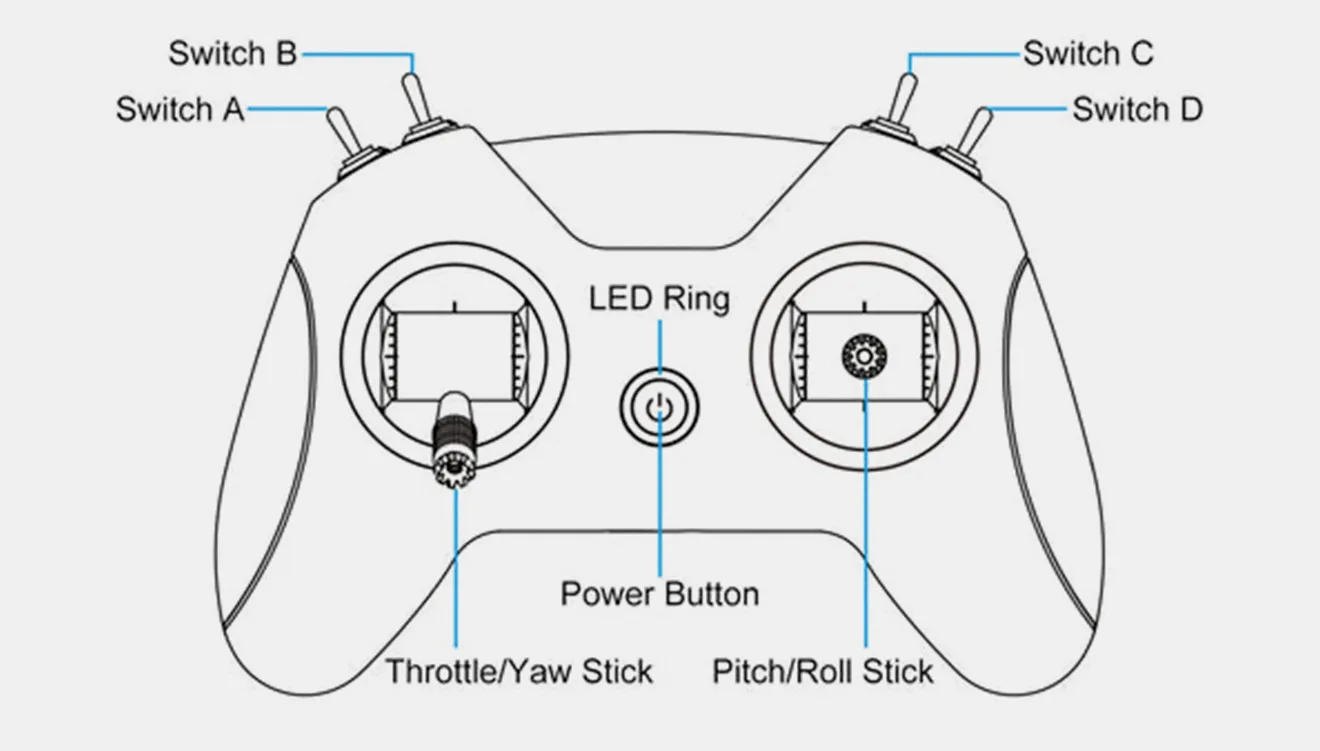

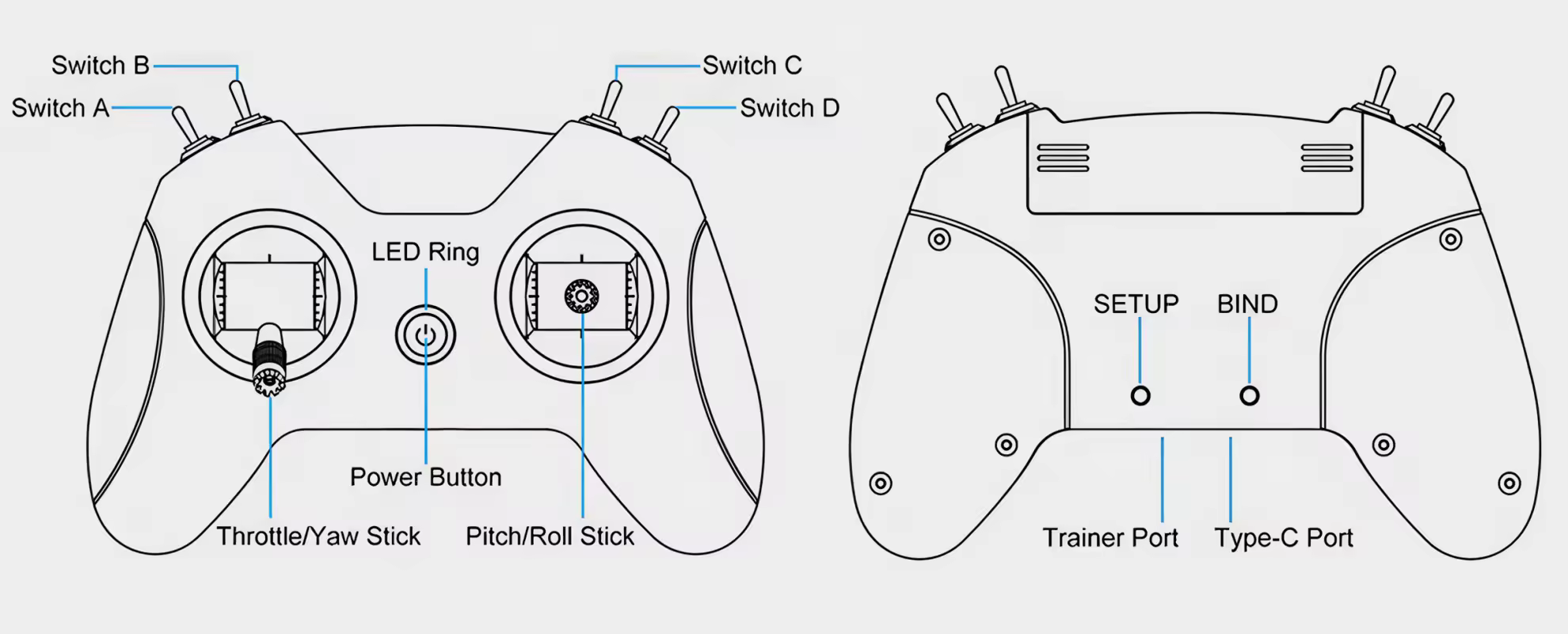

Diagram of LiteRadio 2 SE

Betafpv Literadio 2 Se Radio Transmitter Front Key

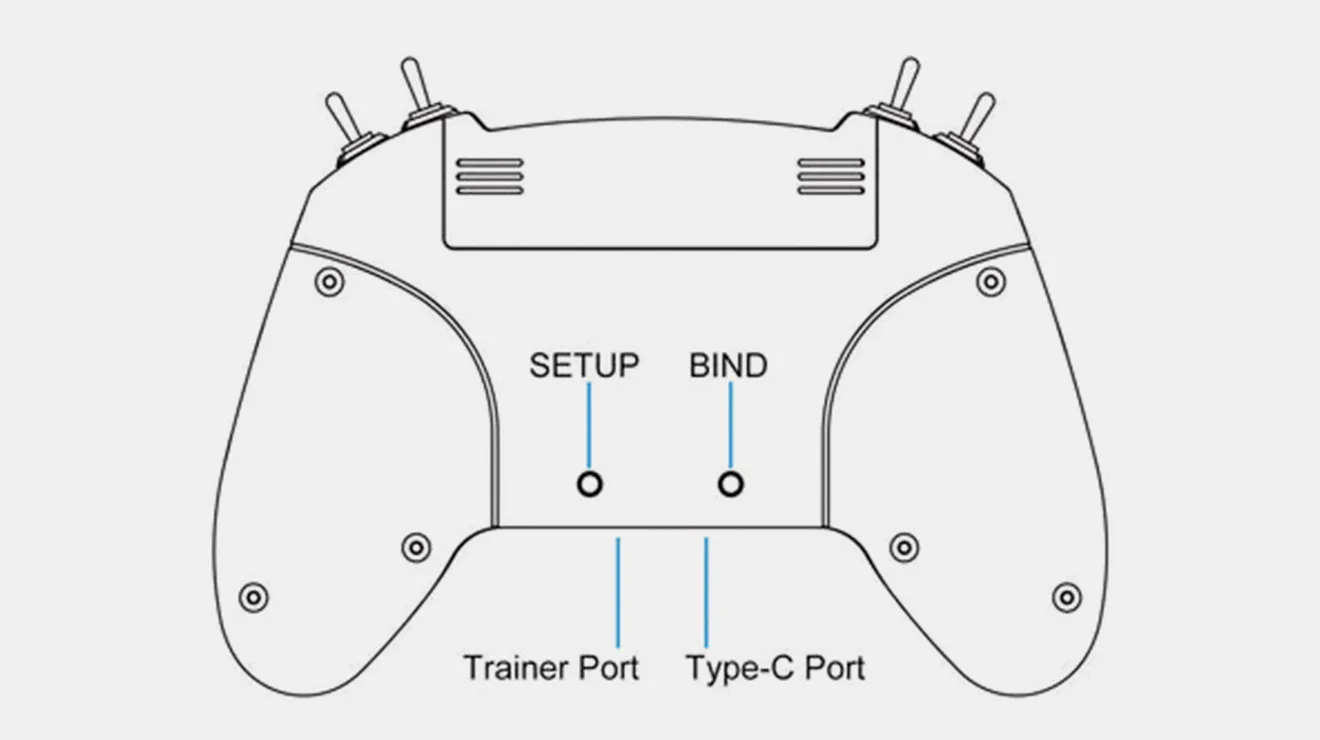

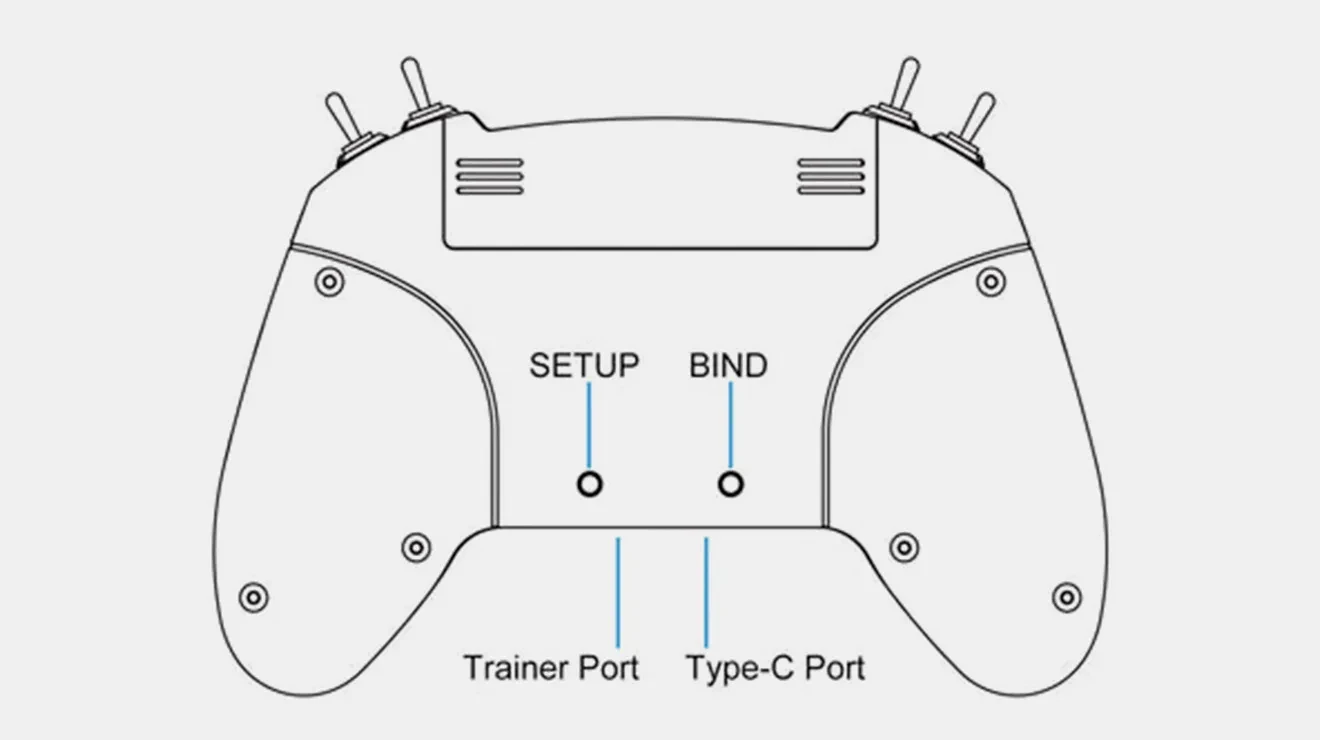

Betafpv Literadio 2 Se Radio Transmitter Back Key

Recommendation

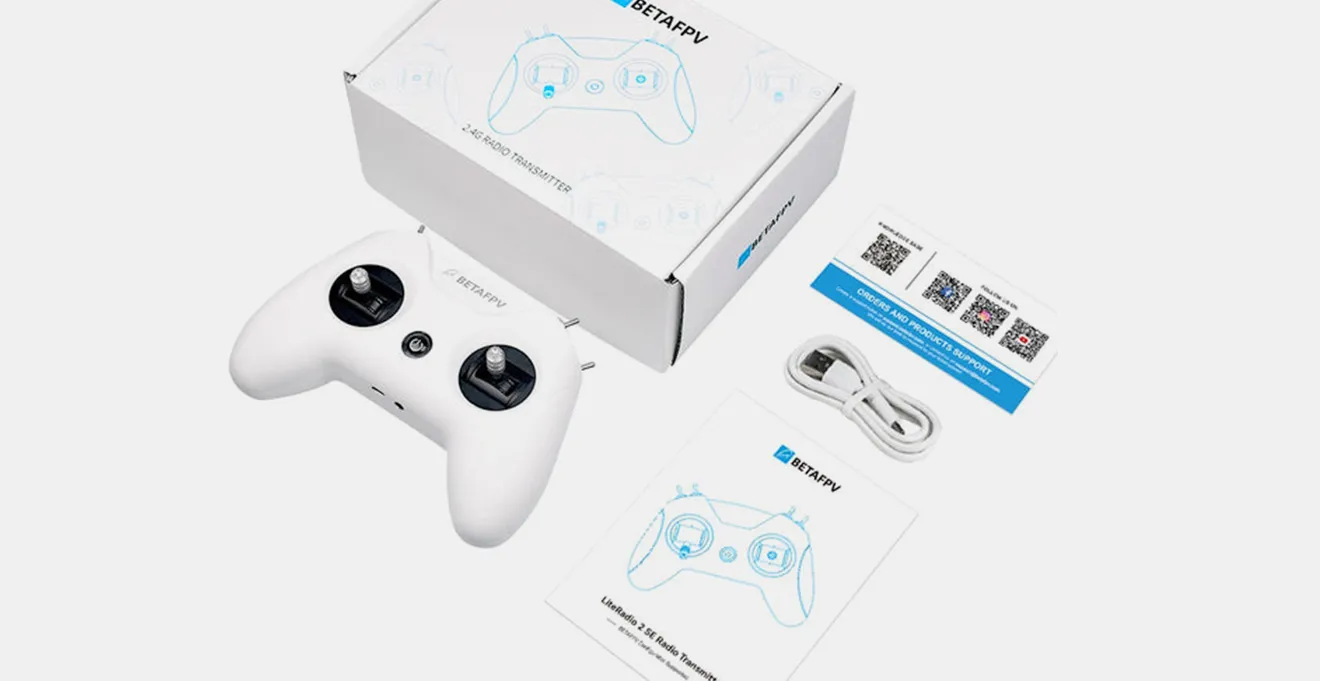

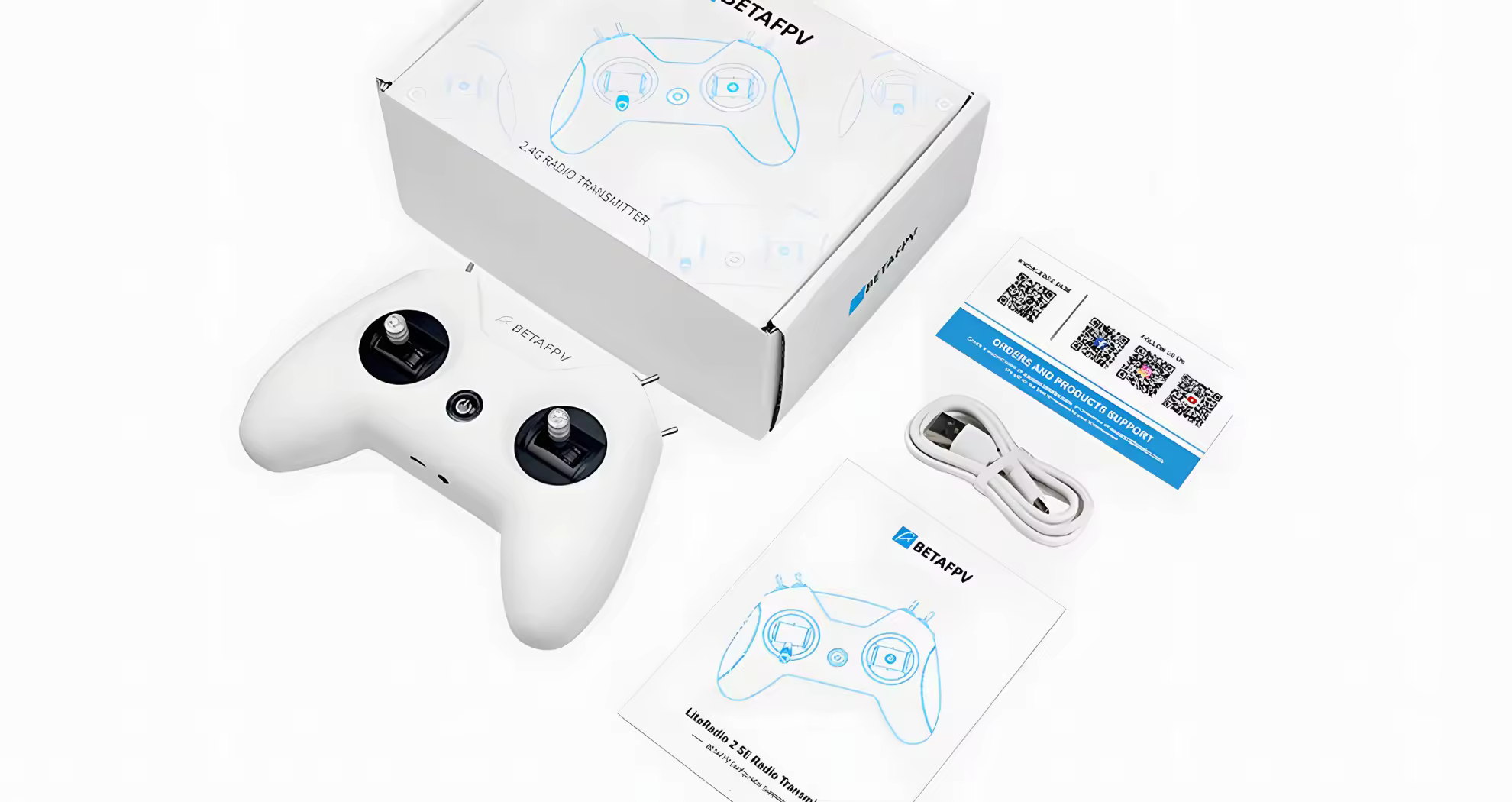

Package Included

1 * LiteRadio 2 SE Radio Transmitter

1 * User Manual

1 * USB Type-C Cable.

Betafpv Literadio 2 Se Radio Transmitter Package

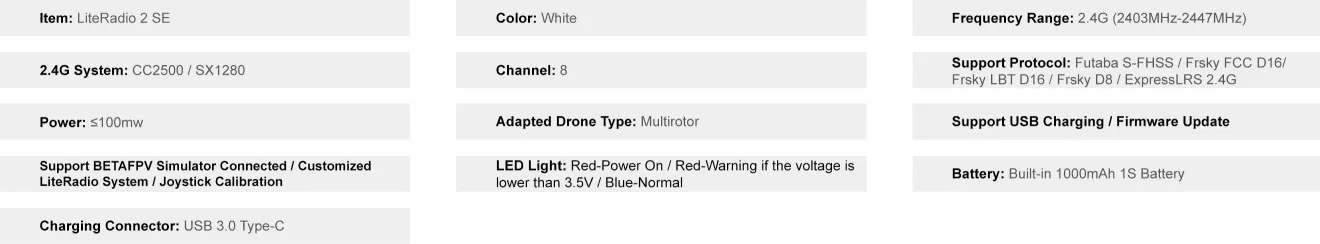

Specifications

Betafpv Literadio 2 Se Radio Transmitter Package Parameter
