Q: Can I charge both BT2.0 and PH2.0 batteries at the same time on different ports?

A: Yes. Because all 6 channels operate on completely independent charging circuits, you can charge a BT2.0 battery on Channel 1 and a PH2.0 battery on Channel 2 simultaneously. (Note: Do not plug two batteries into the same single channel at once).

Q: What type of USB power source is recommended for full 6-channel charging speed?

A: To ensure all 6 ports charge at their maximum current simultaneously, use a USB Type-C charger supporting PD3.0 or QC3.0 (30W or higher). Standard 5V/2A adapters can still power the charger, but charging speeds may throttle when all 6 channels are loaded.

Q: Does the HexaCharger support both standard LiPo (4.20V) and high-voltage LiHV (4.35V) batteries?

A: Yes. The charger features dedicated voltage threshold switching, allowing you to select between standard 4.20V LiPo cutoff and 4.35V LiHV cutoff to match your battery chemistry.

Q: Can I plug in a new discharged battery while other channels are already half-way through charging?

A: Absolutely. Each channel manages its own independent charge cycle and cutoff logic. Inserting or removing a battery on one port will not interrupt or reset the charging process of the other connected batteries.

Q: How do the LED status indicators communicate charging progression?

A: The LED indicators for each channel clearly show active charging status (typically solid/flashing during constant current/voltage phases) and change color or turn solid when the cell reaches full cutoff voltage, making status monitoring straightforward.

Q: Can I use a portable USB power bank to charge batteries out in the field?

A: Yes. As long as your power bank features a USB Type-C output supporting PD or QC protocols, the HexaCharger serves as a portable field charging station for outdoor Tiny Whoop flying sessions.

New

BETAFPV HexaCharger 1S LiPo LiHV Multi-Port Battery Charger Hub

About BETAFPV HexaCharger 1S Charger:

High-Efficiency 6-Channel 1S Power Hub for Micro Drone PilotsDesigned for Tiny Whoop pilots, indoor micro racers, and 1S FPV enthusiasts, the BETAFPV HexaCharger 1S Charger offers high charging efficiency and multi-battery versatility in a portable, pocket-sized footprint. Featuring 6 completely independent charging channels, the HexaCharger powers up to six 1S LiPo or LiHV batteries simultaneously with zero voltage drop or channel cross-talk. Equipped with both BT2.0 and PH2.0 connectors on every channel and driven by modern USB Type-C fast-charging protocols (PD/QC), it keeps your micro fleet charged and ready for continuous flight rotations at the track or field.

Check out our Chargers, all FPV Chargers Collection and the rest of our BETAFPV Products!

BETAFPV

$35 Off Orders $489+

$16 Off Orders $249+

Collect

$ 29.90 ~~$37.90~~

-21%

5.0 | 1Sold

Options (2)

Quantity

Add-ons

Bundle and save up to $1.35 on gear — upgrade your setup for less.

BETAFPV BT2.0 300mAh 1S 30C Battery (8PCS) for 1S Whoop Drone
BT2.0 300mAh 1S 30C (8PCS)
$25.64 Save $1.35

In Stock Expected ship within 7 days after order.

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Top highlights

6 Independent Charging Ports: Charge up to six 1S LiPo/LiHV batteries simultaneously without interference.
Dual Connector Compatibility: Native support for BT2.0 and PH2.0 battery plugs for versatile whoop charging.
Type-C Fast Power Input: Supports PD3.0 and QC3.0 USB-C fast charging protocols for rapid field power.
Real-Time LED Status Screen: Digital LED indicators display individual port voltage and charging progression.
Switchable Current Modes: Adjustable charging current settings ensure safe battery charging for all cell sizes.

Payment | Every order you place with us is safe & secure

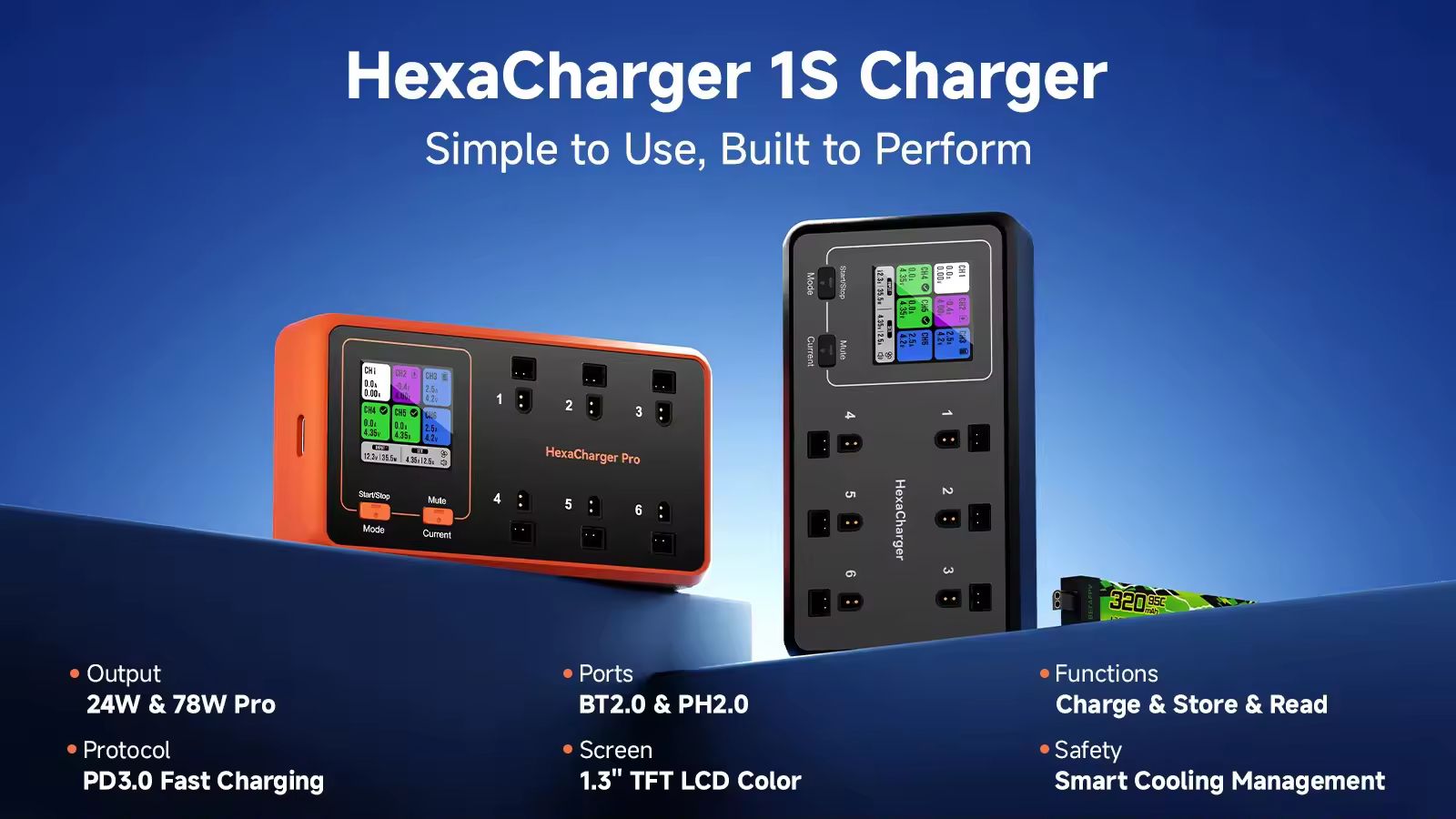

Get back in the air faster with the HexaCharger 1S Charger. This palm‑sized hub charges six 1S batteries at once, available in 24W and 78W Pro outputs for rapid PD 3.0 charging. With an easy‑read color display, dual‑port compatibility, and robust safety systems, it’s built to simplify charging and maximize flight time for whoop pilots of all styles.

Bullet Points

● Palm‑Sized & Portable: Weighs just 109g (Standard) / 115g (Pro) and fits in the palm of your hand.

● All‑In‑One Charging Hub: Charge, storage mode, and adjustable current settings all in one device.

● Easy to Use: Start, stop, and adjust settings with just two buttons, guided by a clear color screen.

● Fast PD 3.0 Charging: Delivers up to 24W total (Standard) or 78W total (Pro) for rapid, efficient charging of all six ports simultaneously.

● 1.3” TFT Color Display: Clear, zoned screen shows real‑time voltage, current, and status for all six channels at a glance.

● Dual BT2.0 & PH2.0 Ports: Compatible with virtually all popular 1S whoop batteries.

● Smart Cooling System: Intelligent thermal management and high‑flow 9,000 RPM fan ensure safe and reliable charging.

● Physical Safety Design: Fool-proof ports prevent incorrect insertions.

Specifications

	HexaCharger	HexaCharger Pro
Input	5V 3A Max~12V 2.5A Max	5V 3A Max~20V 5A Max
Charging Current	1A Max ( All Ports In Use ) 3A Max (One Port In Use)	3A Max (All Ports In Use)
Charging Power	24W Max	78W Max
Supported Battery Type	LiPo/LiHV
Output Voltage	4.2V/4.35V
Storage Voltage	3.85V
Discharging Current	6×400mA
Voltage Accuracy	±0.03V
Input Port	Type-C
Charging Protocol	PD 3.0
Output Connectors	BT2.0/PH2.0
Dimensions	106×56×25.5mm
Operating Temperature	0~40℃
Weight	109g	115g

Diagram

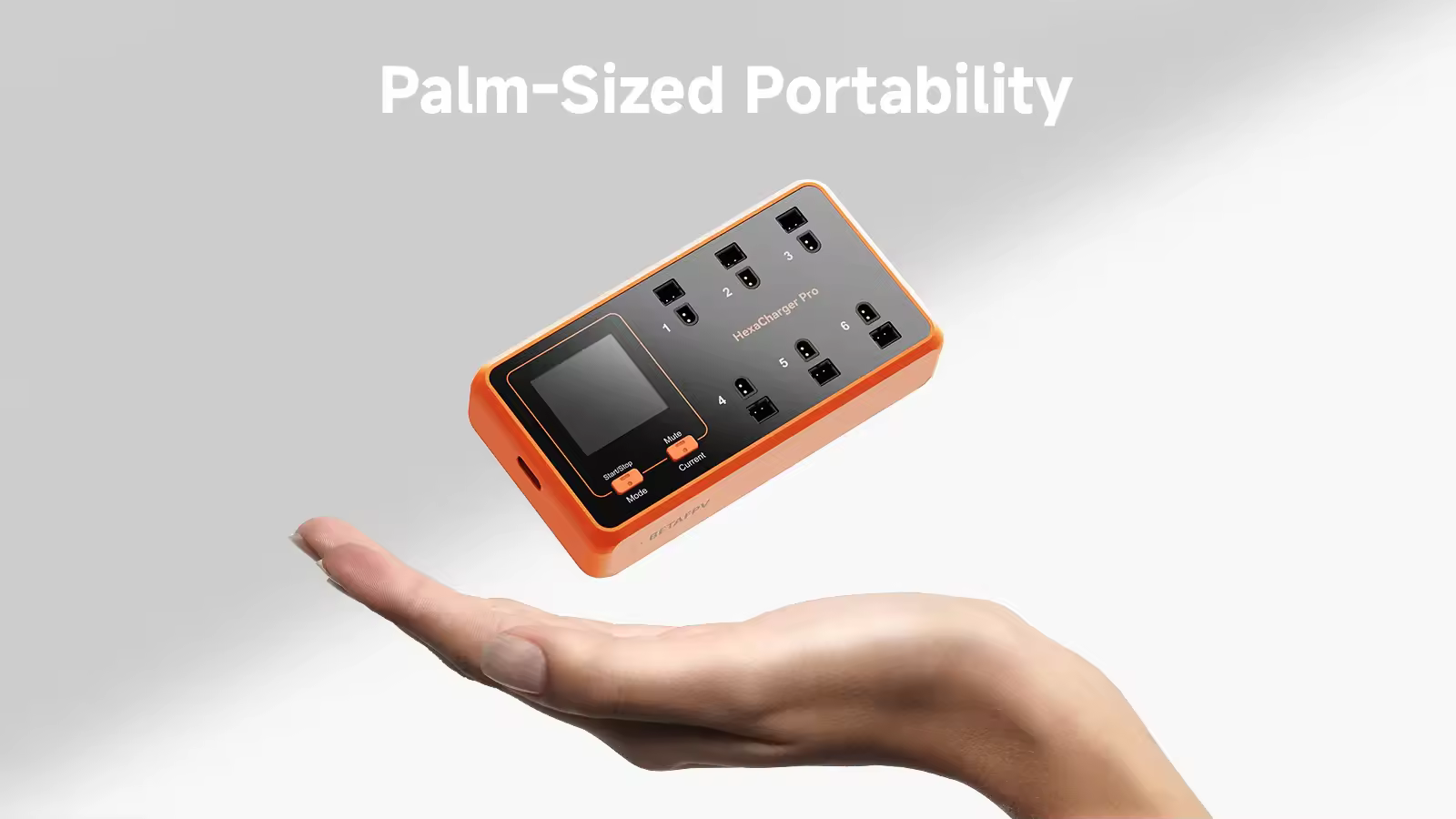

Palm-Sized & Portable

The HexaCharger weighs just 109g (Standard) or 115g (Pro), with a compact design that fits in your palm—and it works with most common adapters for easy power on the go.

betafpv hexacharger 1s charger palm sized and protable

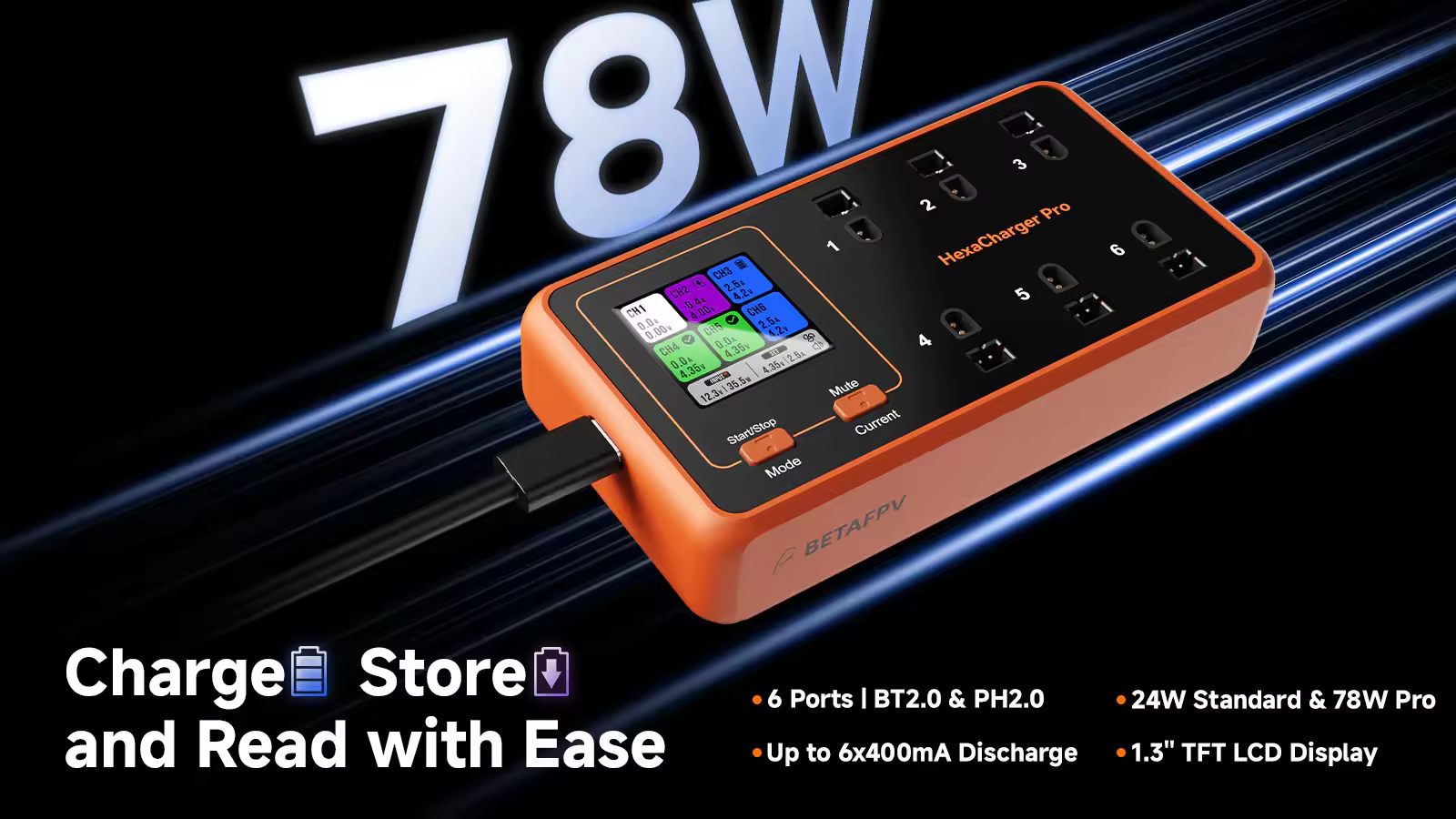

All-In-One Charging Hub

Fulfill all your battery‑management needs with built-in charging, storage, and adjustable current settings—all controlled through an intuitive two‑button interface and clear color display.

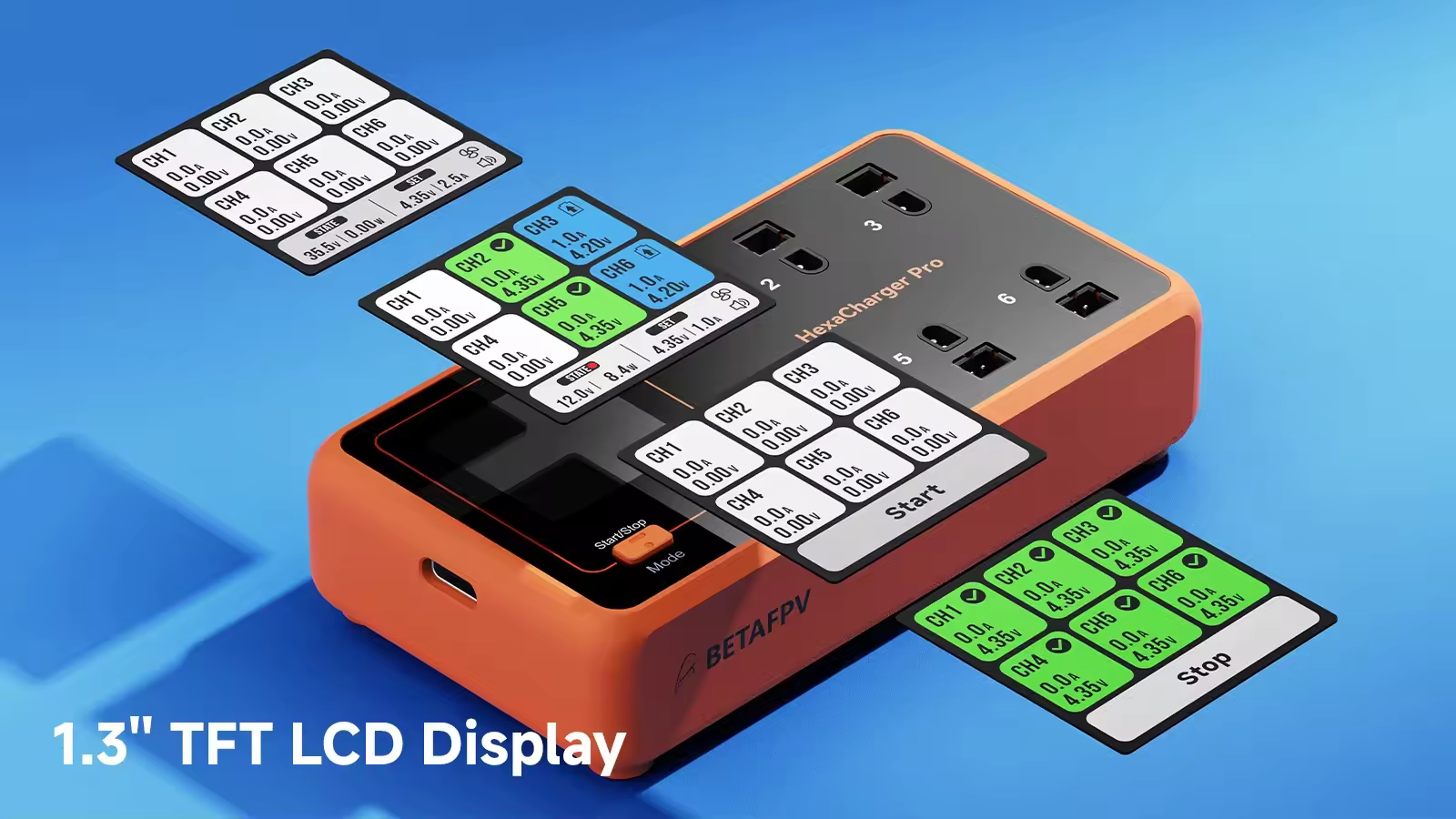

Fast PD 3.0 charging delivers up to 24W total for the HexaCharger or 78W total for the HexaCharger Pro, with the Pro supporting up to 3A max charging current and 400mA discharging current on all six ports simultaneously. Just press to start, then monitor all six ports and real‑time status on the clear 1.3” TFT display. Dual BT2.0/PH2.0 ports ensure full compatibility with popular 1S whoop batteries.

betafpv hexacharger 1s charger charge store and read with ease

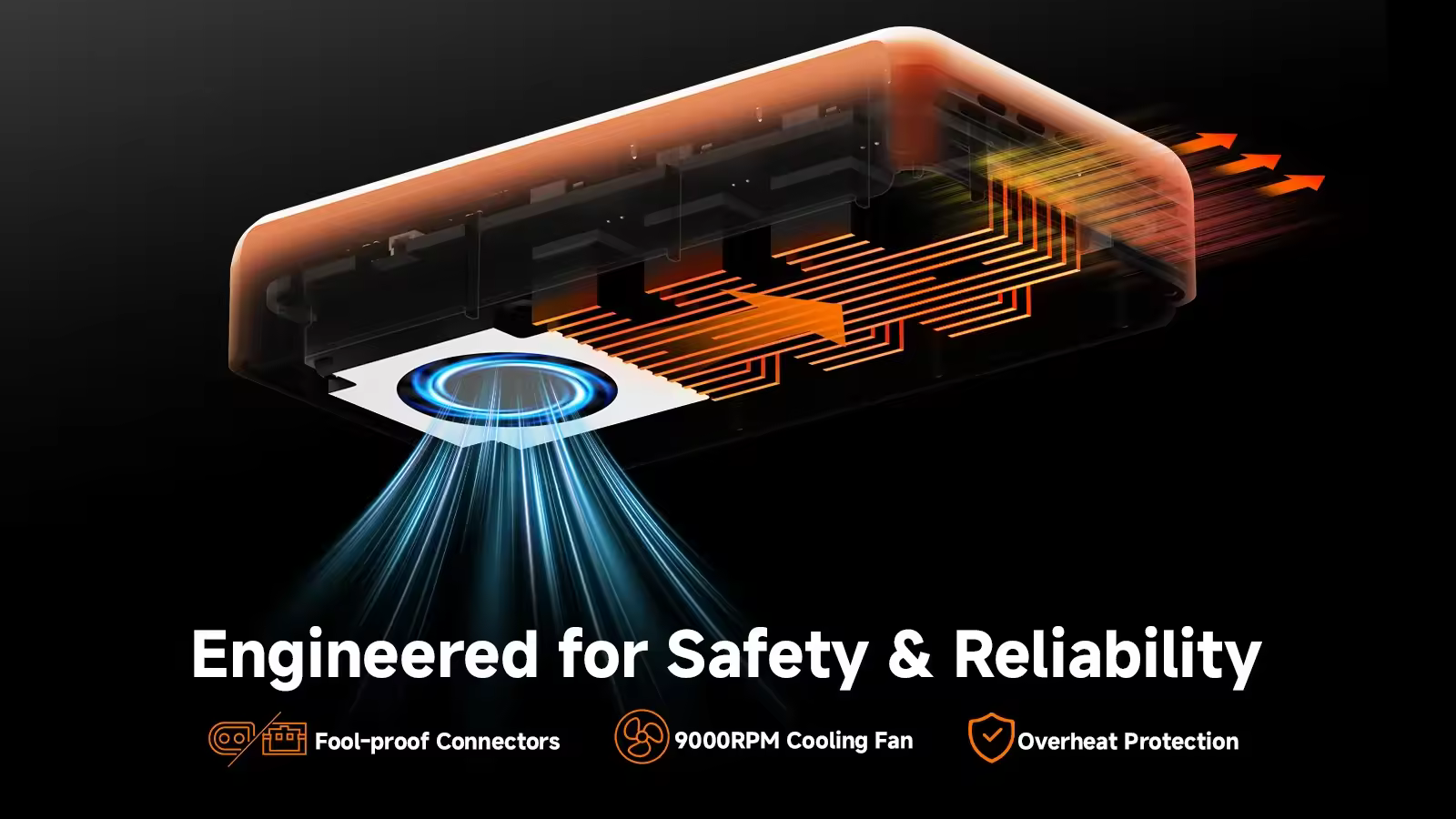

Smart Cooling & Safety Design

Engineered for confidence, the HexaCharger features a foolproof physical design to prevent incorrect insertion, plus an active cooling system with a 9,000 RPM fan and alloy fins to dissipate heat during high‑power operation. Intelligent thermal monitoring automatically adjusts power and halts operation if overheating occurs, ensuring safe, reliable charging every time.

betafpv hexacharger 1s charger smart cooling

Usage Notes

Charging Current

For optimal battery health and performance, set the charging current according to the recommended values in the chart below. Do not exceed the maximum current for your battery.

Capacity	280mAh	320mAh	480mAh	580mAh	680mAh	1100mAh
Recommended Current	0.5A	0.5A	1A	1A	1.5A	2A
Charging Time	33min	35.5min	28min	36min	30min	39min
Maximum Current	1A	1.5A	2A	2.5A	3A	3A
Charging Time	17min	15min	16.5min	17min	19min	30min

Charging Adapter

Power Adapter Recommendations

HexaCharger: Use a PD 3.0 adapter with at least 30W output.

HexaCharger Pro: Use a PD 3.0 adapter with 100W output or higher.

Adapter Compatibility & Behavior

● If the adapter cannot supply the requested charging current, the charger will reduce the current per port to stay within the adapter’s maximum power limit.

● If the charger detects that the adapter's output is ≤5W (5V/1A), it will charge batteries sequentially by port number, while keeping the other channels off.

● If charger can only detects the adapter's voltage but not the maximum current, power limit is unknown, * shown next to voltage. If the input voltage is below 5V, - shown next to voltage. No symbol if the adapter is providing full compatible power.

● If using a non-PD adapter, wait 5 seconds after powering on for the charger to recognize the protocol before starting to charge.

Package

● 1 * HexaCharger 1S Charger / HexaCharger Pro 1S Charger

● 1 * User Manual

Recommendations

Download

FAQ Feel free to ask us any questions

Q: Can I charge both BT2.0 and PH2.0 batteries at the same time on different ports?: A: Yes. Because all 6 channels operate on completely independent charging circuits, you can charge a BT2.0 battery on Channel 1 and a PH2.0 battery on Channel 2 simultaneously. (Note: Do not plug two batteries into the same single channel at once).
Q: What type of USB power source is recommended for full 6-channel charging speed?: A: To ensure all 6 ports charge at their maximum current simultaneously, use a USB Type-C charger supporting PD3.0 or QC3.0 (30W or higher). Standard 5V/2A adapters can still power the charger, but charging speeds may throttle when all 6 channels are loaded.
Q: Does the HexaCharger support both standard LiPo (4.20V) and high-voltage LiHV (4.35V) batteries?: A: Yes. The charger features dedicated voltage threshold switching, allowing you to select between standard 4.20V LiPo cutoff and 4.35V LiHV cutoff to match your battery chemistry.
Q: Can I plug in a new discharged battery while other channels are already half-way through charging?: A: Absolutely. Each channel manages its own independent charge cycle and cutoff logic. Inserting or removing a battery on one port will not interrupt or reset the charging process of the other connected batteries.
Q: How do the LED status indicators communicate charging progression?: A: The LED indicators for each channel clearly show active charging status (typically solid/flashing during constant current/voltage phases) and change color or turn solid when the cell reaches full cutoff voltage, making status monitoring straightforward.
