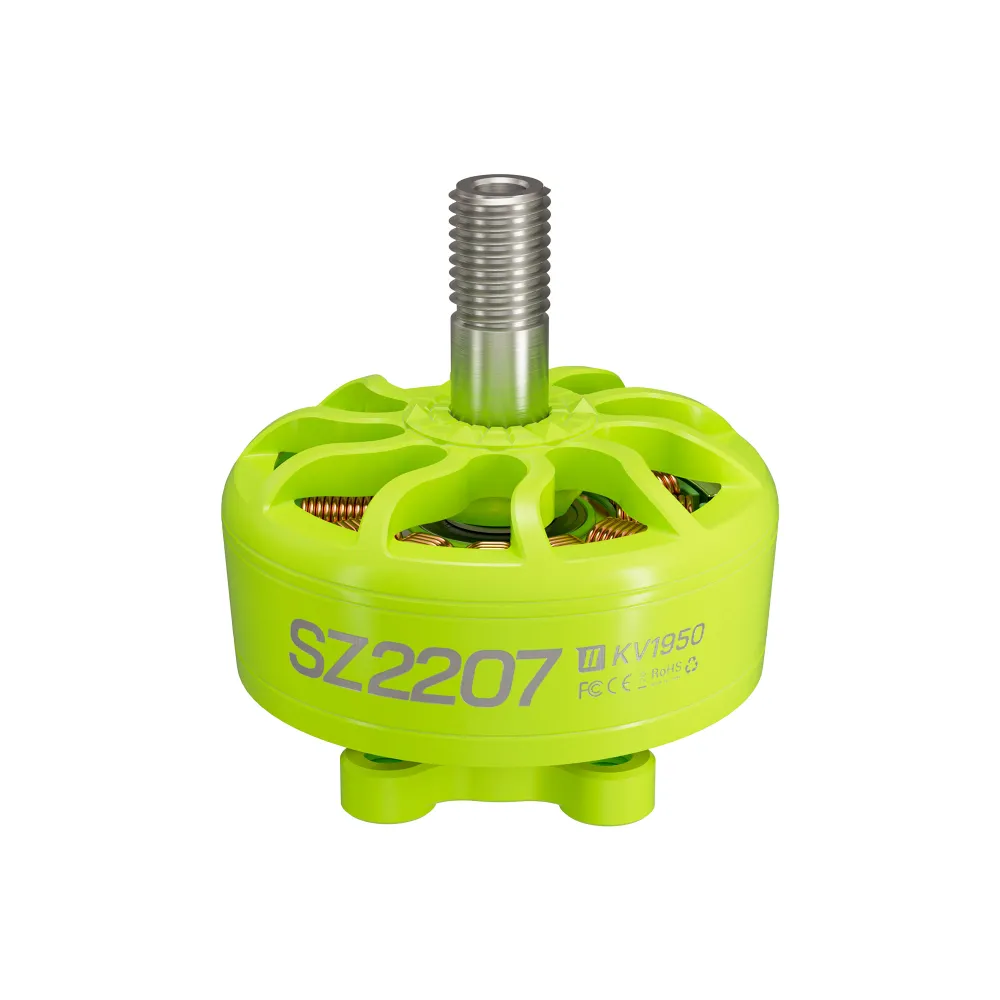

sz 2207 v2 drone motor 1950kv green

MEPS 4pcs SZ2207 V2 FPV Motors + MEPS SZ5145 Clear Grey / 8PCS Bundle

About 16pcs SZ2207 FPV Motors:

The 16pcs SZ2207 FPV Motors offers the ultimate combination of power, precision, and durability for FPV racing enthusiasts. Featuring the high-performance MEPS SZ2207 brushless motors, this bundle is designed to maximize the potential of 5-inch racing drones. The SZ2207 motors, with their robust 6S brushless design, deliver exceptional thrust and efficiency. Available in 1750KV, 1950KV, and 2750KV options, these motors provide versatility, allowing pilots to choose the ideal KV rating for their specific racing needs. The integration of high-quality components such as a titanium alloy shaft, N52H arc magnets, and military-grade enameled wire ensures both performance and durability. Paired with the SZ5145 3-Blade propellers, which feature a 5.1-inch diameter and 4.5-inch pitch, this combo delivers superior throttle control, speed, and efficiency during intense races and freestyle maneuvers.

MEPS
$35 Off Orders $499+
$20 Off Orders $299+
Collect
$ 50.40 $111.58
-55%
4.9 | 267Sold
Options (1)
Add-ons
Bundle and save up to $5.20 on gear — upgrade your setup for less.
  • meps f405 60a stack esc
    MEPS NEONCORE 60A 4-In-1 FPV ESC-30.5x30.5mm
    NEON 60A ESC
    $59.79 Save $5.20
In Stock Expected ship within 48 hours after order.
FedEx
USPS
  • Free Shipping Over $79 | Save on Orders $79+
  • 24-Month Warranty | 2 Years Full Protection
  • 30-Day Returns From Shipment | 7-Day No-Reason Returns
  • 24h Support Response | 24h Fast Support Guarantee
Top highlights
  • Perfect for 5 inch Racing Drone.
  • High-performance brushless motors with robust design.
  • Versatile KV options for tailored flight performance.
  • 6082 Aluminum Bell, TC4 Reinforced Titanium Alloy Shaft, N52H Arc Magnets, Military-Grade High-Temperature Enameled Wire,12.9-Grade Hexagon Socket Screws.
  • Offering a great balance of affordability and performance.
Payment | Every order you place with us is safe & secure
Share

Check out our SZ2207 motor, all FPV MOTORS Collection and the rest of our MEPS Products!

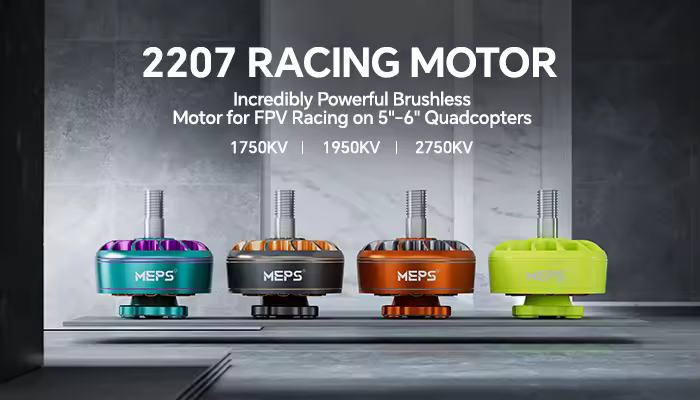

fpv-drones-motor-sz2207-h5

The SZ2207 motors deliver strong thrust, fast response, and precise control for high-speed racing and freestyle flying, ensuring stable and efficient performance. Built for durability, they maintain reliable output even under high-load and aggressive flight conditions.

fpv-drones-motor-sz2207-h5

Features:

● Application: Perfect suited for 5 inch FPV racing drone.

● Light and Quick: Aluminum alloy 6082 and TC4 reinforced titanium alloy shaft guarantees its light and enhances its propulsion and speed.

● Durable and Impact Resistance: N52H arc magnets and 12.9-grade hexagon socket screws provide excellent balance and high stability.

● New Propulsion Design: Born with agility and extreme corner shifting speed, with ease whether in straight-line speeding or corner shifting.

● Professional FPV Racing: Elaborately designed for the harsh environment of professional racing and racers' extreme demand for a sense of control.

●  KV Options Available (1750, 1950): Different KVs match different batteries and propellers for different flying styles.

fpv-drones-motor-sz2207-h5

Specification:

● Model: MEPS 2207 racing motor

● Color: Cyan/Green (optional)

● KV: 1750kv/1950kv(optional)

● Materials: 6082 aluminum bell, TC4 reinforced titanium alloy shaft, N52H arc magnets, military-grade high-temperature enameled wire,12.9-grade hexagon socket screws.

● Lead: 20#160mm

● Weight(including cable): 34g

● Motor Diameter: 28.93*31.5mm

● Shaft Diameter: 5mm

● Rated Voltage(Lipo): 6S(1750KV/1950KV)

● Configuration: 12N14P

● Internal Resistance: 72mΩ(1750KV), 66mΩ(1950KV)

● Idle Current(10V): 1.5A(1750KV), 1.8A(1950KV)

● Max Power: 931.1W(1750KV), 1148.4W(1950KV)


Paired With

● Model: MEPS 5145 racing propeller

● Color: Yellow

● Application: Perfect matching with SZ2207 motors for 5" racing dones, larger pitch for higher speed.

● Dimension: Pitch 4.5 inch, Moungting holes M5.

● Materials:  PC

● Blade: 3

● Weight: 3.7g each

drone-propellers-sz5145-h5

Recommendation:

Package included:

● 16pcs SZ2207 Motors

Reviews
  • F********t
    Verified

    The unboxing felt professional. Every motor individually protected.it's great.

    KV：16pcs*1750KVColor：Cyan
  • M*******r
    Verified

    bright color, fast delivery, very smooth ordering experience from start to finish.

    KV：16pcs*1950KVColor：Fluorescent green
    Purchased 2 times
  • F*********V
    Verified

    Really fun combo for freestyle. Fast response during split-S and quick recoveries.

    KV：16pcs*1950KVColor：Fluorescent green
  • B*****d
    Verified

    Installed on my 5 inch frame and instantly noticed smoother throttle control.

    KV：16pcs*1950KVColor：Cyan
  • J****V
    Verified

    These 5145 props feel responsive and stable at high speed. Good match with the SZ2207 v2 motors.

    KV：16pcs*1950KVColor：Fluorescent green
    Purchased 2 times
  • C******r
    Verified

    Nice balance between power and smoothness. Great for freestyle lines and power loops.

    KV：16pcs*1950KVColor：Cyan
  • F*****t
    Verified

    Shipping to Australia was surprisingly fast. Tracking updates were clear the whole time.

    KV：16pcs*1950KVColor：Fluorescent green
    Purchased 3 times
  • q*******k
    Verified

    basically whole set for my builds, value is insane for price

    KV：16pcs*1950KVColor：Fluorescent green
    Replied by MEPSKING:Thanks for your feedback! Really glad to hear it works great for your builds and good value for the price. Happy flying!
  • 1
  • 2
  • 3
FAQ Feel free to ask us any questions
Q: What is the MEPS SZ2207 V2 motor bundle used for?
Q: Is this motor bundle good for 5-inch FPV drones?
Q: What flying style is SZ2207 V2 FPV motor best for?
How durable are the MEPS SZ2207 V2 FPV motors?​
Which KV rating should I choose, 1750KV or 1950KV?​
