iFlight BLITZ F7 V1.2 Flight Controller – F722 & DJI Plug-and-Play for FPV Racing

Buying Guidance for iFlight BLITZ F7 V1.2 Flight Controller

Choosing the right flight controller is one of the most important decisions when building an FPV drone. The FC determines how easily your drone integrates with digital video systems, receivers, GPS modules, and future upgrades.

The iFlight BLITZ F7 V1.2 Flight Controller is designed for pilots building 5-inch freestyle, DJI digital FPV, and long-range FPV drones who need a reliable F7 platform with strong

 compatibility and expansion capability.

Compared with basic F4 controllers or entry-level F7 boards, the BLITZ F7 V1.2 focuses on providing a more flexible setup experience for modern FPV builds.

What Is an F7 Flight Controller?

A flight controller (FC) is the central control board of an FPV drone. It receives information from the gyro, receiver, ESC, and video system, then processes flight commands to control the motors.

Compared with older F4 flight controllers, F7 FCs are better suited for advanced FPV builds because modern drones often require more connections, including:

● Digital FPV systems

● ELRS receivers

● GPS modules

● ESC telemetry

● Additional accessories

Application Scenario

The iFlight BLITZ F7 V1.2 is mainly designed for pilots who need a reliable controller for medium-size FPV drones.

5-Inch Freestyle FPV Builds

For freestyle drones, the flight controller needs to provide:

● Fast response during aggressive maneuvers

● Stable flight control at high speed

● Reliable performance with powerful motors

● Easy tuning capability

DJI Digital FPV Builds

If you are building a DJI HD FPV drone, wiring simplicity becomes an important factor.

The BLITZ F7 V1.2 is suitable for digital FPV setups because it supports direct connection with popular HD video systems, helping reduce wiring complexity and making builds cleaner.

Recommended for:

● DJI O3 Air Unit builds

● DJI Vista / Digital FPV upgrades

● HD freestyle drones

Long Range & Cinematic FPV Builds

For long-range drones, pilots usually add more accessories such as:

● GPS

● ELRS receiver

● Telemetry devices

An F7 flight controller provides more flexibility for these additional components.

Recommended for:

● 6-inch FPV drones

● 7-inch long-range builds

● Cinematic FPV platforms

How to Choose the Right Flight Controller?

Before buying an FC, consider these factors:

1. Digital or Analog FPV System?

Analog FPV

A basic FC is usually enough.

Suitable for:

● Budget builds

● Racing practice

● Simple setups

Digital FPV

An F7 FC is recommended.

Advantages:

● Easier HD VTX integration

● More UART availability

● Better future upgrade capability

3. Beginner or Advanced Pilot?

Beginner Builder

Choose an FC with:

● Simple wiring

● Common firmware support

● Good documentation

Experienced Builder

An F7 FC provides:

● More configuration options

● More accessory support

● Better tuning flexibility

iFlight BLITZ F7 V1.2 vs Other F7 HD Flight Controllers

Final Verdict

The iFlight BLITZ F7 V1.2 Flight Controller is a strong choice  for pilots who want a reliable and upgrade-friendly FC for modern FPV builds.

Compared with basic F4 controllers, it provides better flexibility for digital  FPV systems and advanced accessories.

Compared with entry-level F7 boards, it focuses more on performance, tuning  capability, and long-term upgrade potential.

Best For:

⭐ 5-inch freestyle FPV drones

⭐ DJI digital FPV builds

⭐ Advanced FPV pilots

⭐ Long-range FPV projects

For pilots building a serious FPV drone rather than a simple starter quad,  the BLITZ F7 V1.2 offers a balanced combination of performance, compatibility, and future expansion.

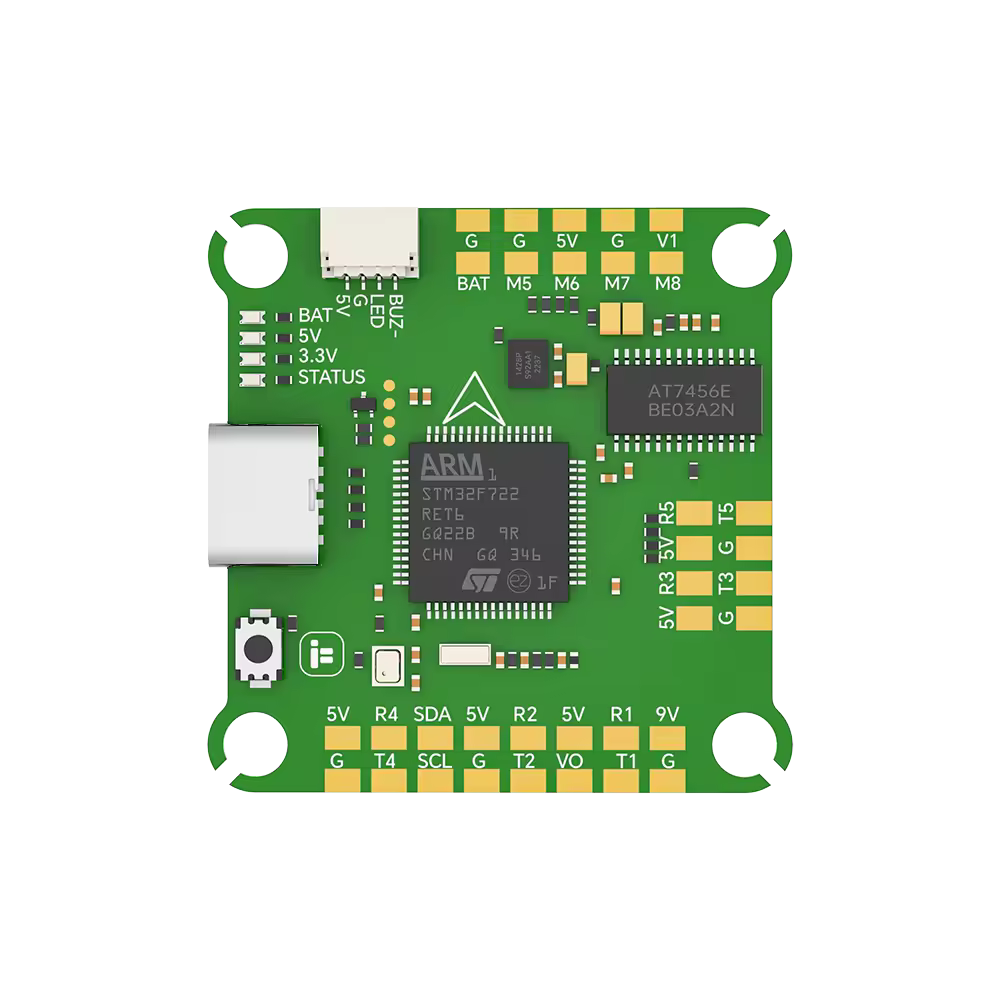

Specifications:

● MCU: STM32 F722

● Gyro: ICM42688

● Barometer: DPS310

● OSD Chip: AT7456E

● Flash: 32MB (Blackbox flash)

UARTS: 6

● Motor outputs: 4x (SH1.0 connector)

● I2C serial: SDA / SLA pads

● Smartaudio / IRC Tramp VTX protocol supported

● LED controller: Yes

● Beeper pad: Yes

● Firmware target: IFRC-IFLIGHT_BLITZ_F722

● Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter

● Dimensions: 36.5*35 mm

● Weight: 7.8g

● BEC: 5V 2.5A / 9V 2A

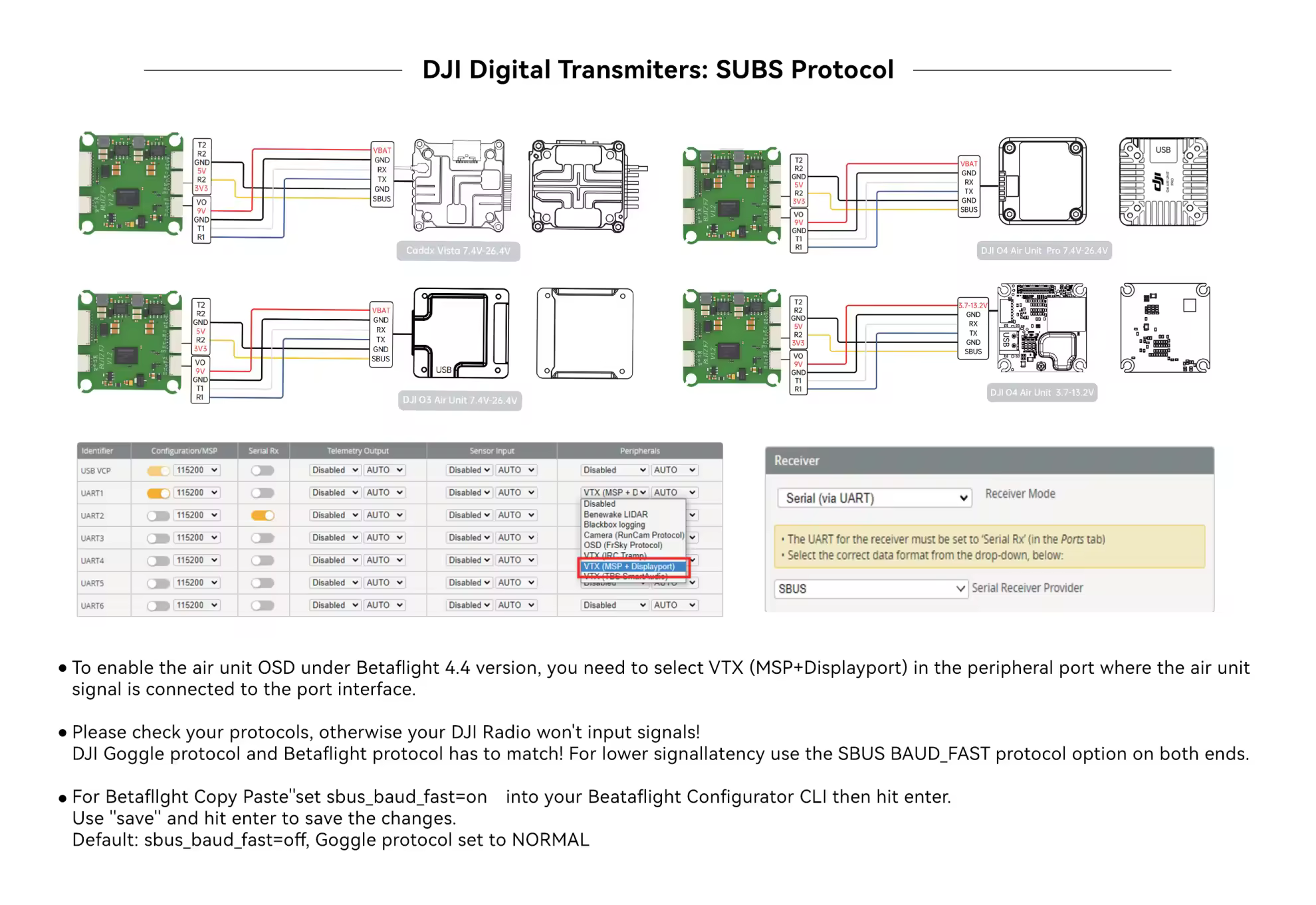

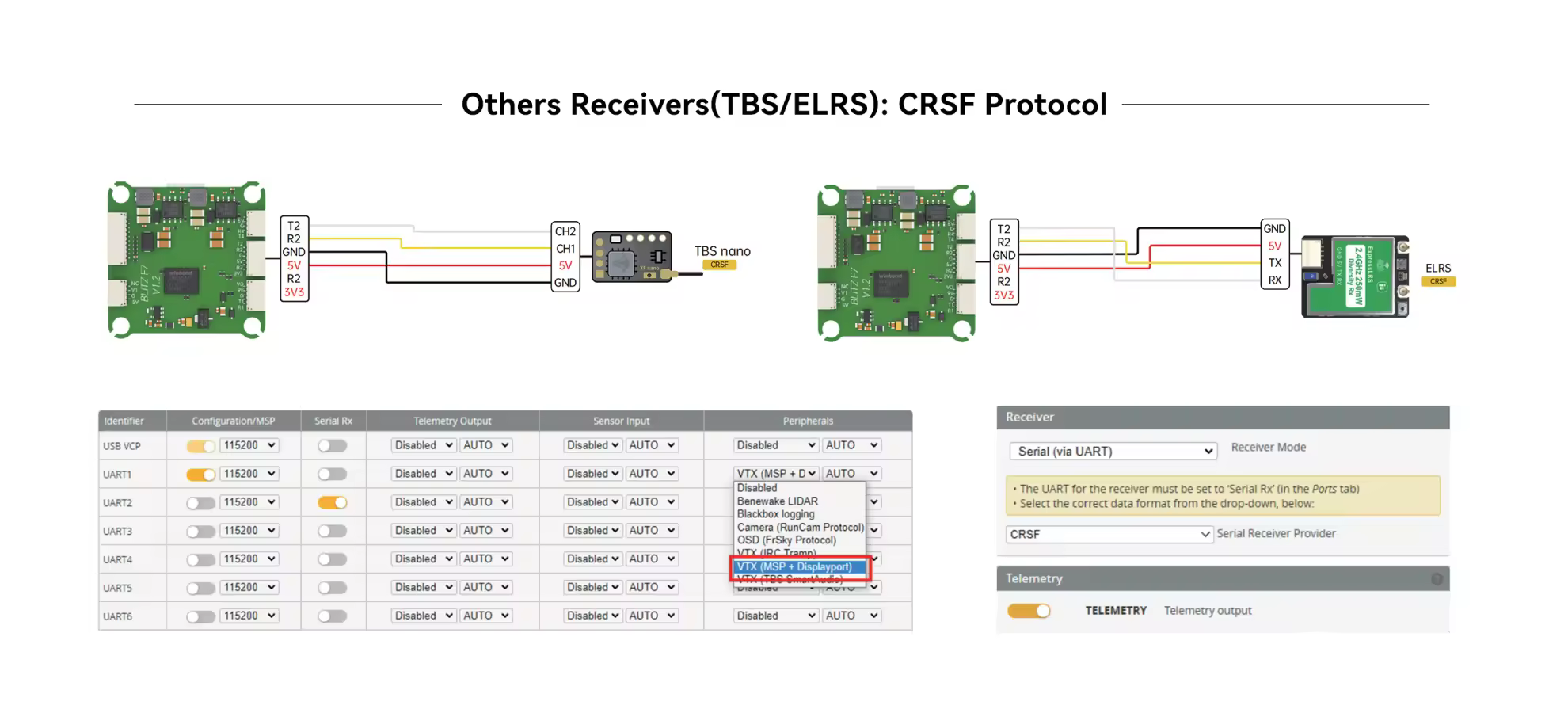

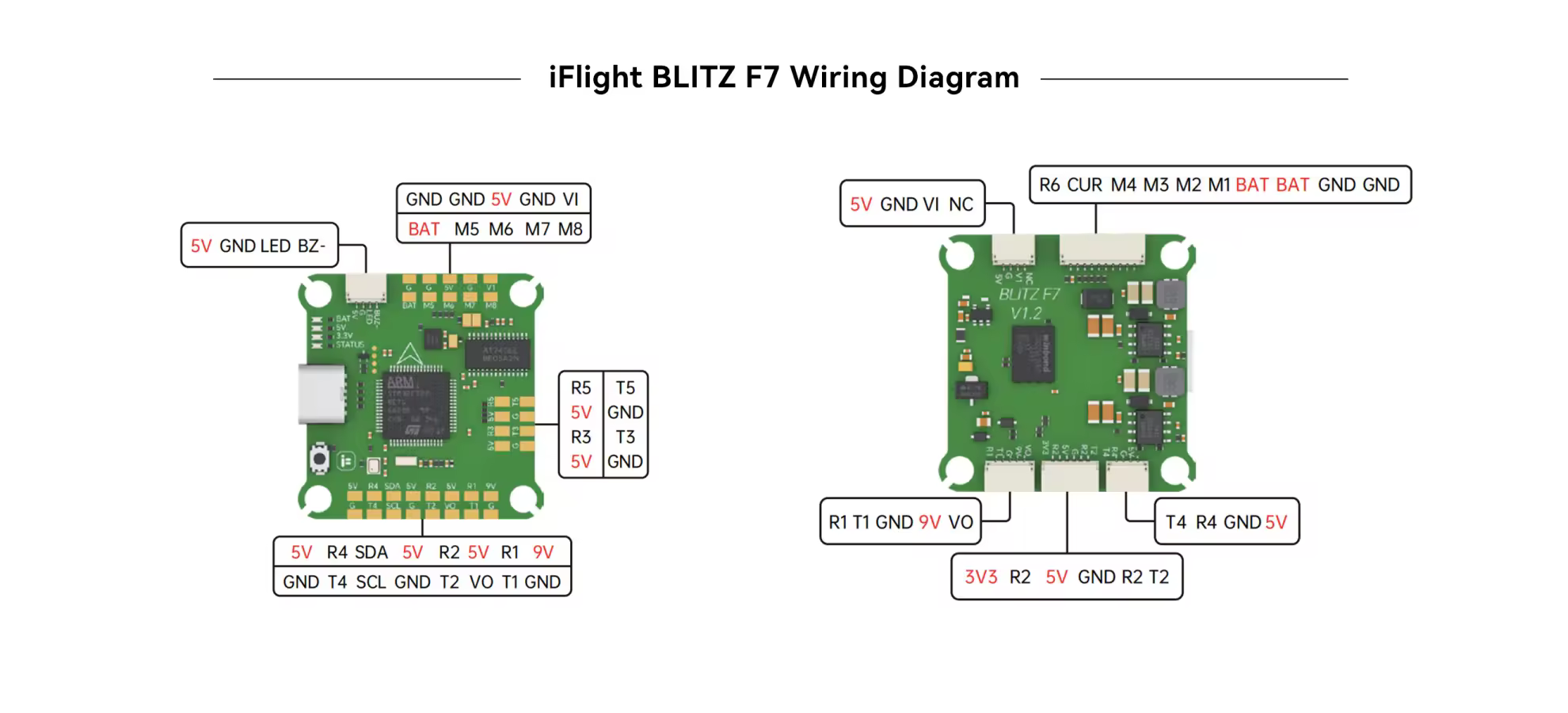

Wiring Suggestion:

UART 1 for VTX HD / Analog

UART 2 for a Receiver

UART 3/4/5 for GPS or other sensors that require a serial port

UART 6 for ESC Telemet

Recommendations

Packing List:

1 x BLITZ F7 V1.2 Flight Controller

1 x FC connectors (as above)

1 x Silicon grommets
