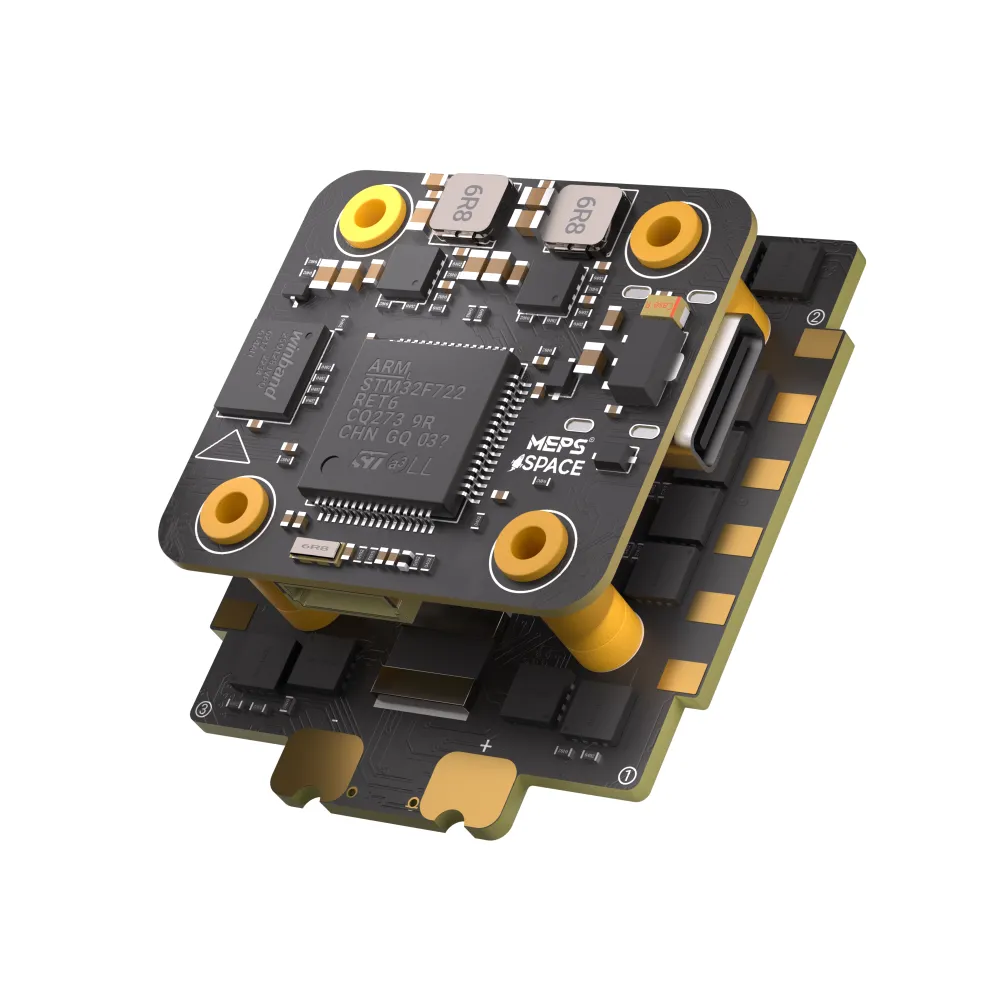

Local warehouseMEPS AeroCore F722 Mini 45A 20x20 ESC&FC FPV Stack -The King of Racing

About MEPS AeroCore 20 FC&ESC Stack - King of Racing:

The MEPS AeroCore 20 Racing Stack is built for one purpose—winning races. Combining the high-speed MEPS Mini F722 flight controller with the ultra-reliable MEPS MINI 45A BL32 4-in-1 ESC, this 20x20mm flight controller stack delivers unmatched performance for 3-5 inch FPV racing drones. With a powerful STM32F7 processor, trusted BMI2700 gyro, and 96K PWM signal for smoother throttle response, it ensures fast, stable, and precise control at every turn. Compact, lightweight, and engineered for aggressive flying, the MEPS AeroCore 20 Stack is the undisputed king of FPV racing stacks—your top choice for speed, power, and control.

MEPS
5.0
Sales：200+Pcs
$49.80
$115.90
-57%

● High-performance F7 flight controller for precise control

● 45A BLHeli_32 ESC with stable 6S power handling

● Plug-and-play DJI digital FPV compatibility

● Compact 20x20mm mount for lightweight builds

Learn more
new bf sale pc details
Options (3)
meps aerocore fc esc stack
F722 & 45A Stack
meps aerocore fc esc stack
F722 Mini Flight Controller
meps aerocore fc esc stack
45A Mini ESC
Quantity
Free Shipping | For orders over $99
2 Years Warranty | Hassle-free 24-month warranty
Easy Return and Exchange | Return within 15days
Professional Support | 24-hour response
Payment | Every order you place with us is safe & secure
Share
Copy
mesking fpv event sponsorship
meps aerocore fc esc stack

F722 MCU for Lightning-Fast Flight Response

Built-in OSD, Blackbox, and fast-loop performance with STM32F722 chip.

meps aerocore fc esc stack

Built for High-Speed Power with Thermal Stability

Delivers strong and consistent power output with smooth throttle response. Maintains stable current flow and effective heat dissipation, even during full-throttle flights. Ideal for high-performance racing builds.

meps aerocore fc esc stack

Plug-and-Play DJI Digital FPV Support

Direct connection to DJI Air Unit—no soldering required for digital HD flying.

meps aerocore fc esc stack

Optimized Layout for Clean Builds

Wide pads, side ports, and neat stack design for easy wiring and improved airflow.

meps aerocore fc esc stack

Why Choose MEPS AeroCore Stack?

data ar pc

Specifications

CategoryParameterSpecification
Flight ControllerProcessorSTM32F722
IMU (Gyro)BMI270
Input Voltage3–6S LiPo
BEC5V 2A / 10V 2A
OSDAT7456E / HD
Black Box16MB
Dimension37 × 37 × 8mm
Weight5.2g
Mounting Hole20×20mm / Ø4mm
ESCContinuous Current45A
Peak Current55A
Input Voltage3–6S
FirmwareBLHeli_32
TelemetrySupport
Dimension33.5 × 39.8mm
Weight9.2g
Mounting Hole20×20mm / Ø4mm

Interface Definition Figure

meps aerocore fc esc stack
MEPS MINI F7 HD ANALOG flight controller interface definition figure

Connection Diagram

MEPS MINI F7 HD ANALOG flight controller connection diagram

Connection to DJI Sky Terminal and use the DHI RC

MEPS MINI F7 HD ANALOG flight controller connect to DJI sky

External Receiver

MEPS MINI F7 HD ANALOG flight controllerMEPS MINI F7 HD ANALOG flight controller TBS
MEPS MINI F7 HD ANALOG flight controller FrSky

Recommendations

Reviews (12)
  • h*****************a
    Vine Voice
    MEPSKING Vine Customer Review of Free Product
    The F722 Mini 45A ESC FC stack is a solid, convenient, and generally reliable choice for small-to-mid size FPV drones — especially if you value compactness, clean wiring, and lighter weight. For many builds, it will perform well, giving enough power and flexibility with modern FC features. Thanks MEPS Vine Voice Program ⚡️🚀
    Specification：F722 & 45A Stack Replied by MEPSKING:Thank you for your detailed feedback and video! 🙌 We’re glad to hear the F722 Mini 45A ESC FC stack is performing well in your builds. Your support and insights mean a lot — thanks again for being part of the MEPS Vine Voice Program! ⚡️🚀
  • t******v
    Vine Voice
    MEPSKING Vine Customer Review of Free Product
    Excellent stack. Suitable for 5-inch cinematic drones. Its small size makes the drone lighter and more compact. There's no need to doubt the build quality. Thank you, Meps.
    Specification：F722 & 45A Stack Replied by MEPSKING:Thank you so much for your feedback and for joining our Vine Voice program! We're glad to hear you’ve received our Vine Voice free products and are satisfied with them. We look forward to your hands-on experience and honest review. Thanks for being part of MEPSKING Vine Voice — happy flying! 🚀✨
  • r*********3
    Everything you could ask for probably the best stack I have ever flown with thanks MEPS and fairly quick mail service
    Specification：F722 & 45A Stack Replied by MEPSKING:Thank you for the amazing feedback! Your support means a lot to us. Enjoy every flight—and thanks for choosing MEPS! 🚀✨
  • 1
  • 2
  • 3
  • 4
FAQ Feel free to ask us any questions
ASK A QUESTION
Q : Is the MEPS AeroCore 20 Stack compatible with DJI HD digital FPV systems?
Q: Can the ESC handle 6S batteries under aggressive racing conditions?
Q: What makes MEPS AeroCore 20 Stack different from other 20x20 stacks?
