T-HOBBY Velox V50A 4in1 ESC For FPV Drone

About T-HOBBY V50A SE 50A 6S 4in1 ESC for FPV Drone:

Introducing the T-HOBBY Velox V50A SE 6S 4in1 FPV ESC, a nice 50A drone ESC designed for high-performance drones. Designed for seamless integration and maximum efficiency, this 4IN1 FPV ESC delivers robust 6S capability, making it one of the great 6S FPV ESCs on the market. With 30.5x30.5mm mounting holes, the V50A SE ESC is perfect for larger builds, ensuring optimal power delivery and enhancing your drone's overall performance.

Check out our 4in1 ESC, all FPV ESC Collection and the rest of our T-Hobby Products!


Features:

● Improved Heat Dissipation

● Upgraded MOS

● 50A 4-in1 ESC


Specifications:

● Mounting Hole: 30.5x30.5mm, M3

● ESC Firmware: T-HOBBY T4 02

● Weight: 18.45g (with cable)

● Input Voltage: DC10V~27V

● Parameter: BLHeliSuite32

● Size 45.4x43.8x8mm

● Model: Velox V50A

● Peak Current: 55A

● Current: 50A

● LiPo: 3-6S

T-HOBBY
10% Off Orders $50+
$6 Off Orders $109+
Collect
$ 60.90 $69.90
-13%
4.9 | 100+Sold
Options (1)
V50A-1
V50A
Quantity
Add-ons
Bundle and save up to $7.76 on gear — upgrade your setup for less.
t hobby velox f7 se flight controller 30.5x30.5 f7 fc for fpv drones front
T-HOBBY Velox F7 SE Flight Controller - 30.5x30.5 F7 FC for FPV Drones
VELOX F7 SE
$51.38 Save $2.14
iflight blitz mini e55 2 6s 55a for fpv
iFlight BLITZ Mini E55 4-IN-1 ESC 2-6S 55A for FPV
Mini E55 ESC
$81.33 Save $1.66
t hobby velox v2306 v3 fpv drone motor 1500kv 4pcs
T-HOBBY Velox V2306 V3.0 FPV Drone Motor for Freestyle
1500KV*4pcs
$52.66 Save $3.96
mepsking prime reward week promo gift pc
In Stock Expected ship within 48 hours after order.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights

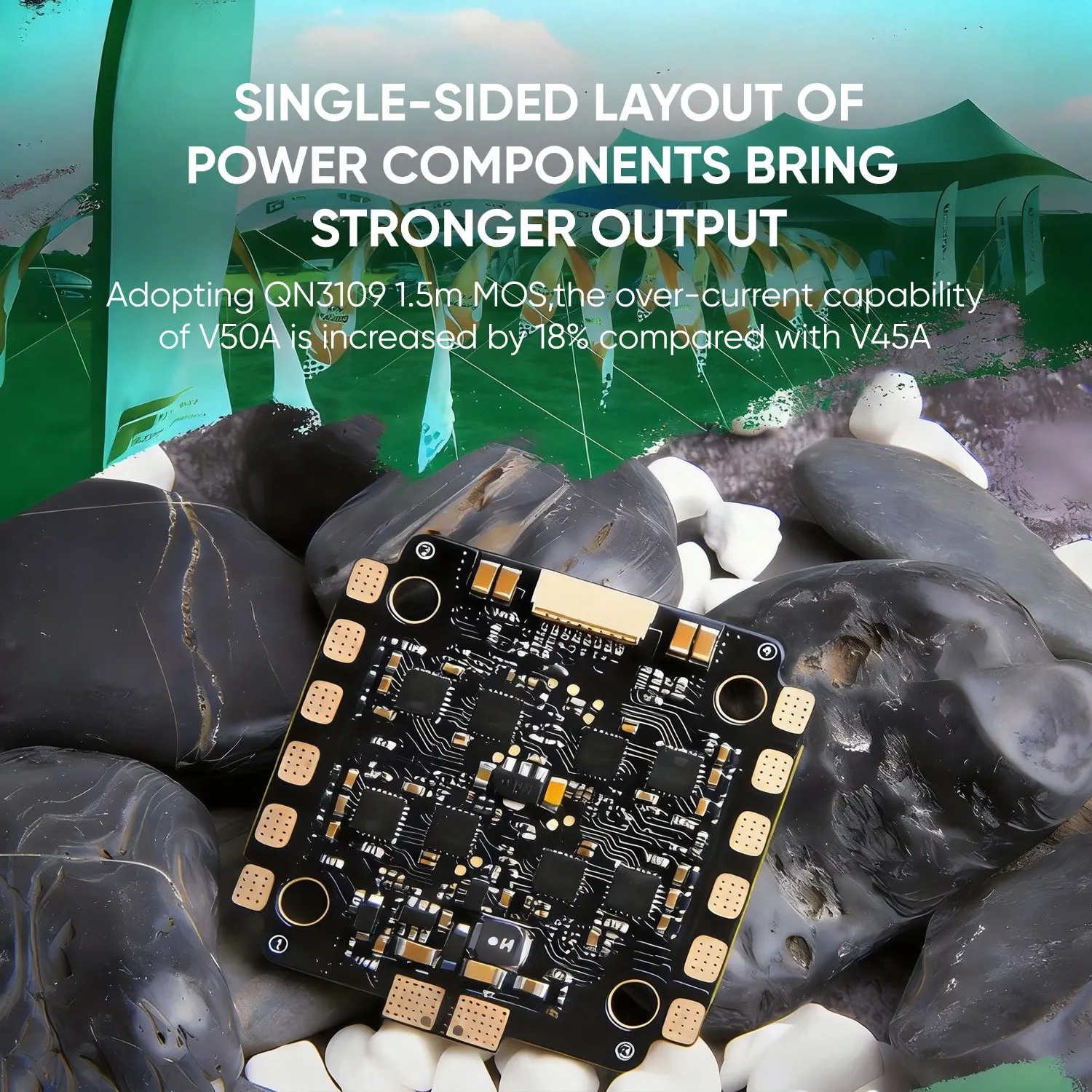

Adopting the QN3109 1.5 MOS
18% performance increased3.Improved heat dissipation.
Via in pad and double-side welding improve fault tolerance.
Payment | Every order you place with us is safe & secure
Share
Copy
t hobby velox v50a 4in1 esc

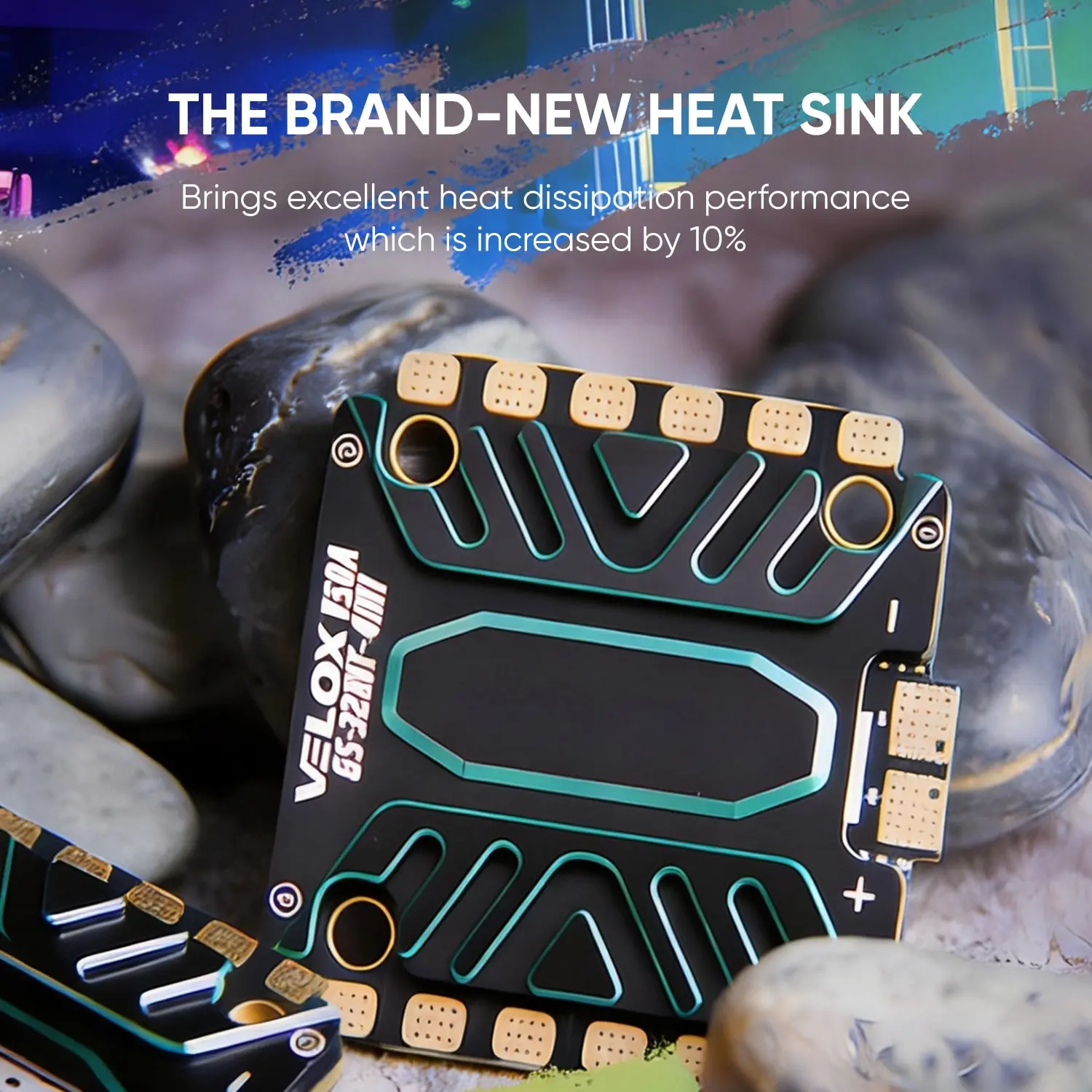

new heat sink increase heat dissipation performance

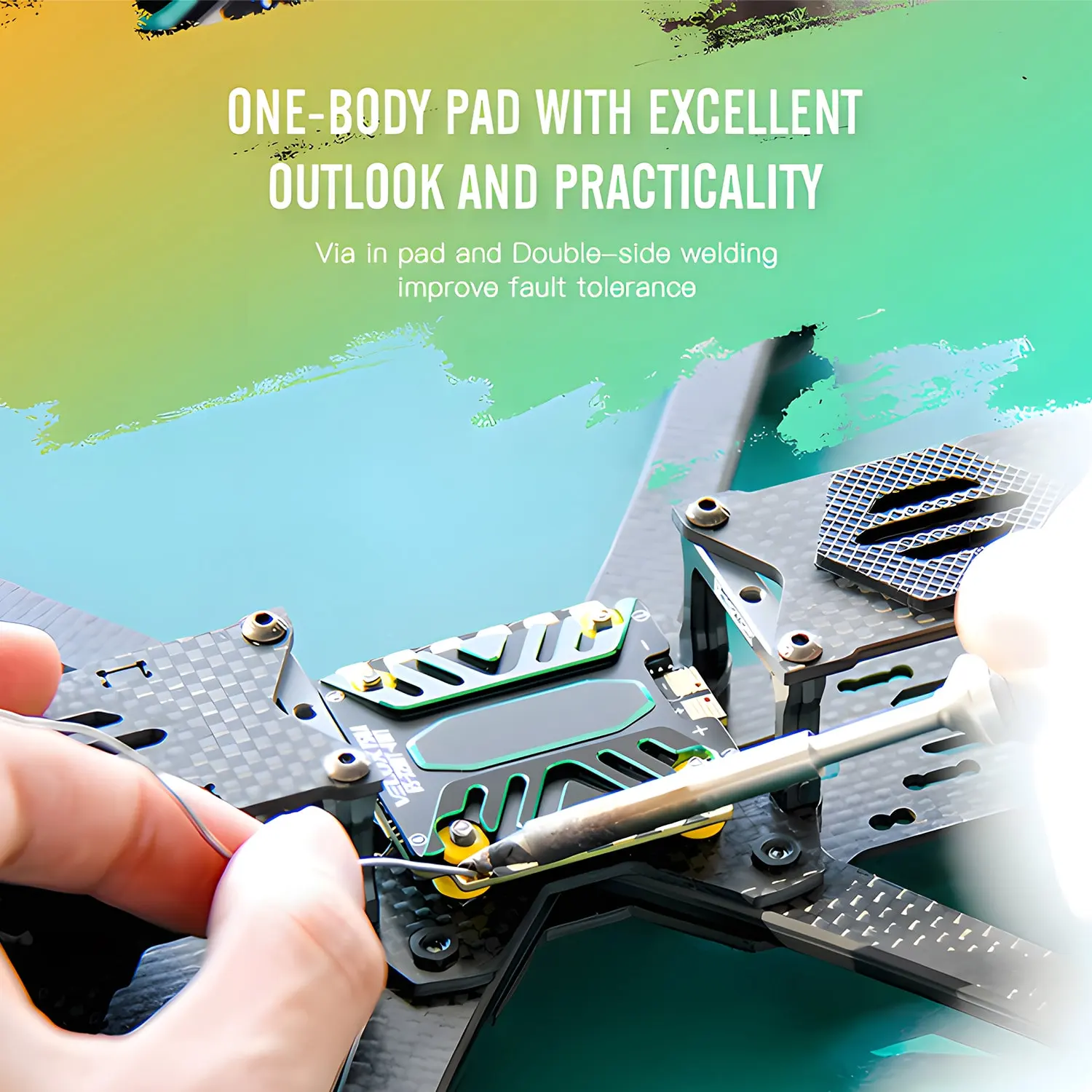

t hobby velox v50a 4in1 esc welding

Welding Tip:

● Don't add too much tin wire too fast in the welding process, in case the solder ball spills out.

● Stick a layer of electrical tape above the cooling fin before welding in case tin or other pollutants spot on the fin.

● Please carefully check if there are any tin balls or bonded soldering joints before powering up in case equipment damage is caused by a short-circuit.

● Please use 95% or higher purity alcohol or water when cleaning PCB and don't squeeze components and wires much.

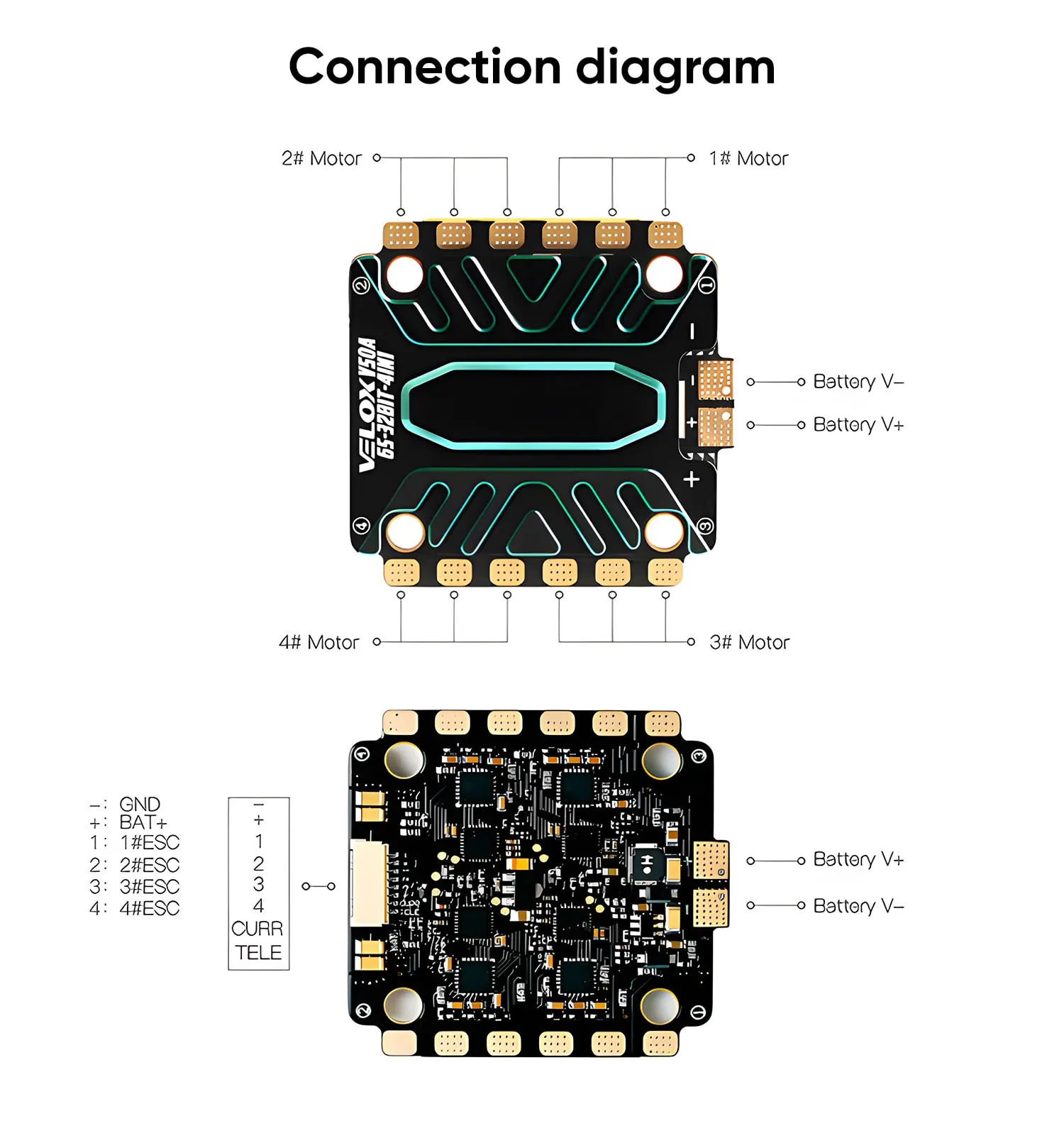

wiring diagram of t hobby velox v50a 4in1 esc

Notice:

● Each time ESC is connected to the system, the input throttle signal will be detected automatically when powered on and execute the corresponding throttle mode.

● When BLDC motor is connected to the system for the first time, or RC equipment is changed, throttle calibration is required. Please skip throttle range calibration when the input signal is Dshot mode.

● Don't flash any other firmware to avoid ESC damage.

● Please repeatedly check if the polarity and connection sequence are correct before powering up. A wrong connection would damage the equipment.

● Please power off first when plugging in or making any connections.

● Please use within the range of ESC working current.

● Please use welding equipment with full power and choose the right-sized welding head. Try to avoid any equipment that is out of operation or damaged by short-circuits or wrong welding.

● VBAT is battery voltage. If connecting to other equipment, please make sure that the input voltage is within the range.

● CRT. (Current) is curent detection output interface can connect T-HOBBY F4、F7 or other FC can support current detection.

● If any questions, please contact MEPSKING after-sales technical support.


Remedies after water:

● Please power off at first once ESC, FC or other PCBs (including motors) meet water damage, and don't power on again.

● Clean all clutter and dry with hairdryer.

● Please don't power on again before making sure there is no water inside any more. Please contact our after -sale service center ASAP.

● If you can see solder joints or bumt traces on components, which means this power section has burned out. Please don't power on again then lead to further damage.

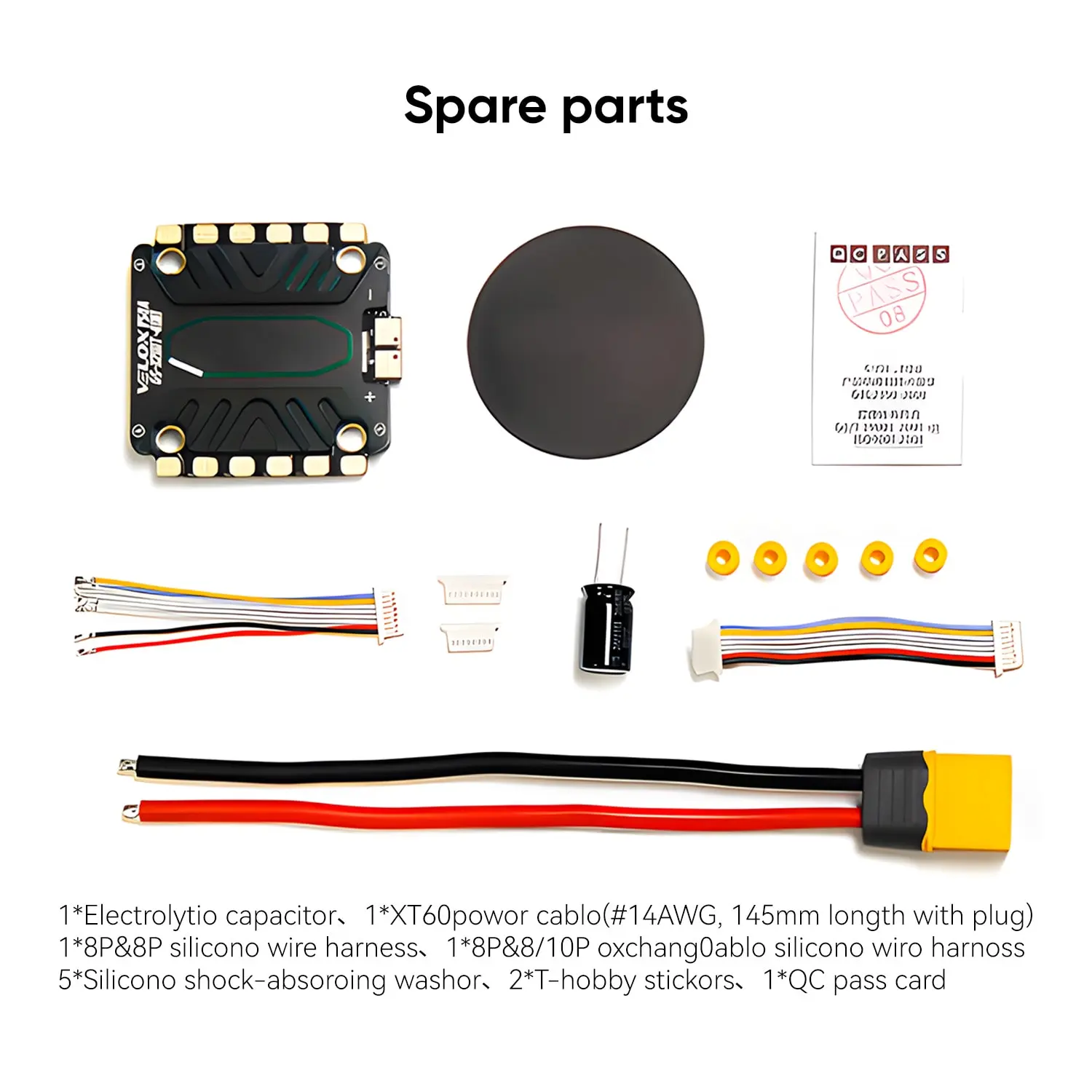

Package included:

● 1x T-HOBBY V50A SE 50A 6S 4in1 ESC

● 1x 8P/10P Exchangeable Wiring Harness

● 1x 8P/8P Silicone Wiring Harness

● 1x XT60 14AWG 145mm Cable

● 4x Shock Absorbing Washer

● 1x Capacitor

t hobby velox v50a 4in1 esc package included

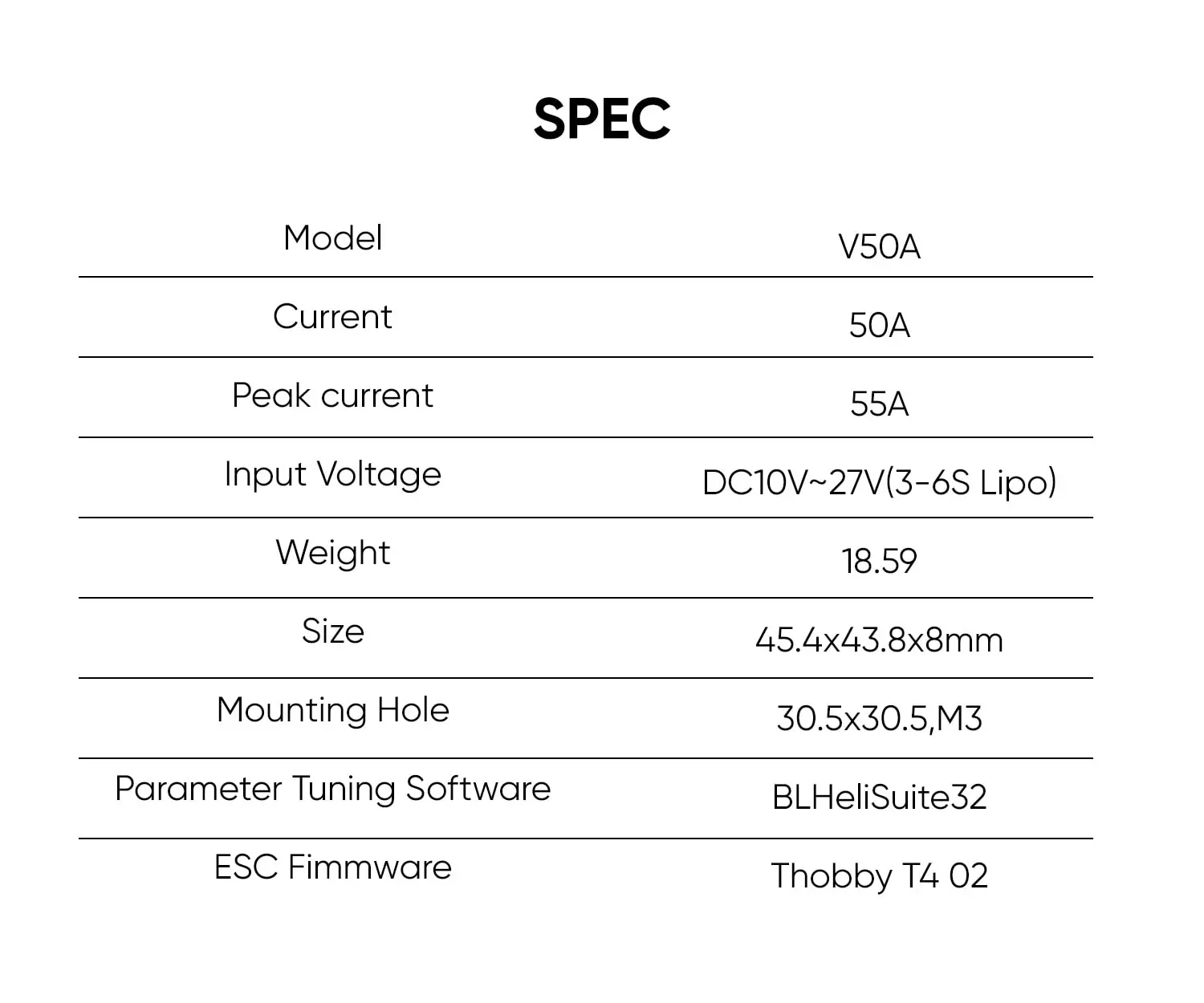

specs of t hobby velox v50a 4in1 esc
