T-HOBBY Velox V45A V2 3-6S BLHeli_32 4-in-1 ESC For Racing FPV Drones
About T-HOBBY Velox V45A V2 3-6S 4in1 ESC:
The T-HOBBY Velox V45A 4in1 FPV ESC V2 has been upgraded with a 15% performance increase enabling you to fly with confidence even during high current situations.
The brand new cooling fin design makes heat dissipation more efficient and increases the chance of stable power output. Spacious motor pads make soldering easier.
This 30.5x30.5mm FPV ESC comes with an integrated 10V/2A BEC, great for providing power for DJI Air Units or other FPV equipment.
1.No heatsink for reduced weight but with the durable 2. Support 3-6S voltage input 3. Double-side large-pitch pads
In Stock
Expected ship within 48 hours after order.
Estimated Transit Time: 5-15 Days.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
No heatsink for reduced weight but with the durable.
Support 3-6S voltage input.
Double-side large-pitch pads.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ

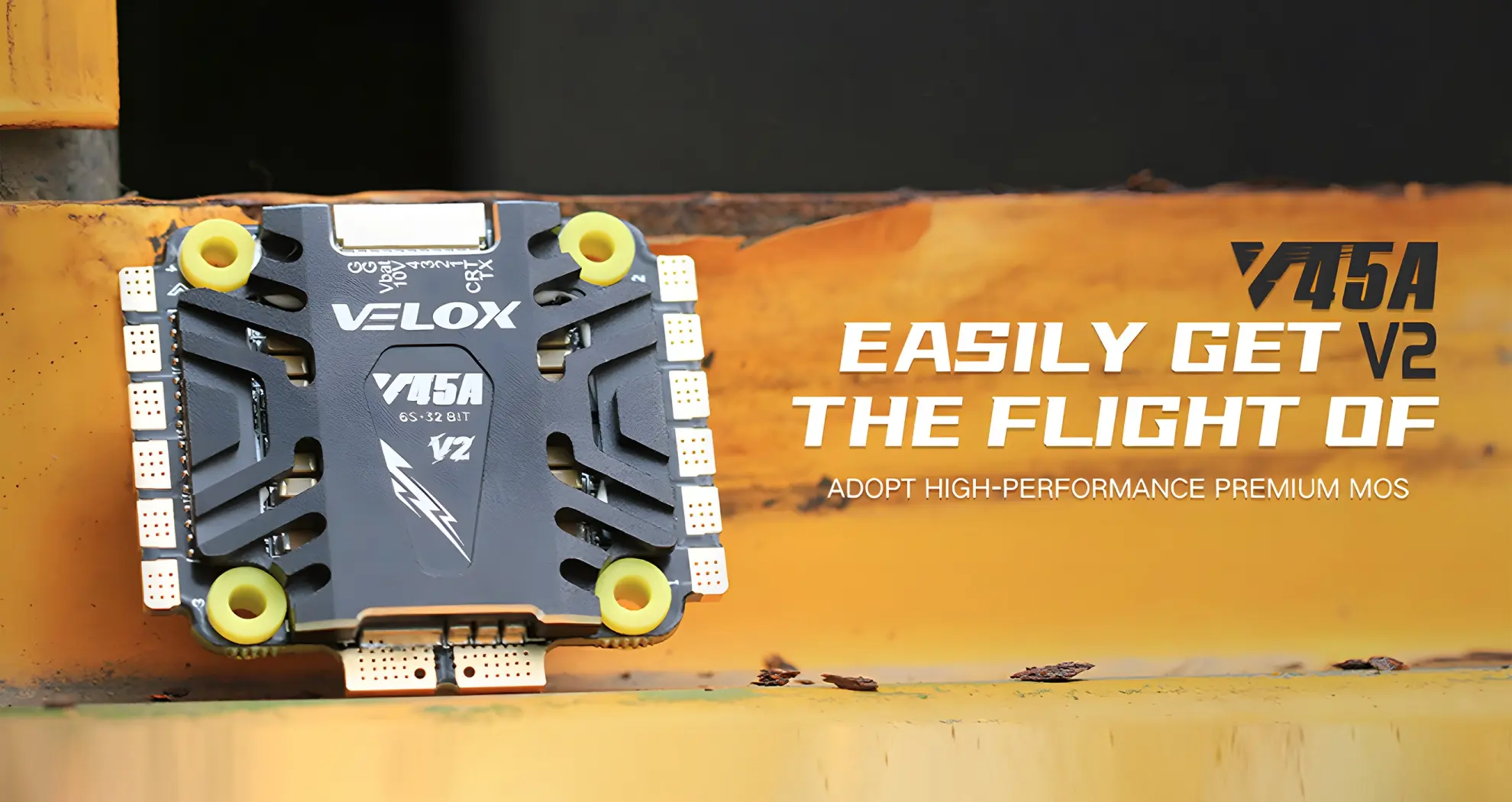

Premium High-Performance MOS
Engineered for extreme racing. The Velox V45A V2 adopts high-performance premium MOSFETs that significantly enhance current endurance and heat dissipation. This heavy-duty power management guarantees ultra-smooth throttle response and rock-solid reliability under intense, high-KV 6S freestyle and racing conditions.

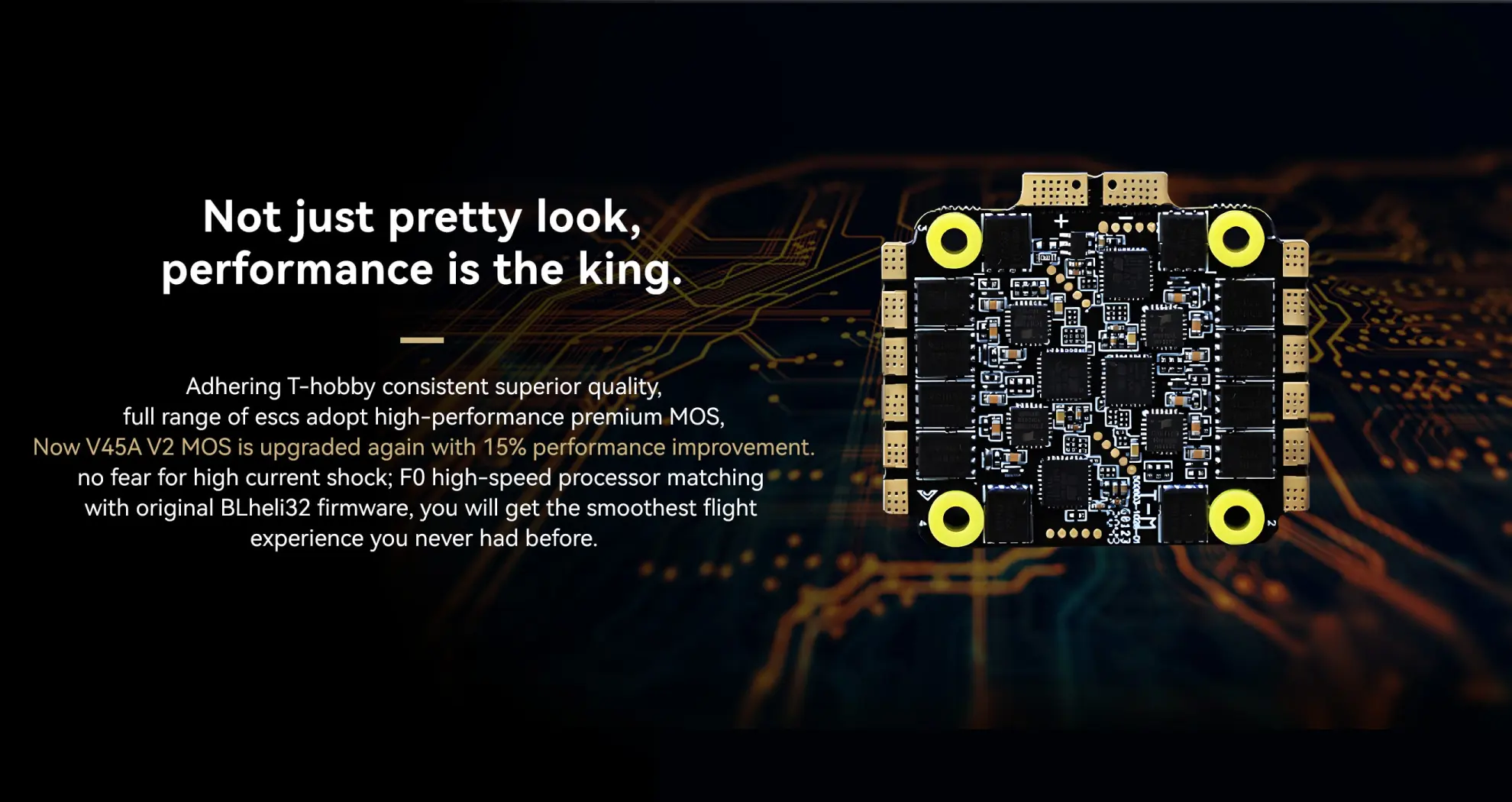

Upgraded MOS & F0 Processor Performance
Built to handle intense power. The V45A V2 features an upgraded premium MOS layout with a 15% performance improvement, making it completely immune to high-current shocks. Paired with a high-speed F0 processor and original BLHeli_32 firmware, it delivers lightning-fast computation for the smoothest, most responsive flight experience possible.

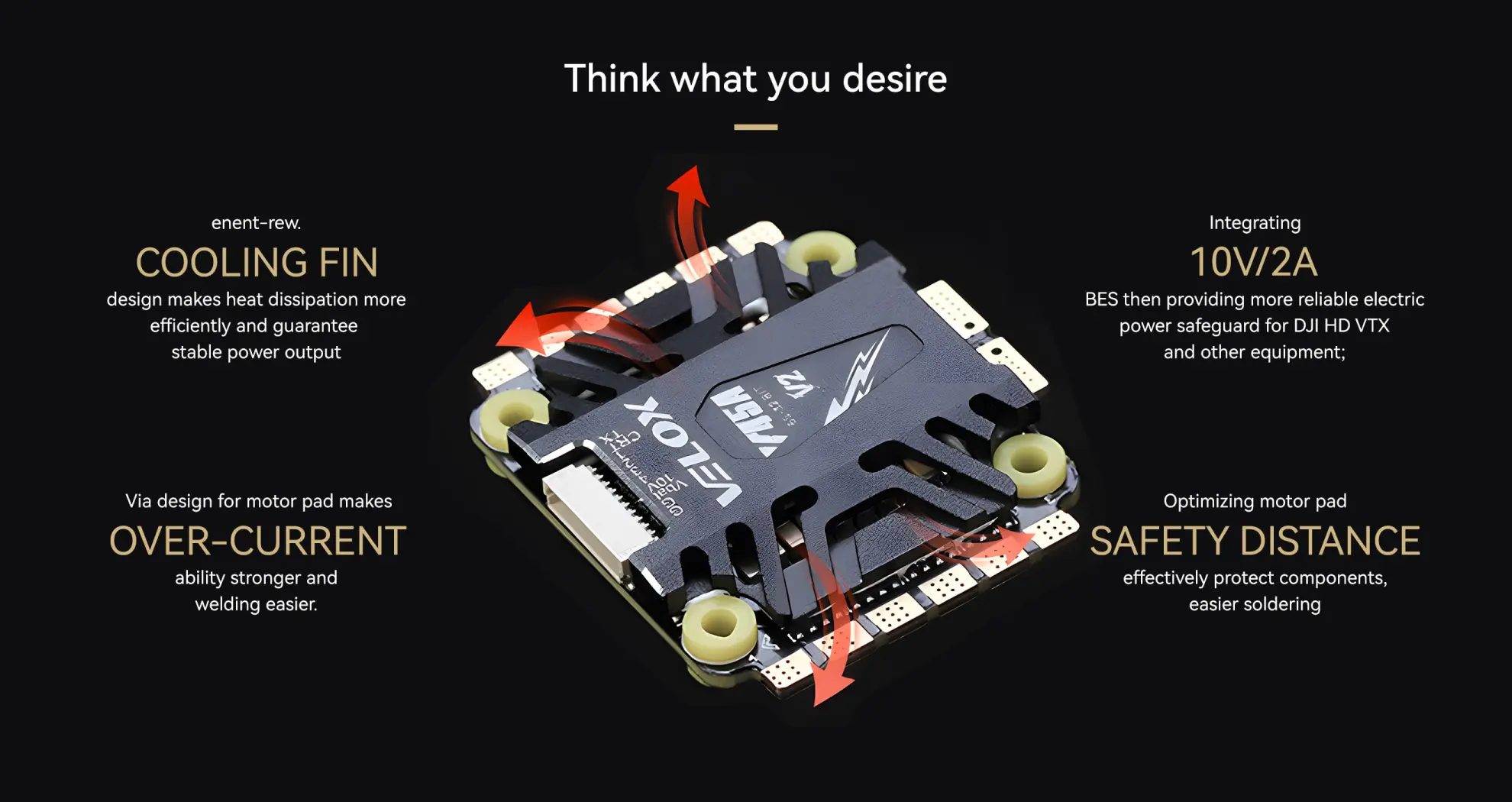

Advanced Thermal Design & Integrated 10V BEC
Engineered for ultimate reliability. The Velox V45A V2 combines an efficient aluminum cooling fin for superior heat dissipation with wide-spaced, over-current optimized motor pads for easier, safer soldering. Featuring an integrated 10V/2A BEC, it delivers dedicated, rock-solid power to safeguard your DJI HD VTX and premium FPV gear during demanding flights.
Clean throttle feel and stable motor output. Setup took a little care, but once wired correctly it has been rock solid.
V45A V2：V45A V2
Replied by MEPSKING:Thank you for the review. Careful wiring and setup help get the best reliability from a 4-in-1 ESC.
A**********r
Verified
Flown in warm weather and the ESC stayed reliable. I used the included capacitor and gave it decent airflow. No issues.
V45A V2：V45A V2
Additional reviews after 26
days
Still reliable after more packs. Temps are fine and no random resets so far.
B***********a
Verified
Very good ESC for 6S freestyle. Motors sound smooth, punch is strong, and voltage sag looks normal in my OSD.
V45A V2：V45A V2
Replied by MEPSKING:Thank you for sharing your flight results. We are happy the ESC is giving smooth motor output and strong performance.
R************a
Verified
Buon ESC, clean layout and easy install. It fits nice in my stack and gives good power for the price.
V45A V2：V45A V2
Replied by MEPSKING:Thank you for your feedback. We are glad the ESC fit your stack cleanly and is working well.
E********r
Verified
Sehr gute 4in1 ESC. Clean PCB, good current handling, and stable flights with 6S. No overheating in my 5 inch frame.
V45A V2：V45A V2
R***********r
Verified
Proper decent ESC. BLHeli32 setup was straightforward with the right suite, and the motors spin smooth on DShot600.
V45A V2：V45A V2
Replied by MEPSKING:Thanks for the review. Using the correct BLHeli32 software is important for reading and configuring this ESC properly.
l***n
Verified
MEPSKING shipped it out fast and tracking was accurate. ESC is stable and doesn’t heat up much.
V45A V2：V45A V2
S**********e
Verified
For a 45A 4in1 ESC this is a nice value. It runs my 2207 motors on 6S without heat trouble in normal freestyle.
V45A V2：V45A V2
Replied by MEPSKING:We appreciate your review. The V45A is a solid match for many 5 inch freestyle builds when installed with proper cooling.
1
2
3
FAQFeel free to ask us any questions
ASK A QUESTION
Q1: What type of drones is the T-Hobby Velox V45A V2 ESC suitable for?
A1: The Velox V45A V2 is ideal for 5-inch FPV freestyle and racing drones. It supports 3–6S LiPo batteries and provides stable, efficient power delivery for high-performance builds.
Q2: Does the Velox V45A V2 support modern digital ESC protocols?
A2: Yes. It runs on BLHeli_32 firmware and supports DShot600, DShot1200, and other protocols, ensuring fast signal response, smooth throttle control, and reliable flight performance.
Q: What is the T-HOBBY Velox V45A V2 ESC designed for?
A: The Velox V45A V2 4-in-1 ESC is a high-performance BLHeli_32 FPV ESC designed for 5-inch freestyle and racing FPV drones, supporting smooth and stable power delivery.
Q: Is this ESC suitable for 5-inch freestyle FPV builds?
A: Yes — it is optimized for 5-inch freestyle drones, providing strong burst current handling and smooth throttle response.
Q: What makes the V45A V2 better than standard ESCs?
A: It features upgraded MOSFET efficiency, improved cooling design, and better current handling compared to many standard ESCs.
