Q1: Is the T-HOBBY F7 35A/45A AIO compatible with both analog and digital FPV systems?

A1: Yes. The T-HOBBY F7 AIO supports both analog VTX and DJI digital FPV systems. It comes with a dedicated plug-and-play port for DJI Air Unit or O3 Air Unit, making setup easy and reliable.

Q2: What battery voltage range does the T-HOBBY F7 35A/45A AIO support?

A2: The 35A version supports 3–6S LiPo batteries, while the 45A version supports 3–8S LiPo batteries. This wide voltage compatibility provides flexible power options for different drone builds.

T-HOBBY F7 35A/45A Aio For Cinewhoop Toothpick

About T-HOBBY F7 35A/45A AIO Flight Controller:

The T-HOBBY F7 35A/45A AIO Flight Controller is a compact flight controller featuring advanced components such as an onboard ESC with Bluejay & BLHeli_S firmware, a quality MPU series gyroscope for improved noise reduction, 16MB Black Box space, and an integrated barometer. With support for both HD and Analog, this versatile AIO flight controller offers a current of 35A/45A, a 5V/1.5A BEC, and an HD VTX socket, making this 25.5x25.5mm AIO an ideal choice for high-performance drone builds.

Features:

● The onboard ESC works with Bluejay & BLHeli_S ESC firmware

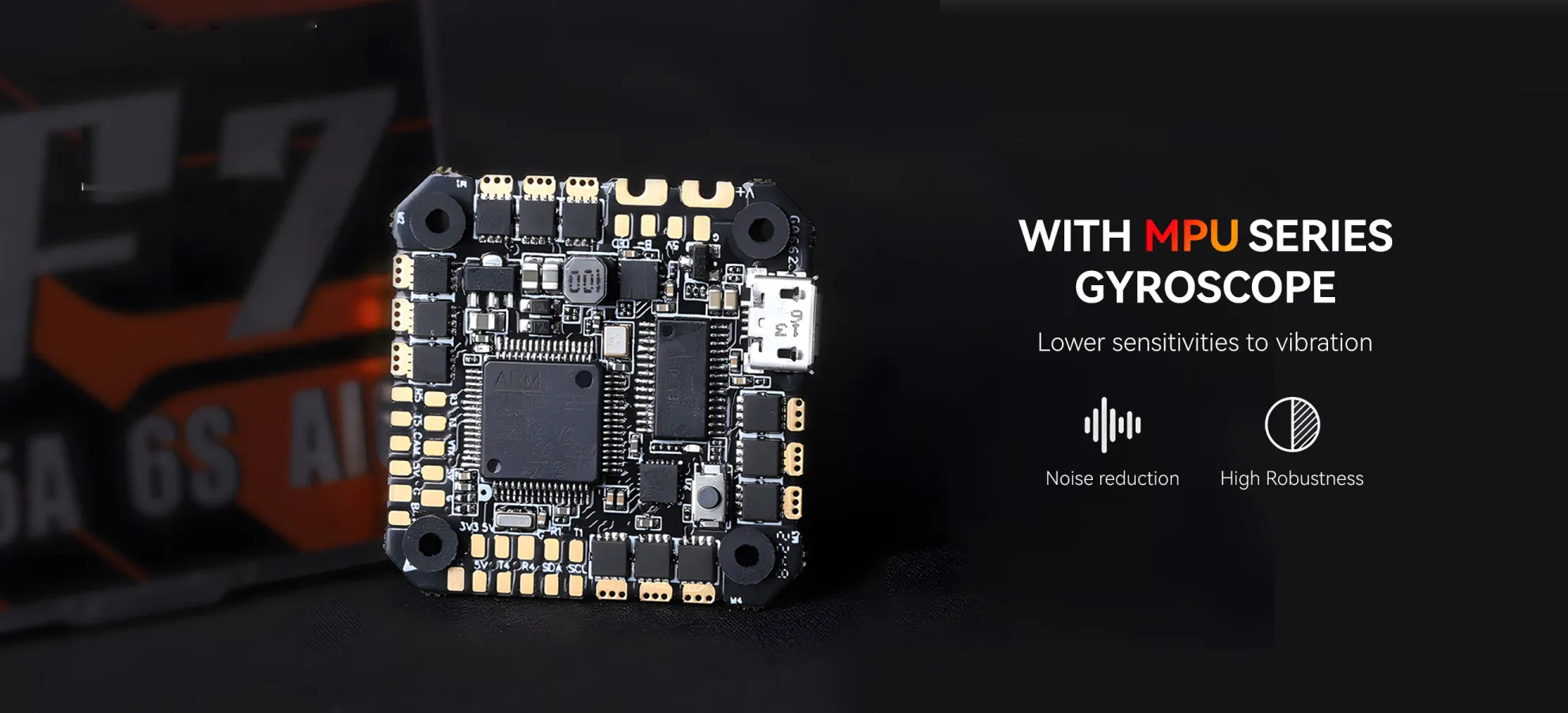

● A quality MPU series gyroscope for better noise reduction

● 16MB of Black Box space

● Supports HD and Analog

● Integrated Barometer

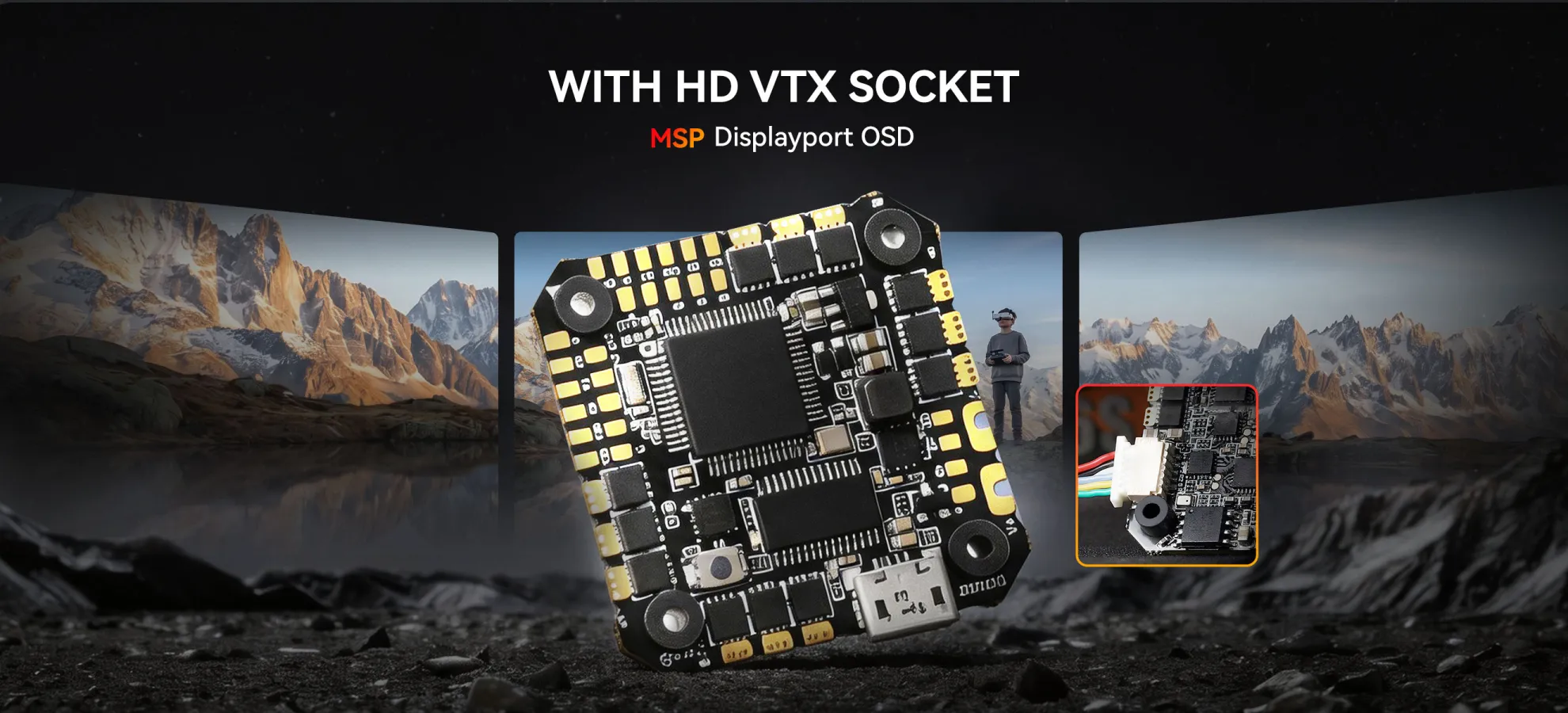

● HD VTX Socket

Specifications:

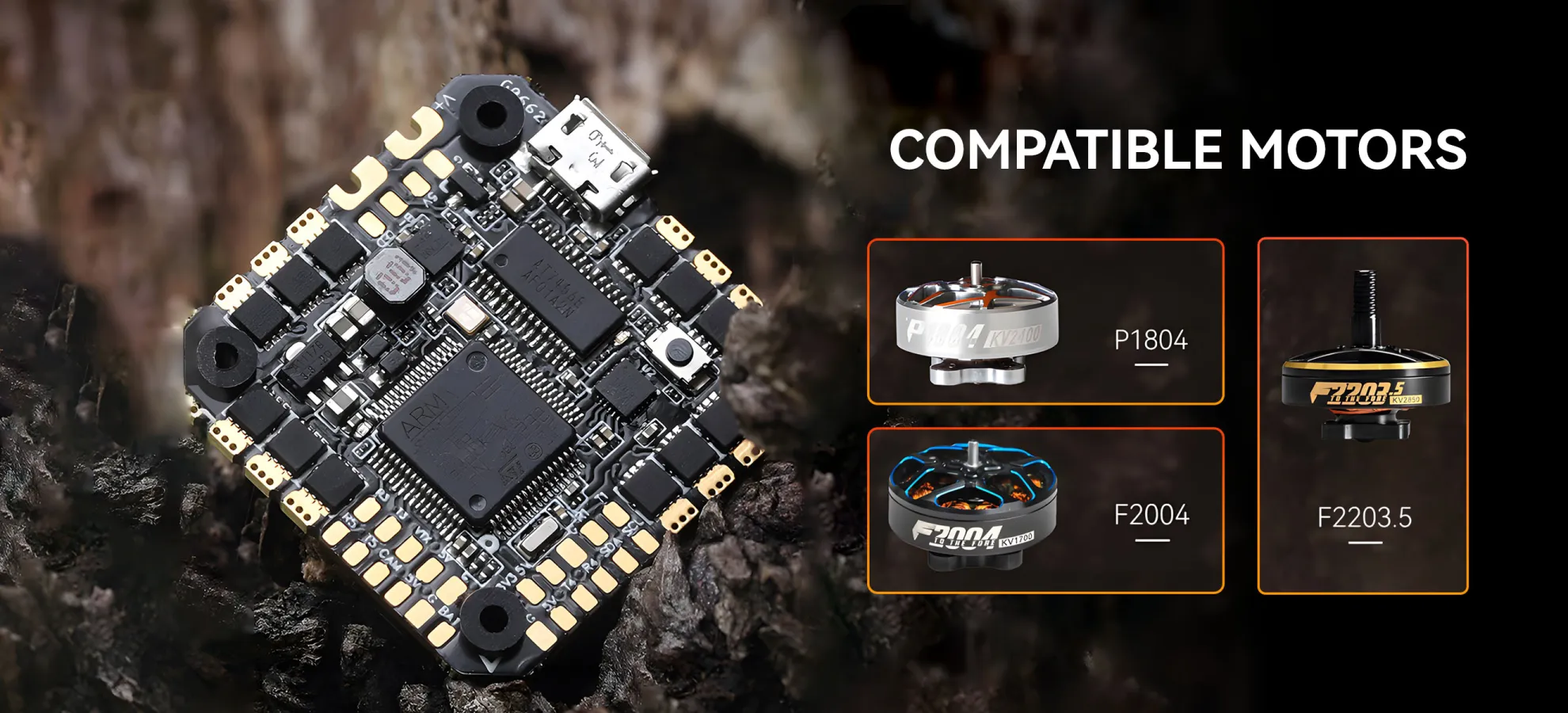

● Recommendation: P1804/F2004/F2203.5

● Mounting hole: 25.5x25.5/φ3mm

● ESC firmware: BLS\Bluejay

● Continuous current: 35A45A

● Barometer: BMP280

● MCU: STM32F722

● Input voltage: 3-6S

● OSD: AT7456&HD

● Peak current: 40A/50A

● Black box: 16MB

● Gyro: MPU6500

● Size: 39x39mm

● BEC: 5V/1.5A

Package Includes:

● 1x T-HOBBYF7 35A/45A AIO

T-HOBBY

Coupon AvailableTop Rated

$20 Off Orders $299+

$10 Off Orders $189+

Collect

$ 99.90 ~~$128.90~~

-22%

5 | 100+Sold

Options (1)

35A

Quantity

In Stock Expected ship within 48 hours after order.

Estimated Transit Time: 15-20 Days.

MEPSKING FPV store with YunExpress shipping

Free Shipping Over $99 | Save on Orders $99+

24-Month Warranty | 2 Years Full Protection

7-Day Easy Returns | 7-Day No-Risk Return

24h Support Response | 24h Fast Support Guarantee

The onboard ESC works with Bluejay & BLHeli_S ESC firmware

A quality MPU series gyroscope for better noise reduction

16MB of Black Box space

Supports HD and Analog

Integrated Barometer

Payment | Every order you place with us is safe & secure

Copy

Reviews

d************2
Verified

Vine Voice

MEPSKING Vine Customer Review of Free Product

Well... That's a very very useful AIO! I received it by winning a vine voice and I was a but skeptical about it... Well... 45a is a very nice version and it handles my cine whoop very well! I appreciated the presence of the SCL/SDA pad for a magnetometer and even a powerful LED output. The disposition of the soldering pad is as always a bit all stacked up but it's the compromise of an AIO... At least I was able to solder everything with ease and the GND pad is very good to solder... The package is small and it includes an XT60 cable and the capacitor. Thank you!

KV：45A

Replied by MEPSKING:Thanks for your detailed feedback! We're glad the 45A AIO performs well on your cinewhoop. We appreciate your understanding of the compact pad layout—great to hear soldering was still smooth. Thanks for being a part of Vine Voice. Enjoy your flights!
m************1
Vine Voice

MEPSKING Vine Customer Review of Free Product

The flight controller arrived incredibly quickly, fully exceeding my expectations regarding delivery time. The product is well-designed, featuring neatly arranged and easily accessible pads that make soldering simple, even for those aiming for a clean and precise build. Its overall construction conveys a sense of sturdiness and attention to detail. Furthermore, it connects flawlessly to Betaflight using the latest firmware version, providing a stable, smooth, and immediate configuration experience right from the first connection.

KV：45A

Replied by MEPSKING:Thank you for your detailed and positive review! We’re glad the AIO exceeded your expectations in delivery speed, design, and performance, and that it worked seamlessly with Betaflight. Wishing you smooth flights ahead! 🚀
v********y
Vine Voice

MEPSKING Vine Customer Review of Free Product

I got my motors and AIO for free after winning twice in the Vine Voice—huge thanks to Mepsking for hosting such an awesome event. I’m really hoping to win even more in the future! This is a great opportunity for newcomers in the hobby, and I definitely recommend joining the Mepsking Vine Voice community!

KV：45A

Replied by MEPSKING:We’re glad to hear you had a wonderful experience with the Vine Voice events! Thank you for recommending our community, and we hope you continue to enjoy and explore the world of FPV with Mepsking.
C**********o
Verified

perfect for my cinewhoop build. clean layout, easy install.

KV：45A

Replied by MEPSKING:Thanks for choosing us! Glad you’re happy with it. Happy flying!
v**********s
Verified

The Best AIO! Fast delivery!

KV：45A

Replied by MEPSKING:Thank you! We're thrilled you love the AIO and that it arrived quickly. Enjoy the performance and happy flying! 🚀
e*******d
Verified

Vine Voice

MEPSKING Vine Customer Review of Free Product

Great fc and best brand components

KV：35A

Replied by MEPSKING:Thank you for your kind words. We are glad the FC performs to your satisfaction. Wishing you stable, safe, and pleasant flights.
d*********2
Verified

Great all-in-one board for compact builds. The flight feels responsive and precise, and the 45A version handles plenty of power. Totally recommend it!

KV：35A
f*********r
Verified

I’m really impressed with this F7 AIO. Clean layout, solid performance, and handles 4S with no issues. Perfect for toothpick builds.

KV：35A
