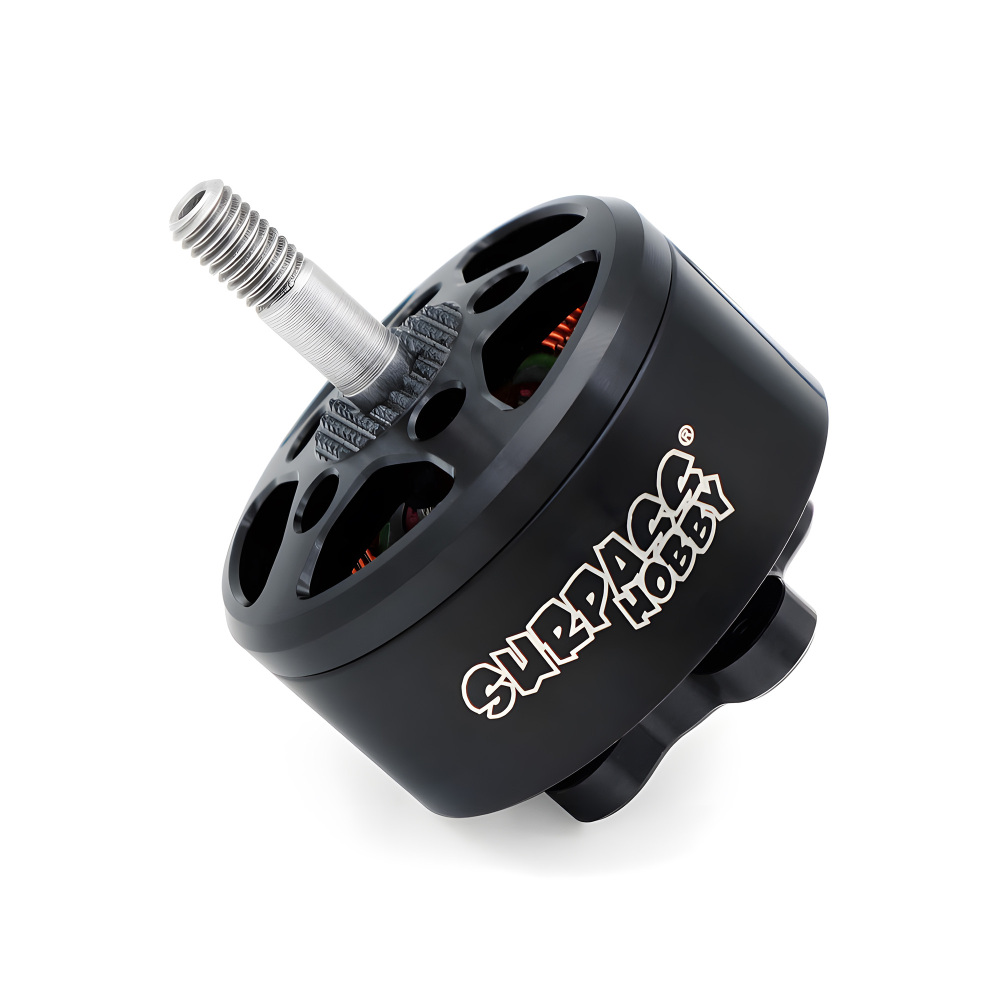

2810 2812 3115 fpv motor side view
2810 2812 3115 fpv motor side view
2810 2812 3115 fpv motor kv
2810 2812 3115 fpv motor top view
2810 2812 3115 fpv motor package

New28 / 31 Series 2810 2812 3115 3-6S Brushless Motor

About 28/31 Series Drone Motor:

28/31 Series Brushless Motors deliver outstanding performance with exceptional value, making them an ideal choice for both commercial applications and custom drone projects. Designed for efficiency, durability, and stable power output, this series offers reliable performance across a wide range of use scenarios.

$25 Off Orders $369+
$15 Off Orders $249+
Collect
$ 17.90 $27.90
-36%
4.6 | 100+Sold
Options (4)
2810 2812 3115 fpv motor side view
2812 900KV
2810 2812 3115 fpv motor side view
2810 980KV
2810 2812 3115 fpv motor side view
2808 1500KV
2810 2812 3115 fpv motor side view
3110 1580KV
Quantity
pilot gift days pc gift
Estimated Transit Time: 5-15 Days.
MEPSKING FPV store with YunExpress shipping
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
A brand new design with a rounded bell and stronger attachment points for increased durability.
Fully mirror-polished finish that shines and glistens with even the smallest hint of light.
48SH curved arc magnets for tighter airgap and better performance.
Payment | Every order you place with us is safe & secure
Share
Copy

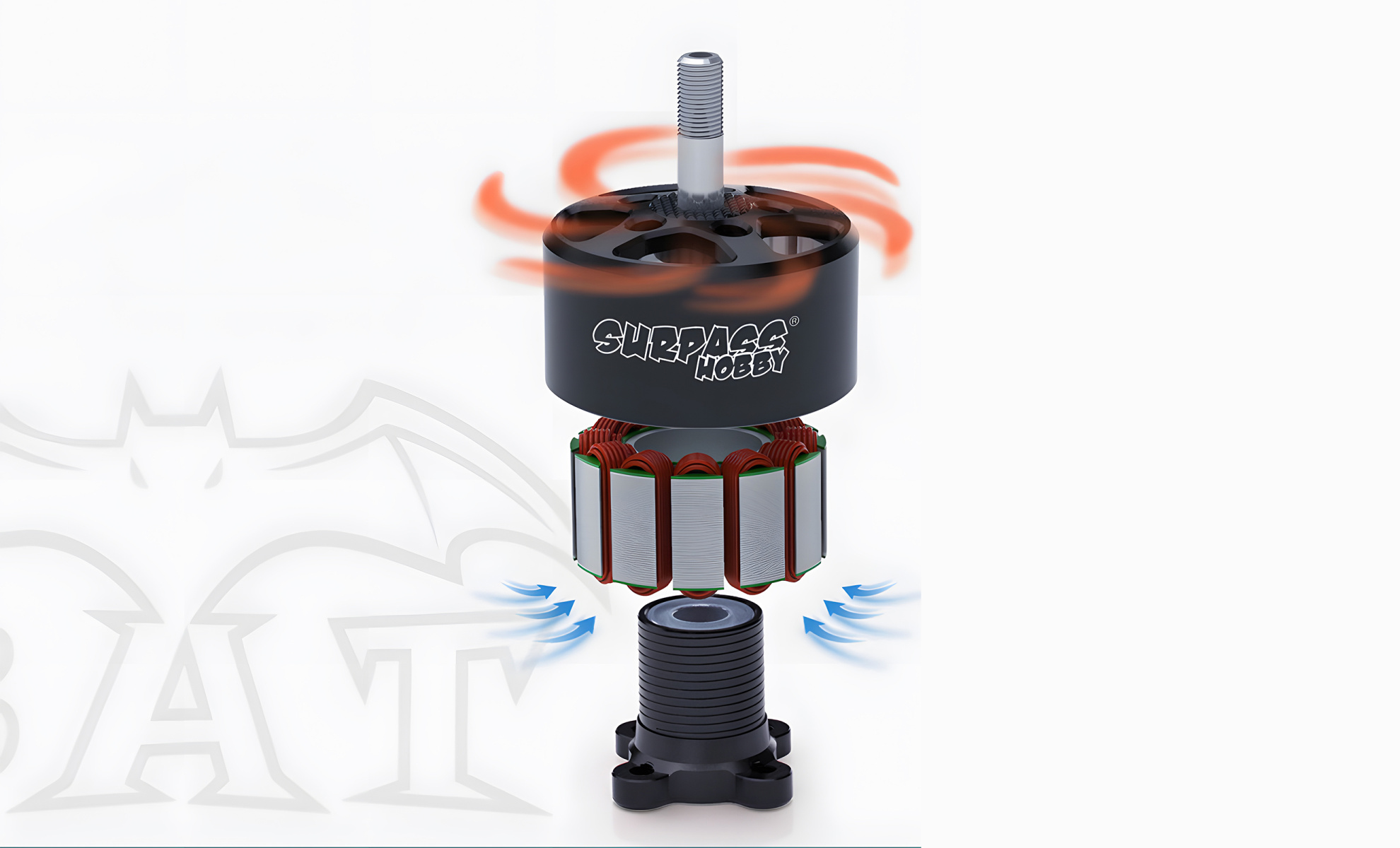

28 31 series 2810 2812 3115 3 6s brushless motor 1

Premium Materials for High Performance

Built with imported NMB bearings for smoother rotation and reduced friction. Durable enamel-coated copper wire withstands up to 220°C, ensuring stable performance and longer service life.


High-Efficiency Silicon Steel Lamination
Equipped with 0.2mm high-quality silicon steel sheets, minimizing heat generation and maximizing power output efficiency.


48SH Rotor Magnets & Lightweight Steel Shaft
Strong magnetic flux and optimized structural design deliver high torque, fast response, and excellent reliability. Lightweight high-strength hollow steel shaft enhances durability without extra weight.


Strong Pull Force Options
Multiple KV and stator size configurations available:

    ● S2812: 3313g

    ● S2810: 2950g

    ● S2808: 2071g

    ● S2806.5: 2535g

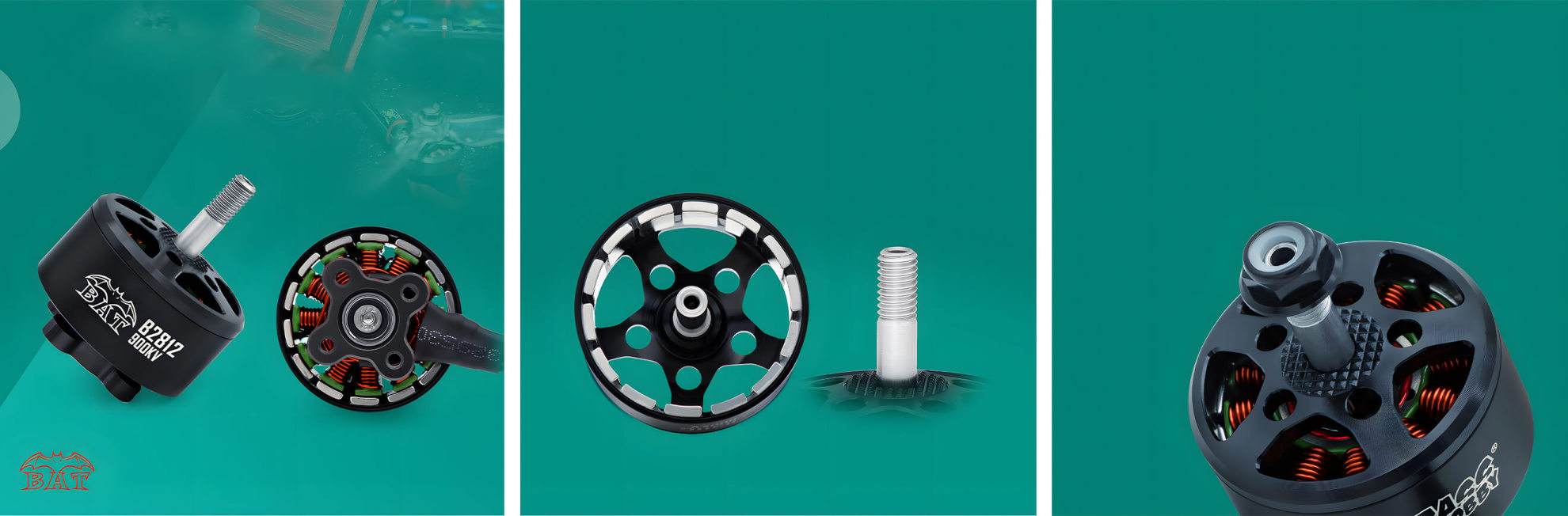

pc 28 31 series 2810 2812 3115 3 6s brushless motor

Specifications

ModelRated Voltage (V)Rated Power (W)No-Load Speed (rpm)Rated Torque (N·m)Dimensions (mm)Rated Current (A)
B2806.512/241035229000.3632.9 × 19.150
B280812/241055229000.3633.1 × 20.660
B281012/241110229000.3633.3 × 23.366
B281212/241644229000.3633.9 × 25.768
B311512/241327229000.4537.5 × 32.275
