Summary

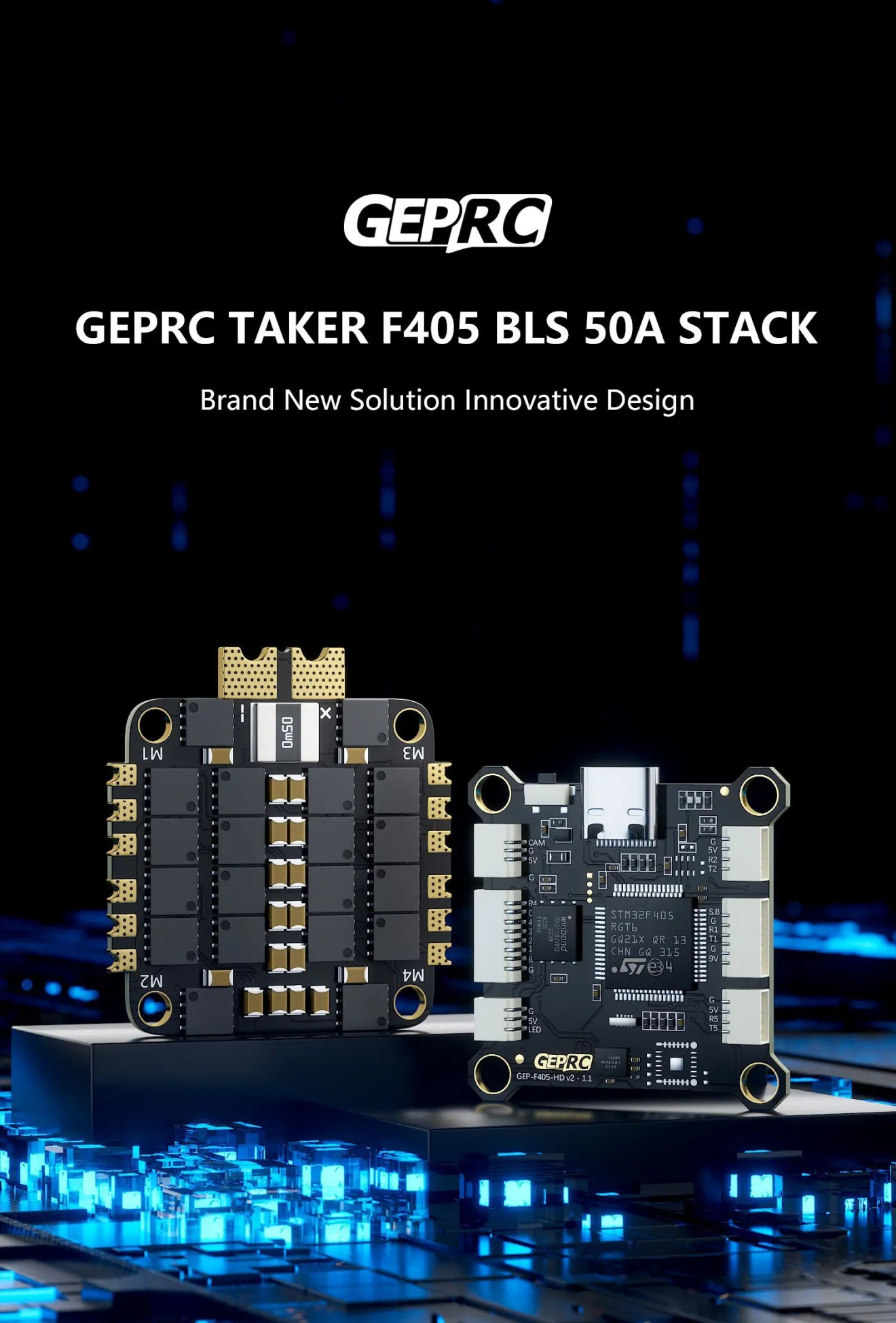

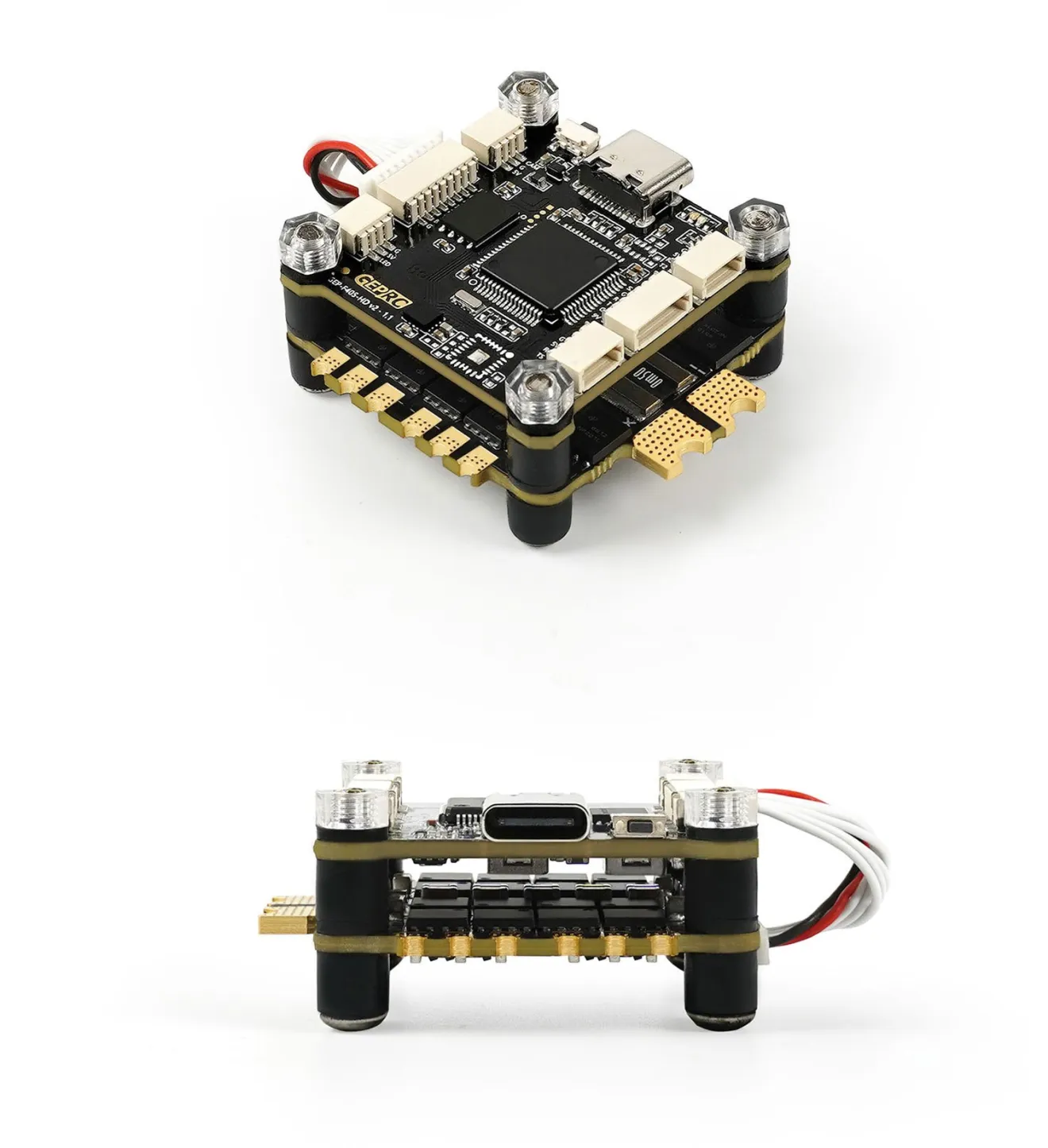

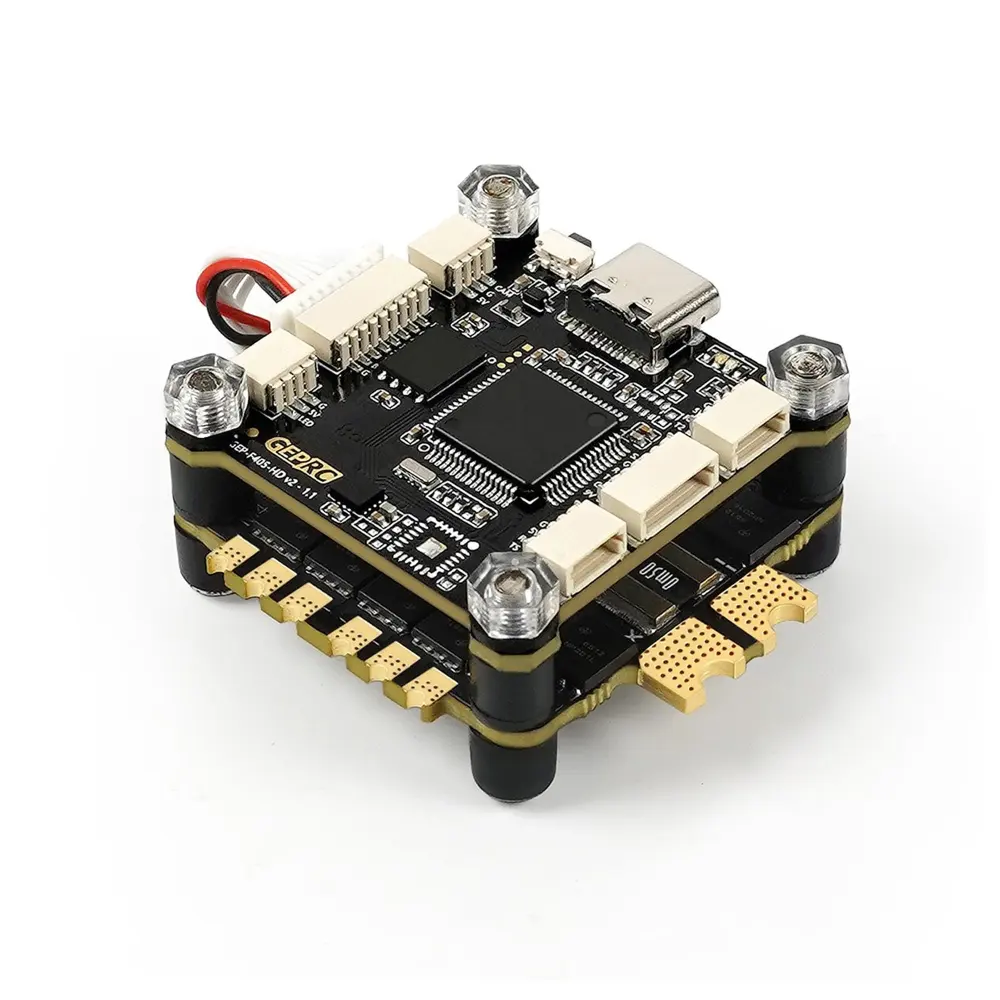

GEPRC TAKER F405 BLS 50A STACK is a plug-and-play stack system specially designed for DJI Air Unit. Use STM32F405 chip, ICM42688-P gyroscope, integrated 16M black box, and GEP-BLS50A-4IN1 ESC to have a more delicate hand feeling experience.
The GEPRC TAKER F405 BLS 50A STACK can be directly plugged into the DJI Air Unit, which can save the trouble of soldering. Upgrade the type-C USB connector, which greatly improves the service life of the socket and reduces the risk of poor contact. 9V 2.5A + 5V 3A dual independent BEC, more stable power supply for external devices.
Features

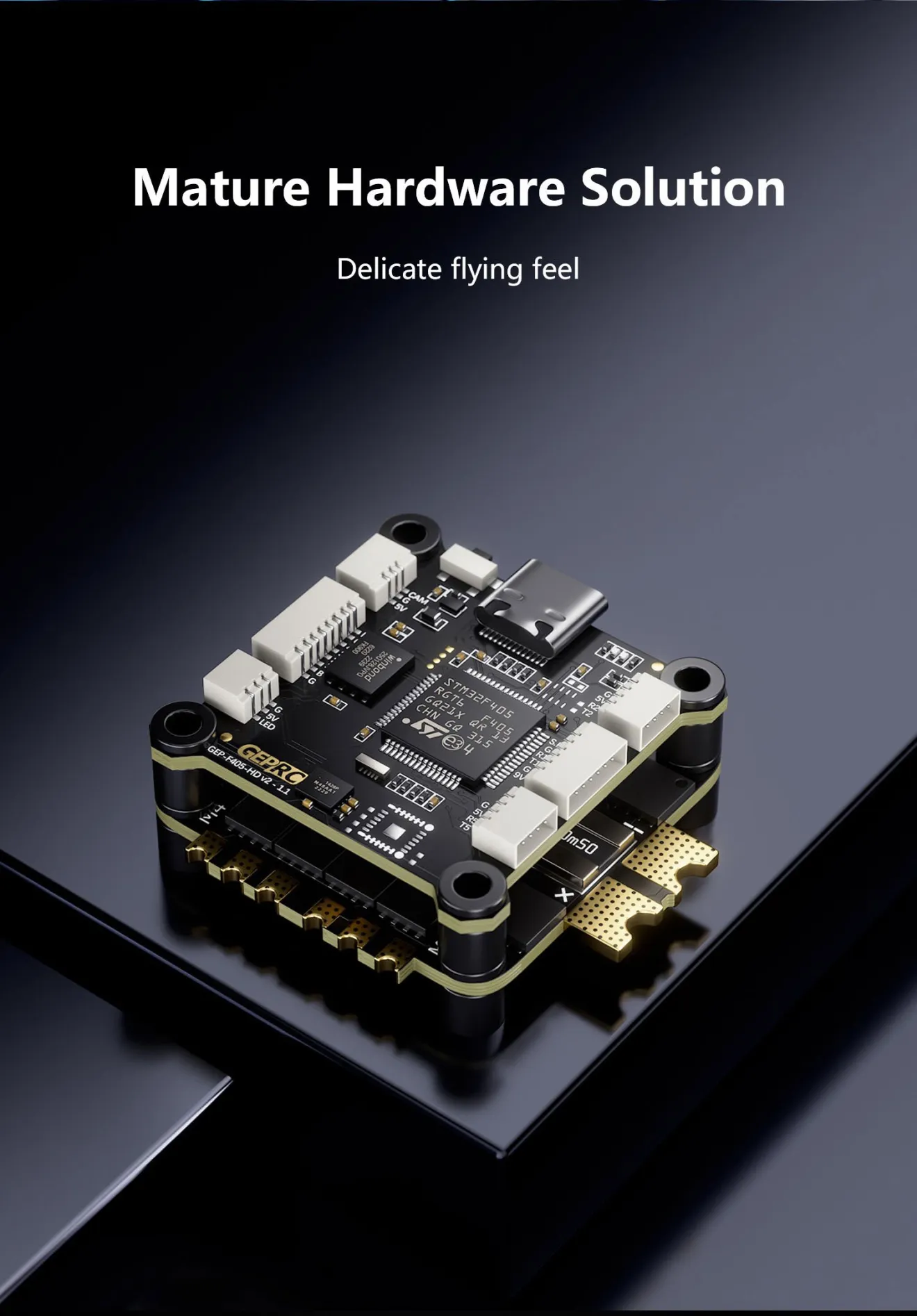

1. Use mainstream STM32F405 chip

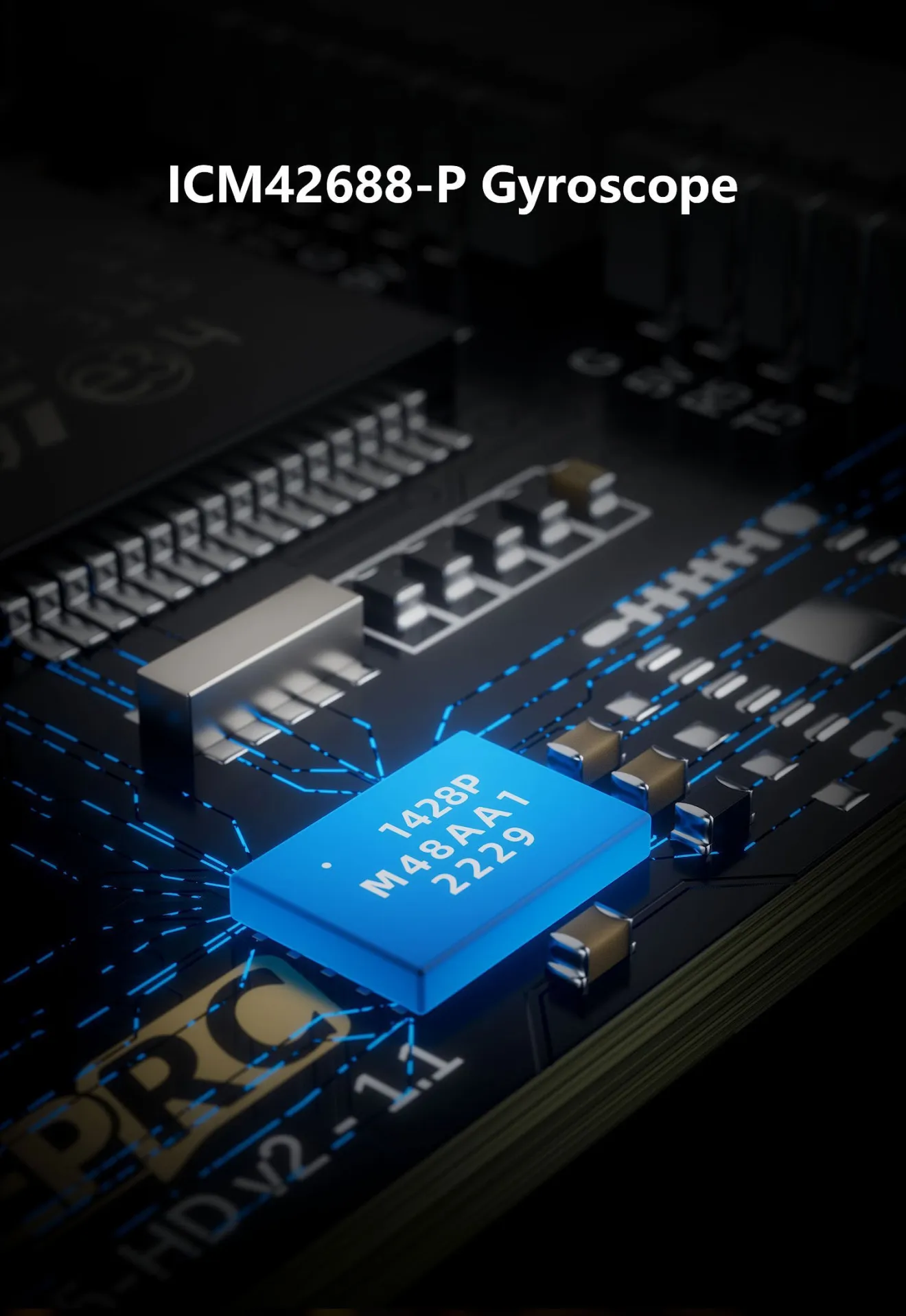

2. Equipped with the latest 42688-P gyroscope
3. 16M black box storage
4. Integrated LC filter
5. Upgrade type-C USB interface
6. Directly plugged into the DJI Air Unit
7. With GEP-BLS50A-4IN1 ESC, the flying feel is silky
8. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
10. 9V 2.5A + 5V 3A dual independent BEC

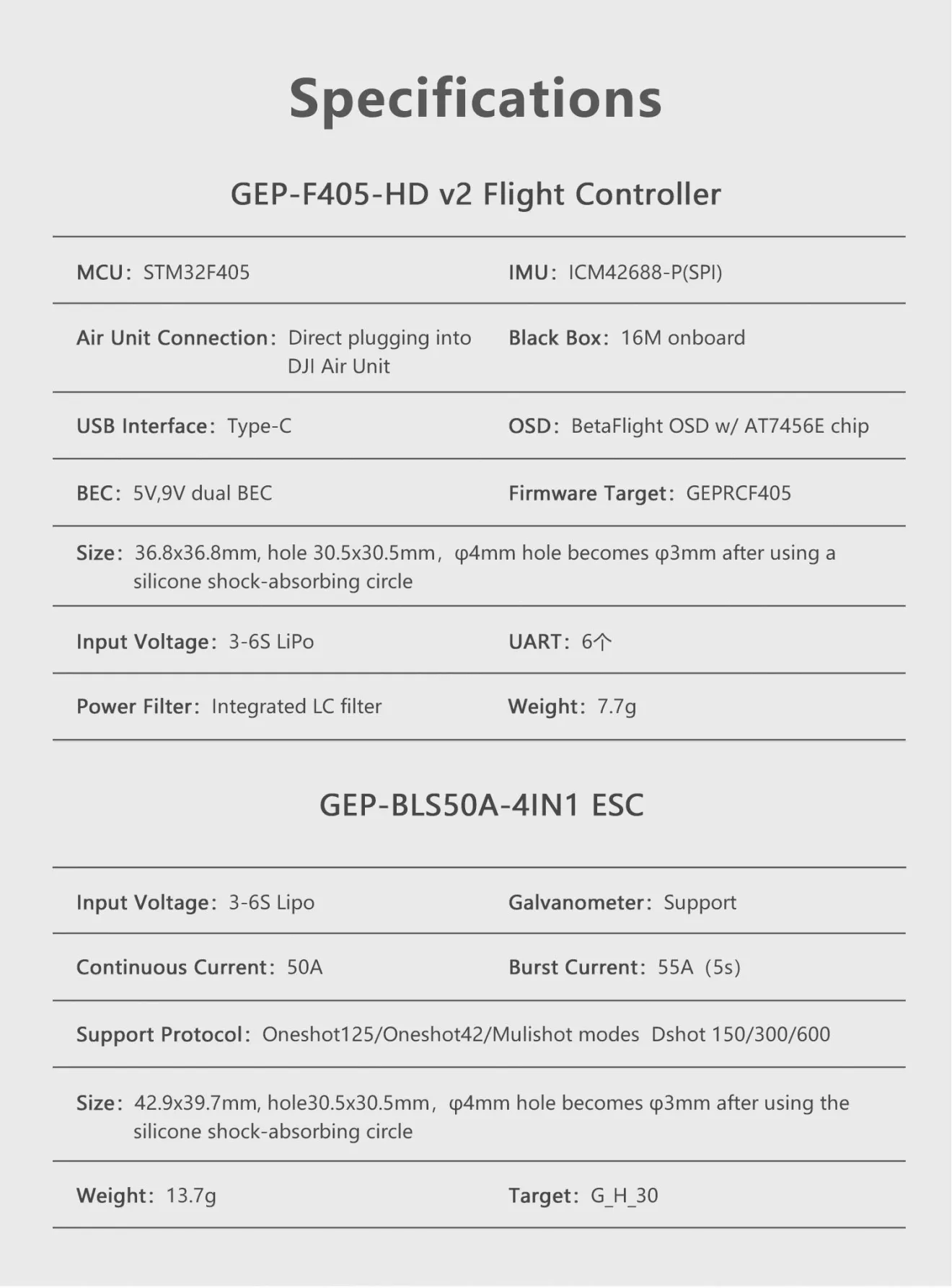

Specifications

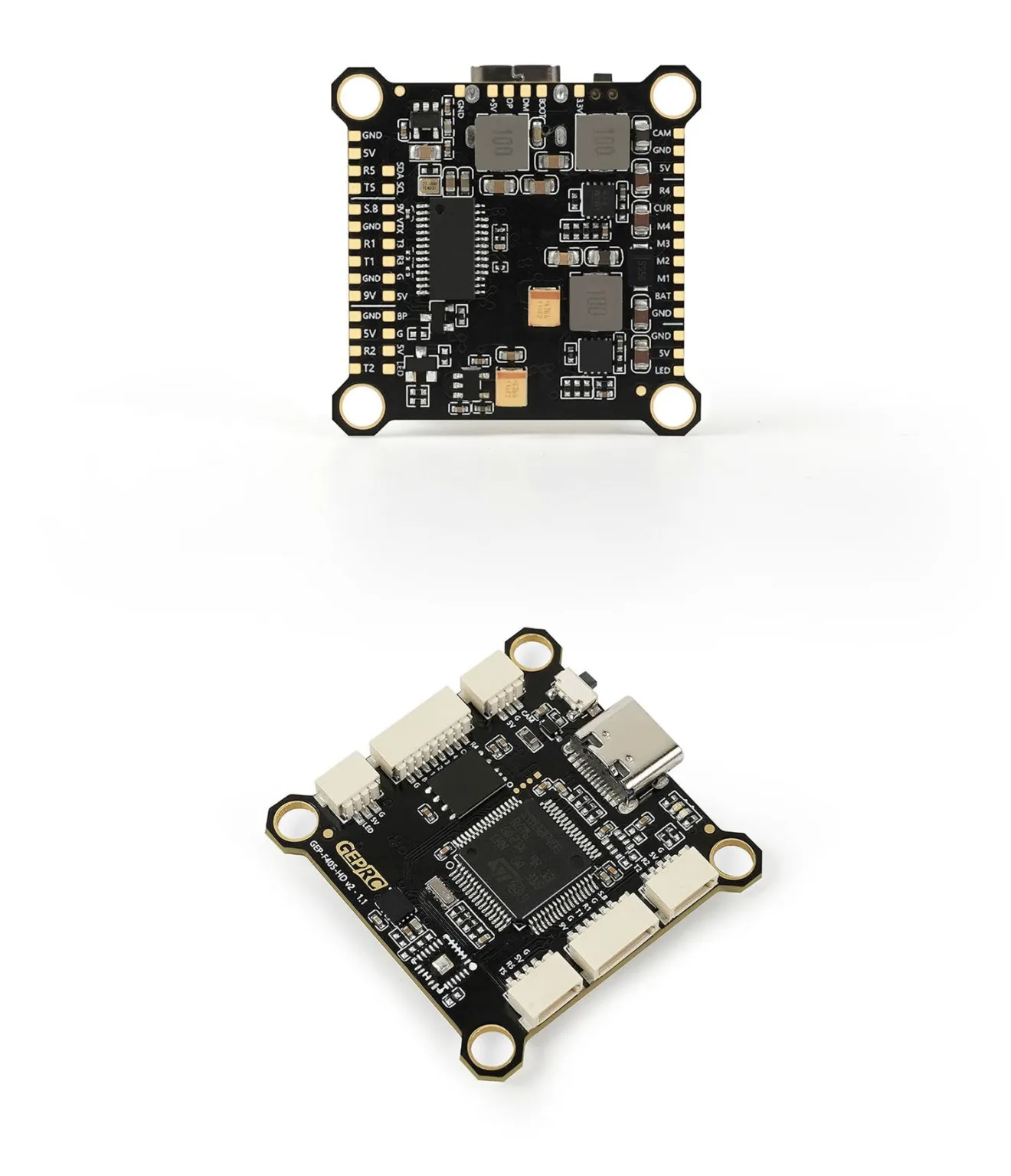

GEP-F405-HD v2 Flight Controller
MCU: STM32F405
IMU: ICM42688-P(SPI)
Air Unit Connection: Direct plugging into DJI Air Unit
Black Box: 16M onboard
USB Connector: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC: 5V,9V dual BEC
Firmware Target: GEPRCF405

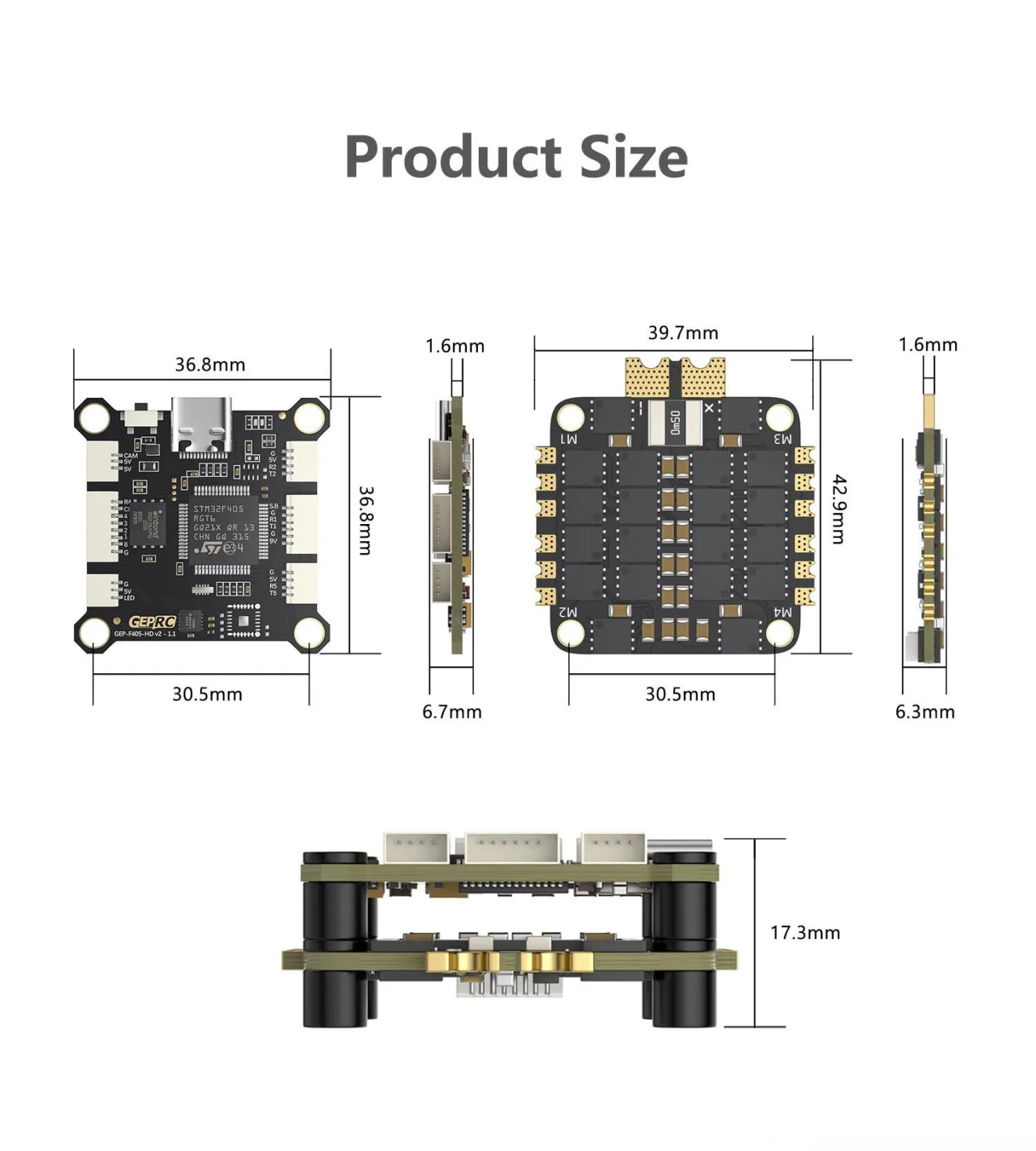

Size: 36.8×36.8mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
Input Voltage: 3-6S LiPo
UART: 6
Power Filter: Integrated LC filter
Weight: 7.7g
GEP-BLS50A-4IN1 ESC
Input Voltage: 3-6S Lipo
Galvanometer: Support
Continuous Current: 50A
Burst Current: 55A（5s）
Support Protocol: Oneshot125/Oneshot42/Mulishot modes/Dshot 150/300/600
Size: 42.9×39.7mm, hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle.
Weight:13.7g
Target: G_H_30

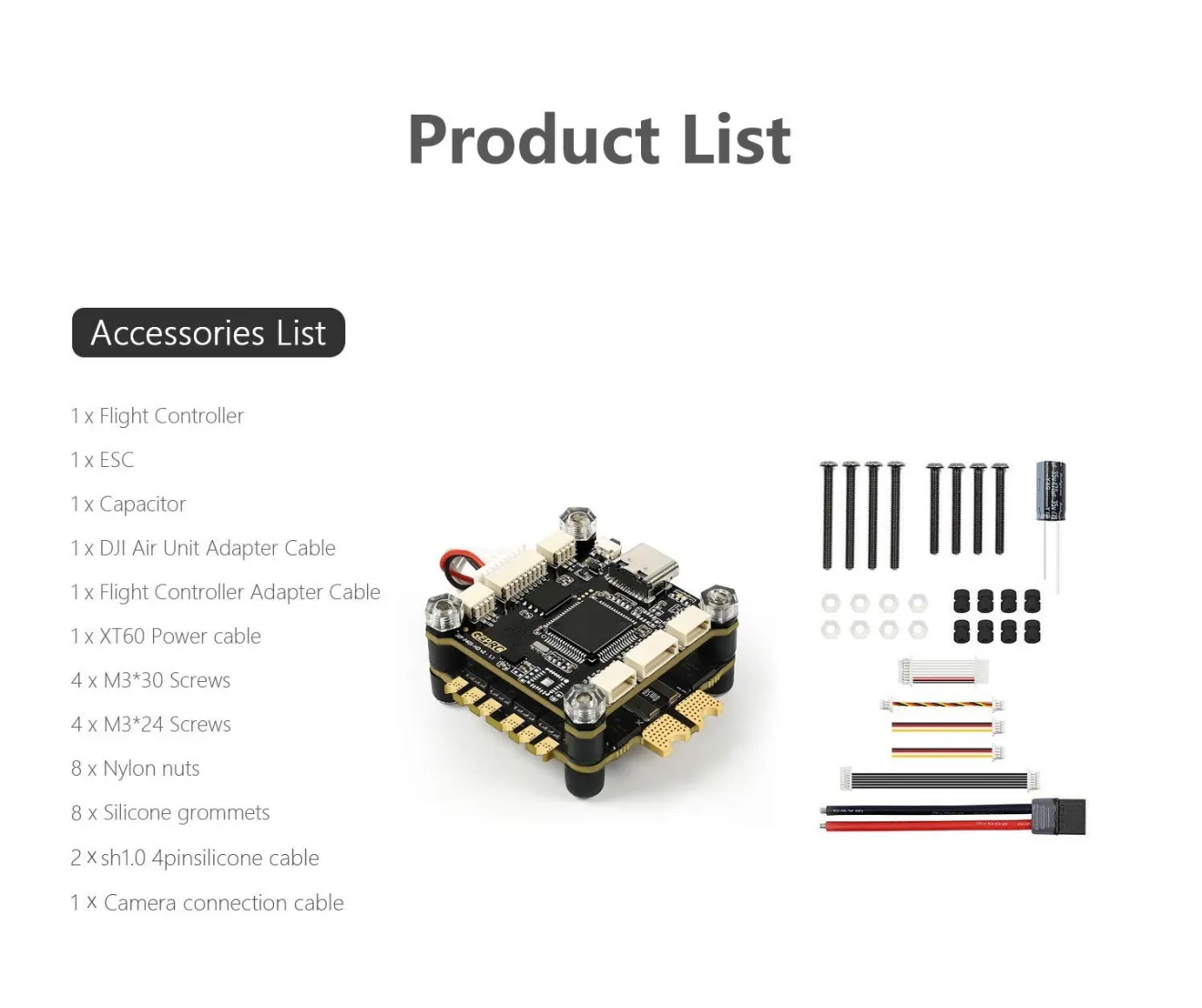

Includes
1 x Flight Controller
1 x ESC
1 x Capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*24 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
