What battery voltages does this ESC support?

It supports 3S to 6S LiPo batteries, providing versatility for various FPV builds.

What is the continuous and burst current rating?

It offers 60A continuous and 85A burst current, suitable for high-performance motors.

Which firmware does this ESC use?

The ESC runs BLHeli_32 32-bit firmware with high PWM frequency for responsive control.

What signal protocols are supported?

It supports DShot150/300/600/1200, OneShot and MultiShot for wide compatibility with flight stacks.

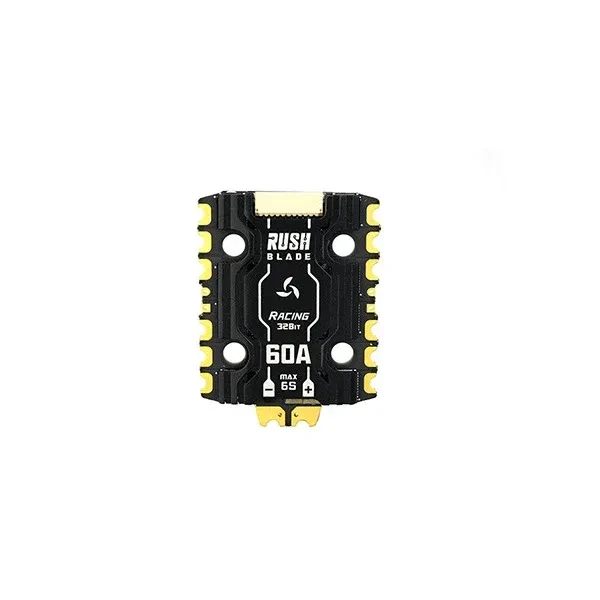

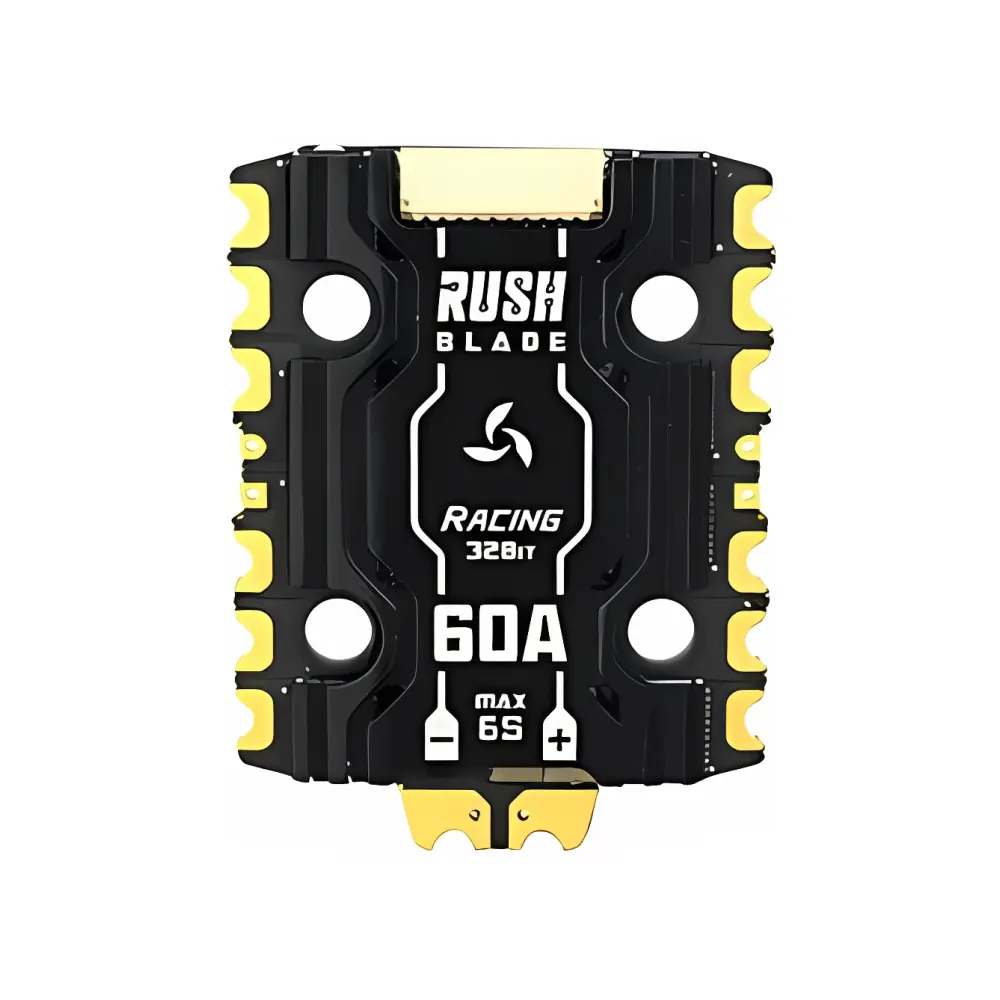

RUSHFPV Rush Blade Racing 32Bit 60A 3-6S 48kHz 20x20 4in1 ESC

About Rush Blade 60A 3-6S 48kHz BLHeli_32 4-in-1 ESC:

The Rush Blade 60A 3-6S 48kHz BLHeli_32 4-in-1 ESC Racing Edition by RUSHFPV features, front & back special process aluminum shell, BLHeli_32 Firmware, 24kHz-48KHz PWM frequency 3oz dual board and 40V rated MOSFET.

RushFPV

Pro Pilot’s ChoiceBuilt to LastLow Stock

$ 103.99 ~~$140.99~~

-26%

5.0 | 0Sold

Options (1)

32Bit 60A 3_6S 48kHz 20x20 4in1 ESC

$6 Off Orders $169+

$10 Off Orders $269+

Get

Quantity

In Stock Expected ship within 7 days after order.

Free Shipping | For orders over $99

2 Years Warranty | Hassle-free 24-month warranty

Easy Return and Exchange | Return within 15days

Professional Support | 24-hour response

Payment | Every order you place with us is safe & secure

Copy

Description

FAQ

● 60A Continuous Power, 85A Burst – Strong, reliable output for high-thrust builds.

● BLHeli_32 32-Bit Firmware – Smooth throttle and high PWM up to 48kHz.

● 3–6S LiPo Support – Perfect for 5″ racing, freestyle, and heavy-load quads.

● 20×20mm Mounting – Compact and lightweight for tight frame installs.

● Telemetry & Multi-Protocol – Supports DShot, OneShot, MultiShot and provides real-time ESC feedback.

Features

● BLHeli_32 firmware is the third generation of BLHeli firmware, following base BLHeli and BLHeli_S.

● Supports up to 48K PWM frequency, so the response speed is faster and smoother, reducing mid-throttle oscillations.

● Equipped with double-sided lightweight metal armor to avoid hardware damage caused by crashes, and the armor can effectively assist the MOSFET to dissipate heat.

● Double PCB board design, high current circuit, and signal circuit are independent of each other.

● All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also causing active freewheeling.

● Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).

● Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power-up, No need for throttle calibration.

● All codes use damped light mode. Damped light mode does regenerative braking, causing very fast motor retardation, and inherently also causing active freewheeling.

● Supports beacon functionality, where the ESC will start beeping after a given time of zero throttles. This can be very useful for finding a lost drone.

Specifications

● Rated Current: 60A

● Peak Current: 70A

● Input Voltage: 3-6S Lipo

● PWM FREQ: 24-48KHz

● Weight：15.5g

● Dimension: 43.5*33*9mm

● BL32 FW: RUSH_BLADE_RACING

Includes

● 1 x RUSHFPV Rush Blade Racing 32Bit 60A 3-6S 48kHz 20x20 4in1 ESC
