Powerful 4-in-1 ESC – 45A continuous and 65A burst current per ESC delivers reliable power for FPV quads.
BLHeli32 Firmware – Advanced 32-bit BLHeli32 firmware provides smooth motor control and precise tuning options.

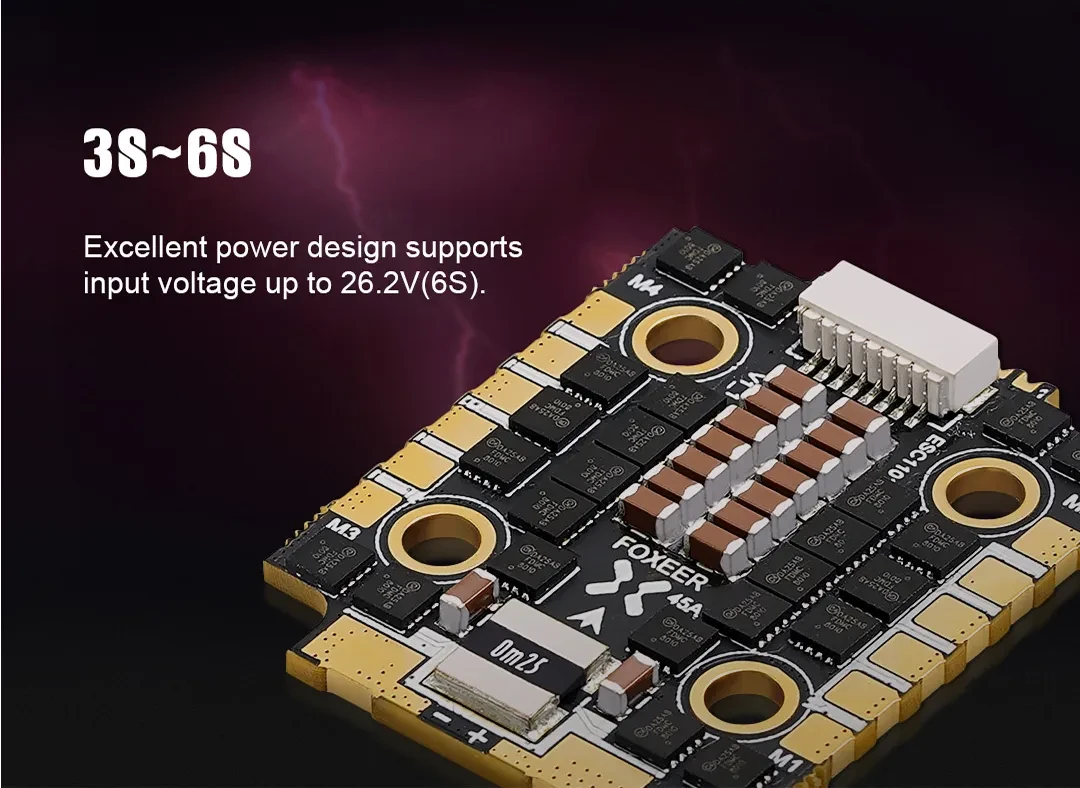

3–6S LiPo Compatible – Supports 3S to 6S LiPo input (10V–26.2V) for versatile quad setups.
Telemetry & Signal Support – Works with DShot (150/300/600/1200), OneShot and MultiShot protocols, plus telemetry feedback.
Compact & Lightweight – Designed for tight builds with 20×20 mm mounting and just 10 g weight.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ
Powerful 4-in-1 ESC for FPV Performance

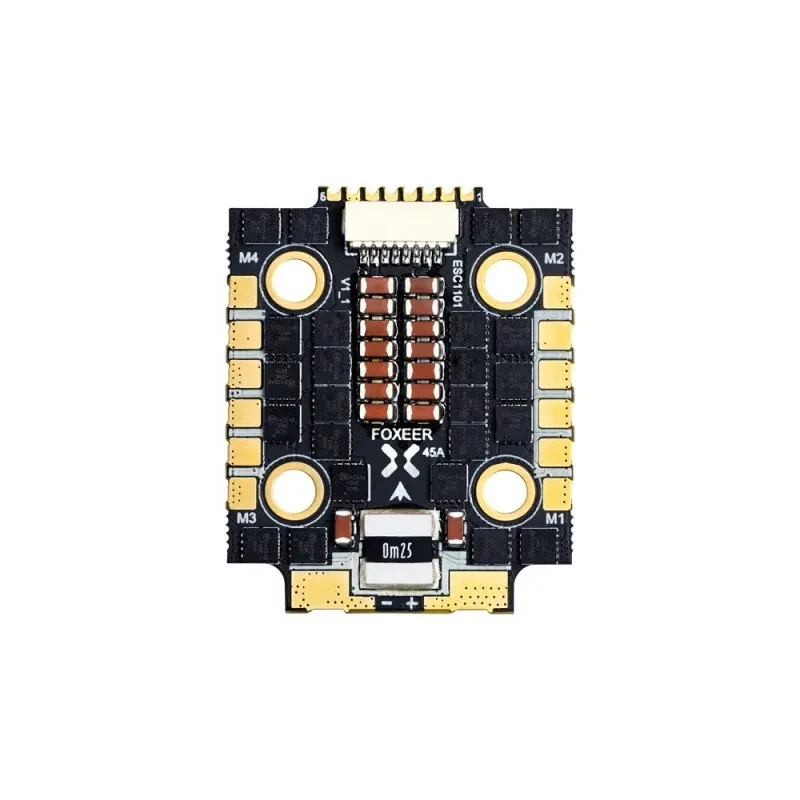

Foxeer Mini Reaper 128K 45A 4-in-1 ESC combines four ESCs into a compact 20×20 mm footprint with a continuous 45A rating and 65A burst capacity per channel, delivering the power needed for aggressive FPV flight and demanding motor loads.
Specifications
Firmware
FOXEER_ReaperMini4IN1_45A_128_Multi_32_8
Continuous /Burst Current
45A*4 / 65A*4
Input Voltage
DC 10V~26.2V (3-6S Lipo)
BEC
No
Telemetry
Supported
ESC Programming
BLHeli32
Input Signal
DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc.
Working Temperature
-20℃ ~ +55℃
Working Humidity
20～95%
Storage Temperature
-20℃ ~ +70℃

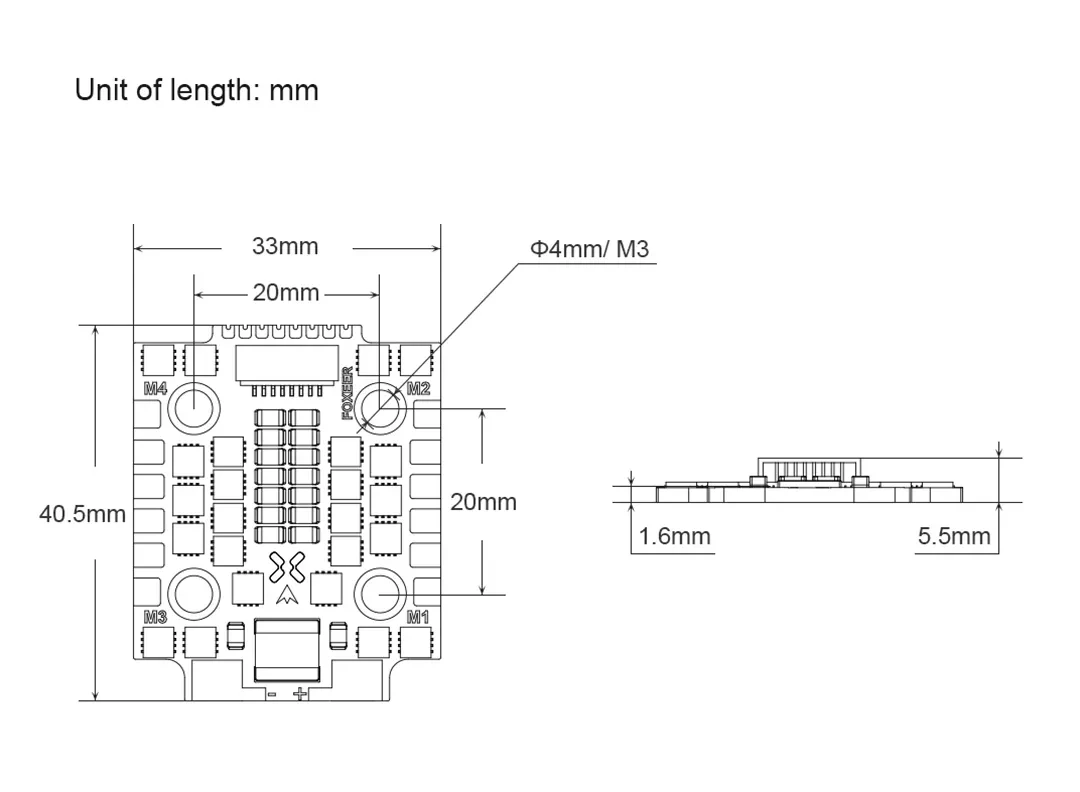

Mounting Hole
20×20mm, Φ4mm/ M3
Dimension
40.5×33×5.5mm
Weight
10g
Recommendations:
FAQFeel free to ask us any questions
ASK A QUESTION
What battery voltage range does this ESC support?
It supports 3-6S LiPo (DC 10 V to 26.2 V) for flexible configuration in FPV builds.
What is the continuous and peak current rating?
Rated at 45A continuous and 65A burst per ESC, suitable for strong thrust motors.
What signal protocols are compatible?
Compatible with DShot (150/300/600/1200), OneShot, and MultiShot for wide controller support.
