NewiFlight Borg 5S 60R ( 60A 4-in-1 esc BL32) 3-8S Stack

About iFlight Borg 5S 60R 3-8S Stack:

Introducing the All-New Borg Series – Power Meets Precision!

The Borg 5S RX FC Flight Controller isspecifically designed for racing fpv, providing unmatched performance. This innovative controller features a built-in ELRS 2.4GHz receiver and an integrated antenna, ensuring a reliable connection and enhanced control during your flights.

Additionally, the Borg 5S RX FC offers the flexibility to support external receivers, allowing you to customize your setup to meet your individual racing needs. Elevate your racing experience with the cutting-edge technology of the Borg Series!

Check out our stack, all FPV Flight Controller Collection and the rest of our MEPS Products!

Extra 6% Off
Collect
$ 82.99 $113.49
-27%
4.9 | 100+Sold
Options (1)
iflight borg 5s 60r 60a esc bl32 3 8s
Stack
Quantity
Add-ons
Bundle and save up to $2.15 on gear — upgrade your setup for less.
T-Hobby F60PRO V 2207.5 Brushless Racing Motor
T-HOBBY F60PRO V 2207.5 Brushless Racing Motor for 5 inch FPV Drones
2550KV
$24.75 Save $2.15
In Stock Expected ship within 5 days after order.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
Built-in 2.4GHz ELRS receiver reduces wiring complexity and simplifies installation.
60A BL32 4-in-1 ESC delivers smooth, reliable power for racing and freestyle drones.
AT32F435 flight controller ensures fast processing and precise flight performance.
TVS protection and anti-spark design help protect electronics from voltage spikes.
Compact 20×20 mounting with 4-8S support offers flexibility for various FPV builds.
Payment | Every order you place with us is safe & secure
Share
Copy

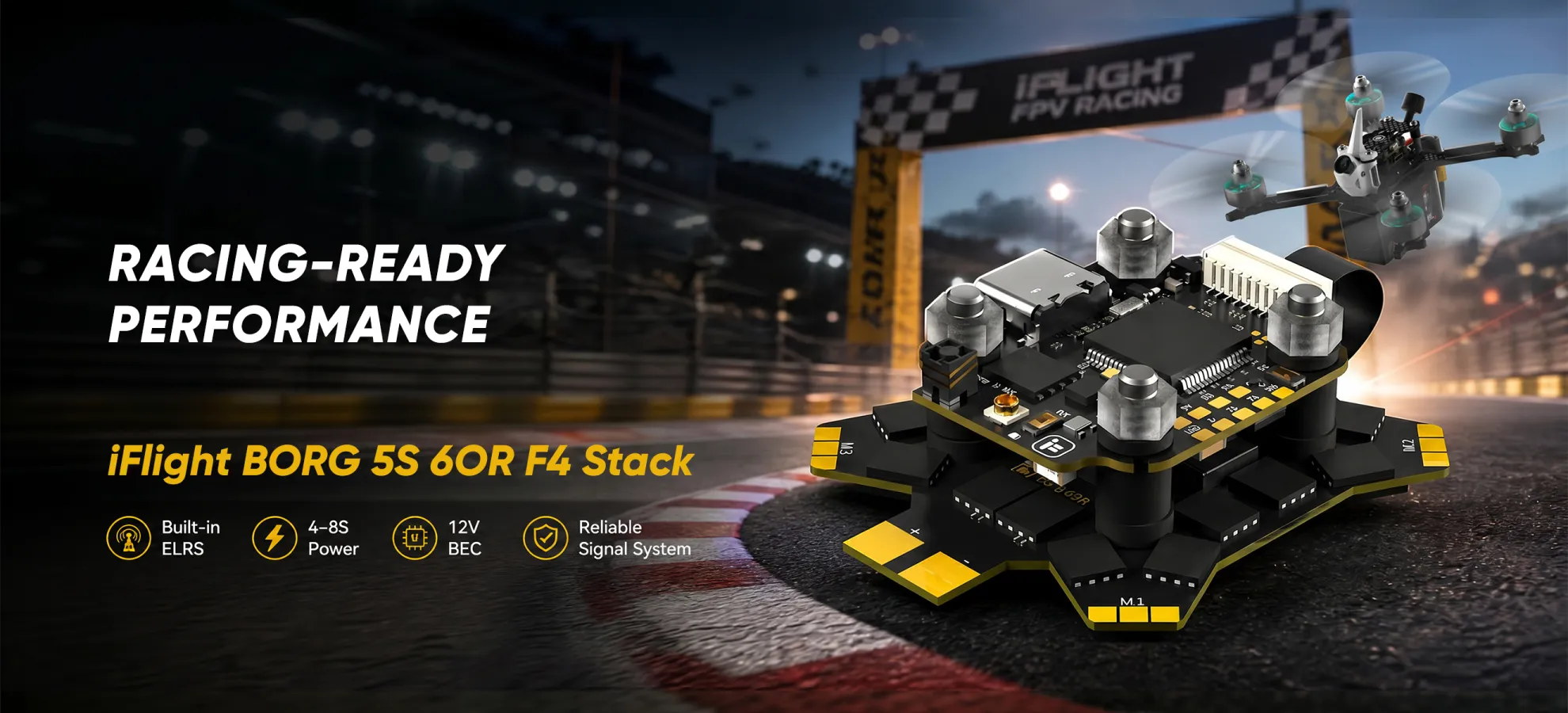

iflight borg 5s 60r stack racing ready pc h5

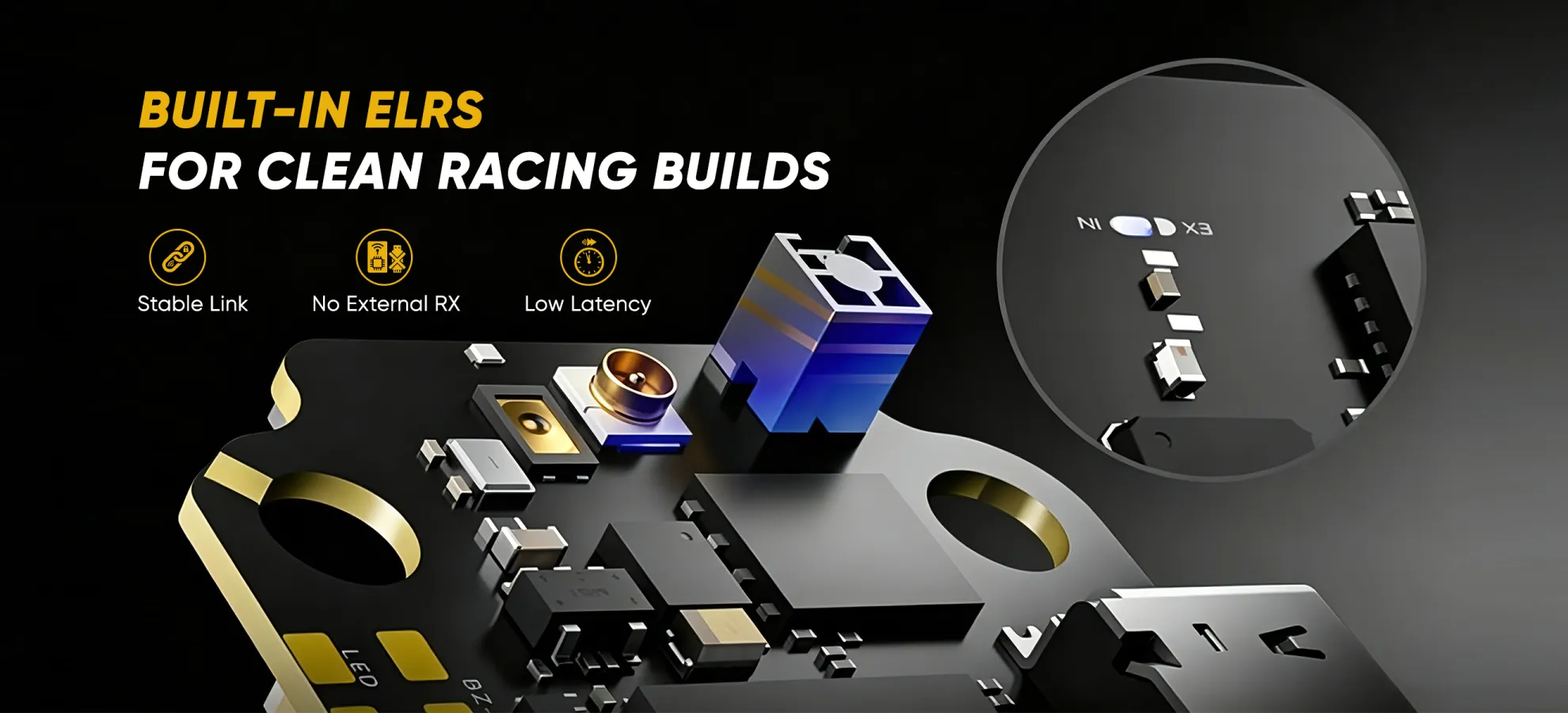

Built-in ELRS for Clean Racing Builds

Built-in 2.4GHz ELRS receiver with onboard antenna delivers stable low-latency control, while also supporting external antennas for greater flexibility, reduced wiring, and lighter builds.

iflight borg 5s 60r stack built in elrs pc h5

4–8S Wide Voltage Compatibility


Supports 4S to 8S LiPo batteries, enabling flexible setups from lightweight builds to high-power FPV racing configurations.

iflight borg 5s 60r stack 4 8s wide voltage pc h5

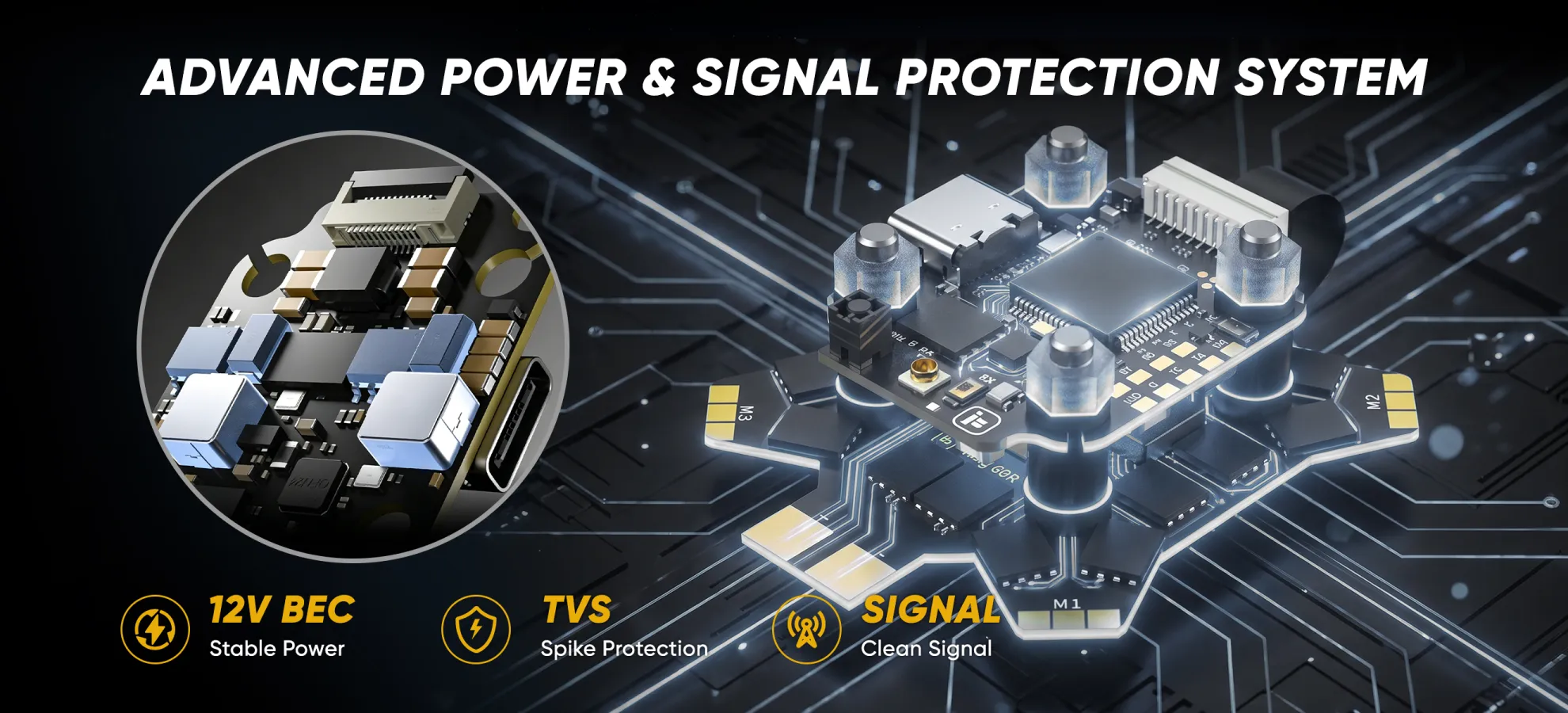

Advanced Power & Signal Protection System


Built-in 12V BEC, TVS protection, and anti-interference design ensure stable power delivery and protect sensitive FPV electronics.

iflight borg 5s 60r stack advanced power pc h5

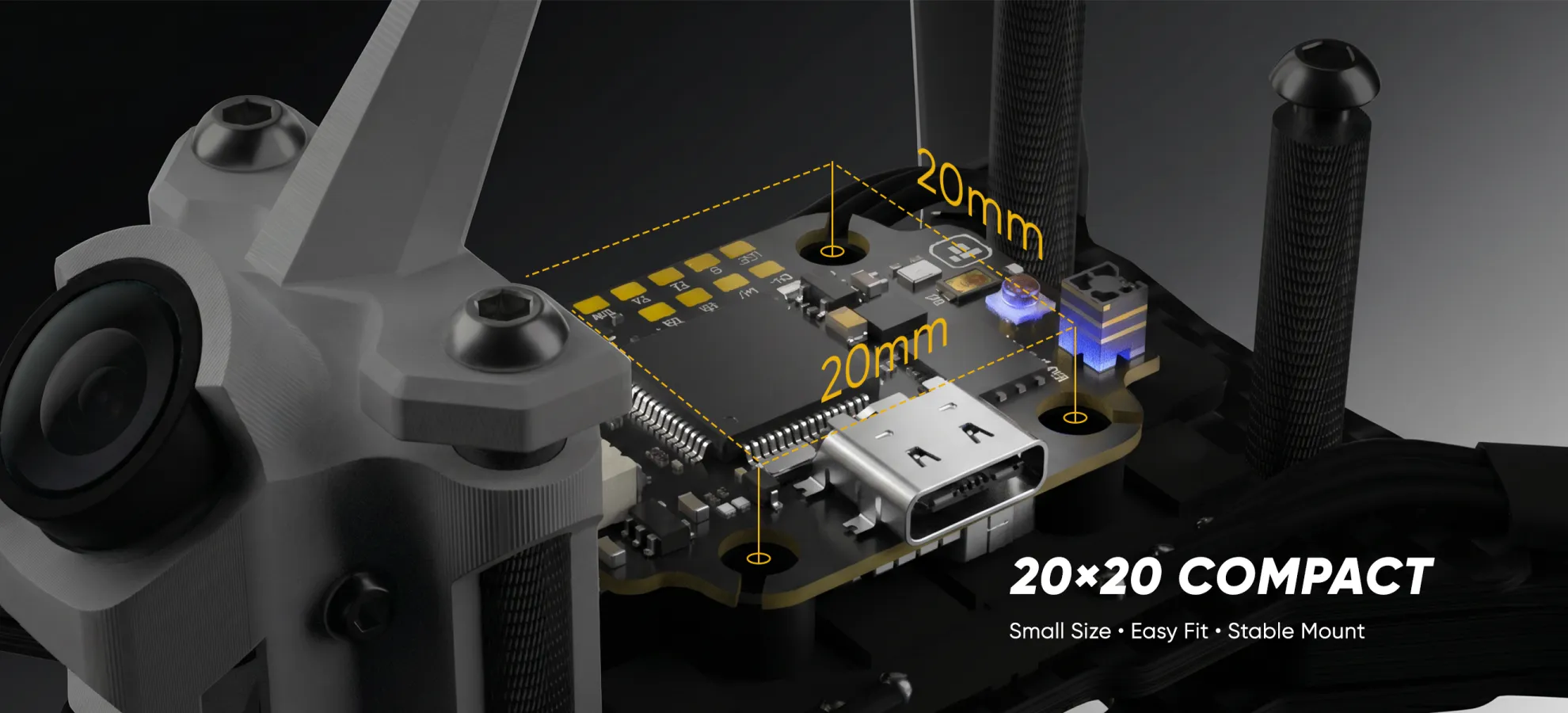

Racing-Optimized Compact 20×20 Stack


Lightweight 20×20 mounting design with FPC + SH1.0 connectors ensures secure installation and reliability for high-vibration racing environments.

iflight borg 5s 60r stack common size pc h5

Flight Controller Specifications

Input voltage: 4-8S; Support LIHV battery

MCU: AT32F435RGT7

Gyro: ICM42688 Barometer: N/A

OSD Chip: AT7456E

Flash: 16MB (Blackbox flash)

UARTS: 4 Motor outputs: 4

I2C serial: Not supported

VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero

LED controller: Yes

Beeper pad: Yes

Firmware target: IFLIGHT_BLITZ_ATF435(Betaflight)

Mount pattern: 20*20φ4

Dimensions: 34*27mm±1

Total Weight: 20.6g±1

BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

ESC Specifications

Product Name: Borg 60R ESC

Input Voltage: 3-8S; Support LIHV battery

Max. Continuous Current: 60A

Max. Burst Current: 65A (10s)

MCU: STM32G071N

Driver: FD6288

Firmware: BL32 (32bit ESC)

Target: IFLIGHT_BLITZ_G3 32.9

Current Sensor: N/A BEC: N/A Telemetry: Supported

Bidirectional DSHOT: Supported

Dimensions: 45*52mm±1

Mounting Holes: 20 x20 mm/Φ4mm

Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.

Wiring Suggestion

UART 1 for VTX HD / Analog

UART 2 for ESC Telemet

UART 4 for Built-in ELRS receiver/SBUS input

UART 5 for GPS or other sensors that require a serial port

Recommendations

Packing List

1 x Borg 60R ESC

1 x Borg 5S RX Flight Controller

1 x Cable set

5 x silicon grommets

Note: iFlight product is for fun purposes only and does not support autonomous flight.
