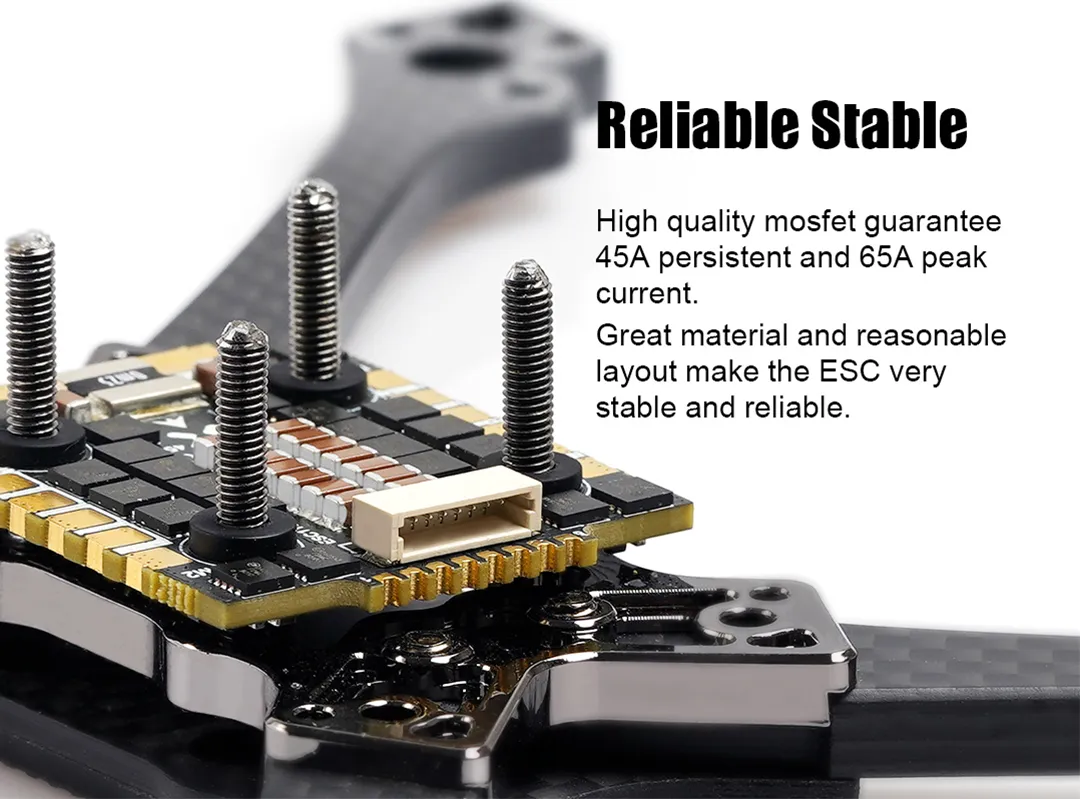

Powerful 4-in-1 ESC – 45A continuous and 65A burst current per ESC delivers reliable power for FPV quads.
BLHeli32 Firmware – Advanced 32-bit BLHeli32 firmware provides smooth motor control and precise tuning options.

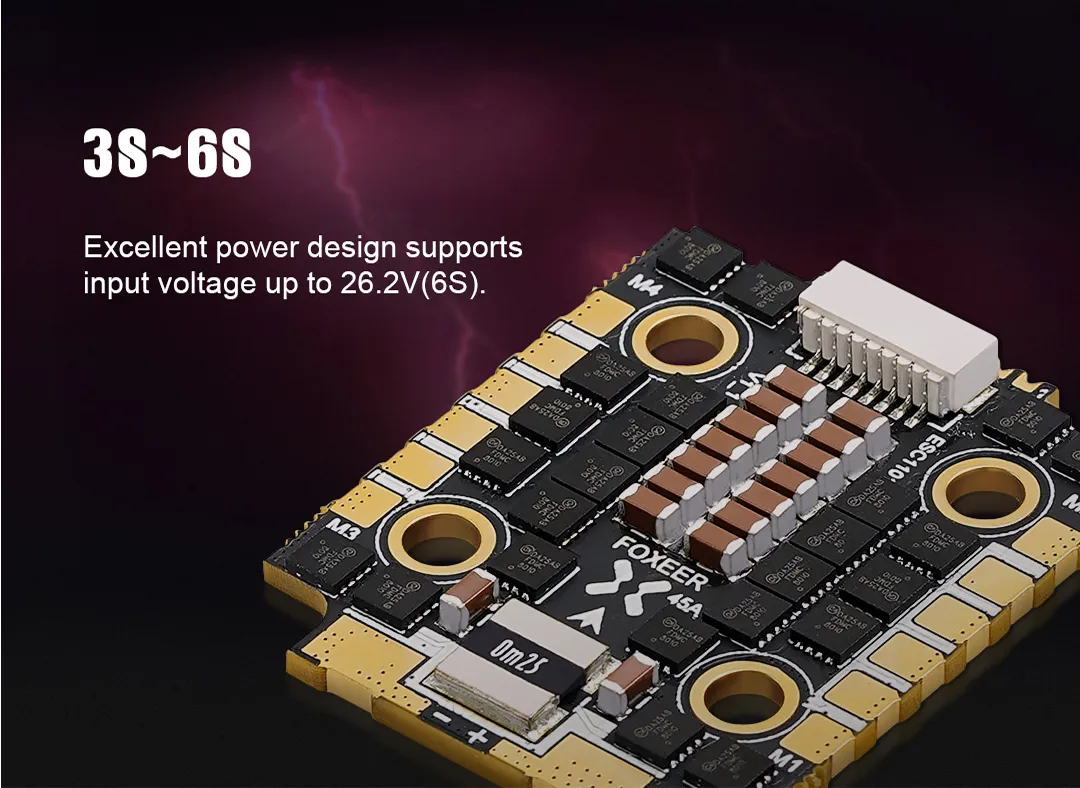

3–6S LiPo Compatible – Supports 3S to 6S LiPo input (10V–26.2V) for versatile quad setups.
Telemetry & Signal Support – Works with DShot (150/300/600/1200), OneShot and MultiShot protocols, plus telemetry feedback.

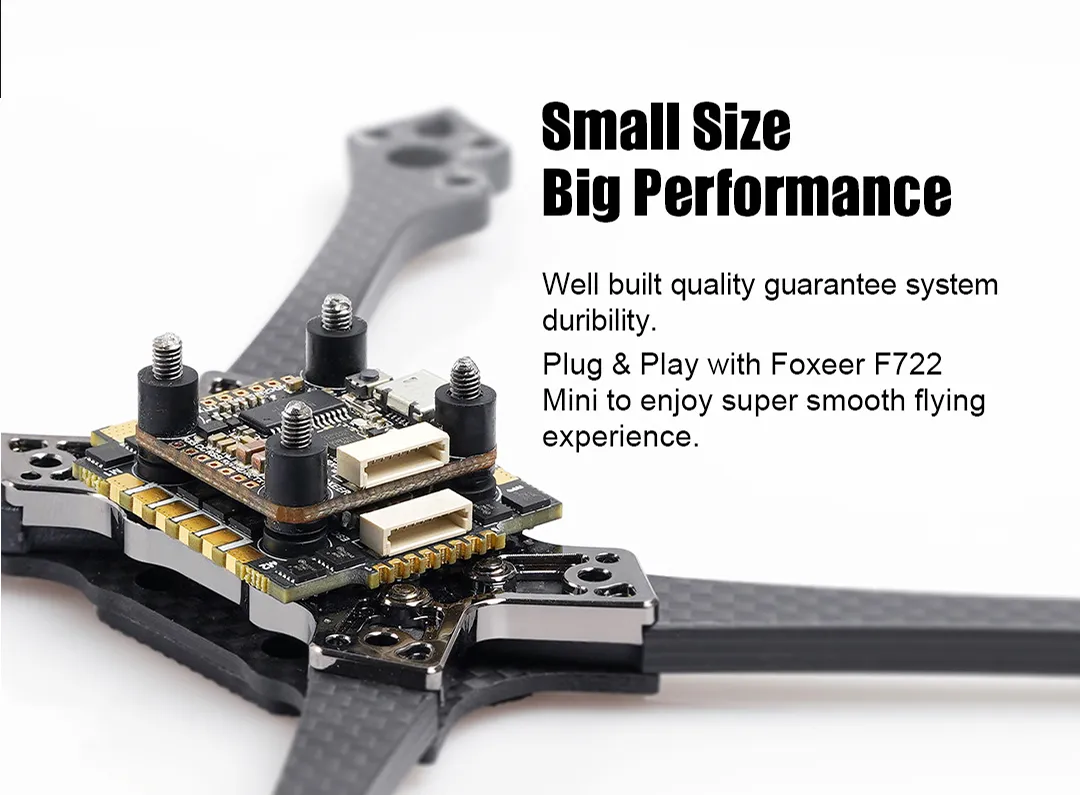

Compact & Lightweight – Designed for tight builds with 20×20 mm mounting and just 10 g weight.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ
Powerful 4-in-1 ESC for FPV Performance

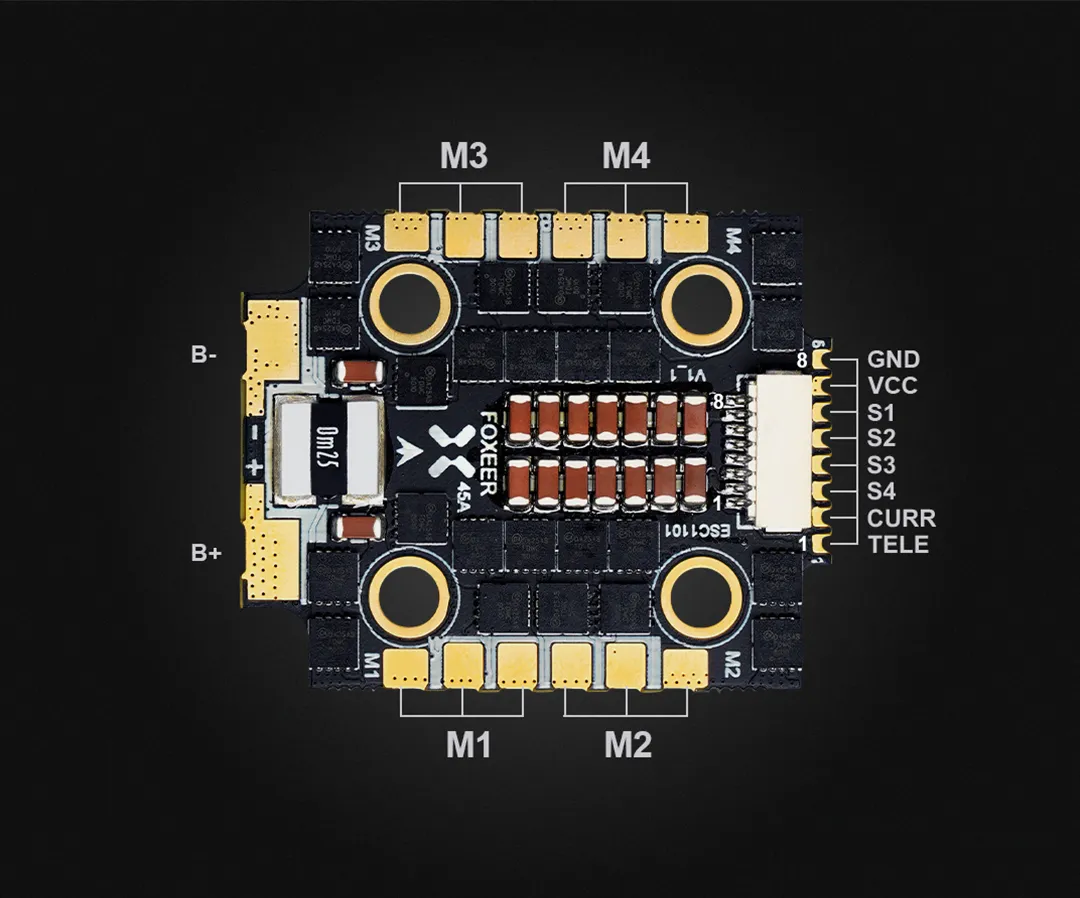

Foxeer Mini Reaper 128K 45A 4-in-1 ESC combines four ESCs into a compact 20×20 mm footprint with a continuous 45A rating and 65A burst capacity per channel, delivering the power needed for aggressive FPV flight and demanding motor loads.
Specifications
Firmware
FOXEER_ReaperMini4IN1_45A_128_Multi_32_8
Continuous /Burst Current
45A*4 / 65A*4
Input Voltage
DC 10V~26.2V (3-6S Lipo)
BEC
No
Telemetry
Supported
ESC Programming
BLHeli32
Input Signal
DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc.
Working Temperature
-20℃ ~ +55℃
Working Humidity
20～95%
Storage Temperature
-20℃ ~ +70℃

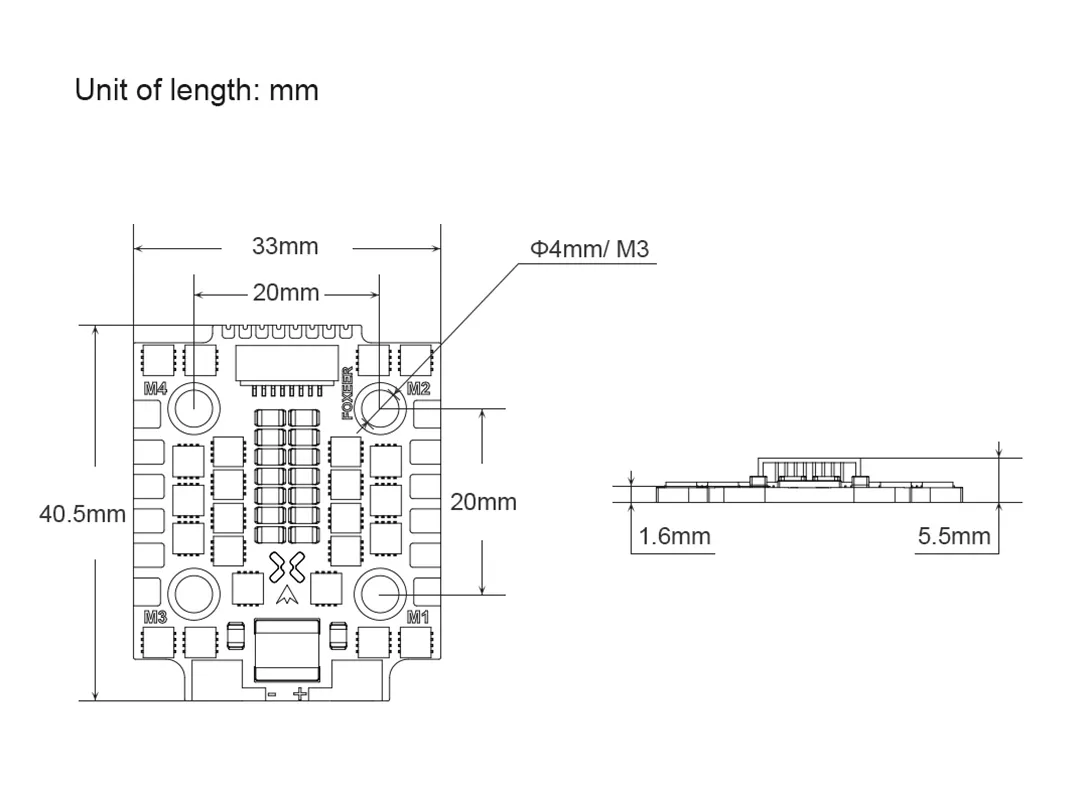

Mounting Hole
20×20mm, Φ4mm/ M3
Dimension
40.5×33×5.5mm
Weight
10g
Recommendations:
Reviews
E*********k
Verified
Good product. Tracking info from Mepsking was clear.
Options：Mini Reaper 128K 45A BL32 4in1
FAQFeel free to ask us any questions
ASK A QUESTION
Q: What is this ESC best for?
A: High-performance 5-inch freestyle and racing FPV drones.
Q: What makes the Mini Reaper special?

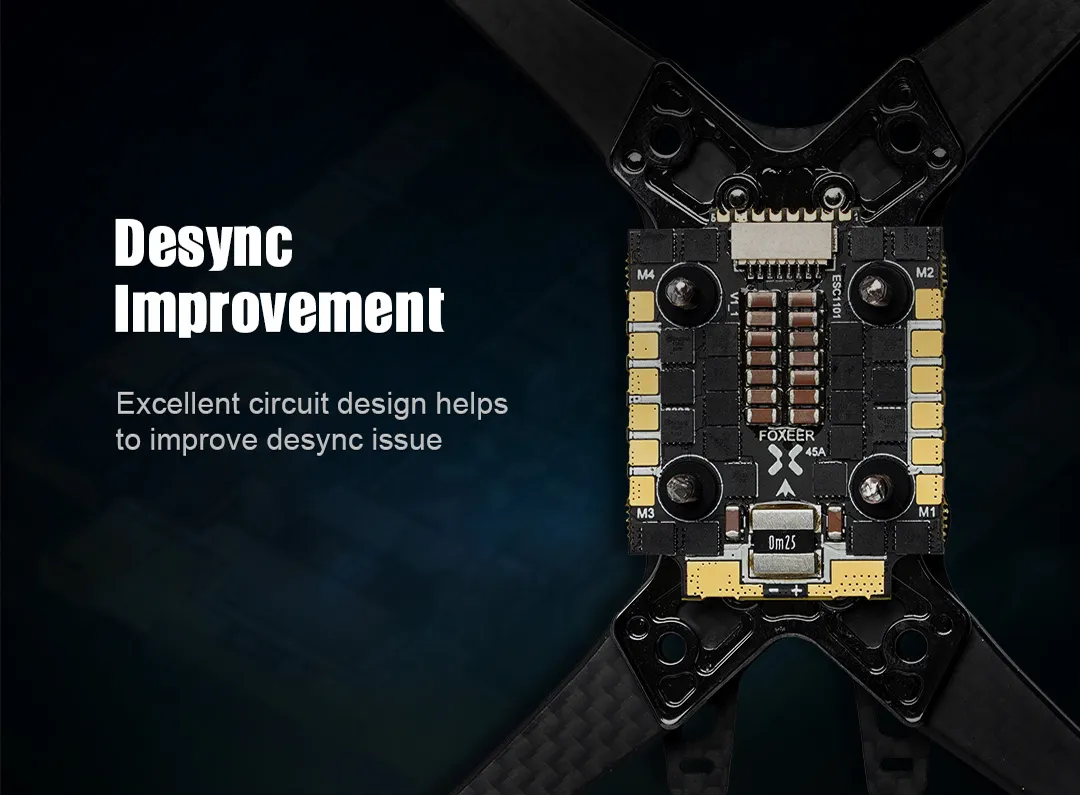

A: Strong current handling and improved desync protection.
Q: Is it suitable for beginners?
A: Not recommended for beginners due to tuning sensitivity.
