When choosing a motor for your drone, RC car, or other brushless applications, one of the most important specifications you’ll encounter is KV rating. Beginners often get confused about what KV means, how it’s measured, and which KV is the right choice for their build.
In this comprehensive guide, we’ll explain everything you need to know about motor KV:
- What KV means in brushless motors
- How KV is calculated
- The difference between high KV vs low KV motors
- How KV affects speed, torque, and efficiency
- How to choose the right KV motor for drones
- Common misconceptions about KV rating
- FAQs to answer the most common questions
By the end of this article, you’ll clearly understand how KV impacts performance—and you’ll know how to select the right motor for your FPV drone or RC project.

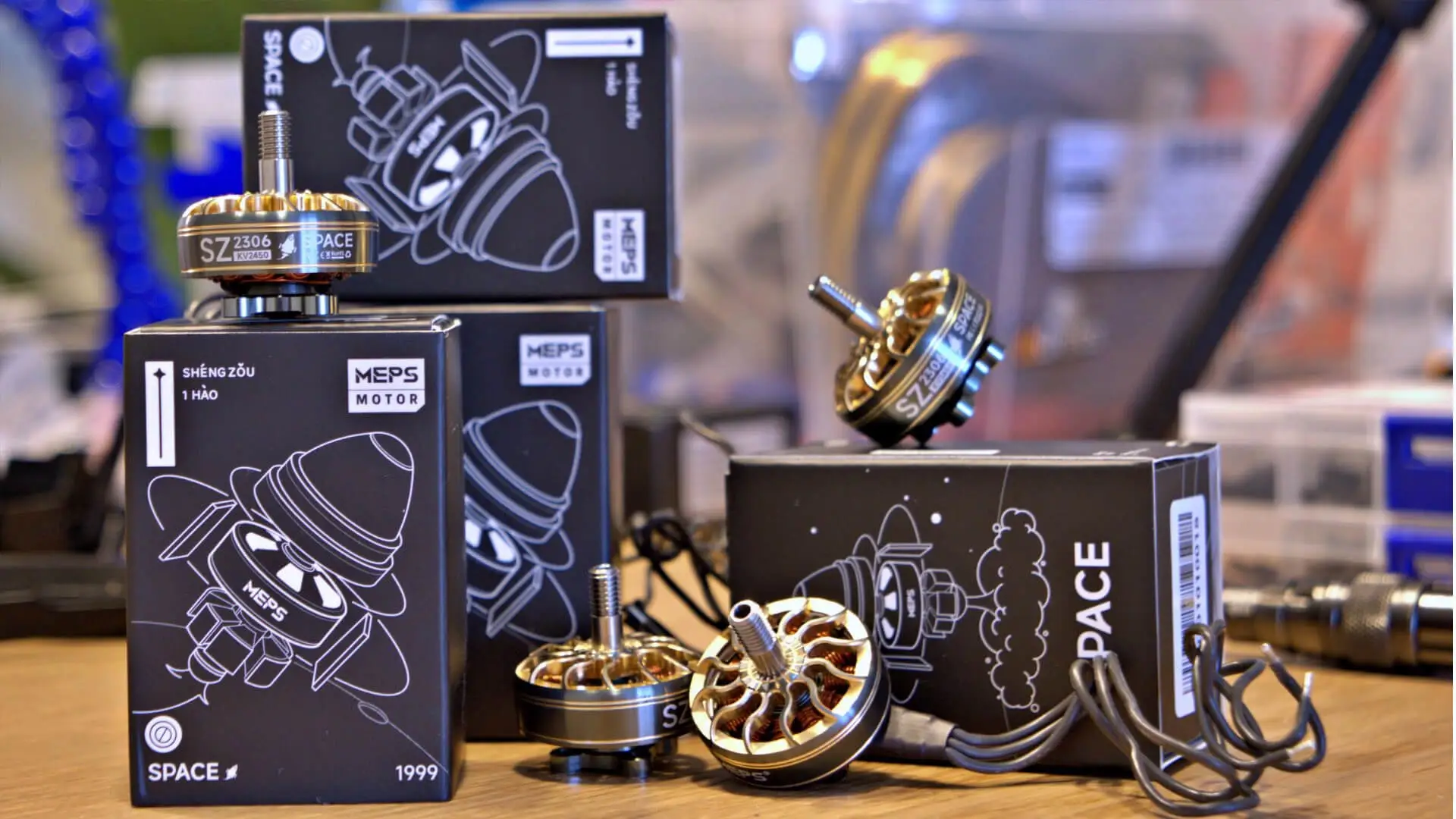

What is KV of motor?
When a motor is given 1V (one volt) without any load (such as a propeller attached to the motor), the number of revolutions per minute (rpm) that the motor rotates is “KV”. For instance, without propellers installed, a 2300kv brushless motor running on a 3S LiPo battery (12.6V) will rotate at about 28,980 RPM (2300 x 12.6). Usually, the motor manufacturer specifies motor KV as a preliminary estimate.
Example:
- kV=RPM per 1 Volt
- k= The kV rating of the motor e.g, 2300
- V = Voltage input e.g. 12.6v
RPM=KV×Voltage=2300(kV rating) X 12.6(Voltage) = 28,980(Revolutions Per Minute)
Keep in mind that this is a theoretical maximum speed. Once propellers, air resistance, and load are introduced, the actual RPM will be lower. Here are more examples.
| Motor KV | Battery Voltage (V) | No-load RPM (KV × V) |
|---|---|---|
| 1000 KV | 12.6V | 12,600 RPM |
| 2300 KV | 14.8V (4S) | 34,040 RPM |
| 1750 KV | 22.2V (6S) | 38,850 RPM |
| 2700 KV | 11.1V (3S) | 29,970 RPM |
How is Motor KV Calculated?
Motor KV is determined by the motor’s physical characteristics:
- Number of windings in the stator – More windings = lower KV; fewer windings = higher KV.
- Magnetic strength of the rotor magnets – Stronger magnets generally lower KV.
- Motor design & efficiency – Core material, resistance, and construction affect the final KV rating.
This is why two motors of the same size (e.g., 2306 motors) can have different KV values depending on how they are wound and designed.
High KV vs Low KV Motors: What’s the Difference?
The main decision for drone pilots and RC hobbyists is whether to choose a high KV or low KV motor. Each has its strengths and weaknesses.
Speed and RPM
- High KV motors spin faster, providing higher top speed.
- Low KV motors spin slower but deliver more stable RPM.
Torque and Efficiency
- High KV motors produce less torque, making them less efficient with large propellers.
- Low KV motors provide higher torque, allowing them to handle larger props more efficiently.
Battery Voltage Considerations
- High KV motors are often paired with lower voltage batteries (3S–4S).
- Low KV motors work best with higher voltage batteries (6S–8S).
Comparison Table: High KV vs Low KV Motors
| Feature | High KV Motor | Low KV Motor |
|---|---|---|
| RPM | Higher (faster rotation) | Lower (slower rotation) |
| Torque | Lower torque | Higher torque |
| Efficiency | Less efficient with large props | More efficient with larger props |
| Battery Usage | Higher power consumption | Lower power consumption |
| Best For | Racing, freestyle, acrobatic flying | Long range, cinematic, carrying payload |
Motor KV vs. Torque Constant
Although motor KV has an effect on the torque constant, it does not directly alter torque. The amount of current needed to generate a specific amount of torque is determined by a motor’s torque constant. The real torque produced is unaffected by motor KV; coil resistance, air gap, and magnet strength all have a far greater impact on torque generation.
In comparison to lower KV motors, higher KV motors require more current to produce the same amount of torque due to their greater torque constant. The higher KV motor needs more current to produce the same amount of torque, which causes extra losses in the battery, ESC, and cables. Furthermore, less magnetic flux is produced, and the motor becomes hotter as a result of the increased current. In general, if you were to fly at the same speed as the lower KV engine, the higher KV motor would be less efficient.
As a result, it’s wise to strive to keep KV reasonable rather than excessive. This is particularly crucial when constructing a long-range rig when efficiency and flight time are given first priority.
| KV Rating | Thrust | Efficiency | Torque | Heat Generation | Application |
|---|---|---|---|---|---|
| Low KV (1000–1600) | Medium | High | High | Low | Long-range / Cinewhoop |
| Mid KV (1700–2300) | Balanced | Balanced | Balanced | Medium | Freestyle / General FPV |
| High KV (2400–2700+) | High | Low | Low | High | Racing / Lightweight Builds |

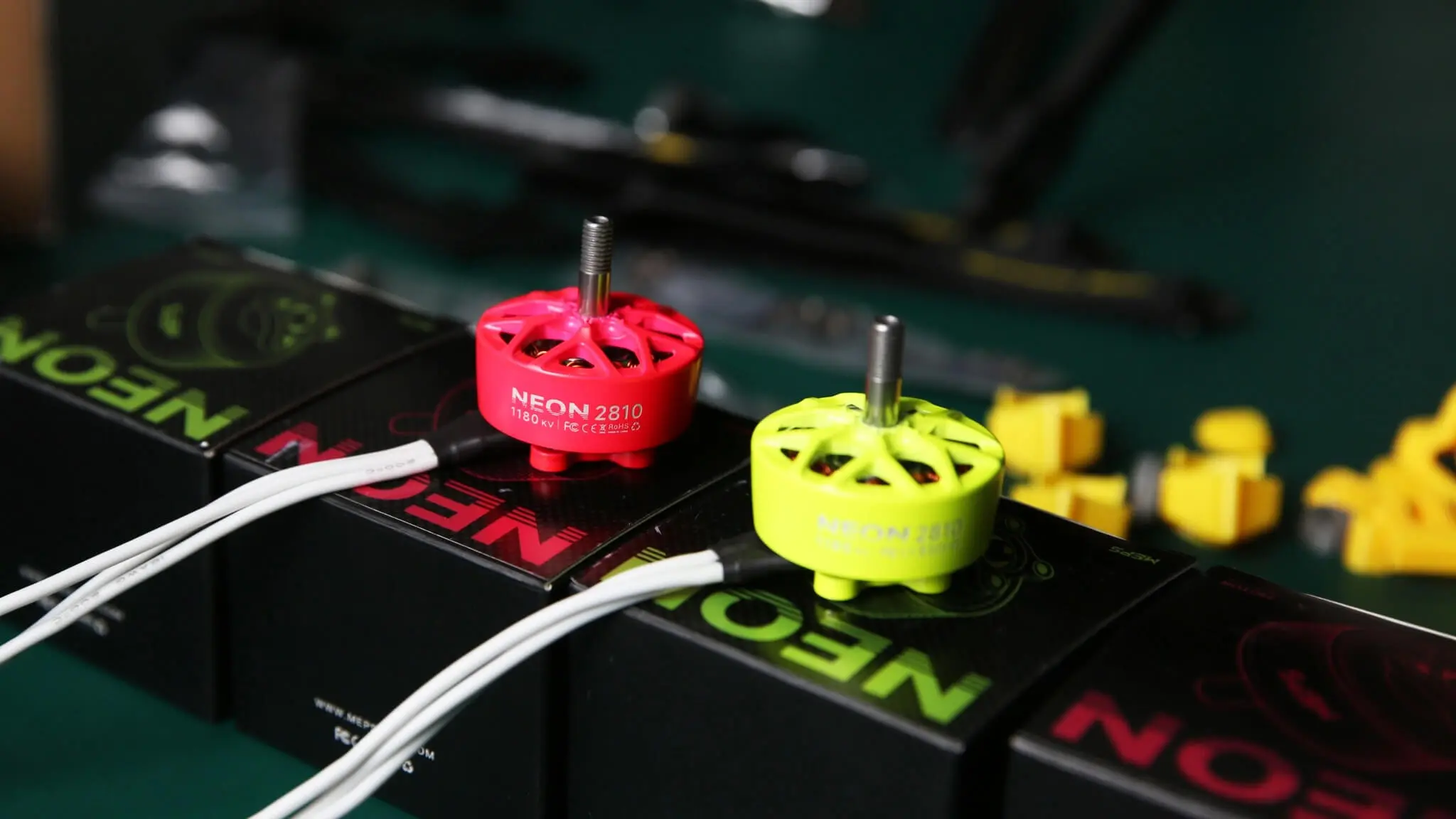

How to Choose the Right KV Motor for Drones
Selecting the correct KV motor depends on your drone type, flying style, propeller size, and battery setup. Choosing the wrong KV can result in inefficiency, overheating, poor flight time, or even motor damage. Let’s break it down by drone category:
FPV Racing Drones
- Typical motors: 2300KV – 2800KV (commonly on 2205, 2207, or 2306 stators)
- Battery setup: 4S (14.8V) is standard, though some racers use 6S with slightly lower KV (1900KV–2100KV).
- Purpose: Maximum agility, explosive acceleration, and lightning-fast response.
High KV motors are favored in FPV racing because they spin small to medium-sized props (like 5-inch 5045 or 51499) at very high RPM, giving instant throttle response. The downside is shorter flight times and increased battery demand. Racing builds typically sacrifice efficiency for pure performance.
Example: A 2306 2400KV motor on 4S with 5-inch props can hit speeds of 150+ km/h in competitive races.
Cinematic FPV Drones (Cinewhoops & Freestyle)
- Typical motors: 1500KV – 2300KV (varies with prop size, usually 3–5 inch props)
- Battery setup: 4S–6S depending on weight and style.
- Purpose: Smooth and stable footage, balanced power-to-efficiency ratio.
Cinematic FPV drones prioritize stability and control rather than raw speed. Lower KV motors paired with higher voltage batteries give more torque to handle heavier GoPros or naked cameras. Cinewhoops often use ducted frames, which add drag, so lower KV motors with higher torque are essential for steady hover and smooth throttle curves.
Example: A 2004 1700KV motor on 6S is a popular cinewhoop choice, providing enough torque to lift a GoPro Hero 11 while maintaining 5–7 minutes of stable flight.
Long Range Drones
- Typical motors: 1000KV – 1800KV (common in 7-inch or 8-inch builds)
- Battery setup: 6S–7S for higher efficiency over distance.
- Purpose: Endurance, stability, and carrying larger batteries.
For long-range flights, efficiency is key. Lower KV motors spinning larger propellers (7–10 inches) allow drones to cruise at mid-throttle with minimal current draw. This extends flight time to 20–40 minutes depending on battery capacity. These builds are designed for exploration, mapping, or cinematic mountain dives where distance matters more than speed.
Example: A 2807 1300KV motor on 7S with 8-inch props can provide a balance of thrust and efficiency, keeping amp draw under control during long missions.
Tiny Whoops & Micro Drones
- Typical motors: 15,000KV – 20,000KV (brushed or brushless)
- Battery setup: 1S (3.7V), sometimes 2S for more powerful toothpick builds.
- Purpose: Indoor flying, agility, playful freestyle.
Micro drones like Tiny Whoops need very high KV motors because they use tiny 31–40mm props on low-voltage batteries. A high KV ensures enough RPM to stay responsive in tight indoor spaces. These drones are designed for fun, safety, and quick maneuvers, not efficiency. Flight times are usually short (2–4 minutes), but they excel in portability and low cost.
Example: A 0802 19,000KV motor on 1S is ideal for a 65mm whoop, providing snappy throttle for indoor freestyle.
Key Takeaways for Choosing Motor KV
- Match KV to Prop Size: Larger props = lower KV; smaller props = higher KV.
- Match KV to Voltage: Higher cell count (6S–7S) pairs with lower KV; lower cell count (3S–4S) pairs with higher KV.
- Match KV to Flight Style: Racing = high KV; Long range = low KV; Cinematic = mid-to-low KV.
By balancing KV, propeller size, and voltage, you’ll maximize both performance and efficiency for your specific drone build.
In the gollowing chart, it reveals the relationship between motor kv and pro size, cell, motor size and lipo battery in detail.
| Pro | Style | Cell | brushless motor sizes Motor Size | Motor kv | LiPo Battery (mAh) |
| 31mm Whoop | 1S | 0603, 0802 | 18000-25000 | 300-450 | |
| 2S | 0802 | 12000 | 300 | ||
| 40mm Whoop | 1S | 0802, 1102 | 15000-18000 | 450 | |
| 2S | 0802, 0806, 1103 | 10000-16000 | 300-450 | ||
| 3S | 1102, 1103 | 8000-11000 | 300-450 | ||
| 2″ Triblade | 2S | 1103, 1105, 1106 | 6000-11000 | 300-450 | |
| 3S | 1104, 1105, 1106 | 5500-7500 | 300-450 | ||
| 4S | 1105, 1106 | 5000-6000 | 450-650 | ||
| 2.5″ Triblade | 2S | 1104 | 5000-6000 | 300 | |
| 3S | 1106 | 4500 | 650 | ||
| 4S | 1304, 1404 | 4500-5000 | 450-850 | ||
| 2.5″ Two-Blade (65mm) | Ultralight | 1S | 1102 | 13500 | 300 |
| Ultralight | 2S | 1103, 1104 | 7000-10000 | 450-520 | |
| Ultralight | 3S | 1104, 1105, 1106, 1203, 1204 | 6000-8000 | 300-650 | |
| Ultralight | 4S | 1104, 1105, 1106, 1203, 1204 | 4000-4500 | 450 | |
| 3″ Triblade | Freestyle | 2S | 1404 | 4500-5000 | |
| Freestyle | 3S | 1407, 1408, 1507 | 3500-4500 | 550-850 | |
| Freestyle | 4S | 1306, 1407, 1408, 1507, 1606 | 3000-4200 | 450-1000 | |
| Freestyle | 6S | 1408, 1507, 1606 | 2800-3000 | 550-650 | |
| 3″ Two-Blade | Long Range | 1S | 1103, 1202 | 11000 | Li-Ion 2500-3000mAh |
| Ultralight | 1S | 1103, 1202, 1202.5 | 11000-14000 | 450 | |
| Ultralight | 2S | 1105, 1106, 1203, 1204, 1303 | 6000-8000 | 450 | |
| Ultralight | 3S | 1105, 1106, 1108, 1203, 1204, 1207, 1303, 1304, 1404 | 4500-6500 | 300-450 | |
| Ultralight | 4S | 1105, 1106, 1108, 1203, 1204, 1207, 1303, 1304, 1404 | 3500-5000 | 450-550 | |
| 3″ Cinewhoop | 4S | 1404, 1408, 1507, 2203, 2204 | 3800-4600 | 850-1300 | |
| 6S | 1507, 2203, 2204 | 2800 | 850 | ||
| 4″ Triblade | Freestyle | 3S | |||
| Freestyle | 4S | 1407, 1507, 1606 | 3000-4000 | 850-1000 | |
| Freestyle | 6S | 1606 | 2000-3000 | 600-850 | |
| 4″ Two-Blade | Ultralight | 3S | 1306, 1404, 1406, 1408, 1504, 1505 | 3500-4500 | 650-850 |
| Ultralight | 4S | 1306, 1404, 1406, 1408, 1504, 1505 | 2500-3000 | 450-650 | |
| Long Range | 3S | 1404 | 3500-4000 | Li-Ion 2500-3000mAh | |
| Long Range | 4S | 1404 | 2500-3000 | Li-Ion 2500-3000mAh | |
| 5″ Triblade | Freestyle | 4S | 2306, 2207, 2306.5, 2207.5 | 2300 – 2700 | 1300-1500 |
| Freestyle | 6S | 2207, 2207.5, 2208, 2308 | 1700 – 1950 | 1000-1300 | |
| 5″ Two-Blade | Ultralight | 4S | 1606, 1806, 2004, 2204, 2205 | 2300-3000 | 750-1000 |
| Ultralight | 6S | 1606, 1806, 2004, 2204, 2205 | 1600-2300 | 450-700 | |
| 6″ | Freestyle | 4S | 2207, 2207.5, 2208, 2405, 2407, 2408 | 2100 – 2500 | 1300-1800 |
| Freestyle | 6S | 2207, 2207.5, 2208, 2405, 2407, 2408 | 1500-1800 | 1000-1500 | |
| 7″ | Freestyle | 6S | 2510, 2806, 2806.5, 2808, 3106.5 | 980-1450 | 2200 |
| Long Range | 4S | 2408, 2507, 2508, 2806, 2806.5 | 1700-1900 | Li-ion 2500-3000mAh | |
| Long Range | 6S | 2408, 2507, 2508, 2806, 2806.5 | 980-1450 | Li-ion 2500-3000mAh |
How to choose kv of motor for different sizes of propellers?
When selecting a motor KV for your FPV drone, propeller size plays a critical role in determining performance and efficiency.
- Smaller and lighter props (like 3” or 4”) are typically paired with higher KV motors. These motors spin faster, delivering quick throttle response and greater thrust at the cost of higher current draw and increased heat.
- Larger props (such as 6” or 7”) are better matched with lower KV motors, which provide more torque at lower RPM. This helps maintain efficiency and reduce the strain on your motor and ESC.
Attempting to spin a large propeller with a high KV motor can lead to overheating, inefficient power usage, and even hardware damage. This is because higher KV motors need more current to generate the additional torque required to turn heavier props, resulting in excessive thermal buildup.
Rule of thumb:
- Use high KV motors with small props and lighter builds (e.g., racing quads)
- Use low KV motors with larger props and heavier builds (e.g., long-range or cinematic drones)
Further reading: Tutorial Propellers: Choose Best Suitable Propellers for Your FPV
How to choose motor KV for different batteries?
Here are the Recommended Motor KV Ranges for Common Battery Setups
| Battery Type | Prop Size | Recommended KV Range | Typical Use Case |
|---|---|---|---|
| 4S (14.8V) | 5 inch | 2300 – 2700 KV | Freestyle / Racing |
| 6S (22.2V) | 5 inch | 1600 – 1900 KV | Freestyle / Long-Range |
| 6S (22.2V) | 7 inch | 1100 – 1500 KV | Long-Range / Efficiency-Focused Builds |
| 4S (14.8V) | 3 inch | 3000 – 4000 KV | Toothpick / Micro Freestyle |
| 3S (11.1V) | 2.5 inch | 3500 – 5000 KV | Ultra-light Micros |
The ideal KV range for a brushless motor depends on your battery voltage and propeller size. Higher KV motors spin faster but require more current, while lower KV motors offer better torque and efficiency for longer flights.
What is the best motor KV for 4S 5-inch FPV?
For your 5-inch freestyle, if you decide to go with 4S, pick a motor KV in the range of approximately 2300 to 2700.
| Battery | Motor KV | Prop Size | Use Case |
|---|---|---|---|
| 4S | 2300–2700 KV | 5 inch | Freestyle / Racing |
| 6S | 1600–1900 KV | 5 inch | Long-range / Cinematic |
What is the best motor KV for 6S 5-inch FPV?
Select a 5-inch FPV drone motor with a voltage range of 1600 kV to 1800 kV if you decide to use 6S. Take MEPS 2207, for example.
For the 6s FPV, if you want to fly more distance, the 1750kv motor is the best motor, because when the throttle reaches 100%, the current is 36.5A, which is lower than 46A. This may cause lower heat generation and more farther away.
For the 6s FPV, if you want to keep your FPV drone carrying more things, the 1950kv is the best motor kv, because when the throttle reaches 100%, the thrust is 1769.8g, which is higher than 1641.2g.
Common Misconceptions About KV Rating
- Higher KV = Always Better
Not true. A higher KV motor may give more speed, but it drains batteries faster and reduces efficiency. - KV = Motor Quality
KV is just a speed constant, not an indicator of quality. Build quality, bearings, and efficiency matter more. - Low KV Means Weak Performance
Low KV motors are not weak—they provide more torque, which is better for endurance, payloads, and stability.
FAQ
Q1: Is higher KV better for drone racing?
Not always. Higher KV motors spin faster but often produce less torque, which means they’re suitable for lighter props and smaller drones, especially when using 4S batteries. However, extremely high KV can cause inefficiencies, overheating, or reduced control. For racing, most pilots prefer motors in the 2400–2700KV range (for 5-inch 4S builds), balancing thrust and responsiveness without sacrificing efficiency or stability.
Q2: How do I choose the right KV for my FPV build?
To choose the right KV, consider your battery voltage, propeller size, and flying style:
- Freestyle on 6S: 1700–1900KV
- Freestyle on 4S: 2300–2500KV
- Racing on 4S: 2500–2700KV
- Long-range (efficiency-focused): 1500–1800KV
- Cinewhoop / heavy lift: Lower KV (1200–1600KV) with large props and high torque
Also, consider the motor’s stator size and build quality to ensure consistent performance. Matching KV correctly ensures balanced thrust, efficiency, and flight control.
Q3: What does a 1000 KV motor mean?
A 1000 KV motor will theoretically spin at 1000 revolutions per minute (RPM) for every volt of electricity supplied with no load. For example, on a 10V battery, it will spin at 10,000 RPM (1000 × 10). Lower KV motors like 1000 KV are typically used in applications where torque and efficiency are prioritized over raw speed—such as in long-range or heavy-lift drone setups.
Q4: Is a higher KV motor faster?
Yes, in general, higher KV motors spin faster because they produce more RPM per volt. However, higher KV doesn’t always mean better performance. It usually results in less torque and greater power consumption. While higher KV motors are common in lightweight, high-speed racing drones, they may cause overheating or reduced efficiency in heavier builds or when paired with large propellers
Final Thoughts
KV is one of the most important factors when choosing a motor for drones and RC applications. It determines how fast your motor spins per volt and directly influences speed, torque, efficiency, and battery life.
- High KV motors are perfect for racing, freestyle, and fast maneuvers.
- Low KV motors are ideal for long range, cinematic filming, and carrying payloads.
By understanding KV and matching it to your build, you’ll get the best balance of performance and efficiency.Whether you’re building a racing quad, a freestyle rig, or a long-range explorer, the right motor KV makes all the difference.
