If you are building or upgrading an FPV drone in 2026, choosing the right TX protocol is one of the most important decisions you will make.
Your TX protocol determines:
- Control latency
- Maximum range
- Signal stability
- Telemetry capability
- Overall flight confidence
Yet many pilots confuse TX protocol with FC protocol or simply follow trends without understanding the technical differences.
This complete guide explains everything you need to know about FPV TX protocol, compares ELRS vs Crossfire vs FrSky, and helps you decide which system fits your flying style.
What Is a TX Protocol in FPV?
A TX protocol (Transmitter Protocol) is the wireless communication system used between your radio transmitter (TX) and your receiver (RX).
Signal chain:
- Radio (TX) → Wireless Protocol → Receiver (RX) → Flight Controller (FC) → ESC → Motors
Why TX Protocol Matters More Than You Think
Many new pilots assume “signal is signal.” In reality, protocol selection dramatically changes flight behavior.
Latency (Control Delay)
Lower latency means your quad reacts faster to stick input.
- Racing pilots require ultra-low latency.
- Freestyle pilots benefit from tight, responsive feel.
- Cinematic pilots may prioritize stability over raw speed.
Modern protocols like ELRS can achieve sub-5ms latency, which was impossible just a few years ago.
Range
Protocol choice determines how far you can safely fly:
- 2.4GHz → shorter range, higher refresh rate
- 900MHz → longer range, better penetration
Long-range pilots depend heavily on protocol reliability.
Signal Stability & Interference Resistance
Urban flying introduces Wi-Fi interference, buildings, and signal reflections.
A robust protocol minimizes:
- Random RSSI drops
- Failsafe events
- Control jitter
Telemetry Capability
Modern pilots expect live feedback:
- Battery voltage
- RSSI
- GPS data
- Link quality
Bidirectional protocols (ELRS, Crossfire) provide full telemetry support.
The Most Popular FPV TX Protocols in 2026
Choosing the right FPV TX protocol in 2026 is no longer just about brand preference. Modern radio systems differ significantly in:
- Latency performance
- Packet rate
- RF link stability
- Long-range capability
- Firmware ecosystem
- Receiver cost
Below is a deep technical and practical breakdown of the most relevant TX protocols used in FPV today — and what problems each one is designed to solve.
ExpressLRS (ELRS)– The Performance-to-Price Leader
ExpressLRS has rapidly become the dominant FPV TX protocol worldwide. It is an open-source system that uses the CRSF protocol format between receiver and flight controller, enabling fast and efficient data transfer.
Technical Characteristics
- Frequency: 2.4GHz and 900MHz
- Packet Rate: Up to 1000Hz
- Latency: As low as 2–4ms
- Modulation: LoRa-based for range efficiency
- Telemetry: Full bidirectional
Why ELRS Became So Popular
Earlier radio systems often suffered from:
- High latency (20ms+)
- Limited firmware updates
- Expensive receivers
- Poor long-range consistency
ELRS addressed these weaknesses by offering:
- Adjustable packet rates
- Dynamic power output
- High refresh rates for racing
- Long-range capability with 900MHz variants
- Affordable nano receivers
Real-World Use Case
- 2.4GHz ELRS → Ideal for freestyle and racing
- 900MHz ELRS → Suitable for long-range mountain flights
Who Should Choose ELRS?
If you are building a new quad in 2026 and want:
- Low latency
- Strong community support
- Future-proof firmware
- Affordable hardware
ELRS is the most logical default choice.
TBS Crossfire / Tracer– Proven Long-Range Stability
Team BlackSheep introduced Crossfire as a dedicated long-range RF control system.
Crossfire (900MHz)
Crossfire operates in the 900MHz band and focuses on:
- Link stability at extreme distances
- Superior signal penetration
- Consistent RSSI reporting
- Mature ecosystem reliability
Latency is low and stable, typically slightly higher than optimized ELRS but extremely consistent.
Crossfire excels in:
- Mountain surfing
- Rural exploration
- Long-range cinematic flights
Tracer (2.4GHz)
Tracer was designed for higher refresh rates and lower latency, targeting racing and freestyle pilots.
Compared to Crossfire:
- Faster packet rate
- Shorter maximum range
- Designed for clean racing RF environments
Who Should Choose TBS Systems?
Choose Crossfire if:
- You prioritize reliability over open-source flexibility
- You fly extreme long-range missions
- You prefer plug-and-play simplicity
ELRS now competes directly with Crossfire, but Crossfire still holds a strong reputation in the long-range community.
FrSky (ACCST & ACCESS)– Legacy Mainstream System
FrSky once dominated the FPV radio market.
ACCST (D8 / D16)
- 2.4GHz protocol
- SBUS output to flight controller
- Reliable and affordable
D8 and D16 were widely adopted in early FPV builds.
ACCESS
ACCESS was introduced to improve:
- Latency
- OTA firmware updates
- Security encryption
Current Status in 2026
FrSky remains common in:
- Older quad builds
- Fixed-wing aircraft
- Budget hobby radios
However, common user pain points include:
- Firmware compatibility confusion
- Version mismatch issues
- Higher latency compared to ELRS
FrSky is still functional but no longer the performance benchmark for modern FPV racing.
Spektrum (DSMX/DSM2)– Aircraft-Focused Industry Standard
Spektrum is one of the most recognized brands in the RC hobby industry.
DSM2
- Early spread-spectrum protocol
- Limited channel hopping
DSMX
- Improved frequency-hopping technology
- Better interference resistance
- Widely used in airplanes and helicopters
Spektrum excels in:
- BNF aircraft compatibility
- Hobby-grade RC models
- Stable fixed-wing operations
Limitations for FPV Drones
- Not optimized for ultra-low latency
- Limited long-range capability
- Higher receiver cost
Spektrum remains strong in airplane ecosystems but is less common in competitive quad FPV setups.
FlySky (AFHDS 2A)– Budget Entry-Level System
FlySky’s AFHDS 2A protocol is commonly found in entry-level radios.
Features
- 2.4GHz frequency
- Simple pairing process
- Affordable hardware
Strengths
- Cost-effective for beginners
- Easy to set up
- Suitable for simulators and indoor drones
Weaknesses
- Higher latency
- Limited RF robustness
- Minimal firmware ecosystem
FlySky works for basic flying but is not ideal for aggressive freestyle or racing.
Futaba (FASST/A-FHSS)– Precision and Reliability
Futaba has long been associated with professional RC control systems.
FASST
- High-speed frequency hopping
- Strong signal integrity
- Used in competition environments
A-FHSS
- More affordable variant
- Stable and reliable
Futaba systems are commonly seen in:
- Precision aircraft
- Helicopter competition
- Professional RC pilots
Why It’s Rare in FPV Racing
- Higher hardware cost
- Smaller FPV-specific receiver ecosystem
- Less focus on ultra-low-latency tuning
Futaba remains premium but is not widely adopted in freestyle or racing quad builds.
ImmersionRC Ghost (GHST) – Racing-Optimized Speed
Ghost was designed specifically to compete in high-performance FPV racing environments.
Key Features
- 2.4GHz frequency
- Low-latency link
- Clean RF implementation
- Fast packet rate
Ghost focuses on:
- High responsiveness
- Consistent link quality
- Compact receiver design
Limitations
- Smaller ecosystem than ELRS
- Fewer hardware options
- Less mainstream adoption
Ghost is best suited for dedicated competitive racers who prioritize stick feel and response speed.
Quick Comparison Overview
| Protocol | Frequency | Latency | Best For | Ecosystem Size |
| ELRS | 2.4GHz / 900MHz | Ultra-low | Most pilots | Very large |
| Crossfire | 900MHz | Very low | Long-range | Large |
| Tracer | 2.4GHz | Low | Racing | Medium |
| FrSky | 2.4GHz | Moderate | Legacy builds | Large (declining) |
| Spektrum | 2.4GHz | Moderate | Aircraft | Large (airplane focus) |
| FlySky | 2.4GHz | Higher | Beginners | Small |
| Futaba | 2.4GHz | Low | Professional RC | Niche FPV |
| Ghost | 2.4GHz | Ultra-low | Racing | Small |

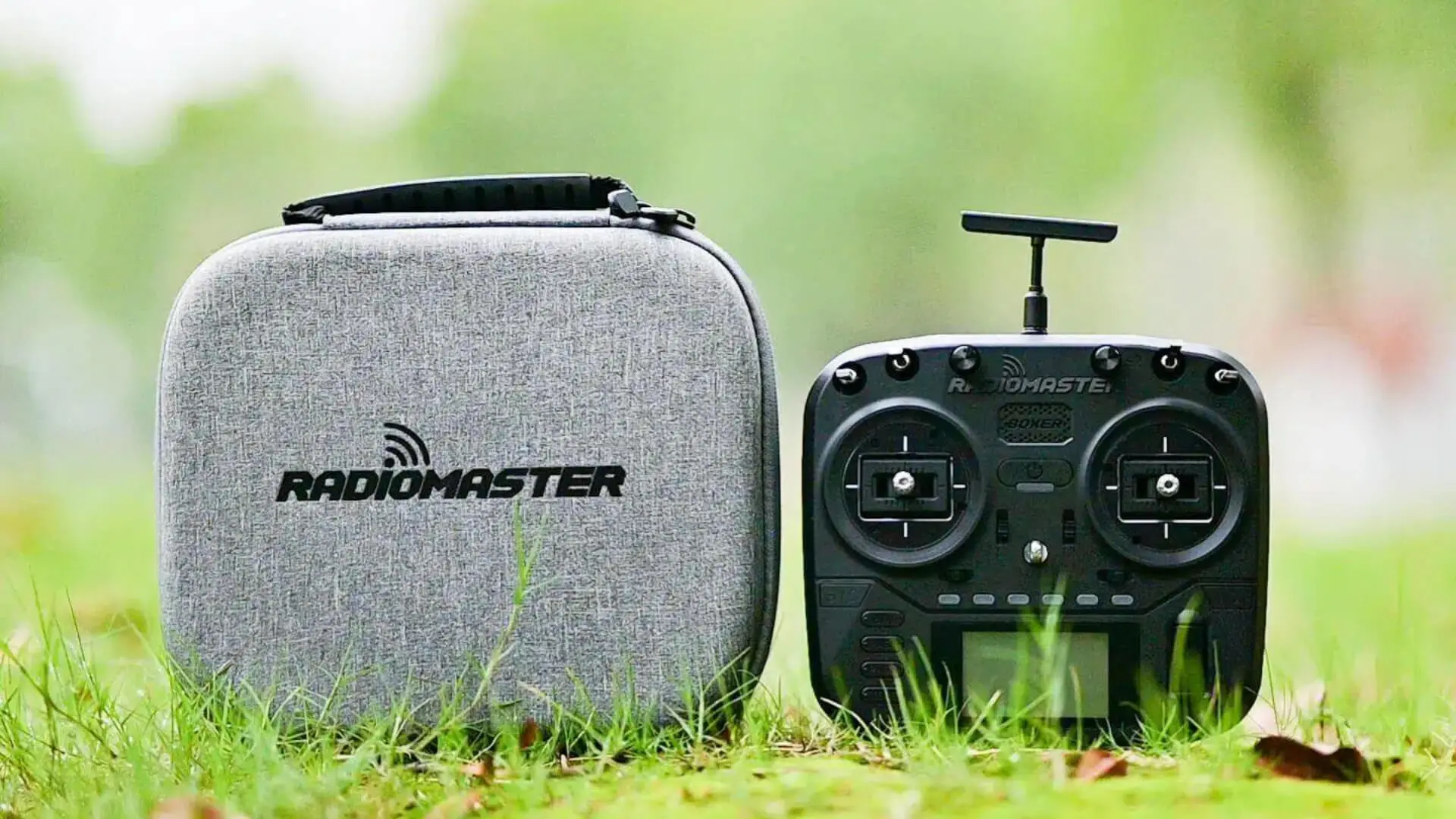

Which TX Protocol Should You Choose in 2026?
The right answer depends on your use case:
- Building a new 5-inch quad → ELRS 2.4GHz
- Flying extreme long-range → ELRS 900MHz or Crossfire
- Competitive racing → ELRS high packet rate or Ghost
- Fixed-wing hobby flying → Spektrum or Futaba
- Tight budget beginner → FlySky (temporary)
For most FPV drone pilots in 2026, ExpressLRS offers the best balance of performance, cost, and future scalability.
ELRS vs Crossfire: Which One Should You Choose?
One of the most common questions in today’s FPV community is:
“Should I use ELRS or Crossfire?”
Both TX protocols have their strengths, but the key is understanding your real-world requirements — not just brand hype.
Latency & Control Responsiveness
- ELRS (2.4GHz): Ultra-low latency (as low as 2–4ms). Excellent stick feel for racing and freestyle.
- Crossfire (900MHz): Latency is low, but typically slightly higher than optimized ELRS settings.
If instant responsiveness is your priority (especially for racing or aggressive freestyle), ELRS has the edge.
Long-Range & Penetration
- Crossfire (900MHz): Best-in-class long-distance performance with superior wall/terrain penetration.
- ELRS (900MHz): Very close in performance and continues to improve each firmware cycle.
If your goal is epic long-range flights (10km+) in hilly or obstructed terrain, Crossfire remains a strong choice — though modern ELRS 900MHz builds can match or even exceed it in many scenarios.
Ecosystem & Future Support
- ELRS: Rapid open-source development, massive community contributions, frequent improvements.
- Crossfire: Stable and mature, but slower innovation.
If you value future scalability and firmware upgrades, ELRS is the safer long-term investment.
Ease of Setup
- Crossfire: More plug-and-play with official hardware.
- ELRS: Traditionally required flashing but in 2026 most radios now support built-in ELRS modules.
For beginners or pilots who want minimal setup fuss, Crossfire still feels simpler — but ELRS setups are now equally accessible.
Bottom Line: Choose Based on Your Needs
| Use Case | Better Option |
| Racing / Freestyle | ELRS 2.4GHz |
| General FPV | ELRS |
| Long-Range Adventures | Crossfire or ELRS 900MHz |
| Plug-and-Play Simplicity | Slight edge to Crossfire |
2.4GHz vs 900MHz – What’s the Difference?
Understanding frequency differences isn’t optional — it directly affects how your drone performs in the real world.
2.4GHz: Best for Short-to-Mid Range
Advantages
- Higher packet rate and refresh speed
- Lower latency
- Small antennas
- Strong performance in open areas
Limitations
- Shorter theoretical maximum range
- More interference in urban environments (Wi-Fi, Bluetooth)
Best for
- Racing
- Freestyle
- Park flying
900MHz: Best for Long Range & Obstacles
Advantages
- Better penetration through obstacles (trees, buildings, terrain)
- Extended reliable distance
- More consistent link from farther away
Limitations
- Larger antennas
- Slightly higher theoretical minimum latency than 2.4GHz
- Legal restrictions in some countries
Best for
- Long-distance exploration
- Mountain flying
- Rural/industrial terrain with heavy obstruction
Summary: Choose Based on Environment
| Frequency | Best Use |
| 2.4GHz | Racing & Freestyle |
| 900MHz | Long Range & Obstructed Terrain |
| Both Combined | Flexible builds with dual receivers |
TX Protocol Compatibility Guide
Before you buy a radio system or receiver, check these compatibility points — this is where many pilots make costly mistakes.
Radio Supports the Protocol
- Some radios have built-in ELRS modules (Radiomaster, Jumper, FrSky with ELRS support)
- Others require module bay external radios (e.g., older FrSky TX with JR module bay)
- Crossfire typically uses external modules or dedicated radios
- Always verify supported protocols in the radio’s specs.
Receiver & Firmware Version Match
Different protocols evolve over time:
- ELRS firmware versions are not universally backward compatible
- Crossfire firmware also updates periodically
Make sure both the radio module and receiver are running compatible versions — mismatches often cause binding failures or constant RF link losses.
Flight Controller Protocol Output
The RX → FC output must be supported by your flight controller UART:
| Protocol | Output Type |
| ELRS | CRSF |
| Crossfire | CRSF |
| FrSky | SBUS / ACCESS |
| Spektrum | SRXL / DSM |
| FlySky | IBUS |
| Futaba | S-Bus / FASST |
If your FC doesn’t support the output type, it will not receive control signals correctly.
Legal & Regional Restrictions
Some frequencies are restricted or require specific power limits:
- In the EU, 2.4GHz power limits are enforced
- In Japan, 900MHz use is regulated
- In the US, some bands require certification
Check regional regulations before selecting output power and frequency bands.
Common TX Protocol Problems and How to Fix Them
Even the best systems are pointless if they fail in real-world use. Here are the most common pain points and practical fixes.
Problem 1: Binding Failure
Symptoms
- Radio and RX don’t pair
- Binding LED blinks or fails
Causes
- Firmware mismatch
- Wrong binding phrase
- Incorrect frequency band
Fix
- Update both TX & RX firmware to the same version
- Ensure correct binding phrase
- Confirm frequency match (2.4GHz vs 900MHz)
Problem 2: Failsafe Triggers Too Early
Symptoms
- Random loss of signal at short distances
- Mid-air failsafe
Causes
- Poor antenna placement
- Blocked signal path (carbon fiber frames)
- Too low TX power
Fix
- Re-orient antennas
- Increase TX power (when legal)
- Avoid placing antennas next to metal/carbon
Problem 3: High Latency / Unresponsive Controls
Symptoms
- Delayed stick response
- Floaty feeling
- Not crisp for racing
Causes
- Low packet rate
- Legacy protocol (FrSky ACCST D16)
- Interference
Fix
- Set ELRS to high packet rate (500–1000Hz)
- Use 2.4GHz for racing builds
- Adjust channels for less RF congestion
Problem 4: Poor Telemetry or RSSI Reporting
Symptoms
- No telemetry feedback
- Bad battery/RSSI values
Causes
- Output protocol mismatch
- Wiring errors at FC UART
- Old firmware
Fix
- Ensure RX → FC uses CRSF for full telemetry
- Assign proper UART settings in Betaflight/INAV
Update firmware
Recommended TX Protocol Setup for 5-Inch FPV Builds (2026)
Below are practical, tested setups based on common user goals:
Racing & Freestyle Setup
- TX Protocol: ELRS 2.4GHz
- Packet Rate: 500–1000Hz
- Receiver: Nano ELRS RX (2.4GHz)
- Why: Ultra-low latency + high refresh rate
Long-Range Explorer Setup
- TX Protocol: ELRS 900MHz or Crossfire 900MHz
- Power Output: 250–500mW (legal limit)
- Receiver: 900MHz ELRS / Crossfire RX
- Why: Best obstacle penetration and distance stability
Beginner / Sim Trainer Setup
- TX Protocol: ELRS 2.4GHz or FlySky AFHDS2A
- Receiver: Affordable ELRS / FlySky RX
- Why: Easy setup and inexpensive hardware
Note: FlySky works for early practice but most pilots upgrade within months.
Airplane / Transition FPV Setup
- TX Protocol: Spektrum DSMX or Futaba FASST
- Receiver: Matching brand RX
- Why: Stability + wide compatibility with fixed-wing aircraft
Final Takeaways
- No single protocol is “best” for everyone.
Choose based on your flying style, environment, and budget. - ELRS is the most versatile choice in 2026, combining low latency, strong range options, and future-proof firmware support.
- Crossfire still shines in extreme long range, especially where reliability is mission-critical.
- Compatibility and correct firmware versions are as important as the protocol itself.
