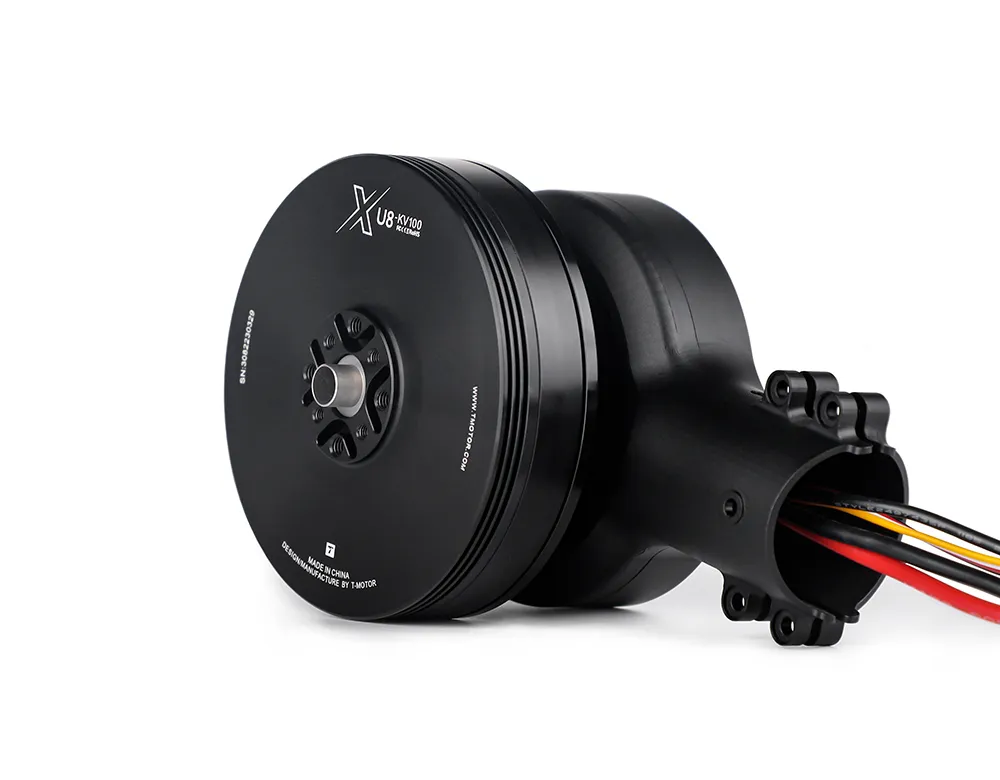

About T-MOTOR XU8-X Integrated Propulsion System:
The T-MOTOR XU8-X Integrated Propulsion System is a complete modular propulsion solution designed for professional multirotor UAV platforms. It combines the high-performance XU8 motor, Alpha 60A 12S FOC ESC, and MF2815 folding propeller into one optimized system, providing efficient power output, precise control, and simplified installation.
Designed for industrial drones and large multirotor applications, the XU8-X features a plug-and-play structure that reduces installation complexity and improves maintenance efficiency. The integrated design allows easier replacement and servicing compared with traditional separate propulsion components.

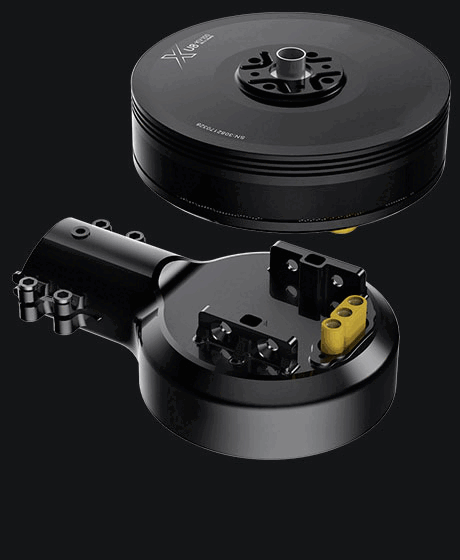

Higher Maintainability Lower Maintenance Cost
The T-MOTOR XU8-X features a plug-and-play modular structure that simplifies installation and maintenance. The integrated design of the motor, FOC ESC, and propeller reduces wiring complexity, enables quick replacement, and helps lower maintenance costs for professional UAV operations.

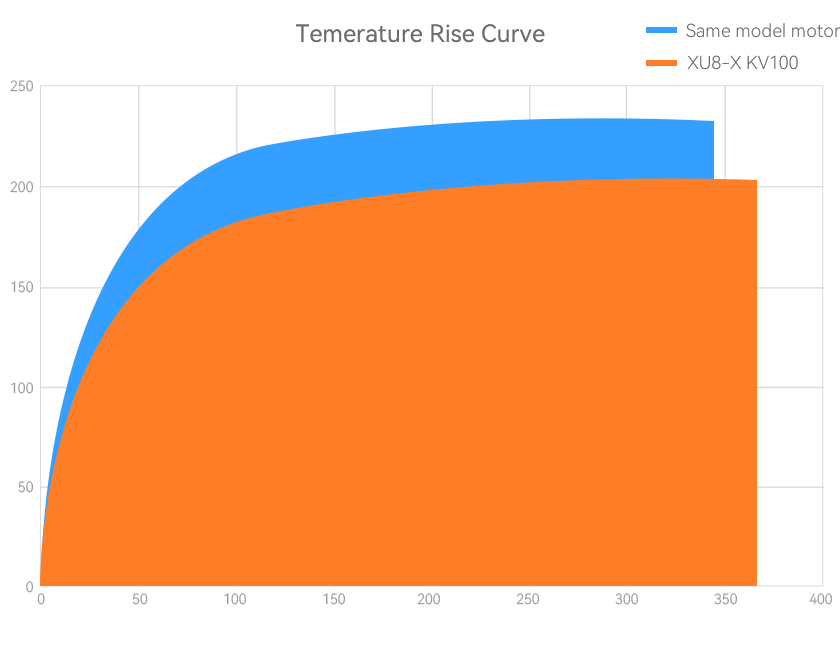

Optimization Cooling
Centrifugal air cooling system,better heat dissipation Temperature is 25°C lower than motors of the same type.

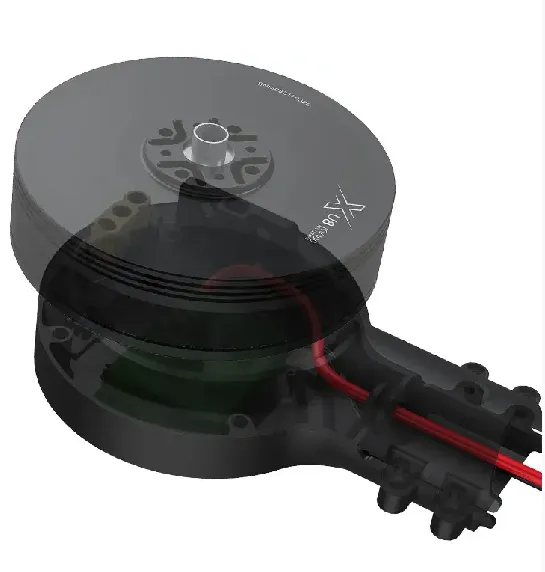

Intelligent & Efficiency
FOC (sine wave) ESCs are default match for the integrated propulsion systems. The efficient, accurate and stable motor control from intelligent algorithm meets the demand of various applications. (T-MOTOR square wave ESCs are available for custom demands.)
High RPM, High Efficiency, Strong Power
X· carbon is polymer folding prop series of high RPM, high efficiency and strong power designed by T-MOTOR (X· carbon are the default props. Other props from T-MOTOR are available upon request.)

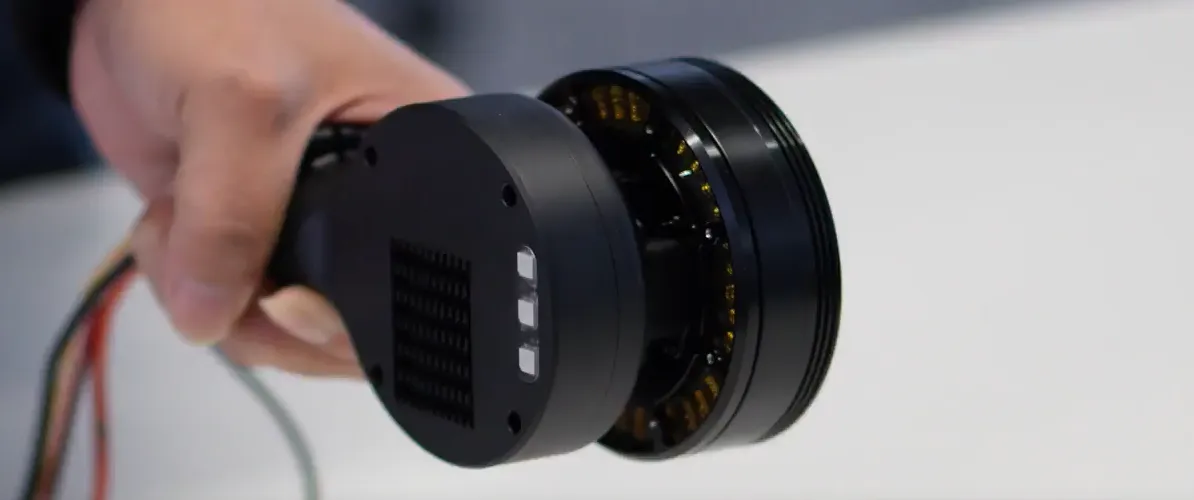

LED switching
A hall sensor is used for easy switch of the light colors. Switch the colors with a magnet.

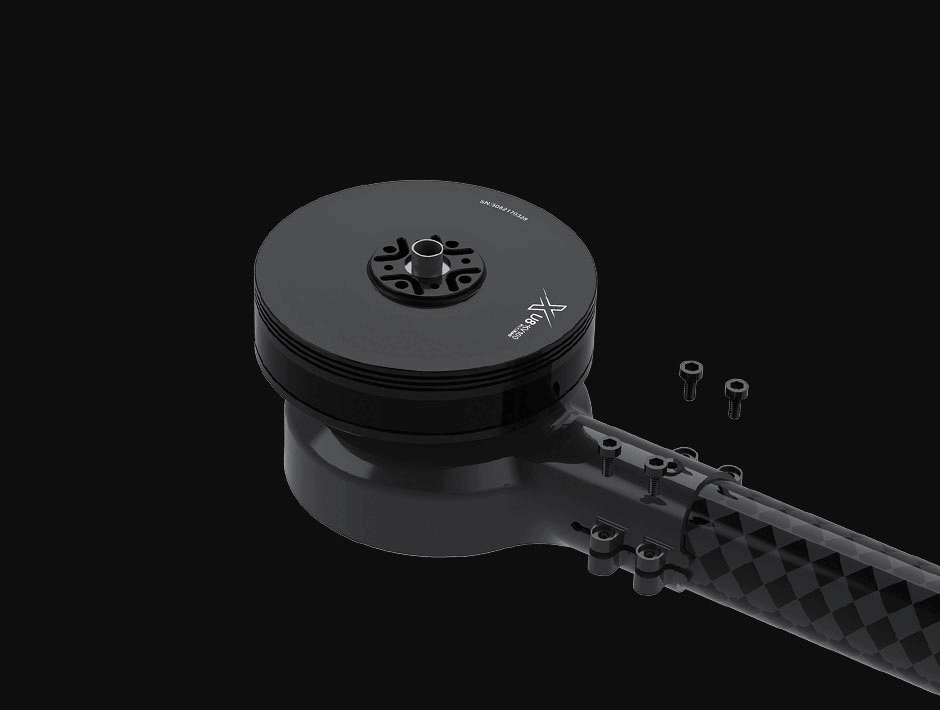

Convenient installation
Ready to use without complex installation!
Technical Drawing
Specification
Test Item
XU8-X KV85
Lead Cable Length
600mm
Dimension
134.6*87.1*70.5mm
Arm Set Weight(Incl. Cable)
490g
Configuration
36N42P
Shaft Diameter
8mm
Idle Current (24V)
0.8A
Rated Voltage (Lipo)
12S
Internal Resistance
225±5mΩ
Ingress ProtectionLevel
IP45
Peak Current (180s)
19.1A
ESCRecommendation
ALPHA 60 12S V1.2
Max. Power (180s)
910W
PropellerRecommendation
MF2815
Test Item
XU8-X KV100
Lead Cable Length
600mm
Dimension
134.6*87.1*70.5mm
Arm Set Weight(Incl. Cable)
485g
Configuration
36N42P
Shaft Diameter
8mm
Idle Current (24V)
0.9A
Rated Voltage (Lipo)
12S
Internal Resistance
170±5mΩ
Ingress ProtectionLevel
IP45
Peak Current (180s)
29.3A
ESCRecommendation
ALPHA 60 12S V1.2
Max. Power (180s)
1400W
PropellerRecommendation
MF2815
Test Item
XU8-X KV150
Lead Cable Length
600mm
Dimension
134.6*87.1*70.5mm
Arm Set Weight(Incl. Cable)
485g
Configuration
36N42P
Shaft Diameter
8mm
Idle Current (24V)
1.4A
Rated Voltage (Lipo)
12S
Internal Resistance
85±5mΩ
Ingress ProtectionLevel
IP45
Peak Current (180s)
29.7A
ESCRecommendation
ALPHA 60 12S V1.2
Max. Power (180s)
710W/1270W
PropellerRecommendation
MF2815
Test Item
XU8-X KV190
Lead Cable Length
600mm
Dimension
134.6*87.1*70.5mm
Arm Set Weight(Incl. Cable)
490g
Configuration
36N42P
Shaft Diameter
8mm
Idle Current (24V)
1.8A
Rated Voltage (Lipo)
6S
Internal Resistance
48±5mΩ
Ingress ProtectionLevel
IP45
Peak Current (180s)
43.7A
ESCRecommendation
ALPHA 60 12S V1.2
Max. Power (180s)
1040W
PropellerRecommendation
MF2815
Test Data
Type
Propeller
Throttle
Voltage (V)
Current (A)
Power (W)
RPM
Torque (N*m)
Thrust (g)
Efficiency (g/W)
Operating Temperature (℃)
AT2321 Long Shaft KV950
APC 10*4.7
40%
15.19
6.40
97.06
5762
0.108
696
7.17
73 (Ambient Temperature:/)
45%
15.16
7.57
114.61
6108
0.123
789
6.89
50%
15.13
8.81
133.17
6428
0.138
874
6.56
55%
15.10
10.06
151.81
6723
0.152
957
6.31
60%
15.06
11.52
173.62
7044
0.168
1049
6.04
65%
15.02
13.40
201.23
7381
0.187
1157
5.75
70%
14.97
15.49
231.53
7759
0.208
1271
5.49
75%
14.91
17.80
265.19
8101
0.230
1393
5.25
80%
14.84
20.77
308.05
8481
0.255
1522
4.94
90%
14.66
26.58
389.58
9143
0.299
1752
4.50
100%
14.58
28.86
420.61
9378
0.312
1800
4.28
APC 11*5.5
40%
15.19
6.32
95.82
5847
0.106
733
7.65
78 (Ambient Temperature:/)
45%
15.16
7.48
113.35
6197
0.120
832
7.34
50%
15.14
8.68
131.12
6501
0.134
918
7.00
55%
15.11
9.90
149.36
6832
0.148
1001
6.70
60%
15.07
11.23
169.11
7131
0.162
1093
6.46
65%
15.03
13.00
195.80
7475
0.181
1211
6.19
70%
14.98
15.06
225.35
7794
0.201
1327
5.89
75%
14.92
17.55
261.64
8090
0.226
1491
5.70
80%
14.85
20.35
302.02
8540
0.250
1616
5.35
90%
14.67
26.35
386.51
9181
0.297
1860
4.81
100%
14.58
28.86
420.71
9379
0.311
1912
4.54
APC 11*5.5
40%
11.35
4.34
49.16
4739
0.066
452
9.19
43 (Ambient Temperature:/)
45%
11.33
5.09
57.57
5026
0.075
512
8.89
50%
11.31
5.87
66.26
5291
0.083
568
8.58
55%
11.29
6.63
74.67
5525
0.091
623
8.34
60%
11.28
7.37
83.10
5714
0.100
677
8.15
65%
11.26
8.16
91.81
5930
0.107
733
7.98
70%
11.23
9.31
104.44
6238
0.119
810
7.76
75%
11.19
10.75
120.18
6556
0.132
901
7.50
80%
11.15
12.50
139.21
6869
0.148
1006
7.23
90%
11.05
16.72
184.58
7466
0.183
1226
6.64
100%
11.00
18.72
205.81
7716
0.197
1304
6.34
APC 12*6
40%
11.41
4.76
54.19
4216
0.080
502
9.27
60 (Ambient Temperature:/)
45%
11.39
5.64
64.07
4492
0.091
569
8.88
50%
11.37
6.55
74.40
4757
0.101
638
8.57
55%
11.35
7.54
85.49
5007
0.113
716
8.38
60%
11.32
8.58
96.89
5245
0.124
791
8.16
65%
11.29
10.04
113.14
5541
0.139
893
7.90
70%
11.24
12.02
135.04
5873
0.158
1003
7.43
75%
11.20
13.87
155.08
6176
0.176
1123
7.24
80%
11.15
16.00
178.16
6472
0.194
1233
6.92
90%
11.02
20.97
230.96
7021
0.233
1452
6.28
100%
10.96
23.04
252.41
7216
0.246
1492
5.91
Note: Motor temperature is motor surface temperature @100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
