T-HOBBY F35A 3-6S AM32 Single ESC For FPV Drones

User Manual

Disclaimer

Thanks for purchasing our Electronic Speed Controller (ESC). High power

system for RC model can be very dangerous. Any improper use may result

in injury and damage to human and devices.We strongly recommend that

you read this manual carefully before use, and abide by its rules.

We assume no responsibility for personal injury, property damage or

consequential losses resulting from the product. We reserve all rights to

redesign or modify this product.

Features

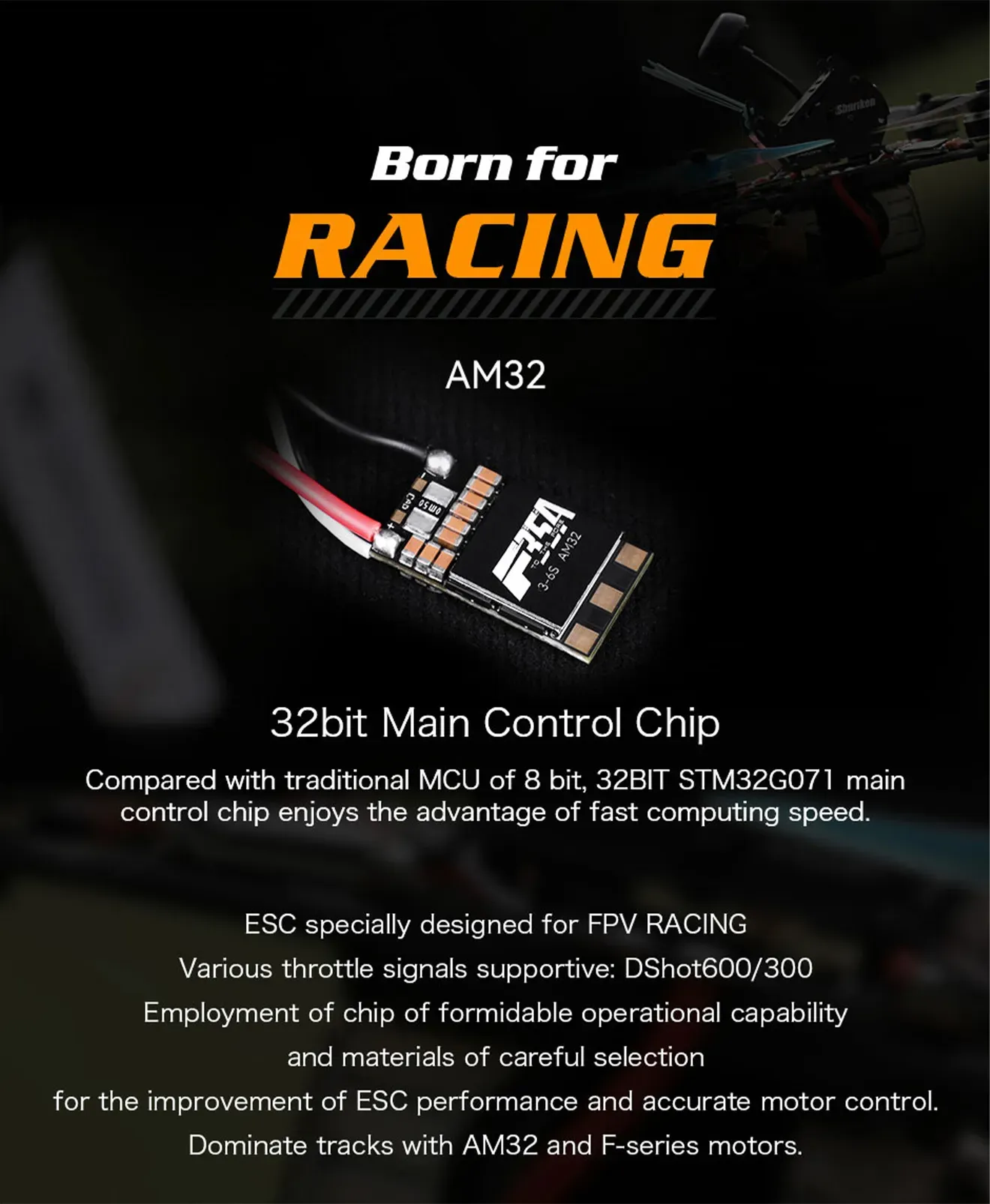

1. Arm 32-bit Cortex core MCU, operating frequency up to 64MHz;

2.AM32 firmware, fast response speed, superb performance;

3. Auto detection on throttle signal, support pulse width PWM (1-2ms);

4.Dshot signal (up to Dshot 1200) compatible;

5. Auto-braking for high efficiency. When throttle is pulled down, motor

will react fast on such change to slow down.

6.For racing drones with motor of high KV and power;

7.Twisted pair(TP) throttle signal wires reduce the crosstalk during signal

transmission which guarantees stable flight;

8.Aluminium alloy radiator for cooling performance;

Features

Buying Guide: T-HOBBY F35A 3-6S AM32 ESC

Choosing the right ESC is important for FPV drone reliability and flight performance. While 4-in-1 ESC boards are common in modern quadcopters, individual ESCs remain a practical option for pilots who want flexible component placement, easier maintenance, and a lightweight power solution for custom builds.

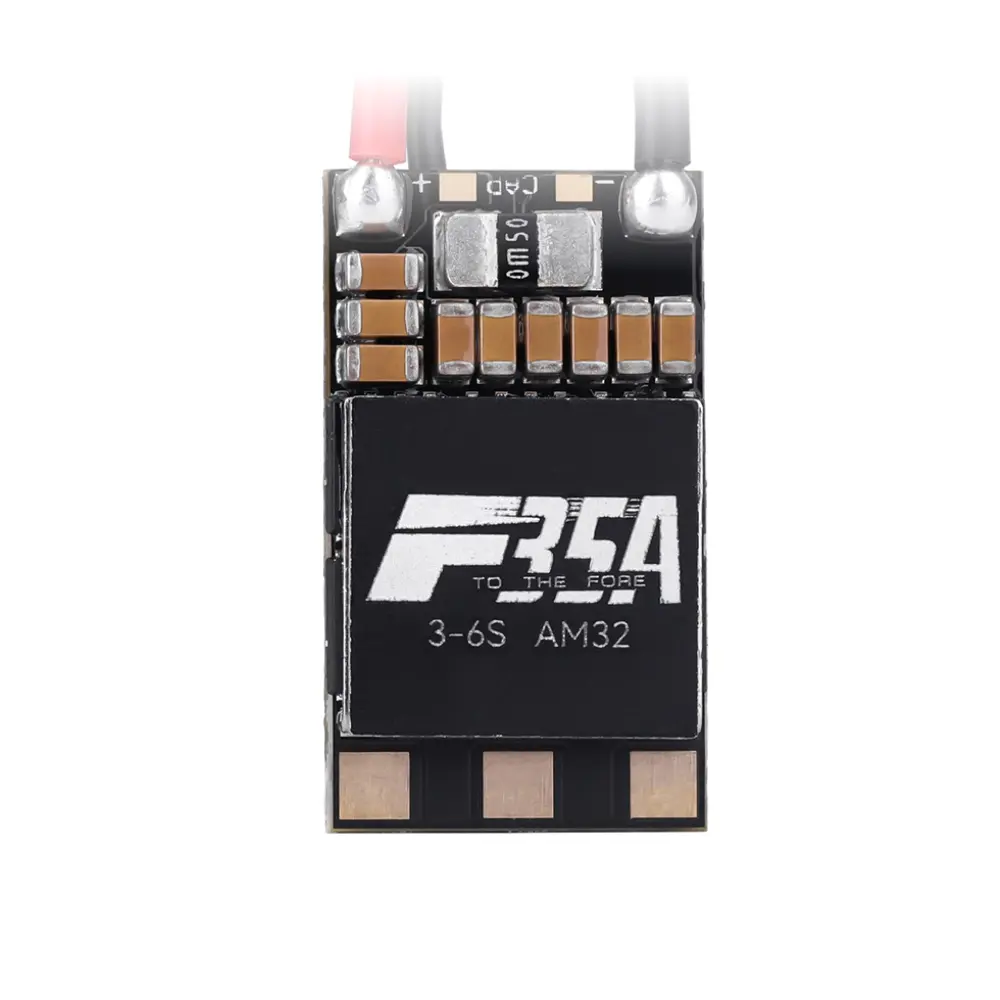

The T-HOBBY F35A is a 3-6S AM32 single ESC designed for FPV racing and freestyle applications. It combines a compact 5.8g design, 35A current capability, AM32 firmware, and a fully protected PCB structure for pilots building performance-focused FPV drones.

Who Is the T-HOBBY F35A Best For?

The F35A is designed for pilots who prefer an individual ESC layout rather than a traditional 4-in-1 board. This allows each ESC to be mounted closer to the motor and gives builders more flexibility when designing custom FPV platforms.

              It is particularly suitable for:

              ● FPV racing and freestyle builds

              ● Custom quadcopter builds requiring individual ESC placement

              ● Pilots who prefer easier ESC replacement and maintenance

              ● 3S to 6S FPV power systems

              ● Builds where compact size and low component weight are important

Why Choose a Single ESC?

A single ESC system uses one independent speed controller for each motor instead of placing all four ESCs on one board. Although this requires additional wiring, it offers more flexibility for custom FPV builds.

Individual ESCs can be mounted directly on the drone arms, closer to each motor. This can simplify motor wiring and make it easier to replace a damaged ESC without removing the entire power system.

The T-HOBBY F35A is therefore a practical choice for pilots building custom frames or performance-oriented FPV drones where component placement and serviceability are important.

AM32 Firmware for Modern FPV Systems

The F35A uses AM32 firmware, a modern 32-bit ESC platform designed for fast signal processing and compatibility with advanced digital protocols.

It supports DShot signals up to DShot1200, allowing fast communication between the flight controller and ESC. AM32 also supports features used in modern FPV setups, including improved motor response and RPM-based filtering.

For pilots upgrading from older ESC firmware platforms, the F35A provides a modern solution suitable for current racing and freestyle flight controllers.

Designed for 3-6S FPV Builds

The 3-6S input range gives the F35A flexibility across different FPV power systems. Pilots can use the ESC in lower-voltage builds or pair it with a 6S battery system for stronger power delivery and performance-focused flying.

Its 35A current capability makes it suitable for many compact and medium-sized FPV builds, depending on motor size, KV rating, propeller selection, and overall power demand.

Important: Always check the motor manufacturer's recommended current requirements before selecting an ESC. Propeller choice and battery voltage can significantly affect maximum current draw.

T-HOBBY F35A vs Lumenier LUX HD AIO: Which One Should You Choose?

Although both products use 35A AM32 ESC technology and support 3-6S LiPo batteries, they are designed for very different FPV build approaches. The T-HOBBY F35A is an individual ESC, while the Lumenier LUX HD is an integrated flight controller and 4-in-1 ESC AIO system.

Choose the T-HOBBY F35A if: You prefer a traditional individual ESC layout, want more freedom in component placement, or need the ability to replace a single damaged ESC without replacing the entire power board.

Choose the Lumenier LUX HD AIO if: You want a compact all-in-one solution with an integrated flight controller, 4-in-1 ESC, solderless motor connections, and convenient DJI O3 compatibility.

```

Recommended Pairings

● T-HOBBY F2203.5 Racing Whoop Brushless Motor

● MEPS SZ3046 Cinewhoop Propeller

● Tattu R-Line V5.0 850mAh 4S 150C LiPo Battery with XT30U-F

● TBS Smoke Stopper FPV Drone Safety Tester XT30/XT60

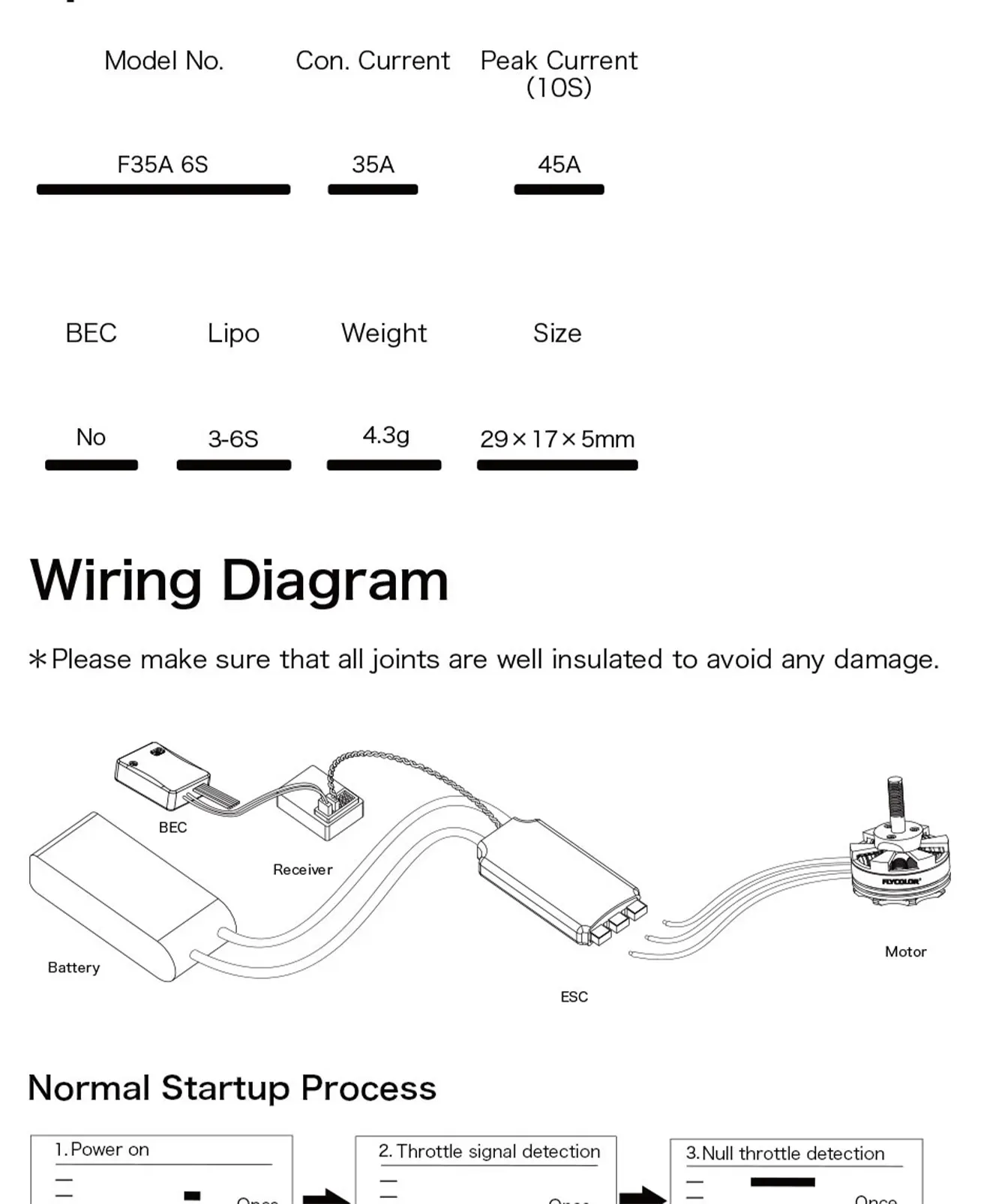

Wiring Diagram

Throttle Synergy Master: AM32 firmware achieves 2000Hz signal resolution. Auto-phase tuning eliminates timing jitters, delivering tactile euphoria at full punch.
