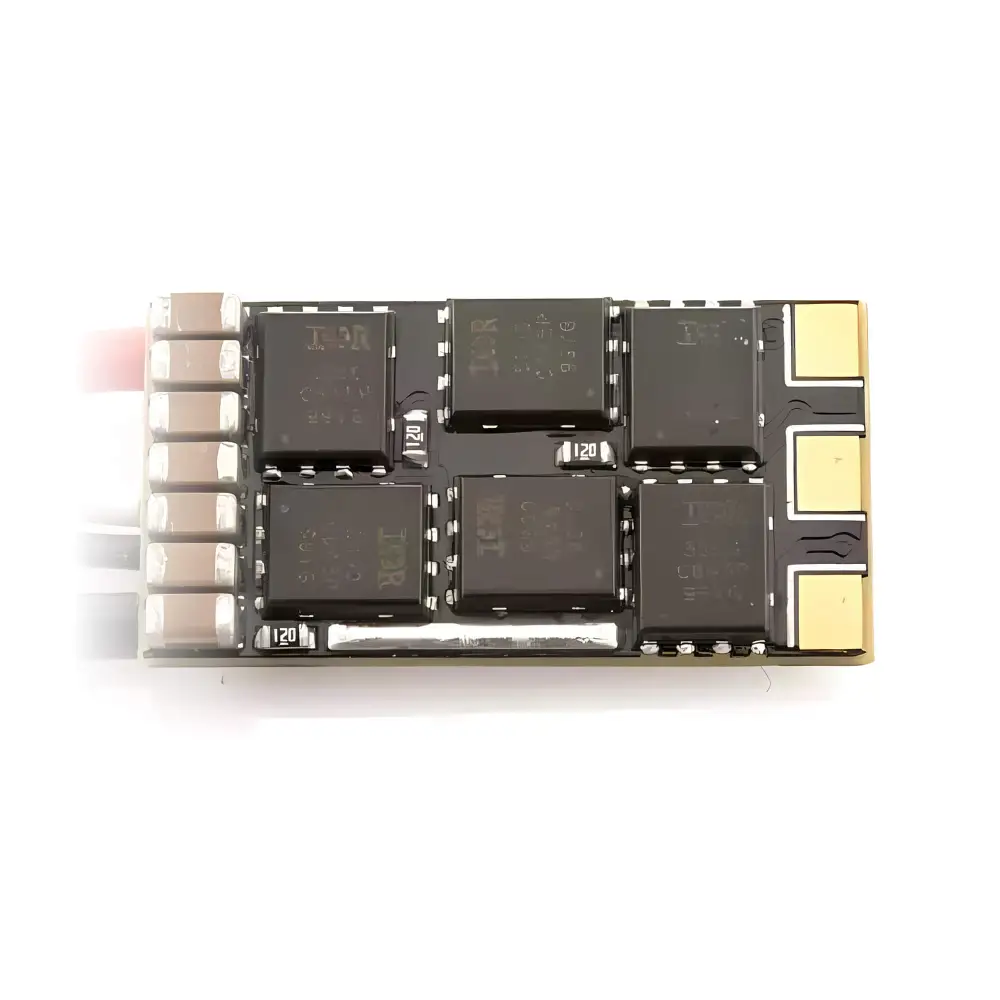

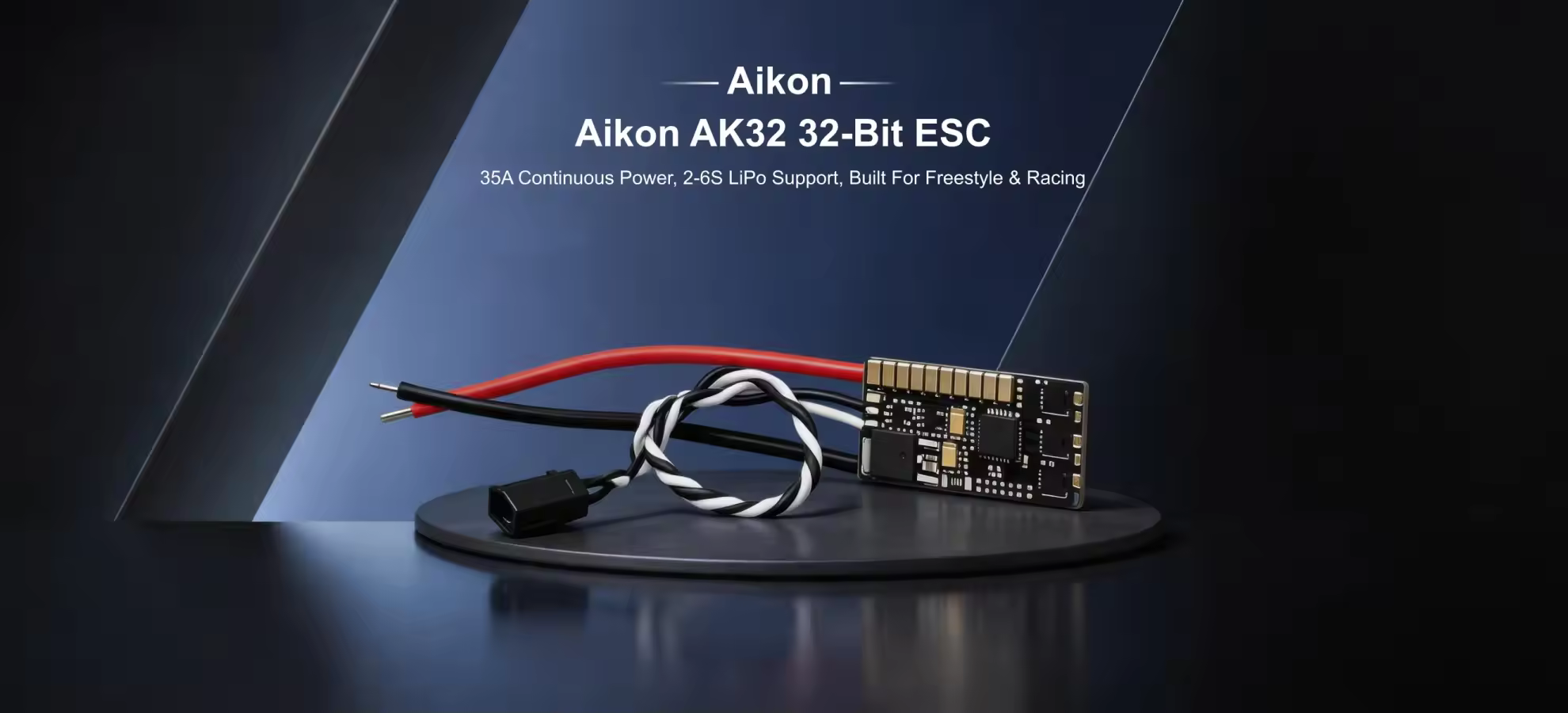

Aikon AK32 32-bit 35A ESC 2-6S for FPV Racing & Freestyle Drones
About Aikon AK32 32-bit ESC:
High-performance Aikon AK32 32-bit ESC with BLHeli_32 firmware, 35A continuous, 45A burst, 2-6S support, programmable PWM, auto-timing & telemetry for racing and freestyle FPV builds.
Pilot RecommendedBuilt to LastBest Value
Extra 5% Off
Collect
$56.99
$64.98
-12%
5|100+Sold
Options (2)
AK32 32_bit 35A 2_4S
AK32 32_bit 35A 2_6S
Quantity
In Stock
Expected ship within 7 days after order.
Estimated Transit Time: 15-20 Days.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
7-Day Easy Returns | 7-Day No-Risk Return
24h Support Response | 24h Fast Support Guarantee
BLHeli_32 Firmware – Advanced 32-bit firmware delivers smooth throttle and efficient motor control with PWM up to 48kHz.
2-6S LiPo Support – Works with 2–6S LiPo packs, ideal for flexible FPV performance.
35A Continuous, 45A Burst – Provides sustained power with headroom for aggressive flight bursts.
ESC Telemetry & DShot Configurable – Sends real-time data to FC and adjusts settings through DShot commands.
Auto-Timing & IRC Braking – Self-adjusting timing and adjustable brake boost flight responsiveness and reliability.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ
Features
● New BLHeli_32 code base
● Programmable PWM frequency of up to 48KHz
● Auto-timing for higher efficiency and reliability
● Voltage/Current limiting
● Adjustable “Brake on Stop” force
● Improve direction change in Bidirectional mode
● ESC Telemetry
● Configuring from FC using DShot commands
Specifications
● Battery: 2-6s
● Constant Current: 35A
● Burst Current: 45A
● Size: 18*30mm
● Firmware: Aikon_AK32_35A_Multi
● MCU: ST32F0
● Bootloader: Yes
● Weight( with/wire): 12g
● Signal wire length: 150mm
● Battery wire length: 100mm
Includes
● 1x Aikon AK32 35A 6S
Recommendations:
Reviews
D********d
Verified
ESC feels very stable, good build quality. 32-bit response is fast and smooth. arrived well packed, no issues. Works great with my freestyle build, control feels precise.
Options：AK32 32_bit 35A 2_6S
S******V
Verified
Good ESC for racing. clean signal, responsive.
Options：AK32 32_bit 35A 2_6S
Replied by MEPSKING:Thanks for your feedback! Glad to hear you’re satisfied with the ESC. Happy flying!
FAQFeel free to ask us any questions
ASK A QUESTION
Q: Will the Aikon AK32 35A ESC work with both 4S and 6S batteries?
A: Yes. The Aikon AK32 35A ESC supports 2–6S LiPo, making it fully compatible with both 4S freestyle builds and 6S performance setups.
Q: Is 35A sufficient for a 5-inch freestyle drone?
A: Yes. The Aikon AK32 35A ESC is designed for standard 5-inch freestyle builds and handles typical motor loads without issue.
Q: Is the Aikon AK32 35A ESC easy to install for first-time builders?
A: Yes. The Aikon AK32 35A ESC uses a standard layout and supports common configurations, making installation straightforward.
Q: Does the Aikon AK32 35A ESC provide smooth flight performance?
A: Yes. The 32-bit architecture ensures fast signal processing, delivering precise throttle response and stable flight.
Q: Is the Aikon AK32 35A ESC compatible with most flight controllers?
A: Yes. It is fully compatible with modern flight controllers that support BLHeli_32 ESC protocols.
