Question 1

Q: What are the functions of this product?

Accepted Answer

A: The functions include cutting, assembling, and remote control operation.

Question 2

Q: What size drone is the BLITZ Mini F745 suitable for?

Accepted Answer

A: The 20×20mm mounting pattern makes it ideal for 3–5 inch FPV racing or freestyle drones that require a compact and lightweight flight controller.

Question 3

Q: Does it support DJI O3 or other digital HD systems?

Accepted Answer

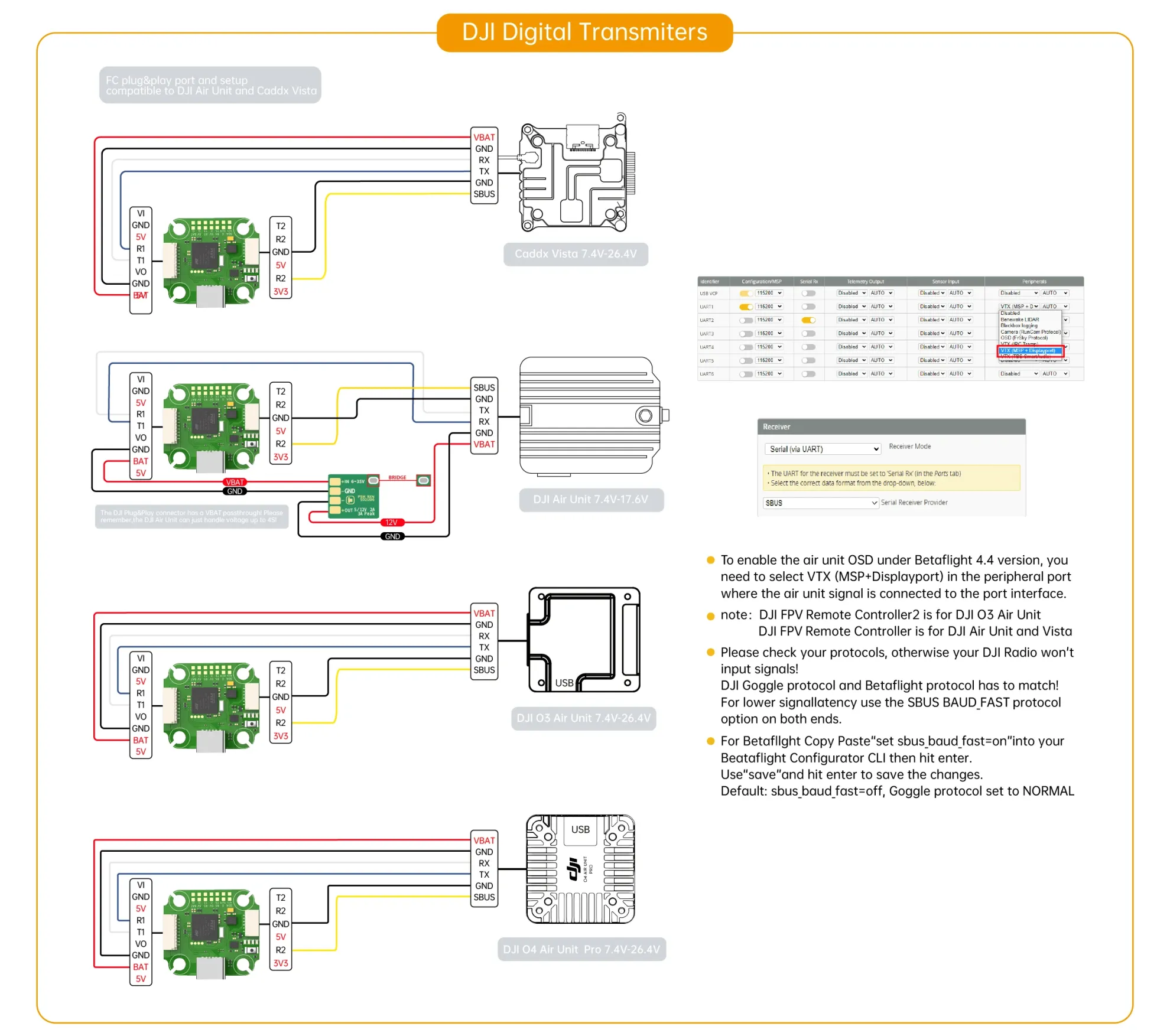

A: Yes. The BLITZ Mini F745 features a plug-and-play connector designed for easy integration with DJI O3 and other compatible HD digital VTX systems, reducing wiring complexity.

Question 4

Q: Is the iFlight BLITZ Mini F745 mainly for racing, or can it also work well for freestyle builds?

Accepted Answer

A: It works for both, but it is especially attractive for pilots who want a compact 20x20 FC with enough processing headroom for fast freestyle as well as racing-style responsiveness.

Question 5

Q: Does the BLITZ Mini F745 make sense for pilots who want a smaller stack without dropping too far in features?

Accepted Answer

A: Yes. That is one of the clearest reasons to choose it. It keeps the compact 20x20 format while still offering F7 processing, Blackbox logging, a barometer, and multiple UARTs.

Question 6

Q: Is this FC more about clean installation or about advanced tuning capability?

Accepted Answer

A: It offers both, but its appeal is especially strong if you want a clean compact build without giving up the tuning and logging tools expected on a serious FPV setup.

Question 7

Q: Is the BLITZ Mini F745 a good fit for 3-inch builds only, or can it also work on 5-inch frames?

Accepted Answer

A: It can work on both. The 20x20 format naturally suits 3-inch performance builds, but it also makes sense on selected lightweight 5-inch frames that support compact electronics.

Question 8

Q: Does this FC make sense for pilots who want GPS, telemetry, and other add-ons on a mini build?

Accepted Answer

A: Yes. With 6 UARTs, it gives more expansion flexibility than many compact boards, which is useful for GPS, receivers, ESC telemetry, and other peripherals.

Question 9

Q: Is this board mainly for advanced builders, or can intermediate pilots benefit too?

Accepted Answer

A: Intermediate pilots can benefit a lot, especially if they want a compact FC they will not outgrow quickly. It is advanced enough to stay useful long term.

Question 10

Q: Does the BLITZ Mini F745 make sense if I want one FC for Betaflight now and possibly Ardupilot later?

Accepted Answer

A: Yes. Public product pages consistently state support for both Betaflight and Ardupilot, which makes it appealing for builders who want more firmware flexibility.

Question 11

Q: What processor and gyro does this FC use?

Accepted Answer

A: The public specifications list an STM32F745 MCU and an ICM42688 gyro.

Question 12

Q: Does the board include Blackbox storage and a barometer?

Accepted Answer

A: Yes. The listed specifications include 16MB of onboard Blackbox flash and a DPS310 barometer.

Question 13

Q: Why might my quad still fly badly even with a capable F7 FC like this?

Accepted Answer

A: Flight quality depends on the whole build, not the FC alone. Frame resonance, ESC noise, motor and prop matching, wiring quality, and tune quality all matter just as much.

Question 14

Q: What should I check before buying the BLITZ Mini F745?

Accepted Answer

A: First confirm that your frame supports a 20x20 layout, then decide whether you want DJI-ready HD integration, and finally make sure the compact format still gives enough room for your receiver, VTX, and wiring plan.

Question 15

Q: Who is the iFlight BLITZ Mini F745 best for?

Accepted Answer

A: It is best for FPV builders who want a compact 20x20 F7 flight controller with DJI-friendly HD support, strong expansion options, and enough performance for serious racing or lightweight freestyle builds.

NewiFlight BLITZ Mini F745 Flight Controller for FPV

About iFlight BLITZ Mini F745 Flight Controller:

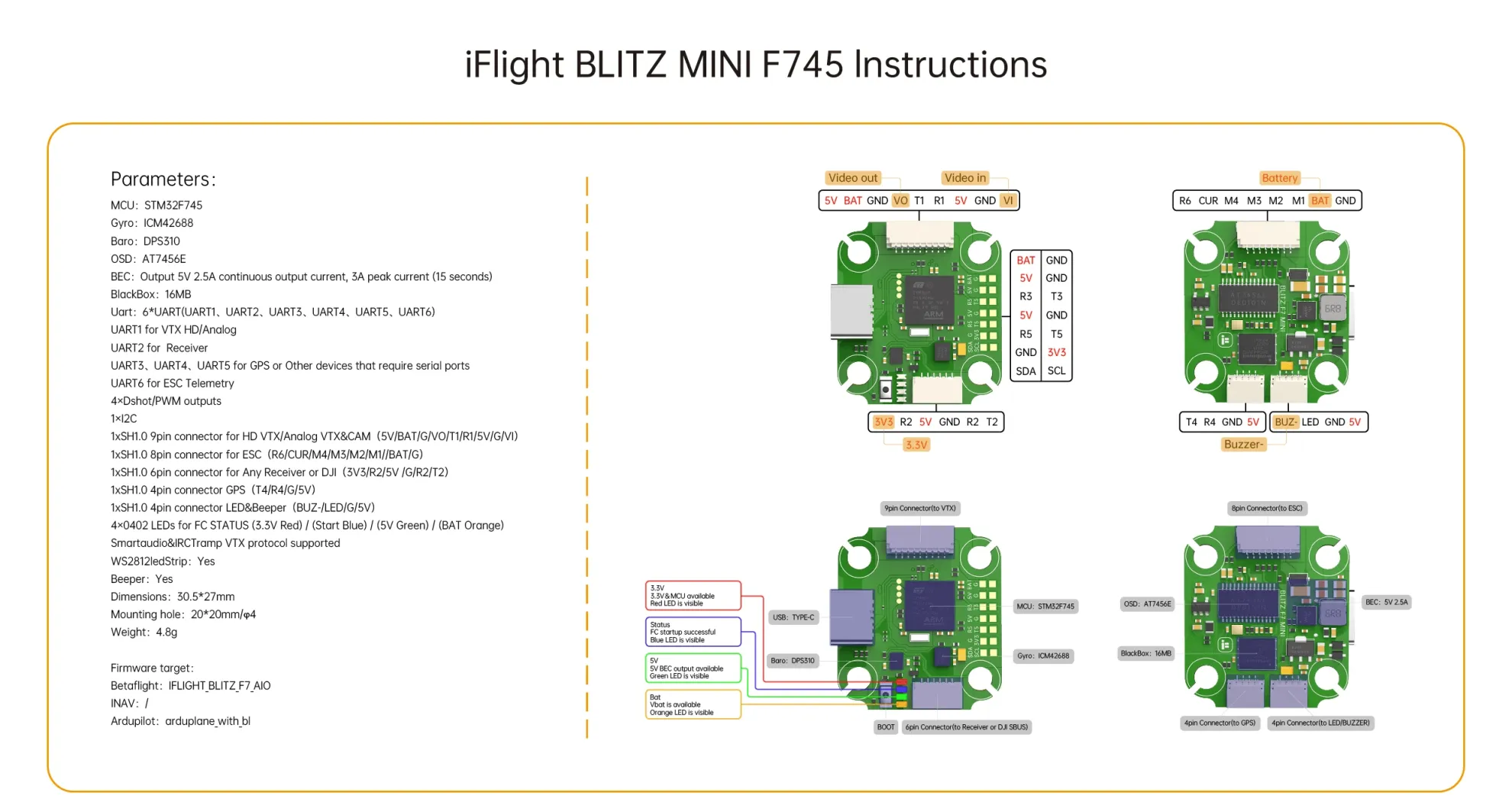

Specifications:

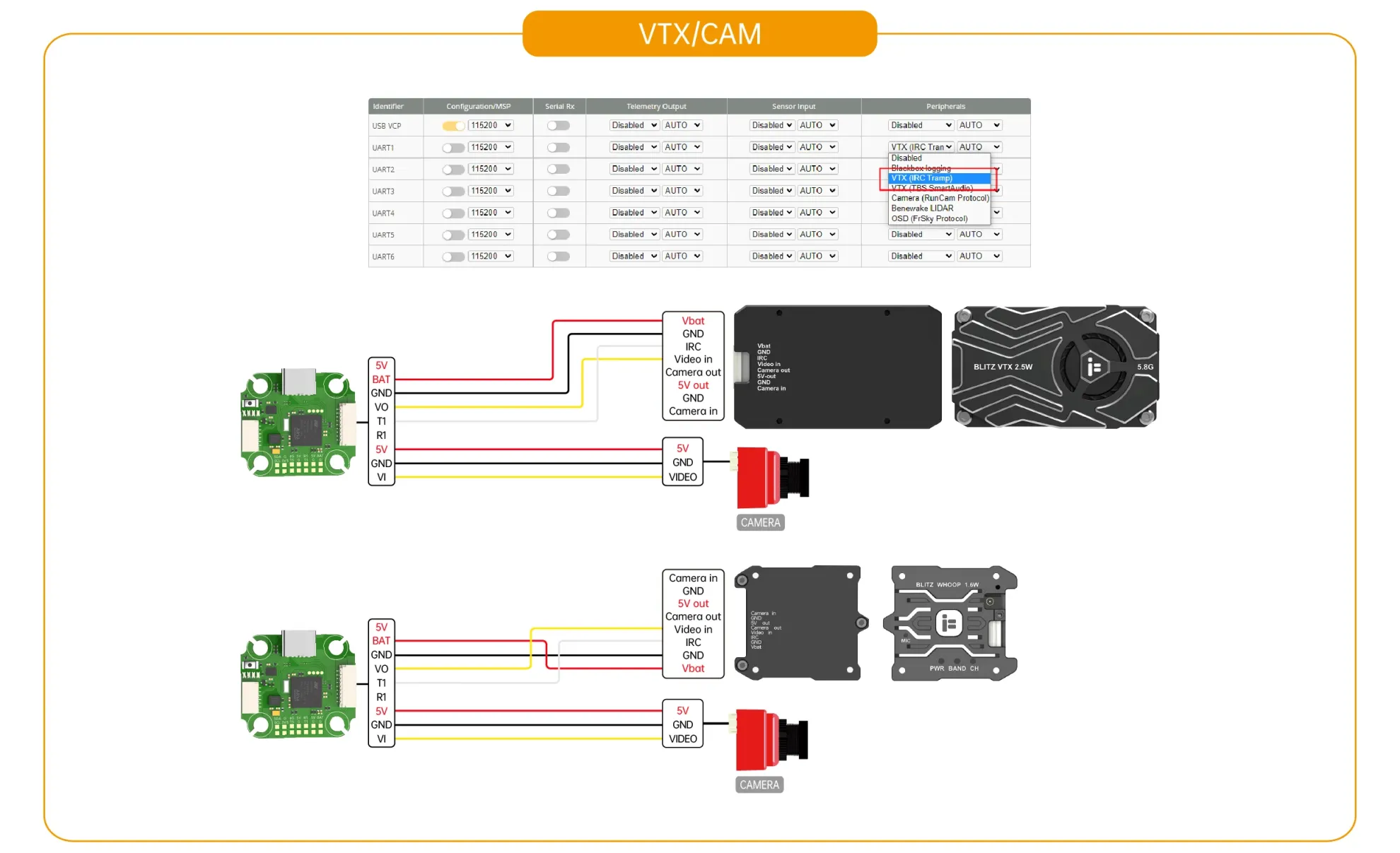

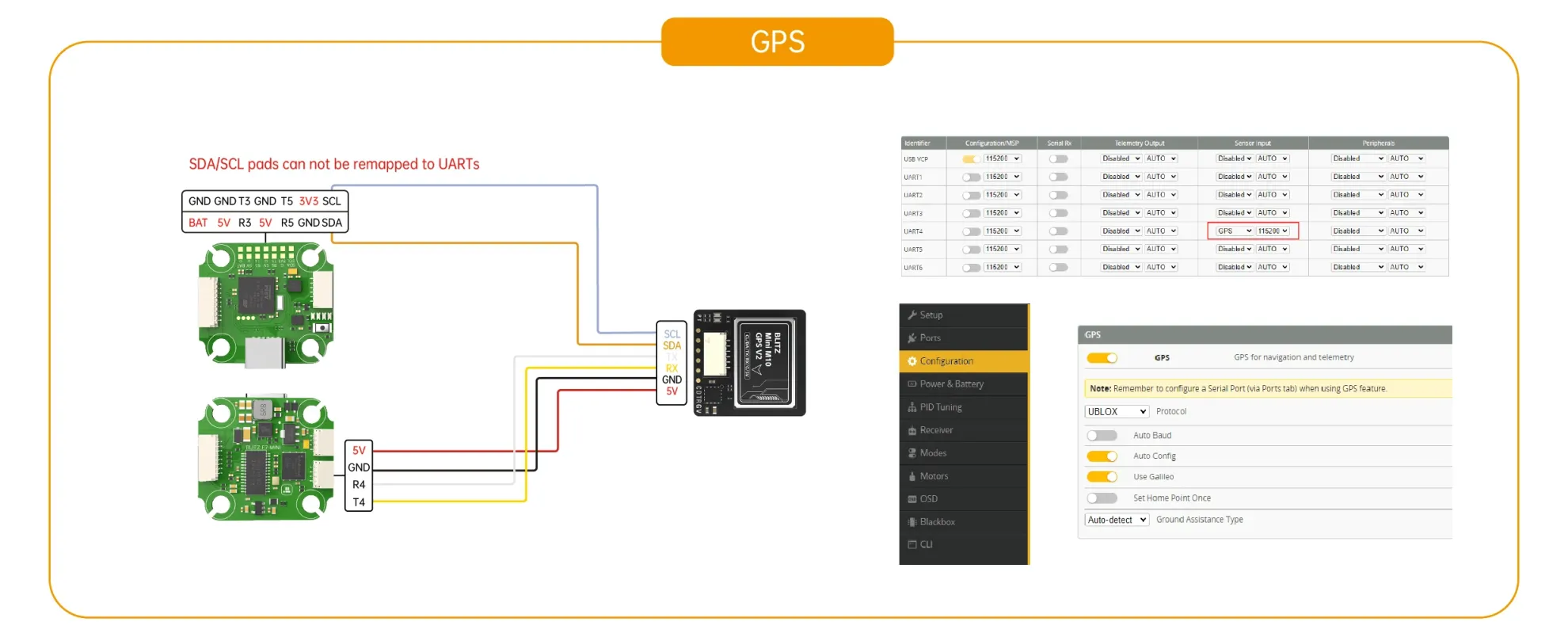

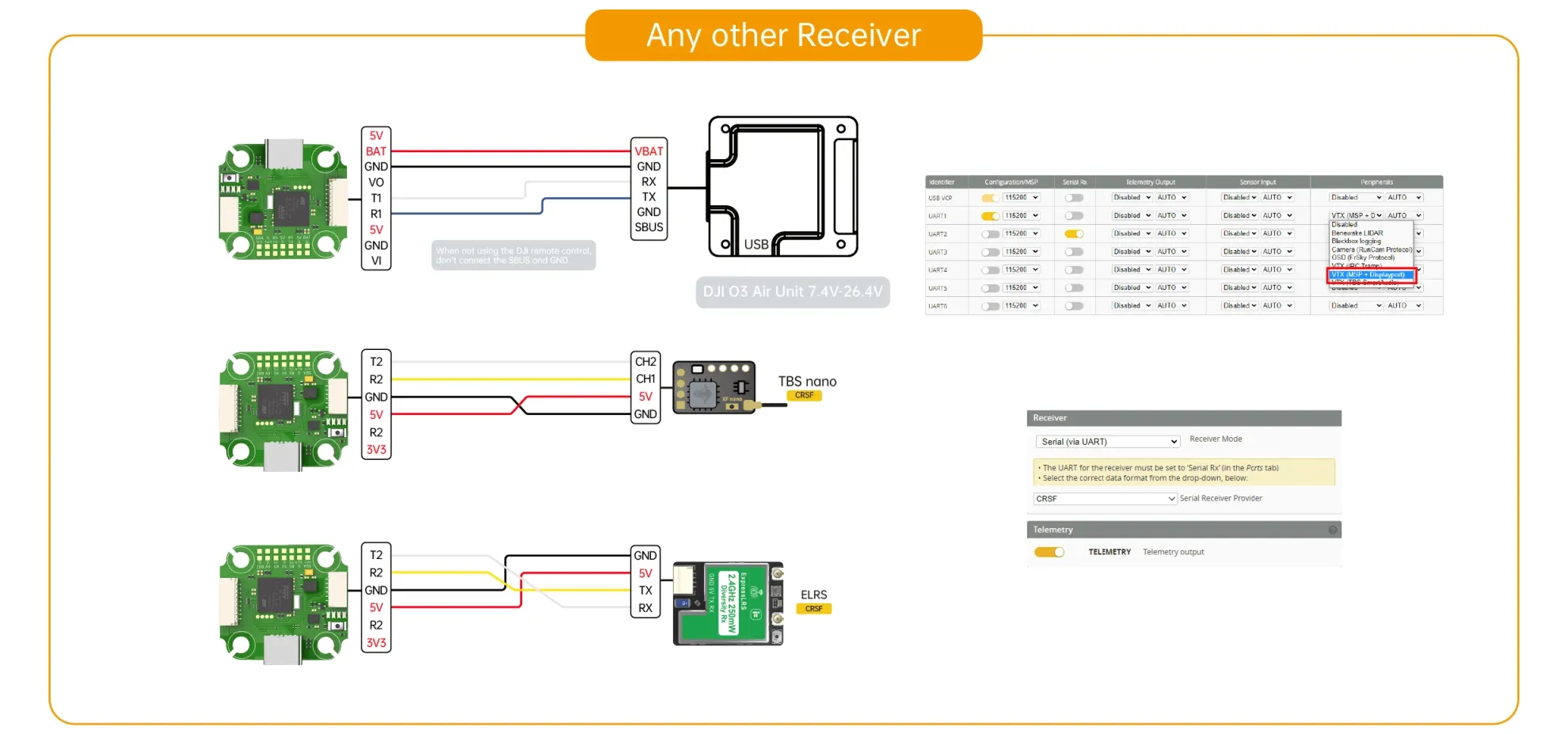

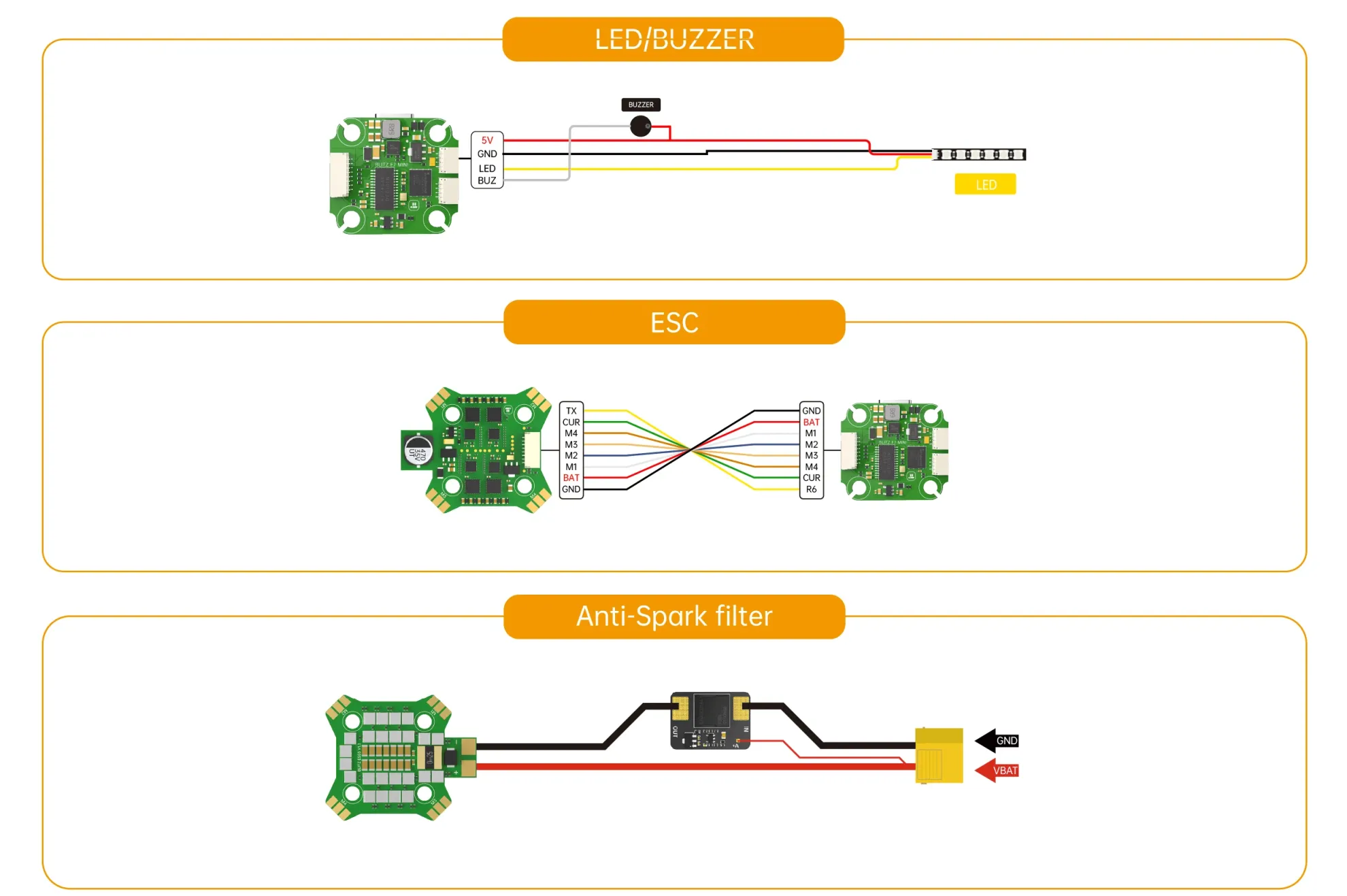

Wiring Suggestion:

Packing List
