NewFoxeer F722 V4 Flight Controller 3-6S X8 DJI Type-C 30x30

Foxeer
$12 Off Orders $199+
$25 Off Orders $369+
Collect
$ 55.99 $65.99
-15%
5.0 | 0Sold
Options (1)

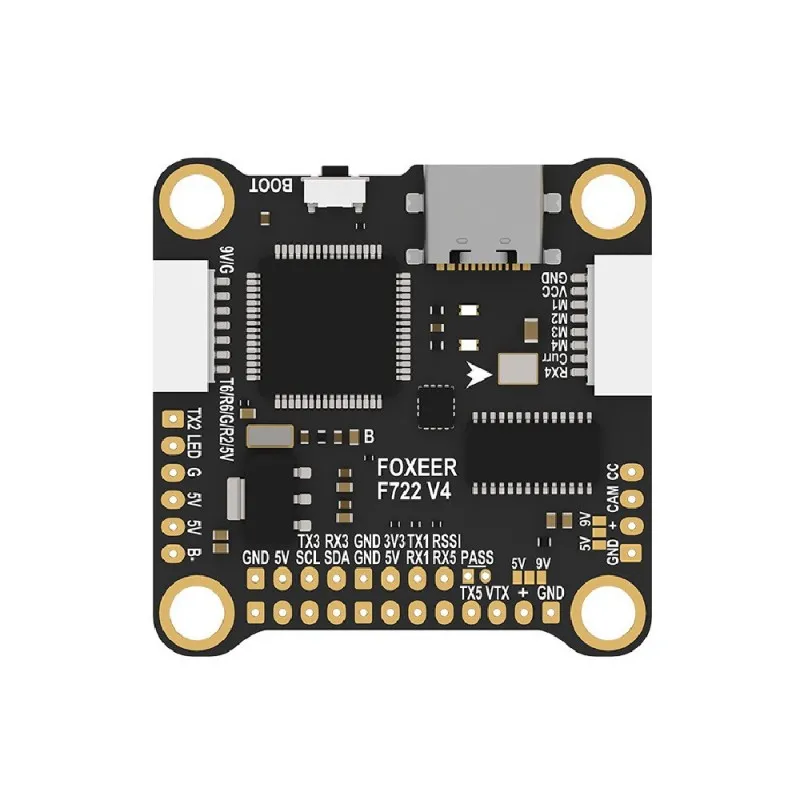

foxeer f722 v4 flight controller 2
ICM42688
Quantity
pilot gift days pc gift
In Stock Expected ship within 5 days after order.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
STM32F722 Processor with ICM42688 Gyro
Supports 3-6S LiPo Input
16MB Blackbox Flash Memory
Type-C Port & 6 UARTs
X8 Ready with Durable Through-Hole Pads
Payment | Every order you place with us is safe & secure
Share
Copy

About About Foxeer F722 V4 Flight Controller 3-6S 30x30:

The Foxeer F722 V4 Flight Controller features the powerful STM32F722RET6 MCU and ICM-42688-P gyro for great performance.  With support for 8 motors, 6 UARTs, and great filtering for clean power and video, this is sure to satisfy any builder or pilot's desire for a modern flight controller.

Specifications

● Model: F722 V4

● CPU: STM32F722RET6

● Gyro: ICM-42688

● Power Supply: 3~6S Lipo (11V~30V)

● BEC Output: DC5V/3A; DC9V/3A

● OSD: BF OSD

● Black Box: 16M Flash Memory

● UART: 6 Set

● ESC Telemetry: RX4

● Buzzer: YES

● Smart Audio: YES

● LED: 1 Set 2812 LED

● USB: Type-C

● X8: Supported Need CLI

● Firmware: FOXEERF722V4

● Size: 37X37mm

● Mounting Hole: 30.5X30.5mm,Φ4mm

● Weight: 8g

● Working Temperature: -20℃ ~ +55℃

● Model: F722 V4

● Storage Temperature: -20℃ ~ +70℃

Includes

● 1x Foxeer F722 V4 Flight Controller

● 4x Silicone Grommets

foxeer f722 v4 flight controller 1
