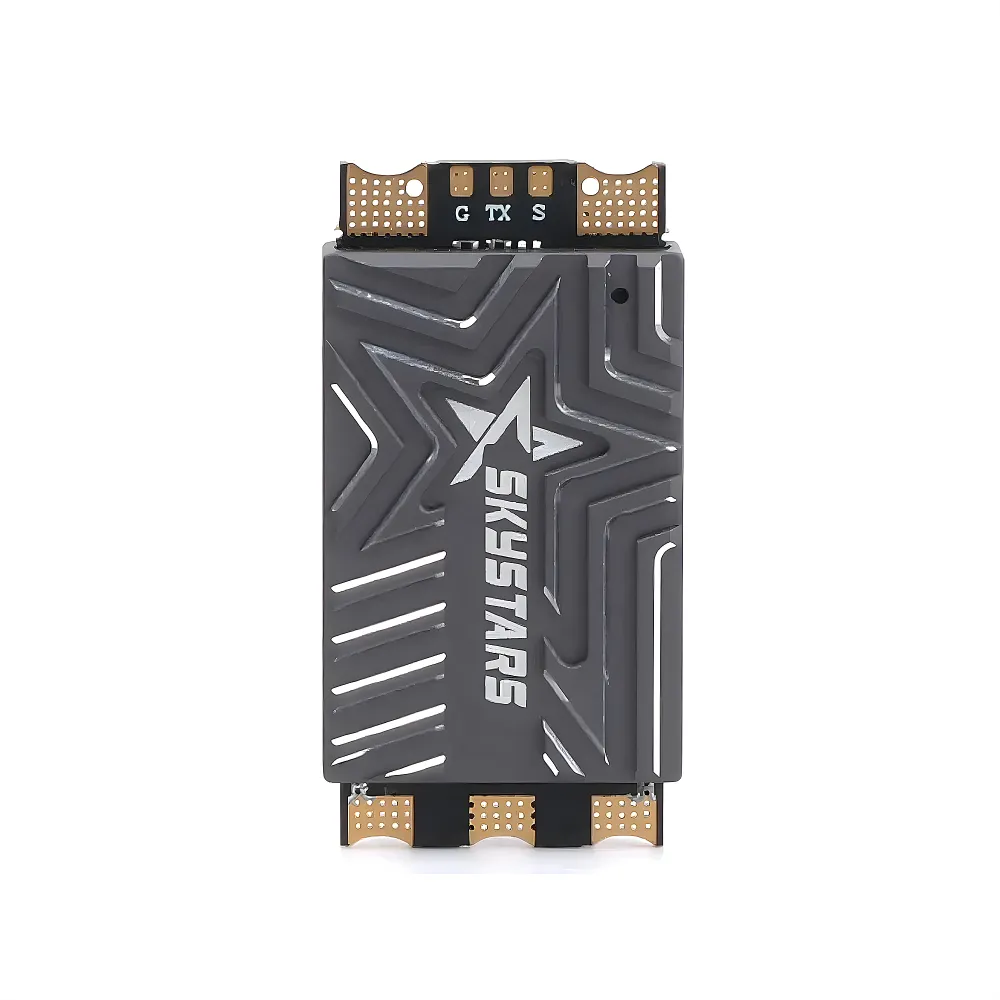

Skystars Jupiter SL80A Blheli32 80A 2-8S Individual ESC For X-Class/Cinelifter

About Skystars Jupiter SL80A Single 80A ESC:

Skystars Jupiter SL80A Single 80A ESC G071 BLHELI32 2-8S LIPO NO BEC for FPV Freestyle X-Class Drones DIY Parts

JUPITER SL80 BLHeli Dshot600 Single ESC was designed to give your motors smooth power with great stability and durability. The 32bit G071 MCU and 12 PCS Low ESR MosFets bring faster-responding speed and smoother flying experience.

The ESC does not have a BEC.

Heavy-Duty Single ESC for X-Class & Cinelifter Builds

The Skystars Jupiter SL80A is built for pilots running high-power X-Class and cinelifter setups. With true 80A output, BLHeli_32 firmware, and 2–8S LiPo support, it delivers the smooth power and reliability needed for demanding heavy-lift flying.

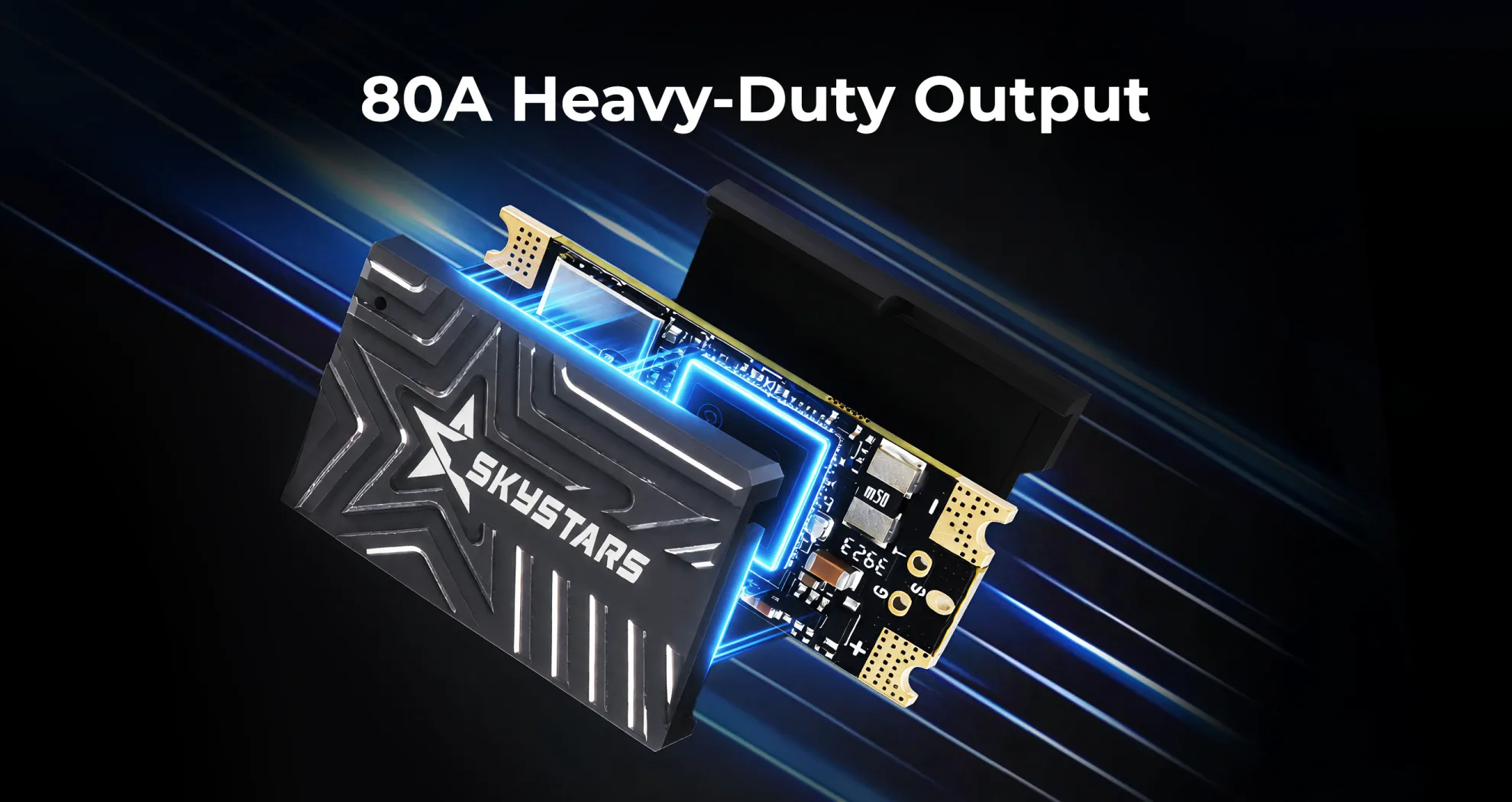

True 80A Output for Heavy Payload Power

Built with an 8-layer 4OZ copper PCB and high-grade MOSFETs, the SL80A handles sustained high current more confidently than standard ESCs. User value: stronger punch-outs, more reliable power delivery, and stable performance under heavy load.

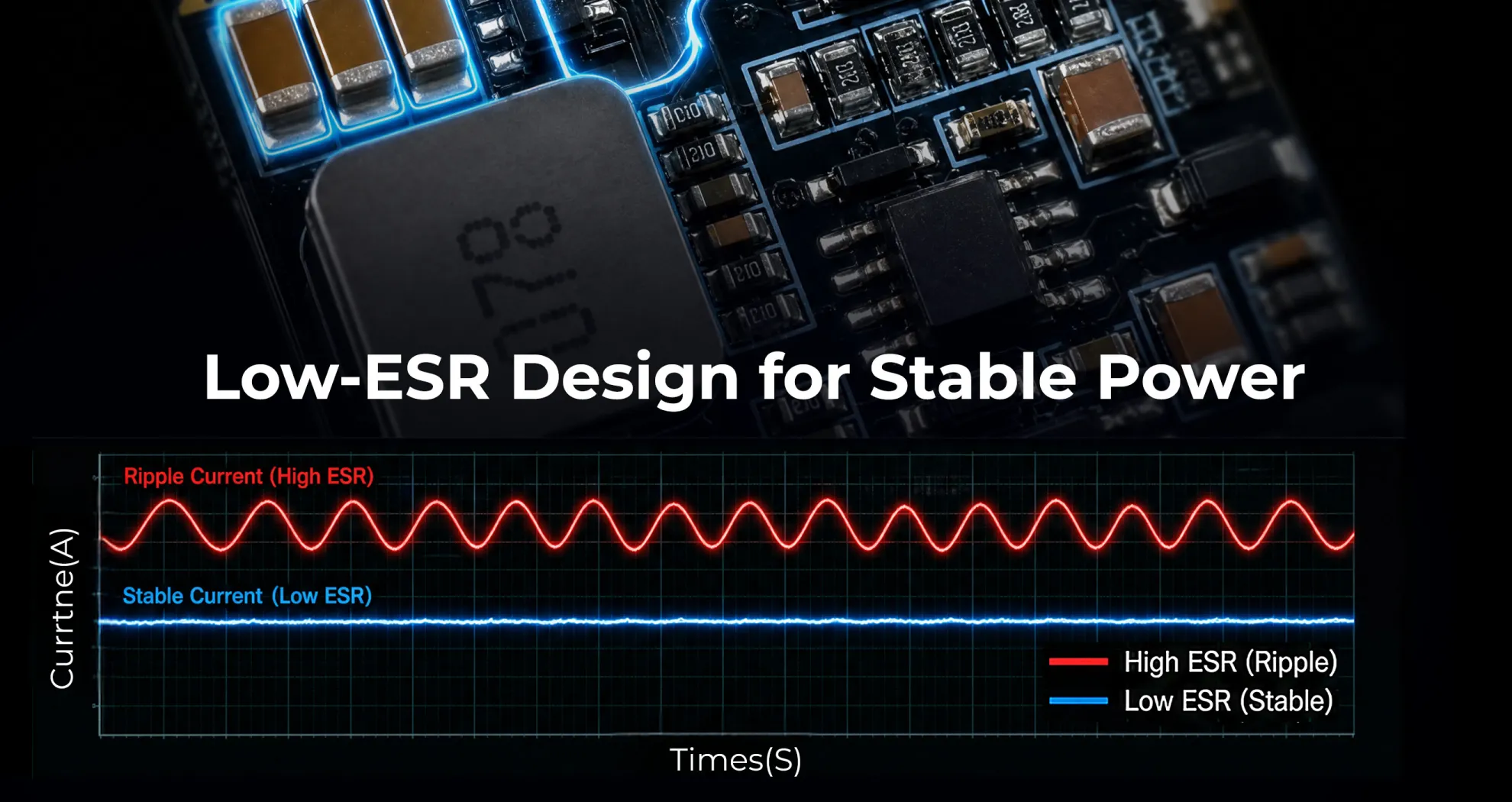

Low Ripple Power for Smoother Flight

The Jupiter SL80A uses 12 low-ESR MOSFETs, 14 TDK MLCC low-ESR capacitors, and a total of 300uF low-ESR capacitance to reduce ripple and improve power stability. User value: cleaner motor behavior, less desync risk, and more predictable control.

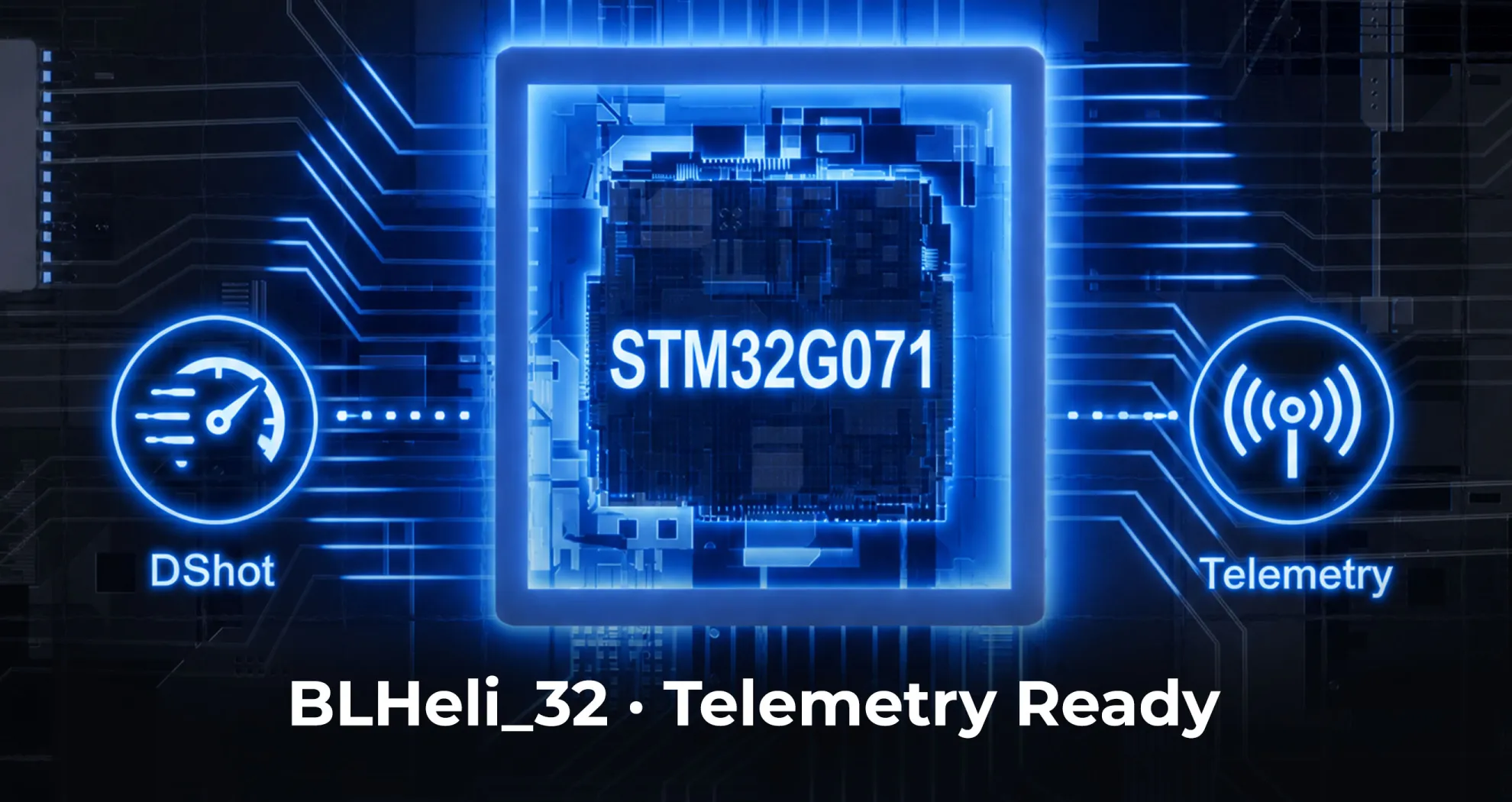

BLHeli_32 Precision with Full Protocol Support

Powered by a 32-bit STM32G071 MCU running BLHeli_32 firmware, the SL80A supports DShot150/300/600, OneShot, MultiShot, telemetry, and advanced tuning functions.

User value: faster response, finer tuning control, and real-time ESC feedback.

One ESC for Multiple Voltage Builds

Unlike ESCs limited to narrow voltage ranges, the Jupiter SL80A supports 2–8S LiPo input, making it adaptable across multiple FPV platforms.

User value: easier upgrading and greater build flexibility.

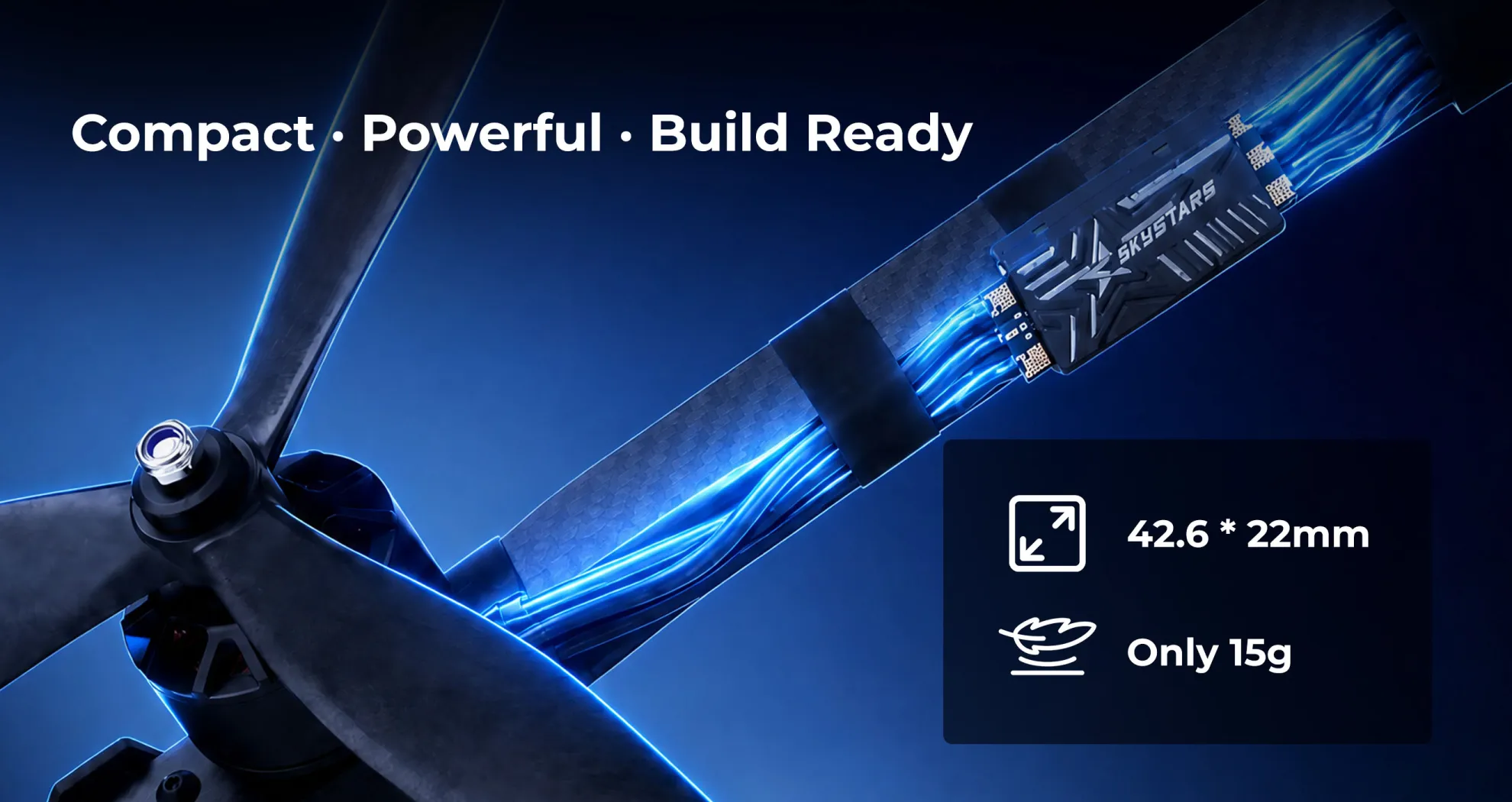

Compact Layout, Serious Power

Despite its heavy-duty capability, the SL80A keeps a compact 42.6×22mm footprint and weighs only about 15g, helping simplify integration into tighter frames.

User value: easier mounting without sacrificing power.

Features:

● 2-8S input (max 8S)

● 80A 8 layers 4OZ copper PCB, better operating load capacity;

● 14 pieces TDK MLCC Low ESR capacitors, lower ripple and more stable;

● Top grade 40V MOSFET, stable and reliable;

● 1*RGB LED for power- on display;

● Rational layout, large soldering pad, countersinks and semicircle orifices enable each layer to be energized after power-on.

Specifications:

● Dimension: 42.6*22mm

● Weight: 15g(±2g)
● Supports 2-8S lipo input
● STM32G071 MCU, 48Mhz Runs BLHELI 32.X Firmware
● Capacitance: total 300UF Low ESR
● Telemetry output
● BEC: No
● Supports: DShot DShot150/300/600/MultiShot/OneShot PWM Drive
● Target: SKYSTARS_SL80A

● BLHeliSuite Download
● Support:
● Current Sensor
● Telemetry output
● Motor Timing
● Brake on Stop
● Package Included:
● JUPITER SL80 Single ESC *1pcs
● 63V 390UF capacitor * 2pcs
● Power cables & ESC signal wires *1set

Package:

● 1 x Skystars Jupiter SL80A Blheli_32 80A 2-8S Individual ESC
