SZ2207 Brushless Motors with SZ60A 6S 4IN1 ESC & F7 Flight Controller FPV Bundle

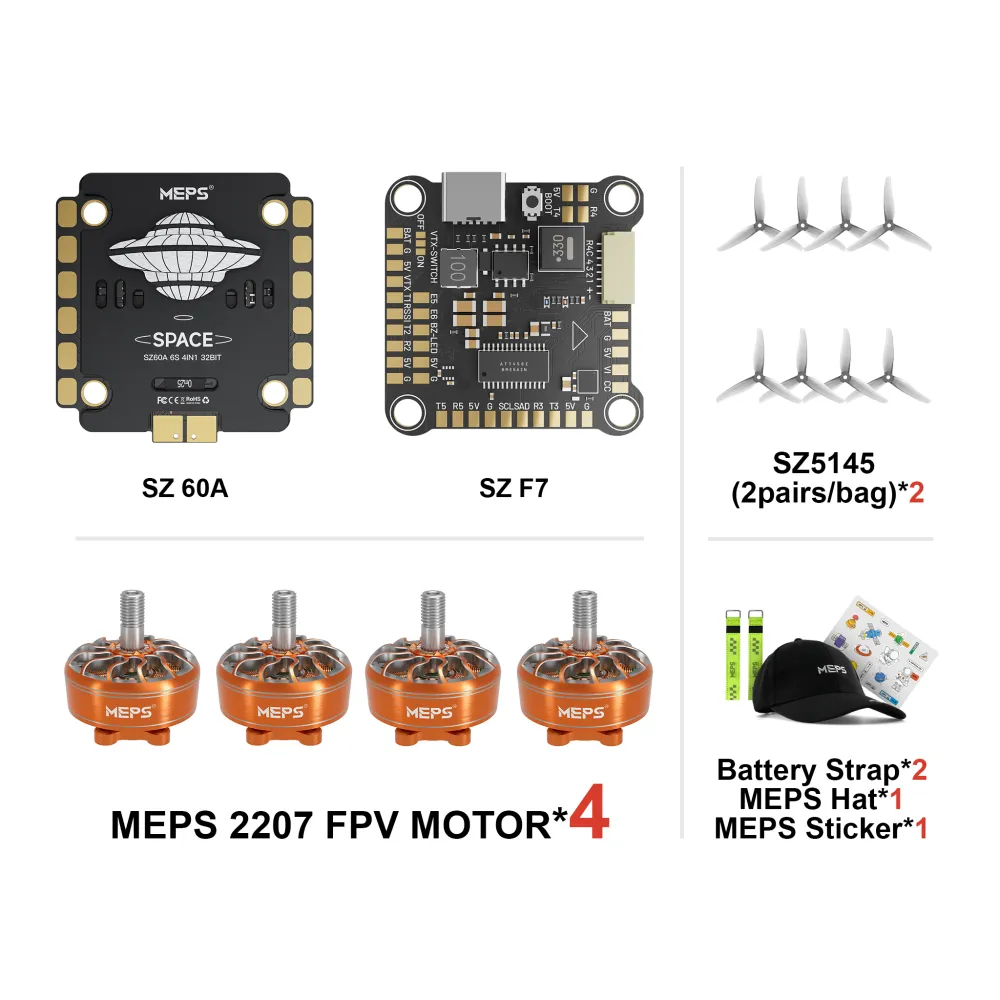

Package Included:

● 4pcs* MEPS 2207 Brushless Motors

● 1pc* MEPS FPV 60A ESC

● 1pc* MEPS FPV F7 Flight Controller

● 4Pairs*MEPS 5145 FPV Propellers

● 1pc*MEPS Hat

● 2pcs* Battery Straps

● 1pc* MEPS Sticker

About 2207 Racing Drone Motors:

The MEPS SPACE 2207 is a strong and high-performance choice for racing drone motors. It features a powerful 6S brushless motor, making it suitable for both FPV racing and freestyle maneuvers on 5"-6" quadcopters. Crafted with top-tier materials, the motor has a unique unibell design with a distinctive sunflower appearance, and it stands out with an industry-first fluorescent green color scheme.

The construction of this motor includes a high-strength TC4 titanium alloy shaft, N52H arc magnets, NMB bearings, 6082 aluminum rotator, and military-grade high-temperature enameled wire. The integration of 12.9-grade hexagon socket screws adds to its overall performance and durability.

Whether you need a motor for a racing drone or a 6S or 4S brushless motor, the MEPS SPACE 2207 is a cost-effective and durable choice. It comes in 1750KV, 1950KV, or 2750KV variants, offering a great balance of affordability and performance. This makes it a standout option in the FPV community for those looking for reliable and powerful racing drone motors.

Features:

● Application: Perfect suited for 5 inch FPV racing drone.

● Light and Quick: Aluminum alloy 6082 and TC4 reinforced titanium alloy shaft guarantees its light and enhances its propulsion and speed.

● Durable and Impact Resistance: N52H arc magnets and 12.9-grade hexagon socket screws provide excellent balance and high stability.

● New Propulsion Design: Born with agility and extreme corner shifting speed, with ease whether in straight-line speeding or corner shifting.

● Professional FPV Racing: Elaborately designed for the harsh environment of professional racing and racers' extreme demand for a sense of control.

● Three KV Options Available (1750, 1950, 2750): Different KVs match different batteries and propellers for different flying styles.

Specification:

● Model: MEPS 2207 racing motor

● Color: Cyan/Orange/Grey/Green (optional)

● KV: 1750kv/1950kv/2750kv (optional)

● Materials: 6082 aluminum bell, TC4 reinforced titanium alloy shaft, N52H arc magnets, NMB bearings, military-grade high-temperature enameled wire, and 12.9-grade hexagon socket screws.

● Lead: 20#160mm

● Weight(including cable): 34g

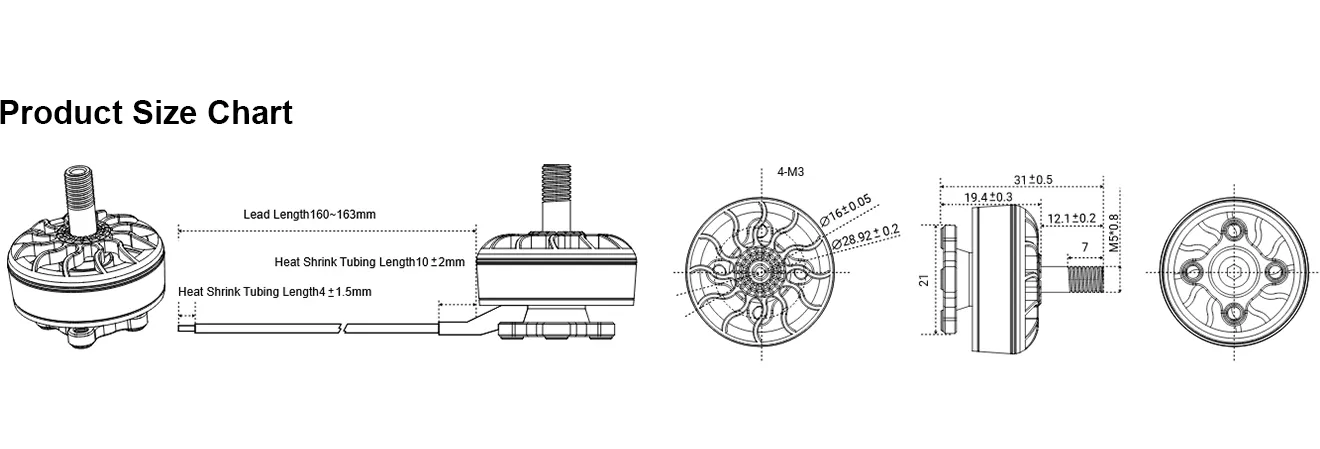

● Motor Diameter: 28.93*31.5mm

● Shaft Diameter: 5mm

● Rated Voltage(Lipo): 6S(1750KV/1950KV), 4S(2750KV)

● Configuration: 12N14P

● Internal Resistance: 72mΩ(1750KV), 66mΩ(1950KV), 39mΩ(2750KV)

● Idle Current(10V): 1.5A(1750KV), 1.8A(1950KV), 2.8A(2750KV)

● Max Power: 931.1W(1750KV), 1148.4W(1950KV), 846.7W(2750KV)

● Model: MEPS 5145 racing propeller

● Color: Grey

● Application: Perfect matching with SZ2207 motors for 5" racing dones, larger pitch for higher speed.

● Dimension: Pitch 4.5 inch, Moungting holes M5.

● Materials:  PC

● Blade: 3

● Weight: 3.7g each

● Model: MEPS Battery Strap

● Color: Green

● Size: 250x20 mm

● Model: MEPS hat

● Color: Black

Product Recommendation:

● MEPS 5145 racing propeller

● MEPS F7 HD flight controller / MEPS F7 flight controller

● MEPS 60A FPV ESC

About F7 Flight Controller:

Meet the MEPS SPACE F7 Flight Controller, a full-sized 30×30 drone flight controller designed for analog builds and powered by the STM32F722 microcontroller. Boasting the ubiquitous AT7456E chip for OSD overlay generation, this F7 flight controller is a reliable choice for your FPV racing drone.

Built for ease and efficiency, the MEPS SPACE F7 features well-sized solder pads and a sensible layout, making it a breeze to assemble. One standout feature is the introduction of the ability to assign a transmitter switch to control the VTx power regulator, offering added flexibility in your drone setup.

If you're in search of the best F7 flight controller or the best quadcopter flight controller, the MEPS SPACE F7 is a solid option, providing seemingly reliable VTx power switching as an additional feature. Consider this flight controller, especially if you plan on pairing it with MEPS motors – you can conveniently order them together for a seamless drone-building experience.

Elevate your FPV experience with the MEPS SPACE F7 – setting the standard for drone flight controllers, offering reliability and advanced features for your analog builds.

Features:

● Application: 30.5*30.5mm mounting holes.

● Lower Latency: Smoother operating, faster calculation, and sensitive response with STM32 F7 MCU and BMI270 gyro sensor.

● Less Heat Generation: VTX switch function and better thermal performance, reduce heat generation and interference.

● Rigorous Layout: Clear layout with easy-to-read labels for each port, minimizing wiring difficulties and electrical interference.

● Multi-Peripheral Friendly: With 5V/2A BEC outputs for different peripherals such as GPS, LED strip, buzzer, etc.

● 16MB Black Box: Store tens of minutes of flight data for professionals' tuning and troubleshooting needs.

Specification:

● Model: MEPS F7 Flight Controller

● Color: Black

● Input Voltage: 3-6S Lipo

● Processor: STM32F722

● IMU(Gyro): BMI270

● BEC: 5V 2A

● OSD: AT7456E

● Black Box: 16MB

● Dimension: 37*37*6.5MM

● Mounting Holes: 30.5*30.5mm/Φ4mm

● Weight: 7.2g

Product Recommendation:

● MEPS 60A FPV ESC

● MEPS 2207 racing motor

● MEPS 2306 freestyle motor

Interface Definition Figure

Connection Diagram

Parameter Data

About 60A FPV Drone ESC:

Unlock unparalleled performance with the MEPS 60A FPV Drone ESC 4 in 1 – recognized as the best 4 in 1 ESC in the market. Equipped with the fastest MCU fully supported by BLHELI32, this drone ESC supports higher protocols, delivering a faster response for an unmatched flight experience. It stands out as the best 6s ESC, providing optimal power for high-performance drones.

Designed for excellence, the MEPS 60A features an upgraded heat sink and industrial-grade PCB, significantly enhancing heat dissipation capacity. With full access to all useful flight data, it ensures a reliable and efficient flight experience. Compatible with most mainstream FPV frames, this drone ESC 4 in 1 is the top choice for discerning FPV enthusiasts.

Choose the MEPS 60A for the best drone ESC, offering cutting-edge technology, superior heat dissipation, and compatibility with mainstream frames. Elevate your drone's performance with the best 6s ESC on the market.

Features:

● Application: 30.5*30.5mm mounting holes.

● High Current Load Capacity: With a current load capacity of up to 60A, our FPV drone ESC ensures you enjoy the flights with unparalleled ease and satisfaction whether you're performing acrobatic maneuvers or racing at high speeds.

● Enhanced Heat Dissipation: Features an upgraded heat sink and industrial-grade PCB that significantly improves the heat dissipation capacity, ensuring the FPV drone's efficiency remains optimal even during demanding conditions.

● Compatible Mounting Holes: With 30.5*30.5mm mounting holes, it's compatible with most mainstream FPV frames, providing pilots with greater flexibility and ease of installation.

● Telemetry Data Return: Offers full access to all the useful flight data, and enables pilots to monitor and adjust flights for optimal performance, making it easier to fine-tune your drone's performance and maximize your flight experience.

● BLHeliSuite32: Supports higher protocols, providing faster response and increased reliability.

Specification:

● Model: MEPS 60A FPV ESC

● Color: Black

● Input Voltage: 3-6S

● Continuous Current: 60A

● Peark Current: 65A

● Firmware: BLHeli 32

● Telemetry: Support

● Mounting Holes: 30.5*30.5mm/Φ4mm

● Dimension: 45.4*43.8*8mm

● Weight: 19g

Product Recommendation:

● MEPS F7 flight controller / MEPS F7 HD flight controller

● MEPS 2207 racing motor

● MEPS 2306 freestyle motor

Parameter Data
