TMOTOR Pacer P1604 3.5" Freestyle Drone Motor 2850KV/3800KV

About TMOTOR P1604 Freestyle Drone Motor :

The TMOTOR P1604 freestyle drone motor is a continuation of the PACER series, offering improved durability with a bell design. The TMOTOR Pacer P1604 motor features a 1.5mm shaft and 9x9 mounting holes, making it compatible with a wide range of props and frames. Weighing only 11.6g, the P1604 brushless motor is ideal for 3 inch FPV drones and 3.5 inch freestyle drones, especially for sub-250g freestyle builds. Known for its performance and light weight,  the P1604 competes with some of outstanding FPV drone motors for those looking for powerful, yet lightweight freestyle setups.

Features:

● Unibell-design

● Suitable for 3.5' freestyle Sub 250g drone

● Two KV options to choose from (2850KV (6S), 3800KV (4S))

● T-Mount version

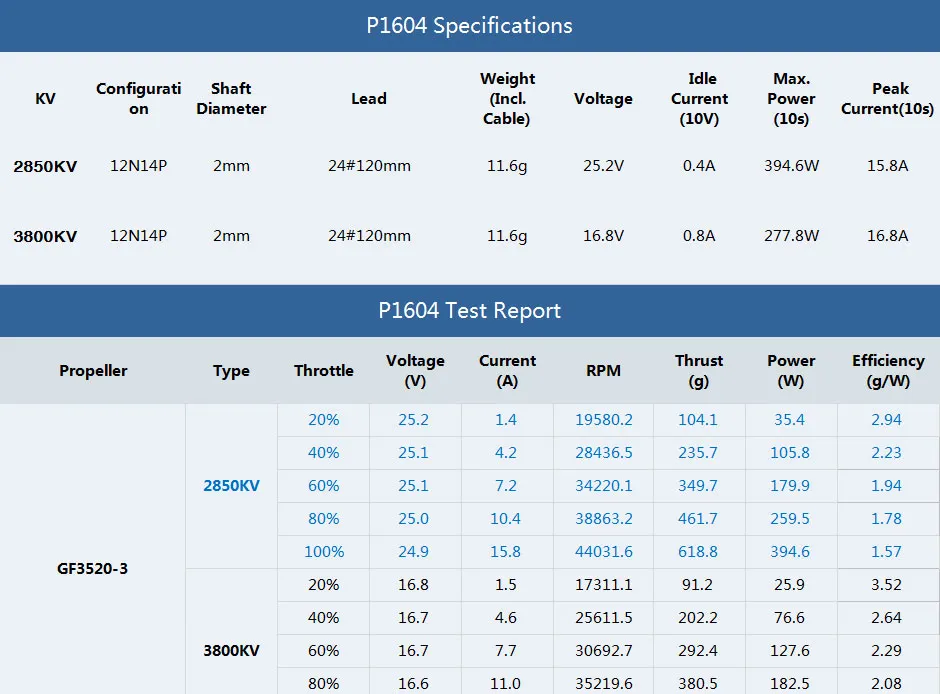

Specifications:

KV: 2850

● Configuration: 12N14P

● Shaft Diameter: 2mm

● Lead: 24#120mm

● Weight (Inc. Cable): 11.6g

● Rated Voltage (Lipo): 25.2V

● Idle Current (10V): 0.4A

● Max. Power (the 10s): 394.6W

● Peak Current (10s):15.8A

KV: 3800

● Configuration: 12N14P

● Shaft Diameter: 2mm

● Lead: 24#120mm

● Weight (Inc. Cable): 11.6g

● Rated Voltage (Lipo): 16.8V

● Idle Current (10V): 0.8A

● Max. Power (the 10s): 277.8W

● Peak Current (10s):16.8A

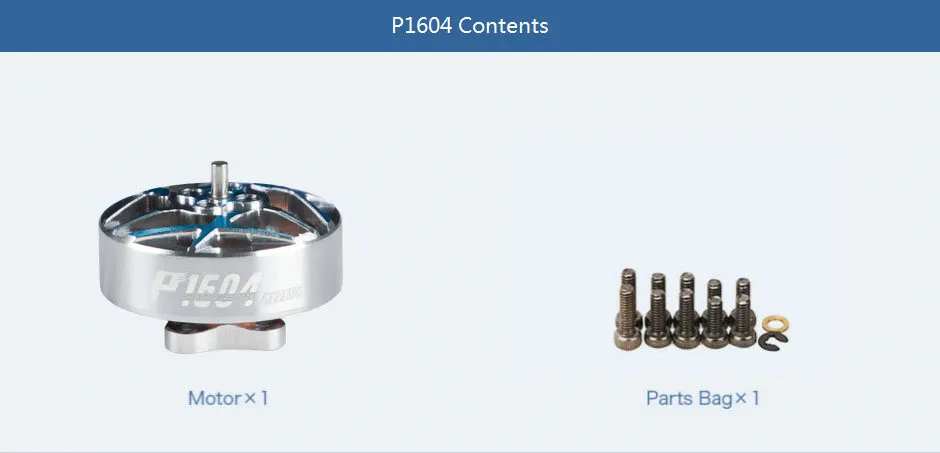

Package Includes:

● 1x TMOTOR P1604 Freestyle Drone Motor
