Q: What are the key features of the TMOTOR CINE55A ESC?

A: This 32BIT ESC is specifically designed for X8 class drones, featuring eight motor channels, allowing seamless operation of 55A for 8 motors, reducing wiring complexity. It connects to the flight controller with a single plug, simplifying the installation process.

Q: What components are recommended to pair with this FPV ESC?

A: Recommended components to pair with this ESC include the T-Motor F7 Pro Flight Controller, CADDX Walksnail Avatar HD Pro Kit, and MEPS SZ2408 motors.

Q: What is the ideal application scenario for this 8-in-1 ESC?

A: This ESC is ideal for X8 class drones, significantly simplifying soldering and wiring, making it perfect for outdoor flights with octocopter power systems. It is the best choice for building X8 class drones.

Q: What should be taken into consideration during the usage of this FPV ESC?

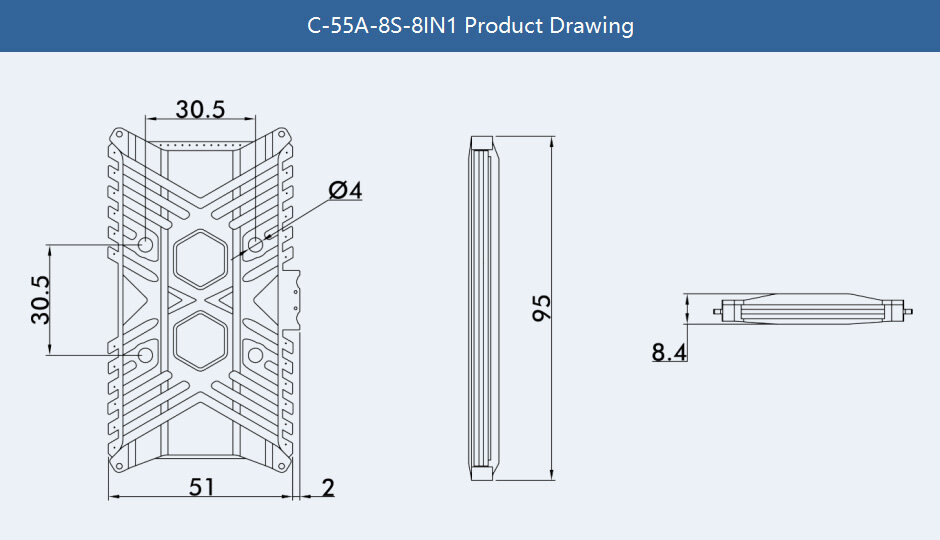

A: The TMOTOR CINE55A has a mounting hole distance of 30.5*30.5mm and uses 48 full-size heat sinks for maximum heat dissipation, improving efficiency. It also features dual capacitor filters to prevent electromagnetic interference from motor operation and stabilize current. Ensure the mounting hole distances match to avoid installation issues.

TMOTOR Cine55A 8S 8 in1 32BIT FPV ESC - 30x30mm

About TMOTOR CINE55A 8S 32BIT 8in1 ESC:

Introducing TMOTOR Cine 55A BLHeli_32 3-8S 8in1 FPV ESC (30X30). This 30.5x30.5mm FPV ESC is perfect for large Cinelifters running 8 motors and up to 8S voltage! This 8S FPV ESC makes building a breeze as you no longer need to wire up two 4-in-1 ESCs. Combine this 55A drone ESC with the T-Motor F7 Pro Flight Controller and make wiring even easier as the ESC and FC can connect with just one wire harness!

Features:

1.Perfect for large Cinelifters running 8 motors and up to 8S voltage
2. Combine this ESC with the T-Motor F7 Pro Flight Controller and make wiring even easier as the ESC and FC can connect with just one wire harness
3. 48 full-size imported MOs on board 1.No heatsink for reduced weight but with the durable
4. Doubled-sized matte black heatsink
5. 118 filtering capacitors on board 1.No heatsink for reduced weight but with the durable
6. External dual capacitor pad

$20 Off Orders $299+

$10 Off Orders $189+

Collect

$ 258.00 ~~$290.90~~

-11%

5 | 100+Sold

Options (1)

55A 8S

Quantity

In Stock Expected ship within 24 hours after order.

Estimated Transit Time: 15-20 Days.

MEPSKING FPV store with YunExpress shipping

Free Shipping Over $99 | Save on Orders $99+

24-Month Warranty | 2 Years Full Protection

7-Day Easy Returns | 7-Day No-Risk Return

24h Support Response | 24h Fast Support Guarantee

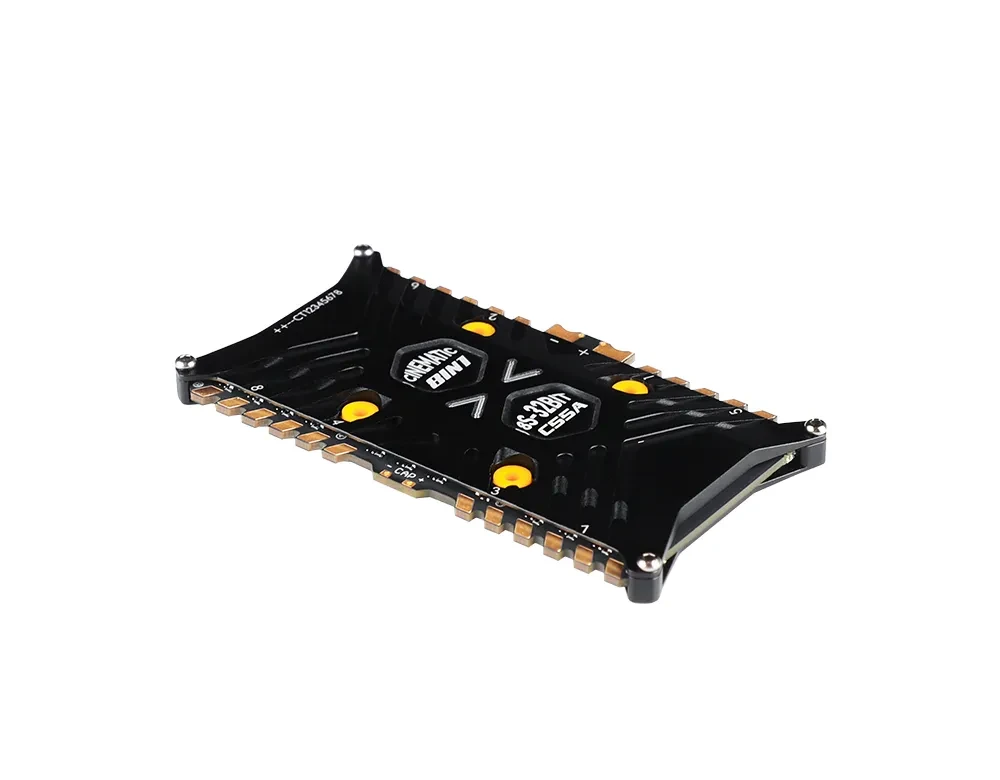

48 Full-size imported mos on board

Double-sided matte black heatsink

118 Filtering capacitors on board

Dual capacitor drastically improves the ESC service time

Compatibility with f7 pro. Plug and play, single harness connection / more convenient
