T-MOTOR P20x6 Multi-Rotor UAV Carbon Fiber Propeller show
New

T-MOTOR P20x6 Multi-Rotor UAV Carbon Fiber Propeller-2PCS/PAIR

About T-MOTOR P20×6 Multi-Rotor UAV Propellers:

High-Efficiency Propulsive Core & Polished Carbon Finish for Commercial UAVsDesigned for mid-to-large commercial quadcopters, aerial mapping drones, and industrial inspection UAVs, the T-MOTOR P20×6 Carbon Fiber Propeller Set (2PCS/PAIR) combines lightweight structural efficiency with smooth aerodynamic performance. Featuring a 20-inch diameter paired with a 6-inch pitch, this propeller pair generates steady static thrust at lower motor RPMs, directly reducing power draw on 6S to 12S system setups. Crafted from premium 3K carbon fiber composite with a protective polished surface, the P series delivers high structural stiffness to eliminate pitch warping during rapid throttle adjustments while keeping rotational inertia minimal for precise flight controller PID response.

$18 Off Orders $249+
$12 Off Orders $159+
Collect
$ 108.90
5.0 | 0Sold
Options (1)
In Stock Expected ship within 48 hours after order.
  • Free Shipping Over $79 | Save on Orders $79+
  • 24-Month Warranty | 2 Years Full Protection
  • 30-Day Returns From Shipment | 7-Day No-Reason Returns
  • 24h Support Response | 24h Fast Support Guarantee
Top highlights
  • High-Efficiency 20x6 Airfoil: Optimized geometry lowers current draw to maximize total hover endurance.
  • Polished 3K Carbon Build: Industrial-grade carbon composite prevents blade flex under heavy throttle.
  • Factory Dynamic Balancing: Precision factory balance eliminates micro-vibrations for clean video.
  • Ultra-Light Low-Inertia Design: Accelerates dynamic ESC throttle response in gusty wind conditions.
  • Commercial Multirotor Compatibility: Ideal for 6S–12S aerial mapping quadcopters, inspection drones, and UAVs.
Payment | Every order you place with us is safe & secure
Share

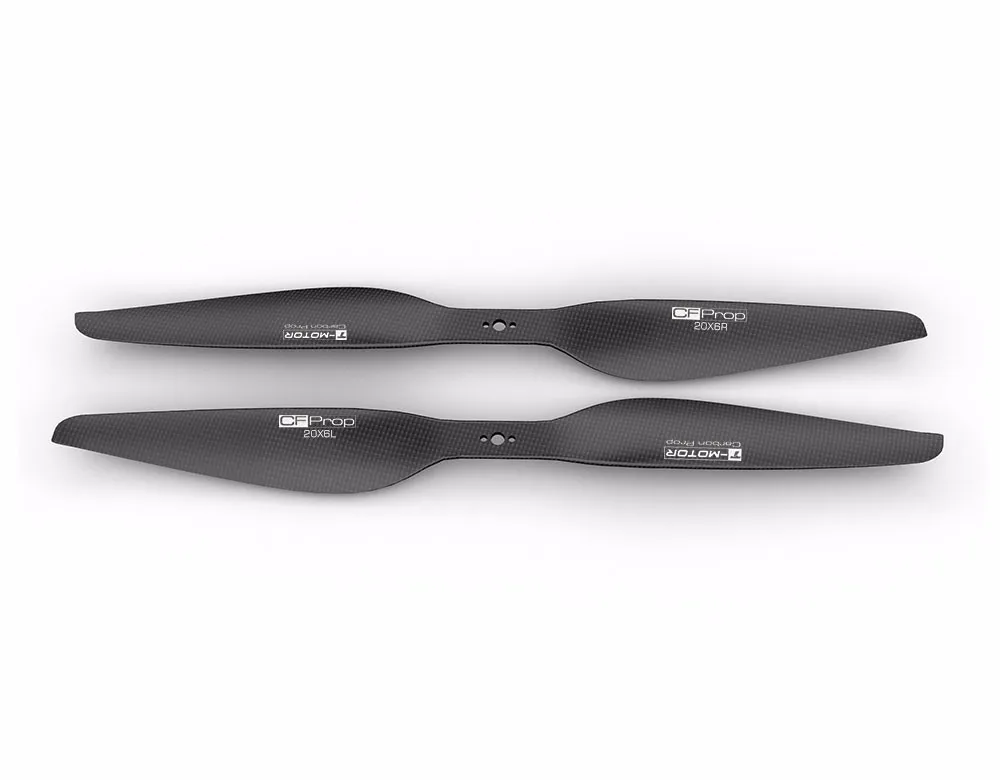

T-MOTOR P20x6 Multi-Rotor UAV Carbon Fiber Propeller show

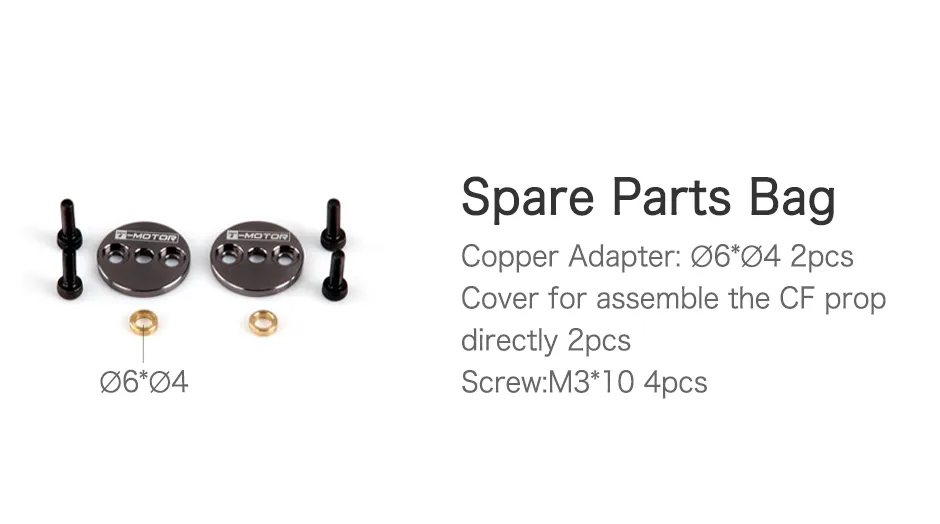

T-MOTOR P20x6 Multi-Rotor UAV Carbon Fiber Propeller parts bag

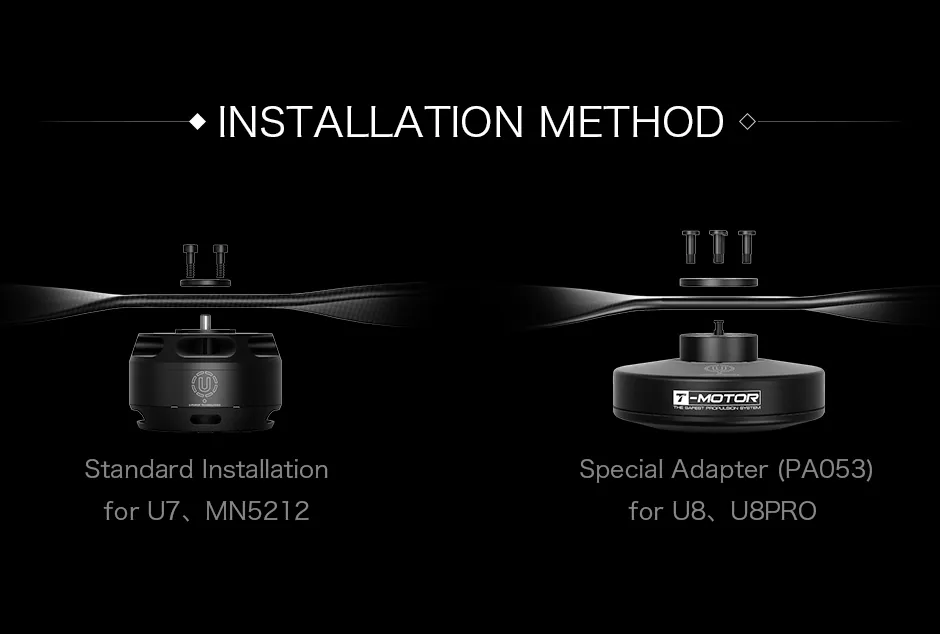

T-MOTOR P20x6 Multi-Rotor UAV Carbon Fiber Propeller installation method

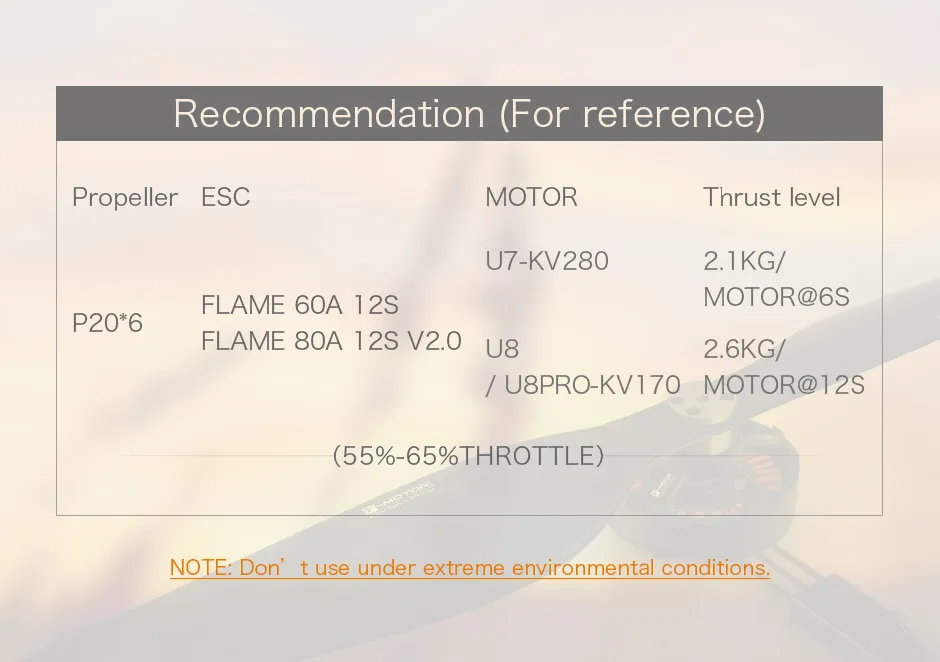

T-MOTOR P20x6 Multi-Rotor UAV Carbon Fiber Propeller recommendation

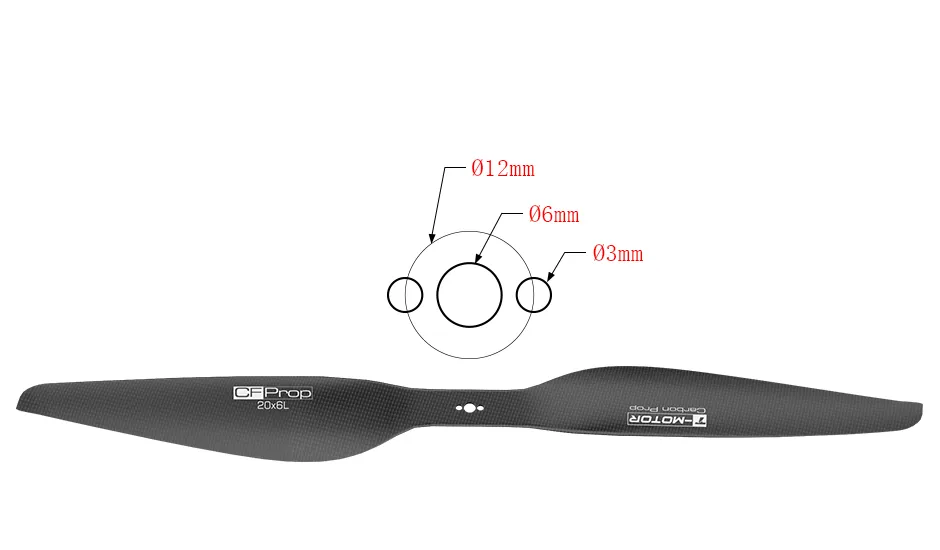

Technical Drawing

T-MOTOR P20x6 Multi-Rotor UAV Carbon Fiber Propeller technical drawing

Specification

Model No.20*6(508*152.4mm)T-MOTOR Series2blades-integrated
Weight(Single Blade)47gMaterialCF+Epoxy
Thrust Limitation10kgAmbient Temp-40℃~65℃
Optimum RPM3000~5500 RPM/minStorage Temp/Humidity-10℃~50℃/<85%
Surface TreatmentPolished

Packing List

T-MOTOR P20x6 Multi-Rotor UAV Carbon Fiber Propeller packing list

Before using this product, please check whether all the items listed above are included in the package. If anything is missing, please contact our online customer service or email us at  online@mepsking.com.


Note

1.Please make sure that screws of cover plates are mounted well.

2.Do not add force onto the propellers,

3.Fall-off or experience equivalent impact to propellers will lead to deformation or cracks. in this case, you will need

to replace them with good ones.

4.NEVER decompose the propellers. Decomposition of which will result in safety issues. Do not use the propellers in

hostile environments containing H20,S02,N02,Cl2,organosilicon,cyanogroup and phenol.

5.Keep the propellers away from the mentioned environments in (4)

6.For long time storage of over 6 months, please keep it in sealed preservation.
