T-MOTOR MN801-S IP45 Navigator Type UAV Multi-Motor KV150

About T-MOTOR Navigator MN801-S Multirotor Fixed Wing UAV Motor KV150:

T-MOTOR MN801-S "Navigator" Series is a high-performance brushless motor for multi-rotors, VTOL, and fixed-wing UAVs. With 12kg thrust and 1000-hour MTBF, it ensures reliable, long-lasting flight. The motor features superior cooling (15% improvement), dust-resistance, waterproofing, and anti-corrosion. Ideal for aerial photography, it pairs perfectly with T-Motor G26*8.5" props. Regular lubrication keeps it running smoothly.

T-HOBBY

$18 Off Orders $249+

$12 Off Orders $159+

Collect

$ 249.99

5.0 | 0Sold

Options (1)

Quantity

In Stock Expected ship within 48 hours after order.

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Top highlights

Heavy load motor,born for VTOL
Long service life
Excellent cooling performance
Anti-high temperature/Anti-overload
Dust-resistance/Waterproof/Anti-corrosion

Payment | Every order you place with us is safe & secure

Navigator MN801-S Highlights:

● Max thrust: 12kg

● MTBF: About 1000hours

● Features: Excellent cooling performance; Dust-resistance/Waterproof/Anti-corrosion; Heavy Payload Long Flight Time

"Navigator" motors are for general uses like aerial photography.For demand of multi-rotors, VTOL and fixed wings.

Application Areas：

Cargo Drones, Tethered, Mapping and Inspection.

Packing List Includes:

● 1x T-MOTOR MN801 Motor KV150 ( kv which you choose)

● 1x Hardware pack

Matching Guide:

T-MOTOR G26*8.5 Prop / Flame 60A 12s v2

If you have any questions or inquires, please contact us: online@mepsking.com

mn801 s ip45 navigator type uav multi motor vtol

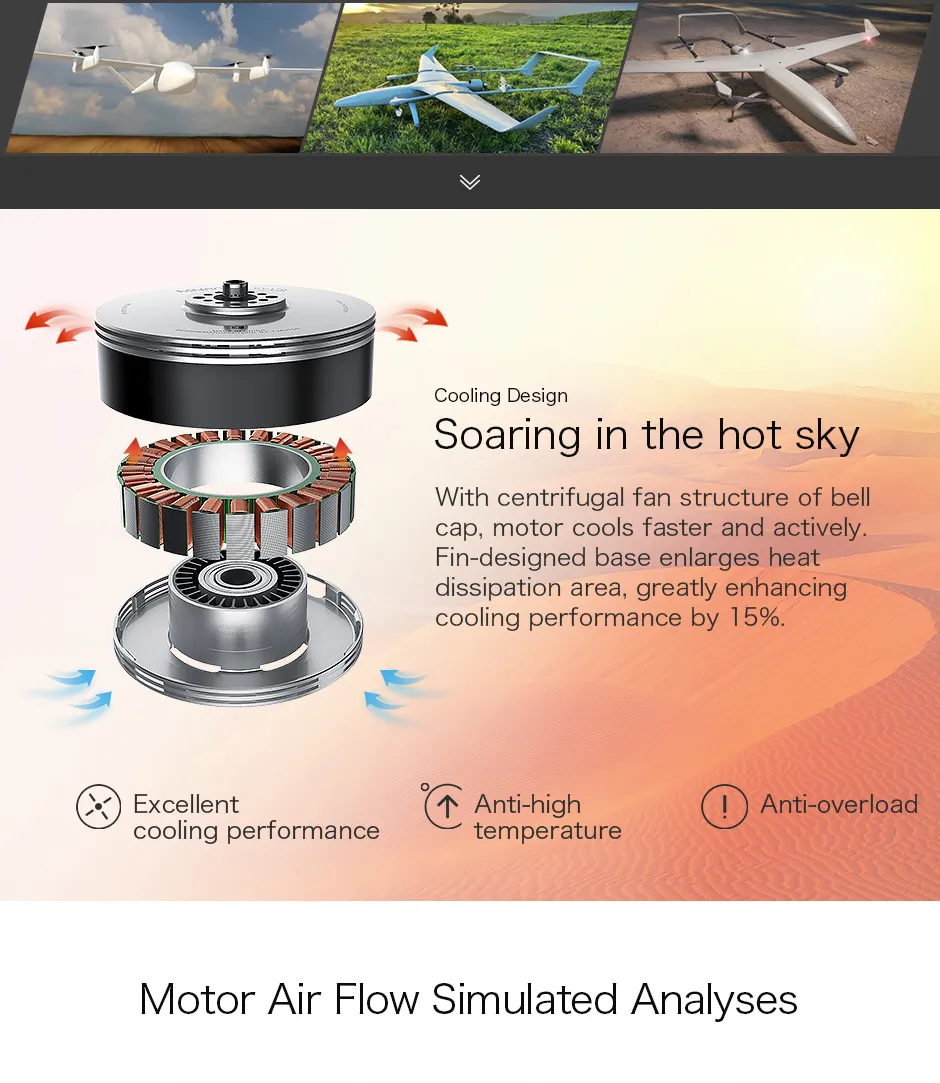

mn801 s ip45 navigator type uav multi motor cooling design

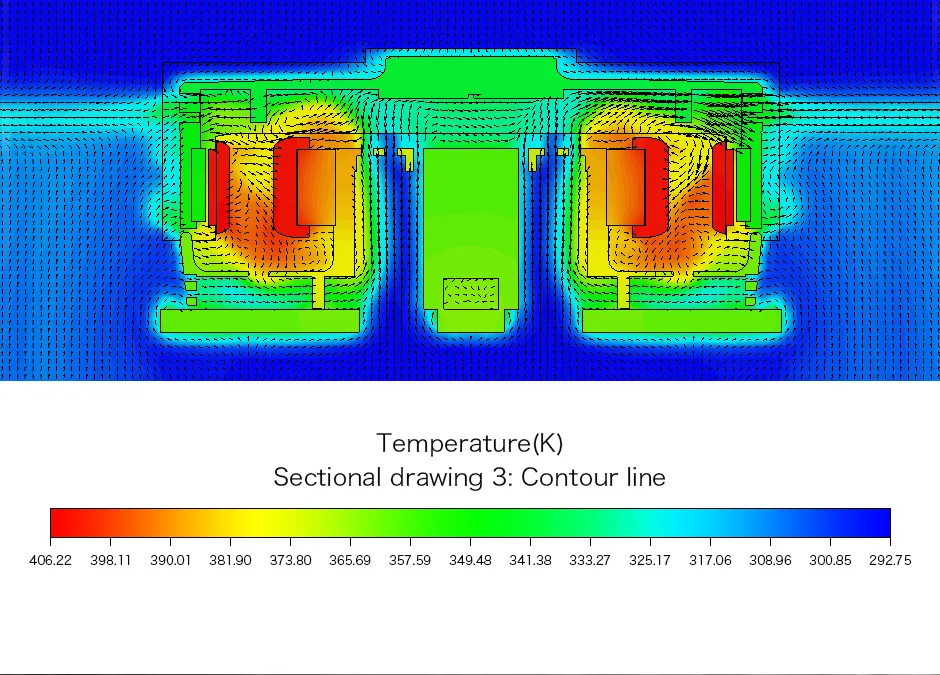

mn801 s ip45 navigator type uav multi motor temperature

mn801 s ip45 navigator type uav multi motor IP45

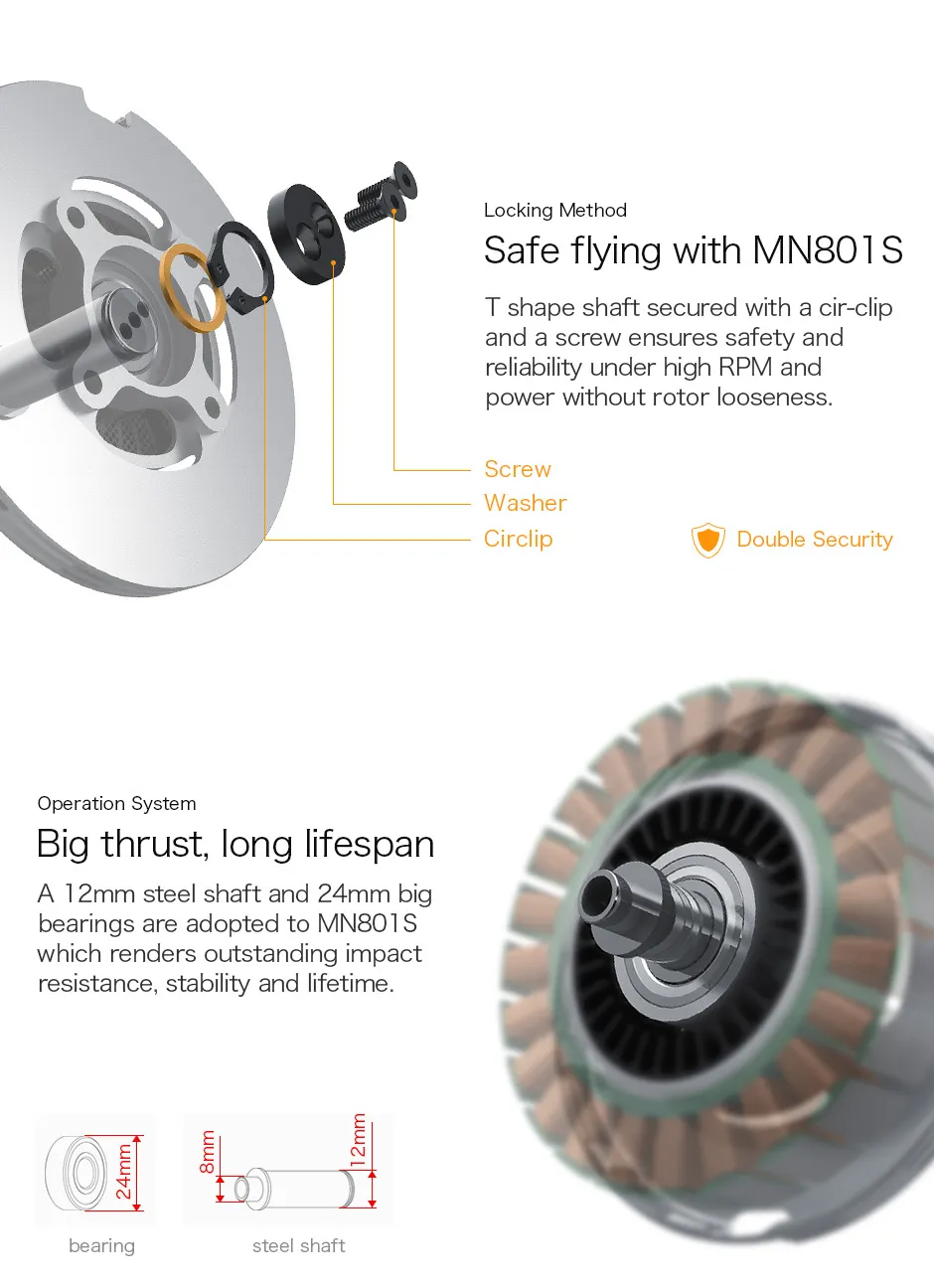

mn801 s ip45 navigator type uav multi motor Details

mn801 s ip45 navigator type uav multi motor performance Optimization

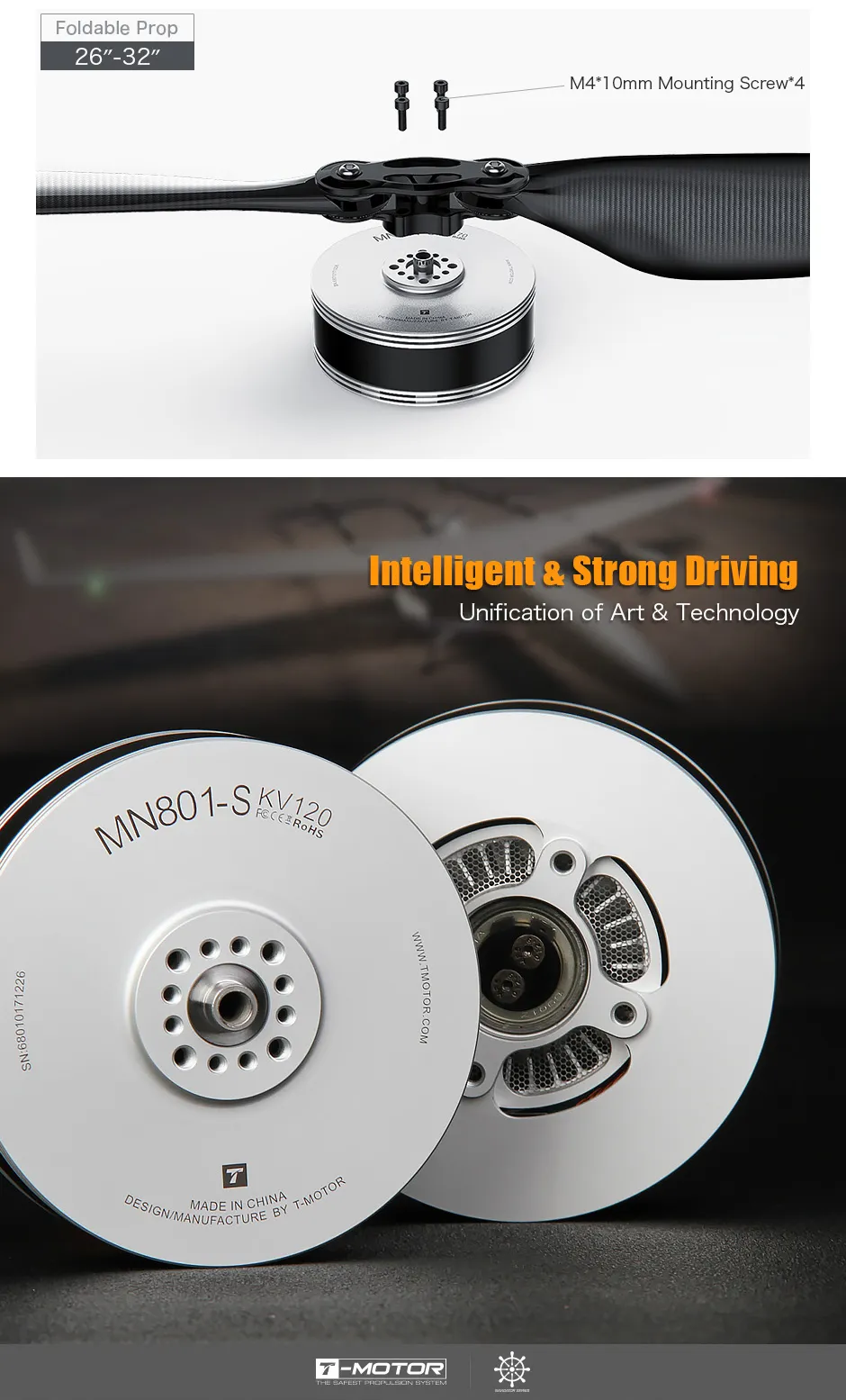

mn801 s ip45 navigator type uav multi motor foldable prop

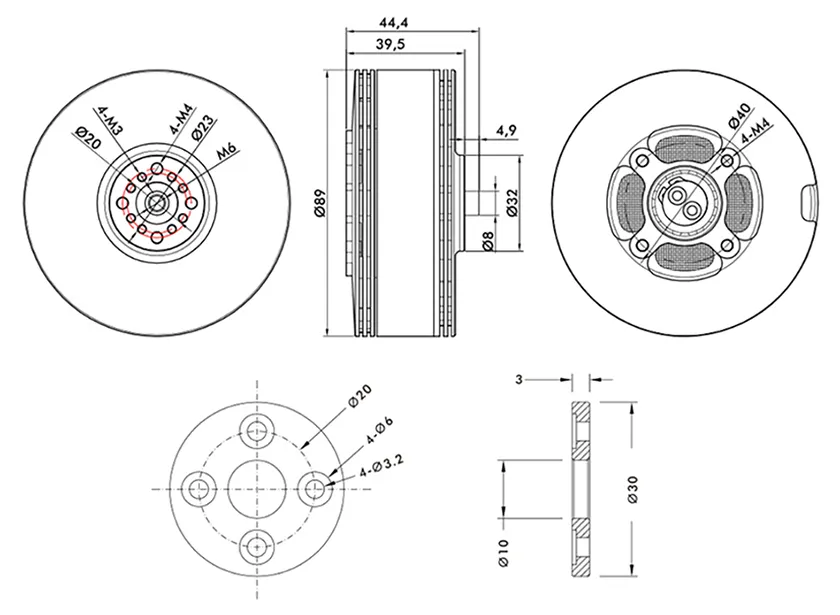

Technical Drawing

Specification

Motor Size	Φ89*39.4mm	Copper Wire	220℃ high temperature resistance: Level C
Stator	Imported silicon steel sheet; Anti-rust treatment; 150°Chigh temperature-resisting coatings	Coil Insulation Test	500V
Configuration	24N28P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：12mm，OUT：8mm	Rotor Dynamic Balance Standard	≤5Mg
Bearing	Imported 6901ZZ	Motor Dynamic Balance Standard	≤10Mg
Magnet Level	180℃ high temperature resistance	IP	IP45
Lead Cable	14AWG*150mm

KV	120	Rated Voltage ( Lipo )	6-12S
Idle Current（18V）	1.1A	ESC Recommendation	FLAME 60A 12S
Peak Current（180s）	45A	Propeller Recommendation	28-29"
Max.Power（180s）	2200W	Motor Weight (indl. Cable)	470g
Internal Resistance	80mΩ	Package Weight	600g

KV	150	Rated Voltage ( Lipo )	6-12S
Idle Current（15V）	1.4A	ESC Recommendation	FLAME 60A 12S FLAME 80A 12S V2.0
Peak Current（180s）	60A	Propeller Recommendation	26-27"
Max.Power（180s）	2800W	Motor Weight (indl. Cable)	480g
Internal Resistance	50mΩ	Package Weight	600g

Test Data

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g/W)	Operating Temperature (℃)
MN801S KV120	T-MOTOR G28*9.2	40%	47.81	3083	0.85	5.42	1930	259	11.90	78.5 (Ambient Temperature :0℃)
		42%	47.81	3259	0.91	5.84	1984	279	11.67
		44%	47.83	3506	0.98	6.45	2076	309	11.36
		46%	47.84	3771	1.06	7.12	2134	341	11.07
		48%	47.84	4072	1.15	7.91	2212	378	10.76
		50%	47.83	4355	1.23	8.70	2287	416	10.46
		52%	47.81	4638	1.31	9.46	2366	452	10.25
		55%	47.81	5132	1.45	10.82	2481	517	9.92
		60%	47.81	5874	1.68	13.11	2651	627	9.37
		65%	47.81	6722	1.94	15.86	2829	758	8.87
		70%	47.81	7588	2.21	18.91	2998	904	8.39
		75%	47.80	8454	2.48	22.25	3176	1063	7.95
		80%	47.81	9337	2.77	25.86	3335	1236	7.55
		85%	47.80	10185	3.06	29.74	3482	1422	7.16
		90%	47.80	11033	3.35	33.91	3621	1621	6.81
		92%	47.79	11316	3.45	35.48	3664	1696	6.67
		94%	47.77	11669	3.58	37.38	3719	1786	6.53
		96%	47.75	12023	3.71	39.37	3771	1880	6.39
		98%	47.75	12376	3.83	41.34	3821	1974	6.27
		100%	47.74	12694	3.94	43.10	3863	2058	6.17
MN801S KV120	T-MOTOR G29*9.5	40%	47.81	3069	0.92	5.72	1886	273	11.22	109.5 (Ambient Temperature: 0℃)
		42%	47.81	3257	0.98	6.16	1932	294	11.06
		44%	47.82	3521	1.07	6.80	2003	325	10.83
		46%	47.82	3803	1.16	7.53	2072	360	10.56
		48%	47.82	4086	1.25	8.30	2140	397	10.29
		50%	47.82	4368	1.34	9.11	2207	436	10.03
		52%	47.81	4651	1.44	9.94	2270	475	9.78
		55%	47.81	5122	1.59	11.39	2370	545	9.41
		60%	47.81	5875	1.85	13.88	2523	664	8.85
		65%	47.81	6722	2.14	16.89	2686	808	8.32
		70%	47.80	7569	2.45	20.28	2838	969	7.81
		75%	47.80	8417	2.76	24.03	2982	1148	7.33
		80%	47.80	9311	3.09	28.18	3123	1347	6.91
		85%	47.78	10158	3.42	32.68	3251	1561	6.51
		90%	47.77	11005	3.76	37.52	3370	1792	6.14
		92%	47.76	11335	3.89	39.51	3413	1887	6.01
		94%	47.74	11664	4.03	41.67	3458	1990	5.86
		96%	47.73	12041	4.18	44.02	3504	2101	5.73
		98%	47.72	12417	4.33	46.40	3551	2214	5.61
		100%	47.70	12747	4.47	48.51	3591	2314	5.51
MN801S KV150	T-MOTOR G26*8.5	40%	47.81	3041	0.67	5.47	2212	261	11.63	86.5 (Ambient Temperature: 0℃)
		42%	47.81	3221	0.72	5.92	2272	283	11.38
		44%	47.81	3491	0.78	6.61	2361	316	11.04
		46%	47.82	3781	0.85	7.37	2450	352	10.73
		48%	47.82	4071	0.92	8.19	2538	392	10.39
		50%	47.82	4361	0.99	9.06	2623	433	10.06
		52%	47.81	4651	1.06	9.97	2705	477	9.76
		55%	47.81	5133	1.18	11.53	2836	551	9.31
		60%	47.81	5886	1.38	14.30	3028	684	8.61
		65%	47.81	6709	1.60	17.65	3228	844	7.95
		70%	47.80	7580	1.85	21.57	3425	1031	7.35
		75%	47.80	8452	2.11	25.96	3611	1241	6.81
		80%	47.80	9323	2.38	30.82	3787	1473	6.33
		85%	47.79	10146	2.64	36.00	3944	1721	5.90
		90%	47.78	10970	2.91	41.64	4092	1989	5.51
		92%	47.78	11299	3.02	44.02	4148	2103	5.37
		94%	47.77	11629	3.13	46.51	4203	2222	5.23
		96%	47.77	11876	3.21	48.43	4243	2313	5.13
		98%	47.76	12076	3.28	50.08	4277	2392	5.05
		100%	47.76	12076	3.75	57.34	5247	2738	4.41
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)

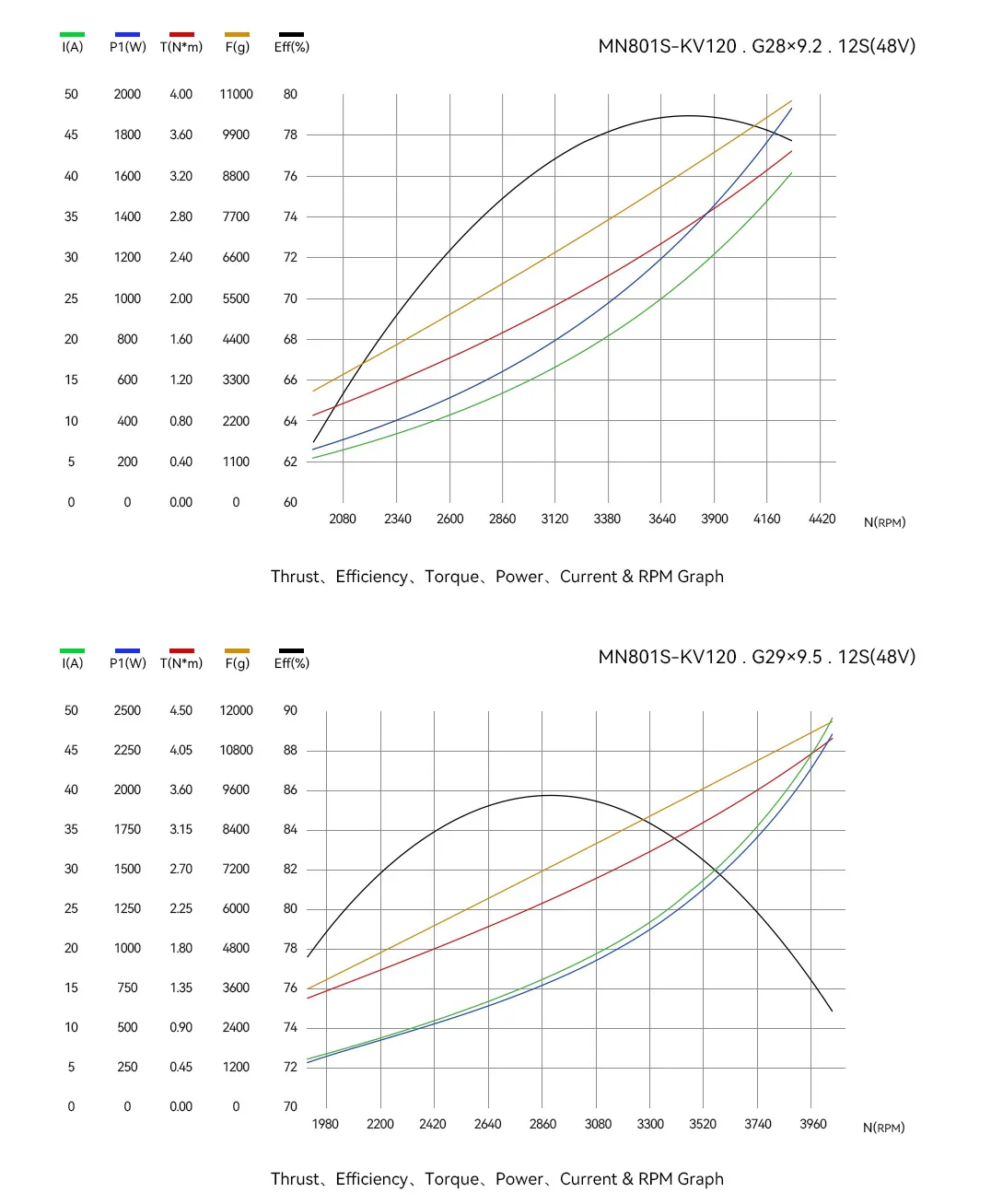

Analysis Chart

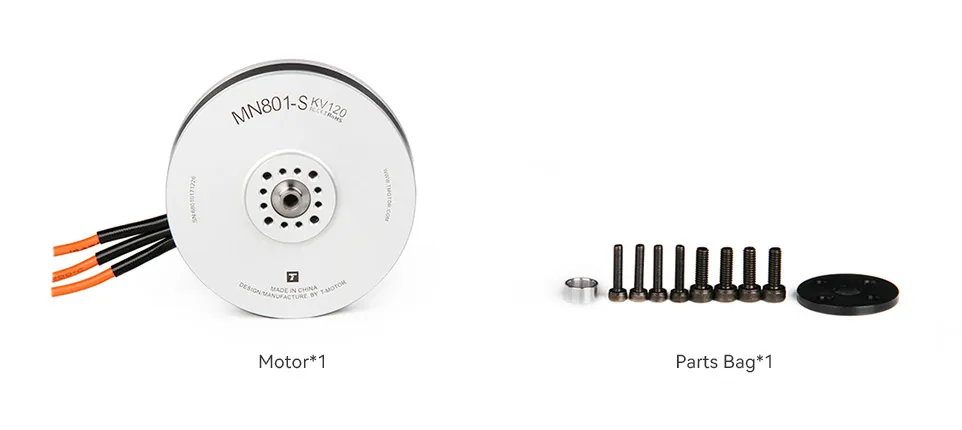

Packing List

mn801 s ip45 navigator type uav multi motor package list

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to "online@mepsking.com" in time.
