High-Efficiency Thrust & Dynamic Balance for Commercial Drone PlatformsDesigned for commercial multirotors, industrial mapping UAVs, and heavy-lift logistics drones, the T-MOTOR G24×7.8 Carbon Fiber Propeller Set provides exceptional propulsive efficiency with rock-steady stability. Featuring a 24-inch diameter paired with a 7.8-inch pitch, this propeller pair delivers optimal static thrust at lower motor RPMs, directly reducing power consumption and electrical heat buildup. Crafted from high-modulus carbon fiber with a premium glossy finish, the G series combines ultra-lightweight construction with rigid structural integrity to eliminate blade flex under heavy acceleration.
In Stock
Expected ship within 48 hours after order.
Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
Excellent Quality
High Efficiency
For Various Demands
Payment | Every order you place with us is safe & secure
Share

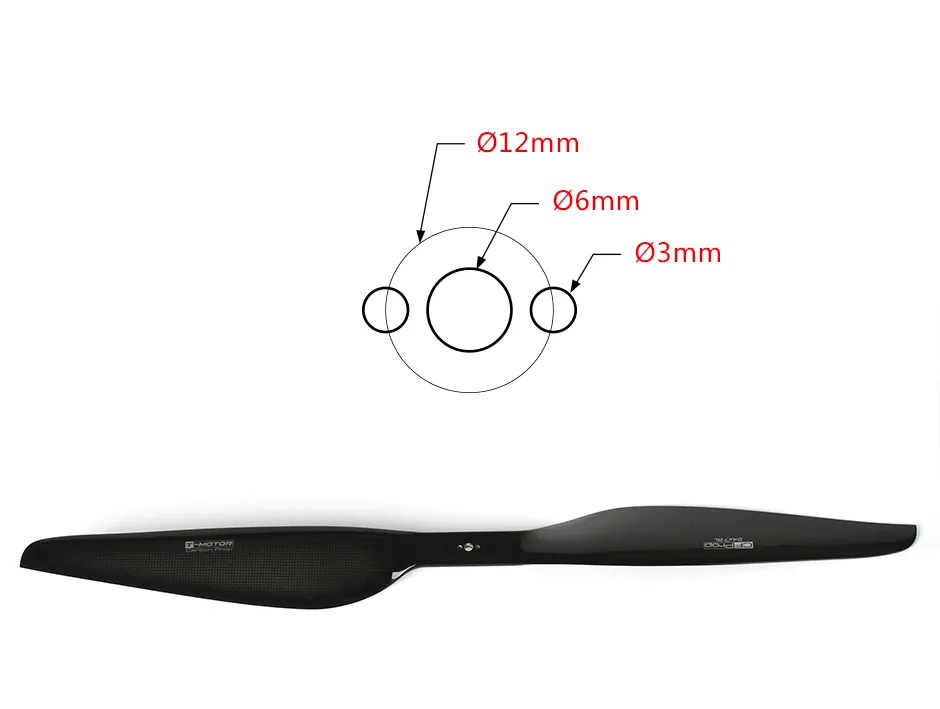

Technical Drawing
Specification
Model No.
24*7.8 (609.6*198.1mm)
T-MOTOR Series
2blades-integrated
Weight(Single Blade)
71g
Material
CF+Epoxy
Thrust Limitation
14.8kg
Ambient Temp
-40℃~65℃
Optimum RPM
2550~4450 RPM/min
Storage Temp/Humidity
-10℃~50℃/<85%
Surface Treatment
Glossy

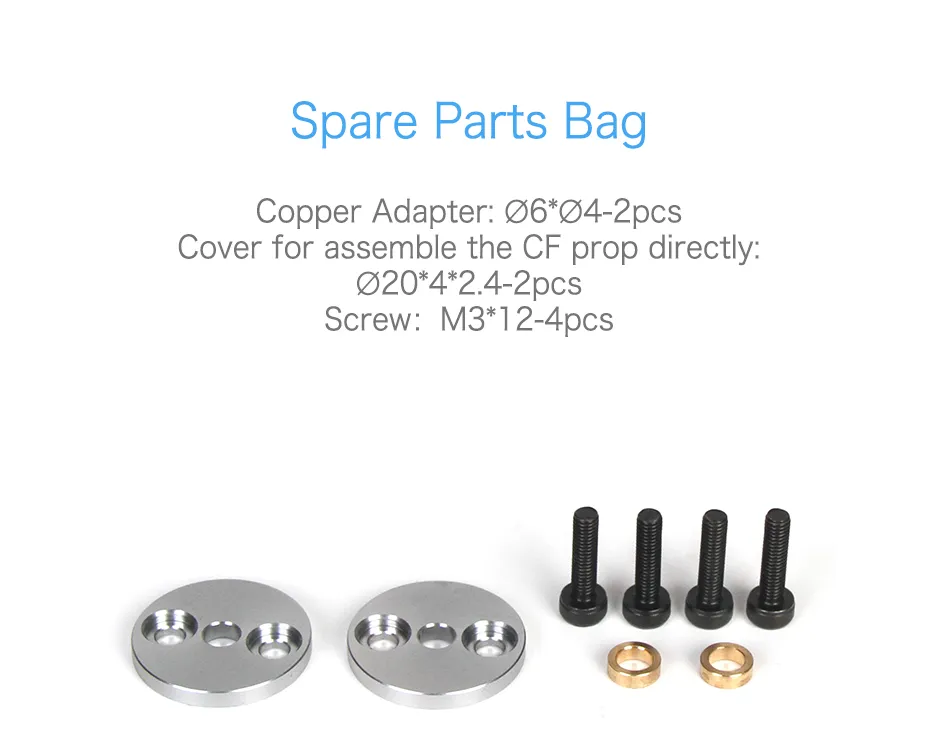

Packing List
Before using this product, please check whether all the items listed above are included in the package. If anything is missing, please contact our online customer service or email us at online@mepsking.com.
Note
1. Prop marked with “L" is for CW which "R" for CcW (aerial view).
2. Please be careful when using the propellers as the spinning propellers may cause serious injury.
3. The structural strength of the propellers are fully tested, please make sure the propellers are not used beyond the limits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users'account.
4. Please make sure all the accessories are mounted properly.
5. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
6. For storage, please keep them away from hostile environments including but not limited to that of H2 0, SO2,NO2，Cl2 , organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
7. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
8. Please use the propellers in compliance with local laws and regulations.
FAQFeel free to ask us any questions
Q: What motor sizes and battery setups are recommended for the G24×7.8 propeller set?
A: The G24×7.8 propeller set is optimized for industrial motors such as the T-MOTOR U8 II, U10 Plus, MN605-S, or P60 series running on 12S to 14S LiPo/LiHV power setups. Always verify your motor’s thrust testing chart to keep continuous current within safe ESC limits.
Q: What are the primary advantages of T-MOTOR's G-Series solid propellers over folding propellers?
A: G-Series solid carbon propellers offer maximum aerodynamic efficiency, lower acoustic noise, and lighter rotational weight compared to folding hub assemblies. For commercial drones that do not require ultra-compact arm folding, solid G-series props deliver superior energy efficiency and structural stability.
Q: Does this package include both Clockwise (CW) and Counter-Clockwise (CCW) propellers?
A: Yes, the product package comes as 1 Pair (2 Pieces), containing 1 Clockwise (CW) propeller and 1 Counter-Clockwise (CCW) propeller, ready for installation on standard quadcopter or multirotor arms.
Q: How does factory dynamic balancing benefit HD video capture and flight controllers?
A: Unbalanced large propellers create high-frequency mechanical vibrations that cause video "jello" and introduce noise into flight controller gyroscopes. T-MOTOR’s factory dynamic balancing minimizes radial and axial vibration, extending motor bearing life and ensuring smooth payload performance.

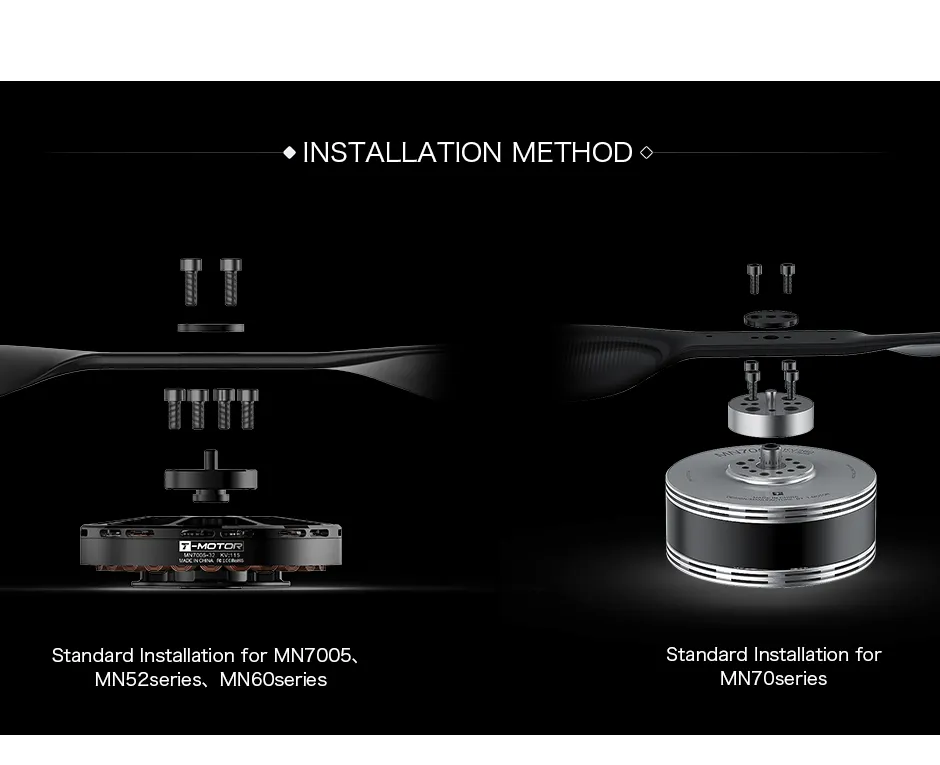

Q: How should I secure the G24×7.8 propeller onto the motor shaft?
A: Use the dedicated cover plates and bolts provided with your motor. Torque the mounting bolts evenly in a cross pattern to seat the carbon hub flat against the motor top cap without over-tightening.
