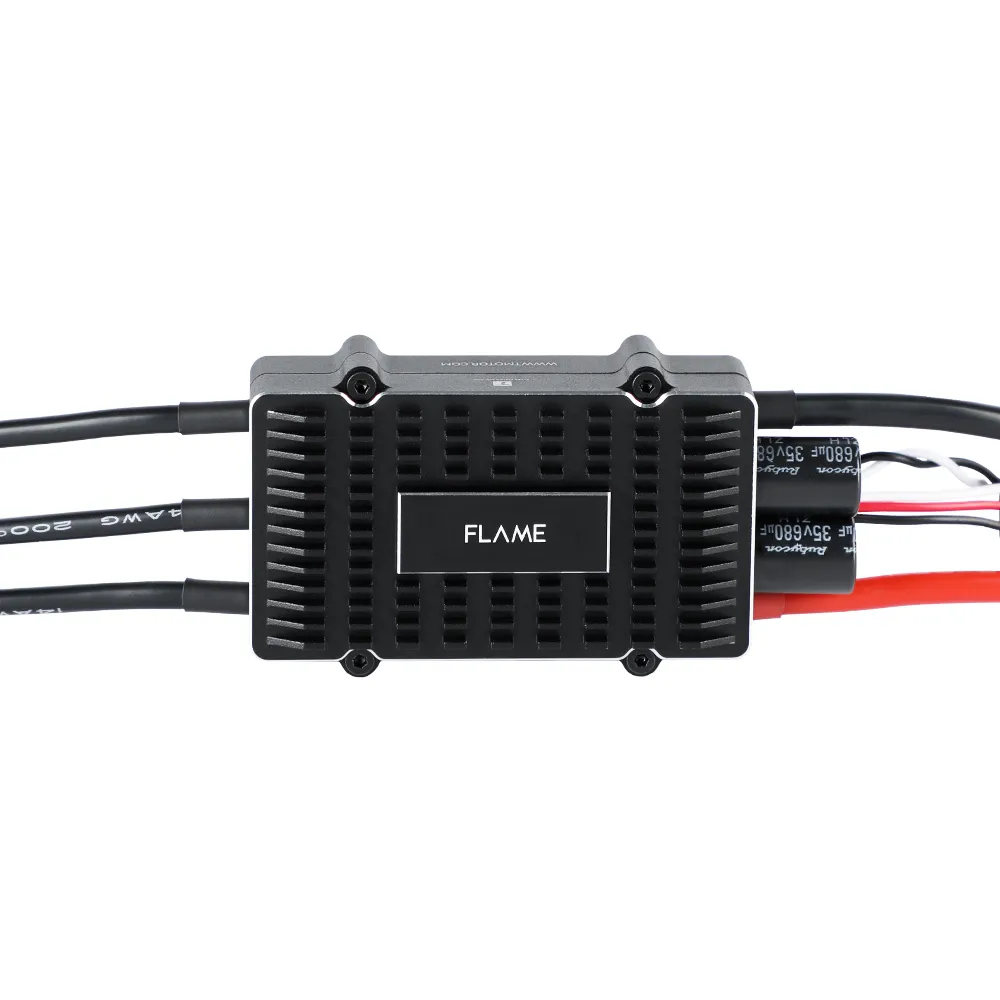

T-MOTOR FLAME 100A 6S Multi-Rotor UAVs ESC

About T-MOTOR FLAME 100A 4-6S Multirotor UAVs ESC

T-MOTOR FLAME 100A 8S ESC delivers 100A continuous and 120A peak power (10s) for multi-rotor UAVs. Compatible with U12 motors and 4-8S LiPo, it features efficient heat dissipation, a durable CNC aluminum case, and IP55 waterproof/dustproof protection. Optimized for disc motors, it supports up to 600Hz throttle signals, ensuring precise and reliable performance in demanding environments.

FLAME 100A 4-6S ESC Highlights:

Special core program for multirotor controllers greatly improves throttle response.

Specially optimized software for excellent compatibility with disc-type motors.

All settings except the timing are preset, making usage simple, highly intelligent and adaptive.

Compatible with various flight-control systems and supports a signal frequency of up to 600Hz.

CNC aluminium alloy enclosure, IP55 PCB with NAO technology, widely used in special domain such as UAV for agriculture, searching and etc.

Supporting 4-6S lipo

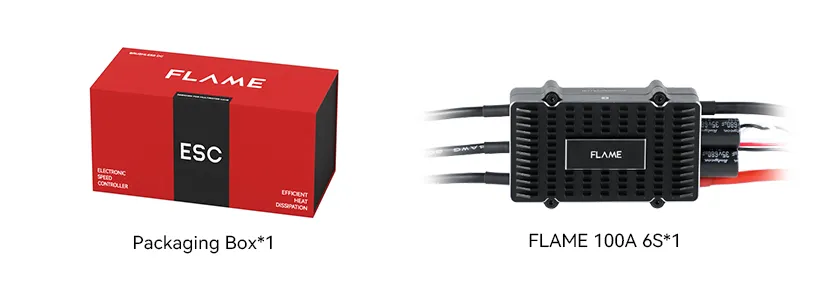

Packing List Includes:

1x T-Motor FLAME 100A 4-6S ESC

1x Hardware Kit

Matching Guide:

updating
