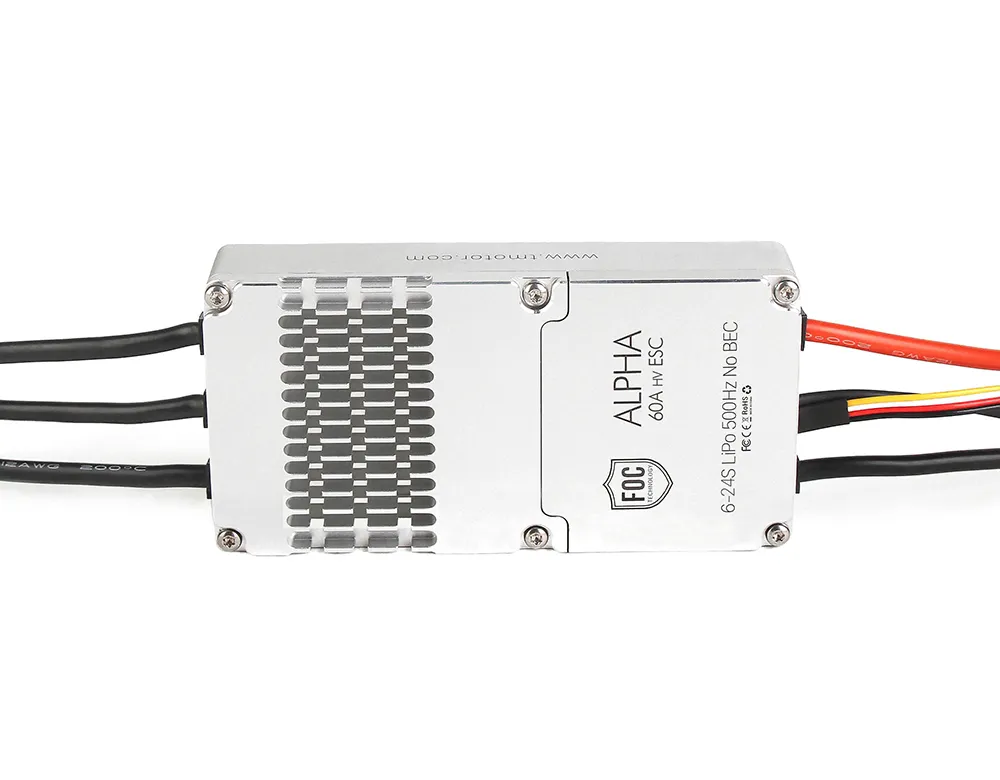

About T-MOTOR ALPHA 60A 24S Multi-Rotor UAV FOC ESC
T-MOTOR Alpha 60A 24S ESC offers reliable performance for large UAVs, featuring low noise, fast response, high efficiency, and built-in temperature and interference protection.
Compatible with various motors, it's ideal for professional applications.
In Stock
Expected ship within 48 hours after order.
Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
Low Noise , Temperature and Interference
Fast Response , High Efficiency
For Comp
Payment | Every order you place with us is safe & secure
Share
ALPHA 60A 24S ESC Highlights:
1. Low Noise

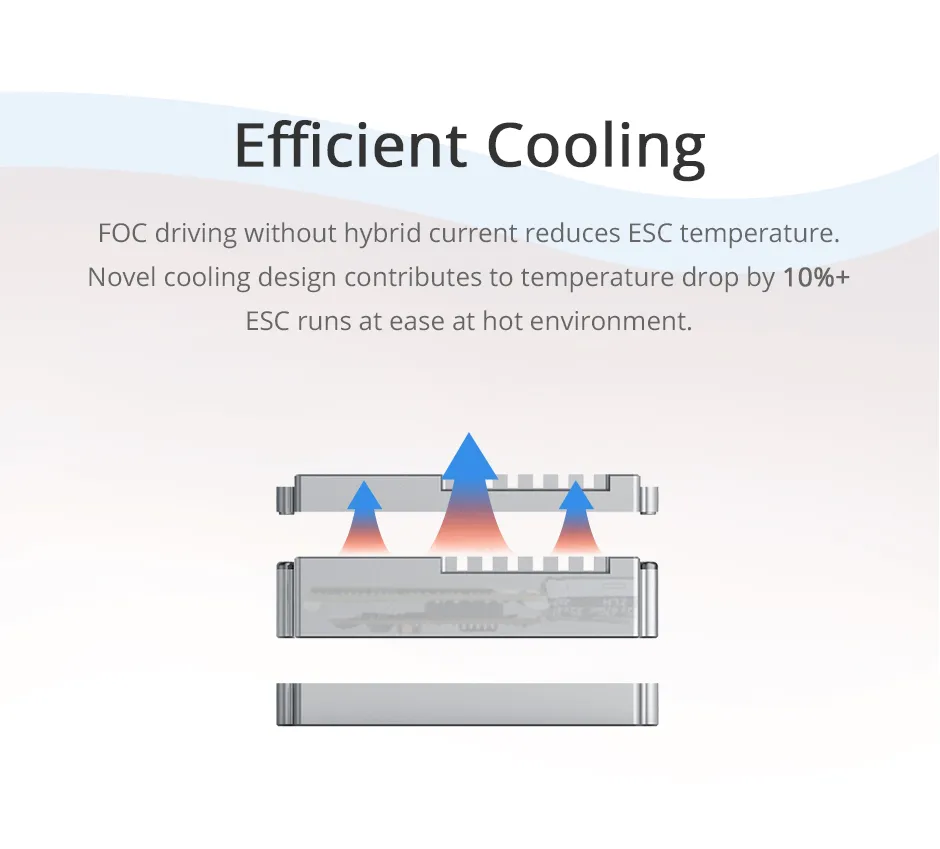

2. Temperature and Interference
3. Fast Response

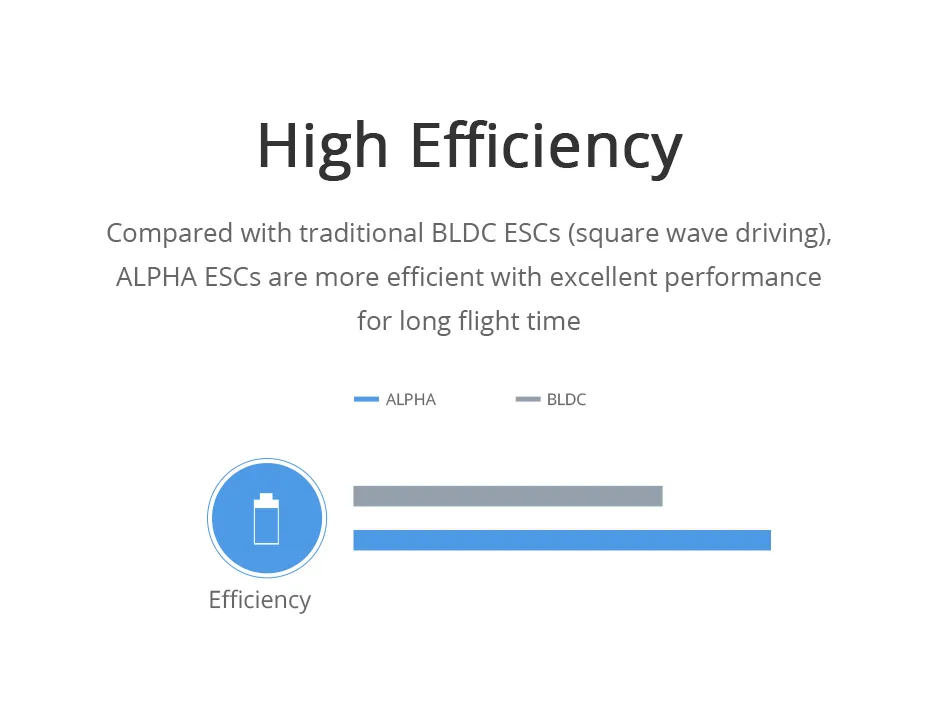

4. High Efficiency
5. For Compatibility
6. Please Leave A Note of Motor Type

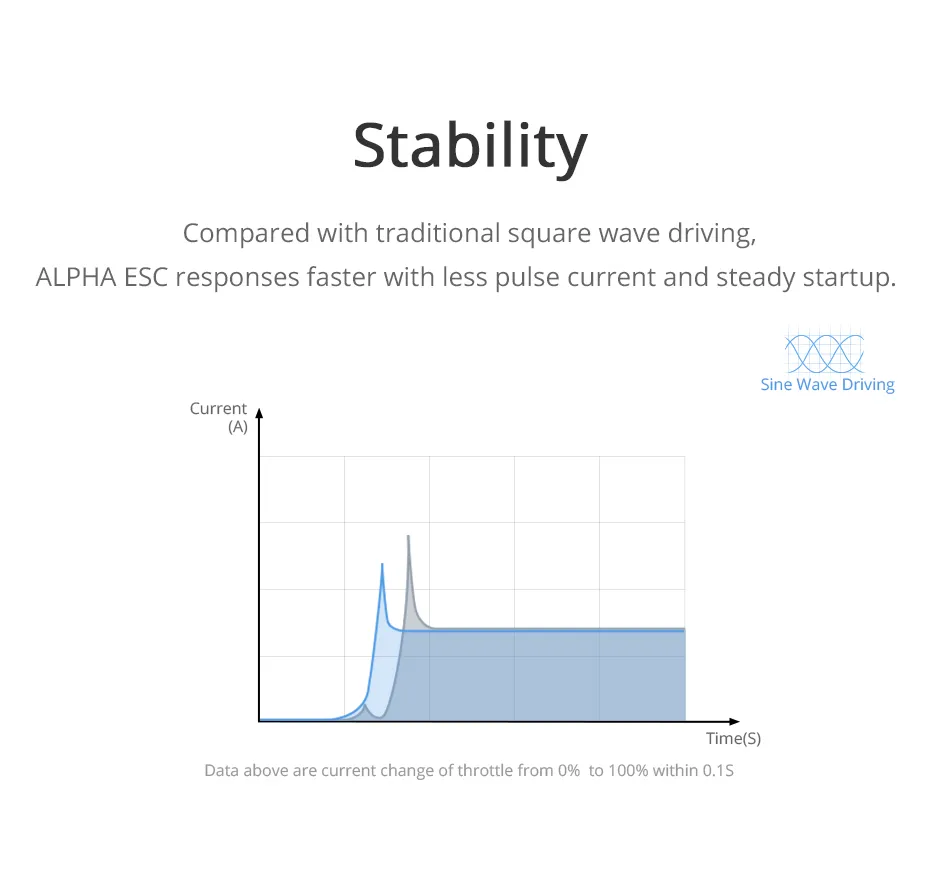

ALPHA ESC has faster responses with less pulse current and steady startup as compared with traditional square wave driving.

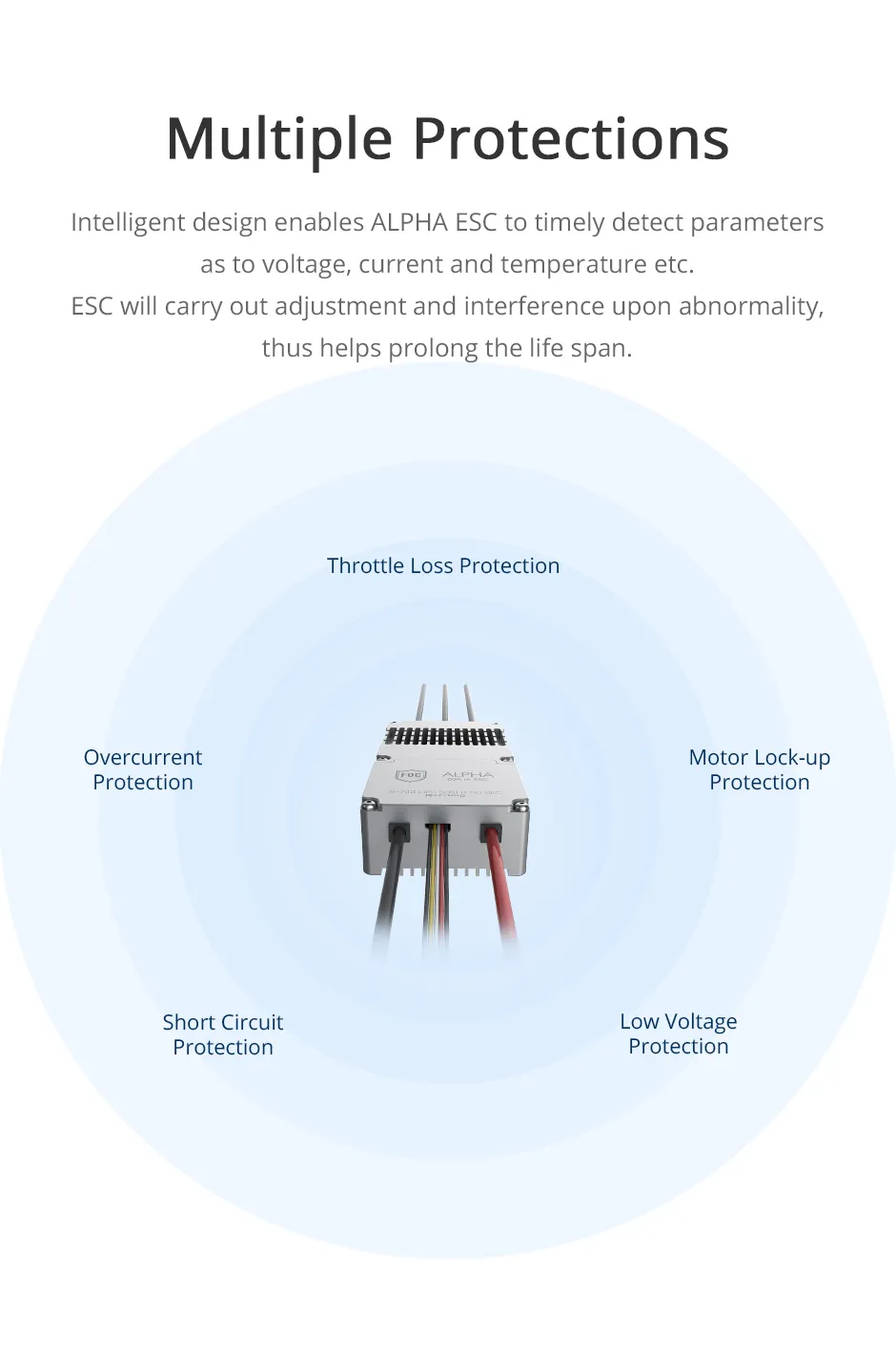

This T-MOTOR ESC contains over current/Motor Lock-up/short circuit/Low voltage protection.

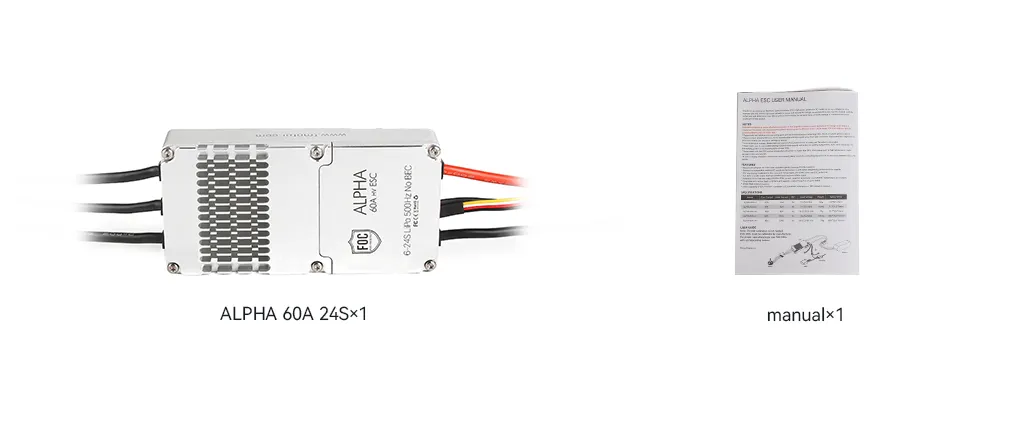

Packing List Includes:
● 1x T-Motor ALPHA 60A 24S ESC
● 1x Hardware Kit
Matching Guide:
tmotor u13 v2 motor / tmotor u12 v2 motor
Alternatively, Alpha ESC can be programmed by the end user with Alpha Data Link.

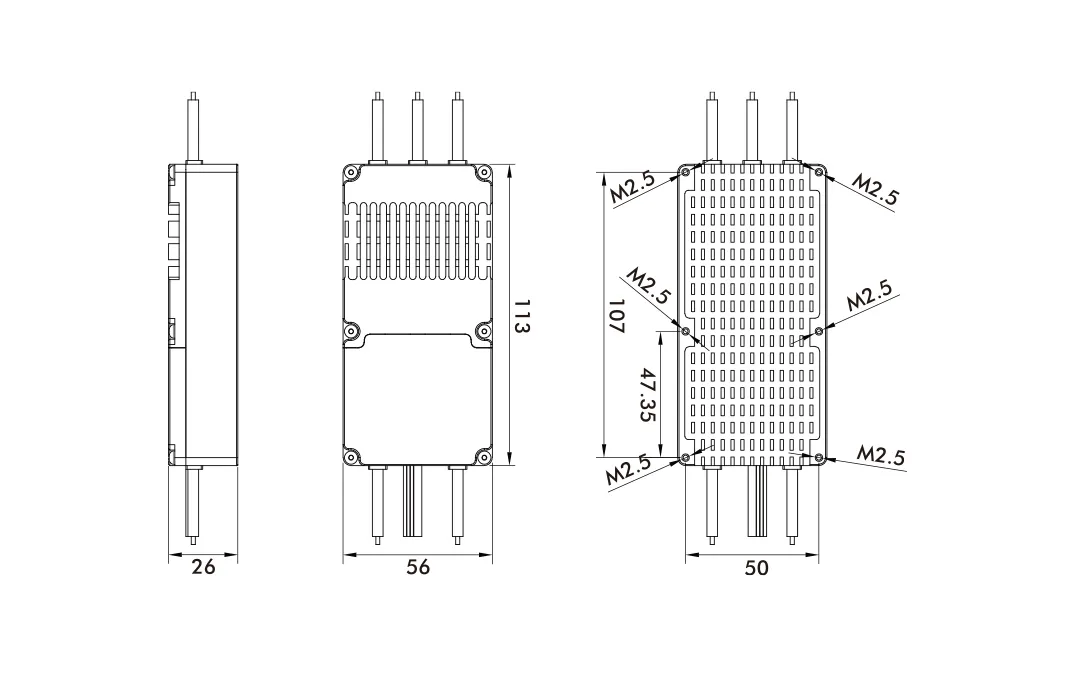

Technical Drawing
Specification Export to Excel
Size
110*55*25mm（L*W*H）
Power Cable
Silicone wire-red/black-14AWG-175MM
Weight(Incl. cables)
360g
Signal Cable
PVC flat cable-30 core wires-2-355MM（white, blank, black/JR 3P male connector）
Motor Cable
Silicone wire-deep orange-14AWG-70MM*3PCS
programming Cable
PVC flat cable-30 core wires-3-50MM（black, red, white/JR 3P male connector）
Support Voltage(24S)
40-100V
BEC
NO
Con. Current
40A
Throttle Pos. Range
1100-1900μs
Peak Current(10s)
60A
Throttle Refresh Frequency
500Hz
Standby Consumption
≤50mA
Throttle Response Speed
50ms
Packing List
Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to "online@mepsking.com" in time.
