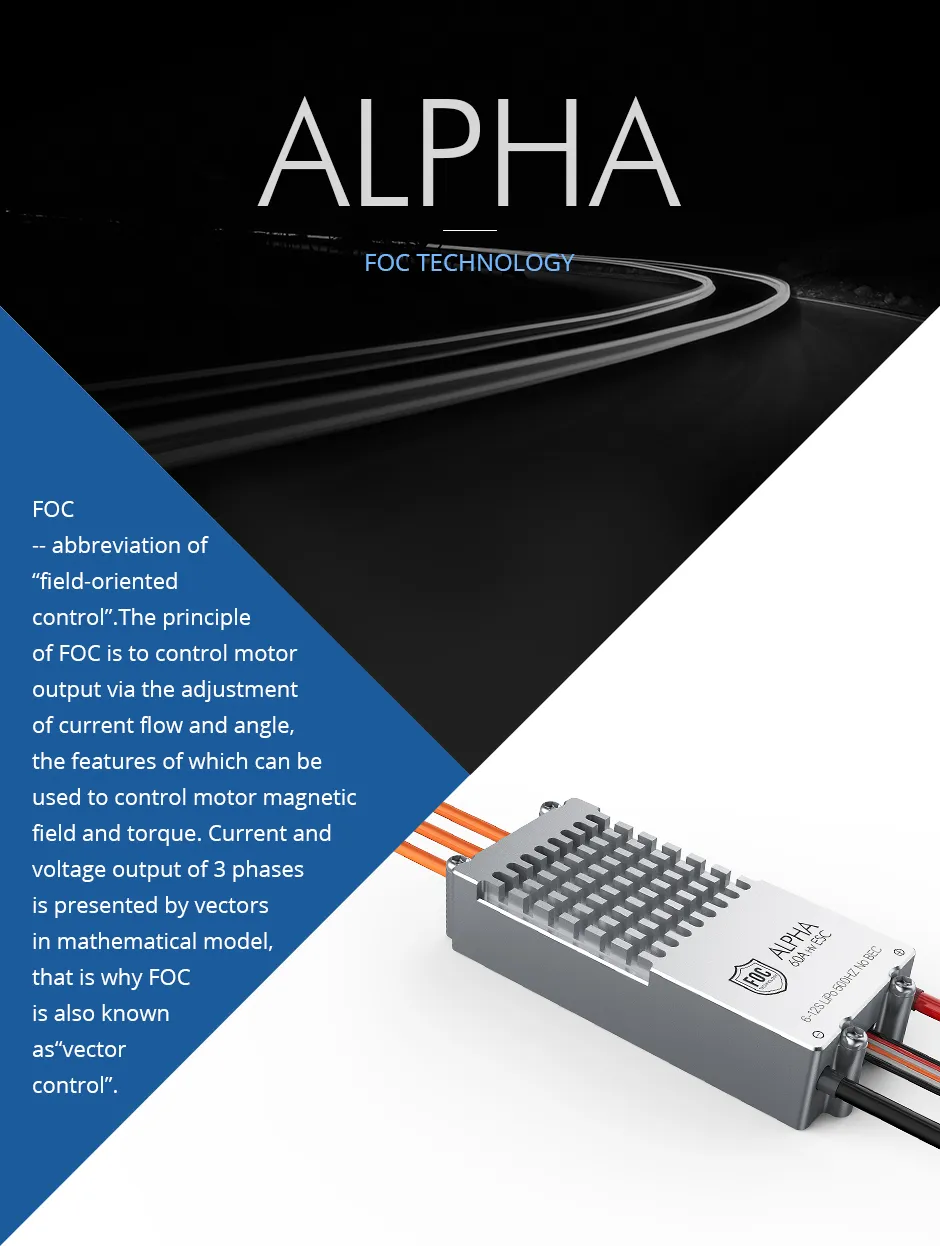

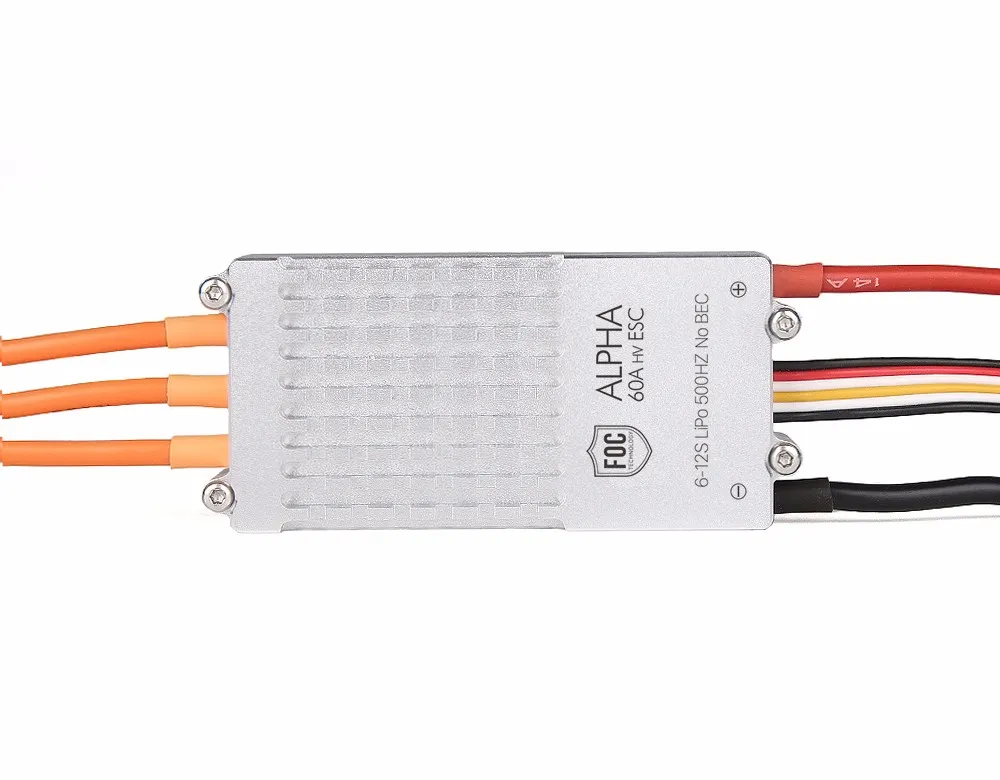

T-MOTOR ALPHA 60A 12S V1.2 Multi-Rotor Drone FOC ESC Front

New

T-MOTOR ALPHA 60A 12S V1.2 Multi-Rotor Drone FOC ESC

About T-MOTOR ALPHA 60A 12S V1.2 Multi-Rotor Drone FOC ESC:

T-MOTOR Alpha 60A 12S V1.2 ESC delivers precise, efficient motor control with FOC technology. It features low noise, fast response, high efficiency, and built-in protections, making it ideal for professional UAVs. Specify your motor type for compatibility.

T-HOBBY

$18 Off Orders $249+

$12 Off Orders $159+

Collect

$ 109.99

5.0 | 0Sold

Options (1)

Quantity

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Top highlights

Low Noise , Temperature and Interference，Fast Response , High Efficiency
For Compatibility , Please Leave A Note of Motor Type

Payment | Every order you place with us is safe & secure

ALPHA 60A 12S V1.2 ESC Highlights

ALPHA ESC has faster responses with less pulse current and steady startup as compared with traditional square wave driving.

This T-MOTOR ESC contains over current/Motor Lock-up/short circuit/Low voltage protection.

1. Low Noise

2. Temperature and Interference

3. Fast Response

4. High Efficiency

5. For Compatibility

6. Please Leave A Note of Motor Type

T-MOTOR ALPHA 60A 12S V1.2 Multi-Rotor ESC based on FOV

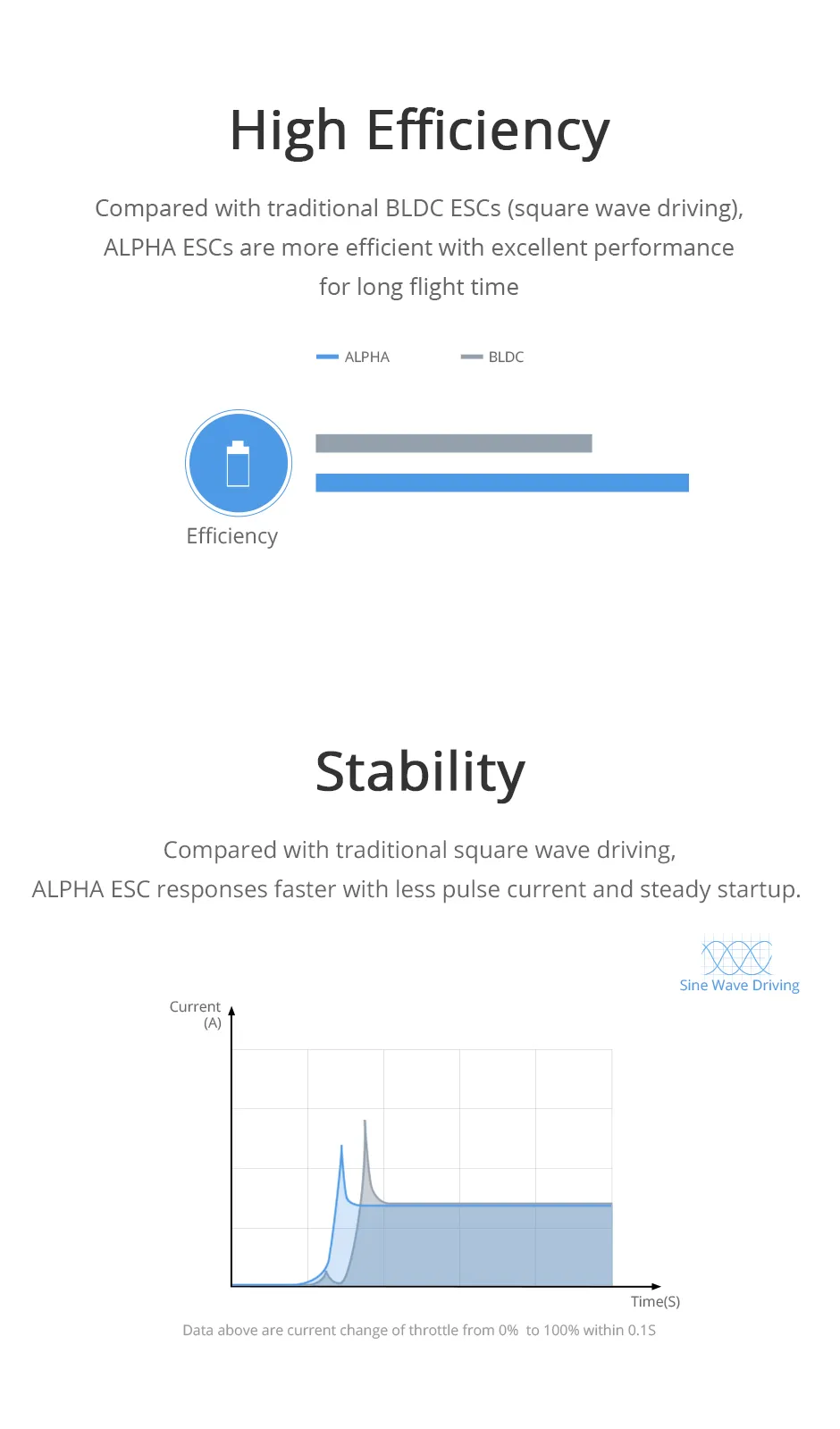

T-MOTOR ALPHA 60A 12S V1.2 ESC High Efficiency

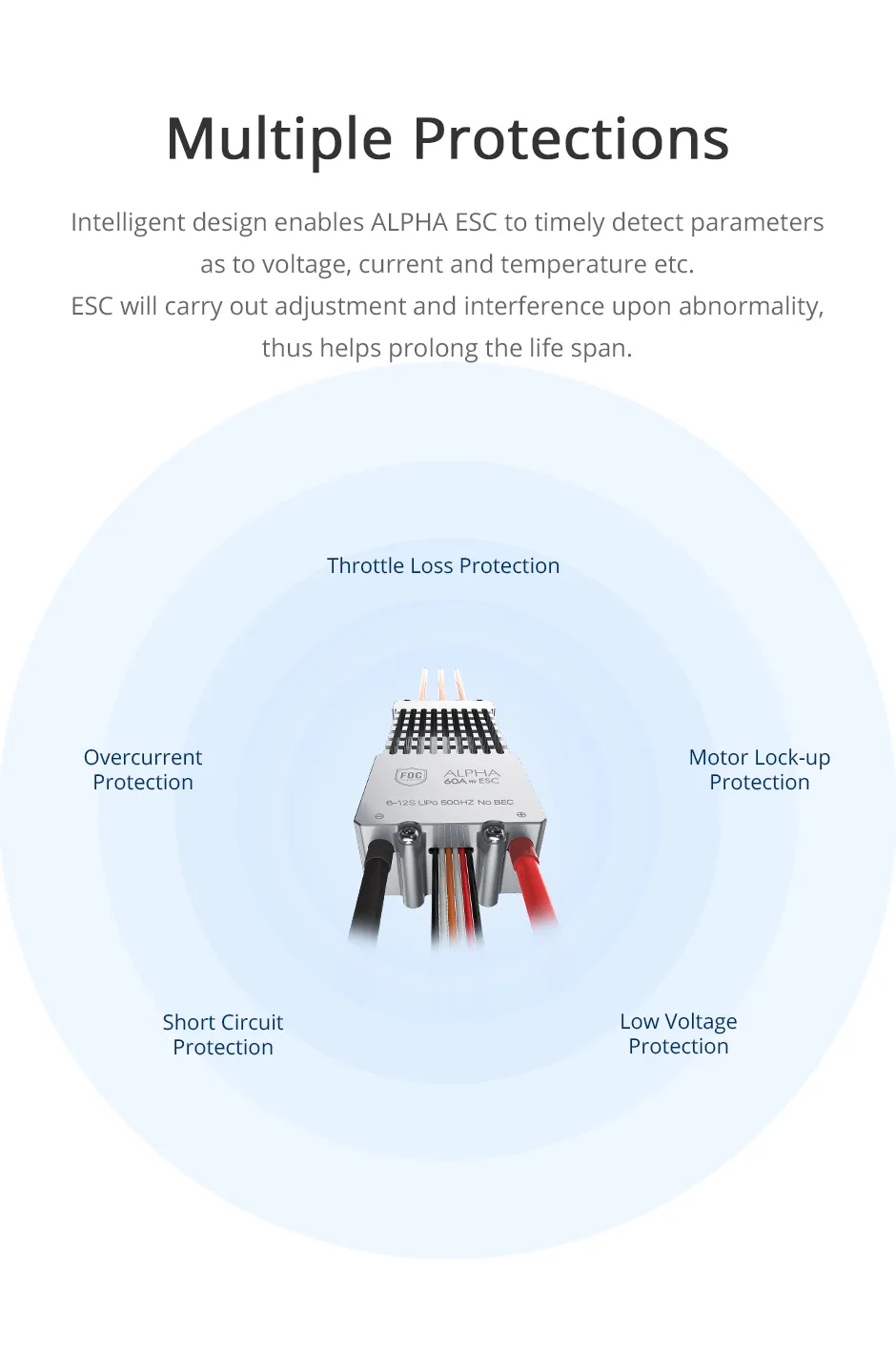

T-Motor ALPHA 60A 12S V1.2 FOC ESC multiple protection

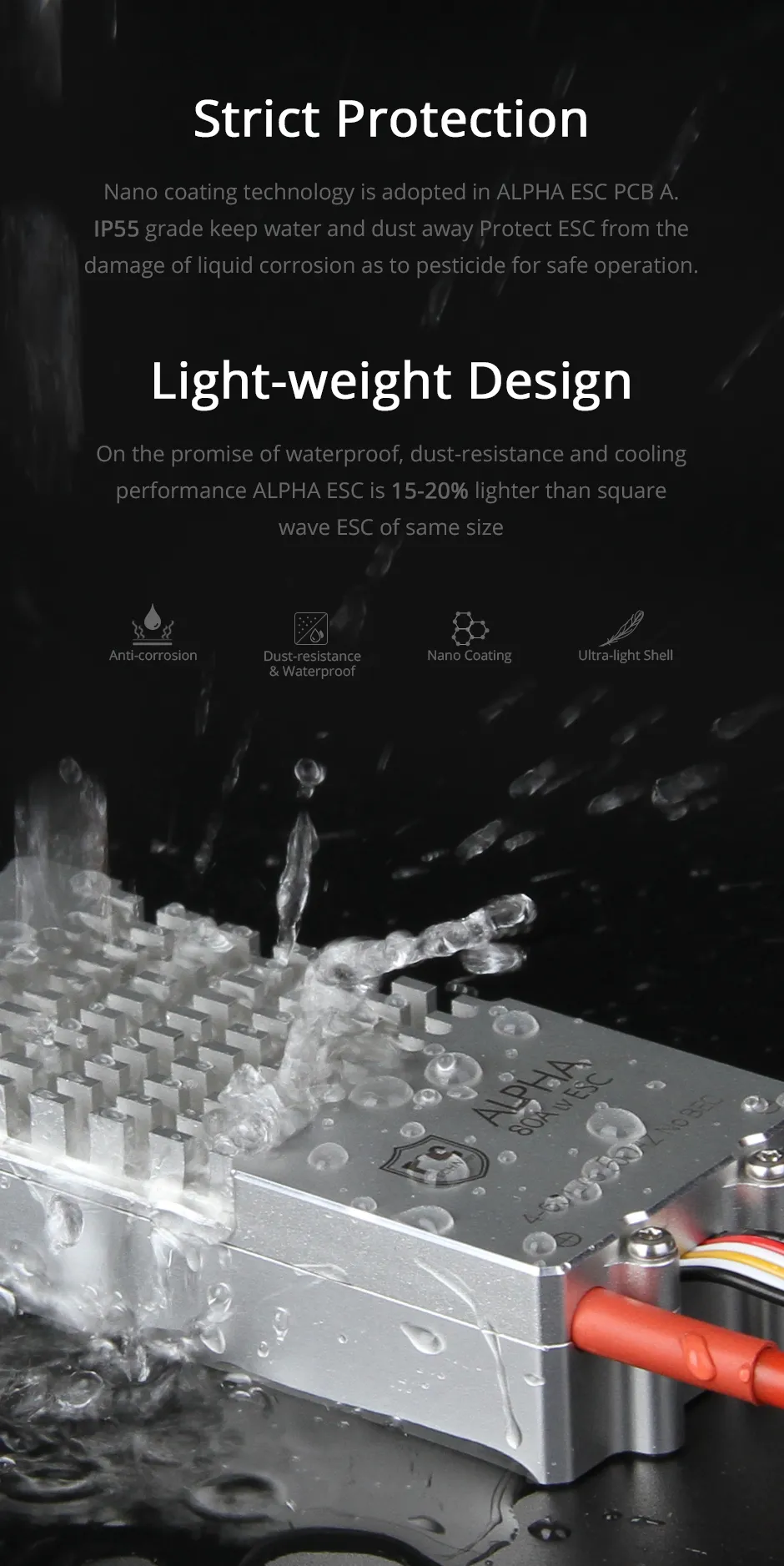

T-Motor ALPHA 60A 12S V1.2 ESC strict protection

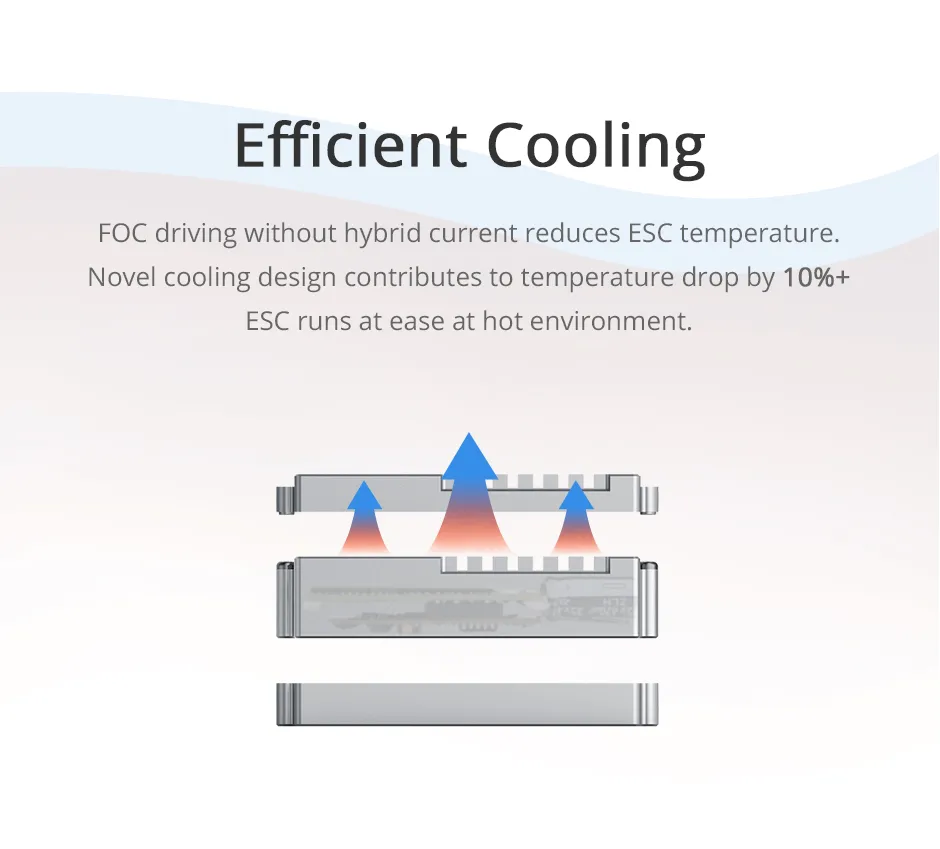

T-Motor ALPHA 60A 12S V1.2 ESC efficient cooling

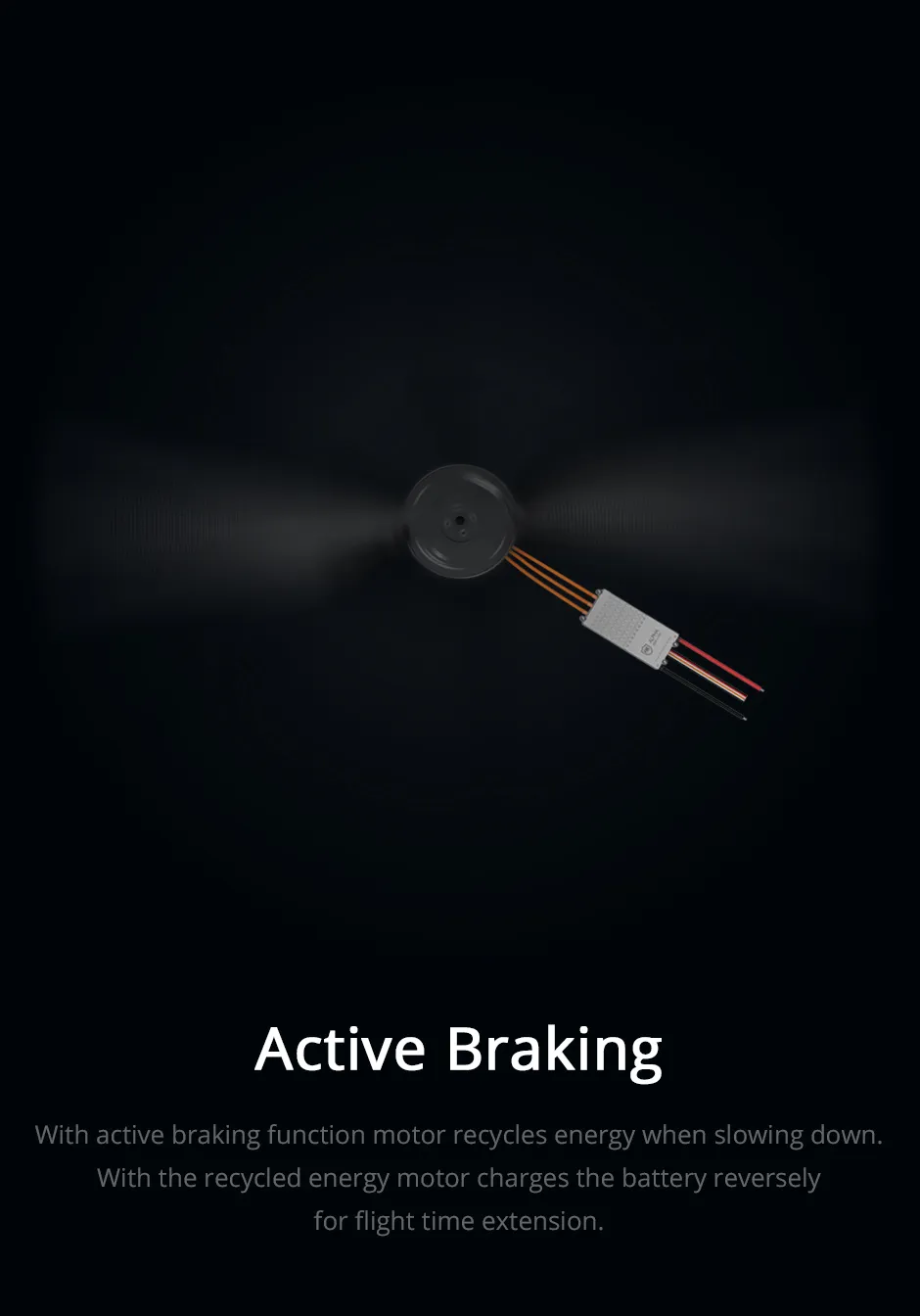

T-Motor ALPHA 60A 12S V1.2 ESC Active braking

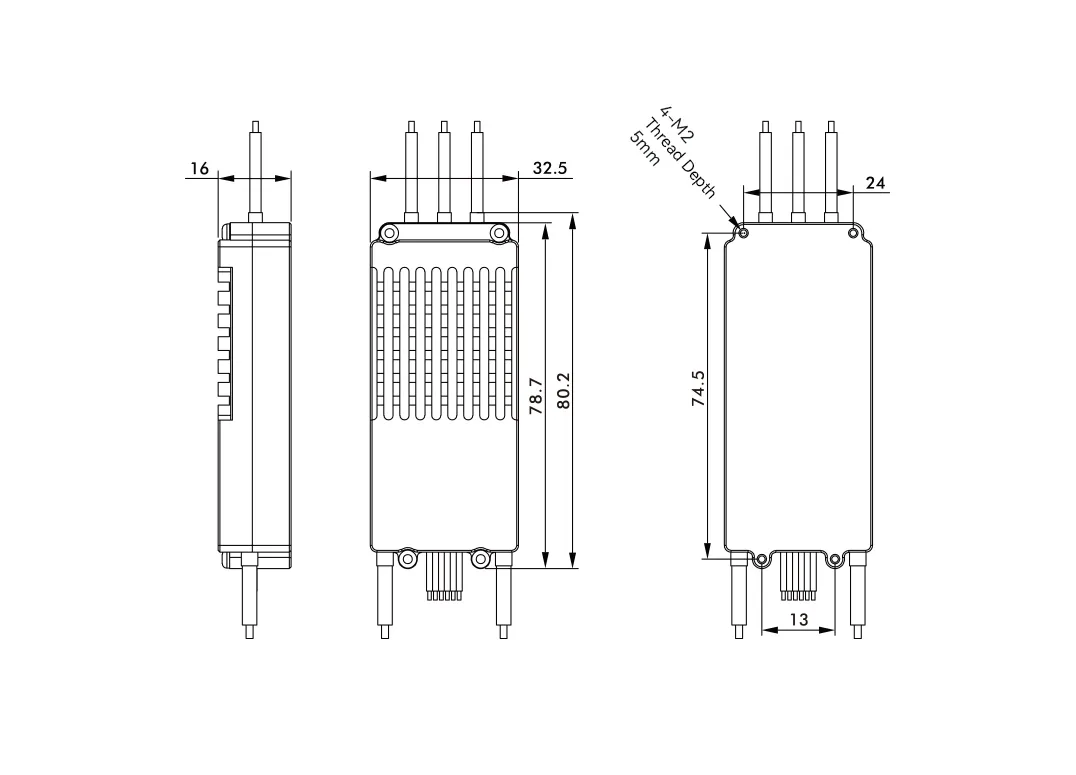

Technical Drawing

T-MOTOR ALPHA 60A 12S V1.2 Multi-Rotor Drone FOC ESC size

Specification

Size	78.732.516.2mm（LWH）	Power Cable	Silicone wire-red/black-14AWG-160MM
Weight(Incl. cables)	73g	Signal Cable	PVC flat cable-30 core wires--2-300MM (white, blank, black/JP 3P male connector)
Motor Cable	Silicone wire-deep orange-16AWG-65MM*3PCS	programming Cable	PVC flat cable-30 core wires--3-300MM (black, red, white/JP 3P male connector)

Support Voltage(12S)	18-50.4V	BEC	NO
Con. Current	60A	Throttle Pos. Range	1100-1940μs
Peak Current(10s)	80A	Throttle Refresh Frequency	500Hz
Standby Consumption	≤50mA	Throttle Response Speed	300ms

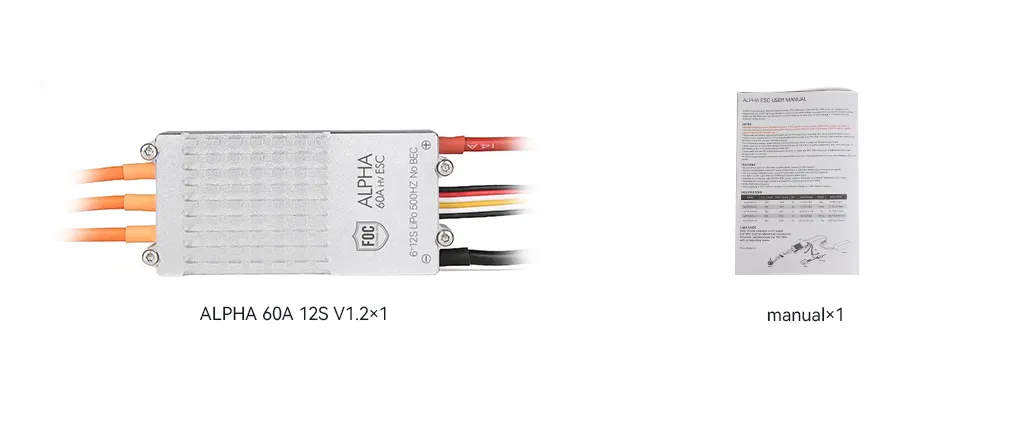

Packing List Includes:

1x T-Motor ALPHA 60A 12S V1.2 ESC

1x Hardware Kit

T-MOTOR ALPHA 60A 12S V1.2 Multi-Rotor Drone FOC ESC package list

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to "online@mepsking.com" in time.
