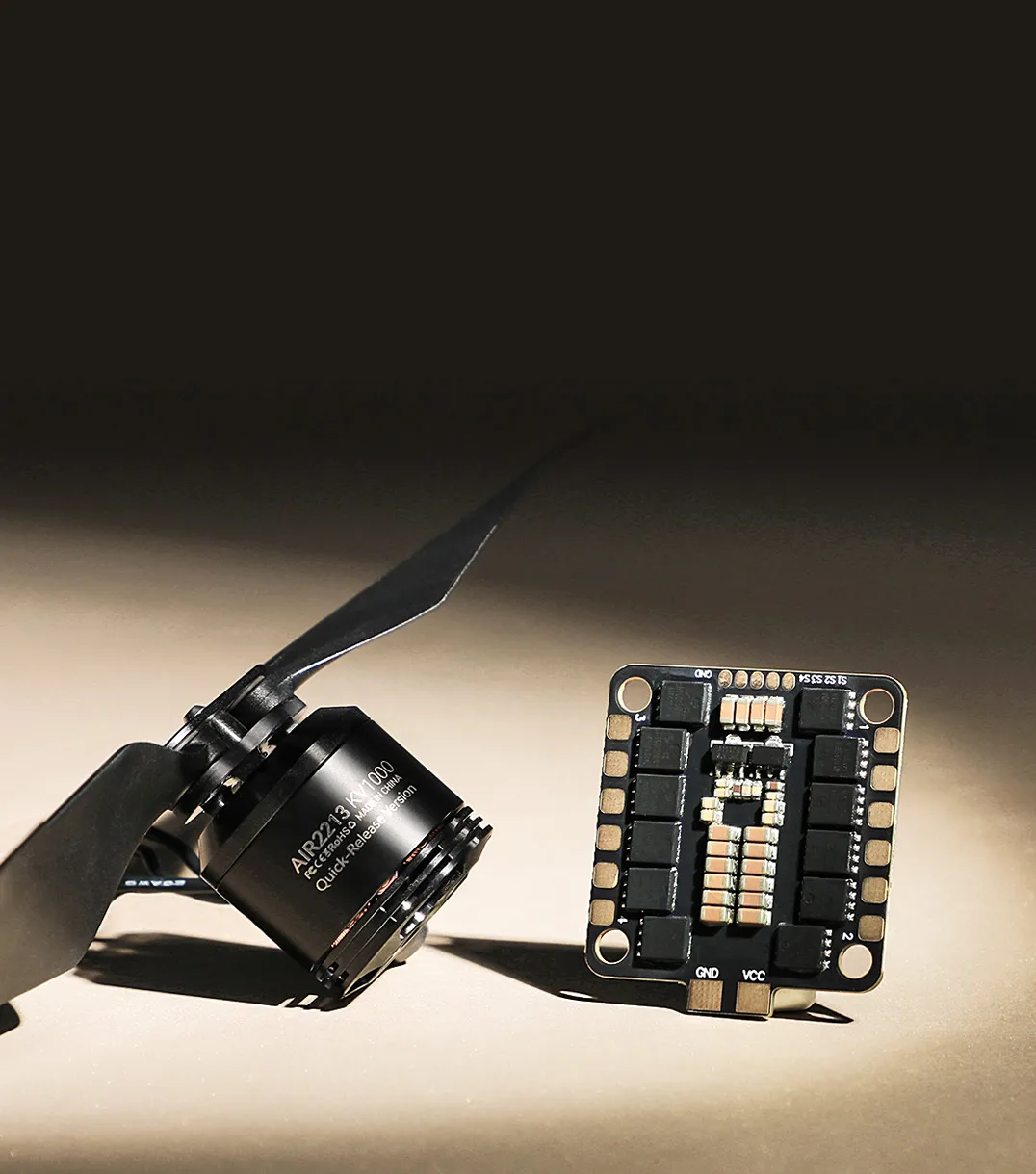

T-MOTOR Air Gear 355 Quick-Release Version UAV Power System

New

T-MOTOR Air Gear 355 Quick-Release Version Multirotor UAV Power System

T-MOTOR

$18 Off Orders $249+

$12 Off Orders $159+

Collect

$ 99.99

5.0 | 0Sold

Options (1)

Quantity

In Stock Expected ship within 5 days after order.

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Payment | Every order you place with us is safe & secure

AIR355 Combo (Quick-Release Version)

New Version AIR 20A ESC (4IN1). Quick-release structure design. The foolproof structural design and markings enable easier and more streamlined assembly and disassembly. Overall Combo Weight (Motor+Prop+ESC) Decrease by 13%

T-MOTOR Air Gear 355 multirotor propulsion system

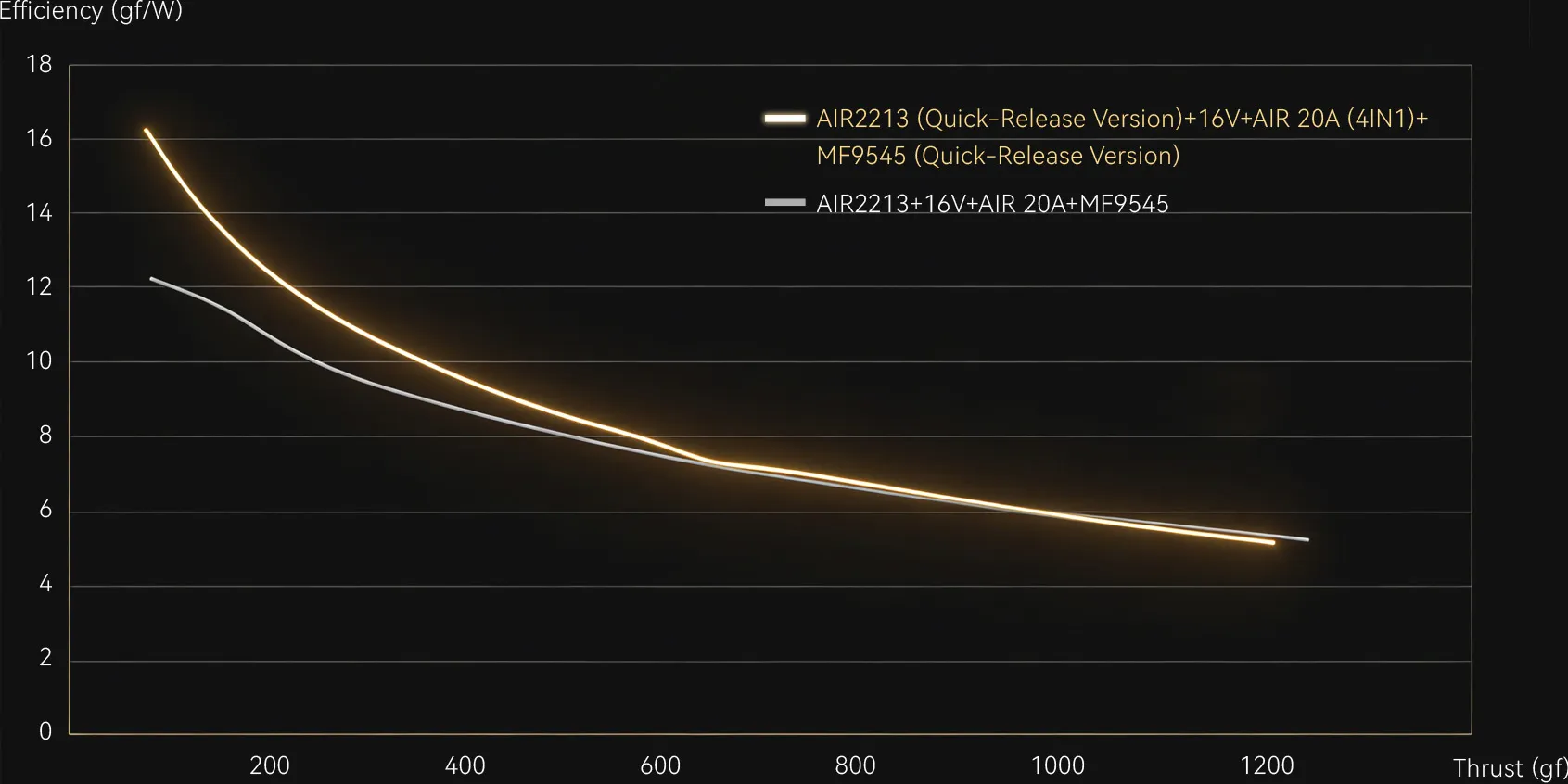

Air Gear 355 quick release motor propeller ESC combo

Recommendations

Multirotor Motor/KV: AIR2213/KV1000 (Quick-Release Version)

Multirotor Thrust/Arm (kg): 0.4~0.5

Propeller: MF9545 (Quick-Release Version)

MTOW-Quadcopter (kg): 1.6~2.0

ESC: AIR 20A (4IN1)

MTOW-Hexacopter (kg): 2.4~3.0

Battery (LiPo)/ Voltage: 3~4S (4.2V/PC)/12.6~16V

MOTW-Octocopter (kg): 3.2~4.0 (Non-Coaxial)

*Attention: A loss of 25% should be considered for coaxial configuration.

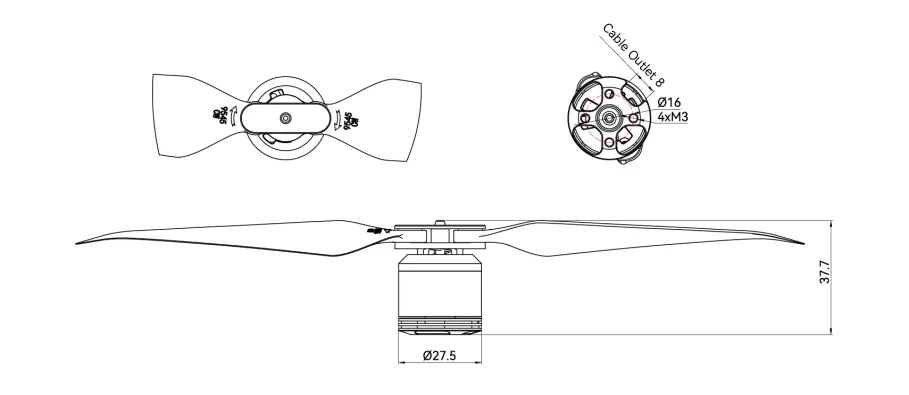

Technical Drawing

Specification

Test Item	Parameter Value	Test Item	Parameter Value
KV	1000	Rated Voltage (LiPo)	3~4S (4.2V/PC)/12.6V-16V
Idle Current (10V)	0.5A	Internal Resistance	140±10mΩ(Lead Wire300mm)
Peak Current (180s)	15A/Continuous	Weight (Incl. Cable)	56±2g (Lead Wire300mm)
Max Power (180s)	238W/Continuous	Package Weight	/

Test Item	AIR 20A 4IN1‑Specifications	Test Item	Parameter Value
Size (LWH)	37.341.51.6mm	Rated Voltage (LiPo)	2~4S
Continuous Current	20A	BEC	/
Peak Current (10s)	30A	Weight (Incl. Cable)	8.1g
Banana Plug	30.5*30.5/φ4mm	Throttle Signal Frequency	50~400Hz

Test Item	MF9545‑Specifications	Test Item	Parameter Value
Plastic Propeller	MF9545	Working Temp	-10~40℃
Weight (Single Propeller)	3.36g	Storage Temp	10~35℃
Material	Nylon+Glass Fiber	Storage Humidity	65±20% RH
Surface Treatment	Matte Technology	Optimum RPM	6000~7000RPM/min
Propeller Type	Polymer Propeller	Thrust Limitation	1.5kg

Test Data

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
AIR2213‑KV1000	MF9545	30%	16.05	171	0.02	0.82	4055	13	13.06	47 (Ambient Temperature:25)
		35%	16.05	227	0.03	1.2	4653	19	11.85
		40%	16.05	287	0.04	1.66	5212	26	10.83
		45%	16.05	357	0.05	2.25	5801	36	9.94
		50%	16.05	427	0.05	2.92	6329	47	9.17
		55%	16.04	497	0.06	3.67	6828	58	8.51
		60%	16.03	573	0.07	4.54	7314	72	7.94
		65%	16.01	641	0.08	5.51	7754	88	7.31
		70%	16	724	0.09	6.49	8202	103	7.04
		75%	15.99	803	0.1	7.59	8631	120	6.68
		80%	15.97	883	0.11	8.84	9046	140	6.32
		85%	15.96	963	0.12	10.16	9441	160	6.02
		90%	15.94	1043	0.13	11.58	9824	182	5.73
		95%	15.93	1123	0.14	13.13	10191	206	5.45
		100%	15.92	1202	0.15	14.73	10539	230	5.22

Note: Motor temperature is motor surface temperature @100% throttle running 10mins. (The above data is obtained by TMOTOR's independent platform test and is only for reference. The final interpretation right belongs to TMOTOR.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " online@mepsking.com " in time.
