Technical Drawing
A6-M 12S Specifications
General Specifications
Model No.
A6-M KV160
Tube Size
25 mm
Setup
A6-M Motor + 12S FOC 40A ESC + MF23P-M Propeller
Wire Material, Gauge and Color
Power Wires: 16 AWG Red & Black
Signal Wires: 5P Teflon
Recommended Battery
12S LiPo
Wire Length
485 ± 10 mm
Rated Thrust
2–2.5 kg
Weight
390 g ± 2% including wires and propeller
Efficiency at Rated Thrust
10.3 g/W at 2.3 kg
IP Rating
IPX6
Max Thrust
7.4 kg
Recommended Ambient Temperature
-20°C to 50°C
Motor Specifications
Stator Size
60 × 9 mm
KV
160
ESC Specifications
Throttle Range
1100–1940 μs (Fixed)
Max Voltage
61 V
Protocol
DroneCAN, UAVCAN and CUBE CAN
Peak Current
40 A for a short time in an open environment at temperatures ≤60°C
Control Method
PWM/CAN
BEC
No
Propeller Specifications
Model No.
MF23P-M Polymer Folding Propeller
Length
23 inches (585 mm)
A6-M 12S Test Data
Type
Voltage (V)
Throttle (%)
Current (A)
Thrust (gf)
Torque (N·m)
RPM
Motor Efficiency (%)
Overall Efficiency (gf/W)
Operating Temperature (°C)
A6-M KV160 + 12S FOC 40A + MF23P
48
30
1.50
1037
0.30
1847
80.47
14.38
122 (Ambient Temperature: 32°C)
35
2.30
1402
0.40
2150
81.49
12.69
40
3.31
1829
0.51
2445
82.10
11.50
45
4.58
2291
0.63
2733
81.81
10.39
50
6.15
2791
0.76
3017
81.07
9.42
55
7.95
3320
0.90
3290
81.05
8.68
60
10.06
3867
1.04
3549
79.81
7.99
65
12.41
4422
1.19
3794
79.13
7.40
70
15.02
4970
1.33
4026
77.55
6.87
75
17.80
5517
1.48
4240
76.67
6.44
80
20.82
6049
1.62
4439
75.10
6.03
85
23.79
6524
1.74
4617
73.44
5.70
90
26.95
6976
1.86
4776
71.70
5.38
95
29.83
7355
1.96
4903
70.07
5.12
100
30.91
7452
1.98
4937
68.79
5.01
Note: The operating temperature shown is the motor bell temperature measured after running at 80% throttle for 2 minutes. The data above is based on T-MOTOR bench tests and is for reference only.

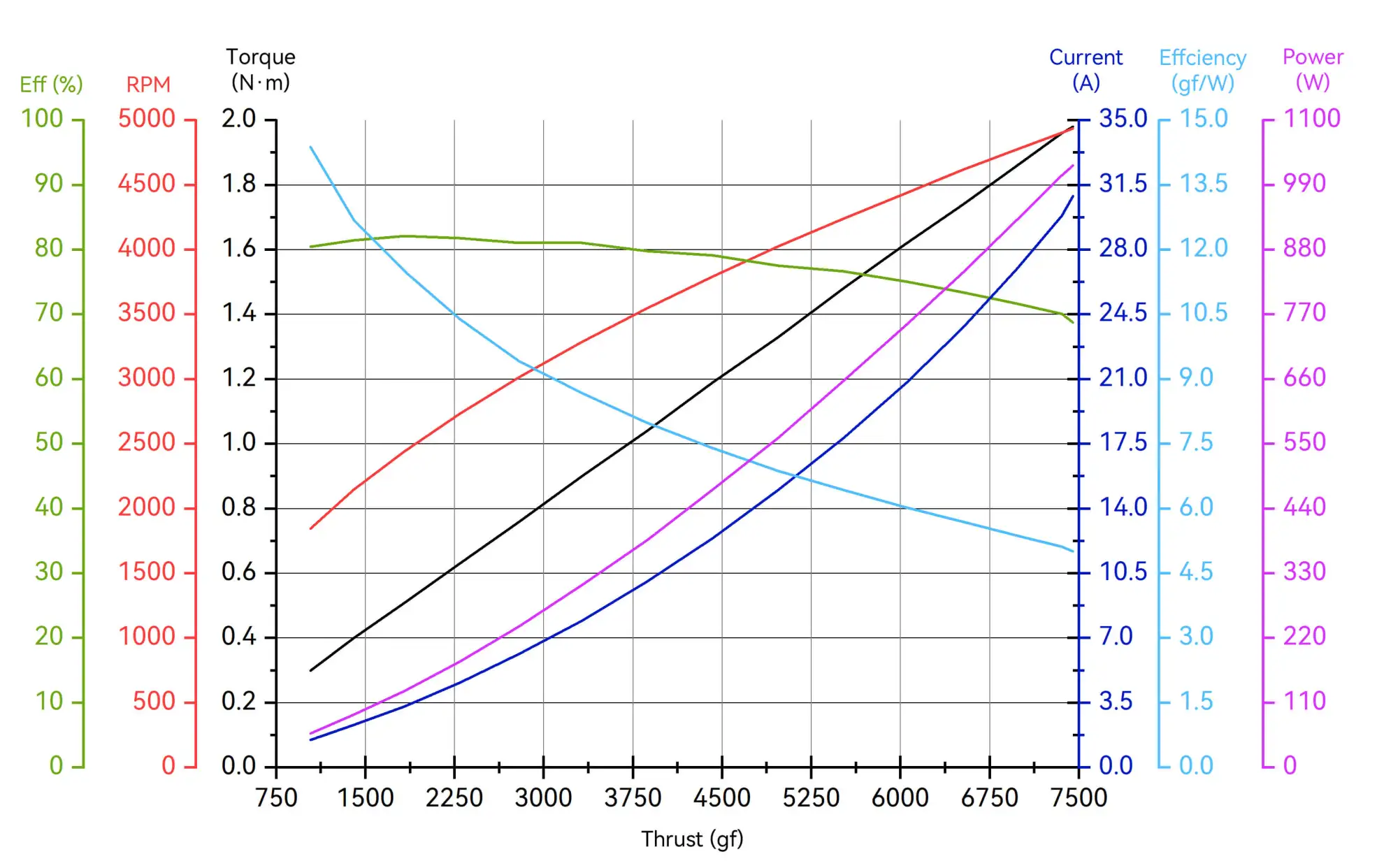

Analysis Chart

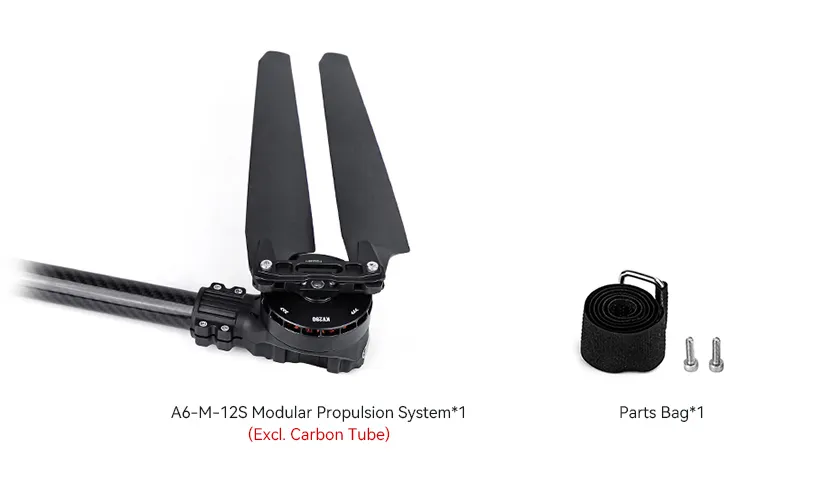

Packing List
Before using this product, please check whether all the items listed above are included in the package. If anything is missing, please contact our online customer service or email us at online@mepsking.com.
